| Executive Overview & Functional Modularity |

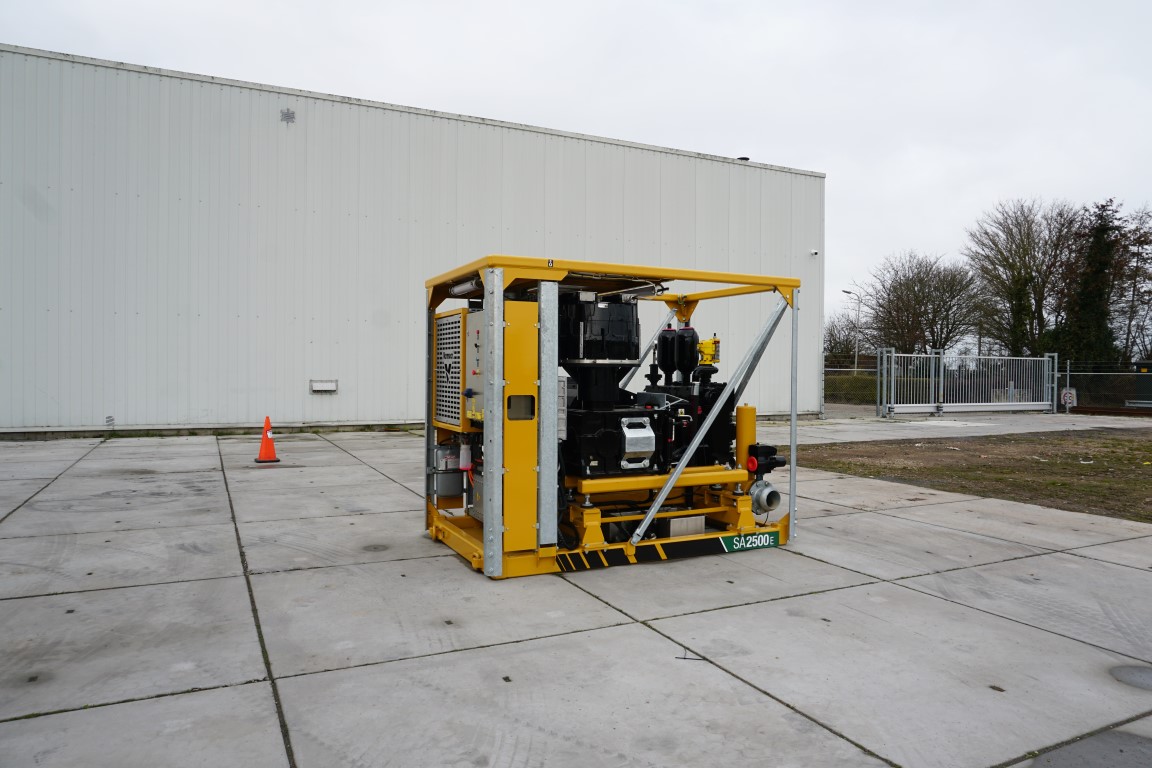

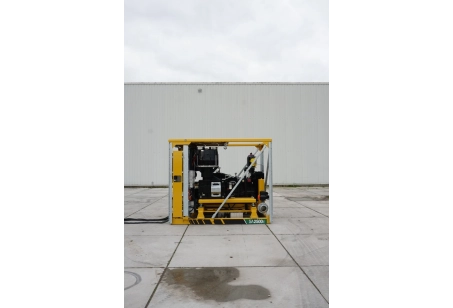

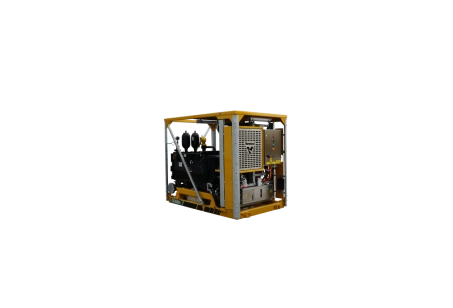

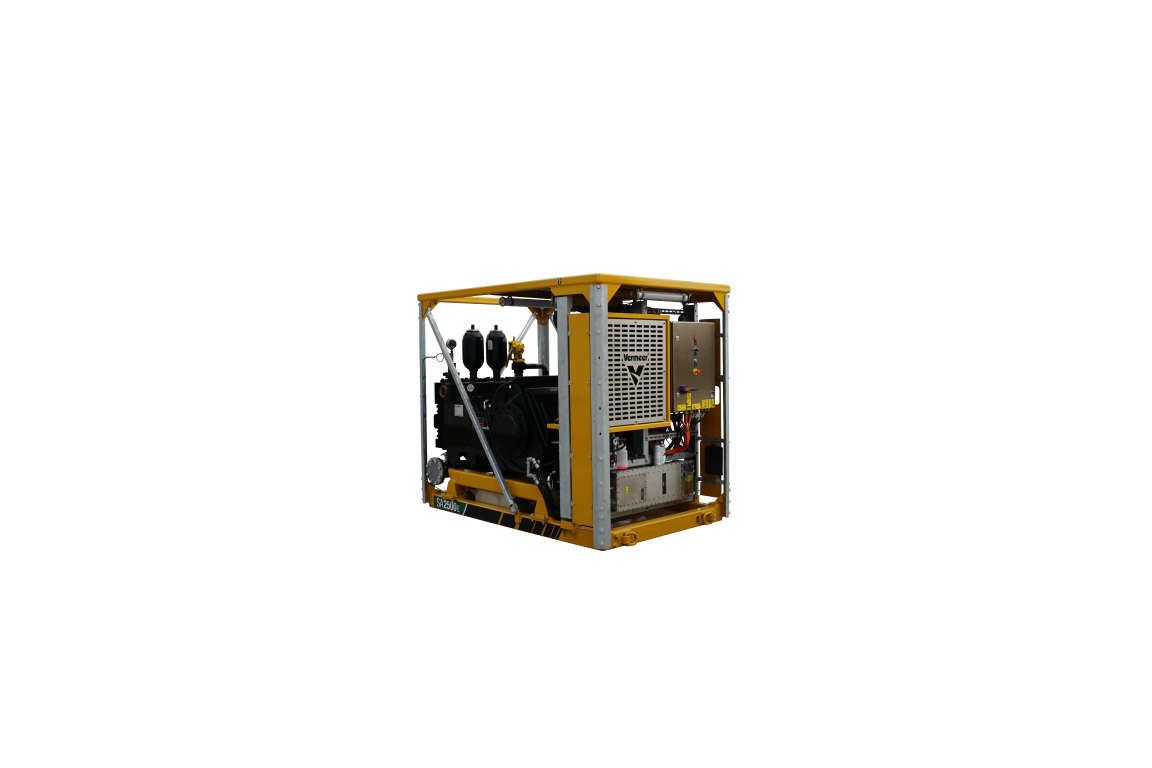

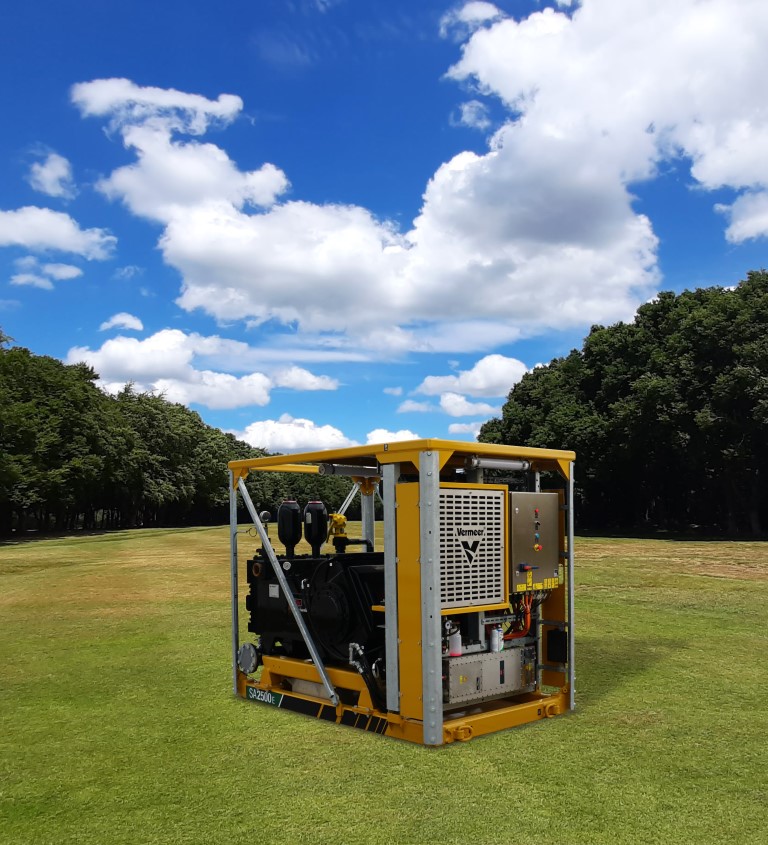

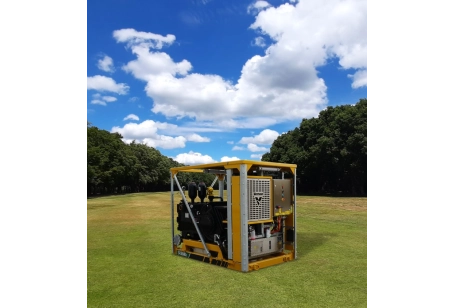

| A fully electric, high-pressure stand-alone mud pump unit engineered for heavy-duty pipeline installations using horizontal directional drilling (HDD). Driven by a high-torque 339-kW Danfoss electric motor paired with a Tecniwell TW2500 HDD triplex piston pump, it represents an ideal solution for maxi-class setups. Built inside an open skid frame matching a half-high ISO 20-ft container footprint, the modular architecture permits running multiple units in parallel to scale high fluid volumes as demanded by specific site layouts. |
| General Dimensions and Weights |
| Total Net Weight |
15,609 lbs (7,080.1 kg) |
| Length |
8.9 ft (2.7 m) |
| Width |
87.8 in (223 cm) |
| Height |
68.5 in (174 cm) |
| Transport Efficiency |

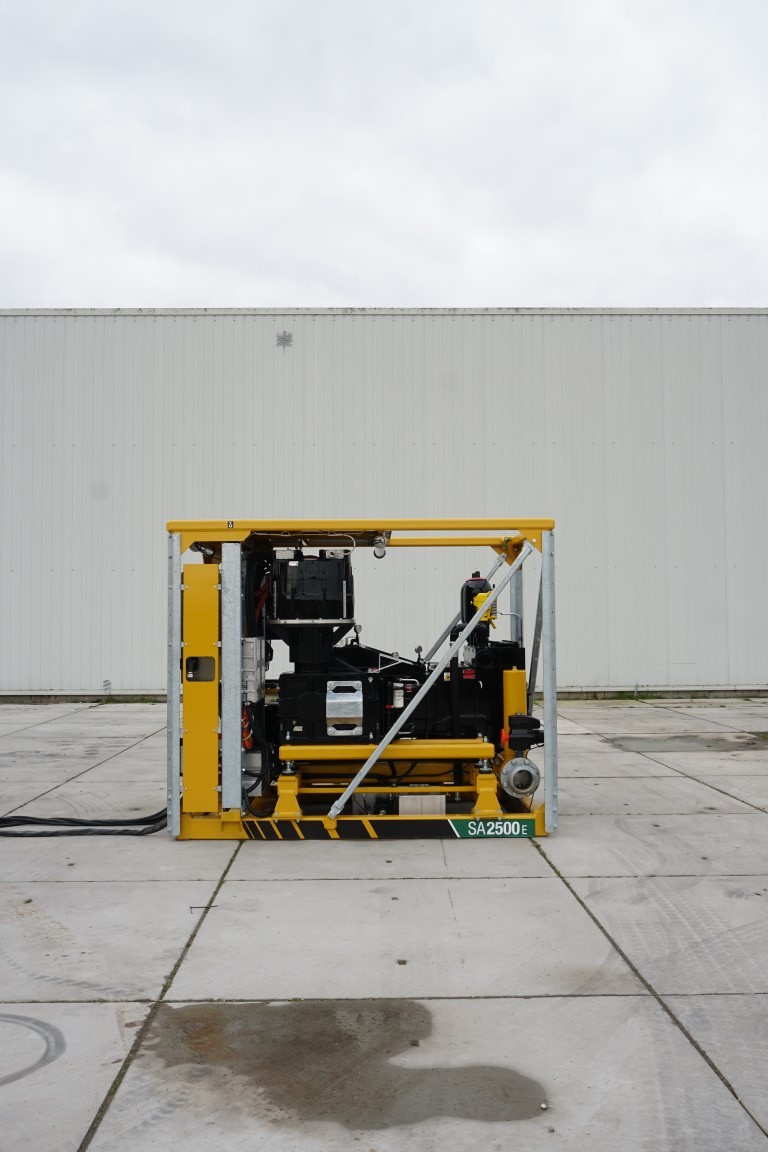

Compact frame easily loads and fits into a half-standard ISO 20-ft container profile. |
| Electric Drive Line & Powertrain |
| Drive Type |
Fully Electric |
| Drive Motor Model |
Danfoss, EM-PMI540-T1500-2400-DUA |
| Operating Voltage |
500 V AC |
| Maximum Power Output |
454.6 hp (339 kw) |
| Maximum Electrical Power Draw |
416 A |
| Gearbox Make and Model |
Reggiana Riduttori, RVB 60 i=8 |
| Recommended External Generator |
Required rating: 375 kVA, 400V AC 50Hz |
| Fluid Pumping Subsystem |
| System Configuration |
Standalone module frame, open skid layout |

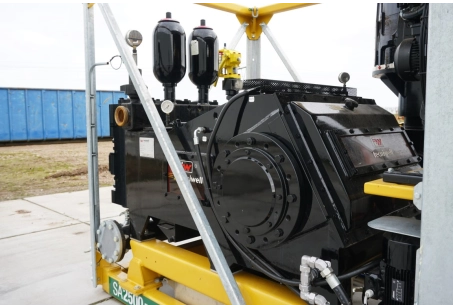

| High Pressure Pump Model |

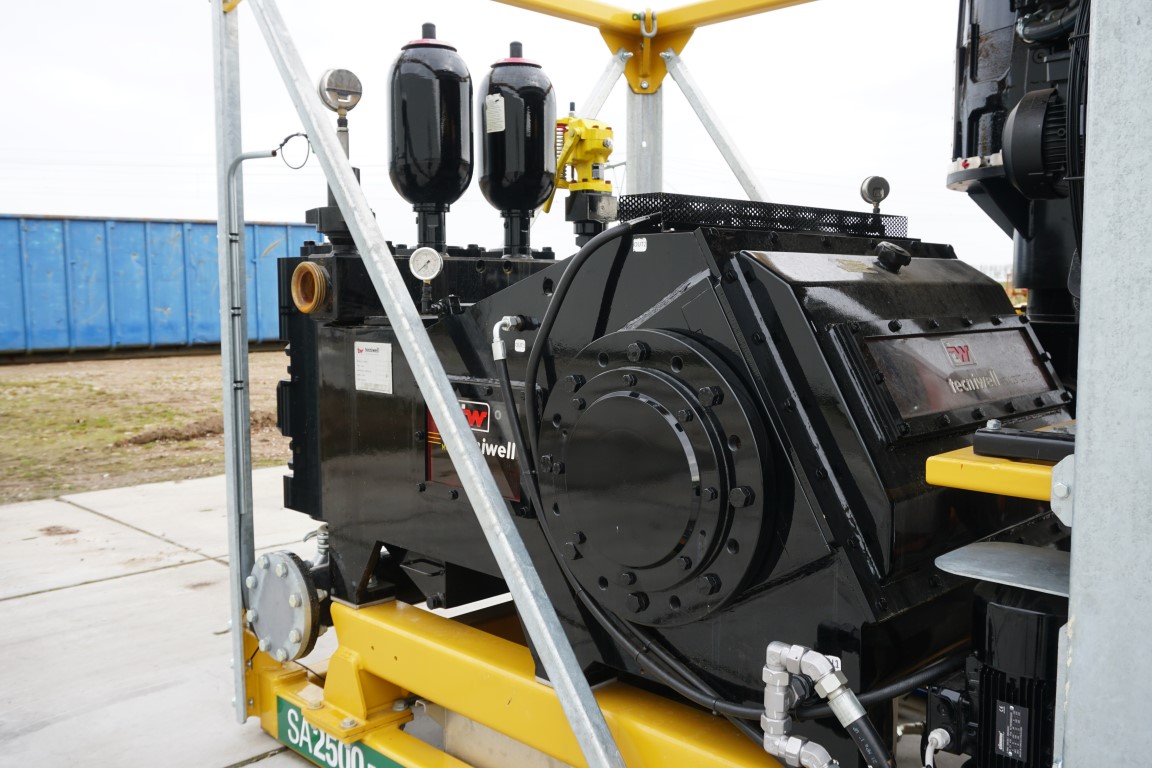

Tecniwell TW2500 HDD, triplex piston pump |
| Standard Liner / Piston Diameter |
7 in (17.8 cm) |
| Optional Liner Diameters Variety |
From 6.5 in to 8 in (16.5 cm to 20.3 cm) |
| Standard Fluid Delivery Rate (7" Liners) |
632.2 gpm (2,393 L/min) @ 1,160.3 psi (80 bar) |
| Scalable Fluid Performance Range |
Depending on installed liner sizes, it scales up to 3,100 L/min (at a maximum pressure of 60 bar) to satisfy a vast scope of bore dimensions. |
| Relief Valve Safety Setting |
1,160.3 psi (80 bar) |
| Thermal Management (Cooler Unit) |
| Cooler Architecture |
Water cooler unit |
| Cooling Circulating Pump |
Hydac WGK CM3-3/400-50 |
| Radiator Element Assembly |
Hydac AC-LN 9L |
| Controls, Interface & Safety |

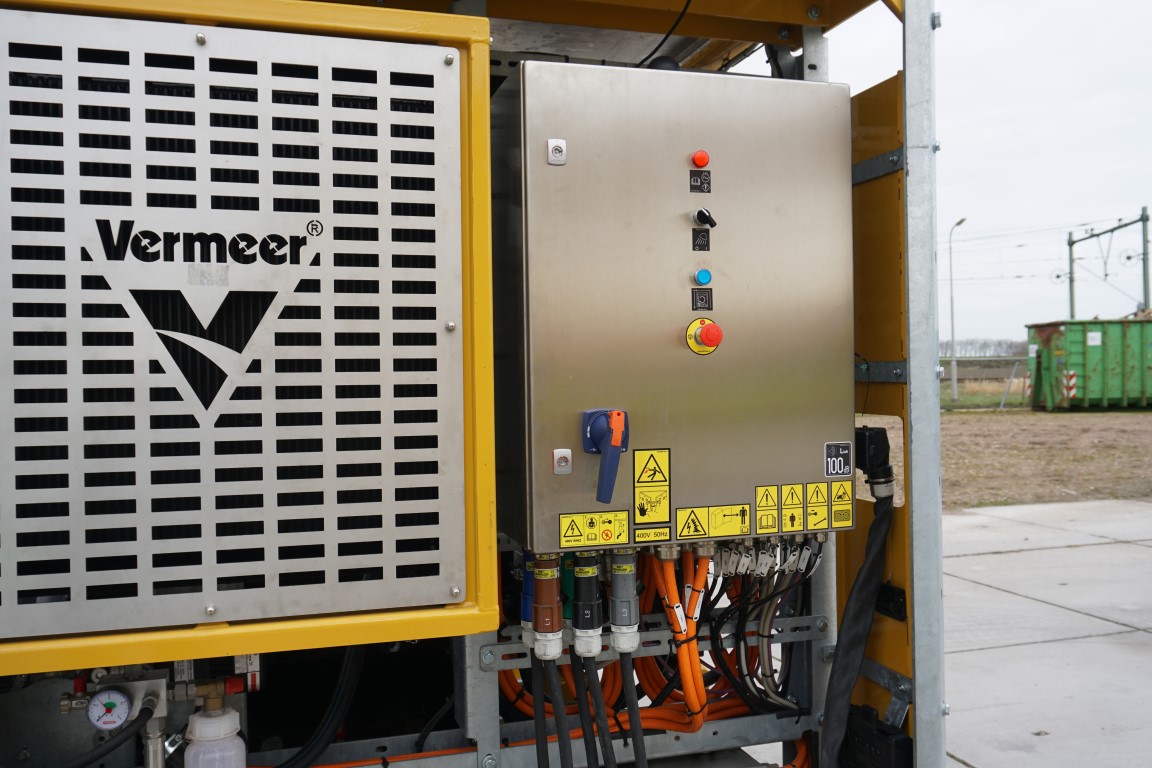

| Control Architecture |
Onboard master console with companion remote capabilities |

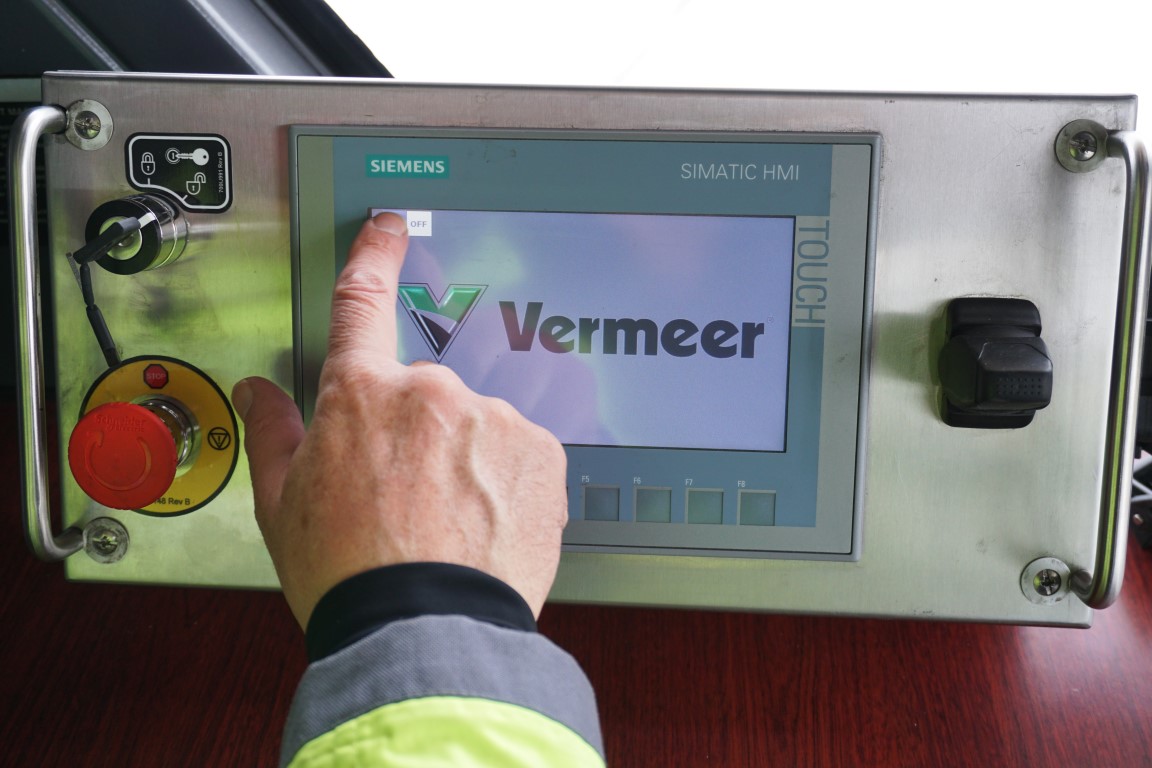

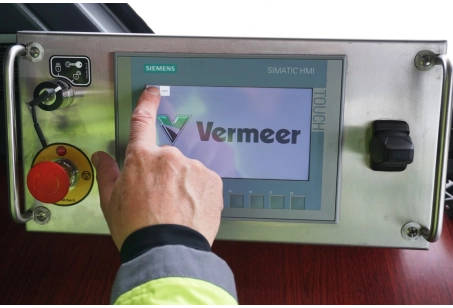

| Human-Machine Interface (HMI) |
Tethered remote control box reaching up to 82 ft (25 m), equipped with a user-friendly touch screen for real-time diagnostics and telemetry configuration. |
| Remote Lockout Protection |
Yes |
