| Machine Overview & Market Availability |

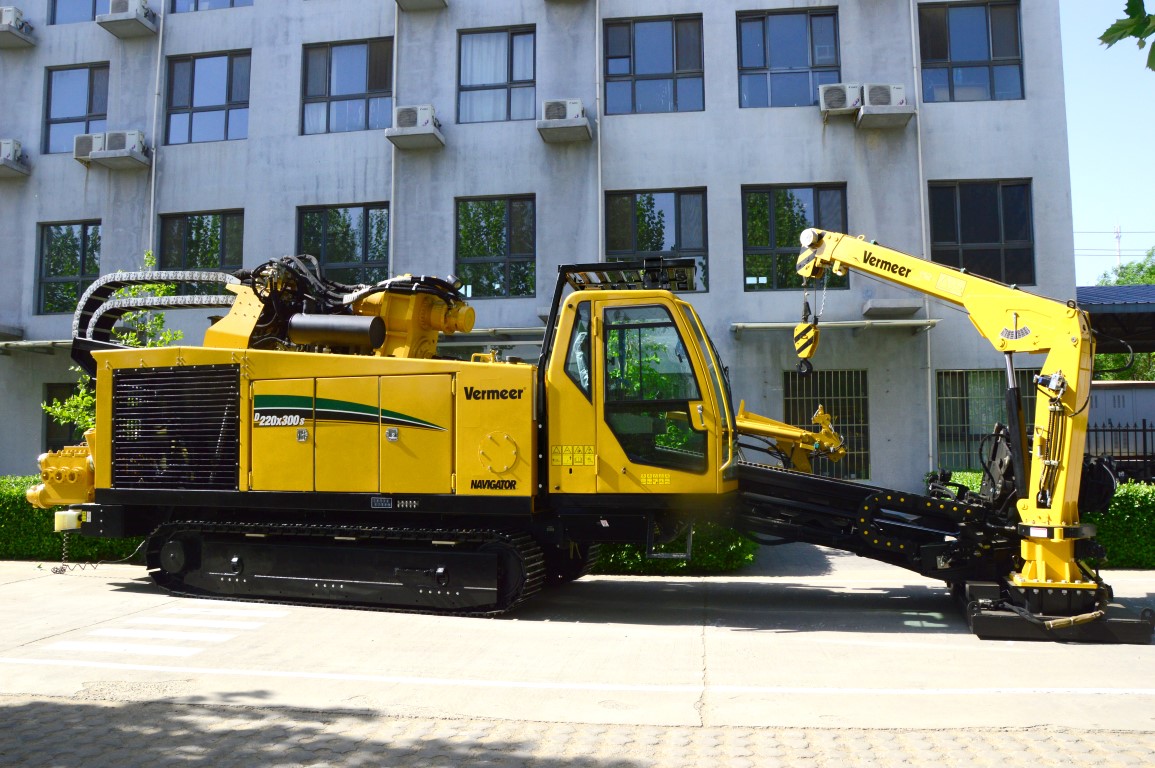

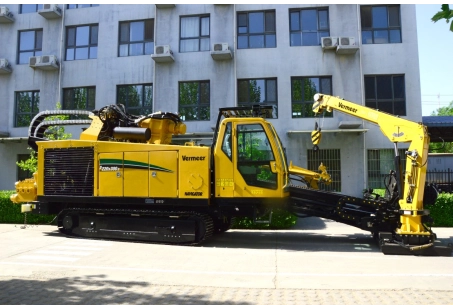

| A robust, 220,000 lbs (100 metric ton) thrust/pullback horizontal directional drill manufactured by Vermeer Tianjin Manufacturing Co., Ltd. Engineered specifically for less-emission regulated countries, it delivers heavy maxi-rig performance to conquer tough rural terrains or congested urban jobsites. Features exceptional self-containment options including a 300 gpm onboard fluid pump and an integrated telescoping crane. |
| General Dimensions and Weights (Minimum Transport) |
| Operating/Transport Weight |
63,900 lbs (28,984.6 kg) |
| Length |
462 in (1173.5 cm / 11.73 m) |
| Width |
90 in (228.6 cm / 2.28 m) |
| Height |
116.4 in (295.7 cm / 2.95 m) |
| Engine Performance Specifications |
| Make and Model |
Xi'an Cummins QSM11-400 |
| Gross Power Output |
400 hp (298.3 kw) |
| Maximum Engine Speed |
2,100 rpm |
| Emissions Rating |
Tier 2 |
| Operational Power & Mechanical Performance |
| Thrust Force |
220,000 lbs (978.6 kN) |
| Pullback Force |
220,000 lbs (978.6 kN) |
| Maximum Spindle Torque (Low Gear) |
30,000 ft-lb (40,674.6 Nm) |
| Maximum Spindle Torque (Medium Gear) |
22,788 ft-lb (30,896.4 Nm) |
| Maximum Spindle Torque (High Gear) |
14,000 ft-lb (18,981.5 Nm) |
| Maximum Spindle Speed |
140 rpm (at max engine RPM) |
| Maximum Ground Drive Travel Speed |
1.6 mph (2.6 km/h) |
| Dual-Pivot Drilling Rack |
The dual-pivot structure accommodates entry angles from 10 degrees up to 24 degrees, maximizing adaptability across changing terrain and product pipe requirements. |
| Breakout Vise & Rod Loading Systems |
| Breakout System (Vise) |
Standard. Features an open-top vise design which enables fast, unhindered removal and addition of downhole tooling. |
| Automated Rod Loader |
Optional. Supports a single-row, sliding-arm rod loader configuration that stages five rods simultaneously, accelerating boring efficiency by cutting rod-loading cycle times. |
| Onboard Drilling Fluid (Mud) System |
| High-Pressure Fluid Pump (Option One) |
Maximum Flow: 300 gpm (1,135.6 L/min) | Maximum Pressure: 1,650 psi (113.8 bar) |
| Mud Flow Indicator |
Standard |
| System Benefit |
The high-capacity 1,136 L/min onboard pump provides a highly mobile, self-contained footprint. For larger pipeline projects requiring higher flow rates, it can be seamlessly combined with a standalone external high-volume pump. |
| Integrated Support Crane |
| Maximum Lifting Capacity |
4,410 lbs (2,000.3 kg / 2.0 metric tons) |
| Boom Rotation Range |
270 degrees |
| Optional Telescoping Crane |
Yes. Choosing the integrated telescoping crane minimizes footprint and vastly reduces the amount of secondary logistical support vehicles needed on site. |
| Operator Comfort, Safety & Fluid Capacities |
| Operator Station (Cab) |
Standard. The fully enclosed, climate-controlled cab (Heat/AC) delivers elements protection, optimizes operator environment, and reduces fatigue during long shifts. |
| Drilling Lights / Stakedown System |
Drilling Night Lights: Standard | Anchoring Stakedown System: Optional |
| Fuel Tank Capacity |
156 gal (590.5 L) |
| Hydraulic Tank Capacity |
211 gal (798.7 L) |
