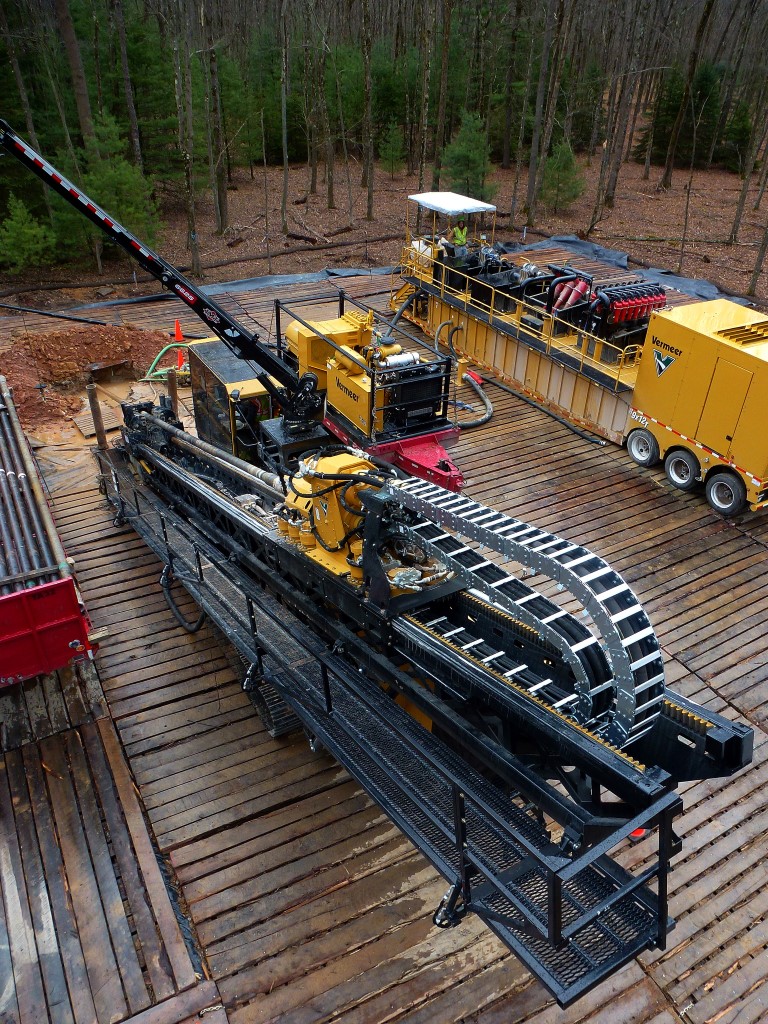

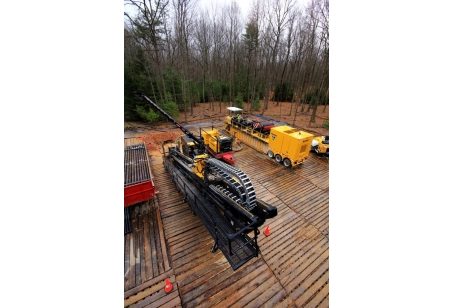

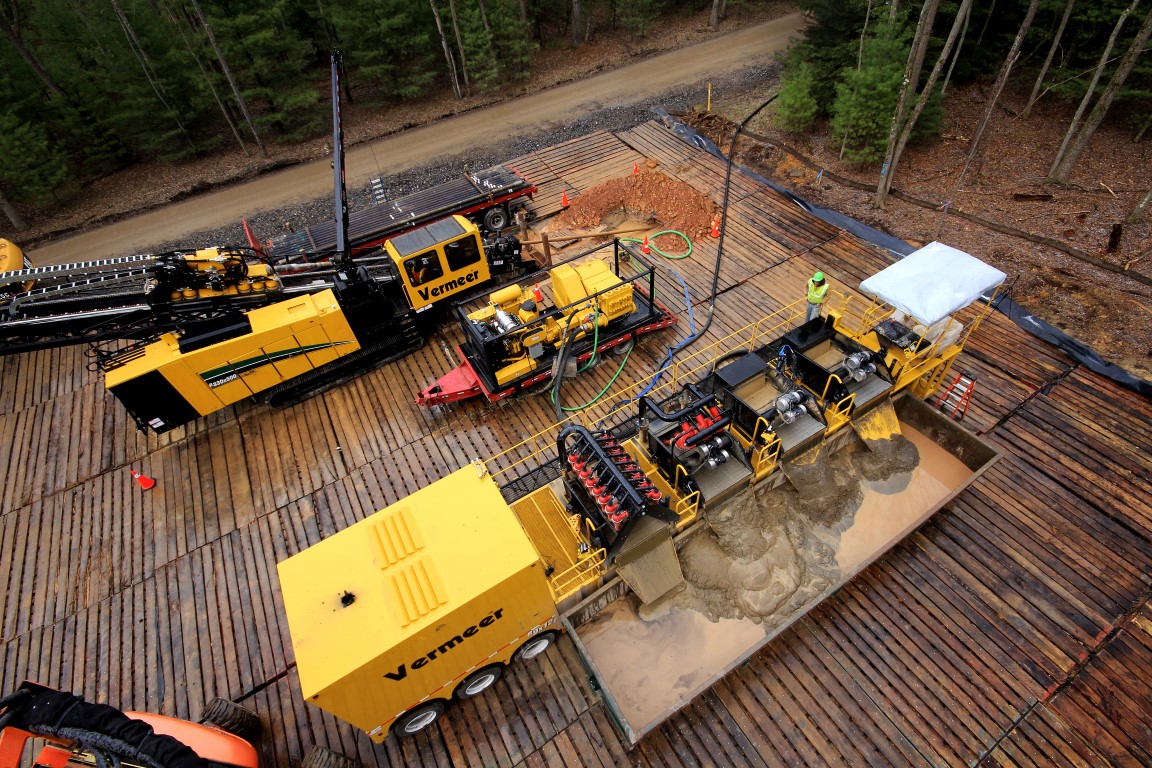

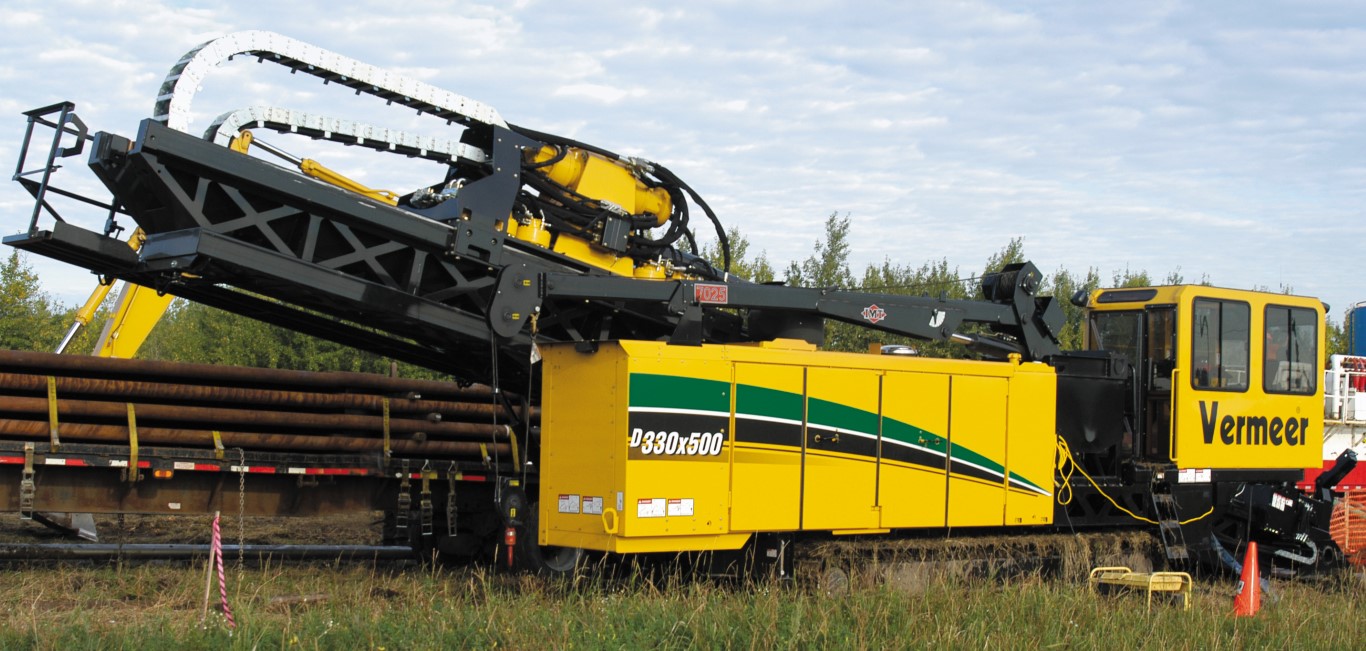

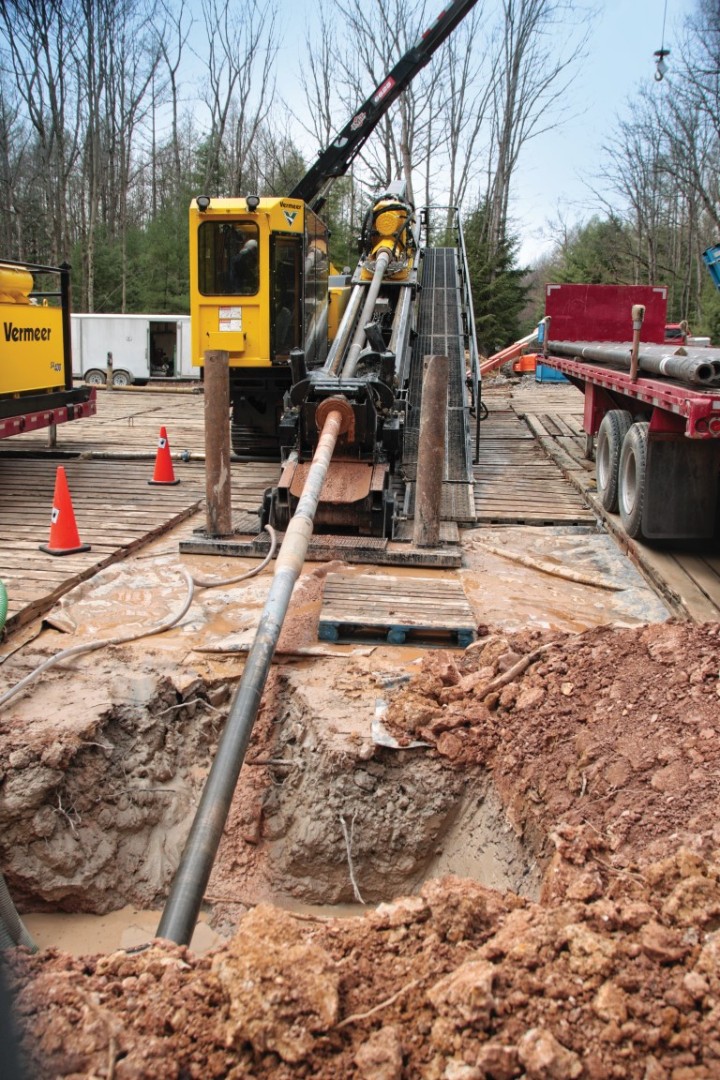

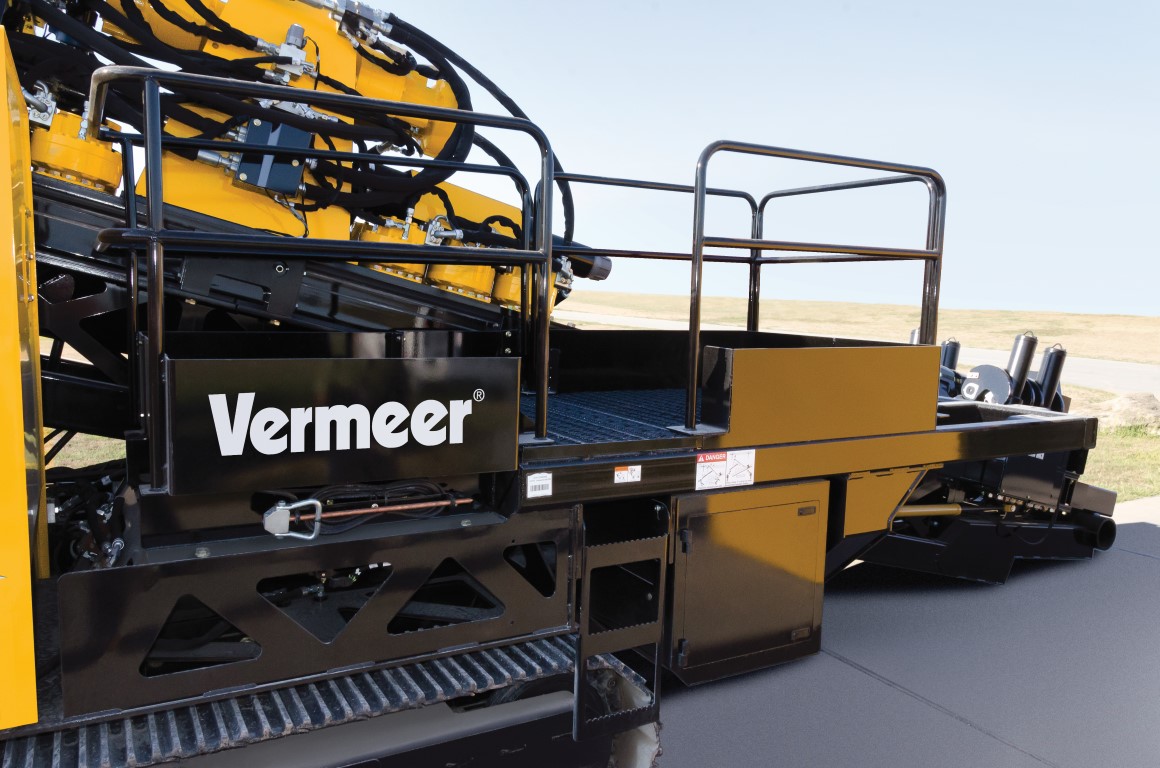

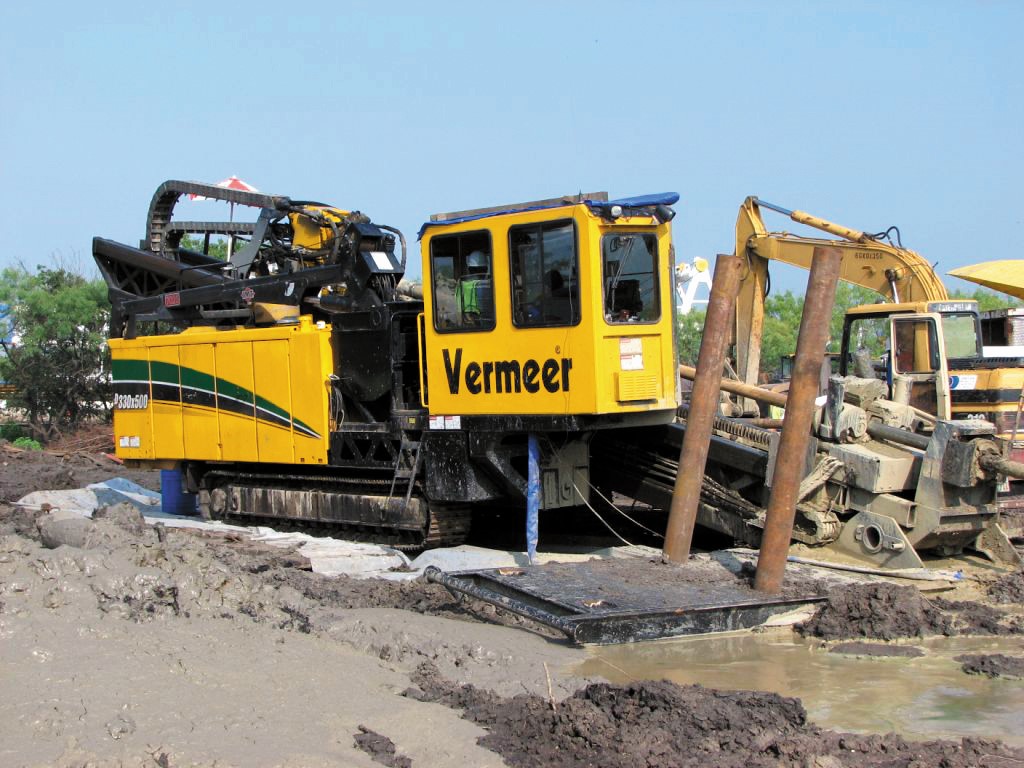

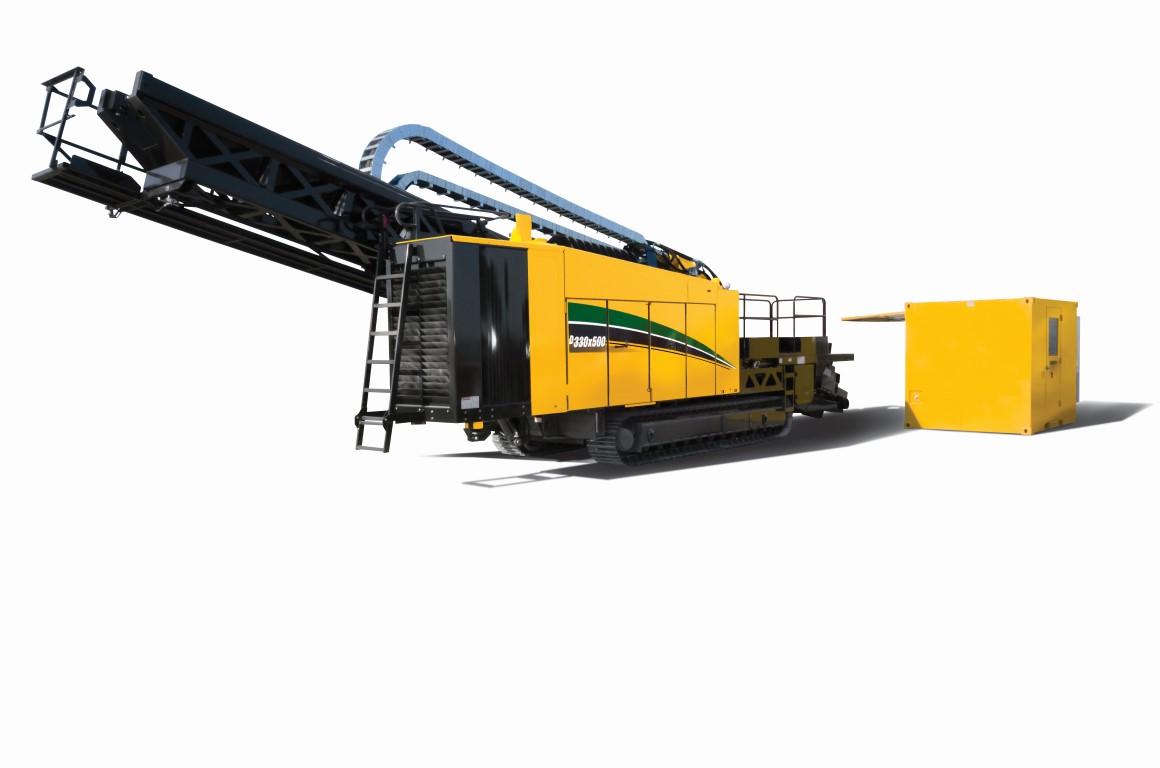

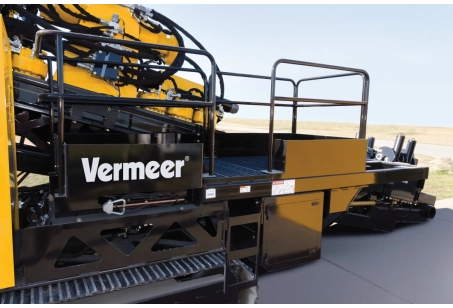

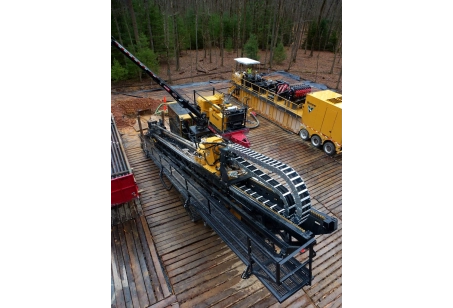

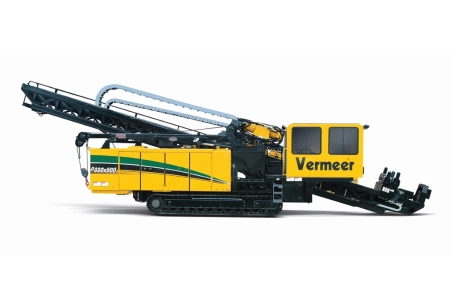

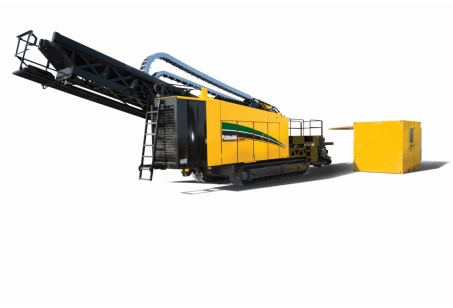

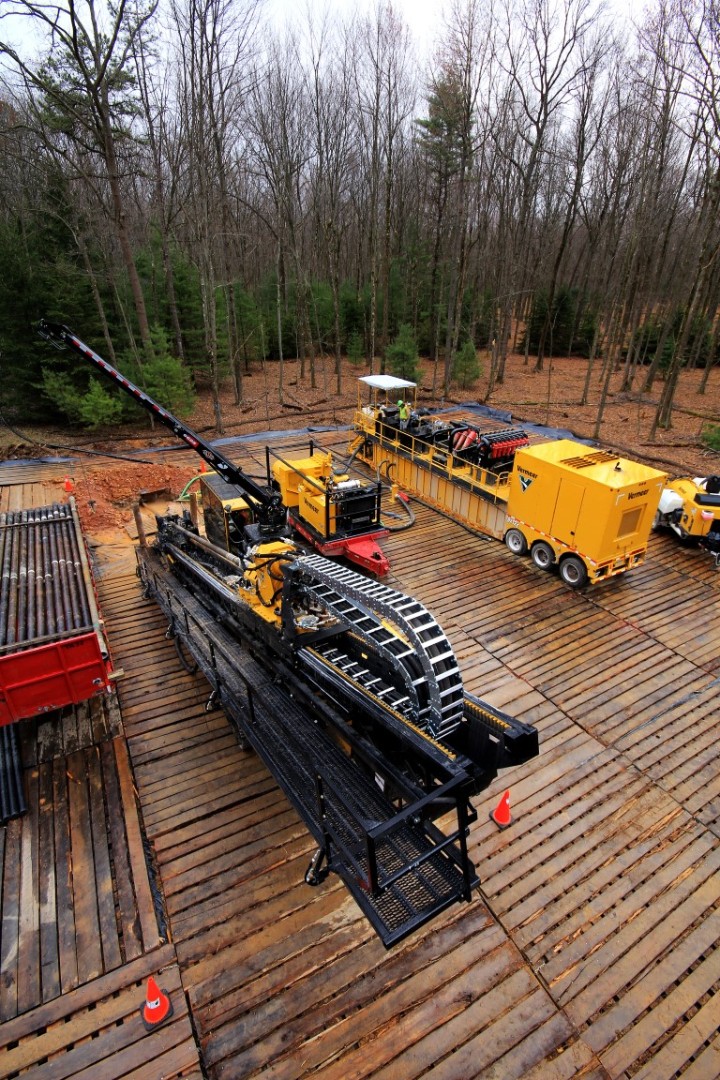

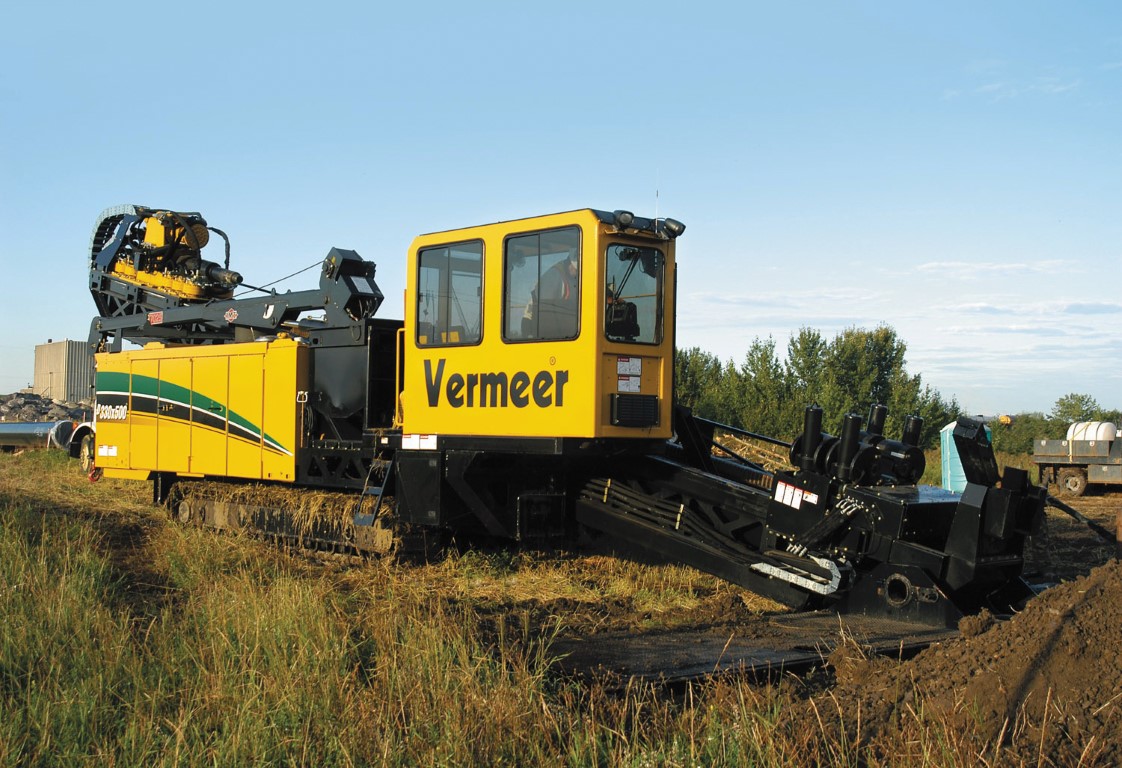

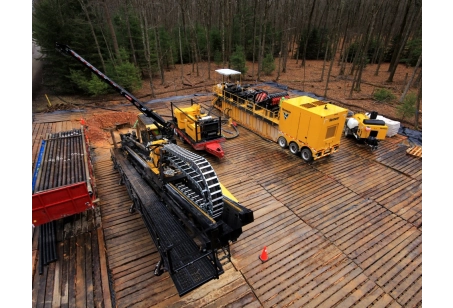

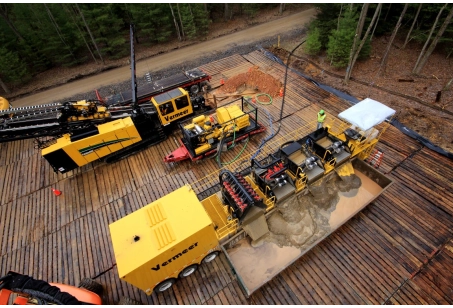

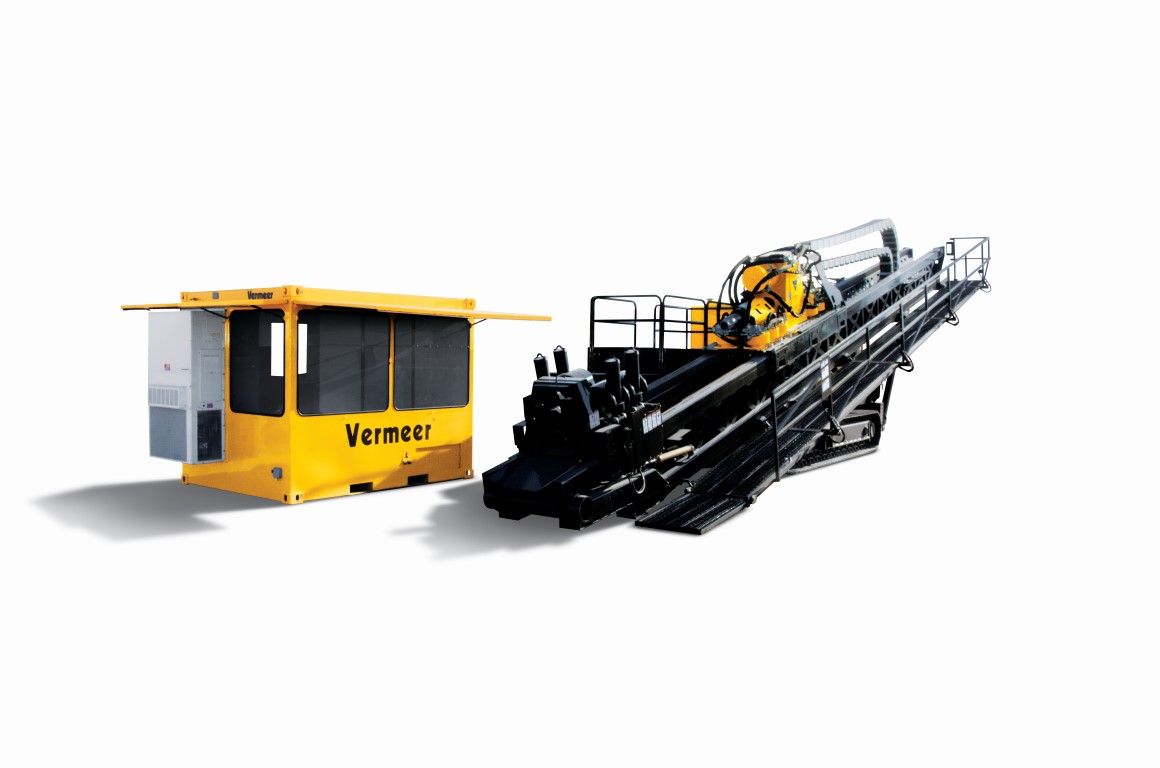

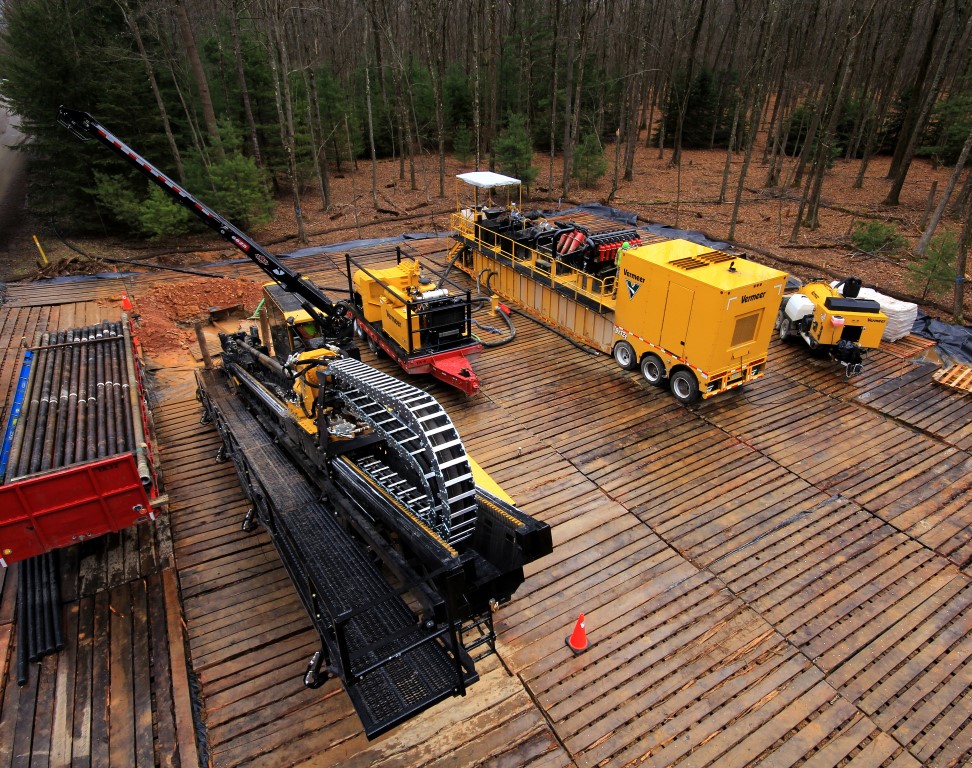

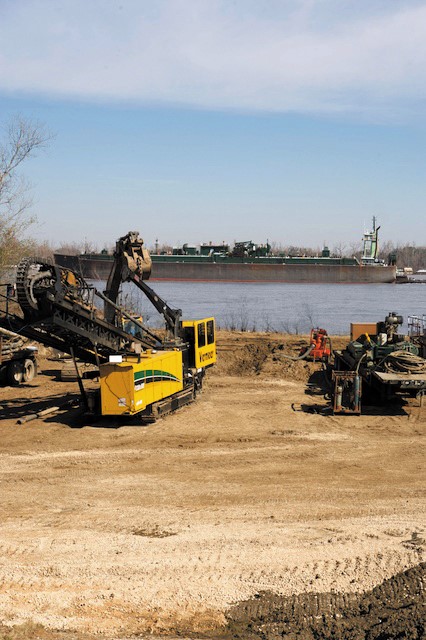

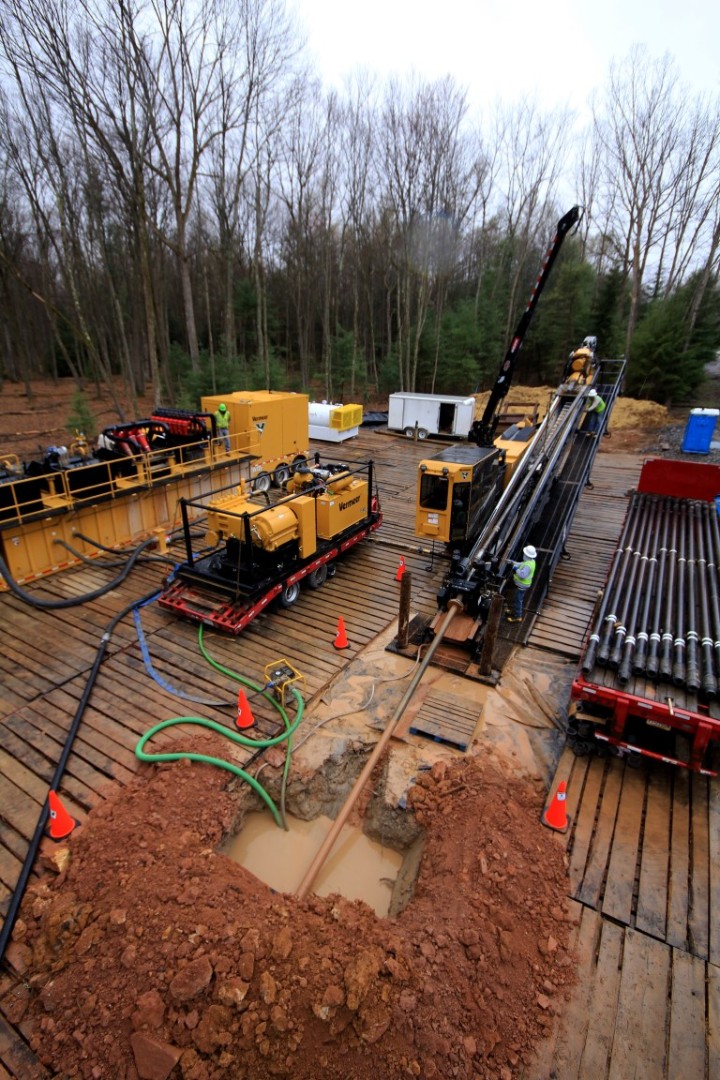

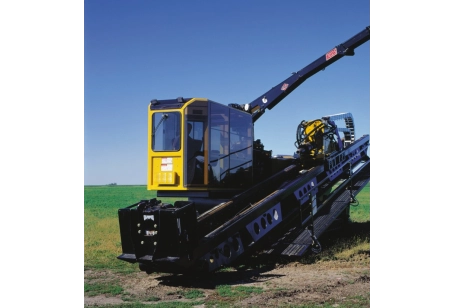

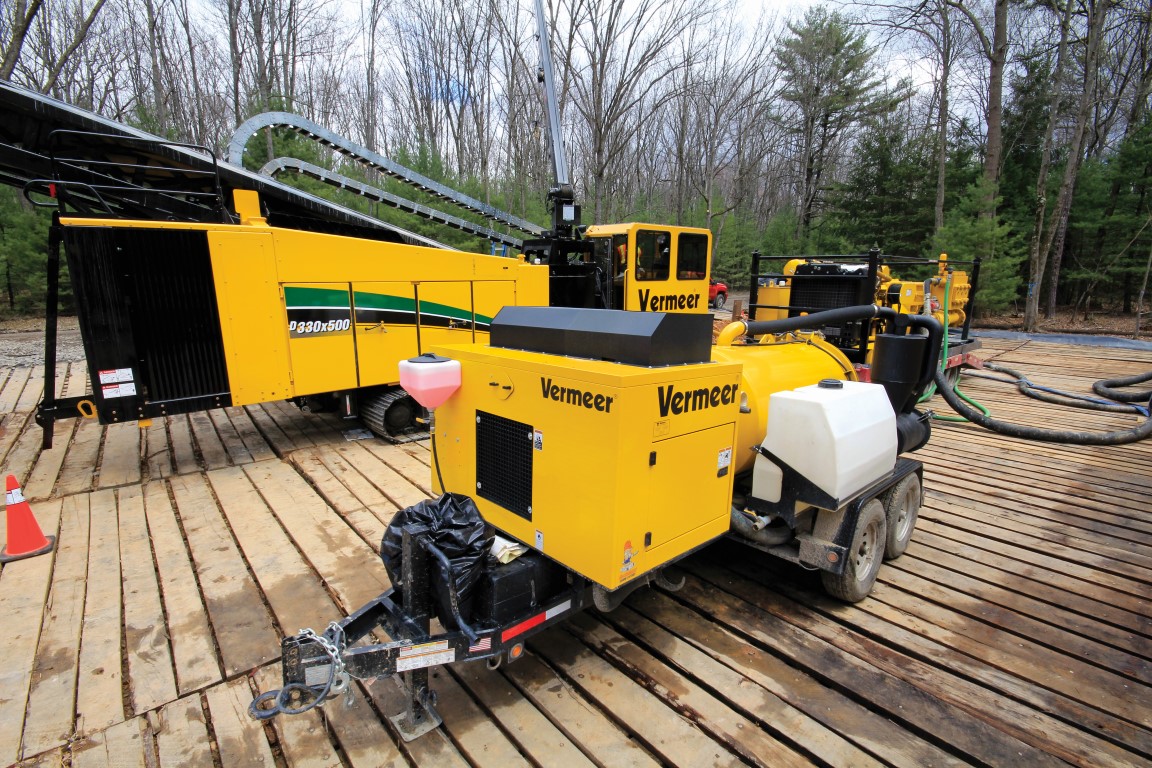

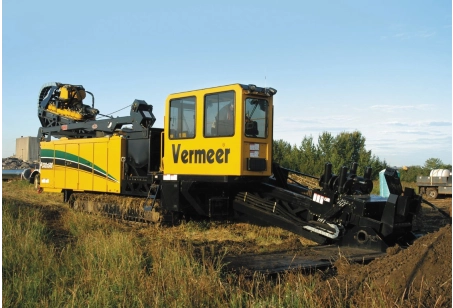

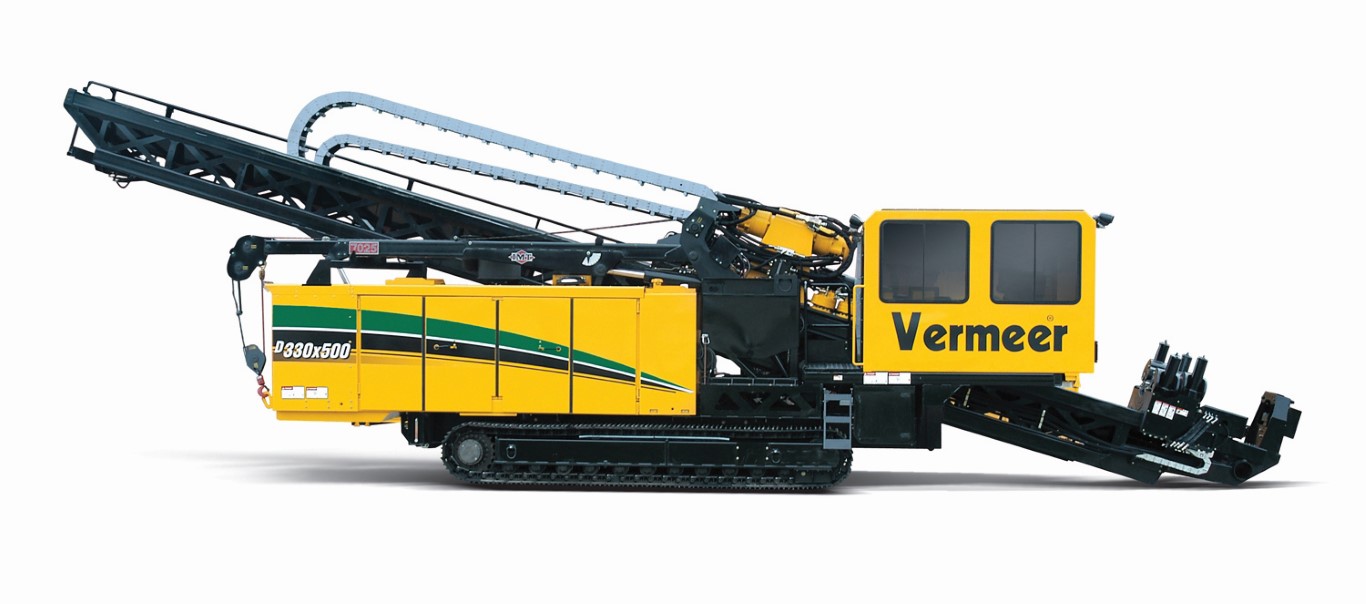

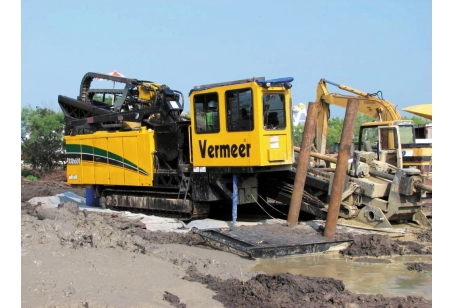

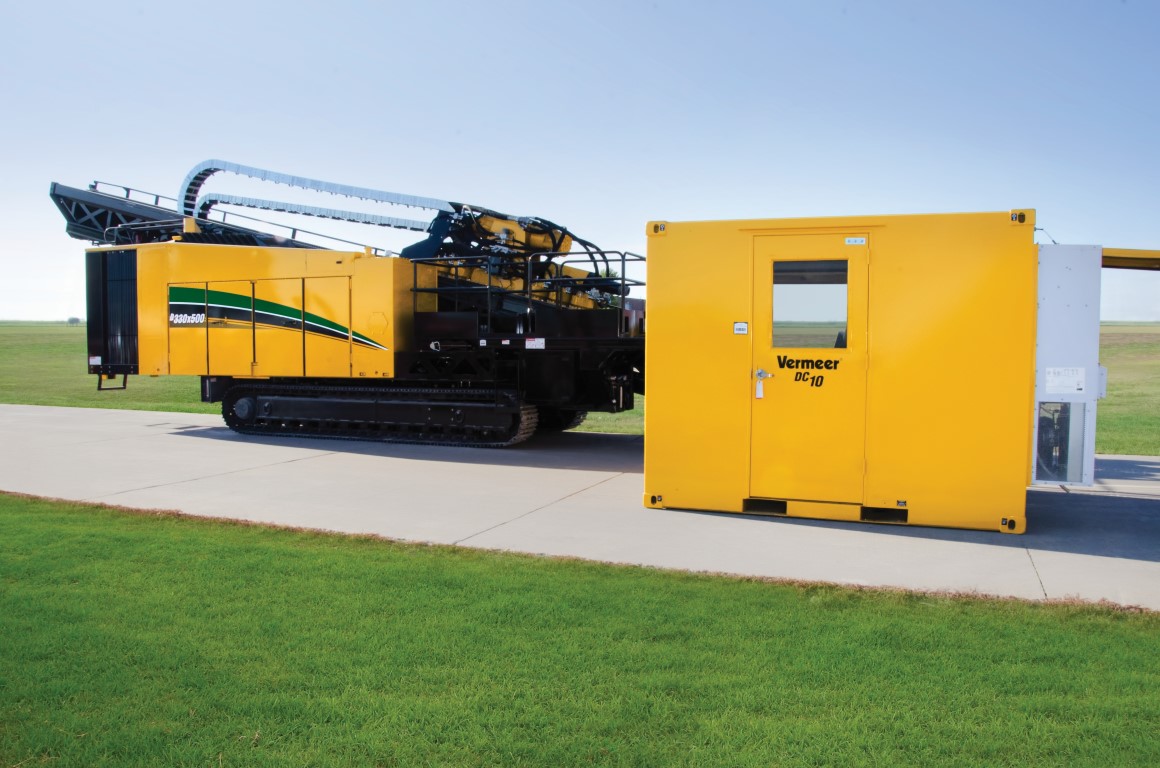

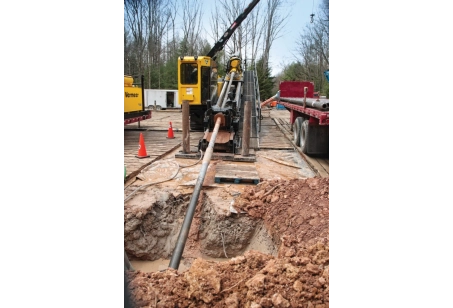

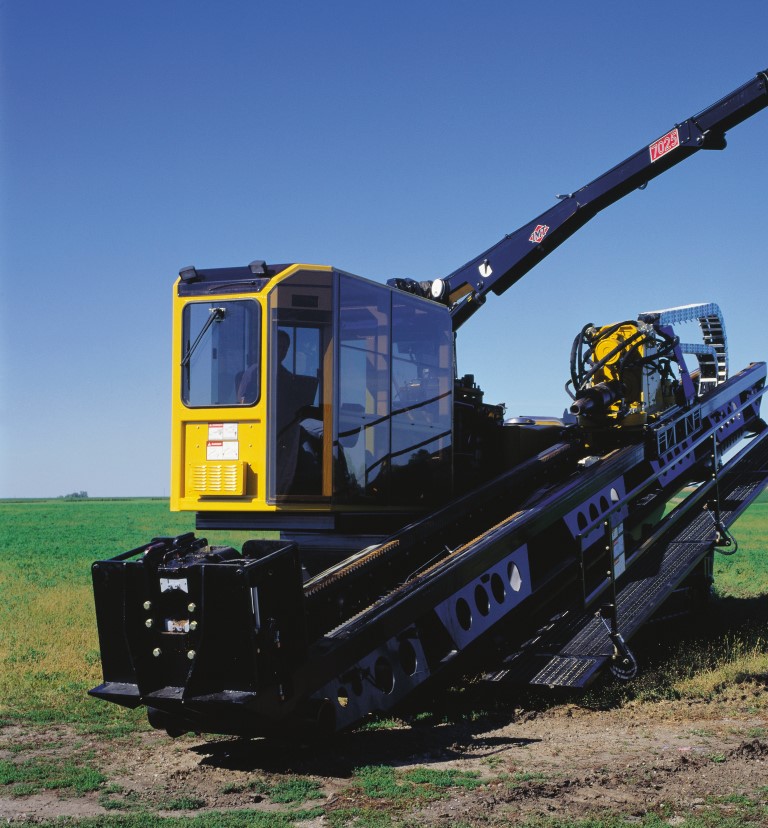

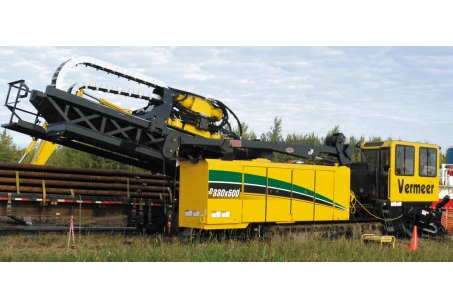

| General Dimensions and Weights (Minimum Transport) |
| Operating / Transport Weight |
90,000 lbs (40,823.3 kg) |
| Length |
640 in (1,625.6 cm / 16.25 m) |
| Width (With Cab) |
100 in (254 cm / 2.54 m) |
| Height (With Cab) |
134 in (340.4 cm / 3.4 m) |
| Engine Performance Specifications |
| Gross Power Output |
540 hp (402.7 kw) |
| Maximum Fuel Consumption Rate |
28.9 gph (109.5 lph) |
| Operational Power & Boring Performance |
| Pullback Force |
340,000 lbs (1,512.4 kN) |
| Thrust Force |
340,000 lbs (1,512.4 kN) |
| Maximum Spindle Torque (Low Gear) |
50,000 ft-lb (67,791 Nm) |
| Maximum Spindle Torque (Medium Gear) |
37,500 ft-lb (5,0843.3 Nm) |
| Maximum Spindle Torque (High Gear) |
25,000 ft-lb (33,895.5 Nm) |
| Minimum Bore Diameter Capability |
6.5 in (16.5 cm) |
| Maximum Carriage Speed |
56 ft/min (17.1 m/min) at max engine RPM |
| Maximum Ground Drive Speed |
3 mph (4.8 km/h) at max engine RPM |
| Integrated Onboard Crane Specifications |
| Maximum Lifting Capacity (Retracted) |
14,000 lbs (6,350.3 kg) |
| Maximum Lifting Capacity (Full Reach Extended) |
2,600 lbs (1,179.3 kg) |
| Maximum Boom Reach |
300 in (762 cm / 7.62 m) |
| Hydraulic Pumps Performance & Relief Settings |
| Rotation Pump Flow Rate |
140 gpm (530 L/min) at max engine RPM |
| Rotation Pump Relief Pressure |
5,800 psi (399.9 bar) |
| Thrust/Pullback Pump Flow Rate |
140 gpm (530 L/min) at max engine RPM |
| Thrust/Pullback Pump Relief Pressure |
6,000 psi (413.7 bar) |
| Auxiliary Pump Relief Pressure |
3,000 psi (206.8 bar) |
| Fluid Tank Capacities |
| Fuel Tank |
210 gal (794.9 L) |
| Hydraulic System Capacity Total |
270 gal (1,022.1 L) |
| Hydraulic Fluid Tank |
200 gal (757.1 L) |
