| Machine Overview & Technological Innovation |

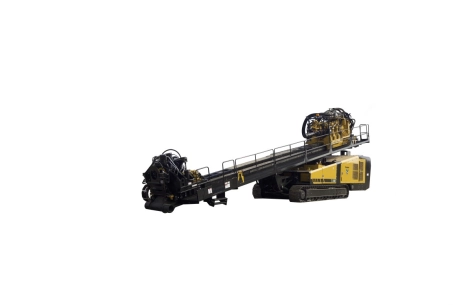

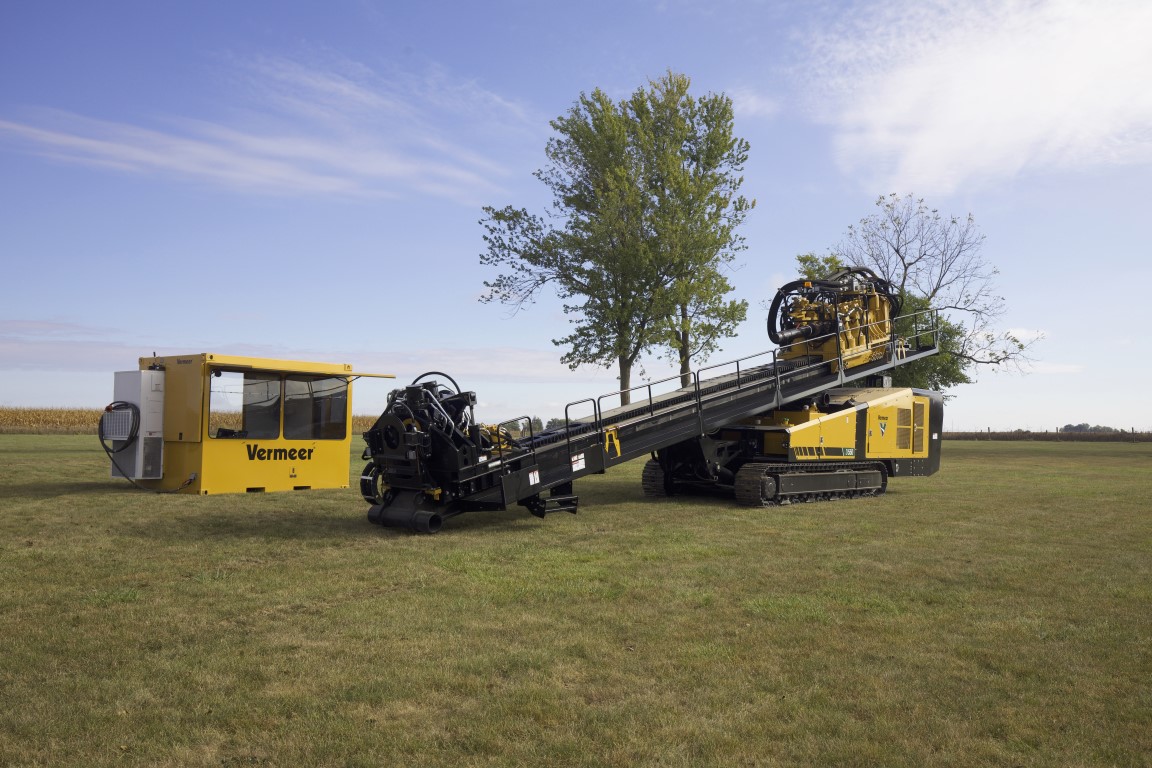

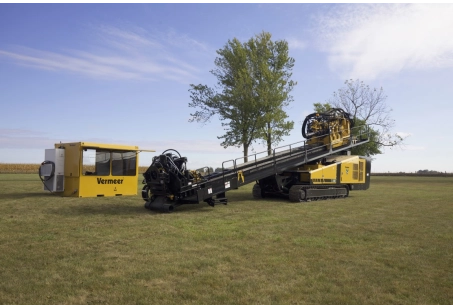

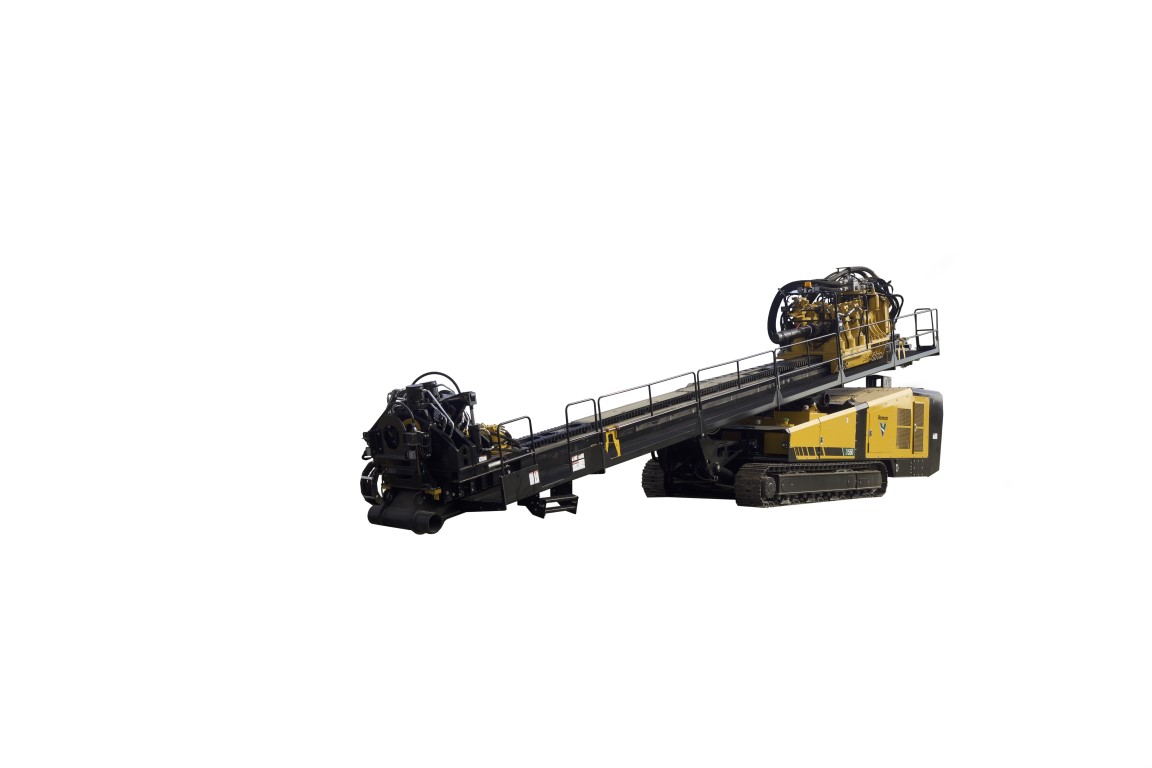

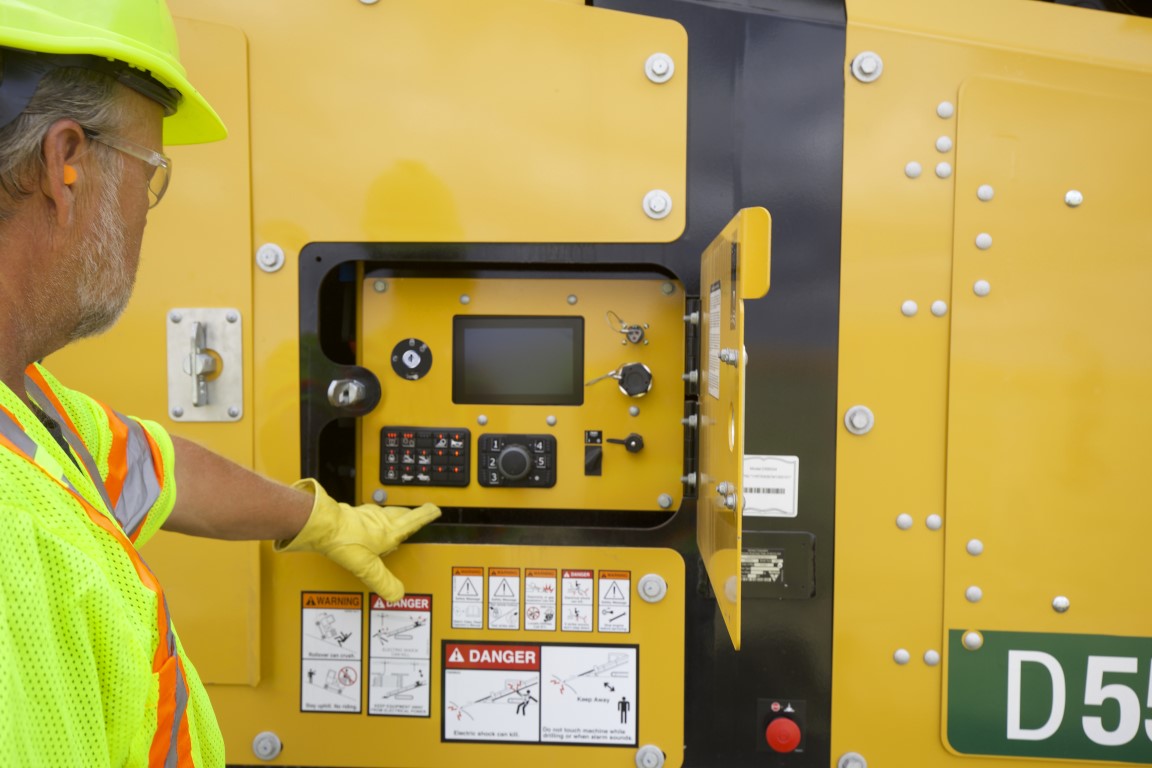

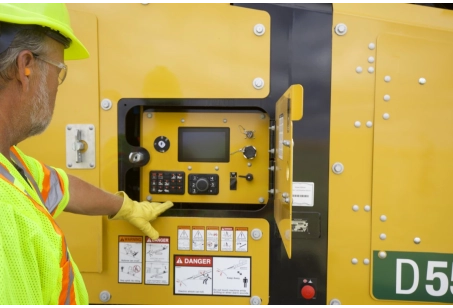

| A groundbreaking, self-contained track-mounted maxi rig leading the 550,000 lbs (250 metric ton) thrust class with an unparalleled 100,000 ft-lb (135,582 Nm) of rotational torque. Equipped with advanced telematics, real-time remote diagnostics, and an innovative hydraulic transmission that facilitates ultra-slow speed feeding for aggressive hard rock cutting. Its agile design allows it to weigh under 100,000 lbs for transport once the vise is unpinned, offering mobile track convenience with trailer-rig muscle. |
| General Dimensions and Weights (Minimum Transport) |
| Operating Weight |
105,000 lbs (47,627.2 kg) |
| Length |
651 in (1,653.5 cm / 16.53 m) |
| Width |
100 in (254 cm / 2.54 m) |
| Height |
138 in (350.5 cm / 3.5 m) |
| Angle of Approach |
12 deg |
| Engine Performance Specifications |
| Make and Model |
Caterpillar C18 ACERT (Turbocharged aftercooled, liquid-cooled) |
| Gross Power Output |
599 hp (446.7 kw) |
| Displacement |
1,104 cu-in (18.1 L) |
| Emissions Certification |
Tier 4 Final / EU Stage V (Requires Ultra Low Sulfur Diesel) |
| Rated Speed / Idle Speed |
1,800 rpm / 800 rpm |
| Maximum Fuel Consumption |
29.7 gph (112.4 lph) |
| Maximum Operating Angle (Fore/Aft & Left/Right) |
30 deg / 30 deg |
| Operational Power & Hydrostatic Performance |
| Thrust Force |
550,000 lbs (2,446.5 kN) |
| Pullback Force |
550,000 lbs (2,446.5 kN) |
| Maximum Spindle Torque (Low Gear) |
100,000 ft-lb (135,582 Nm) |
| Maximum Spindle Torque (High Gear) |
38,000 ft-lb (51,521.2 Nm) |
| Spindle Speed (Low Gear / Max Rating) |
26 rpm / 75 rpm |

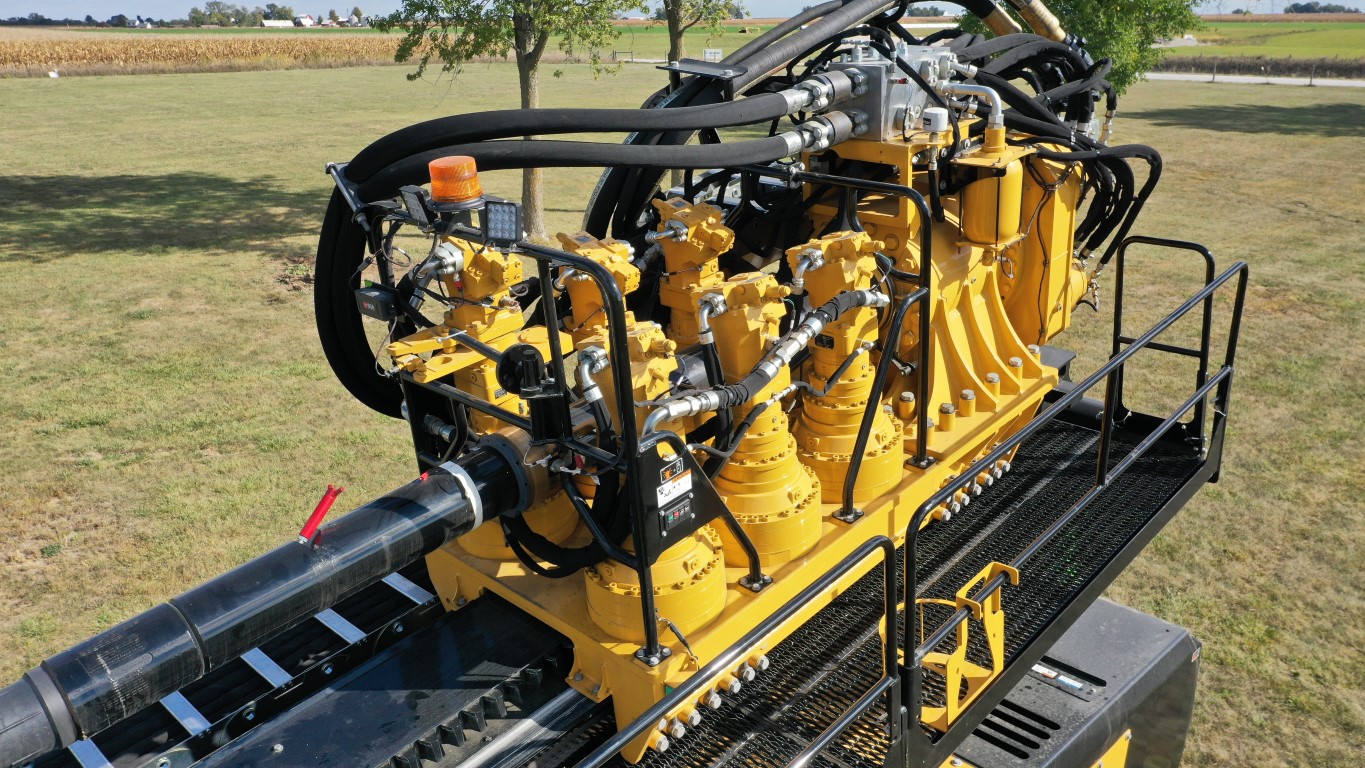

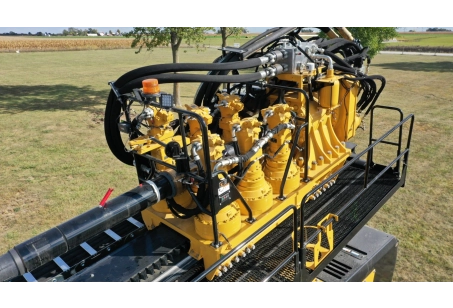

| Rotational Motor Options |
Configurable with a choice of three or four rotation motors to prioritize either speed or extreme torque. 100,000 ft-lb allows transitioning from a pilot bore directly to large reamers with fewer conditioning passes. |
| Carriage Speed (Low Gear / Max Rating) |
27 ft/min (8.2 m/min) / 105 ft/min (32 m/min) |
| Finite Thrust Control |
Features ultra-slow speed carriage feeding control technology to finely regulate thrust, delivering optimized bit action over hard rock. |
| Automated Drilling Modes |
Equipped with two smart automated operating modes—Auto Rotation and Auto Thrust—easing the drilling fatigue and smoothing general operation. |
| Drill Rack Angle Adjustability |
10 - 18 deg |
| Maximum Ground Travel Speed (Tracks) |
2.2 mph (3.5 km/h) |
| Large Mud Flow Path |
| Fluid Course Diameter |
4 in (10.2 cm). Large pass-through allows high fluid volumes to be pumped downhole with minimal pressure drops, maximizing fluid delivery while saving engine horsepower. |
| Mud Pressure Monitoring |
Mud pressure flow sensor indicator comes standard. |
| Breakout Vise Assemblies |
| Vise Configuration |
3-cylinder full travel vise system |
| Operational Benefit |
Can travel unhindered all the way up and down the rack frame to handle varying joint layouts. It can position itself right next to the carriage assembly, optimizing casing handling for direct-pipe installation projects. |
| Drill Pipe Configuration Options |
| Drill Pipe Option One (5-inch) |
Length: 32 ft (9.8 m) | Stem Thread: 30-ft random length, 5-in NC50DS (Type: NC-50 FHDS) |
| Drill Pipe Option Two (6-5/8 inch) |
Length: 32 ft (9.8 m) | Stem Thread: 30-ft random length, 6-5/8 FHDS (Type: 6-5/8 FH or FHDS) |
| Hydraulic Pumps & Filtration Ratings |
| Rotation Pump Circuit |
Flow Rate: 210 gpm (794.9 L/min) | Relief Pressure: 5,500 psi (379.2 bar) |
| Thrust/Pullback Pump Circuit |
Flow Rate: 210 gpm (794.9 L/min) | Relief Pressure: 5,000 psi (344.7 bar) |
| Auxiliary Pump Circuit |
Flow Rate: 46 gpm | Relief Pressure: 3,000 psi (206.8 bar) |
| Filtration Loops (Supply / Return) |
Hydraulic Supply Filter: 200 mesh | Hydraulic Return Filter: B_5=100 with a 25 psi check valve |
| Transmission Architecture |
The hydraulic circuit safely transmits maximum engine power at conservative operating pressures, ensuring loop longevity and minimal maintenance under peak loads. |
| Operator Station, Acoustics & Safety Features |
| Operator Station (Cab) |

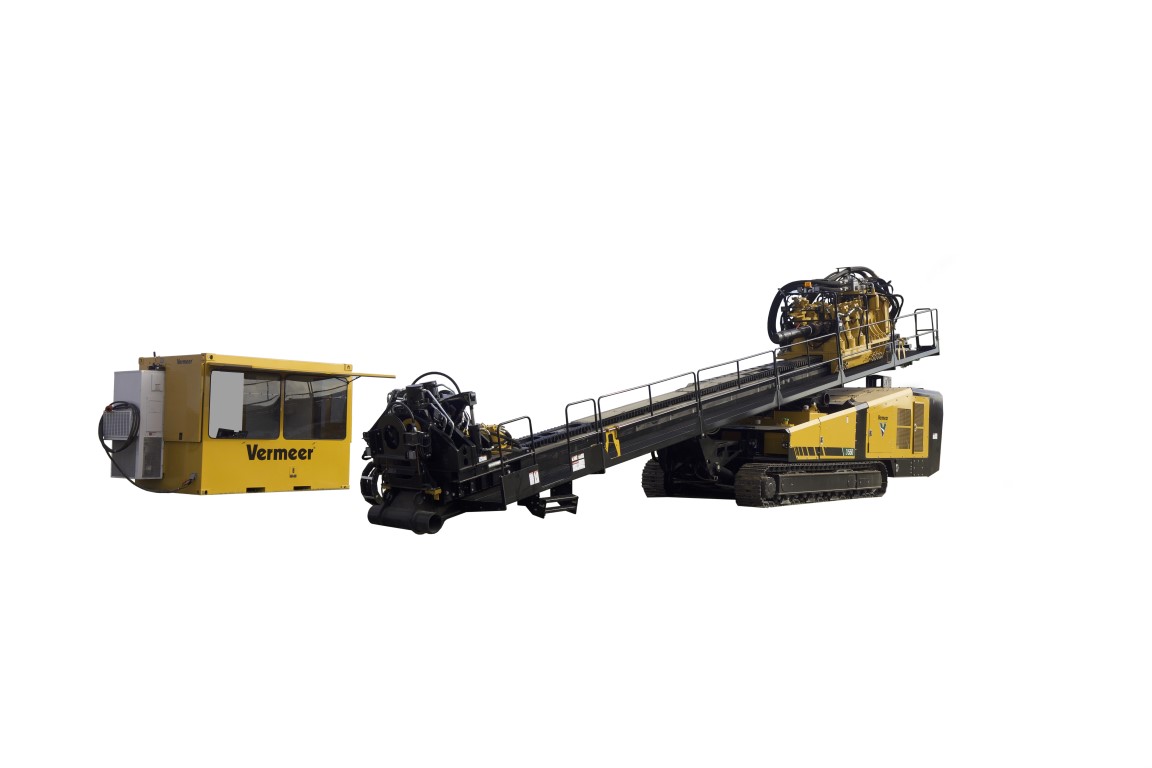

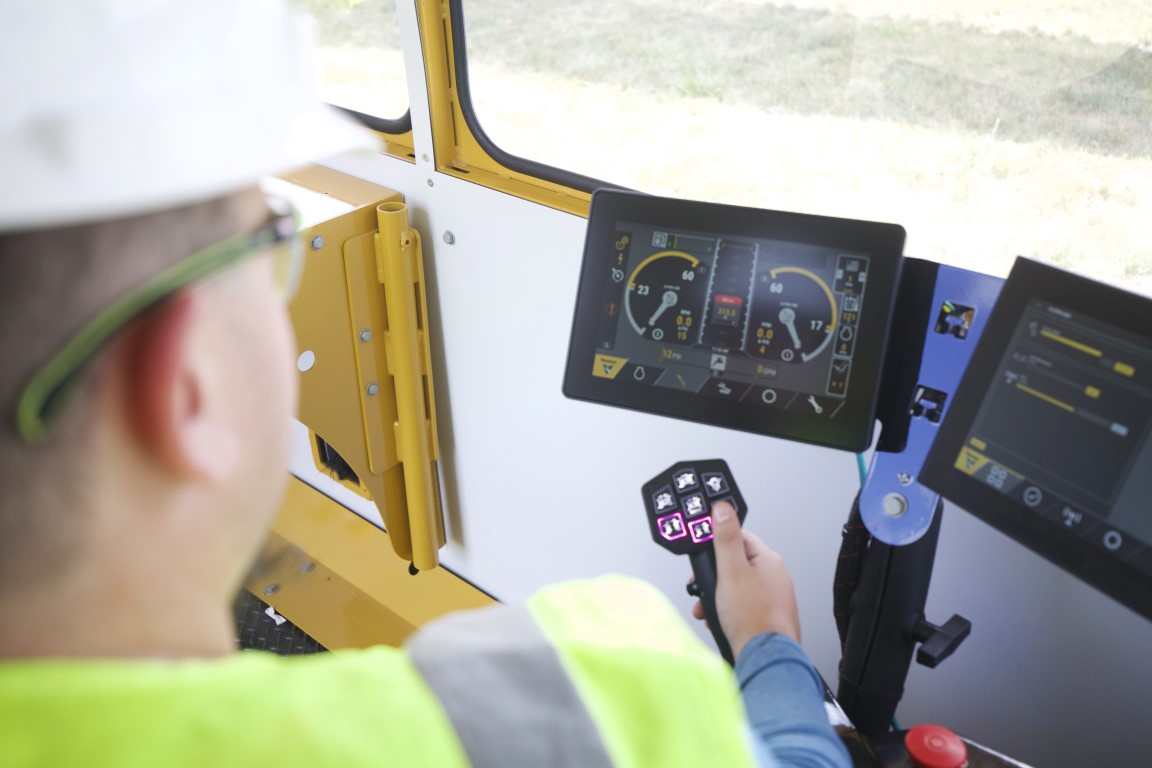

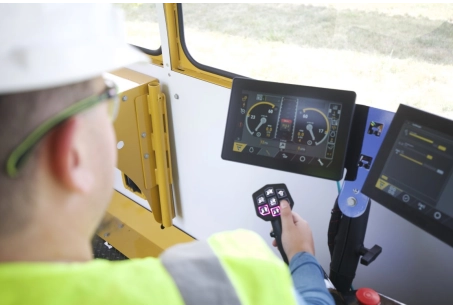

Remote Vermeer DC10 driller cabin featuring next-generation highly intuitive controls that optimize operator efficiency and simplify crew training. |
| Noise Level at Operator's Ear |
70 dB(A) — exceptionally quiet operator environment. |
| Guaranteed Sound Power Level (CE) |
111 dB(A) — reduced jobsite acoustics for easy adherence to strict local urban noise bylaws. |
| Safety Array |
Strike Alert System: Standard | Long-Range Remote Lockout: Standard | Operator Presence Control: Standard | Drilling Night Lights: Standard | Base Anchor-Style Hold Down: Standard |
| Fluid Capacities |
| Fuel Tank |
163 gal (617 L) |
| Hydraulic System Total |
300 gal (1,135.6 L) |
| Hydraulic Tank |
210 gal (794.9 L) |
