| Transport Dimensions by Boom & End Idler Combinations |
| Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom |
25 ft (7.6 m) |
| Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom |
23 ft (7 m) |
| Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom |
23 ft (7 m) |
| Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom |
22 ft (6.7 m) |
| Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom |
21 ft (6.4 m) |
| Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom |
21 ft (6.4 m) |

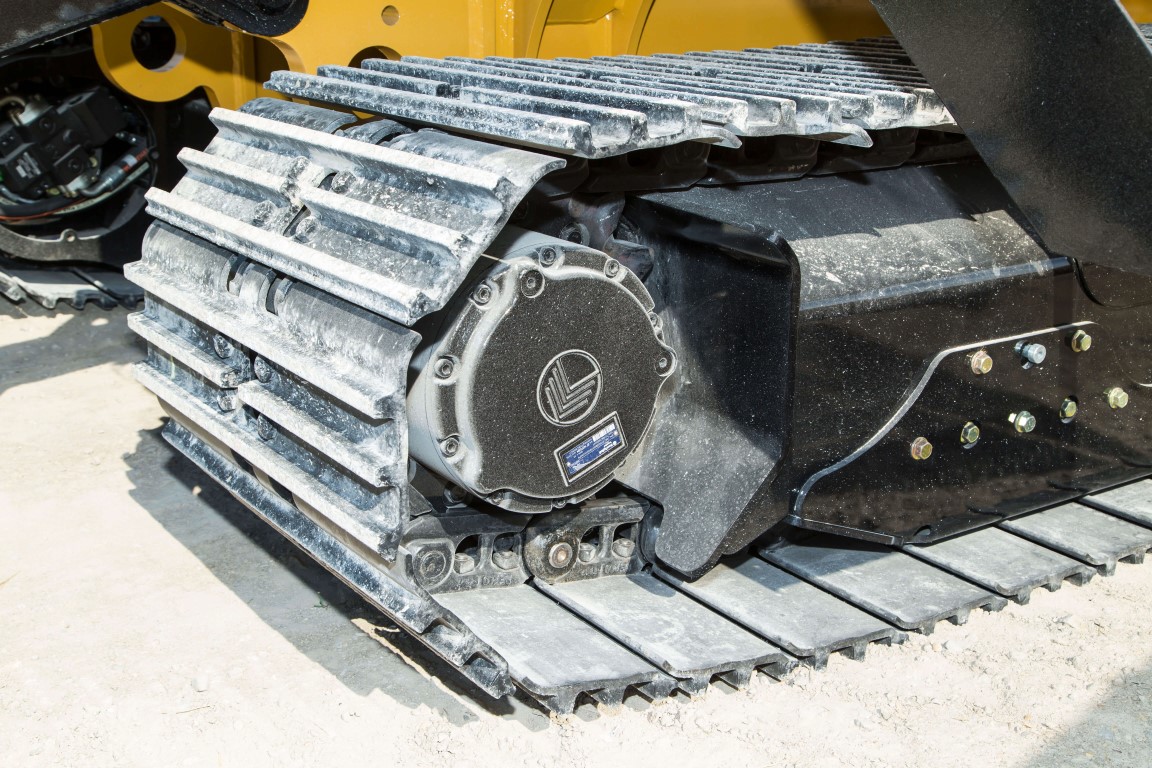

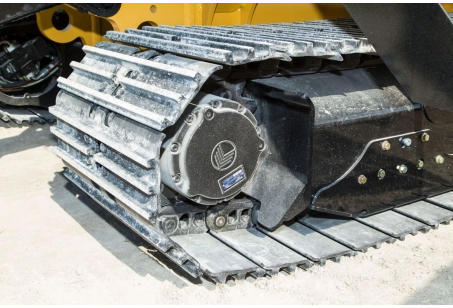

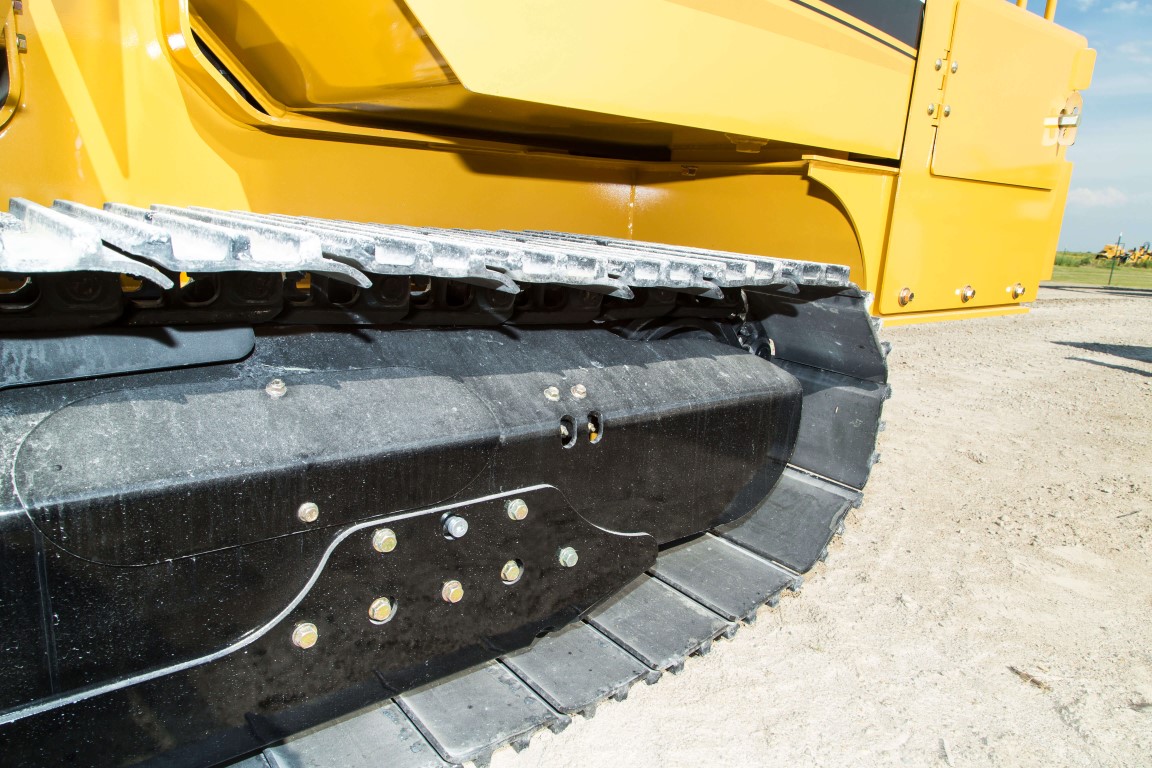

| Tracks & Ground Performance |
| Track Length |
105.5 in (268 cm) |
| Ground Pressure Maximum |
8.4 psi (57.9 kPa) |
| Ground Pressure Minimum |
5.4 psi (37.2 kPa) |
| Maximum Ground Speed - Low |
194 ft/min (59.1 m/min) |
| Maximum Ground Speed - High |
248 ft/min (75.6 m/min) |

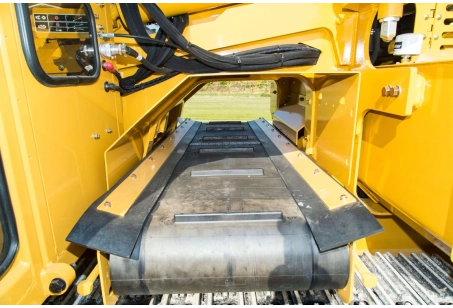

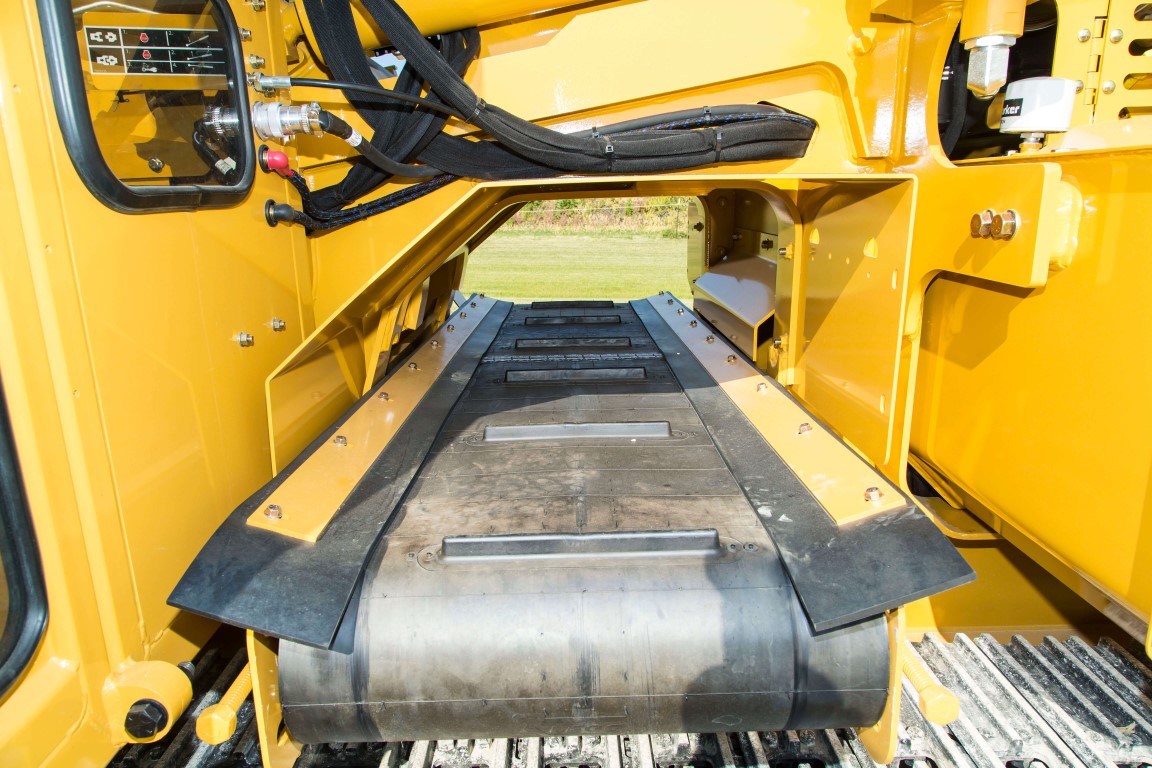

| Conveyor System |
| Belt Width |
24 in (61 cm) |

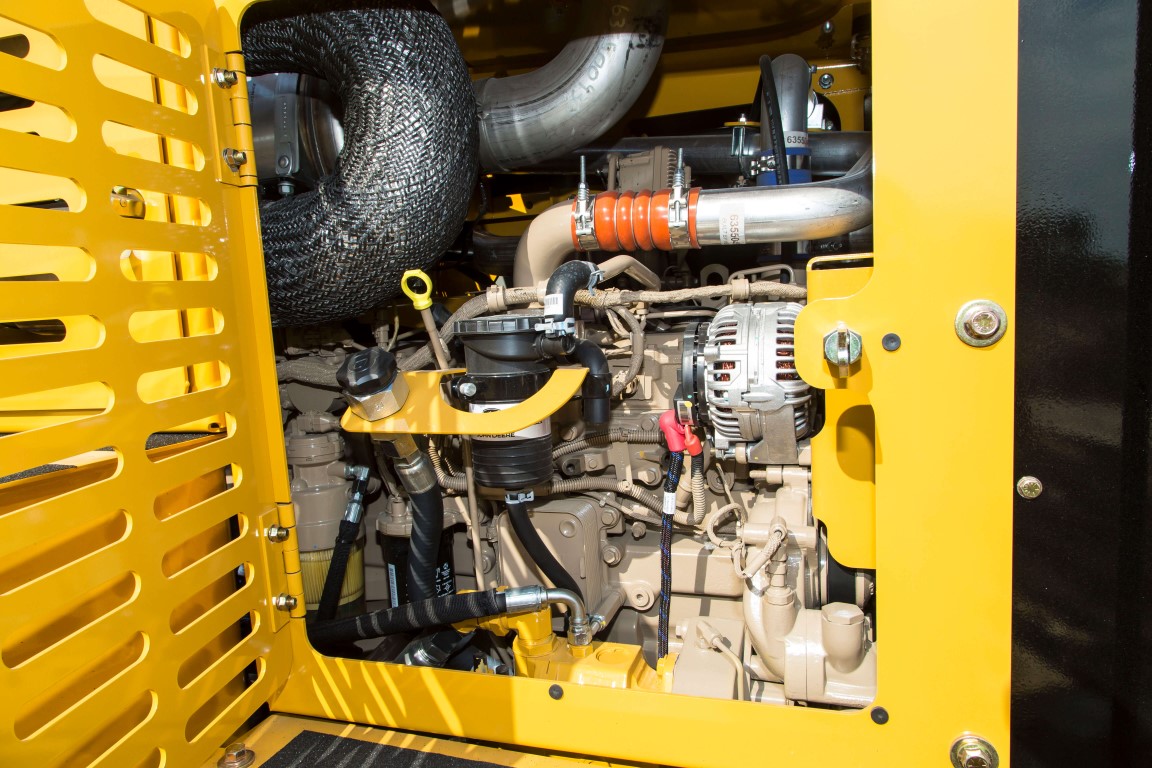

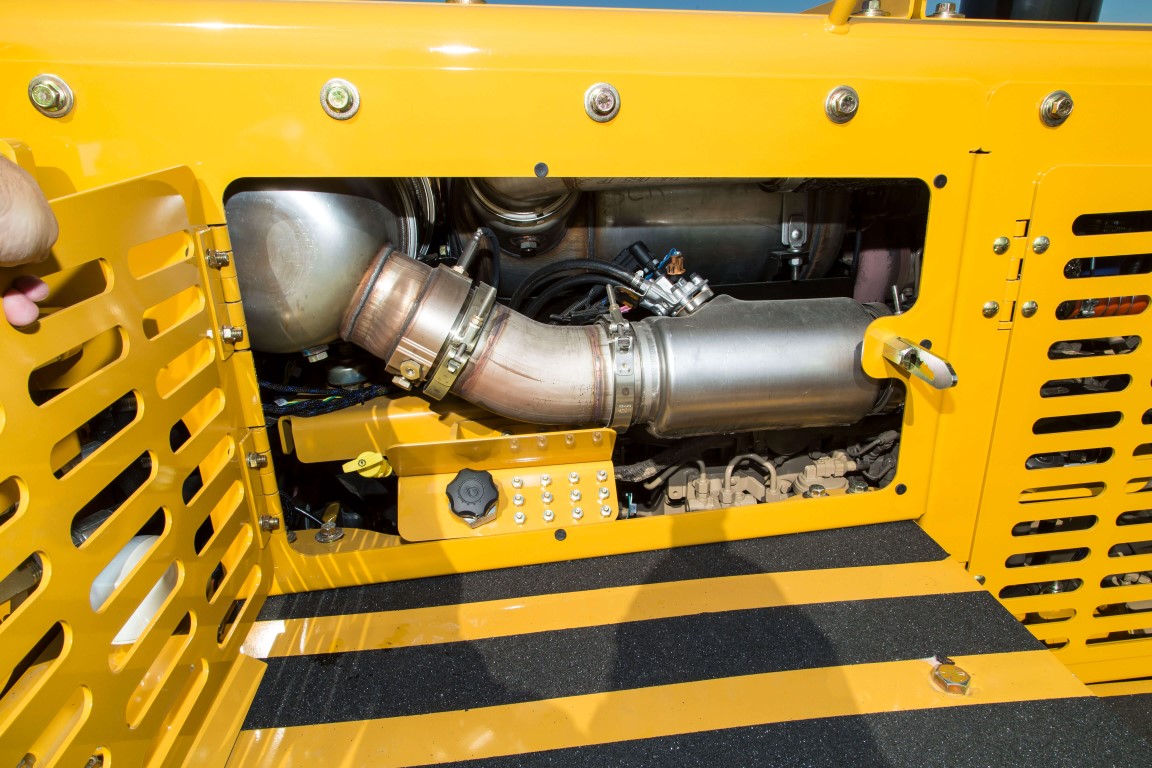

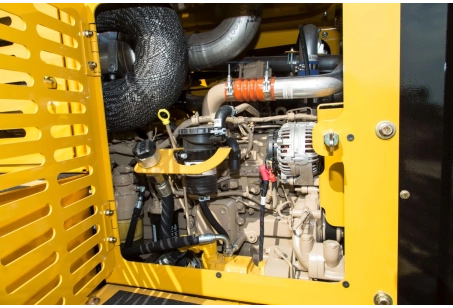

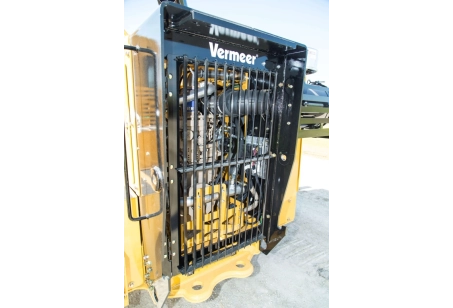

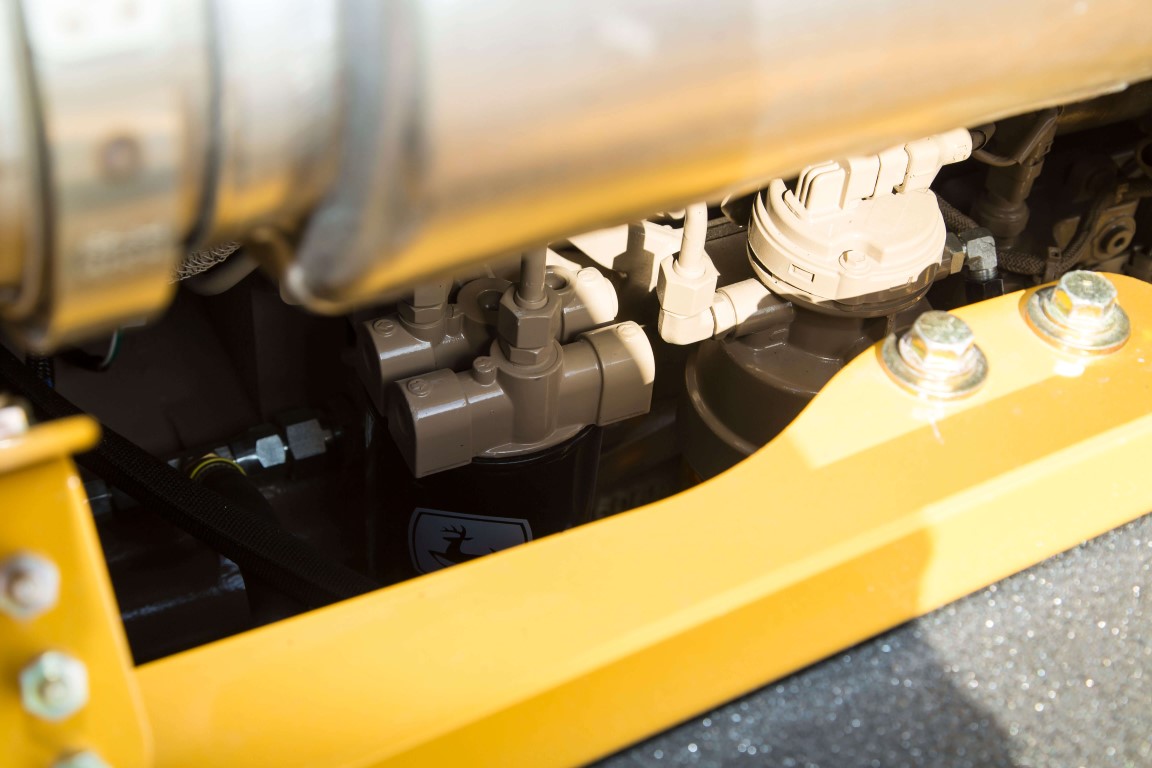

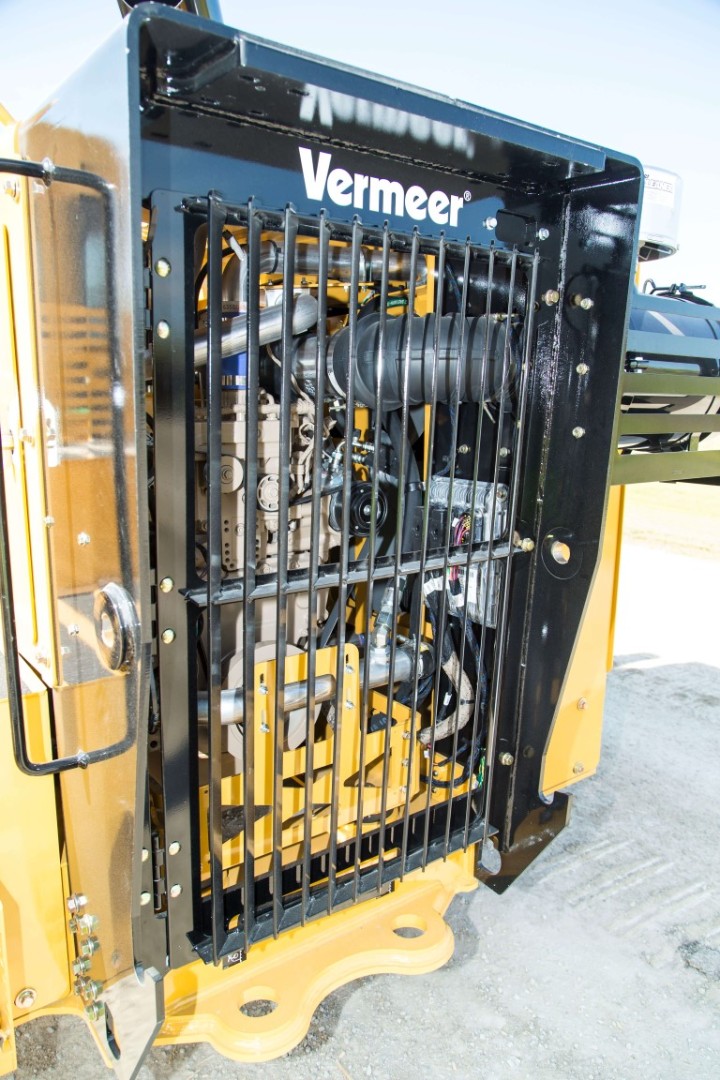

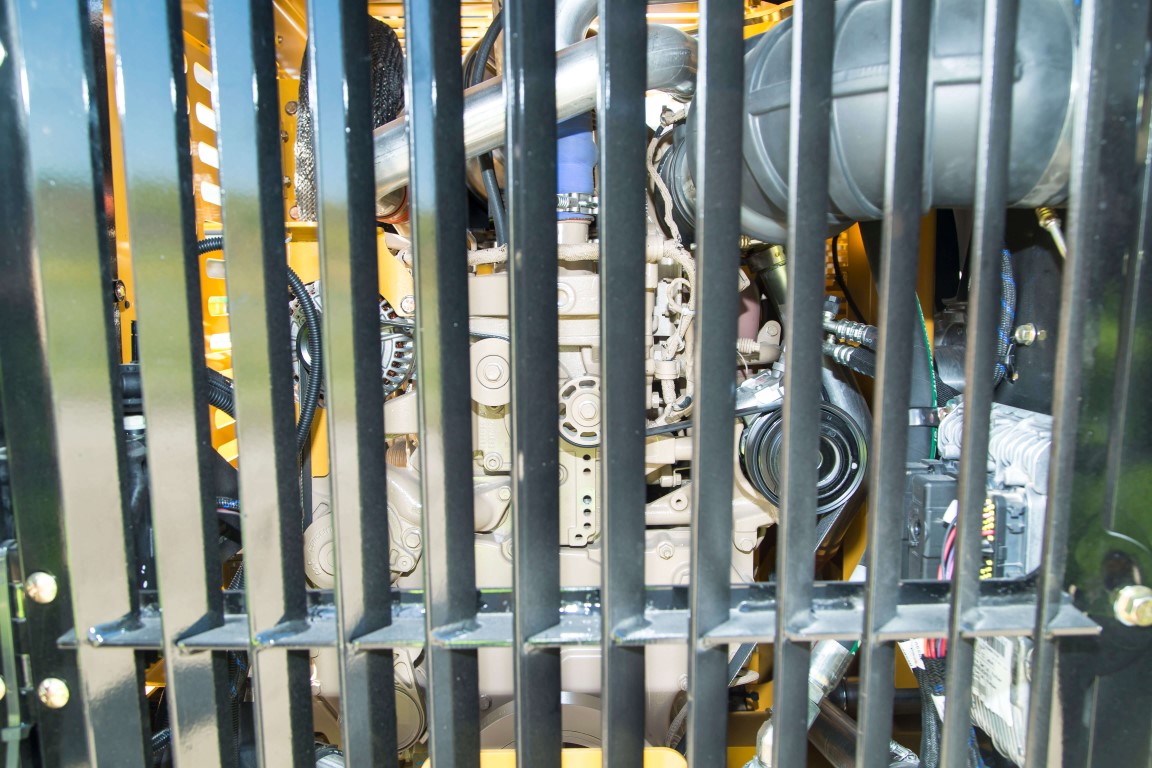

| Engine Specifications (Option One & Option Two) |
| Gross Horsepower |
185 hp (138 kw) |
| Fuel Consumption at Full Load |
9.3 gph (35.2 lph) |
| Fuel Tank Capacity |
110 gal (416.4 L) |

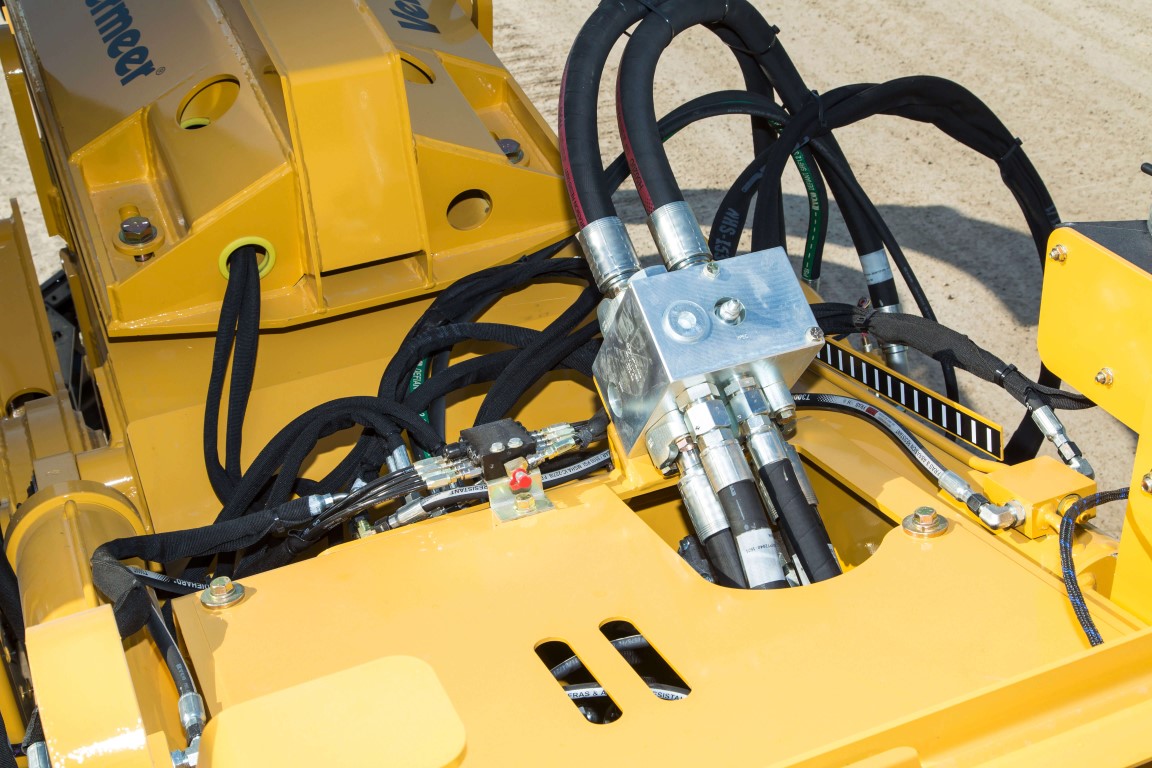

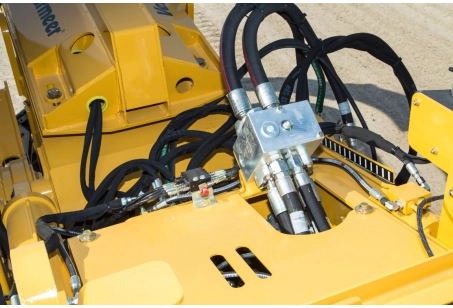

| Hydraulic Subsystem |
| Pump Flow at Maximum RPM |
27.2 gpm (103 L/min) |
| Pressure Setting |
2500 psi (172.4 bar) |
| Oil Tank Capacity |
80 gal (302.8 L) |
