| Transport Dimensions by Boom & End Idler Combinations |
| Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom |
30.1 ft (9.2 m) |
| Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom |
28.5 ft (8.7 m) |
| Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom |
27.8 ft (8.5 m) |
| Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom |
26.3 ft (8 m) |
| Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom |
25.6 ft (7.8 m) |
| Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom |
25.3 ft (7.7 m) |
| Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom |
23.6 ft (7.2 m) |
| Tracks & Ground Performance |
| Track Length |
136.5 in (346.7 cm) |
| Ground Pressure Maximum |
9.7 psi (66.9 kPa) |
| Ground Pressure Minimum |
7.8 psi (53.8 kPa) |
| Maximum Ground Speed - Low |
114 ft/min (34.7 m/min) |
| Maximum Ground Speed - High |
227 ft/min (69.2 m/min) |
| Conveyor System |
| Belt Width |
24 in (61 cm) |

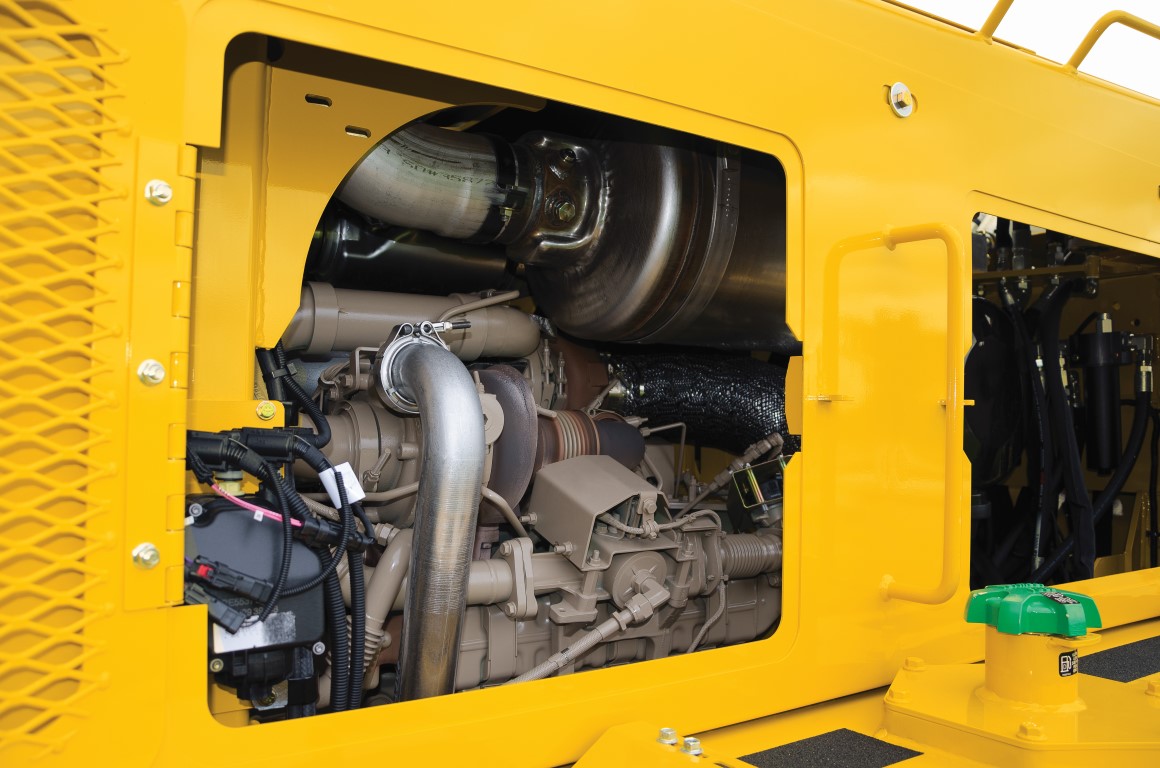

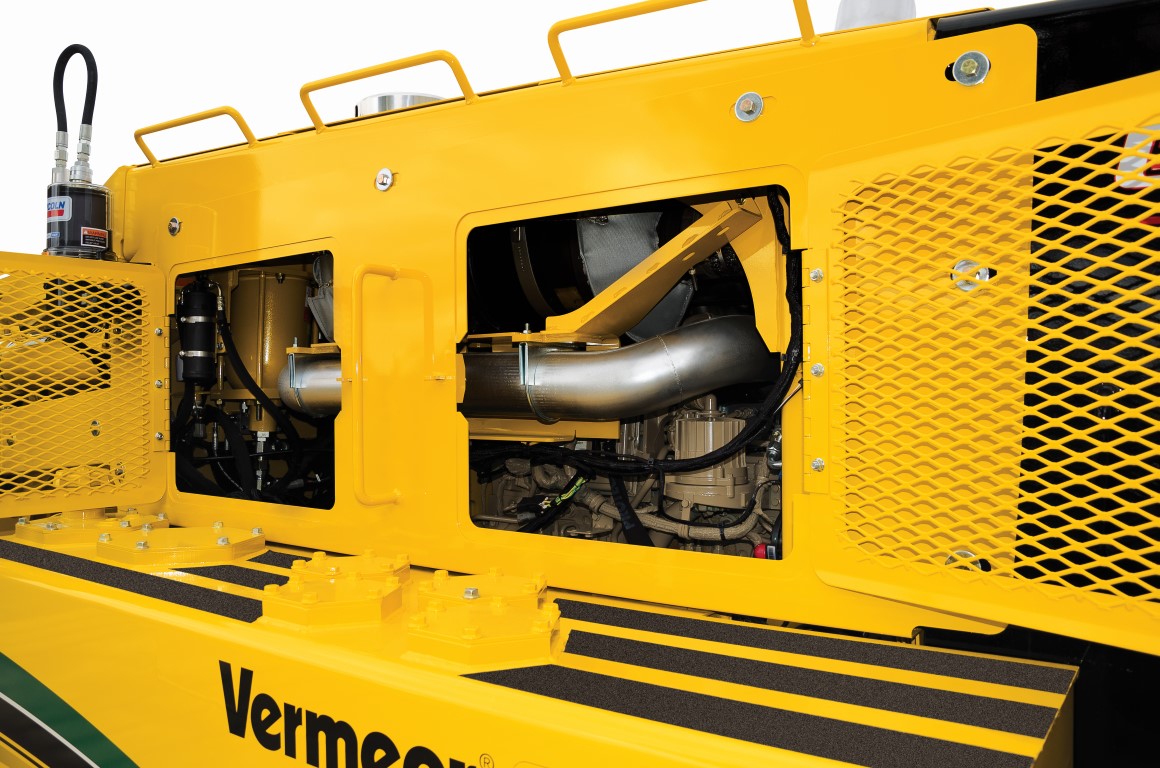

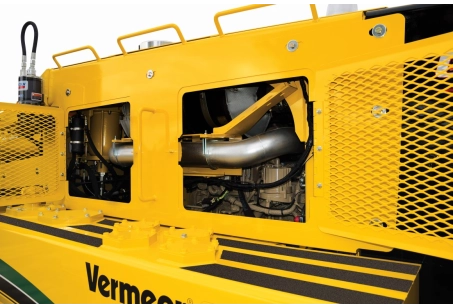

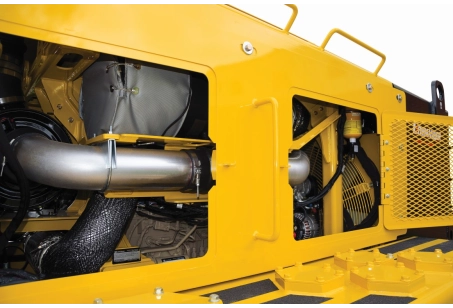

| Engine Options |
| Gross Horsepower (Option One & Two) |
250 hp (186.4 kw) |
| Fuel Consumption at Full Load (Option One) |
12.1 gph (45.8 lph) |
| Fuel Consumption at Full Load (Option Two) |
12.3 gph (46.6 lph) |
| Fuel Tank Capacity (Option One & Two) |
135 gal (511 L) |
| Hydraulic Subsystem |
| Pump Flow at Maximum RPM |
25 gpm (94.6 L/min) |
| Pressure Setting |
2500 psi (172.4 bar) |
| Oil Tank Capacity |
85 gal (321.8 L) |
