| Transport Dimensions by Boom Length with 40" (101.6 cm) End Idler |
| Length with 12 ft (3.66 m) Boom |
39.7 ft (12.1 m) |
| Length with 10 ft (3.05 m) Boom |
37.2 ft (11.3 m) |
| Length with 8 ft (2.44 m) Boom |
34.7 ft (10.6 m) |
| Length with 6 ft (1.83 m) Boom |
32.2 ft (9.8 m) |
| Tracks & Ground Performance |
| Track Length |
161 in (408.9 cm) |
| Ground Pressure Maximum |
13.3 psi (91.7 kPa) |
| Ground Pressure Minimum |
11.7 psi (80.7 kPa) |
| Maximum Ground Speed - Low |
68 ft/min (20.7 m/min) |
| Maximum Ground Speed - High |
136 ft/min (41.5 m/min) |

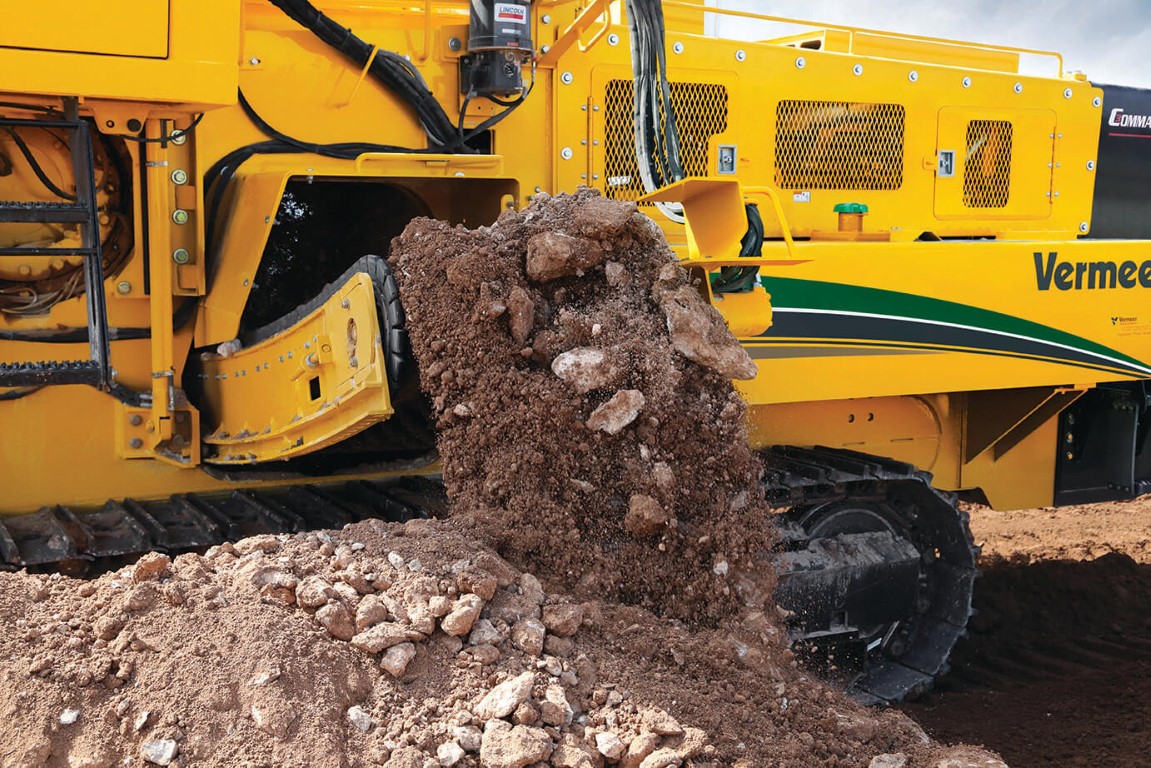

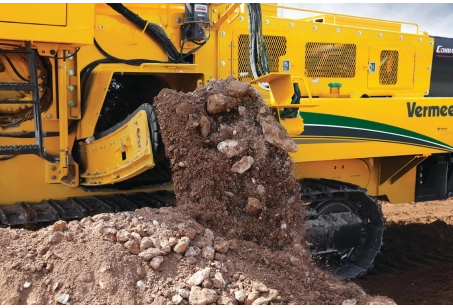

| Conveyor System |
| Belt Width |
30 in (76.2 cm) |
| Engine Options |
| Gross Horsepower (Option One & Two) |
415 hp (309.5 kw) |
| Fuel Consumption at Full Load (Option One) |
20.9 gph (79.1 lph) |
| Fuel Consumption at Full Load (Option Two) |
21.3 gph (80.6 lph) |
| Fuel Tank Capacity (Option One & Two) |
184 gal (696.5 L) |
| Hydraulic Subsystem |
| Pump Flow at Maximum RPM |
27.9 gpm (105.6 L/min) |
| Pressure Setting |
2500 psi (172.4 bar) |
| Oil Tank Capacity |
152 gal (575.4 L) |
