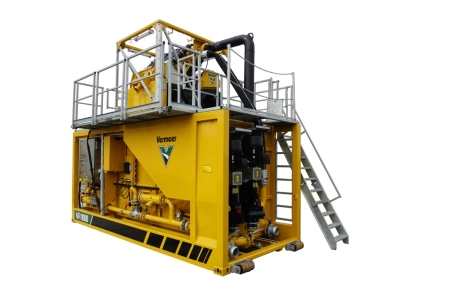

| Mud Recycling & Cleaning System Technical Specifications | |
|---|---|
| General Dimensions and Weights | |
| Total Net Weight | 25,800 lbs (11,702.7 kg) |
| Length | 21.3 ft (6.5 m) |
| Width | 8.2 ft (2.5 m) |
| Height | 8.9 ft (2.7 m) |
| Tank Capacities | |
| Maximum Total System Capacity | 6,075 gal (22,996.4 L) |
| Number of Tanks | Two |
| Clean / Mix Tank Capacity | 4,755 gal (17,999.6 L) |
| Cleaning & Separation System | |
| Number of Shakers | One |
| Shaker Configuration Type | Double deck |
| Shaker Motion Pattern | Linear |
| Number of Screens per Shaker | Six upper deck screens |
| Screen Dimension Standard | MD3 |
| Cleaning Capacity (First Cut Processing Rate) | 264 gpm (999.3 L/min) |

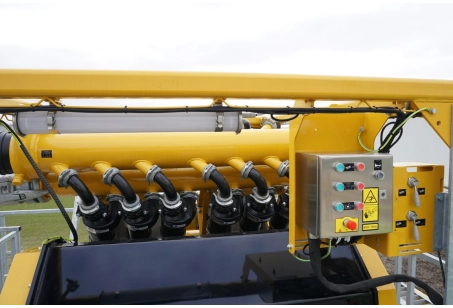

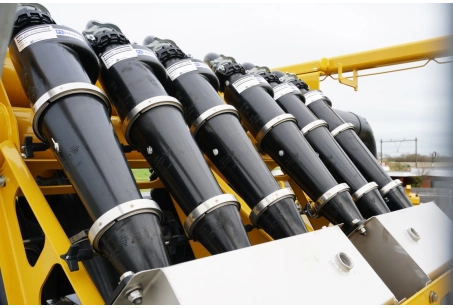

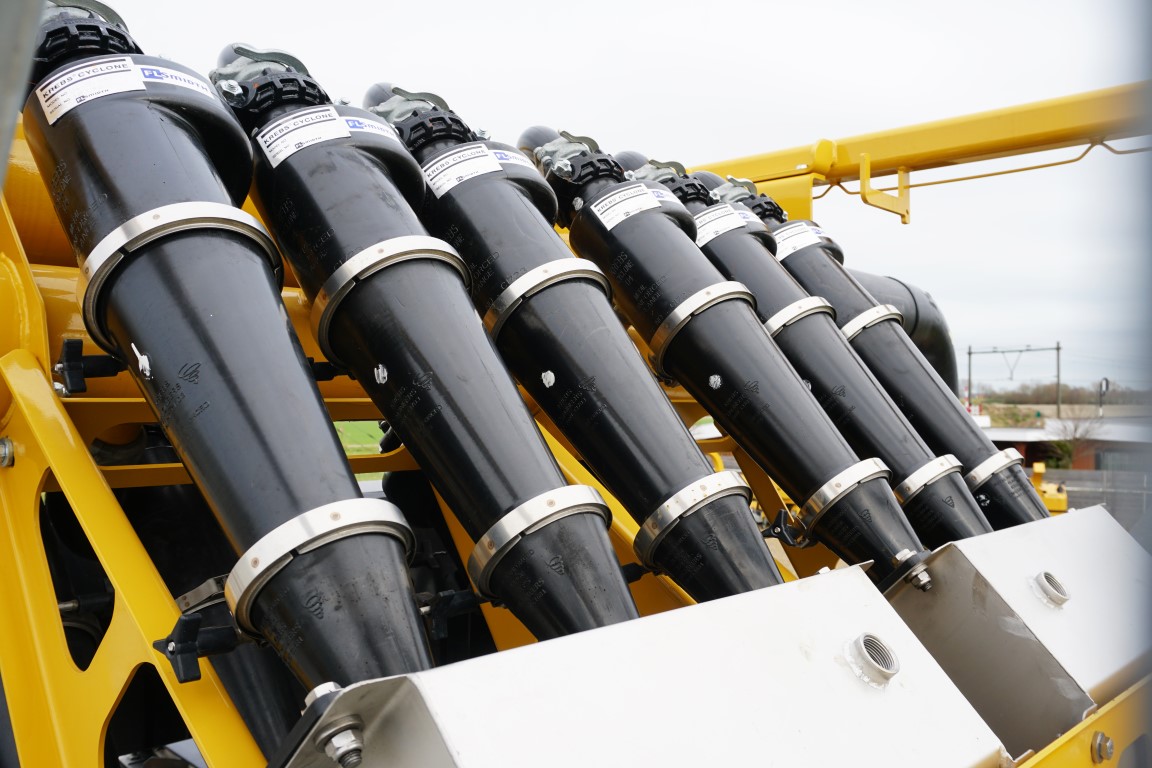

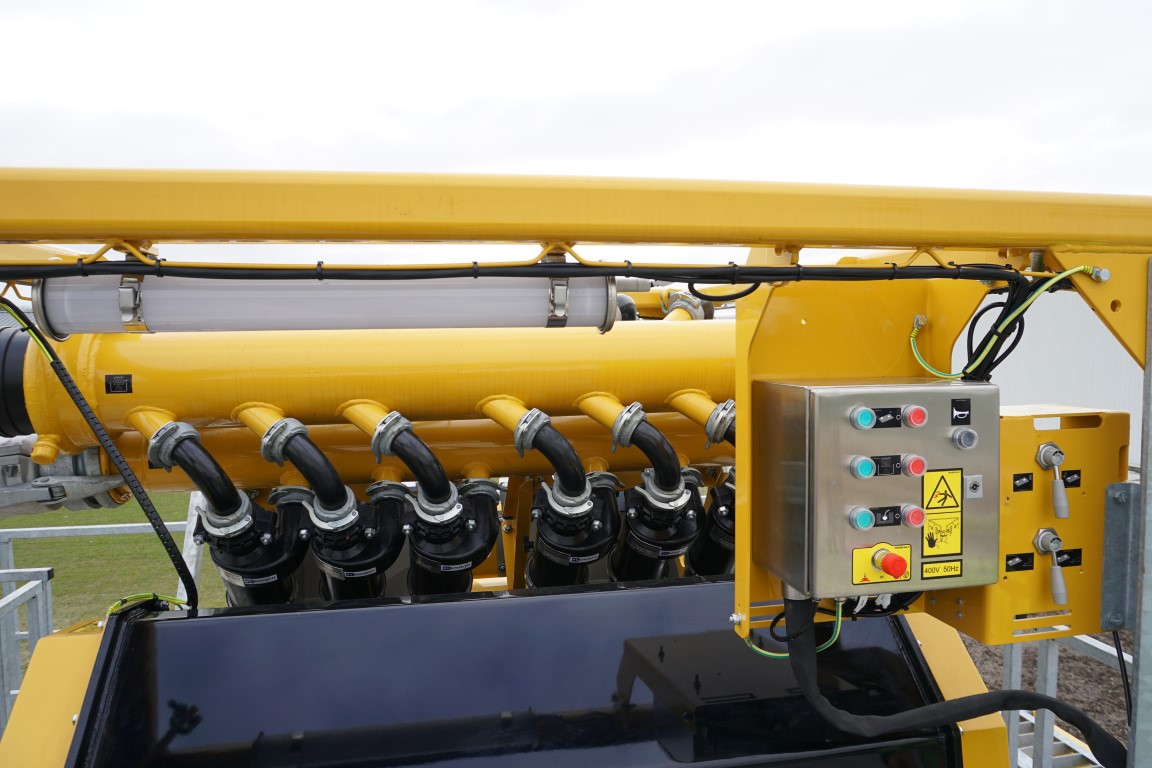

| Desilter Hydrocyclones Configuration | 12 units of 4-in (10.2-cm) hydrocyclones |
