| Executive Overview & Operational Layout |

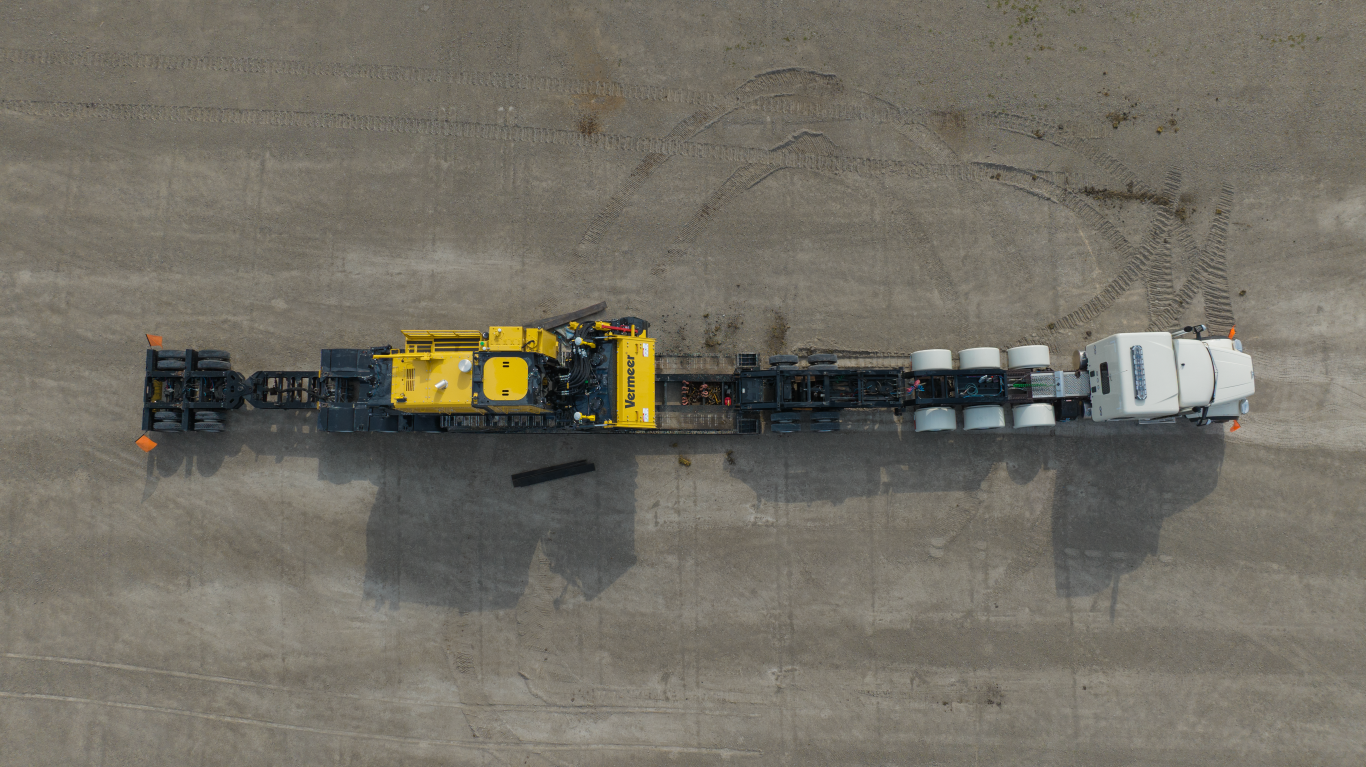

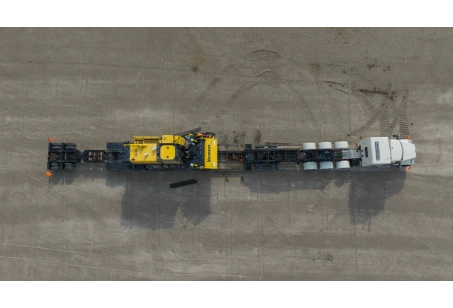

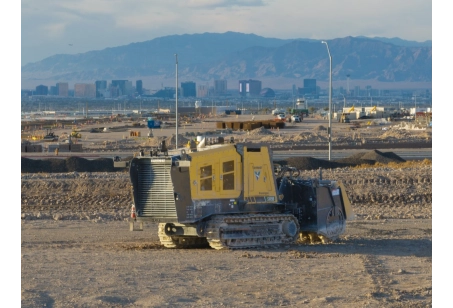

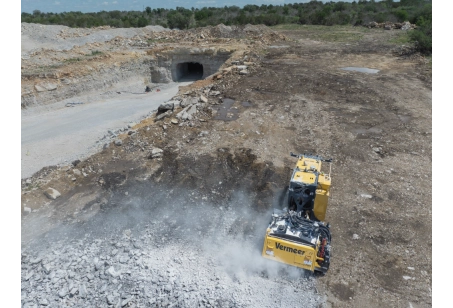

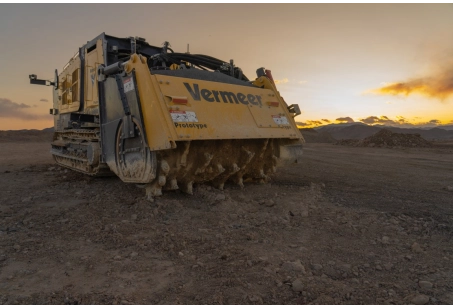

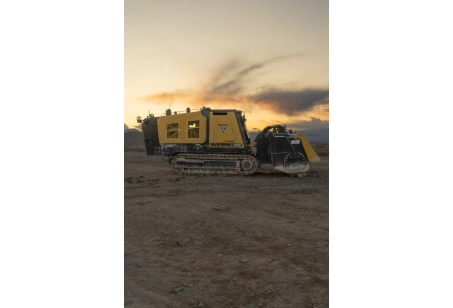

| A highly compact, high-efficiency surface miner unit optimized for continuous top-down cutting applications across production quarries, industrial open-cast mines, and large civil site preparations. Featuring a true one-piece haul footprint, this design facilitates easy roll-on/roll-off regional logistics without requiring complex teardowns or crane assistance. Outfitted with a zero-turn radius steering system and an ultra-low center of gravity, it relies entirely on a remote human-machine interface and automated GNSS line-by-line navigation, taking the operator away from heavy vibrations and noise. |
| Transport Dimensions & Operational Mass |
| Operating Weight (Nominal) |
120,000 lb (54,431.08 kg) |
| Total Machine Length |
350 in (889 cm) |
| Total Width Profile |
136 in (345.4 cm) |
| Total Height Profile |
136 in (345 cm) |
| Approach Angle |
15 deg |
| Power Unit / Engine Assembly |
| Engine Make and Model |
Caterpillar C13 ACERT Tier 4 Final |
| Cylinder Arrangement |
6 cylinders, inline layout |
| Aspiration and Air Intake |
Turbocharged with Air-to-Air Aftercooler (ATAAC) |
| Gross Power Output @ 2100 Rated RPM |
415 hp (309.5 kw) |
| Fuel Reservoir Capacity |
230 gal (870.6 L) |
| Fuel Consumption at Full Duty Cycle |
21 gph (79.5 lph) |
| Continuous Operational Range |
11 hours on a single tank |
| Max Engine Operating Inclination |
35 deg (Lubrication capability ceiling) |
| Air Cleaner Configuration |
Dry-type, exhaust-aspirated setup |
| Tracks & Drivetrain Undercarriage |
| Track Drive Architecture |
Dual path hydrostatic with integrated planetary gear reduction transmissions |
| Track Base Length |
129 in (327.7 cm) |
| Track Pad Width |
18 in (46 cm) |
| Track Pad Profile Type |
Double grouser bar |
| Ground Pressure Maximum Range |
23 psi (158.6 kPa) |
| Ground Pressure Minimum Range |
21.5 psi (148.2 kPa) |
| Maximum Travel Speed - Low Range |
54 ft/min (16.5 m/min) |
| Maximum Travel Speed - High Range |
108 ft/min (32.9 m/min) |
| Service and Emergency Braking |
Hydrostatic service brake; Spring-applied, hydraulic release (SAHR) wet multi-disc emergency brake |
| Chassis Leveling Features |
Auto Self Level Track: No; Tilt Track Available: No |

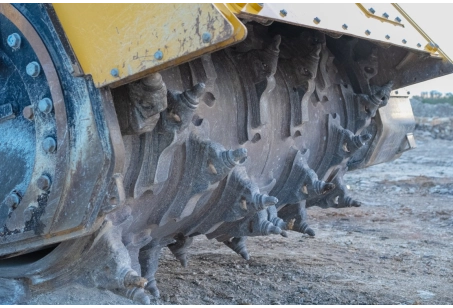

| Attachment Compatibility Matrices |
| Terrain Leveler Drum Assembly |
No (Built-in dedicated lower drum profile instead) |
| Trencher Boom / Rockwheel / Bucket Wheel |
No / No / No |
| Cabin & Telemetry Infrastructure |
| Enclosed Cab Structure |
No Cab (Cabinless architecture; HVAC, air seat, or stereo systems are not applicable) |
| Master Electronic Control System |
Vermeer G4 Controller Module with GNSS tracking |
| Electrical System Voltage |
24-volt DC |
| Hydraulic Power Subsystem |
| Hydraulic Pump Configuration |
Variable-displacement, pressure-and-flow-compensated (Load-Sensing) pumps |
| Hydraulic Oil Tank Capacity |
235 gal (889.6 L) |
| Approved Fluid Grades |
Vermeer HyPower 68, Vermeer HyPower 100, or Vermeer HyPower 1100 |
