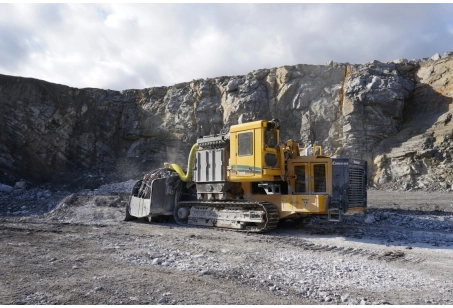

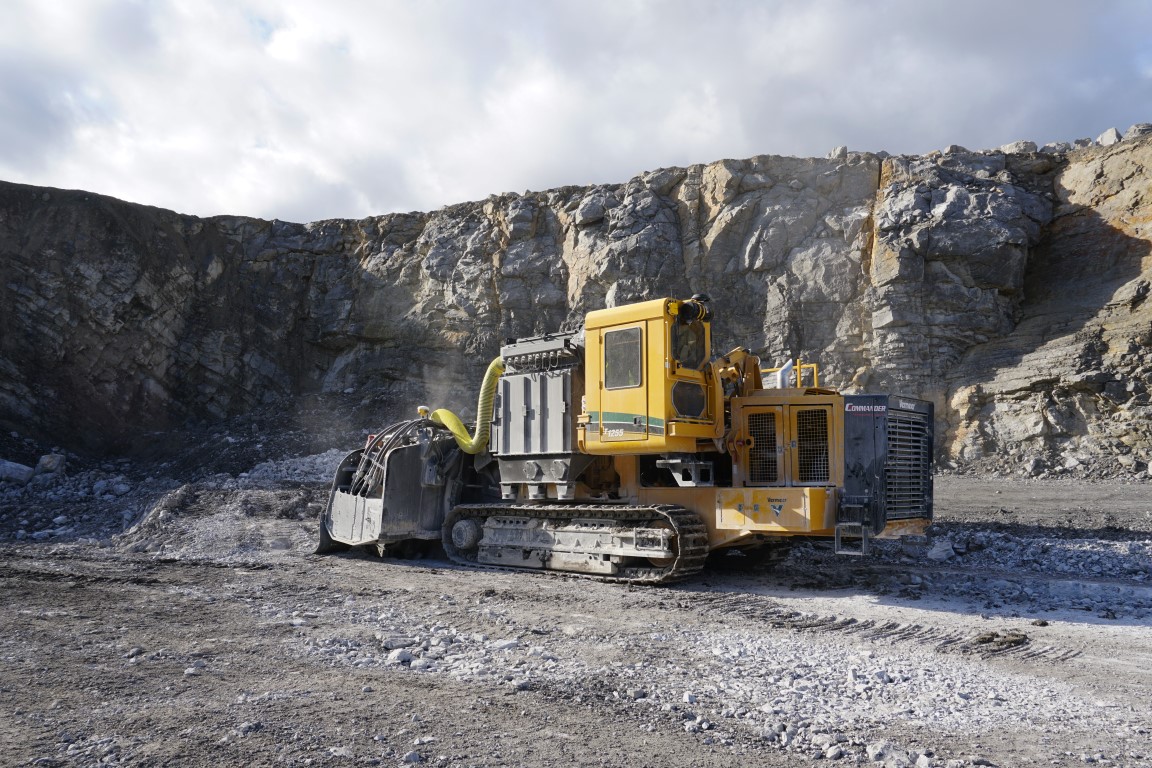

| Base Tractor Dimensions & Weight Ranges (Without Attachment) |
| Length (No Attachment) |
350" (889 cm) |
| Width |
134" (340.4 cm) |
| Height |
146" (370.8 cm) |
| Weight Range |
150,000 lb - 205,000 lb (68,039.9 kg - 92,986.4 kg) |
| Approach Angle |
15° |
| Engine Option One (EPA Tier 3 Configuration) |
| Make and Model |
Caterpillar C18 ACERT |
| Gross Power Output |
600 hp (447 kW) @ 2100 Engine RPM |
| Fuel Consumption @ Full Load |
31.8 gph (120.4 L/hr) |
| Engine Option Two (EPA Tier 4 Final / Stage IV Configuration) |
| Make and Model |
Caterpillar C18 ACERT |
| Gross Power Output |
600 hp (447 kW) @ 2100 Engine RPM |
| Fuel Consumption @ Full Load |
30.5 gph (115.5 L/hr) |
| Tracks & Undercarriage Performance |
| Track Size / Components Reference |
CAT 375 excavator class |
| Track Length |
15.1' (4.6 m) |
| Track Pad Width |
30" (76.2 cm) |
| Track Pad Type |
Double grouser profile |
| Ground Pressure Matrix |
15.5 psi - 21.1 psi (106.9 kPa - 145.5 kPa) |
| Maximum Travel Speed |
128 fpm (39 m/min) |
| Braking & Levelling Systems |
Hydrostatic service brakes; Tilt track with Auto Level: No |
| Conveyor Subsystem Specifications |
| Belt Width |
36" (91.4 cm) |
| Conveyor Style & Belt Design |
Curved style layout; Finger-type belt |
| Conveyor Available Lengths |
15' (4.6 m) or 20' (6.1 m) |
| Maximum Conveyor Belt Speed |
814 fpm (248.1 m/min) |
| Discharge Config & Height Ranges |
Right or left direction; Height: 74" (188 cm) or 103" (261.6 cm) |
| Conveyor Lateral Shift |
Available; Shift distance: 60" (152.4 cm) or 125" (317.5 cm) |
| Operator Station / Enclosed Cab Features |
| Elevating Cab Mechanism |
Yes (Vertical travel visibility enhancement) |
| Climate Control Subsystem |
Air conditioner and heater integration: Yes |
| Seating & Audio Equipment |
Air suspension seat; AM/FM stereo with dedicated weather band |
| Safety Modules |
Pressurized and filtered air filtration; Rollover module (ROM) protection |

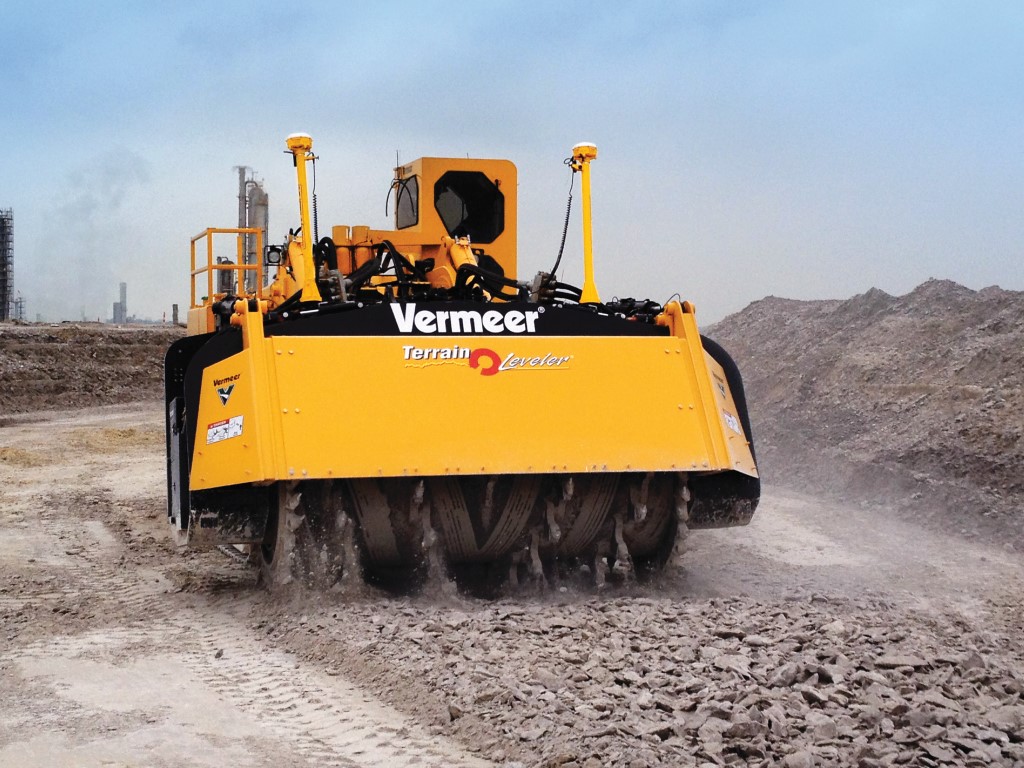

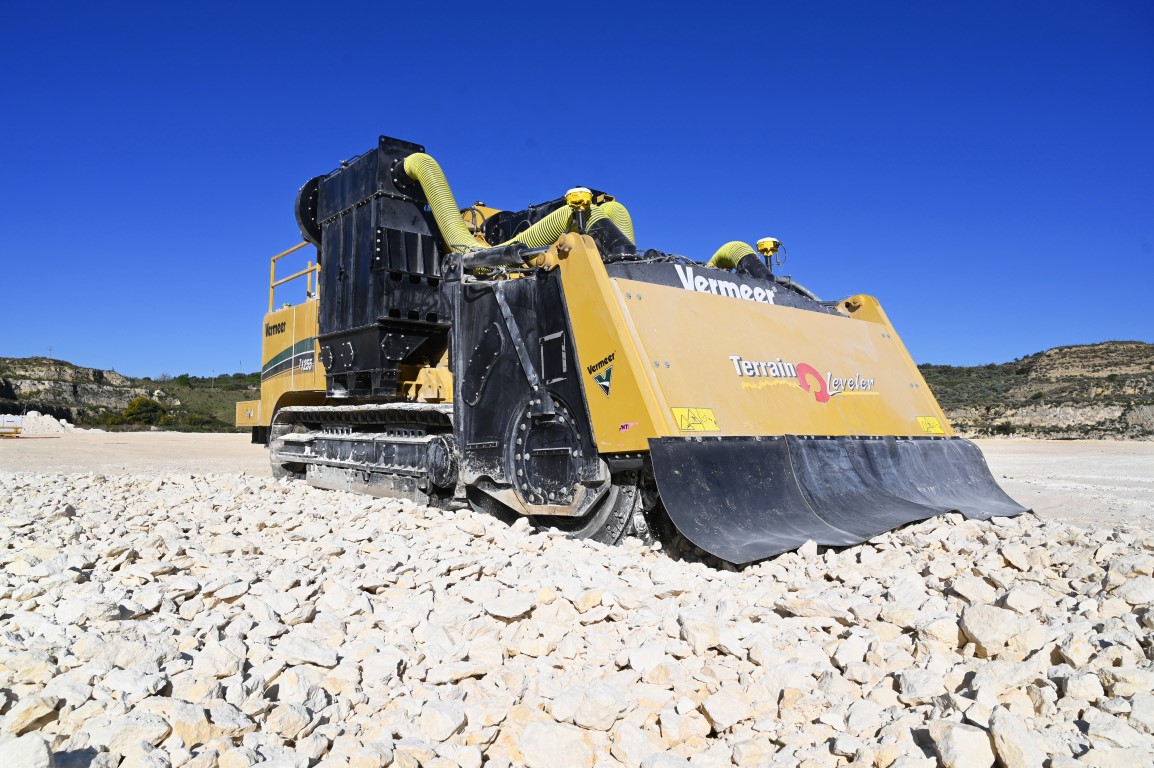

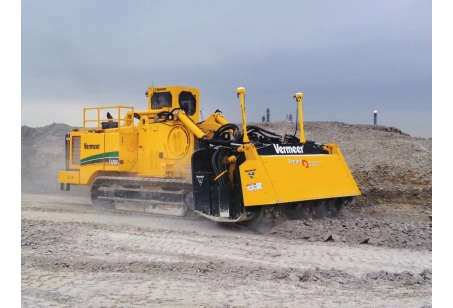

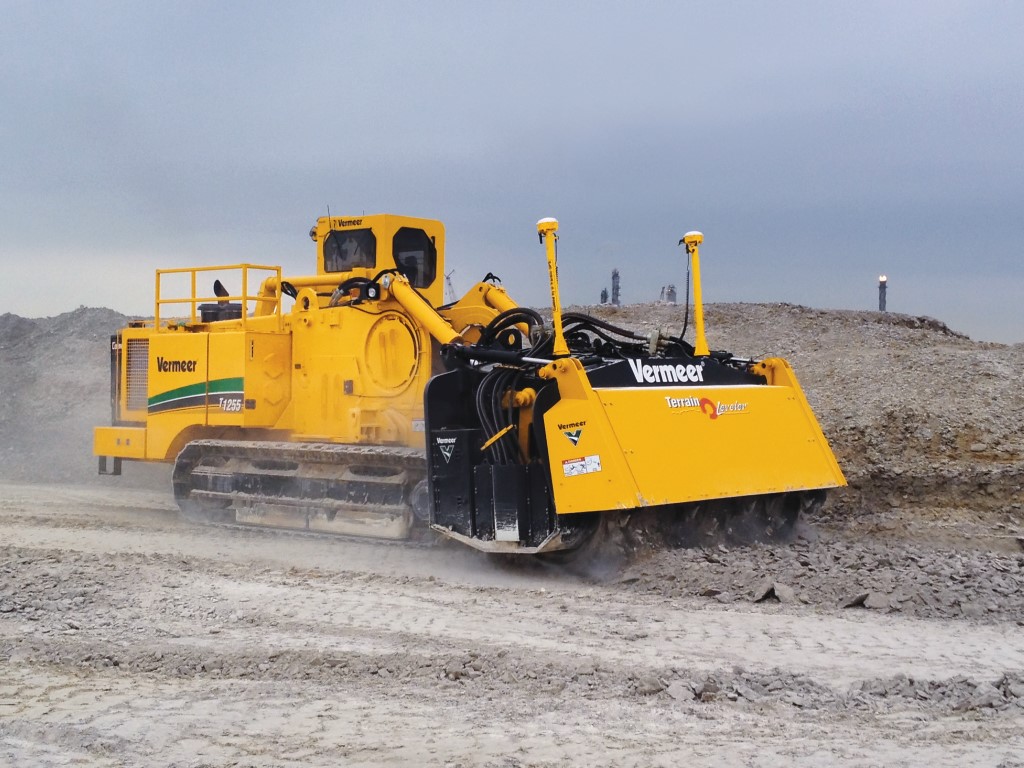

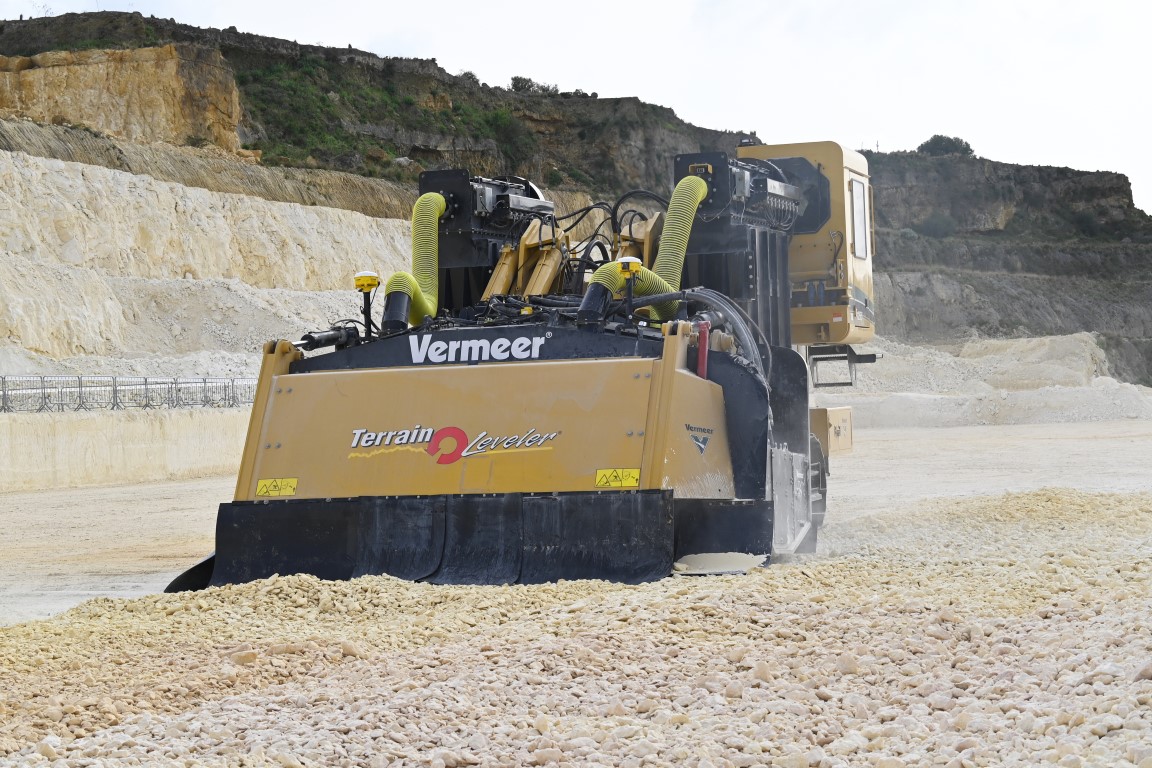

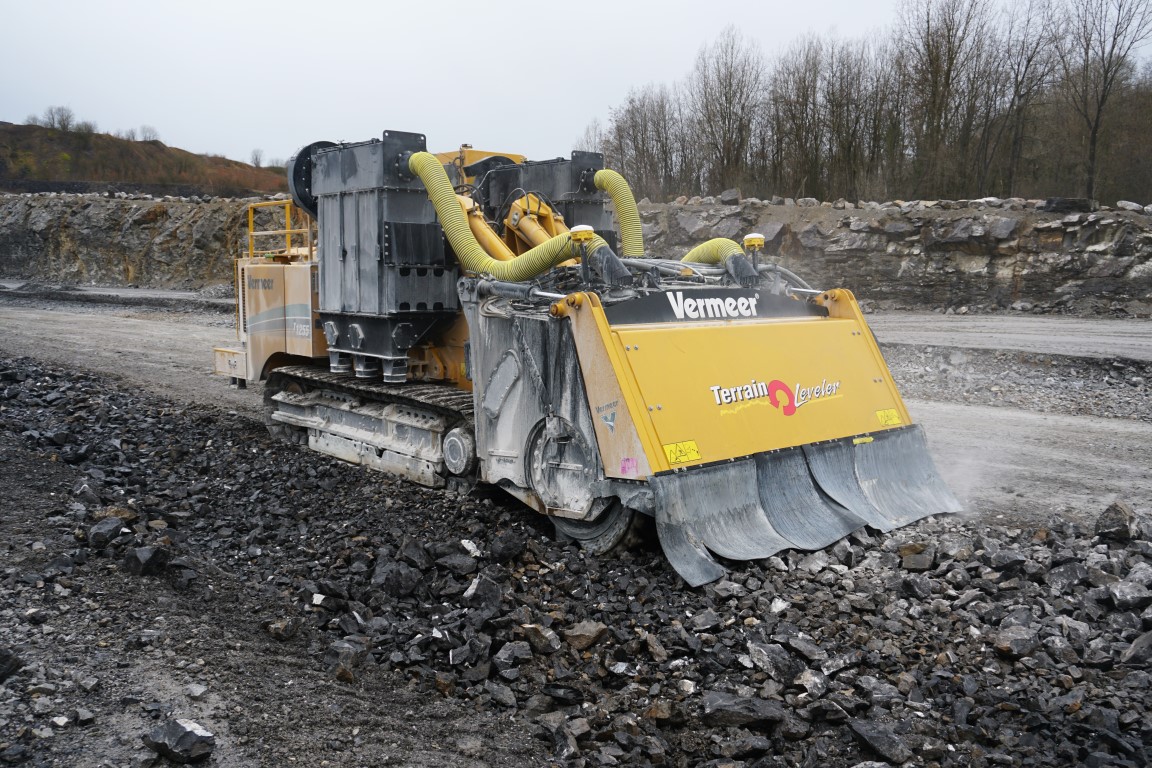

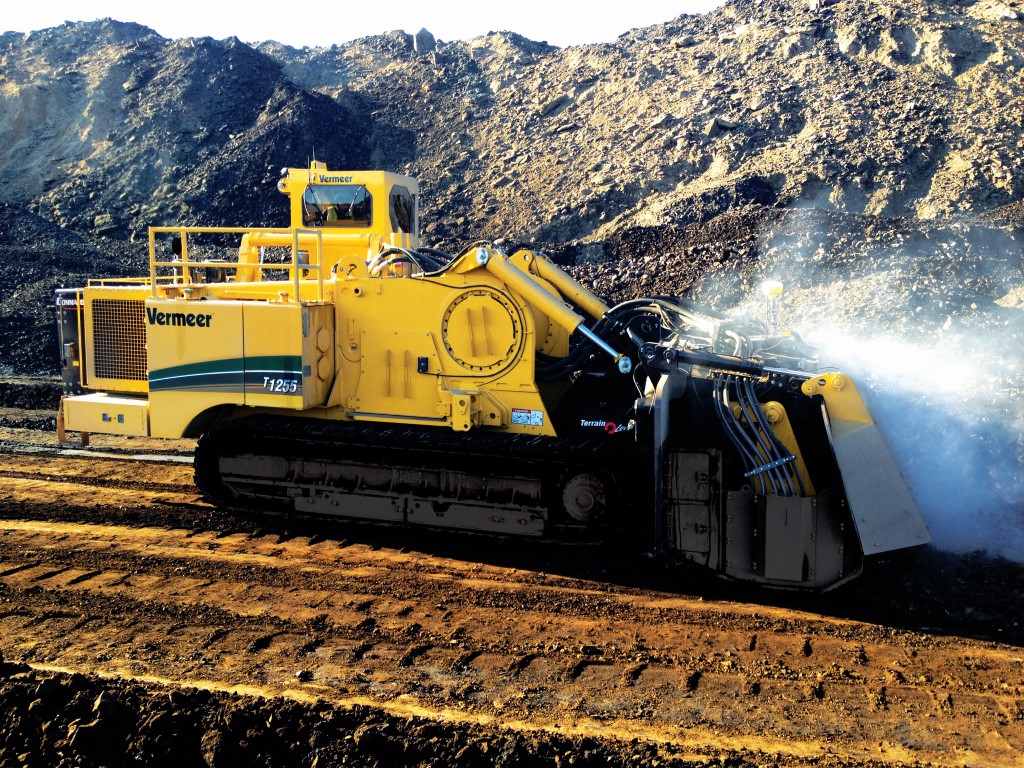

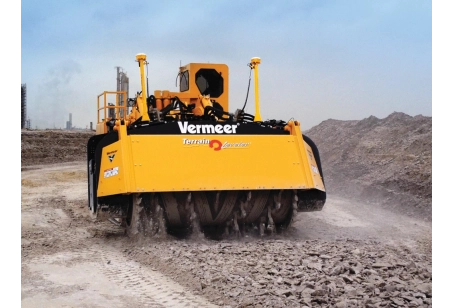

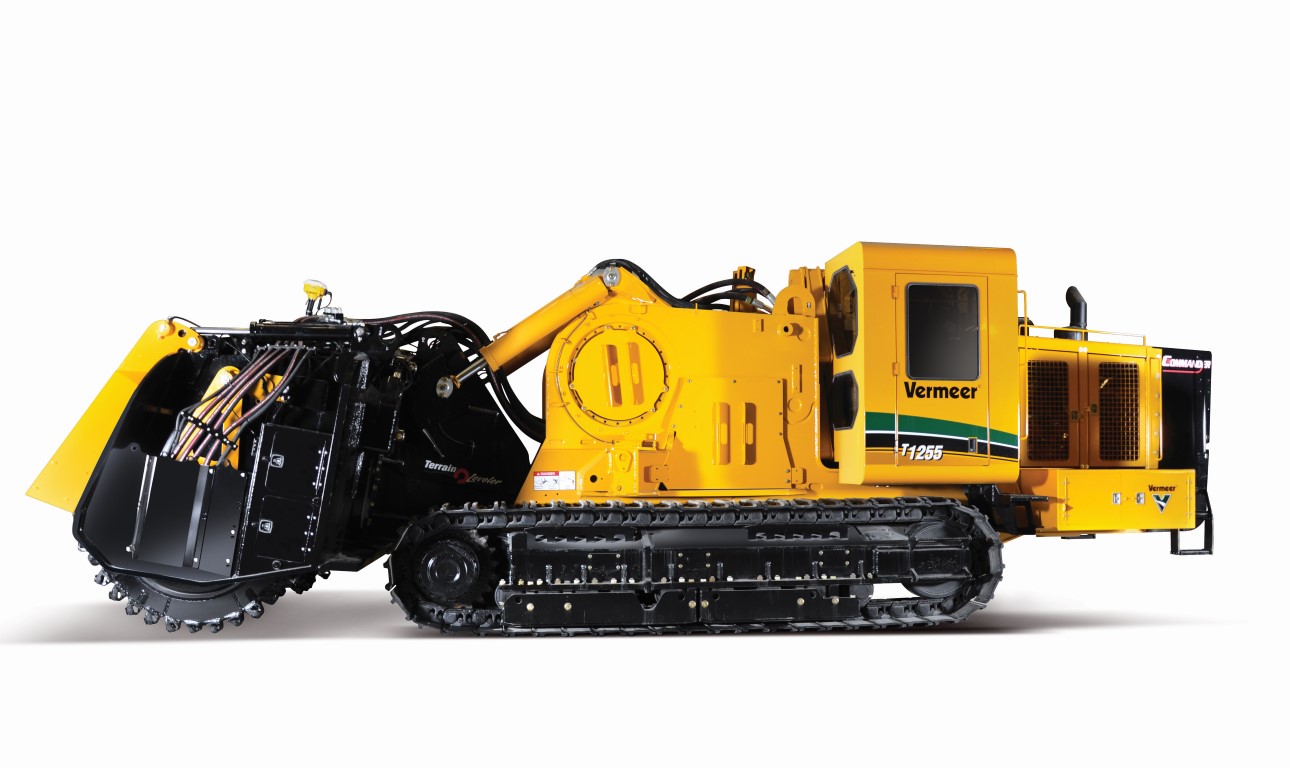

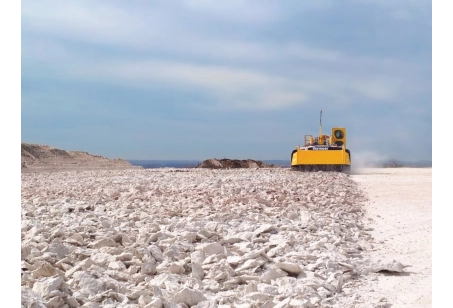

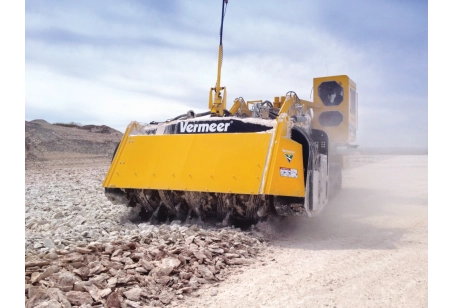

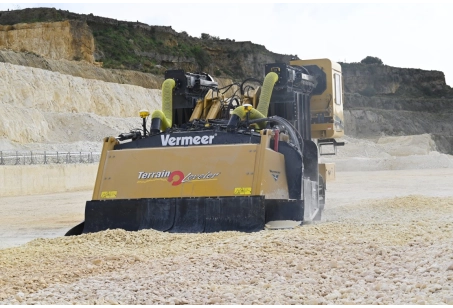

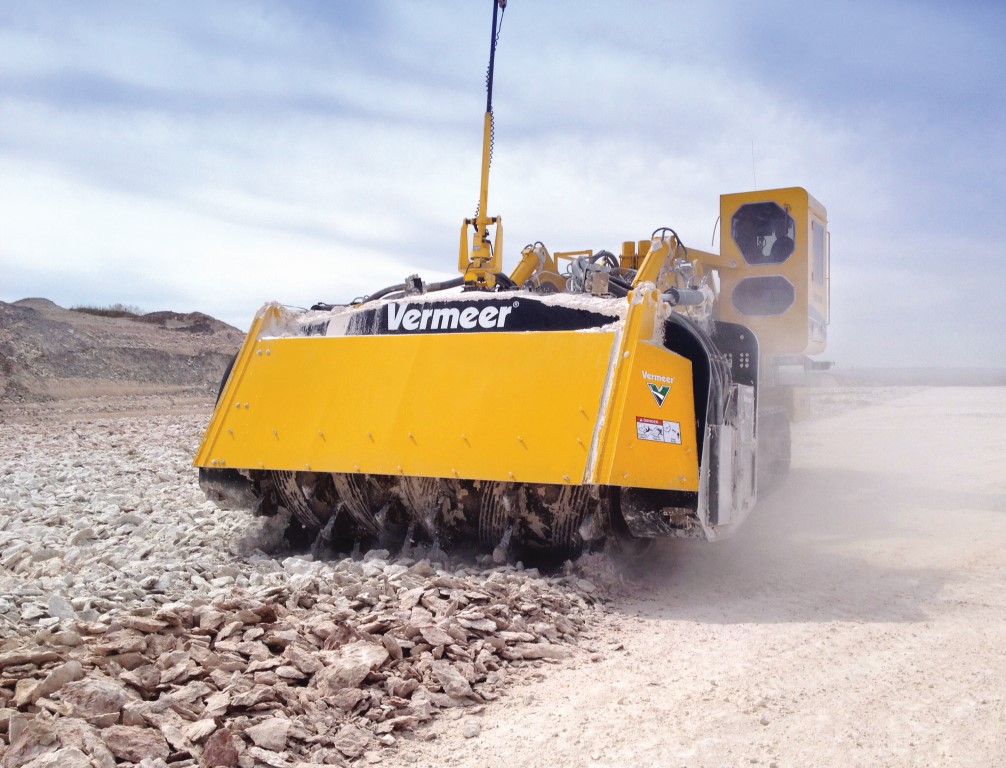

| Terrain Leveler Direct Drive Attachment Matrix |
| Total Combined Mass (Tractor plus Attachment) |
220,000 lb (99,790.3 kg) |
| Cutting Width Capacity |
144" (365.8 cm) |
| Maximum Cutting Depth Range |
21" (53.3 cm) |
| Drive Architecture & Drum Speed |
Hydrostatic direct drive (no chain); Drum rotation speed: up to 26 rpm |
| Drum Tilt Functionality |
Yes, dynamic control within +/- 5 degrees |
| Grade Control Adaptability |
Yes, accepts automated Laser and GPS site planning systems |
| Factory Optional Configurations |
| Trencher attachment module, Heavy-duty light kit, Wireless remote control system. |
