| Drilling Rig Specifications | |
|---|---|
| Dimensions and Weights | |
| Total length | 11.9 m |
| Total width | 2.5 m |
| Total height | 3.2 m |
| Total weight (Base machine with cab, crane & mud pump) | 30.2 t |
| Performance | |
| Maximum pullback | 100 t |
| Maximum thrust | 100 t |
| High thrust/pullback speed | 30 m/min |
| Low thrust/pullback speed | 15 m/min |
| Maximum spindle torque | 39,675 Nm |
| Medium spindle torque | 26,450 Nm |
| Low spindle torque | 19,841 Nm |
| High rotation speed | 90 rpm |
| Medium rotation speed | 68 rpm |
| Low rotation speed | 45 rpm |
| Maximum ground drive speed | 2.5 km/h |

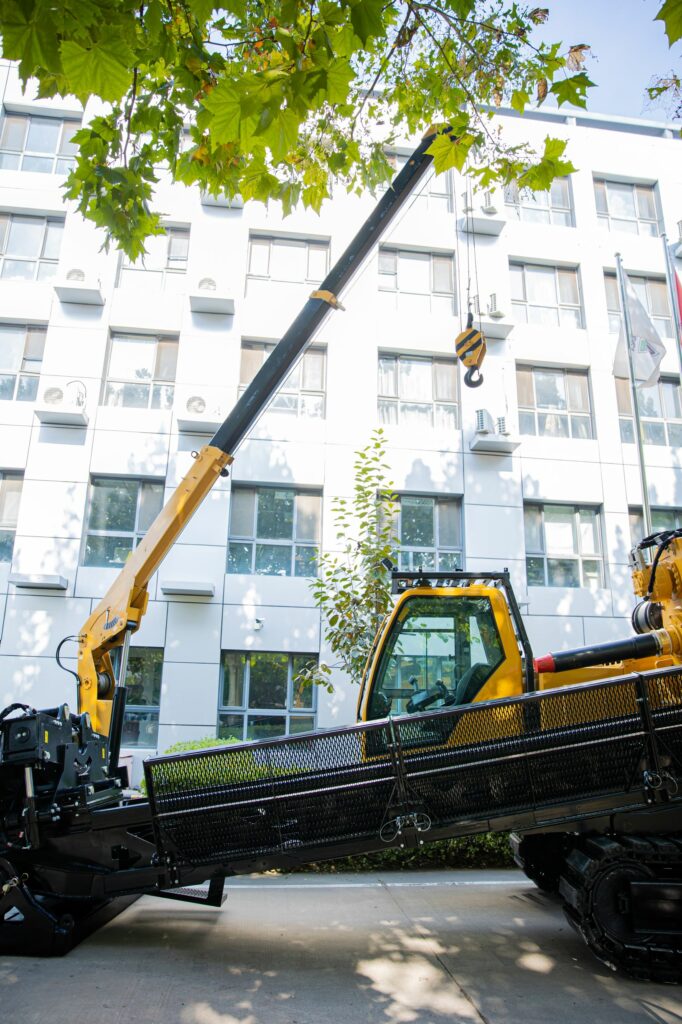

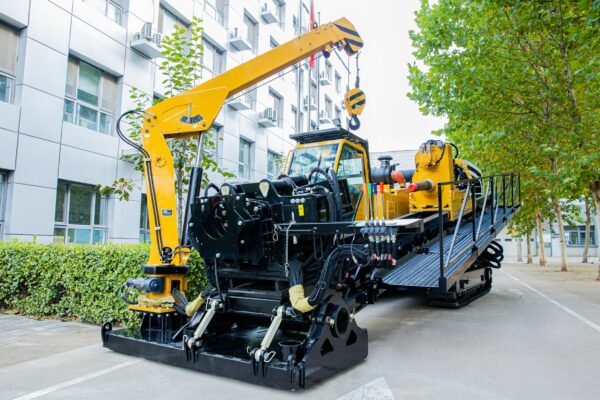

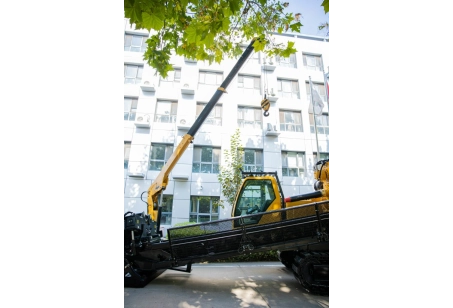

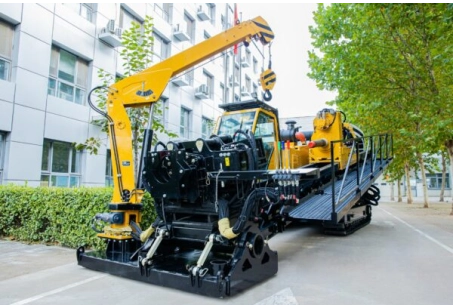

| Crane | |
| Type | Optional |
| Maximum lifting capacity | 2 t |
| Maximum lifting moment | 4 t.m |
| Maximum lifting radius | 6.2 m |
| Rotation | 360° |

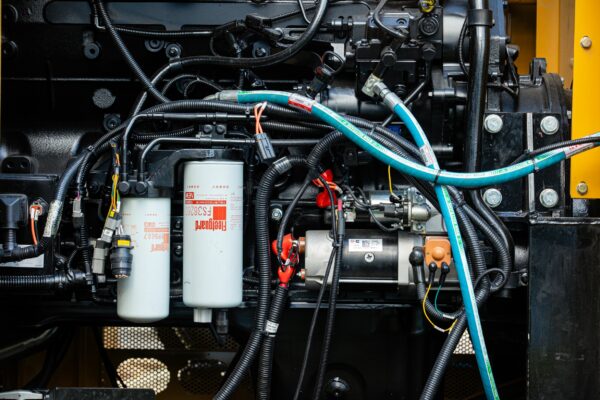

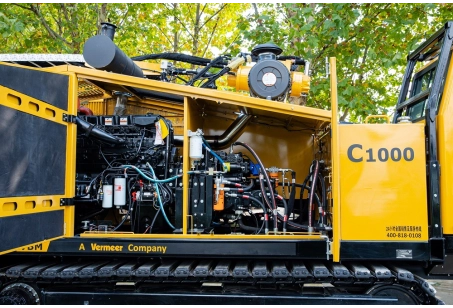

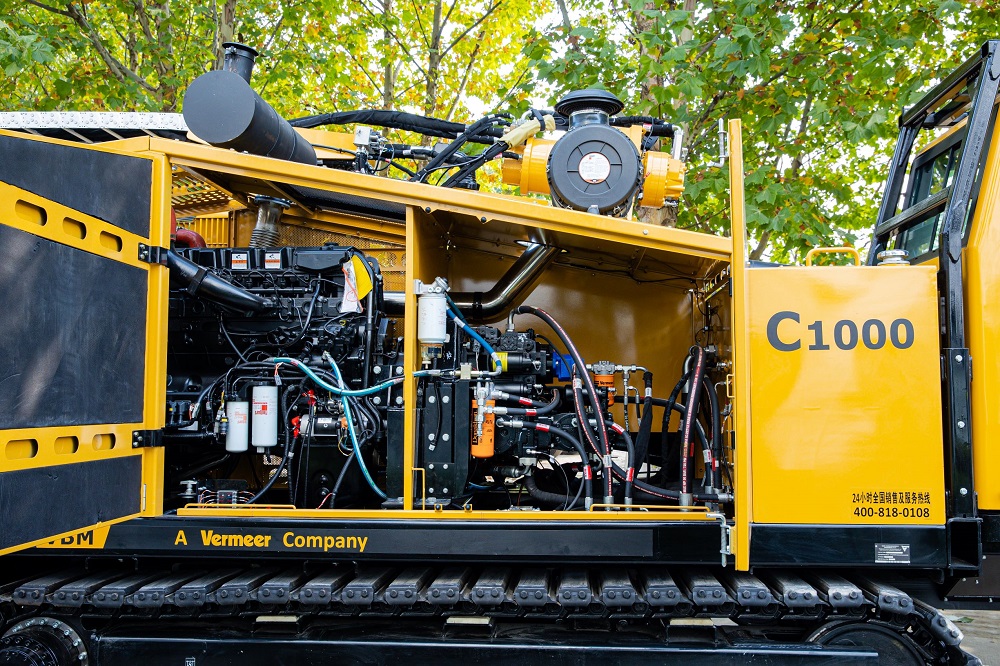

| Engine (Tier 3) | |
| Brand | CUMMINS |
| Power | 335 kW |
| Rated RPM | 1,900 rpm |
| Drill Pipe | |
| Type | API NC50 |
| Rod diameter | 127 mm |
| Rod length | 6 m |
| Entry angle | 12 ° - 24 ° |
| Features | |
| Breakout system (Vise) | Standard |
| Stakedown | N/A |
| Drilling lights | Standard |
| Mud flow indicator | N/A |

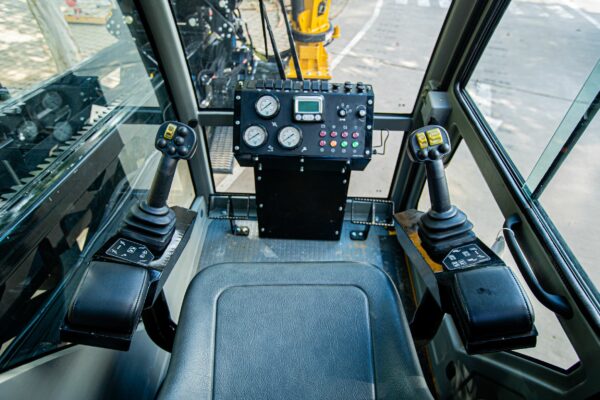

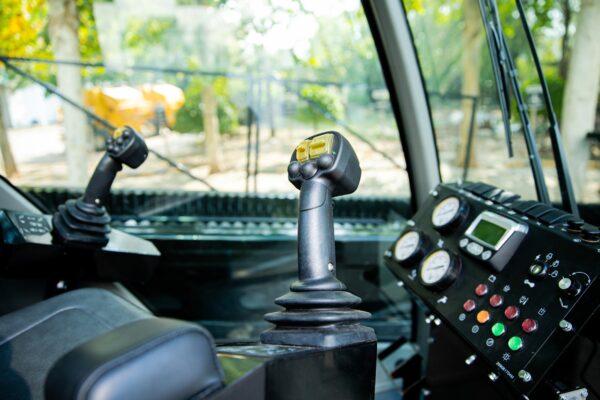

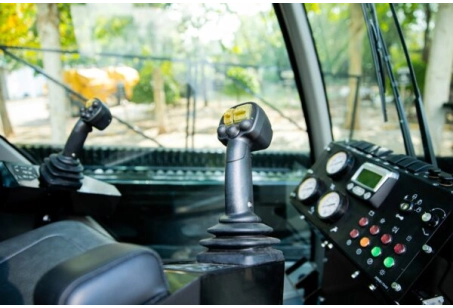

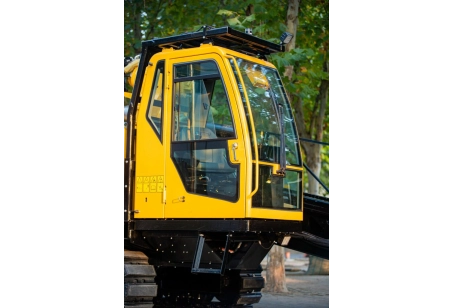

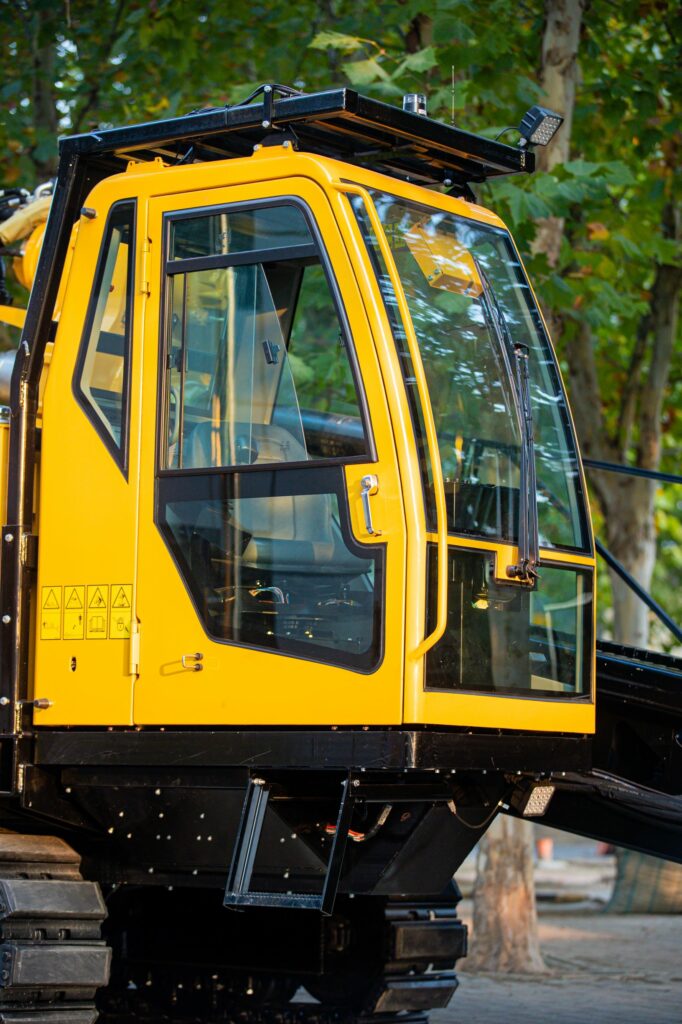

| Cab w/heat and A/C | Standard |
| Gearbox thrust method | Rack and pinion |
| Rod loader | Optional |

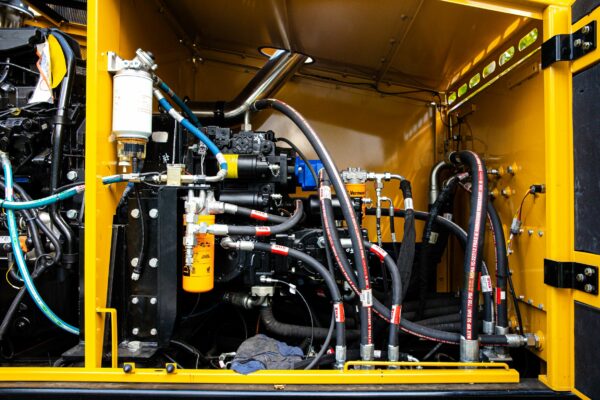

| Mud Pump | |
| Maximum pressure | 100 bar |
| Maximum flow | 1,200 L/min |
| Tank Capacity | |
| Hydraulic tank | 850 L |
| Fuel tank | 736 L |
