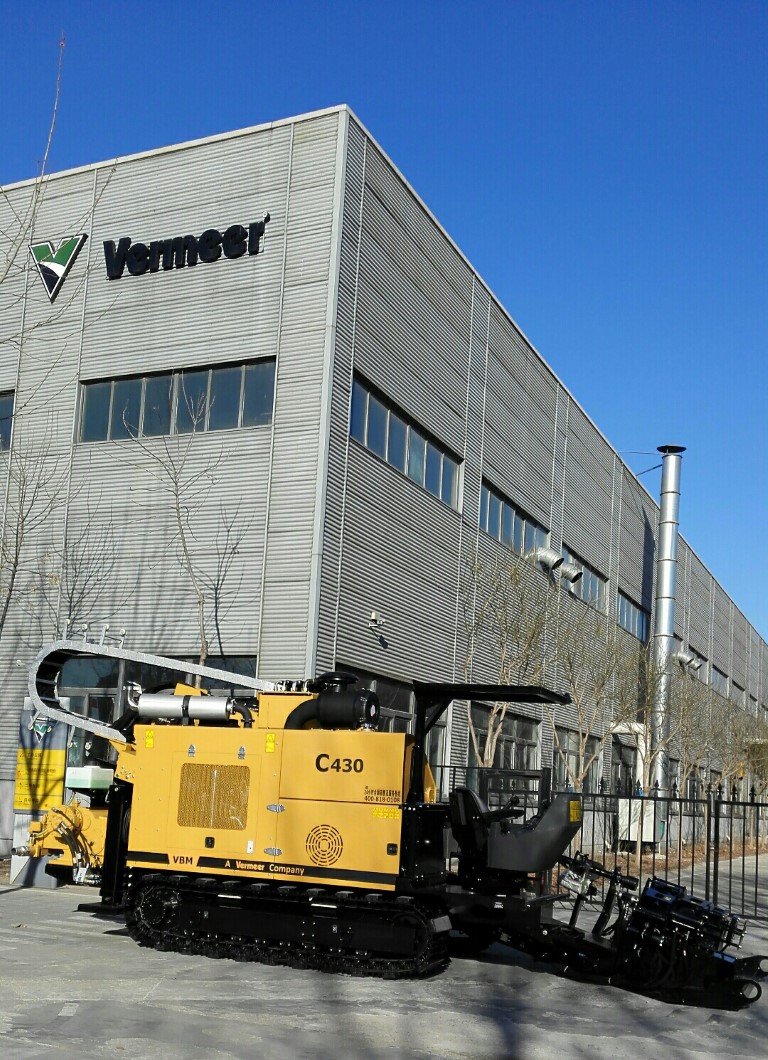

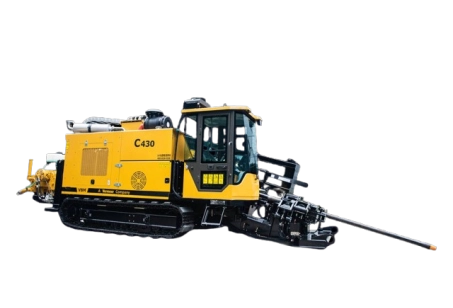

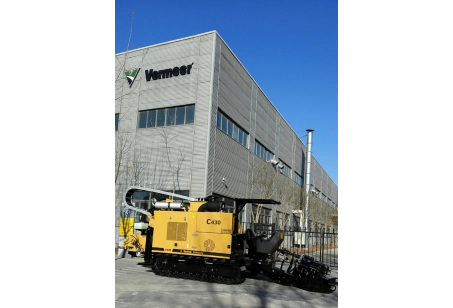

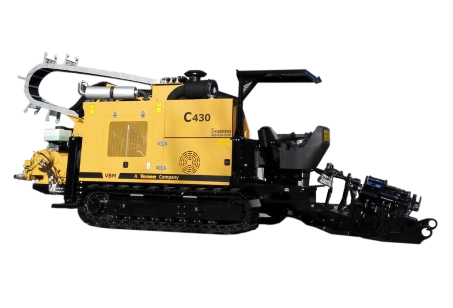

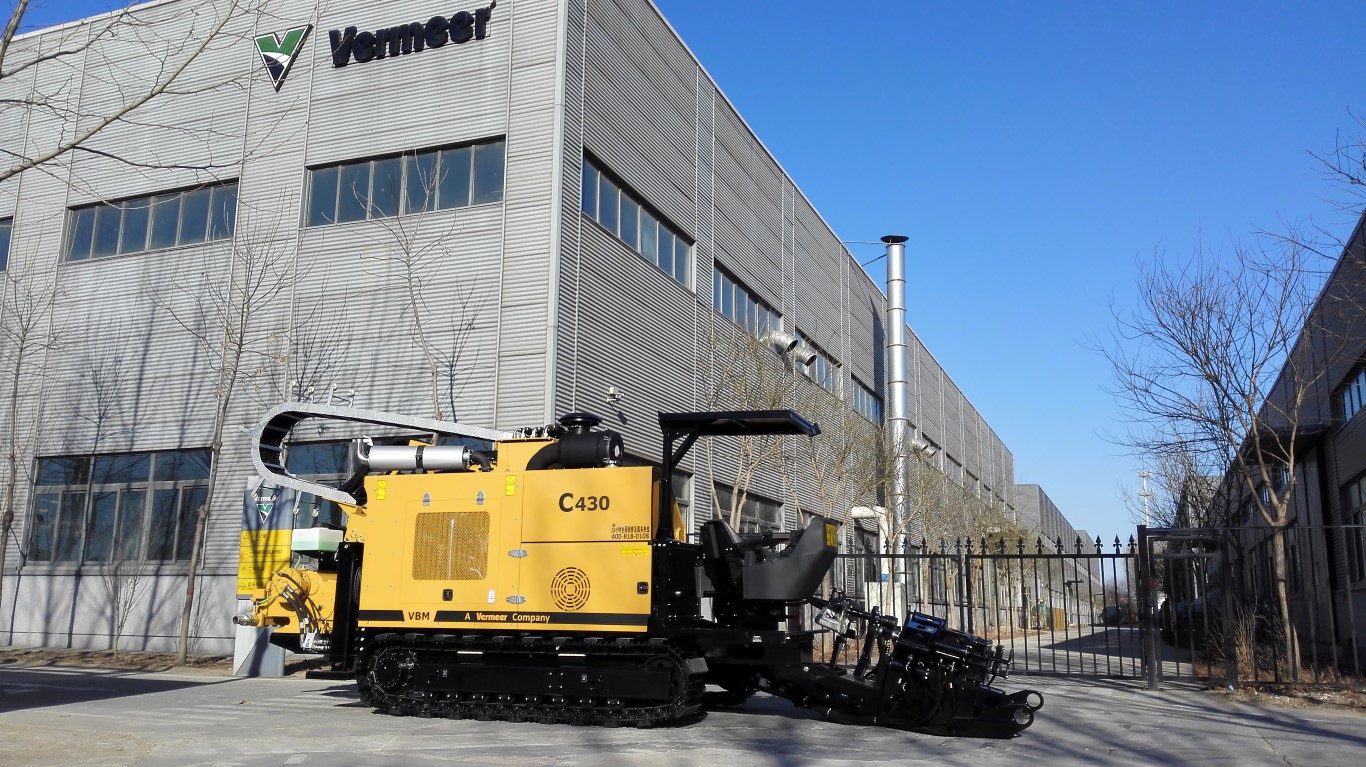

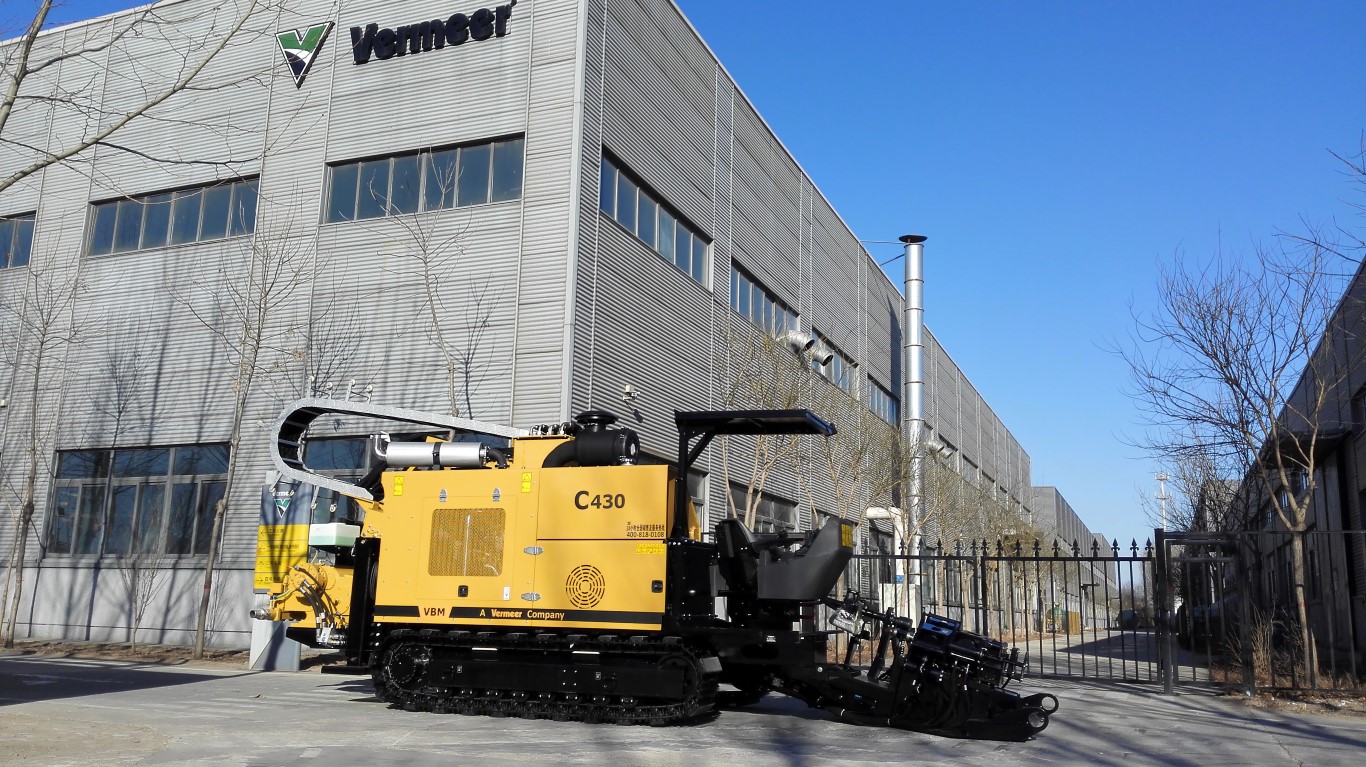

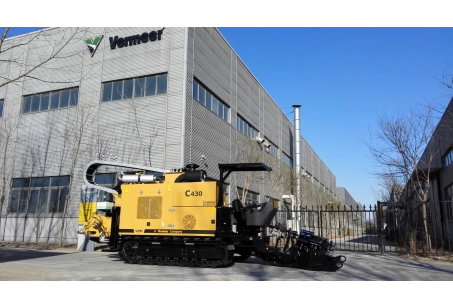

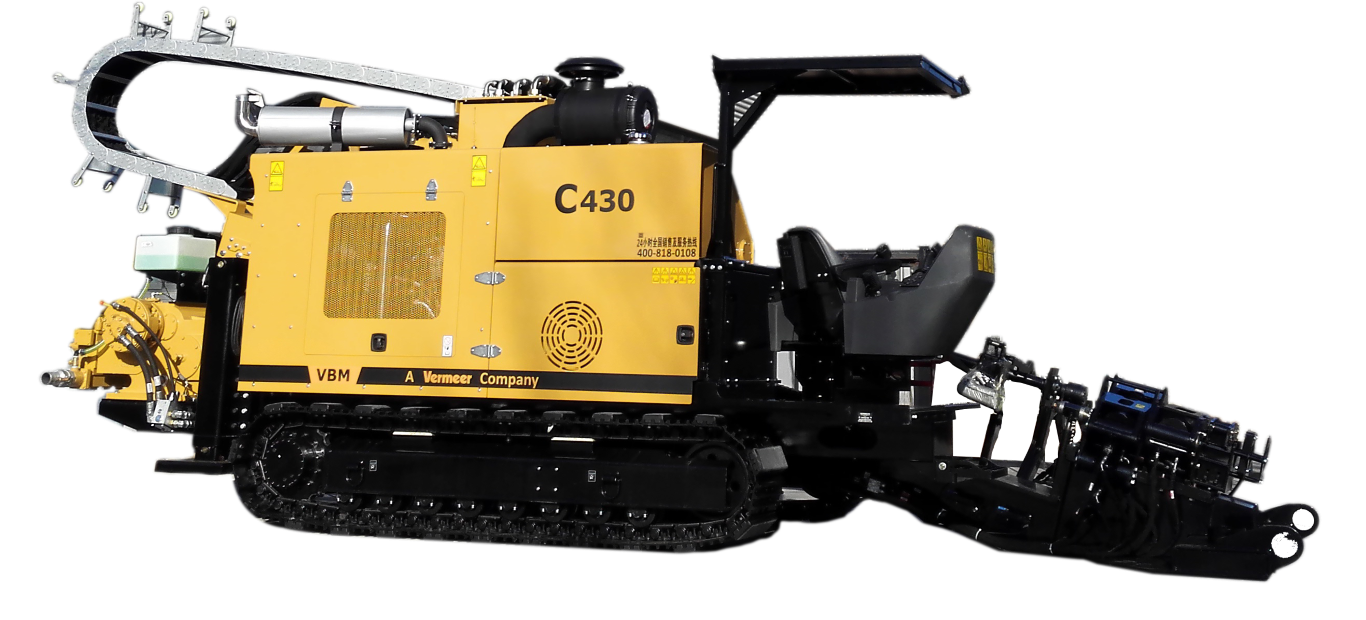

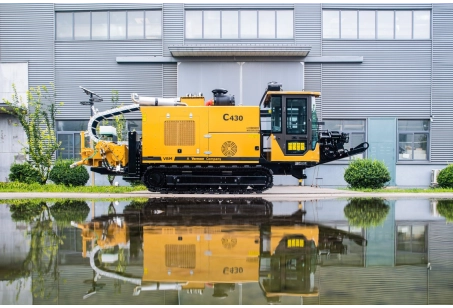

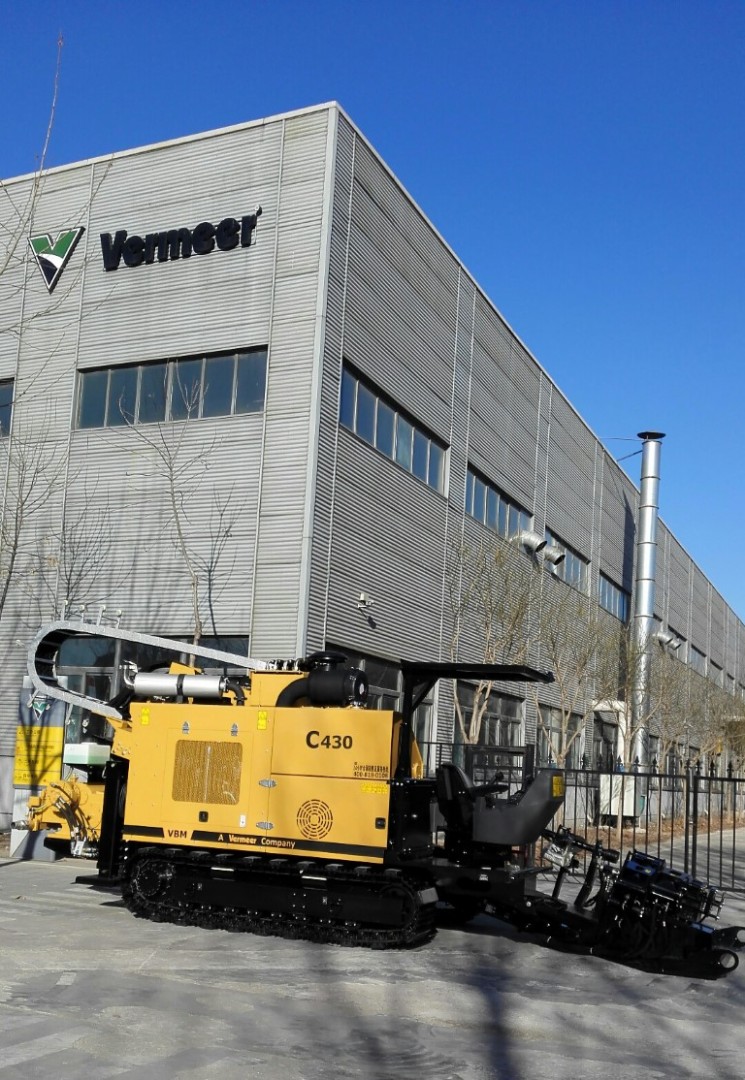

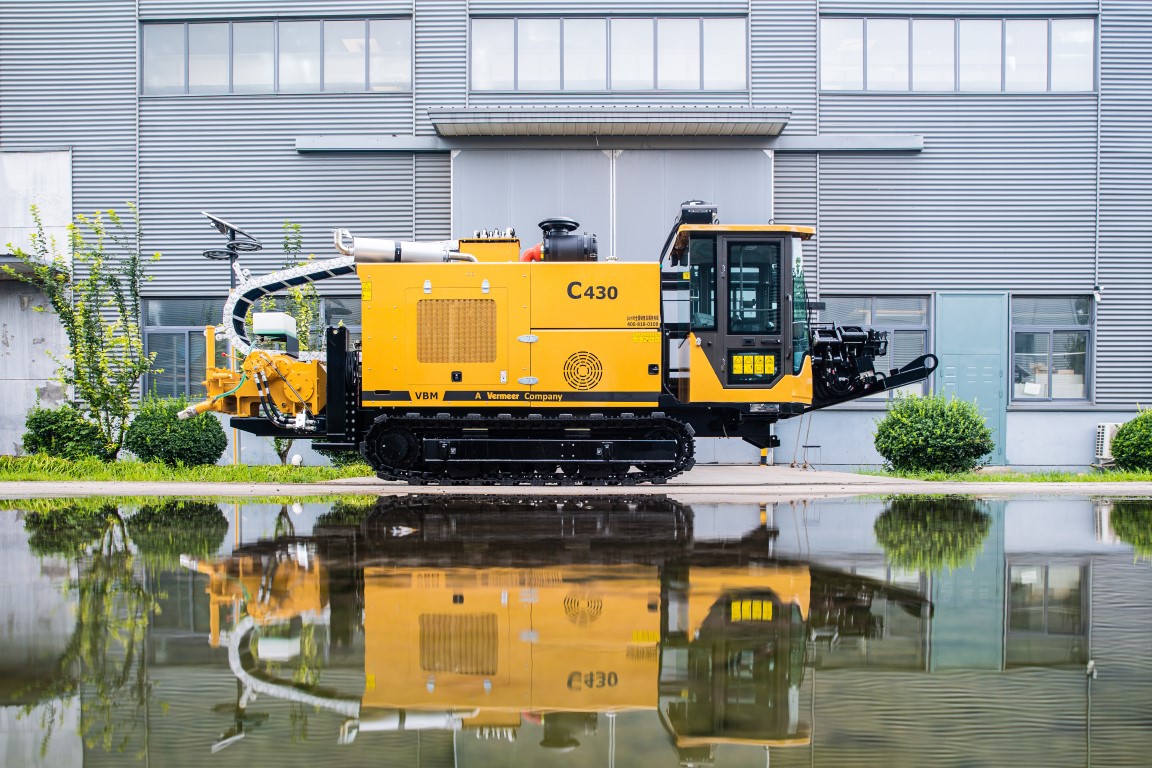

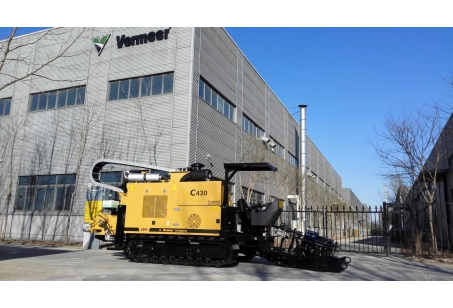

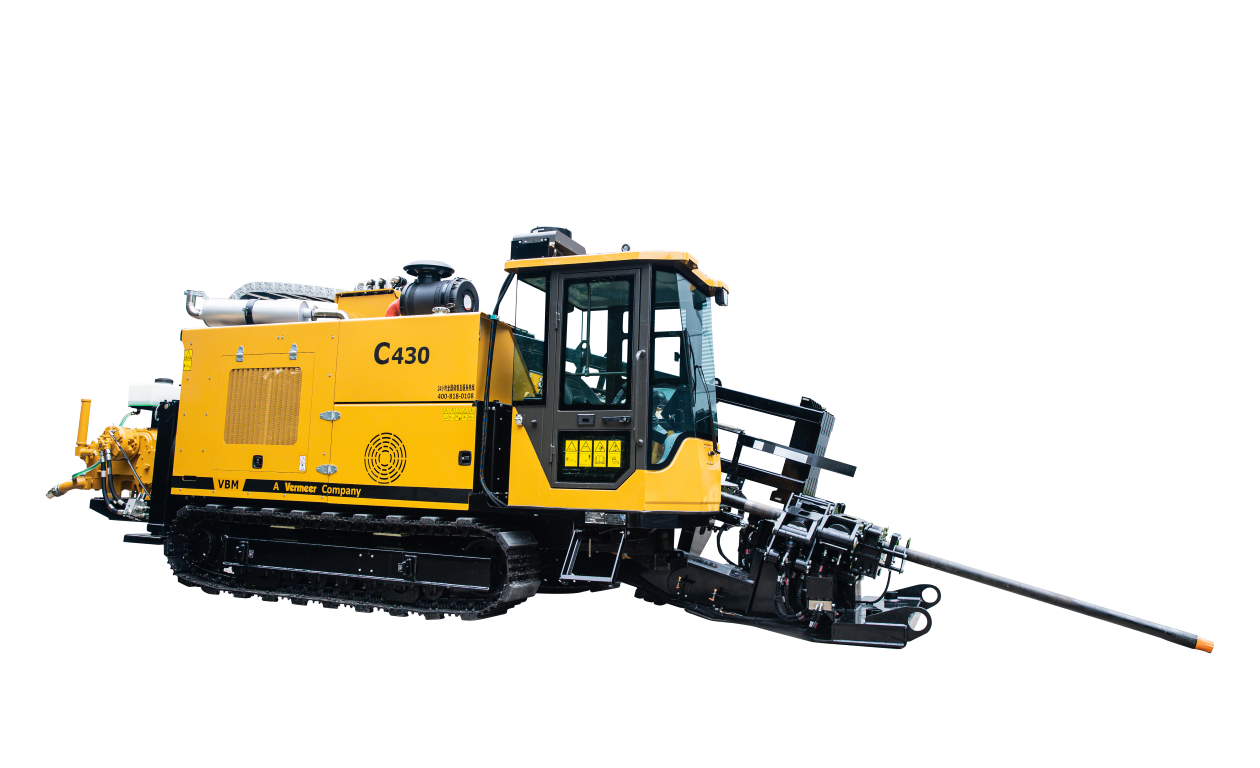

| Dimensions and Weights |
| Total length (Minimum transport with rod stager) |
7.1 m |
| Total length (Minimum transport with rod loader) |
7.3 m |
| Total width (Minimum transport with rod stager) |
2.3 m |
| Total width (Minimum transport with rod loader) |
2.5 m |
| Total height (Minimum transport with rod stager) |
2.6 m |
| Total height (Minimum transport with rod loader) |
2.9 m |
| Total weight (Base machine with cab and rod stager) |
13.3 t |
| Total weight (Base machine with cab, rod stager and crane) |
14.2 t |
| Total weight (Base machine with cab and rod loader) |
14.2 t |
| Total weight (Base machine with cab, rod loader and 40 rods) |
17 t |
| Total weight (Base machine with cab, rod loader, 40 rods and crane) |
17.8 t |
| Performance |
| Maximum pullback |
43 t |
| Maximum thrust |
43 t |
| High thrust/pullback speed |
42 m/min |
| Low thrust/pullback speed |
14 m/min |
| Maximum spindle torque |
15,200 Nm |
| Medium spindle torque |
8,538 Nm |
| Low spindle torque |
6,232 Nm |
| High rotation speed |
154 rpm |
| Medium rotation speed |
110 rpm |
| Low rotation speed |
80 rpm |
| Maximum ground drive speed |
2.5 km/h |

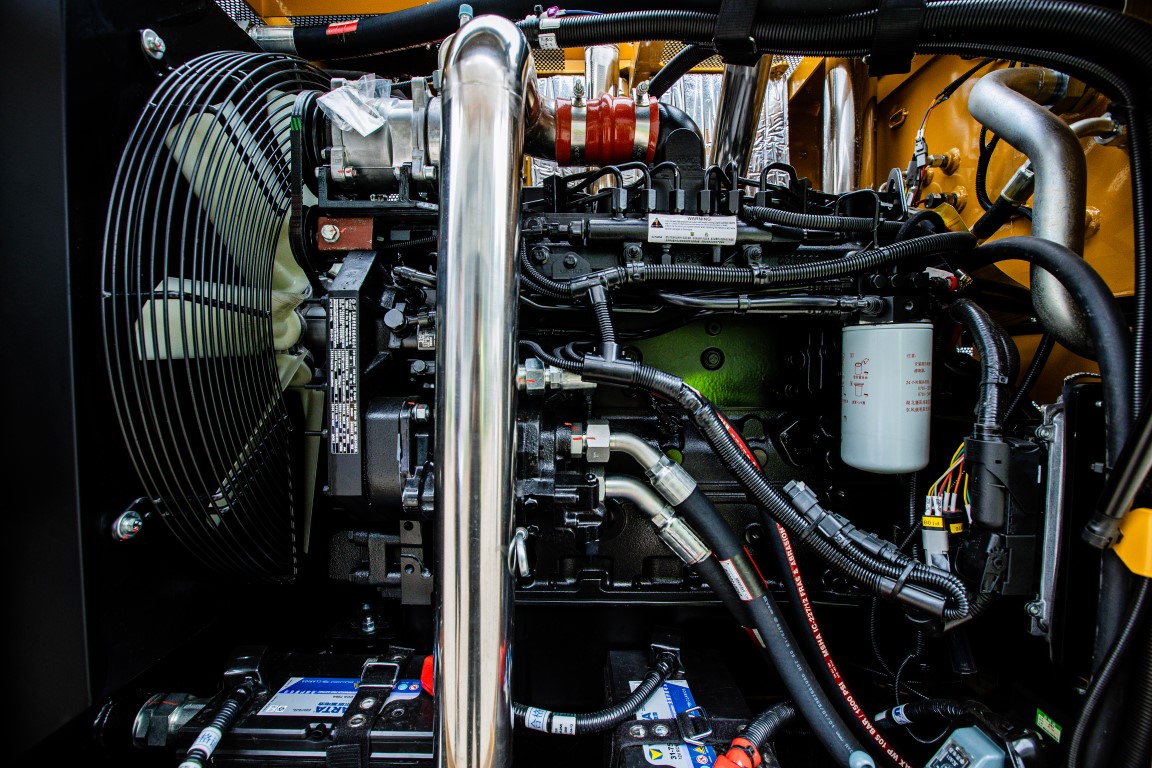

| Engine (Tier 3) |
| Brand |
CUMMINS |
| Model |
QSB5.9-C210-30 |
| Power |
153 kW |
| Rated RPM |
2,200 rpm |
| Drill Pipe |
| Type |
API NC26 |
| Rod diameter |
73 mm / 83 mm |
| Rod length |
3 m |
| Weight |
54 kg |
| Entry angle |
9° - 18° |

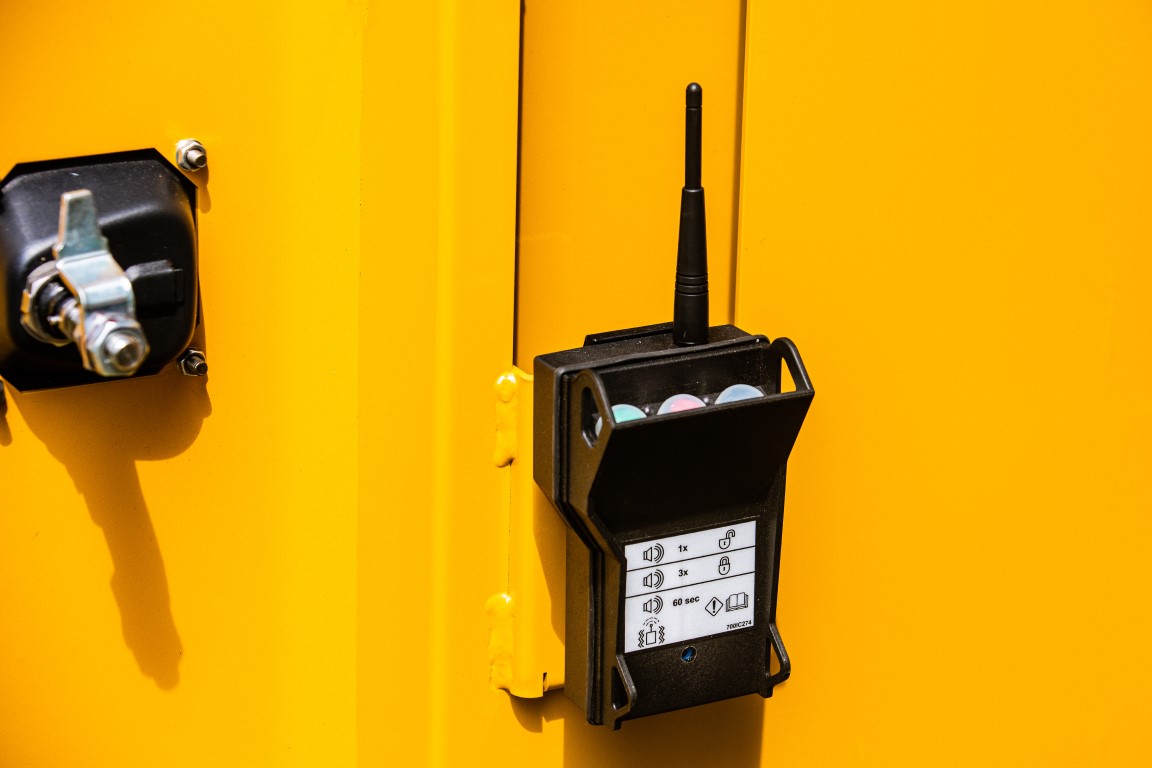

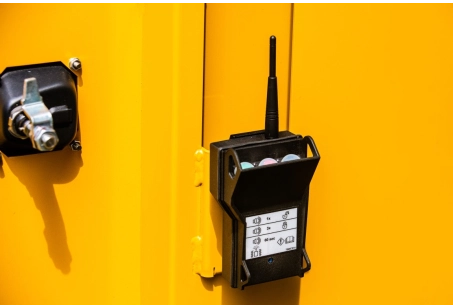

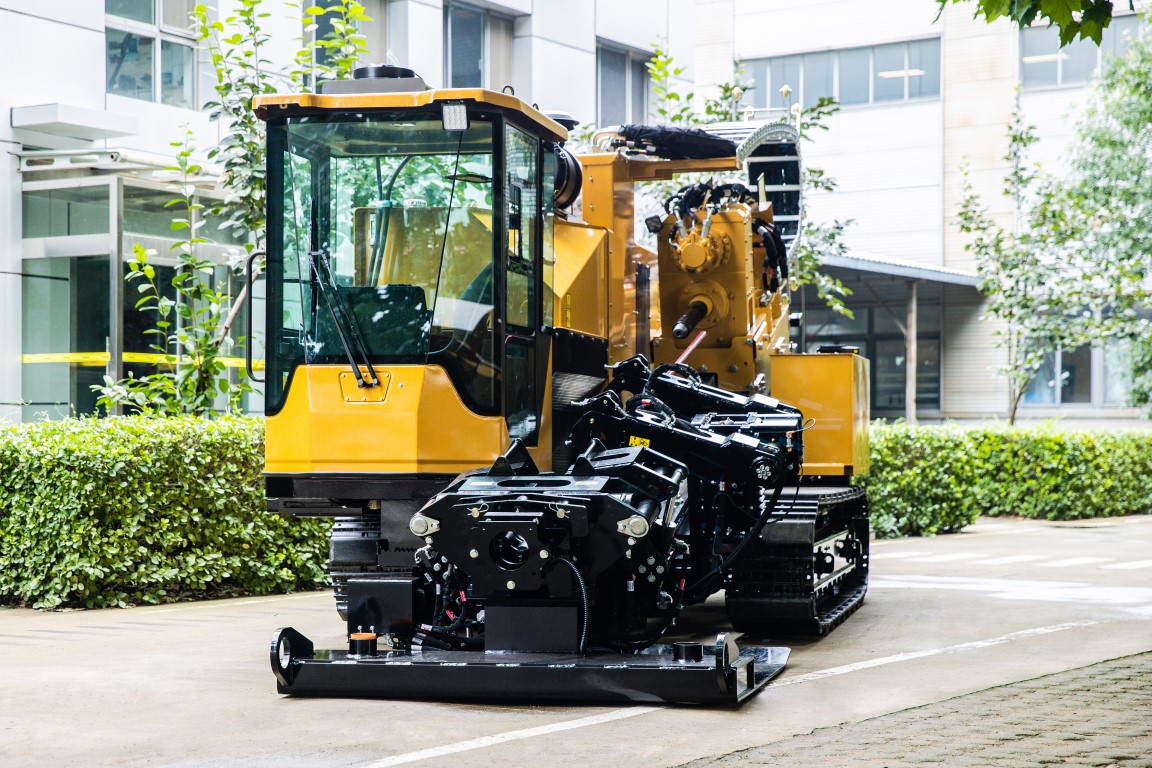

| Features |
| Breakout system (Vise) |
Standard |
| Manual stakedown |
Optional |
| Drilling lights |
Standard |
| Mud flow indicator |
N/A |

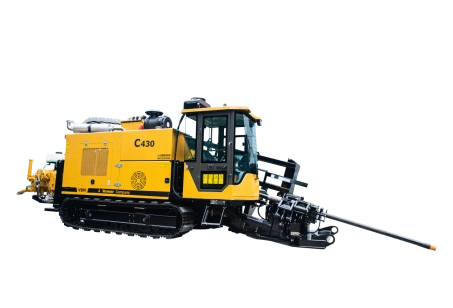

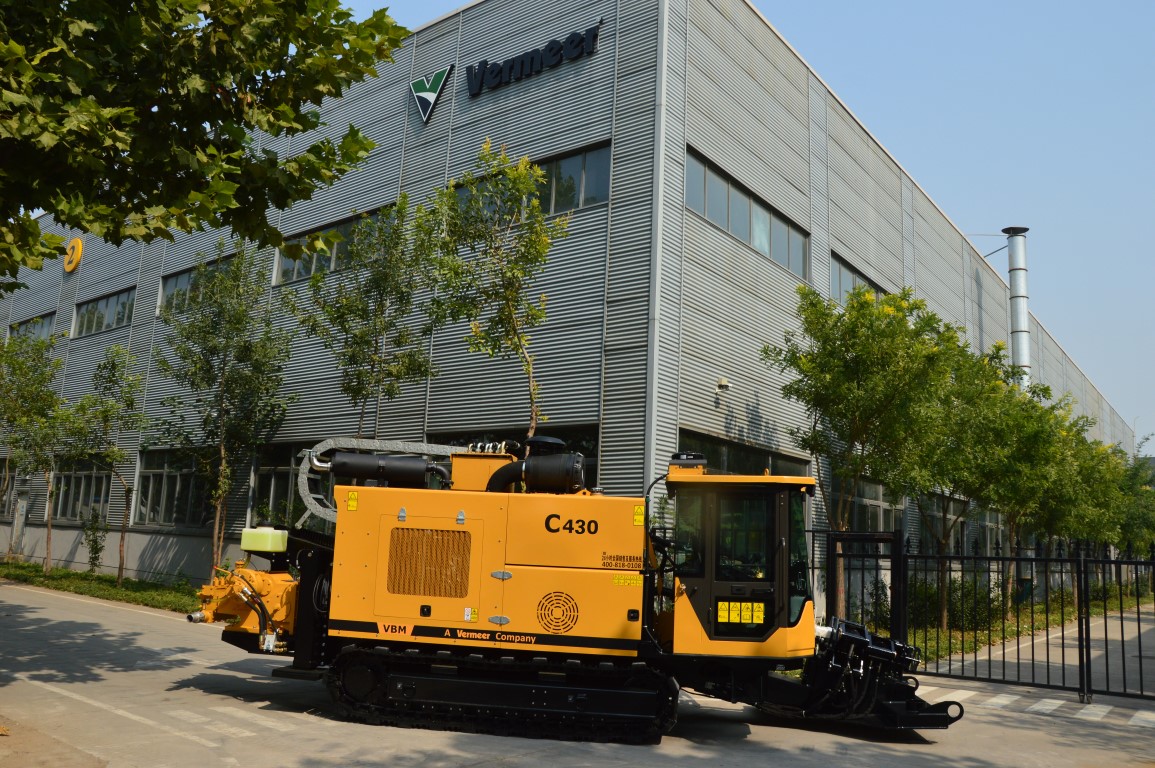

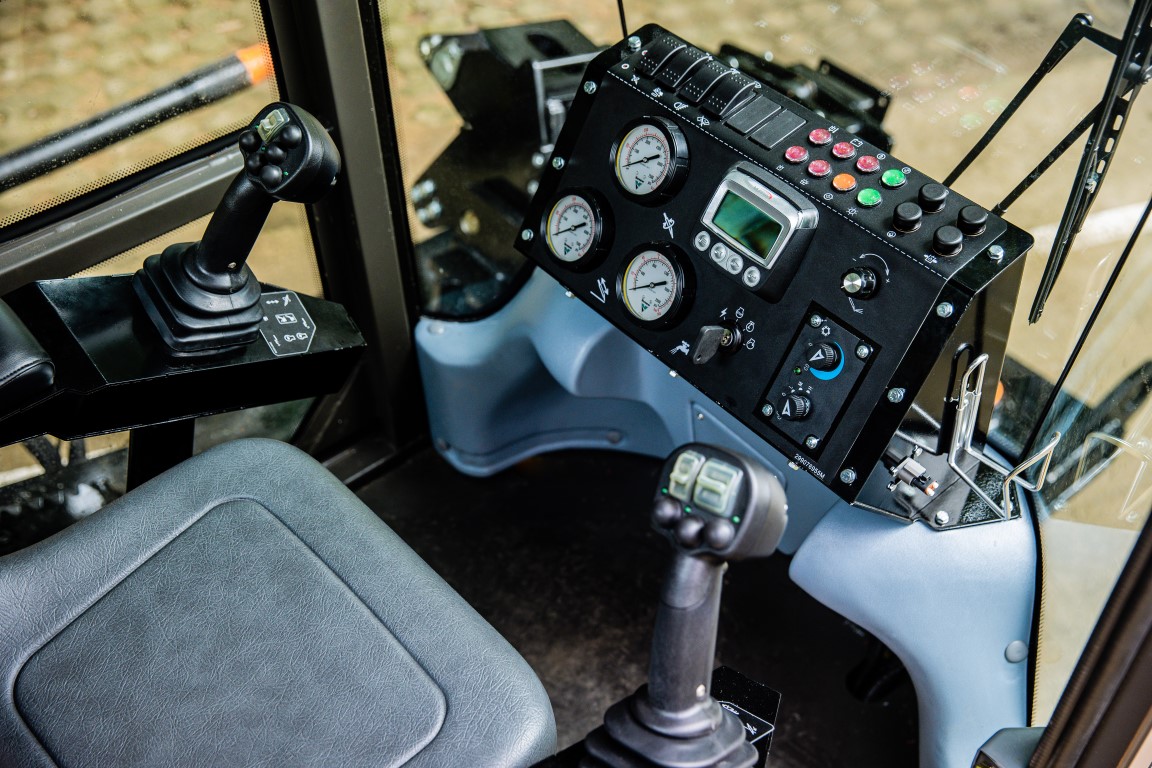

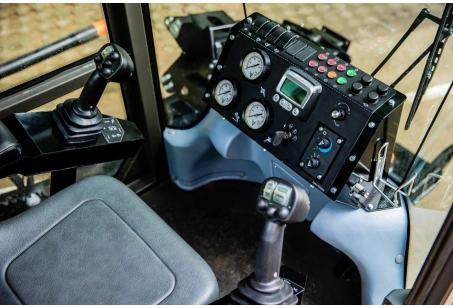

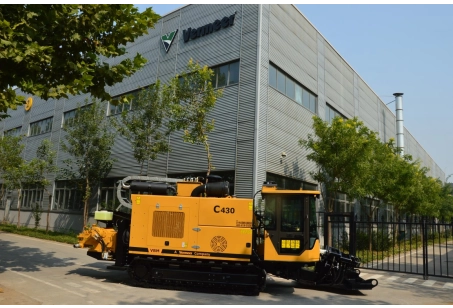

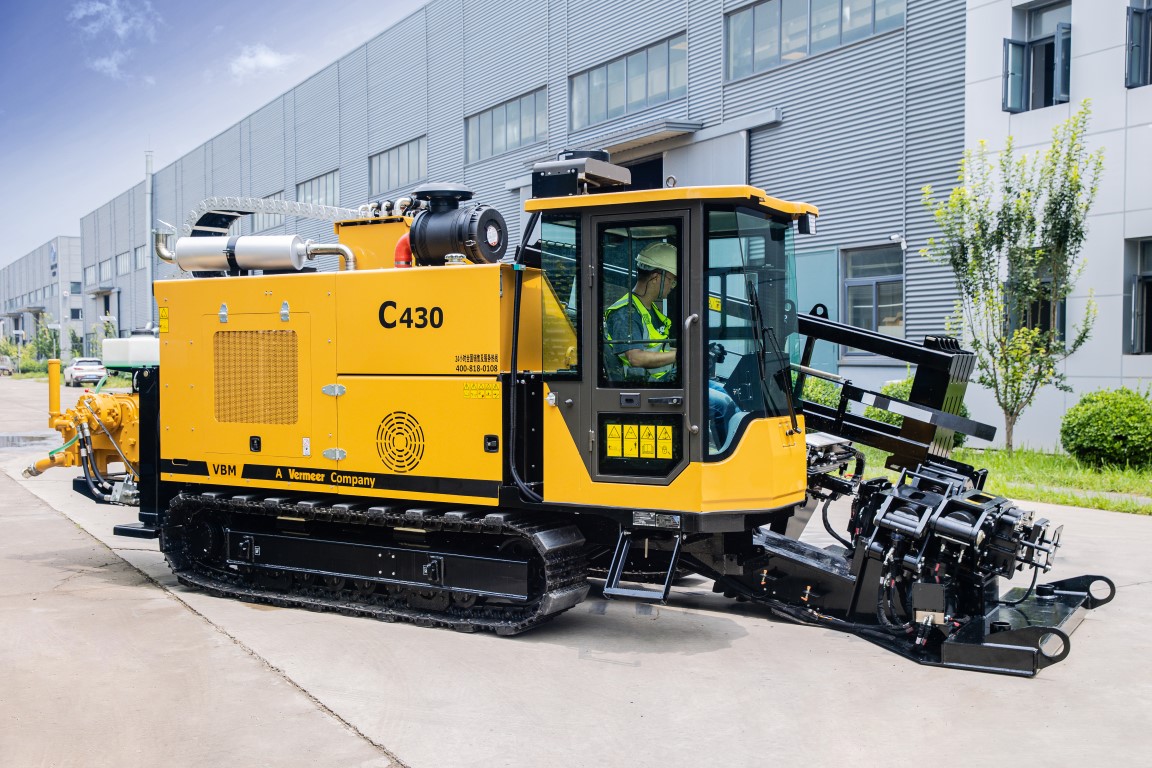

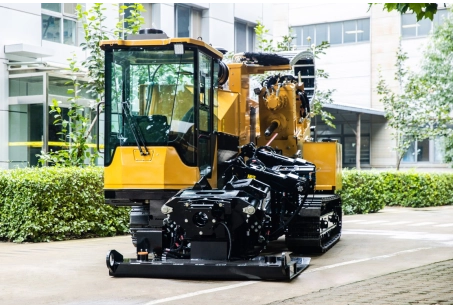

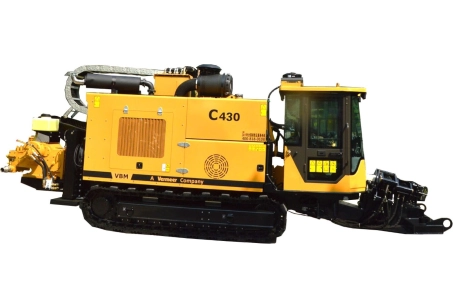

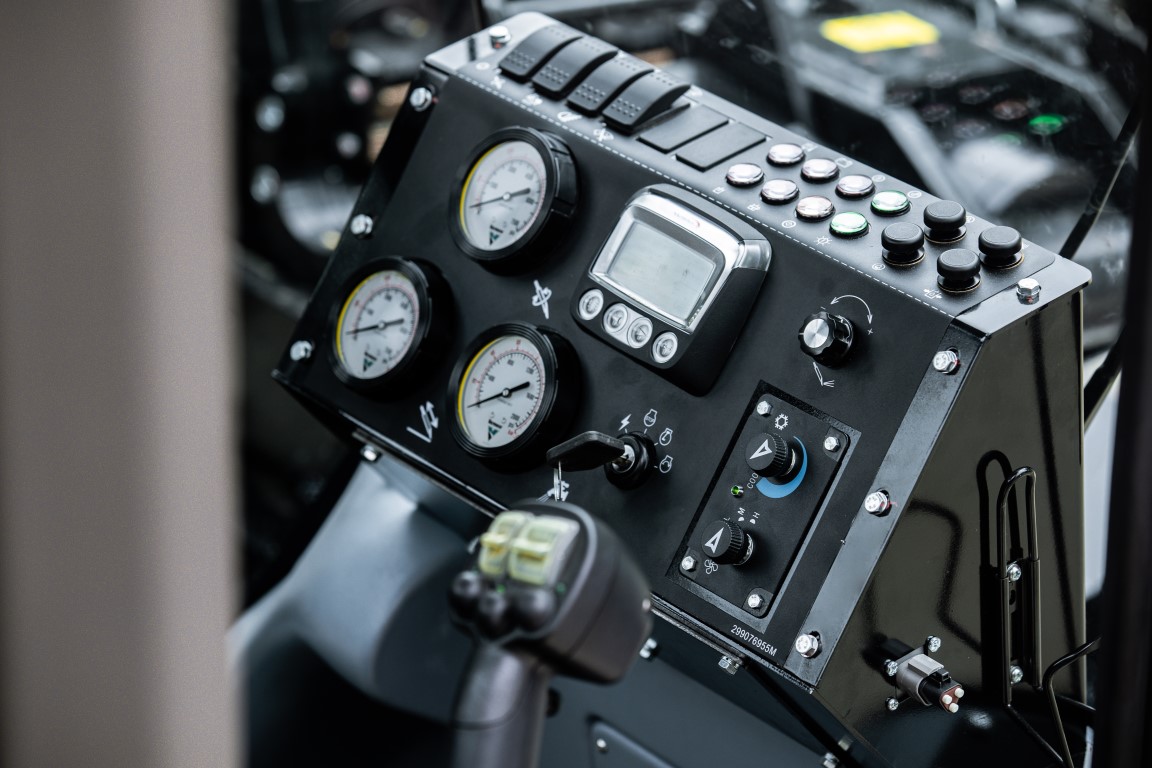

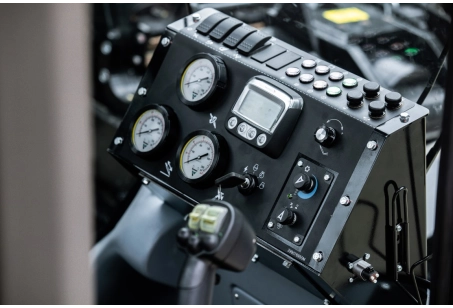

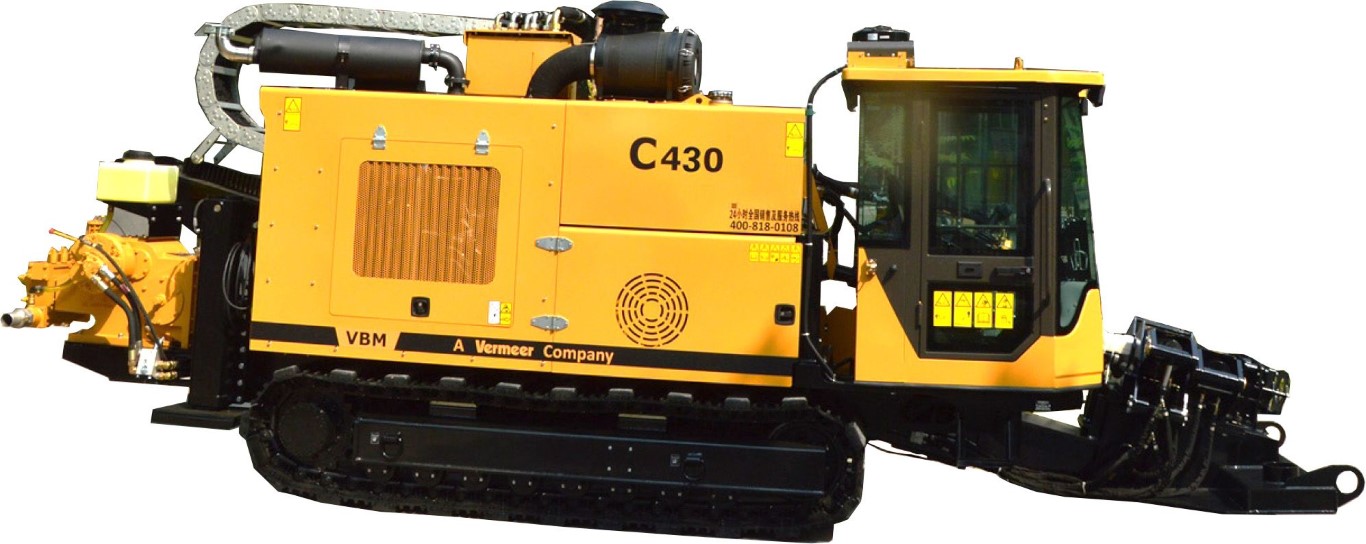

| Cab w/heat and A/C |
Standard |

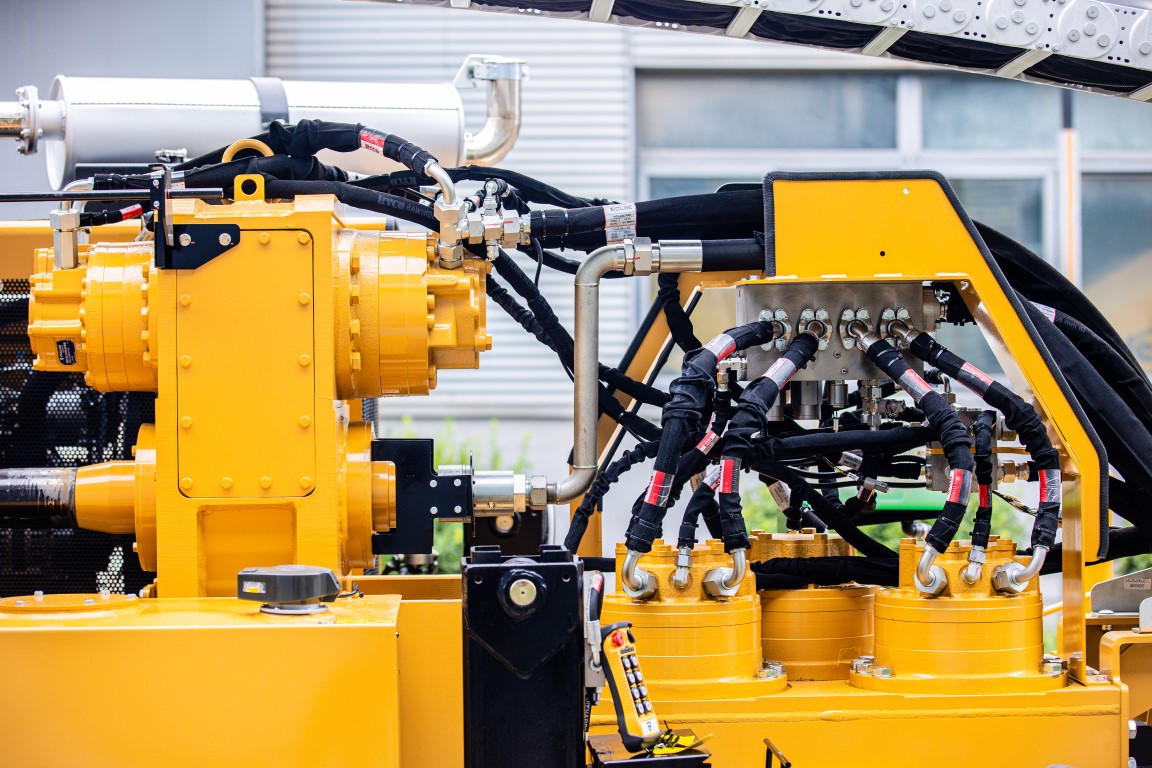

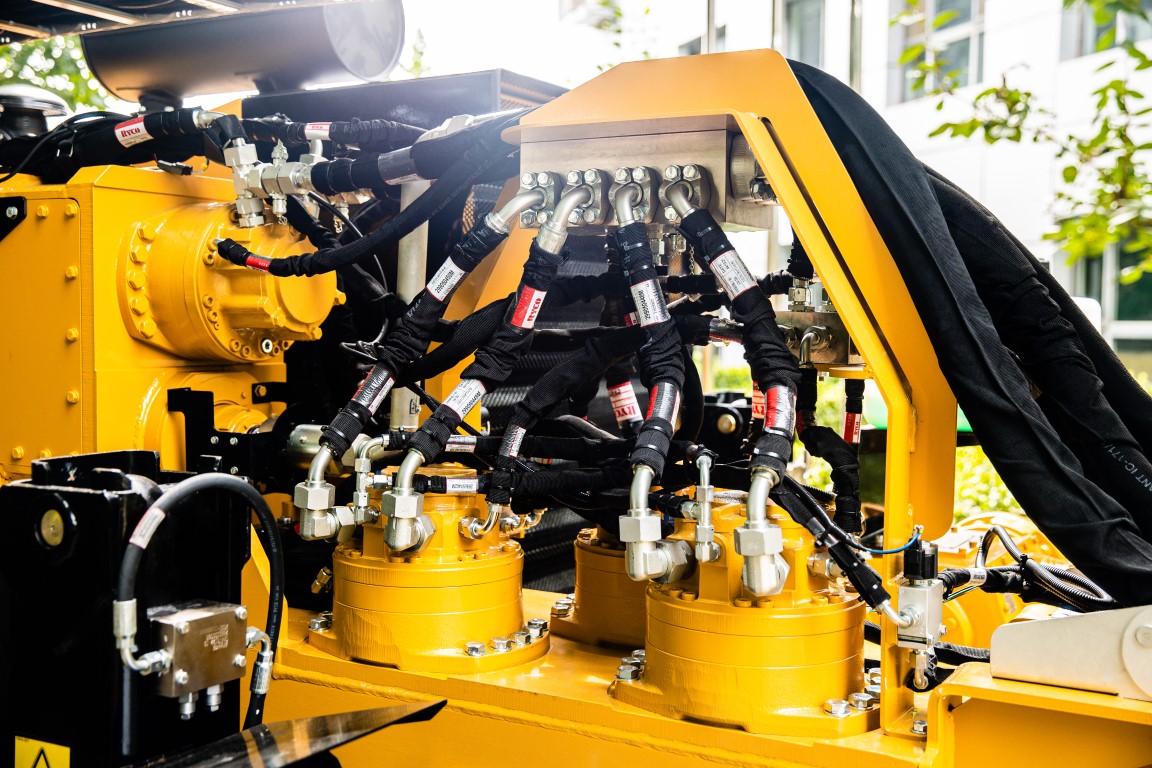

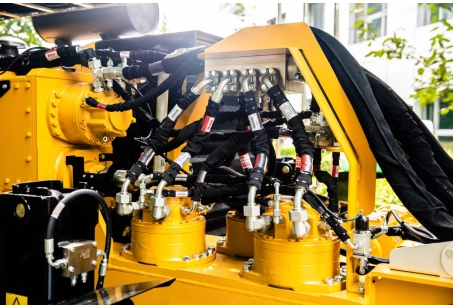

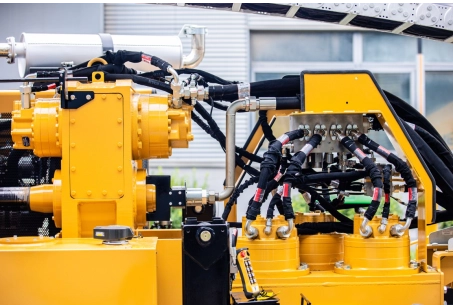

| Gearbox thrust method |
Rack and pinion |

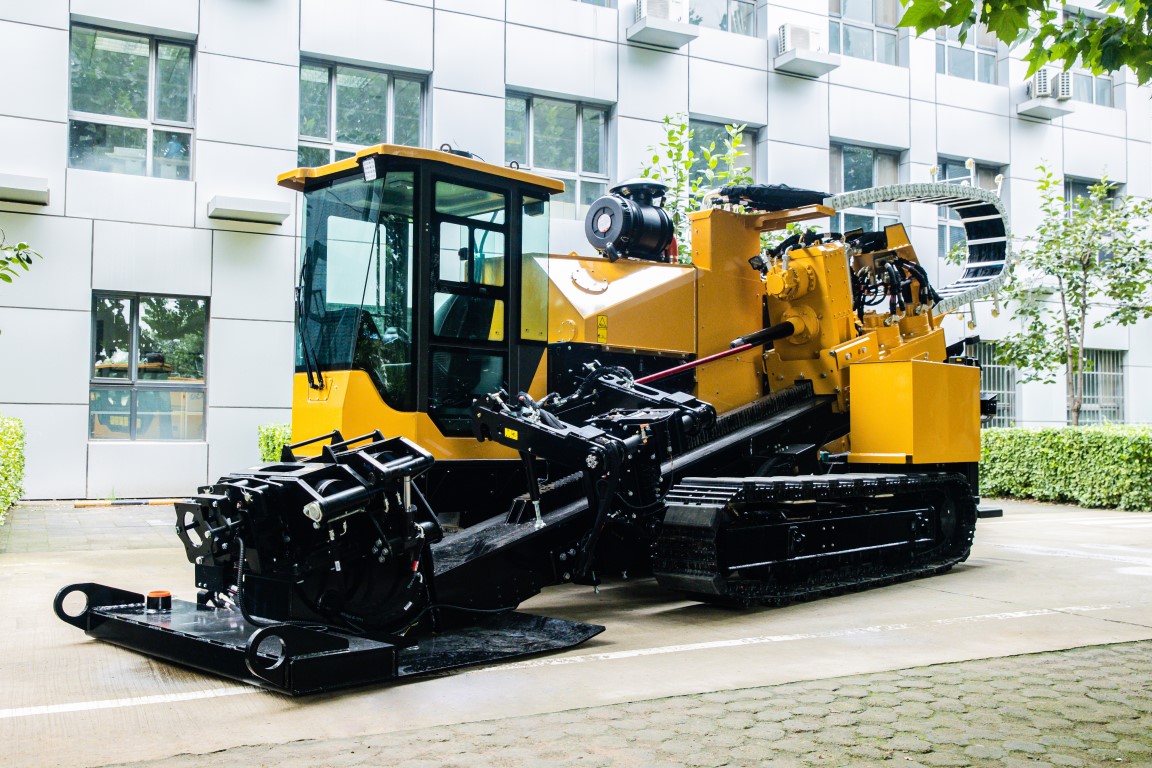

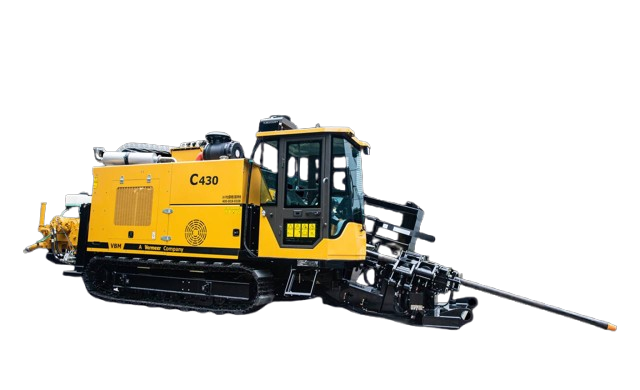

| Rod loader |
Optional |

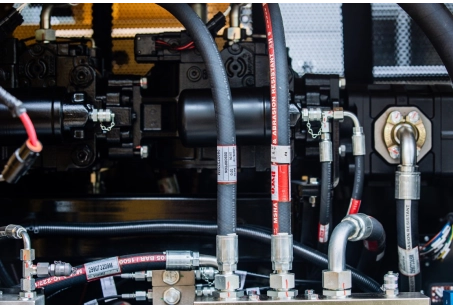

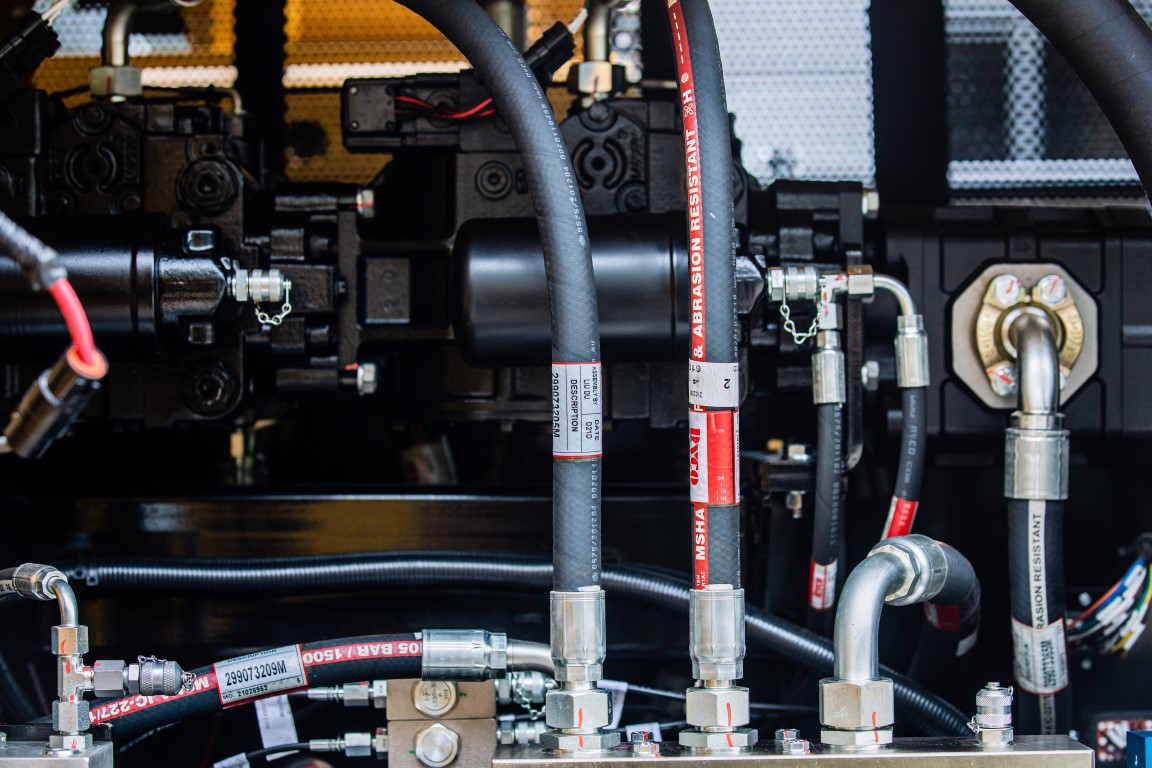

| Mud Pump (Option 1) |
| Maximum pressure |
80 bar |
| Maximum flow |
460 L/min |
| Mud Pump (Option 2) |
| Maximum pressure |
100 bar |
| Maximum flow |
650 L/min |
| Tank Capacity |
| Hydraulic tank |
460 L |
| Fuel tank |
313 L |
