| General Dimensions and Weights |
| Length (Minimum Transport) |
411.6 in (1045.5 cm) |
| Width (Minimum Transport) |
98.4 in (249.9 cm) |
| Height (Minimum Transport) |
129.6 in (329.2 cm) |
| Height (With Cab) |
130.8 in (332.2 cm) |
| Weight |
49600 lbs (22498.2 kg) |
| Angle of Approach |
16 deg |
| Engine |
| Make and Model |
Dong Feng Cummins (QSB6.7-C260) |
| Maximum Engine RPM |
2200 rpm |
| Idle Speed |
900 rpm |
| Rated RPM |
2200 rpm |
| Gross Horsepower |
260 hp (193.9 kw) |
| Operational |
| Thrust |
130100 lbs (578.7 kN) |
| Pullback |
130100 lbs (578.7 kN) |
| Maximum Carriage Speed at Maximum Engine RPM |
82 ft/min (25 m/min) |
| Maximum Carriage Speed in Low at Maximum Engine RPM |
33 ft/min (10.1 m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) |
15000 ft-lb (20337.3 Nm) |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) |
10000 ft-lb (13558.2 Nm) |
| Maximum Spindle Torque (High at Maximum Engine RPM) |
7500 ft-lb (10168.7 Nm) |
| Maximum Spindle Speed (Low at Maximum Engine RPM) |
45 rpm |
| Maximum Spindle Speed (Medium at Maximum Engine RPM) |
65 rpm |
| Maximum Spindle Speed at Max Engine RPM |
95 rpm |
| Maximum Ground Drive Speed at Maximum Engine RPM |
2.5 mph (4 km/h) |
| Noise Level at Operator's Ear |
84.9 dB(A) |
| Guaranteed sound power (CE-rating) |
73.7 dB(A) |
| Drill Rack Angle |
20 deg |
| Fluid Capacities |
| Fuel Tank |
82 gal (310.4 L) |
| Hydraulic Tank |
108 gal (408.8 L) |
| Hydraulic System |
108 gal (408.8 L) |
| Hydraulic System |
| Auxiliary Pump Flow at Maximum Engine RPM |
21.6 gpm |
| Auxiliary Pump Relief Pressure |
3000 psi (206.8 bar) |
| Thrust/Pullback Pump Flow at Max Engine RPM |
57 gpm (215.8 L/min) |
| Thrust/Pullback Pump Relief Pressure |
5000 psi (344.7 bar) |
| Rotation Pump Flow at Maximum Engine RPM |
57 gpm (215.8 L/min) |
| Rotation Pump Relief Pressure |
4700 psi (324.1 bar) |
| Hydraulic Supply Filter Rating |
200 mesh |
| Hydraulic Return Filter Rating |
10 mesh |
| Drilling Fluid System Option One |
| Maximum Flow |
200 gpm (757.1 L/min) |
| Maximum Pressure |
1204 psi (83 bar) |
| Brand |
Aplex |
| Crane |
| Maximum Lifting Capacity |
7050 lbs (3197.8 kg) |
| Maximum Lifting Capacity - Boom Extended/Max Reach |
7050 lbs (3197.8 kg) |
| Rotation |
360 deg |
| Optional Crane |
Yes |
| Features |
| Breakout System |
Standard |
| Drilling Lights |
Standard |
| Flow Indicator |
Standard |
| Stakedown System |
Optional |
| Cab |
Standard |
| Strike Alert |
Standard |
| Remote Lockout |
Standard |
| Drill Pipe |
| Drill Rod Thread |
Vermeer Rod |
| Thread Type |
3-1/2FSTI |
| Length |
20 ft (6.1 m) |
| Rod Diameter |
3.5 in (8.8 cm) |
| Weight |
342 lbs (155.1 kg) |
| Feature |
Benefit |
| Plus+1 control system |
The control system in the D130S has been upgraded to Plus+1 software in comparison to the generation 1 model. Paired with the AutoSteer system, which automates certain drill head motions, you can set and adjust rotation duration and direction while maintaining a preset thrust pressure to get through hard ground conditions, enabling drilling consistency. |

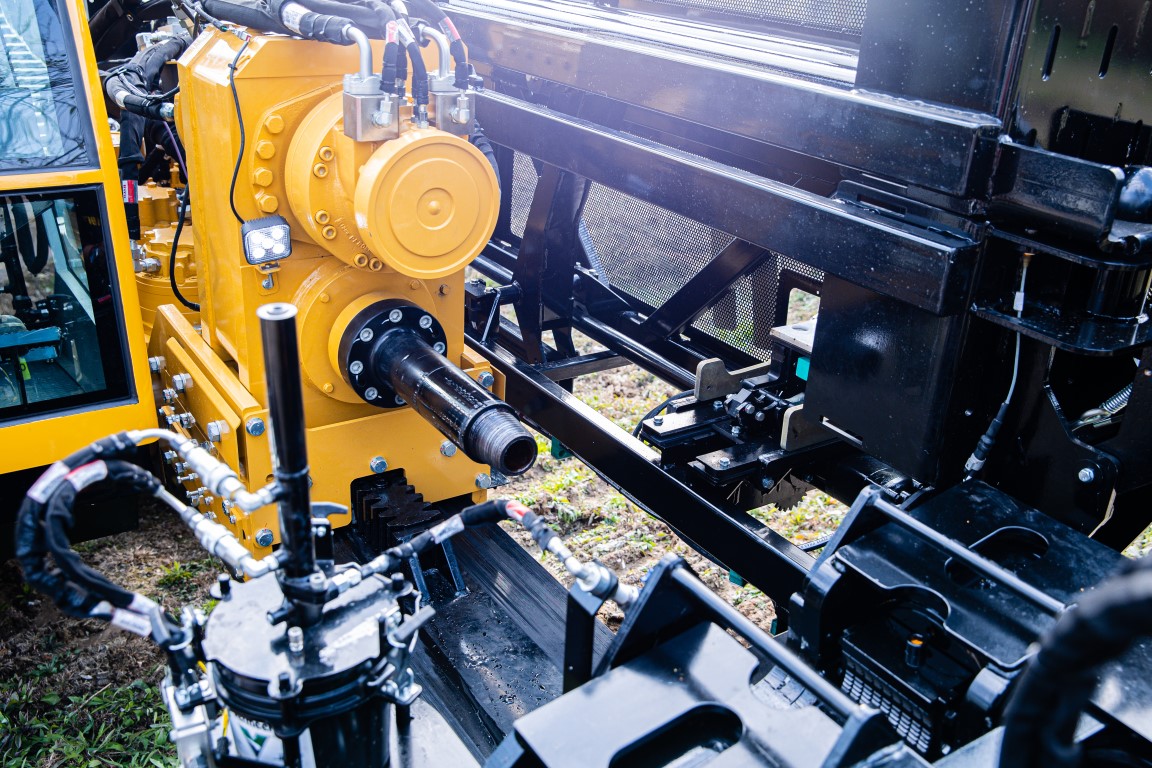

| Operator-controlled rod loader |
The stackable rod box (holding nine rods per rod box) also facilitates high productivity by enabling a full set of rods to be loaded into the machine with the push of a button. The operator-controlled rod loader helps minimize the labor involved with manually loading and unloading drill rod, helping increase the overall drilling efficiencies. |
| Compact footprint and ease of transport |
Machine maneuverability is key to navigating tight, narrow jobsites. With a length of 33.5 ft (10.2 m) and width of 8.2 ft (2.5 m), the self-contained, compact design of the D130S allows for convenient transportation, navigability and minimized set-up time. |
| High-powered rotational torque and thrust |
The D130S consists of 130,000 lb (578,200 kN) of thrust and pullback and 15,000 ft-lb (20,337 Nm) of rotational torque. This machine is able to penetrate through different and difficult terrains efficiently and effectively. |
| Climate-controlled cab |
Maximize operational comfort with the climate-controlled cab. It provides the operator protection from various weather conditions, thus maximizing overall productivity. |

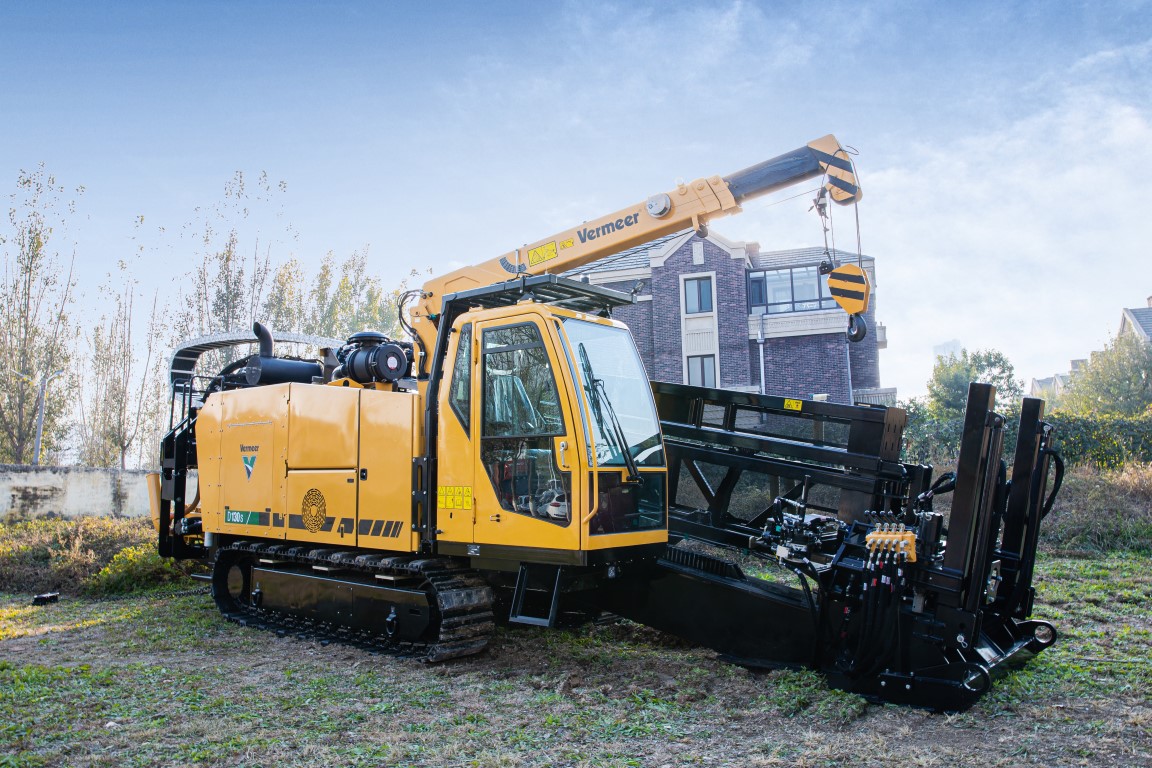

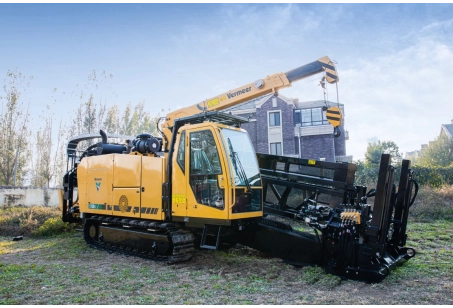

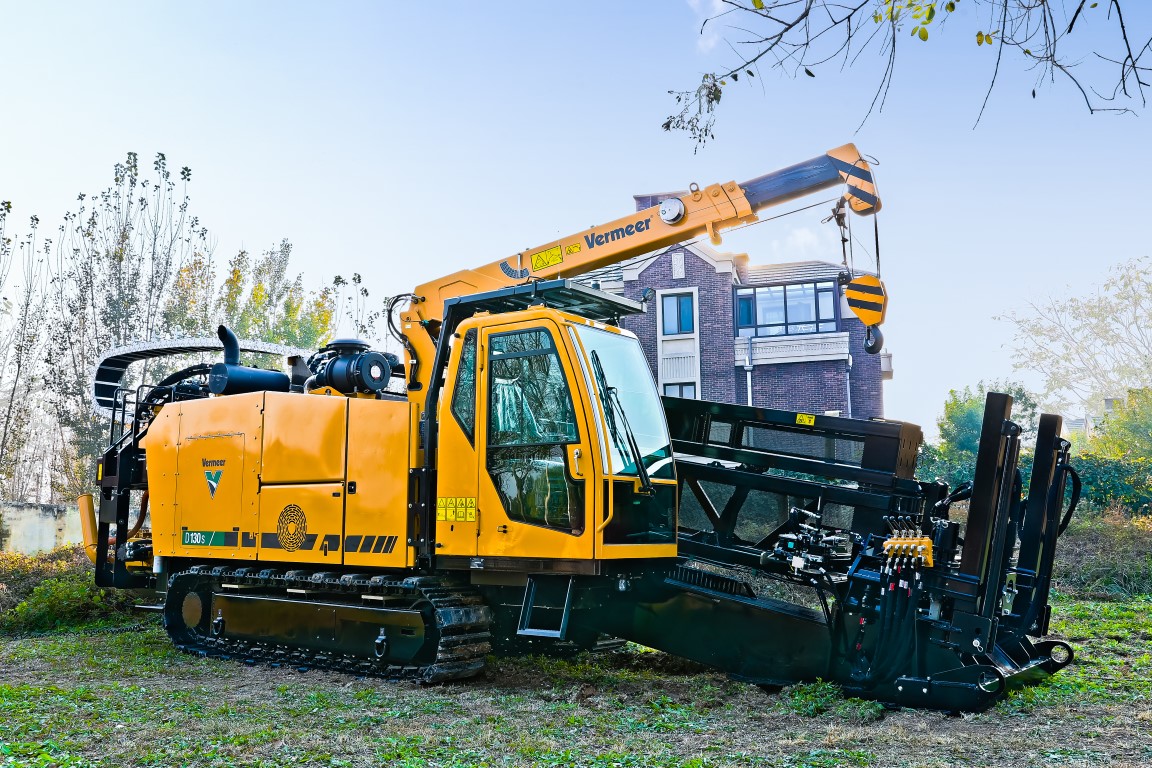

| Optional crane |
Lesser support equipment is required onsite with the choice of a telescoping crane, thus freeing up more working space. The onboard crane offers the flexibility to load additional rod boxes and assist the makeup of large tooling while reducing the need for other equipment on the jobsite. |
