| Feature |
Benefit |
| 100 hp (75 kW) Deutz Tier 3 (Stage IIIA) or Tier 4 Final (Stage IV) engine |
The D23x30 S3 is available in either Tier 4 Final (Stage IV) or Tier 3 (Stage IIIA) engine options and provides greater power than its predecessor, the D20x22 Series II. |
| AutoDrill |
AutoDrill allows the operator to set rotation and thrust/pullback pressure while drilling in changing soil conditions. The AutoResume function allows slurry/cuttings to mix before thrust/pullback resumes. |

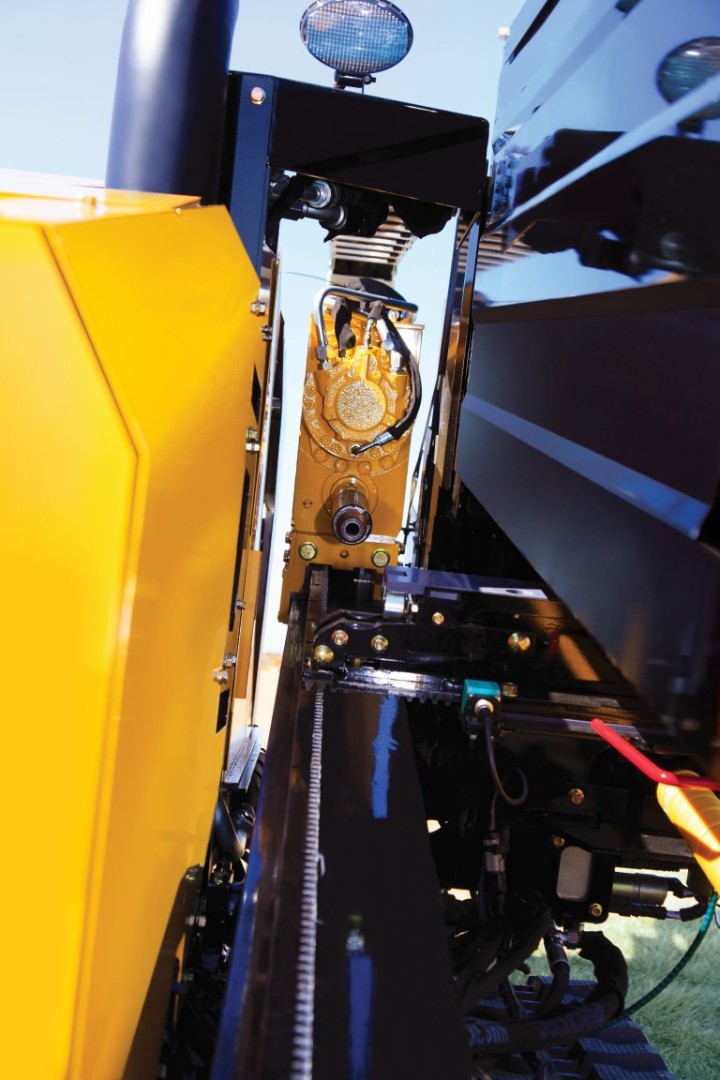

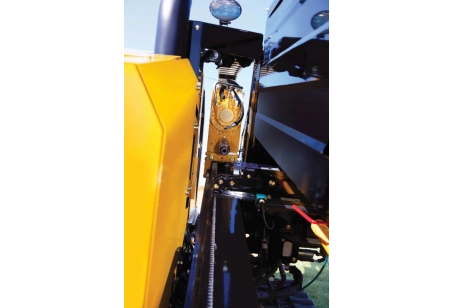

| Carriage Speed |
The D23x30 S3 features a carriage speed of 206 ft/min (62.8 m/min), which is 7% faster than comparable drills on the market. |

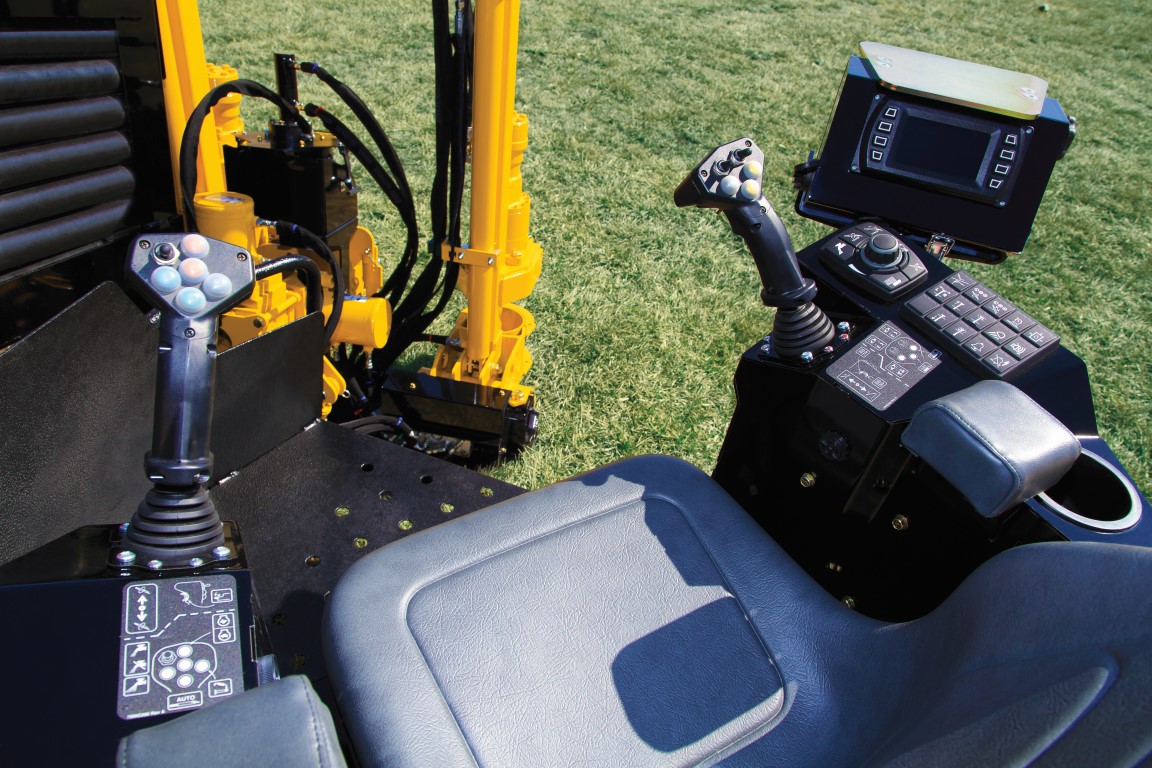

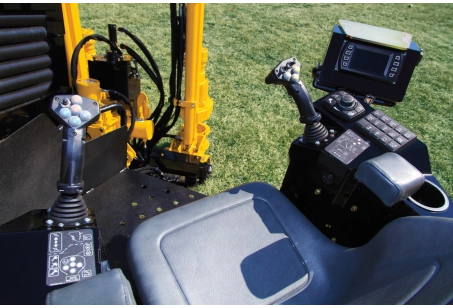

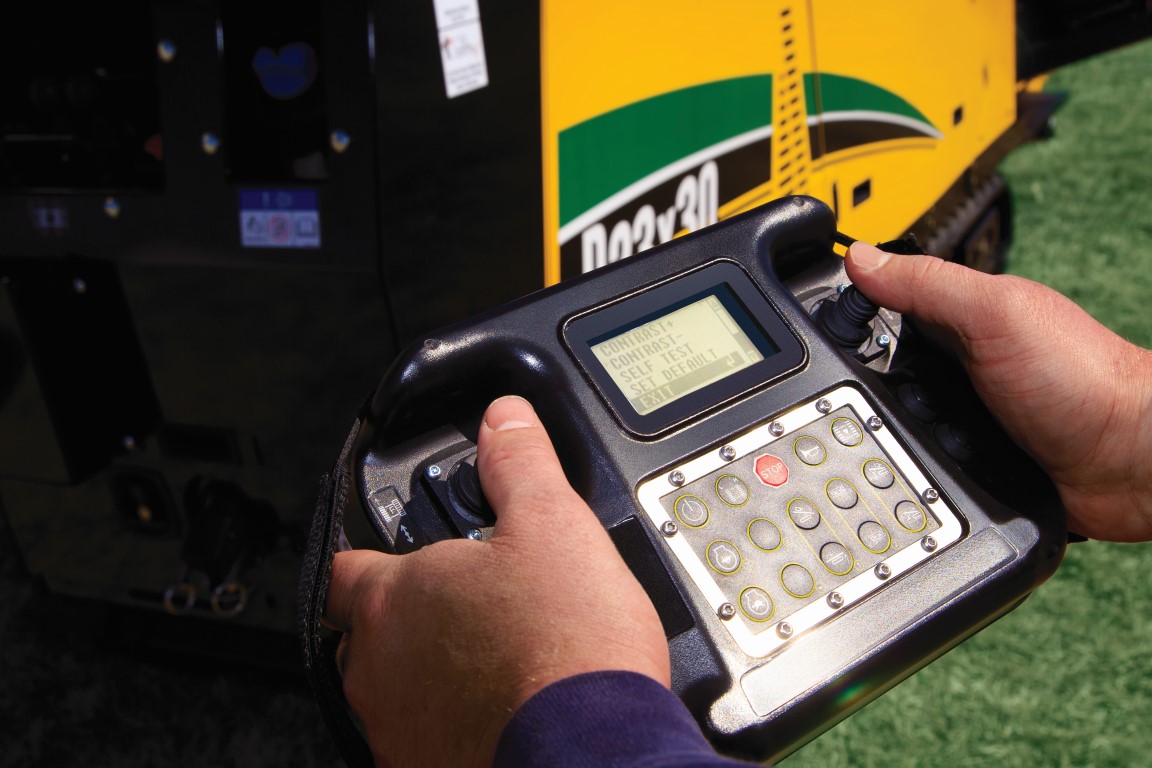

| Common Control System |
The system includes a digital display and improved onboard diagnostics with reduced wiring and fuses for enhanced reliability. |
| Enhanced Hydraulic System Design |
Improved hydraulic efficiency allows better use of engine horsepower and increases drill productivity. |
| Increased Productivity |
The D23x30 S3 features 24,000 lb (106.8 kN) of thrust/pullback and 3000 ft-lb (4067.5 Nm) of rotational torque for increased productivity. |

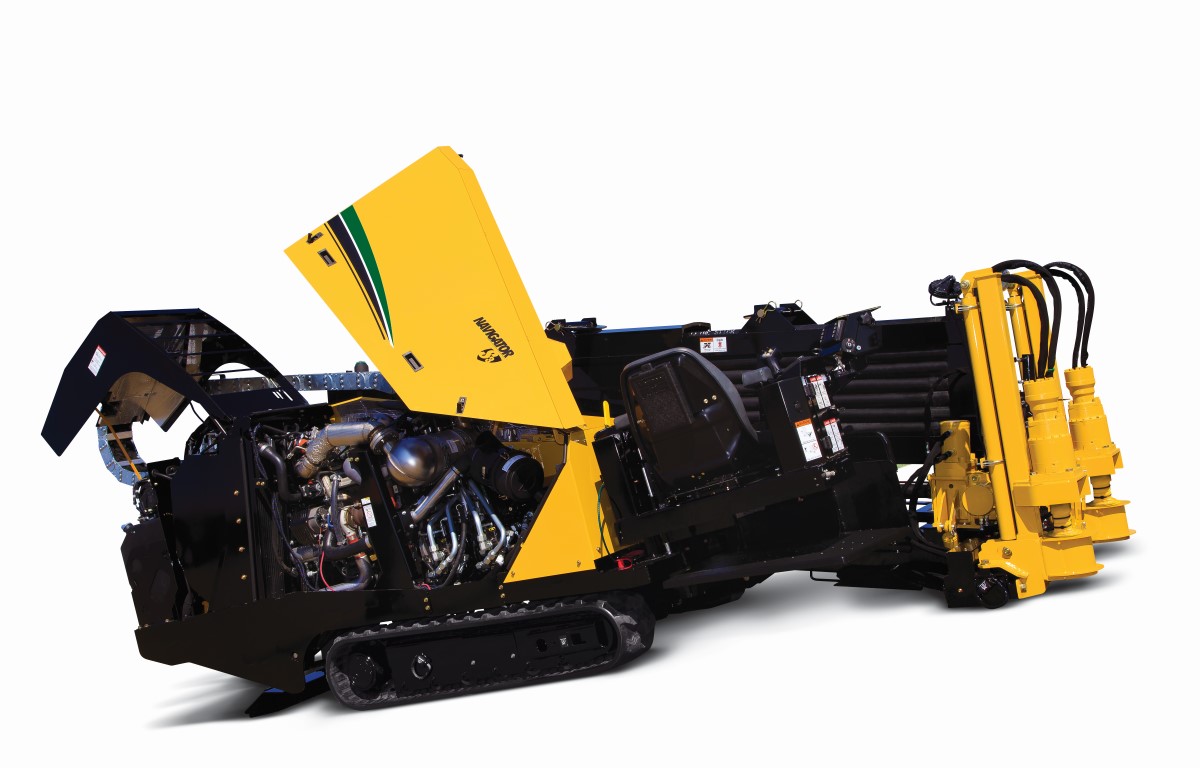

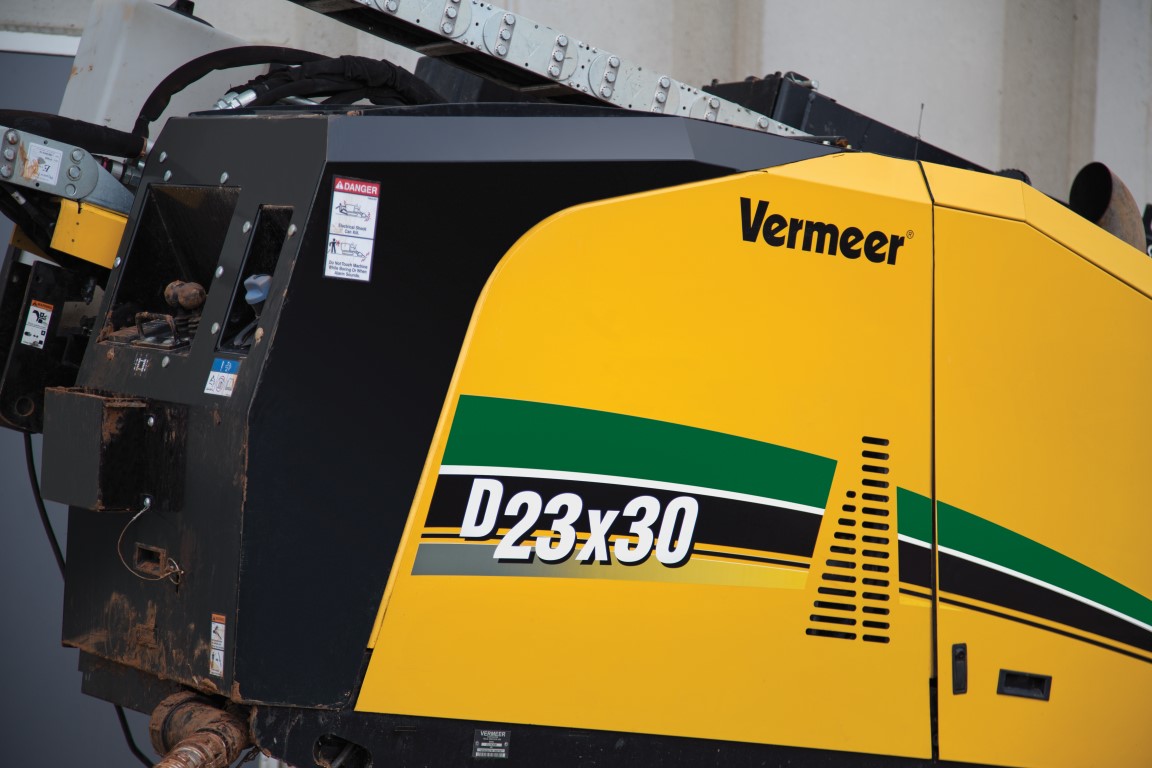

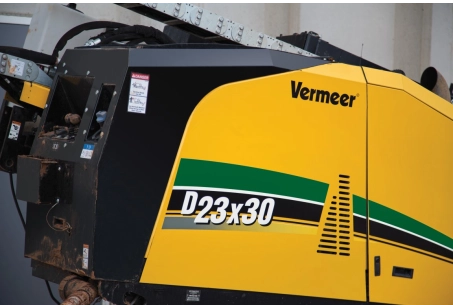

| Low-profile Steel Hood |
The low-profile hood improves operator visibility and minimizes maintenance needs with its rugged design. |

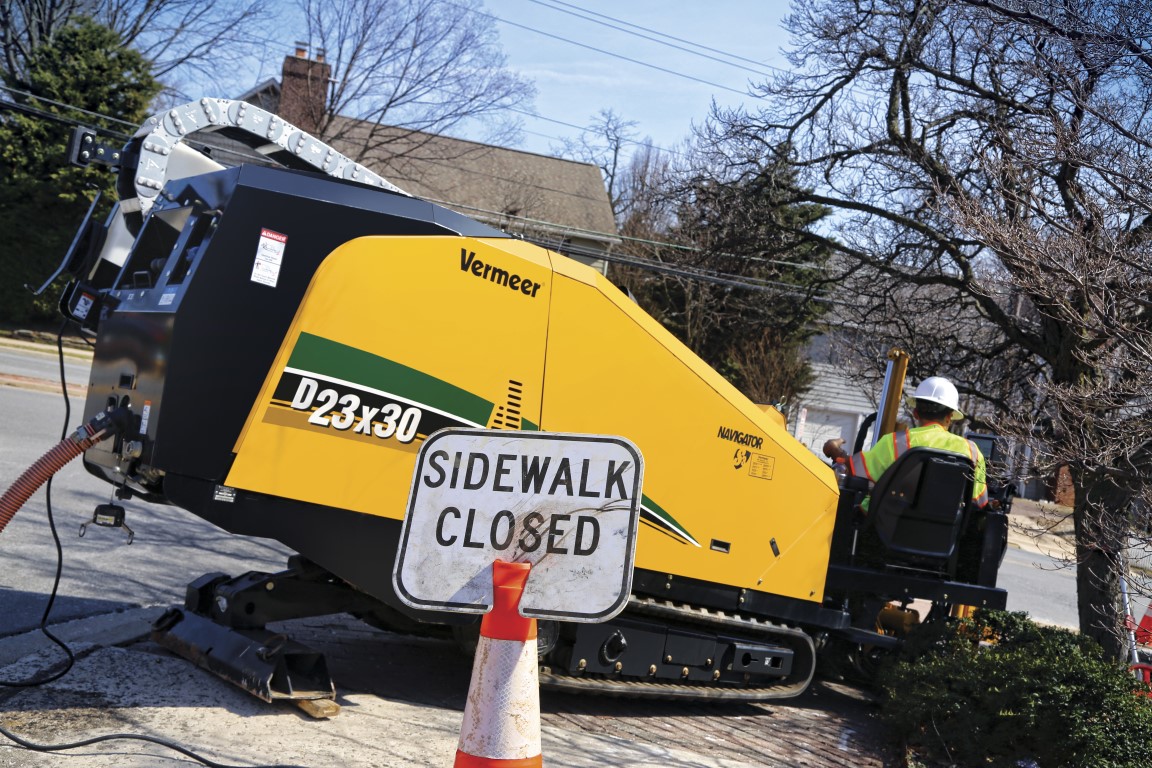

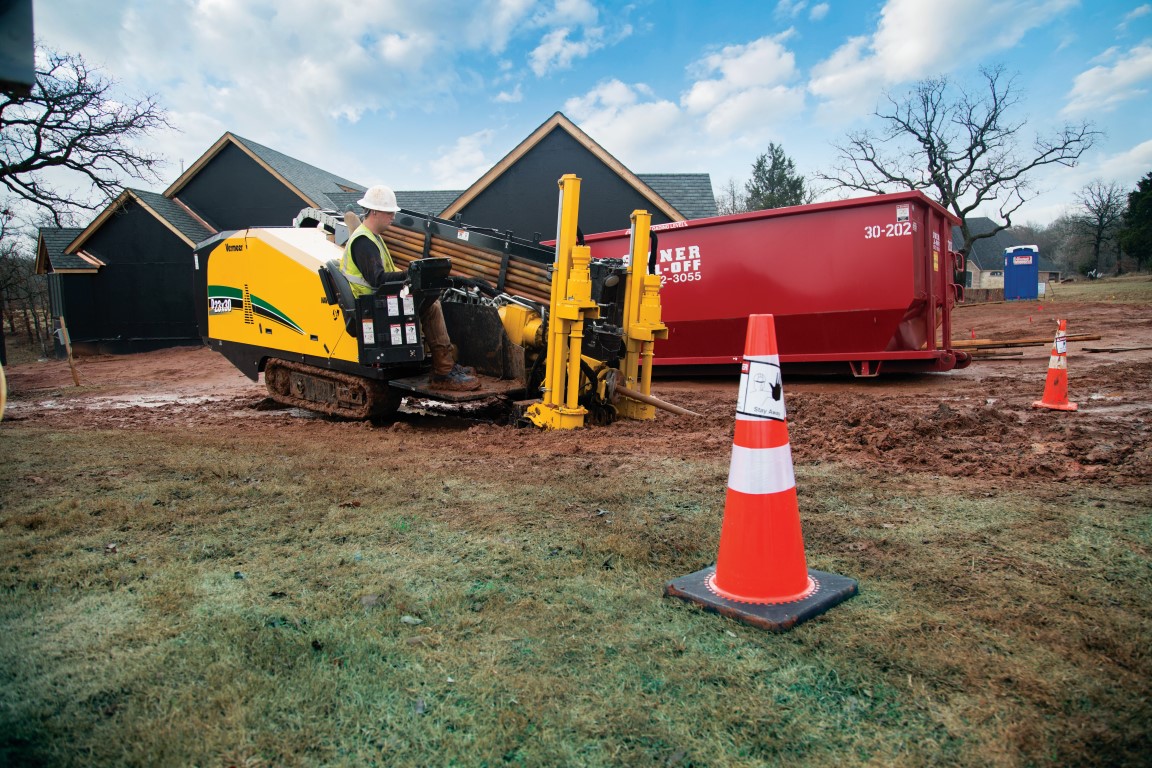

| Power and Speed in a Small Footprint |
The D23x30 S3 is one of the fastest HDD drills under 15,000 lb (6803.9 kg) with a compact footprint ideal for urban jobsites. |
| Rotational Speed |
The 219 rpm rotational speed matches larger drills in the 20,000–30,000 lb class and improves installation efficiency. |
| Sound Reduction |
With a guaranteed sound power level of 99 dB(A), the D23x30 S3 is one of the quietest drills in the HDD market. |
| Tracking Power and Speed Enhancements |
Increased tracking speed and tractive effort help the drill make sharp turns and climb slopes more effectively. |
| Vermeer Productivity Tools |
Optional Vermeer Fleet technology provides real-time machine and fleet information for maintenance and fleet management. |
