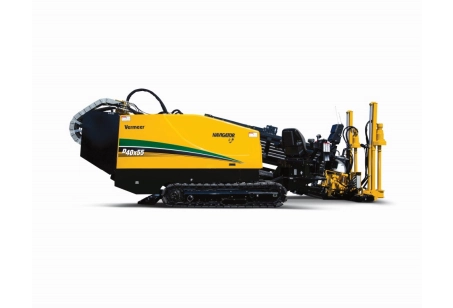

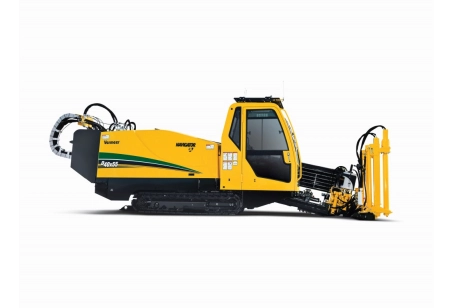

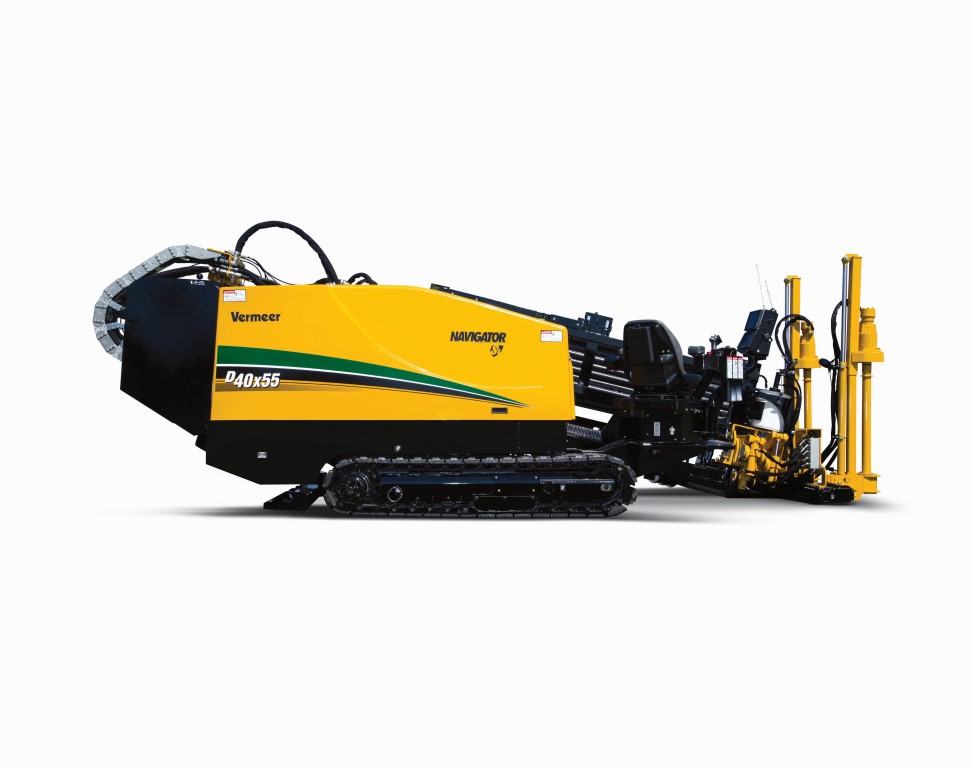

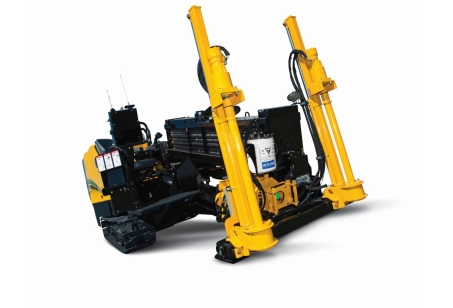

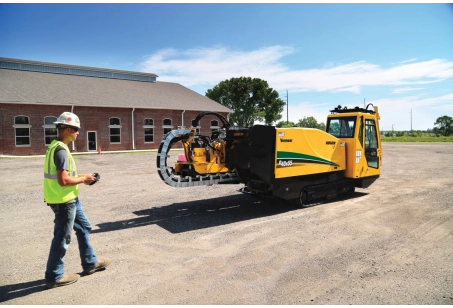

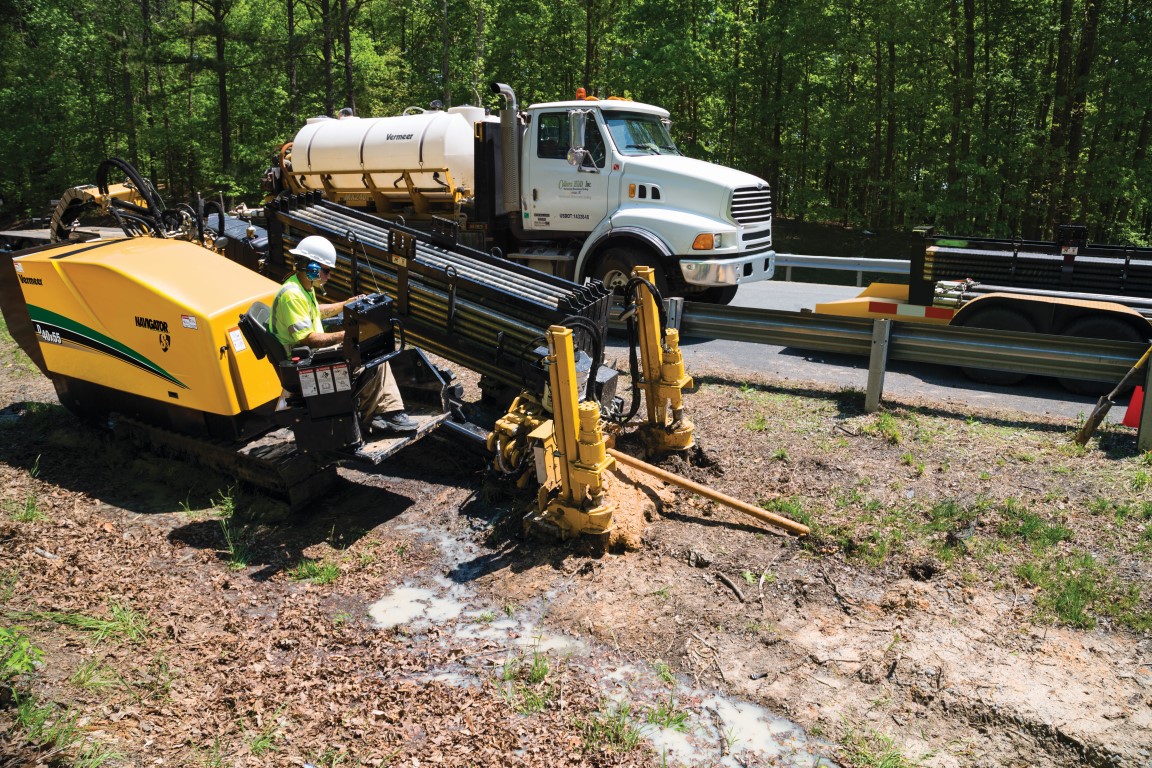

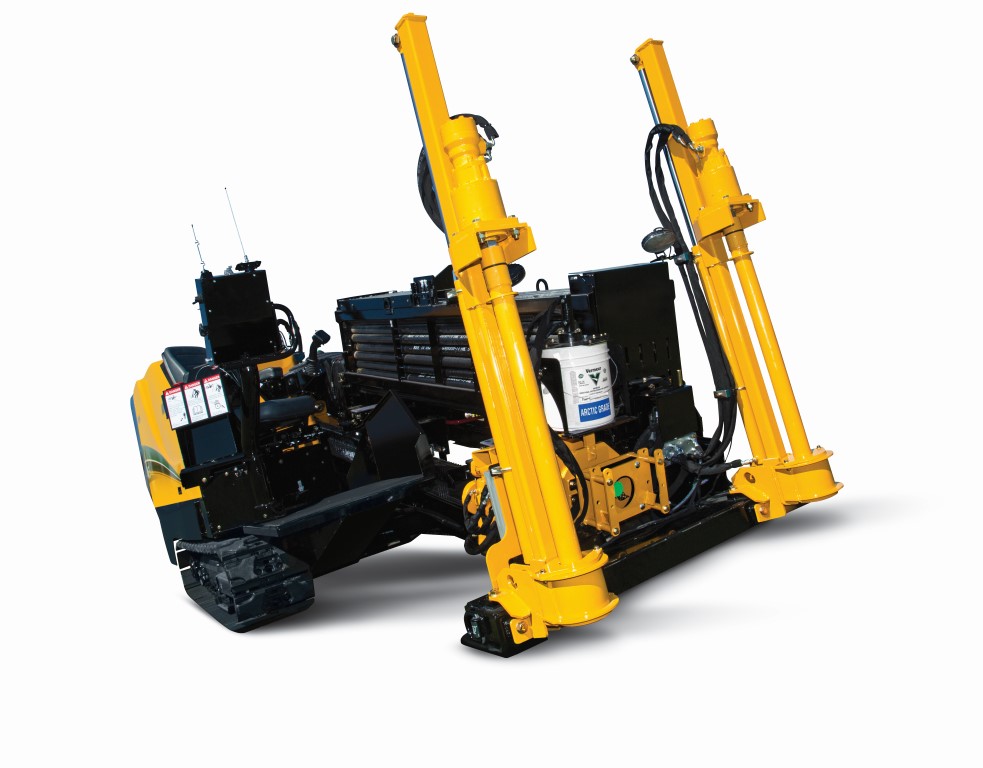

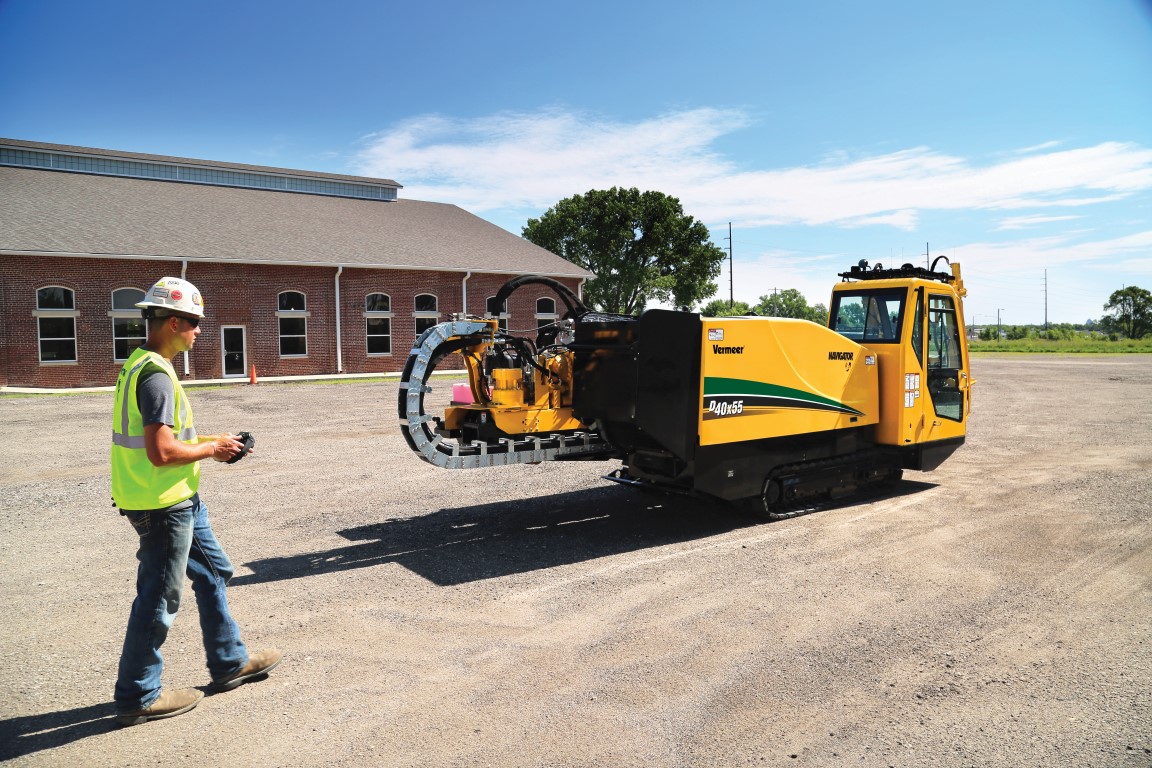

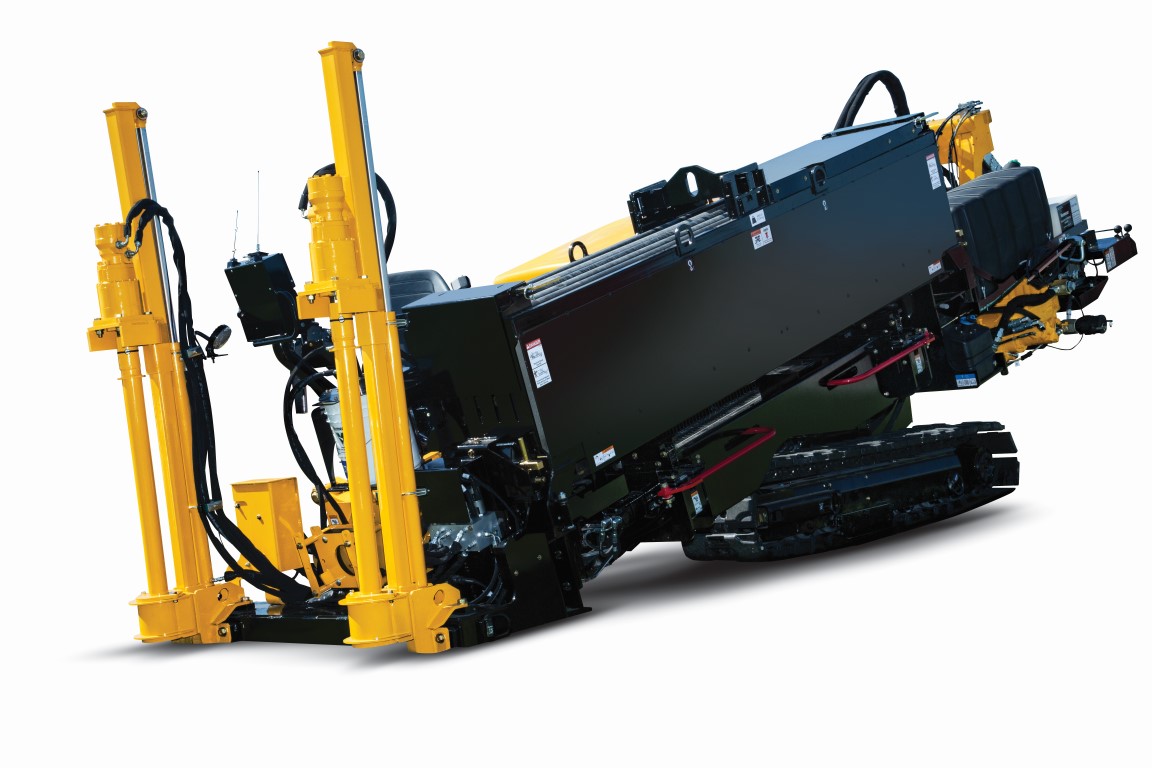

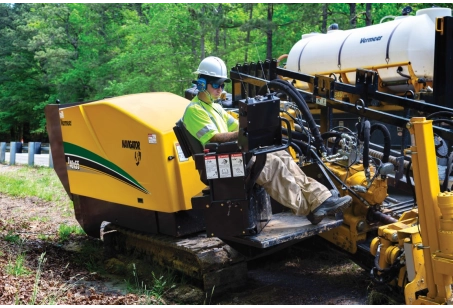

| General Dimensions and Weights |
| Length (Minimum Transport) — 10 ft (3 m) |
241 in (612.1 cm) |
| Length (Minimum Transport) — 15 ft (4.6 m) |
290 in (736.6 cm) |
| Width (Minimum Transport) |
89 in (226.1 cm) |
| Height (Minimum Transport) |
76 in (193 cm) |
| Height (With Cab) |
94.5 in (240 cm) |
| Weight |
22380 lbs (10151.4 kg) |
| Weight (Cab Option) |
27080 lbs (12283.3 kg) |
| Angle of Approach |
18° (10 ft) / 15° (15 ft) |
| Engine |
| Make and Model |
John Deere 4045 |
| Fuel Type |
Ultra-low sulfur diesel / Diesel |
| Gross Horsepower |
140 hp (104.4 kW) |
| Maximum Engine RPM |
2400 rpm |
| Aspiration |
Turbo |
| Max Fuel Consumption |
7.4 gph (28 lph) |
| Operational |
| Thrust |
40000 lbs (177.9 kN) |
| Pullback |
40000 lbs (177.9 kN) |
| Maximum Carriage Speed |
188 ft/min (57.3 m/min) |
| Maximum Spindle Torque (Low) |
5500 ft-lb (7457 Nm) |
| Maximum Spindle Torque (High) |
3000 ft-lb (4067.5 Nm) |
| Maximum Spindle Speed |
227 rpm |
| Minimum Bore Diameter |
4 in (10.2 cm) |
| Maximum Ground Drive Speed |
3.3 mph (5.3 km/h) |
| Fluid Capacities |
| Hydraulic System |
65 gal (246.1 L) |
| Hydraulic Tank |
55 gal (208.2 L) |
| Fuel Tank |
44 gal (166.6 L) |

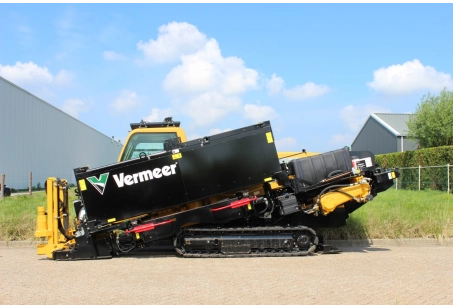

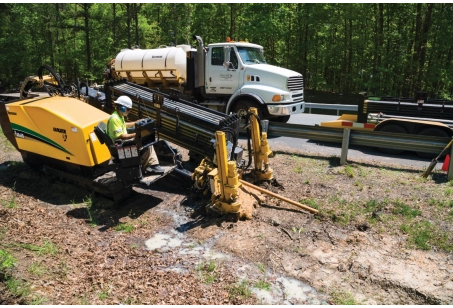

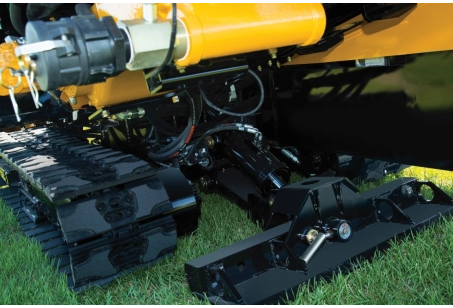

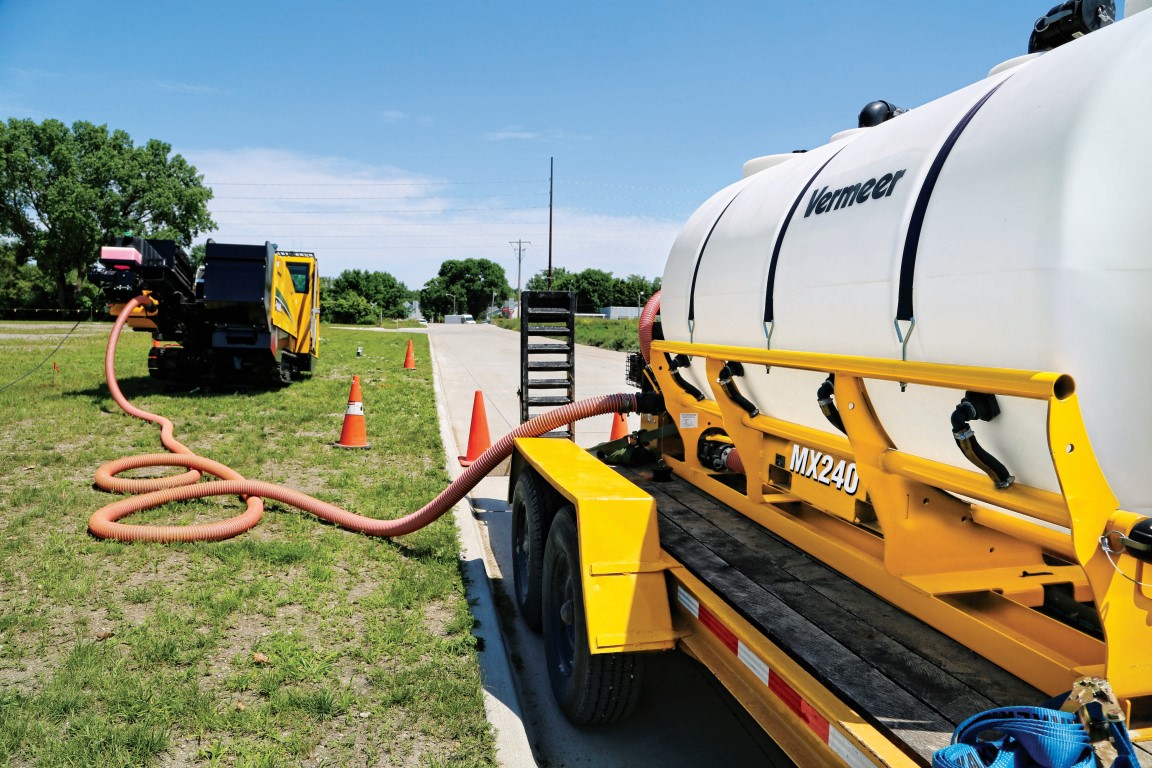

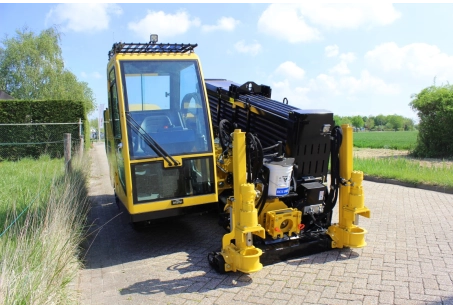

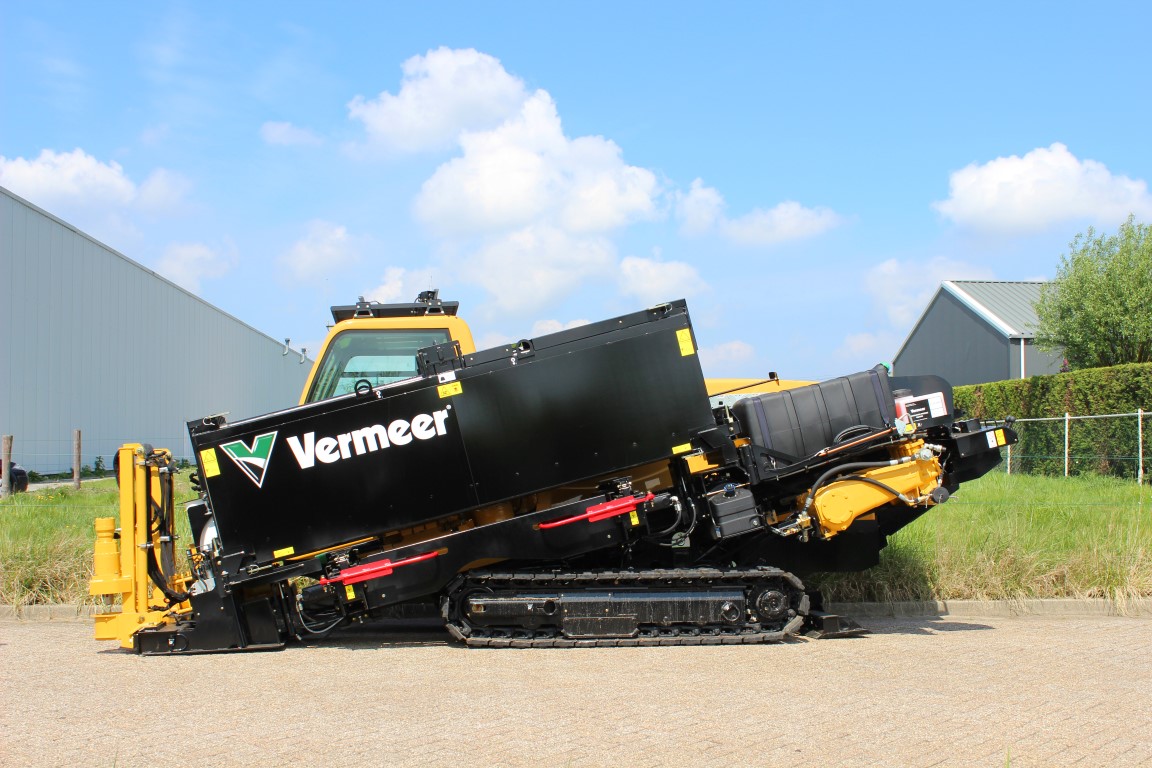

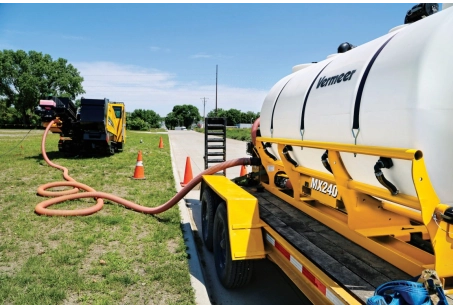

| Drilling Fluid System |
| Option 1 — Max Flow |
50 gpm (189.3 L/min) |
| Option 1 — Max Pressure |
1050 psi (72.4 bar) |
| Option 2 — Max Flow |
70 gpm (265 L/min) |
| Option 2 — Max Pressure |
1100 psi (75.8 bar) |
| Brand |
Aplex |

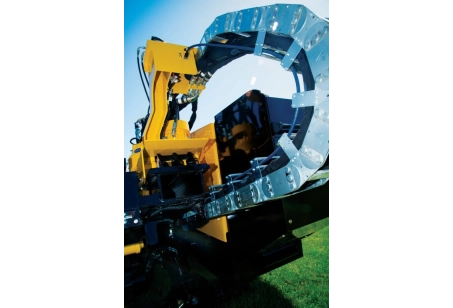

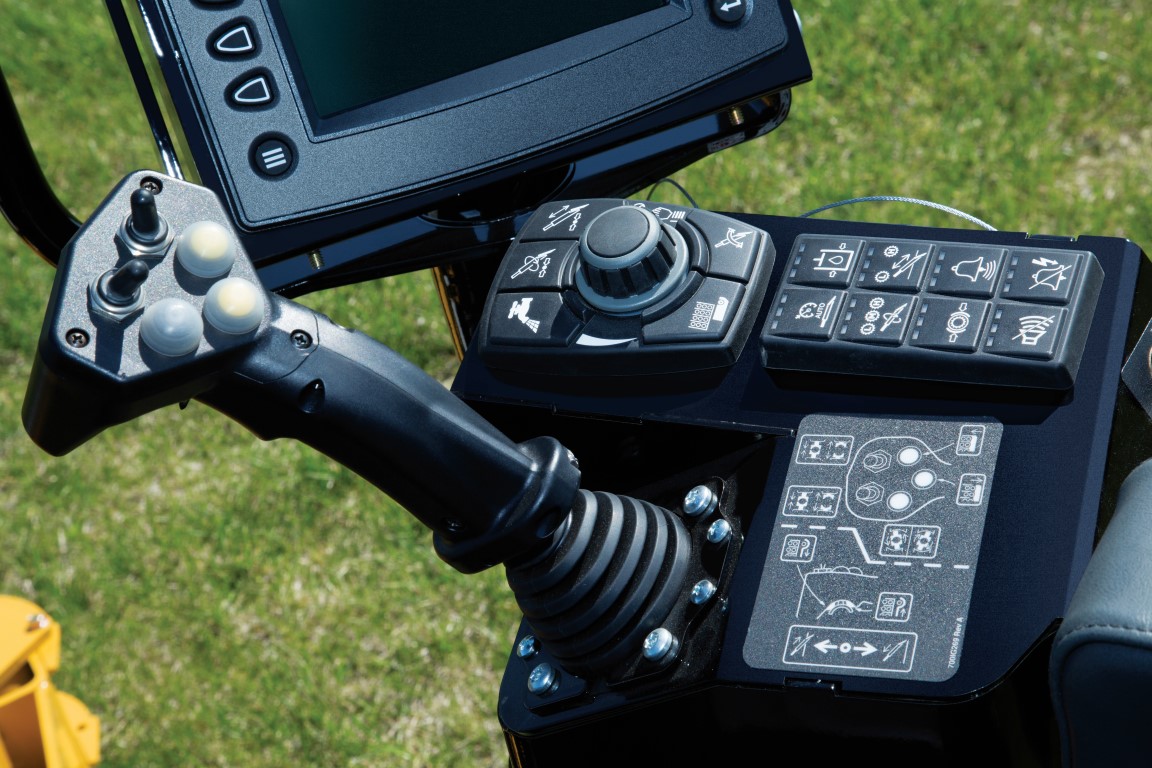

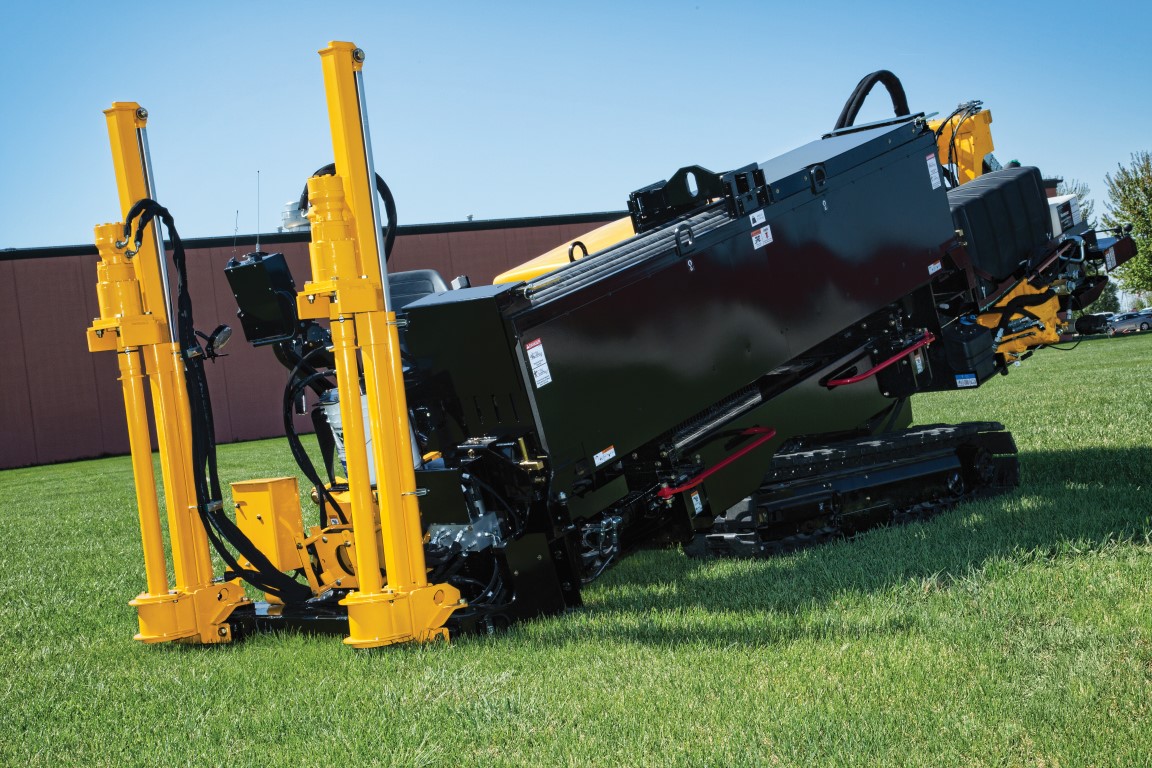

| Features |
| Breakout System |
Hydraulic vise (standard) |
| Drilling Lights |
Standard |

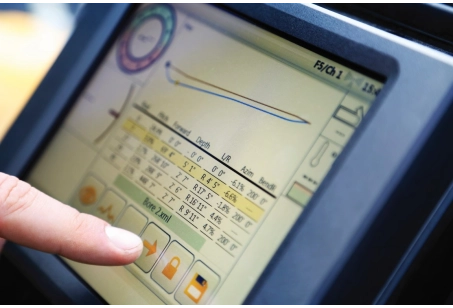

| Flow Indicator |
Standard |

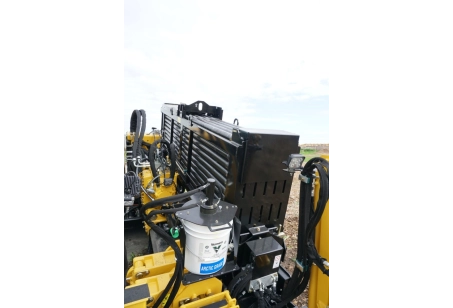

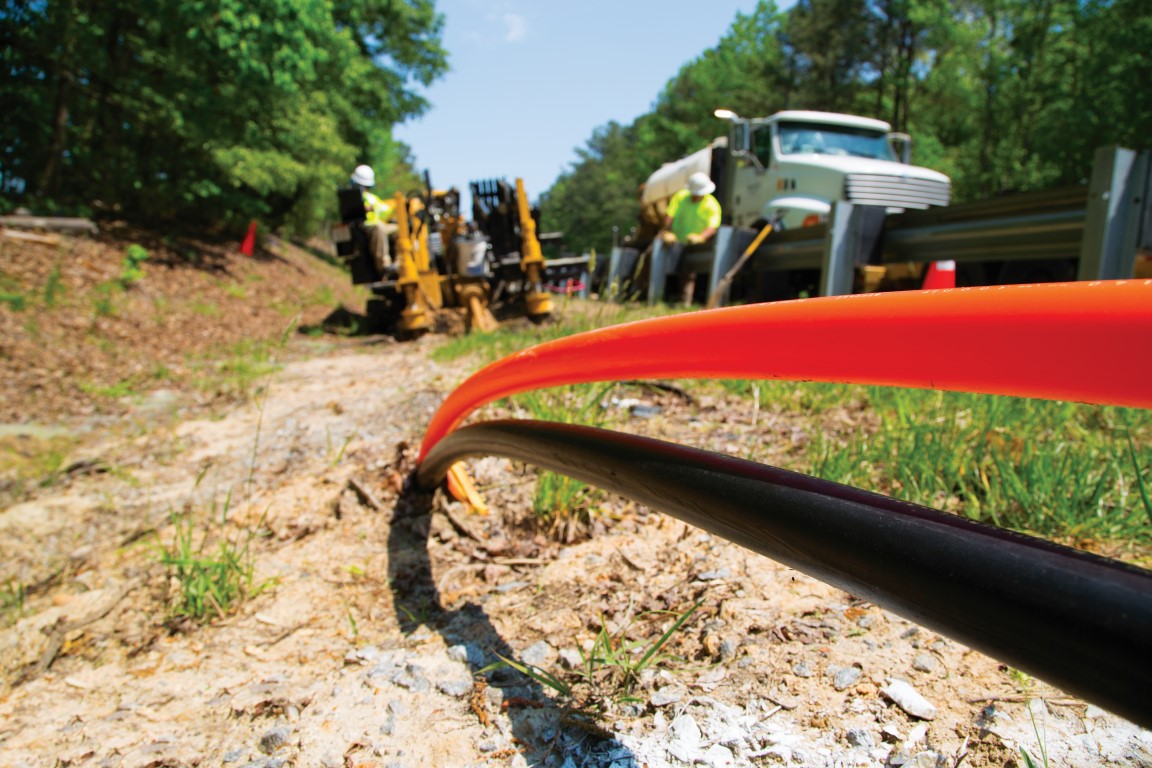

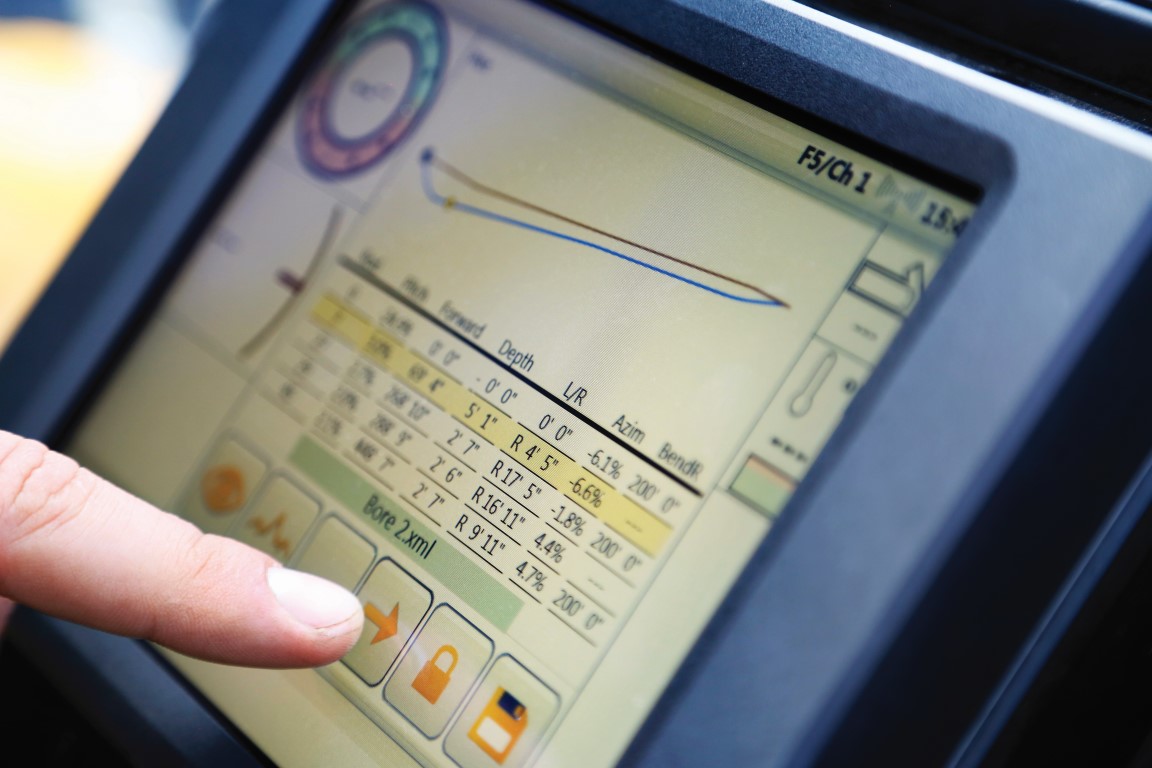

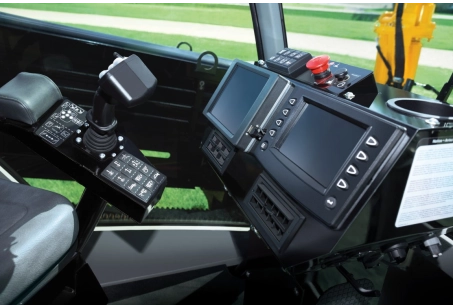

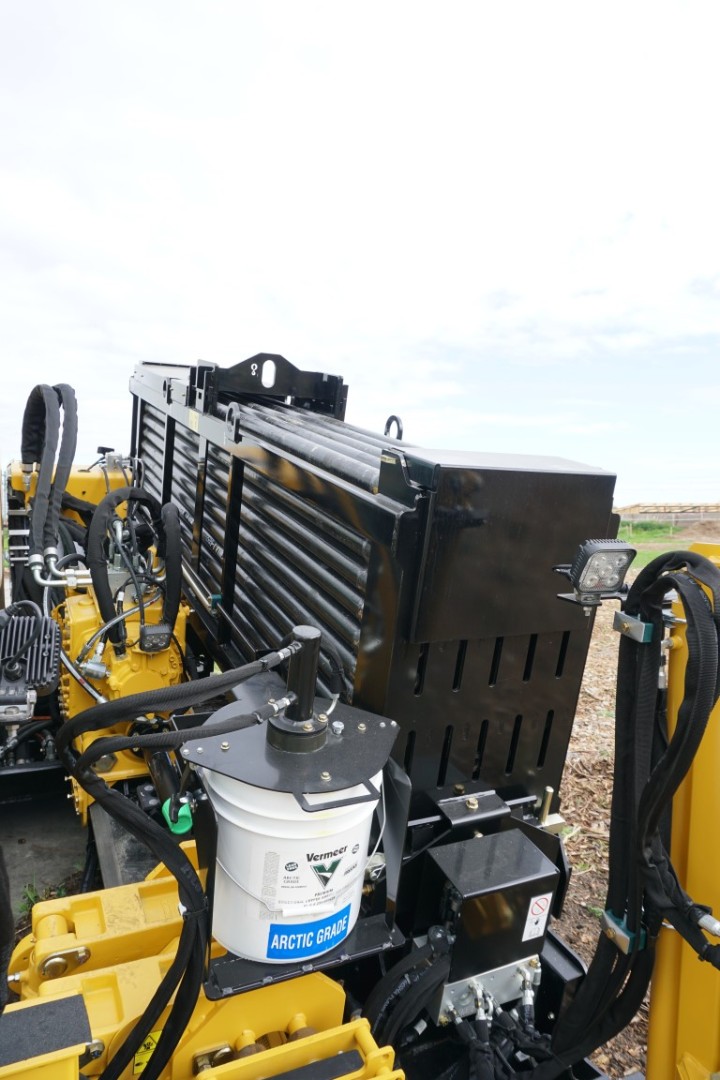

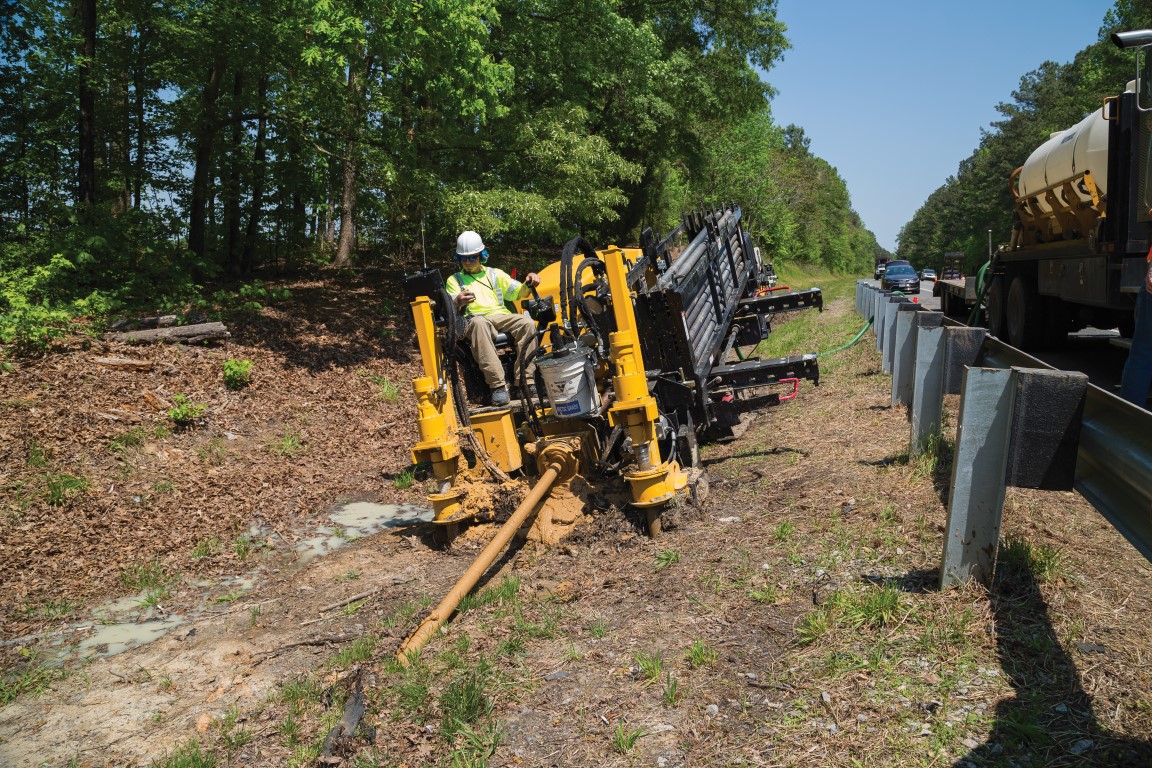

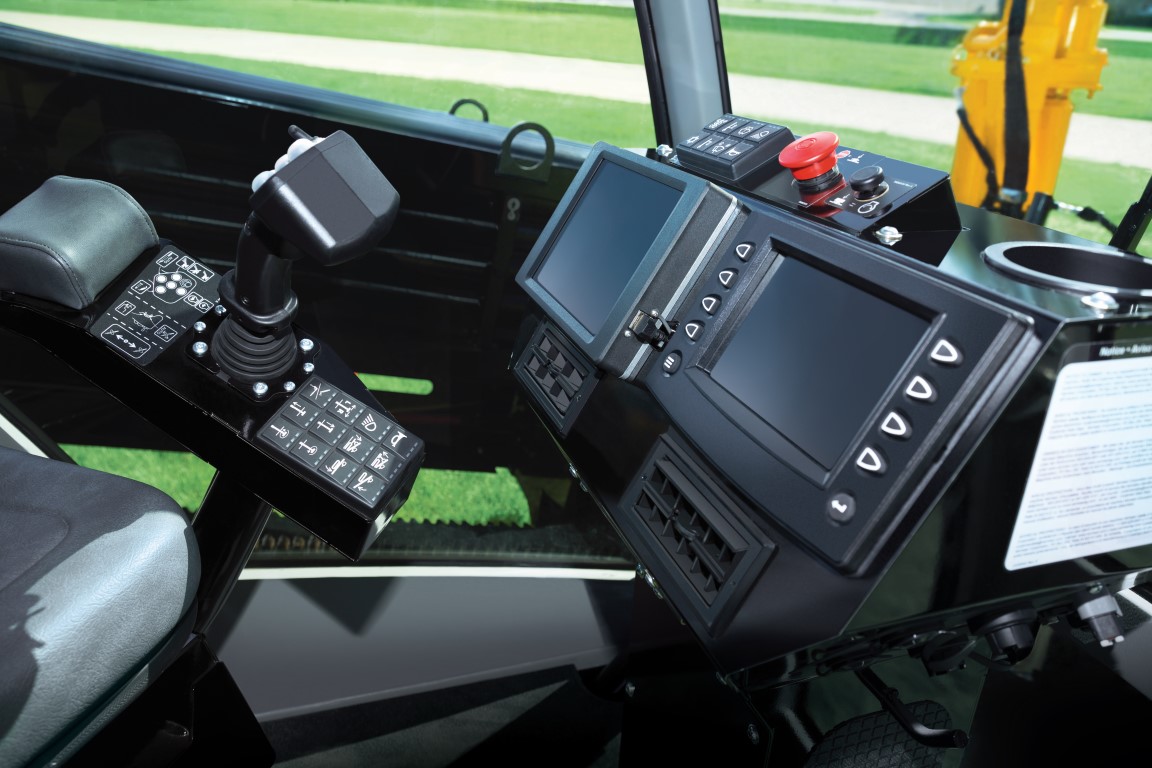

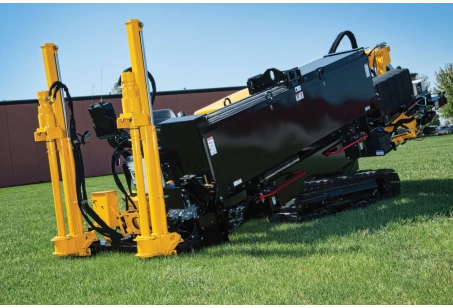

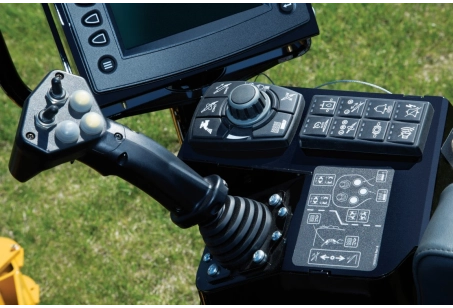

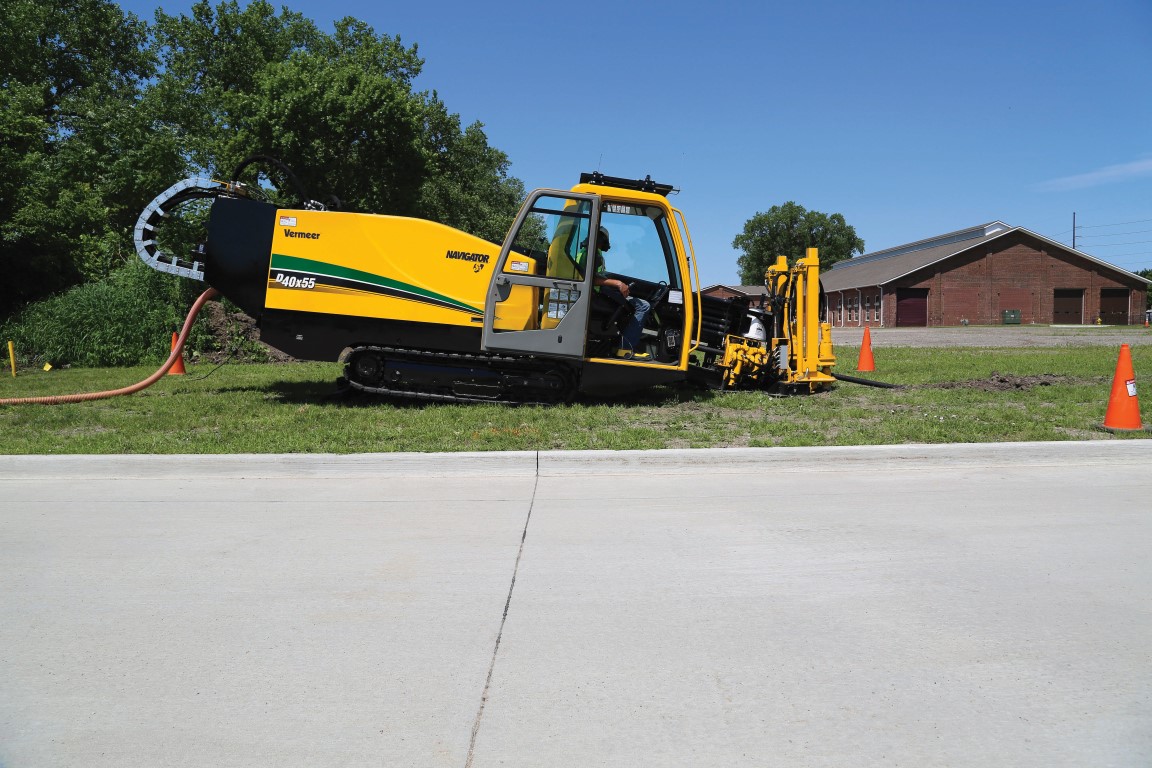

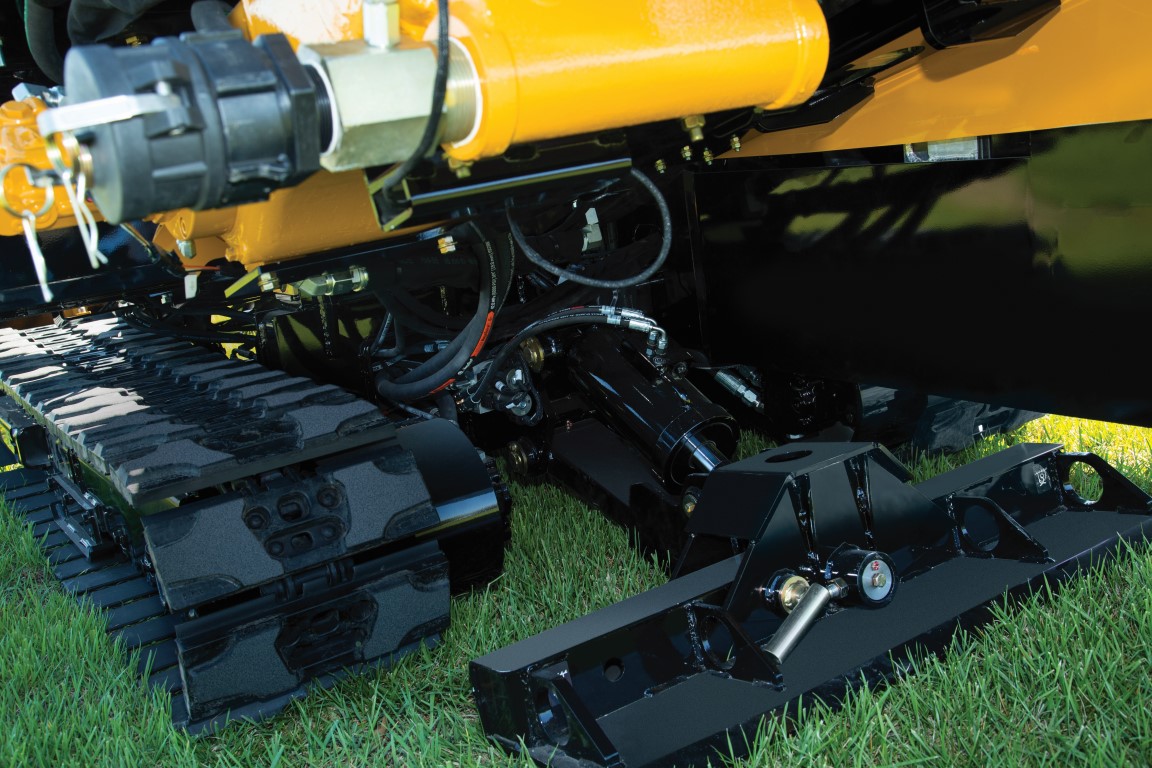

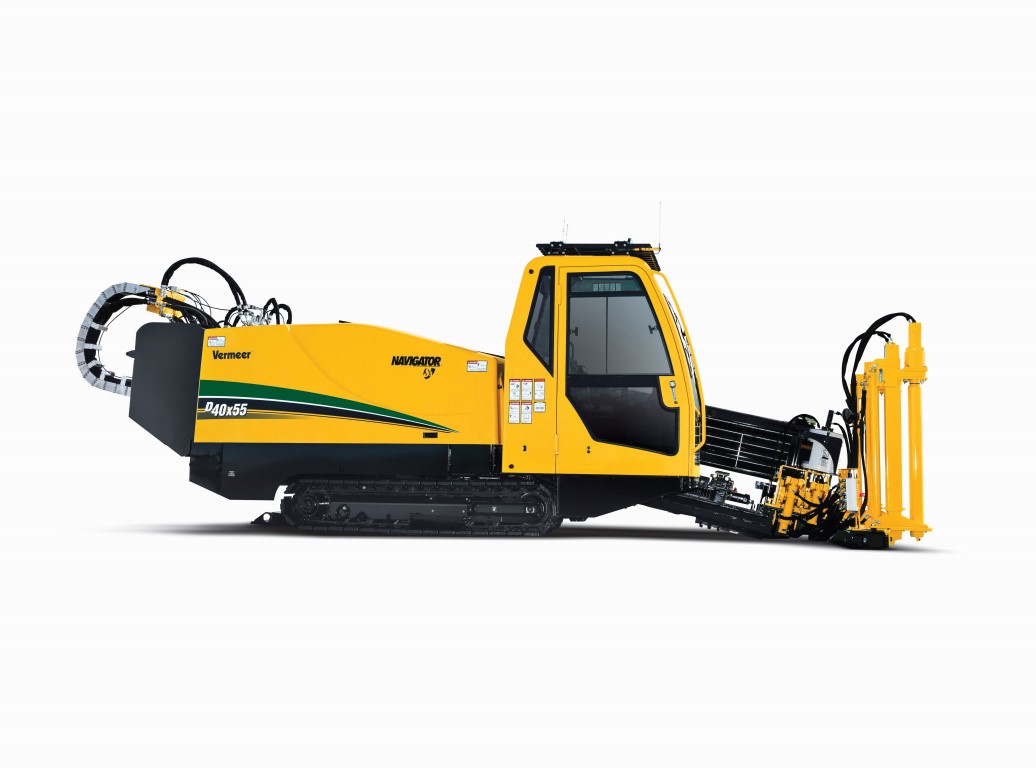

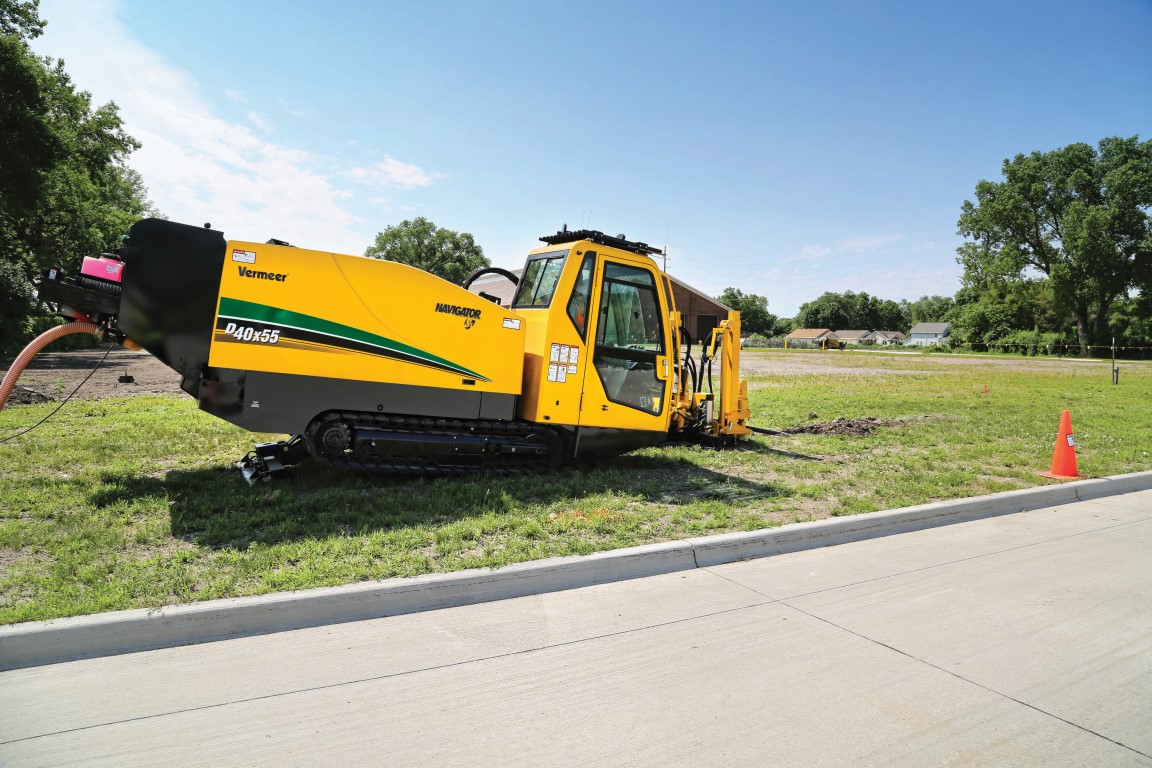

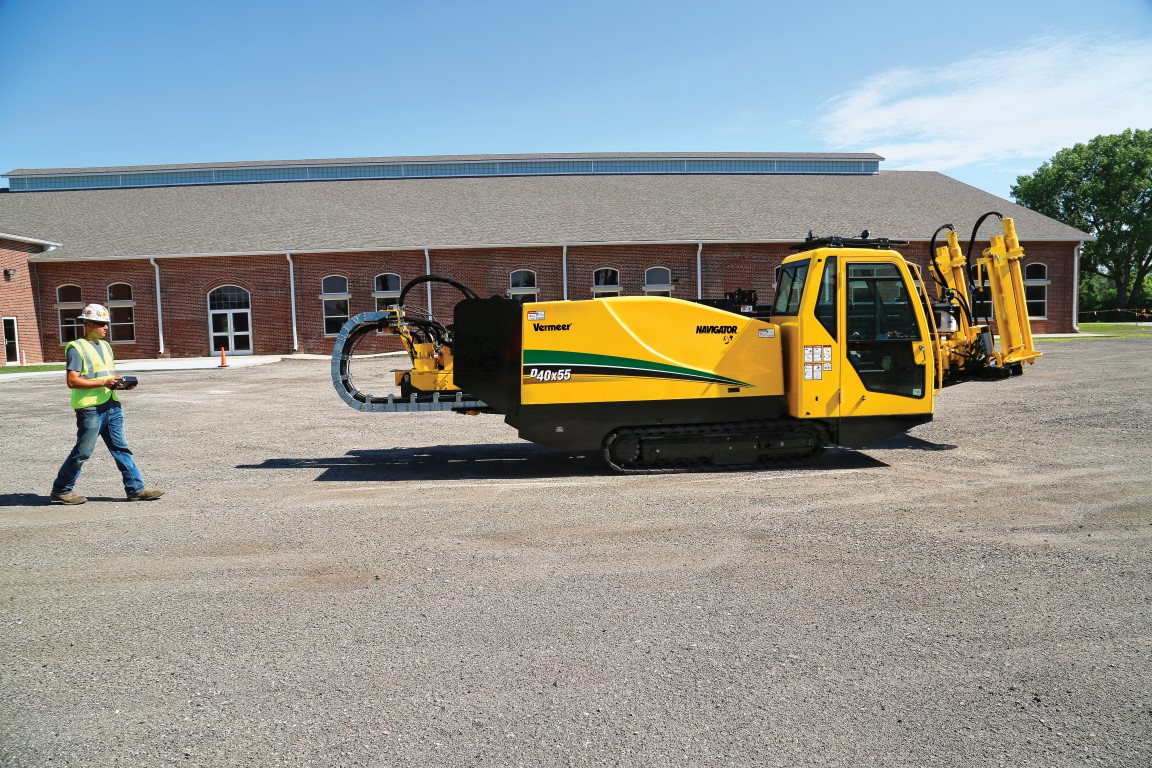

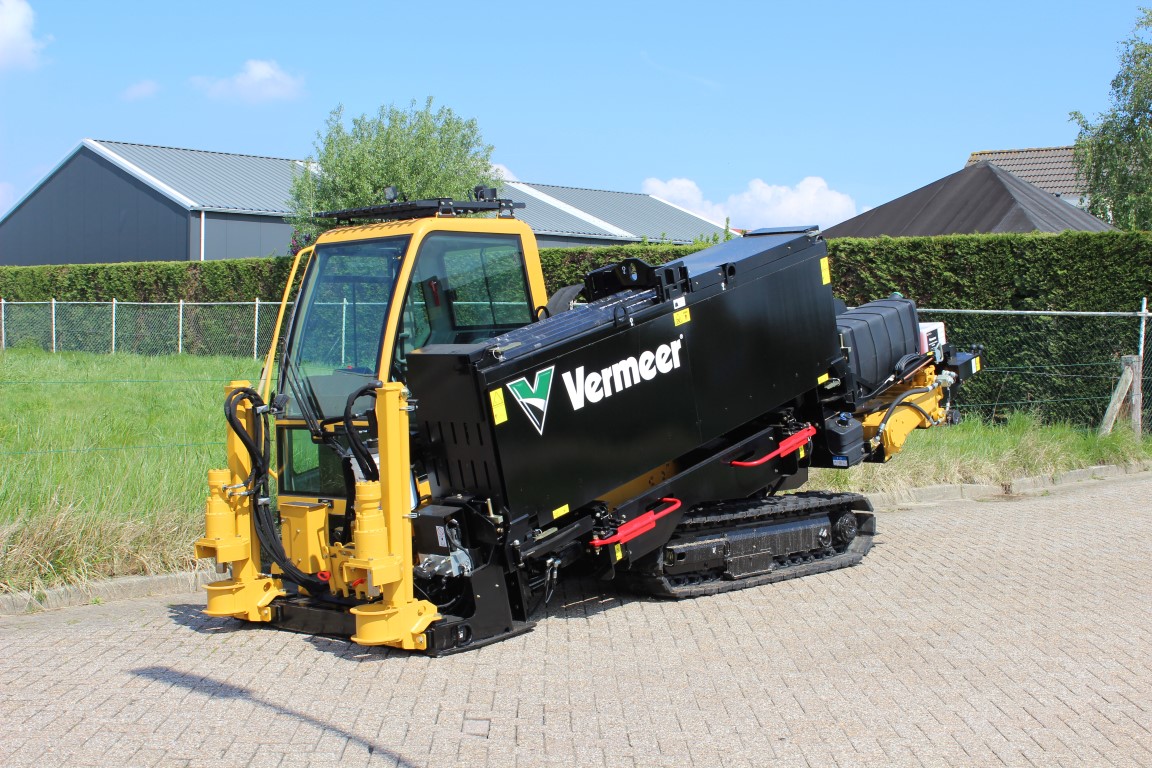

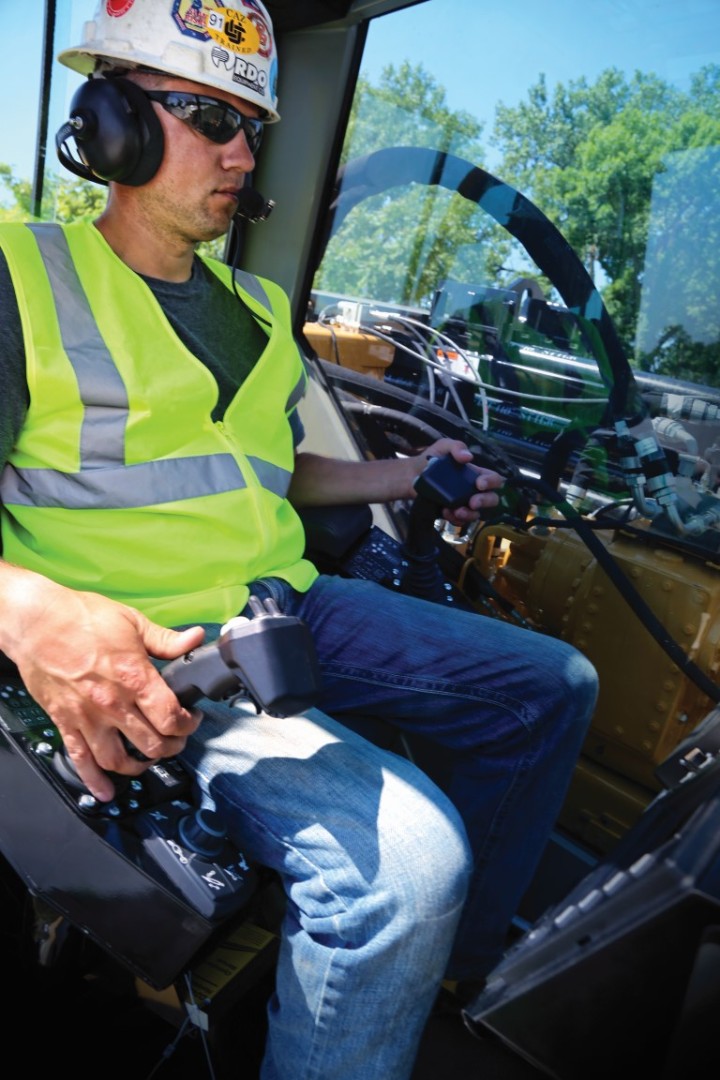

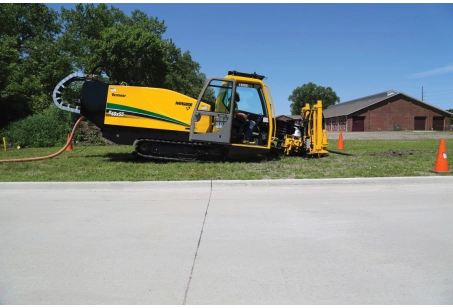

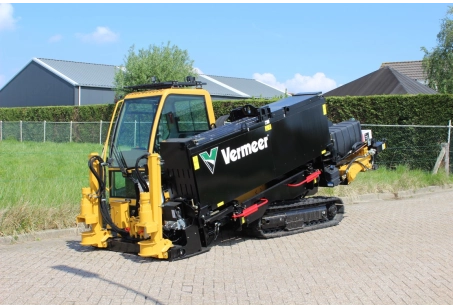

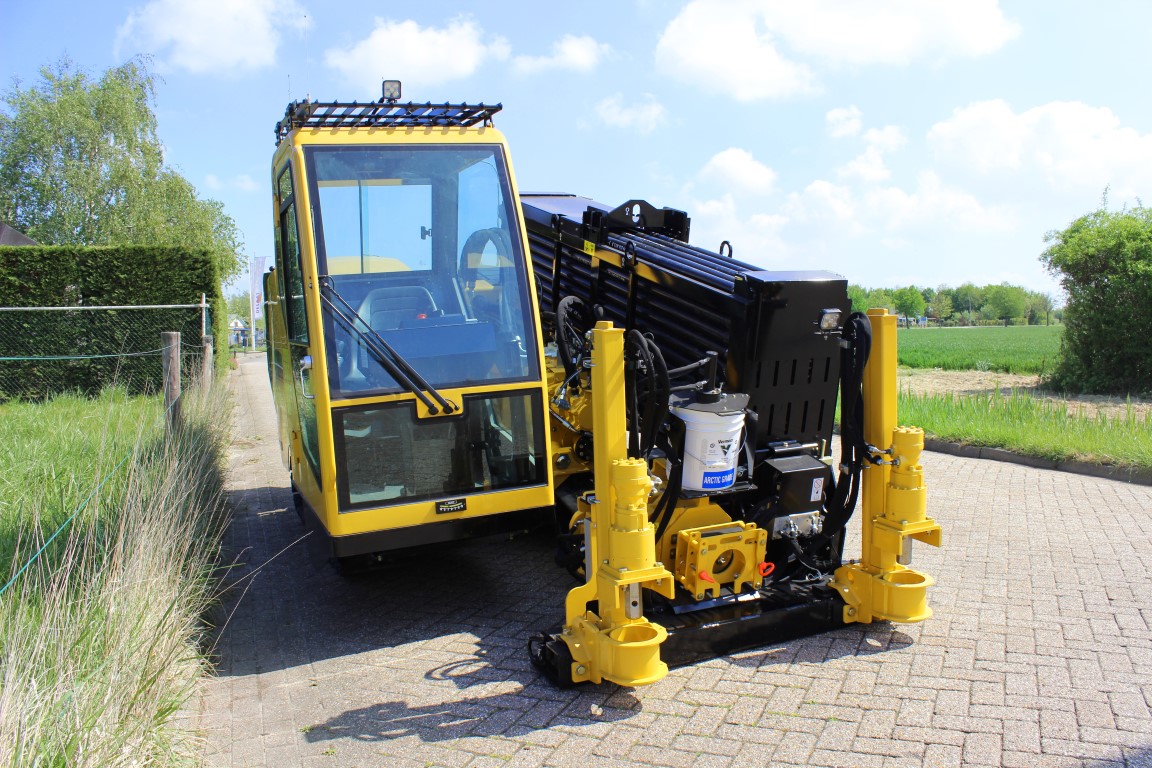

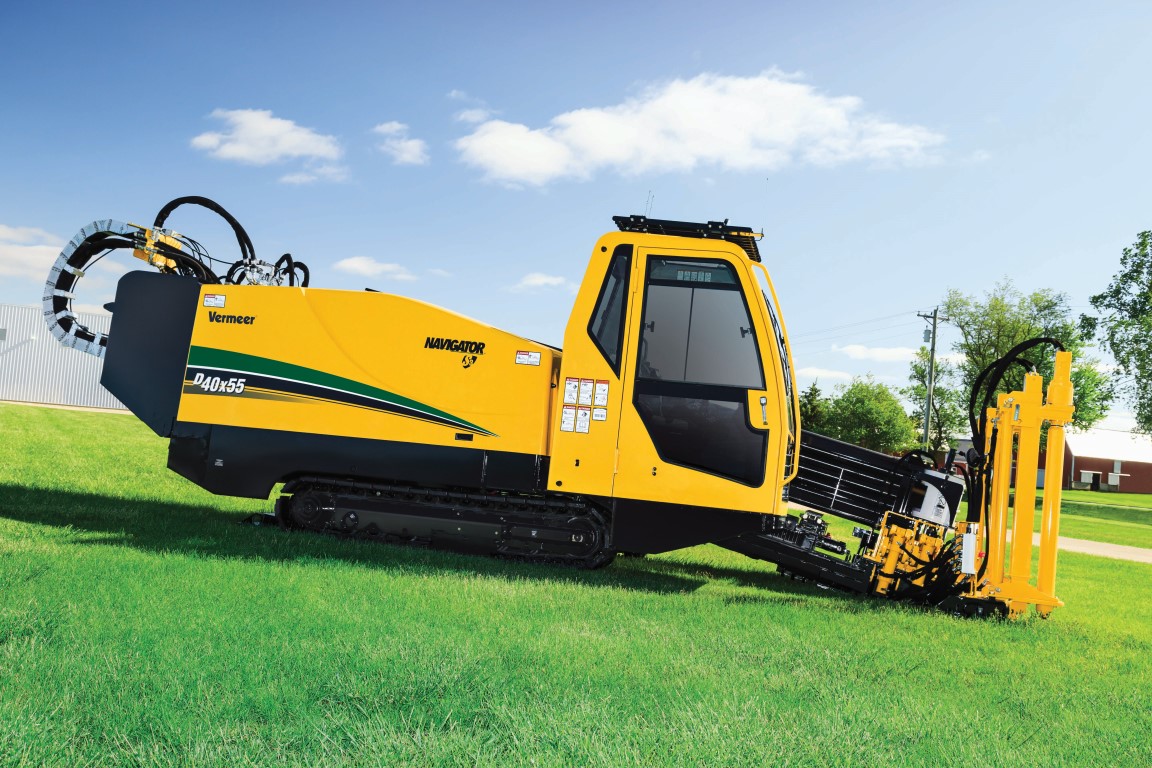

| Cab |
Optional |
| Strike Alert |
Standard |
