| Engine |
| Gross Horsepower |
190 hp (141.7 kw) |
| General Dimensions and Weights |
| Height (With Cab) |
104.4 in (265.2 cm) |
| Height (Minimum Transport) |
90 in (228.6 cm) |
| Width (With Cab, Minimum Transport) |
91.2 in (231.6 cm) |
| Width (Minimum Transport) |
91.2 in (231.6 cm) |
| Length (Minimum Transport) |
325.2 in (826 cm) |
| Weight |
24300 lbs (11022.3 kg) |
| Operational |
| Pullback |
60000 lbs (266.9 kN) |
| Thrust |
60000 lbs (266.9 kN) |
| Maximum Carriage Speed in Low at Maximum Engine RPM |
65 ft/min (19.8 m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) |
9000 ft-lb (12202.4 Nm) |
| Maximum Carriage Speed at Maximum Engine RPM |
131 ft/min (39.9 m/min) |
| Maximum Ground Drive Speed at Maximum Engine RPM |
2.7 mph (4.4 km/h) |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) |
6700 ft-lb (9084 Nm) |
| Maximum Spindle Torque (High at Maximum Engine RPM) |
4500 ft-lb (6101.2 Nm) |
| Fluid Capacities |
| Hydraulic System |
85 gal (321.8 L) |
| Hydraulic Tank |
85 gal (321.8 L) |
| Fuel Tank |
64 gal (242.3 L) |
| Drilling Fluid System Option One |
| Maximum Flow |
130 gpm (492.1 L/min) |
| Maximum Pressure |
1305 psi (90 bar) |
| Drill Pipe |
| Weight |
165 lbs (74.8 kg) |
| Length |
15 ft (4.6 m) |
| Hydraulic System (Advanced) |
| Auxiliary Pump Relief Pressure |
420 psi (29 bar) |
| Rotation Pump Flow at Maximum Engine RPM |
57 gpm (215.8 L/min) |
| Rotation Pump Relief Pressure |
6100 psi (420.6 bar) |
| Thrust/Pullback Pump Flow at Max Engine RPM |
427.2 gpm (1617.1 L/min) |
| Thrust/Pullback Pump Relief Pressure |
5650 psi (389.6 bar) |
| Feature |
Benefit |

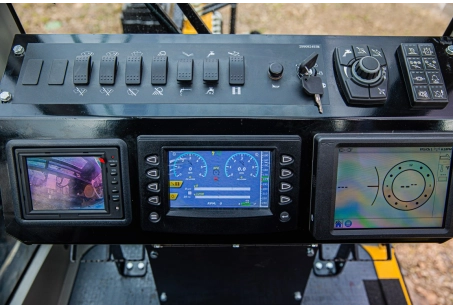

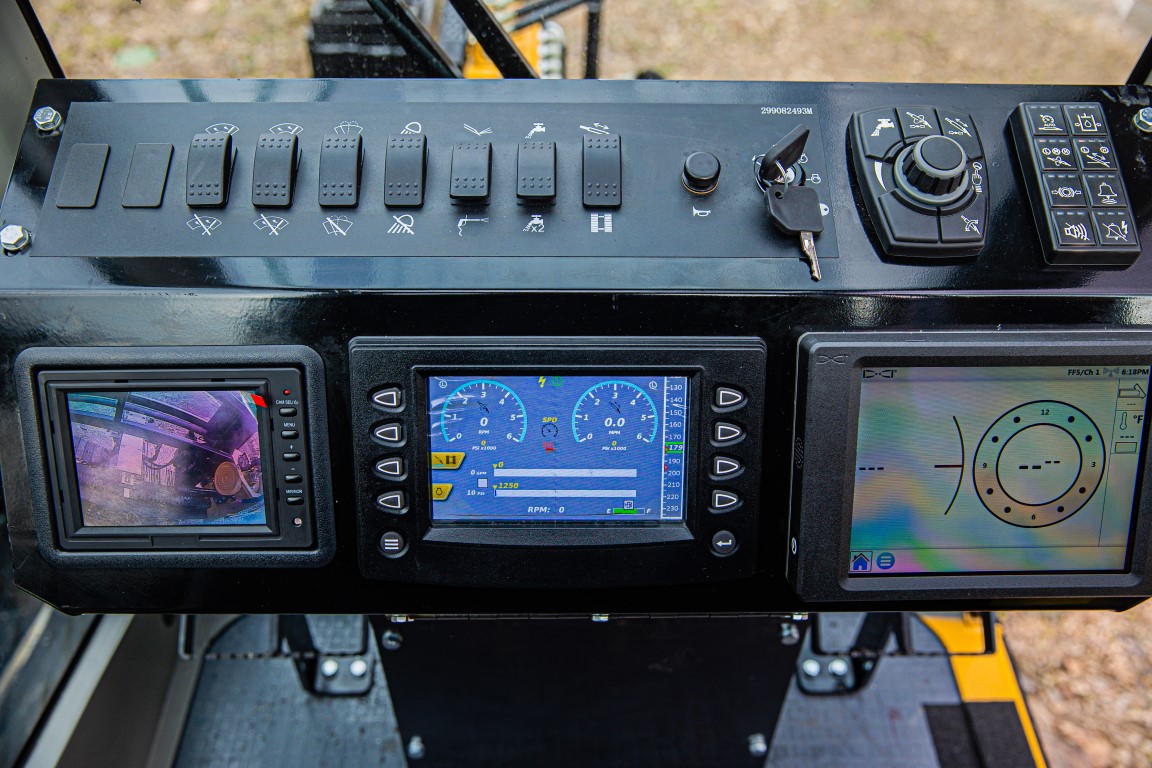

| Plus+1 control system |
The control system in the D60S has been upgraded to Plus+1 software in comparison to the generation 1 model. Paired with the AutoSteer system, which automates certain drill head motions, you can set and adjust rotation duration and direction while maintaining a preset thrust pressure to get through hard ground conditions, enabling drilling consistency. |
| Powerful torque and thrust |
With an overall increase in power and torque, the D60S is one of the most powerful drills in its class. It has up to 60,000 lb (266.9 kN) of thrust and pullback and 9,000 ft-lb (12,202.4 Nm) of rotational torque, allowing operators to maximize their efficiency and productivity. |
| Impressive footprint |
The D60S comes with a standard remote control for ease of use that helps you efficiently load and unload the drill. A modest footprint of just 100-in (254-cm) transport width and 26-ft (7.9-m) length allows the D60S to fit a range of installation specifications—even congested urban jobsites. |

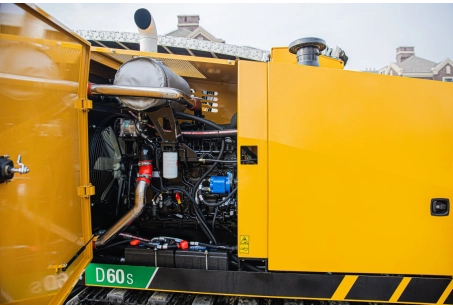

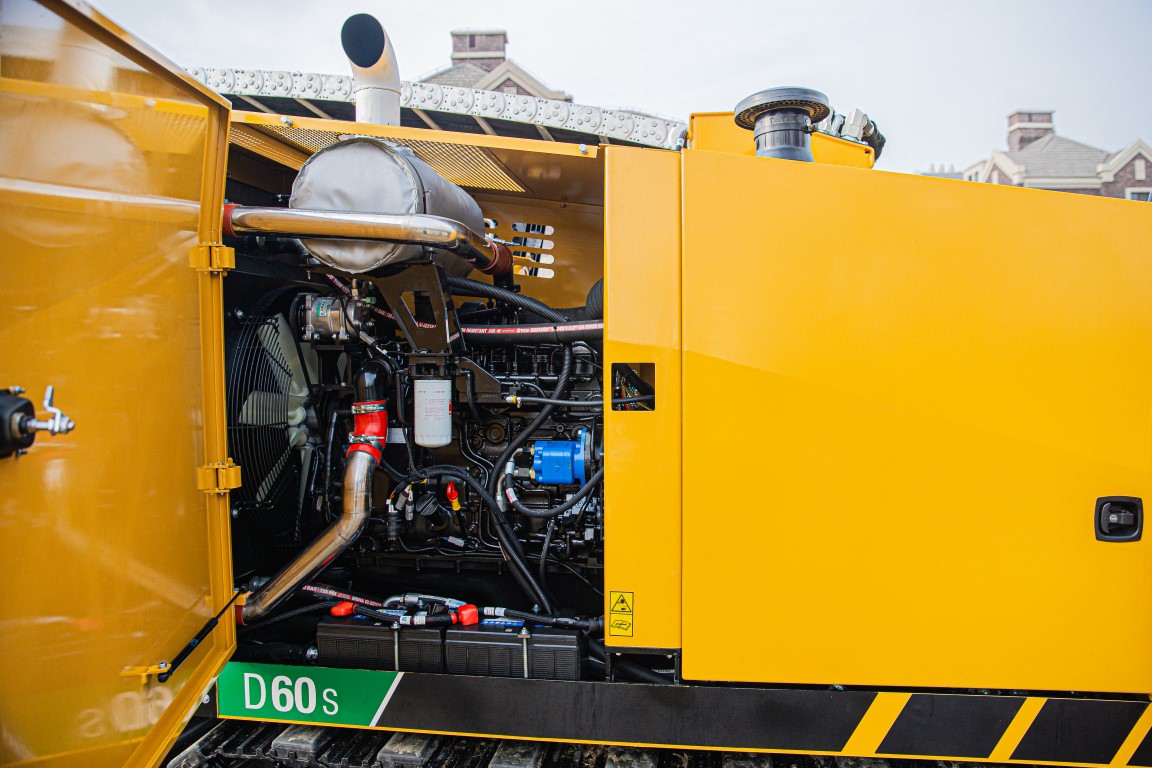

| Ease of serviceability |
The D60S engine hood can pivot and is only one piece. This design provides convenient access to internal components for ease of serviceability and maintenance checks. |
| Three-speed gearbox |
The three-speed gearbox helps improve overall drilling efficiency. This system allows the operator to adjust the machine’s rotational torque to match different ground conditions. |
| Operator-controlled rod loader |
This feature helps reduce the labor involved with manually loading and unloading drill rod. The operator-controlled rod loader provide better overall drilling efficiency. With an added rod function, single rods can be loaded quickly instead of changing the rod box. |
