| General Dimensions and Weights (Base Rubber Tires) |
| Weight (Basic Tractor) |
2740 lbs (1242.8 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
40.2 in (102.1 cm) |
| Height (Basic Tractor) |
55 in (139.7 cm) |
| Wheel Base (Centerline of Axles) |
48 in (121.9 cm) |
| Tread Width (Centerline to Centerline) |
30.3 in (77 cm) |
| Rubber Tires Option Two Configuration |
| Weight (Basic Tractor) |
2780 lbs (1261 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
48 in (121.9 cm) |
| Height (Basic Tractor) |
56.5 in (143.5 cm) |
| Ground Clearance |
6.4 in (16.3 cm) |
| Tread Width (Centerline to Centerline) |
39 in (99.1 cm) |
| Rubber Tires Option Three Configuration |
| Weight (Basic Tractor) |
3028 lbs (1373.5 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
60 in (152.4 cm) |
| Height (Basic Tractor) |
55 in (139.7 cm) |
| Ground Clearance |
7.9 in (20.1 cm) |
| Tread Width (Centerline to Centerline) |
36 in (91.4 cm) |

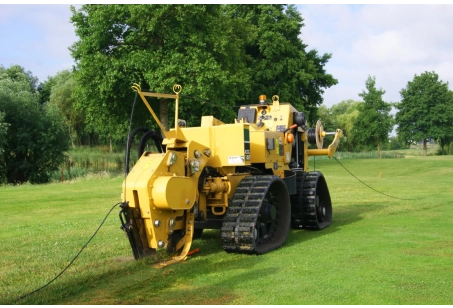

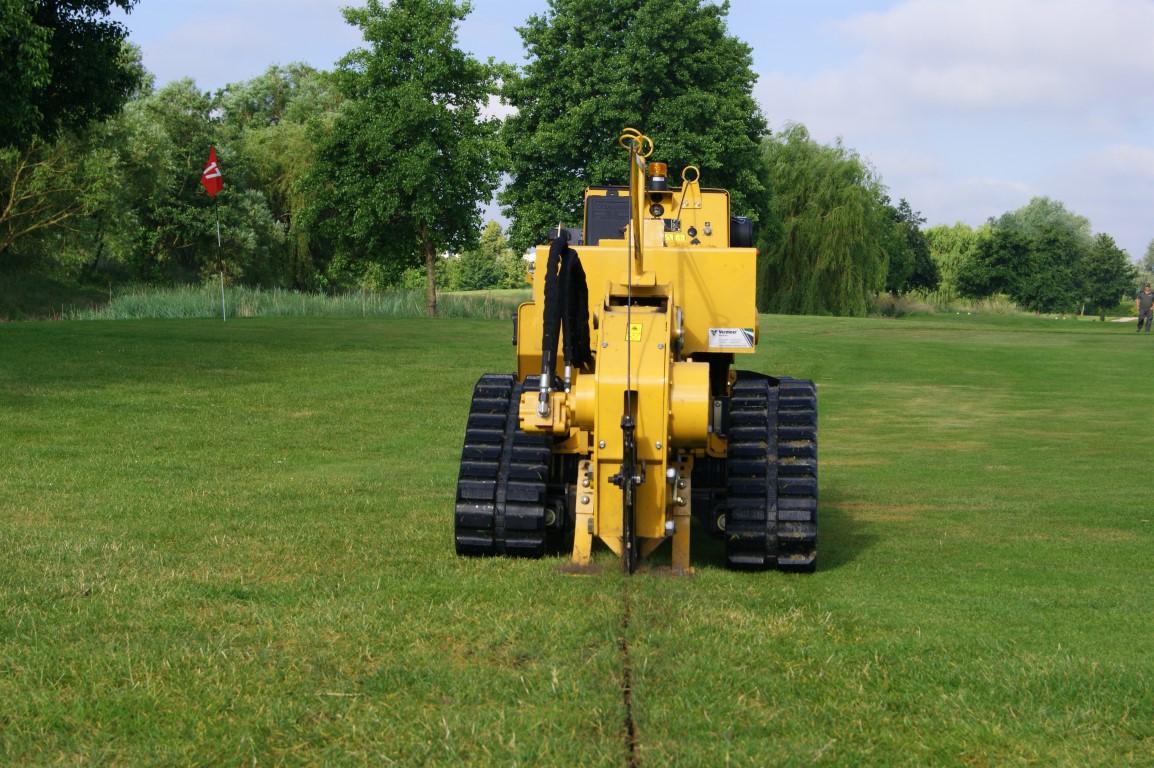

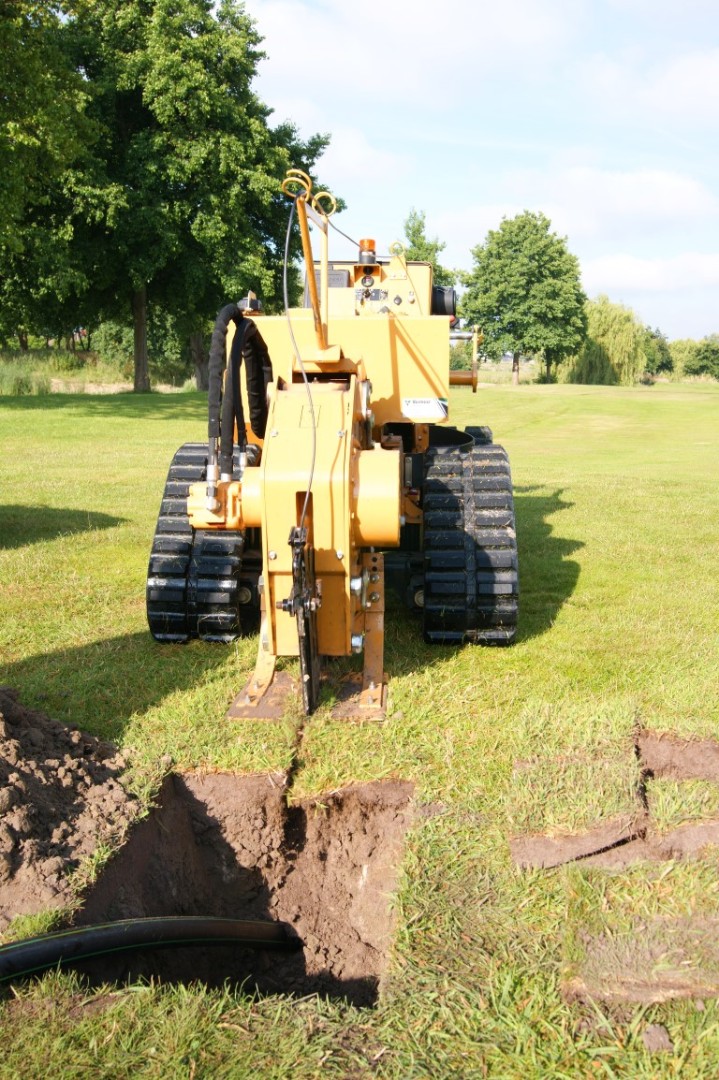

| Track Configuration |
| Weight (Basic Tractor) |
3680 lbs (1669.2 kg) |
| Length (Basic Tractor) |
92.8 in (235.7 cm) |
| Width (Basic Tractor) |
43.3 in (110 cm) |
| Height (Basic Tractor) |
55.5 in (141 cm) |
| Ground Clearance |
6.9 in (17.5 cm) |
| Track Width |
11 in (27.9 cm) |
| Tread Width (Centerline to Centerline) |
32.3 in (82 cm) |
| Engine - Option One |
| Maximum Gross Horsepower |
46.8 hp (34.9 kw) |
| Maximum Torque |
88.7 ft-lb (120.3 Nm) |
| Axle Options & Steering (Front and Rear Steer) |
| Axle Load Rating (Static, Per Axle) |
14800 lbs (6713.2 kg) |
| Outside Turning Diameter (Base Rubber Tires) |
18.3 ft (5.6 m) |
| Outside Turning Diameter (Rubber Tires Option Two) |
19 ft (5.8 m) |
| Outside Turning Diameter (Rubber Tires Option Three) |
20 ft (6.1 m) |
| Hydraulic System |
| Ground Drive Pump Capacity |
33.3 gpm (126.1 L/min) |
| Ground Drive Pump Relief Pressure |
2900 psi (199.9 bar) |
| Attachment Pump Capacity |
24 gpm (90.8 L/min) |
| Attachment Pump Relief Pressure |
2900 psi (199.9 bar) |
| Auxiliary Pump Capacity |
10.4 gpm (39.4 L/min) |
| Auxiliary Pump Relief Pressure |
2500 psi (172.4 bar) |
| Ground Drive Performance (By Drive Type) |
| Base Tires: Max Fwd/Rev Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Base Tires: Max Fwd/Rev Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Option Two Tires: Max Fwd/Rev Transport Speed (High) |
2.7 mph (4.3 km/h) |
| Option Two Tires: Max Fwd/Rev Creep Speed (Low) |
143 ft/min (43.6 m/min) |
| Option Three Tires: Max Fwd/Rev Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Option Three Tires: Max Fwd/Rev Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Tracks: Max Forward Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Tracks: Max Forward Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Capacities |
| Fuel Tank |
12 gal (45.4 L) |
| Hydraulic Tank |
9 gal (34.1 L) |
| Hydraulic System Total |
11 gal (41.6 L) |
| Coolant |
1.3 gal (4.7 L) |
