| General Dimensions and Weights (Base Rubber Tires) |
| Weight (Basic Tractor) |
3240 lbs (1469.6 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
44.5 in (113 cm) |
| Height (Basic Tractor) |
53.4 in (135.6 cm) |
| Ground Clearance |
6.4 in (16.3 cm) |
| Wheel Base (Centerline of Axles) |
48 in (121.9 cm) |
| Tread Width (Centerline to Centerline) |
30.3 in (77 cm) |
| Rubber Tires Option Two Configuration |
| Weight (Basic Tractor) |
3188 lbs (1446.1 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
62.4 in (158.5 cm) |
| Height (Basic Tractor) |
53.4 in (135.6 cm) |
| Ground Clearance |
6.4 in (16.3 cm) |
| Tread Width (Centerline to Centerline) |
36 in (91.4 cm) |
| Rubber Tires Option Three Configuration |
| Weight (Basic Tractor) |
2940 lbs (1333.6 kg) |
| Length (Basic Tractor) |
84.8 in (215.4 cm) |
| Width (Basic Tractor) |
48.4 in (122.9 cm) |
| Height (Basic Tractor) |
54.9 in (139.4 cm) |
| Ground Clearance |
7.9 in (20.1 cm) |
| Tread Width (Centerline to Centerline) |
39 in (99.1 cm) |
| Track Configuration |
| Weight (Basic Tractor) |
3840 lbs (1741.8 kg) |
| Length (Basic Tractor) |
92.9 in (236 cm) |
| Width (Basic Tractor) |
46.1 in (117.1 cm) |
| Height (Basic Tractor) |
53.9 in (136.9 cm) |
| Ground Clearance |
6.9 in (17.5 cm) |
| Track Width |
11 in (27.9 cm) |
| Track Contact Length |
14.4 in (36.6 cm) |
| Tread Width (Centerline to Centerline) |
32.3 in (82 cm) |

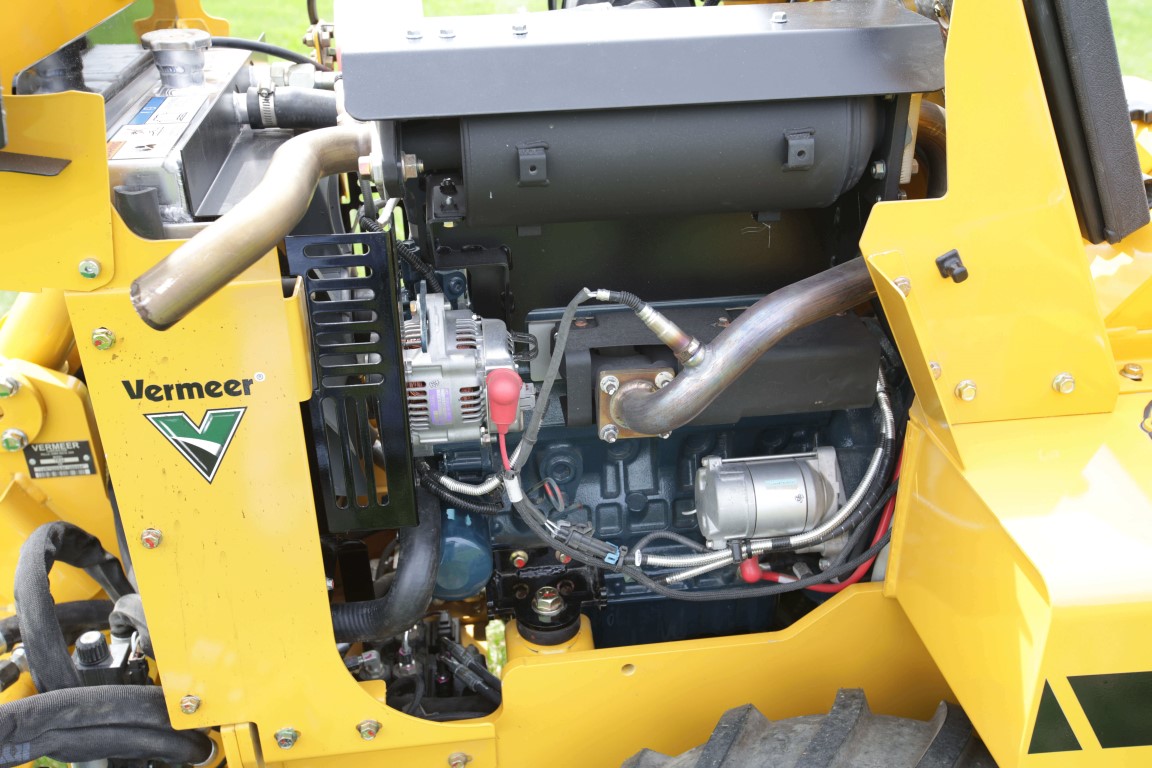

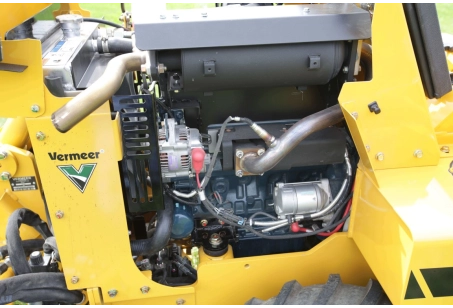

| Engine - Option One |
| Maximum Gross Horsepower |
46.8 hp (34.9 kw) |
| Maximum Torque |
88.7 ft-lb (120.3 Nm) |
| Axle Options & Steering (Front and Rear Steer) |
| Axle Load Rating (Static, Per Axle) |
14800 lbs (6713.2 kg) |
| Outside Turning Diameter (Base Rubber Tires) |
18.4 ft (5.6 m) |
| Outside Turning Diameter (Rubber Tires Option Two) |
20 ft (6.1 m) |
| Outside Turning Diameter (Rubber Tires Option Three) |
19 ft (5.8 m) |
| Hydraulic System |
| Ground Drive Pump Capacity |
33.3 gpm (126.1 L/min) |
| Ground Drive Pump Relief Pressure |
2900 psi (199.9 bar) |
| Attachment Pump Capacity |
24 gpm (90.8 L/min) |
| Attachment Pump Relief Pressure |
2900 psi (199.9 bar) |
| Auxiliary Pump Capacity |
10.4 gpm (39.4 L/min) |
| Auxiliary Pump Relief Pressure |
2500 psi (172.4 bar) |
| Ground Drive Performance & Ground Pressure |
| Base Tires: Max Fwd/Rev Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Base Tires: Max Fwd/Rev Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Base Tires: Ground Pressure (Basic Tractor Only) |
15.6 psi (1.1 bar) |
| Option Two Tires: Max Fwd/Rev Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Option Two Tires: Max Fwd/Rev Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Option Two Tires: Ground Pressure (Basic Tractor Only) |
8.7 psi (.6 bar) |
| Option Three Tires: Max Fwd/Rev Transport Speed (High) |
2.7 mph (4.3 km/h) |
| Option Three Tires: Max Fwd/Rev Creep Speed (Low) |
143 ft/min (43.6 m/min) |
| Option Three Tires: Ground Pressure (Basic Tractor Only) |
13.9 psi (1 bar) |
| Tracks: Max Fwd/Rev Transport Speed (High) |
2.4 mph (3.9 km/h) |
| Tracks: Max Fwd/Rev Creep Speed (Low) |
127 ft/min (38.7 m/min) |
| Tracks: Ground Pressure (Basic Tractor Only) |
5.8 psi (.4 bar) |
| Capacities |

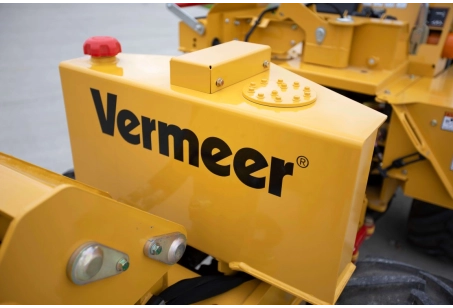

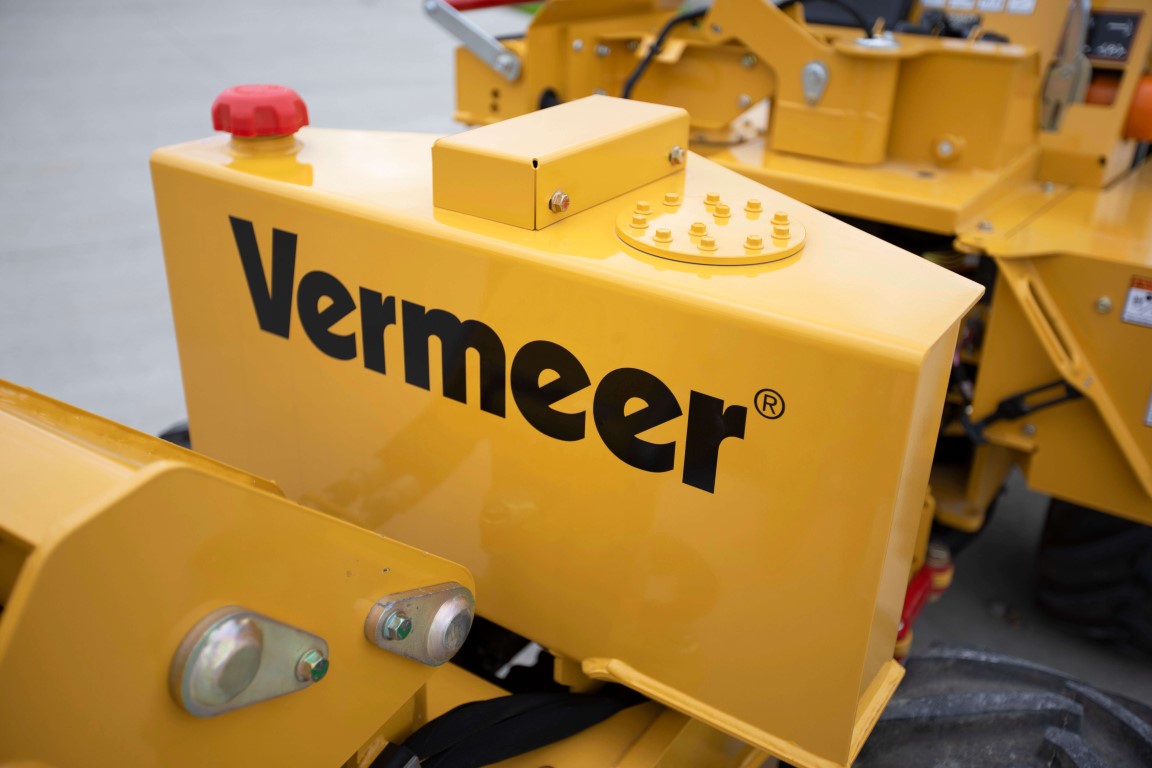

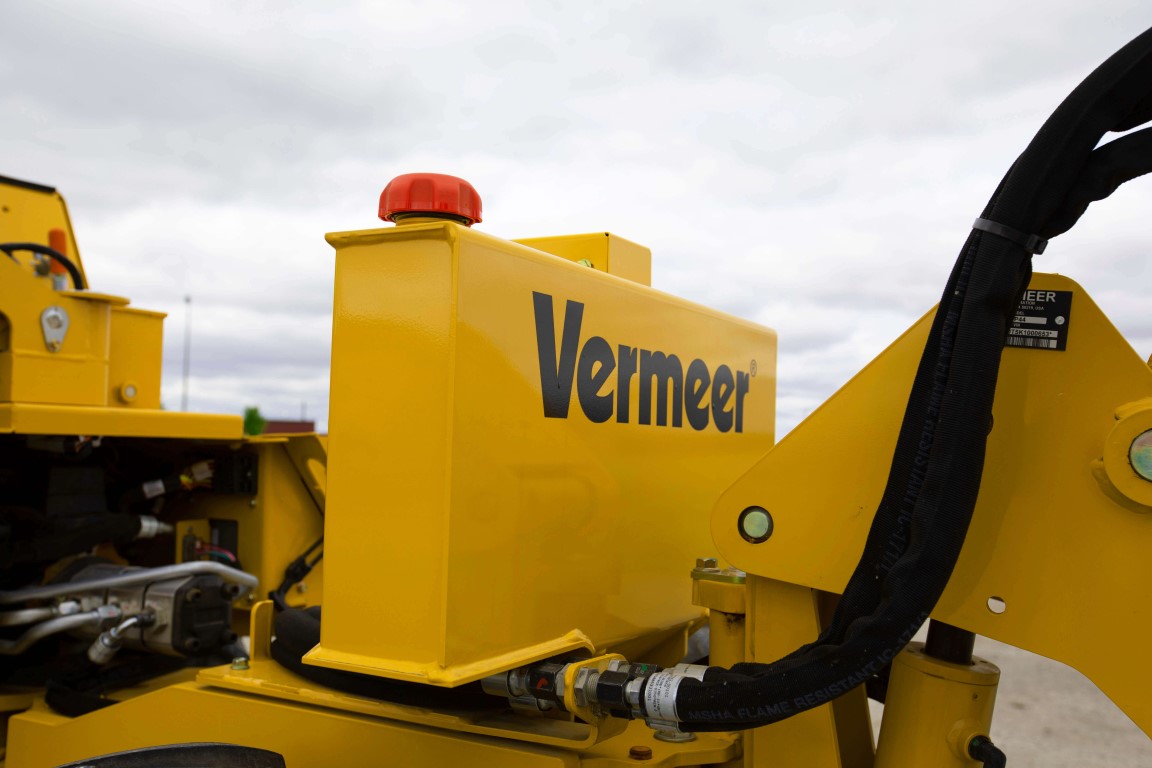

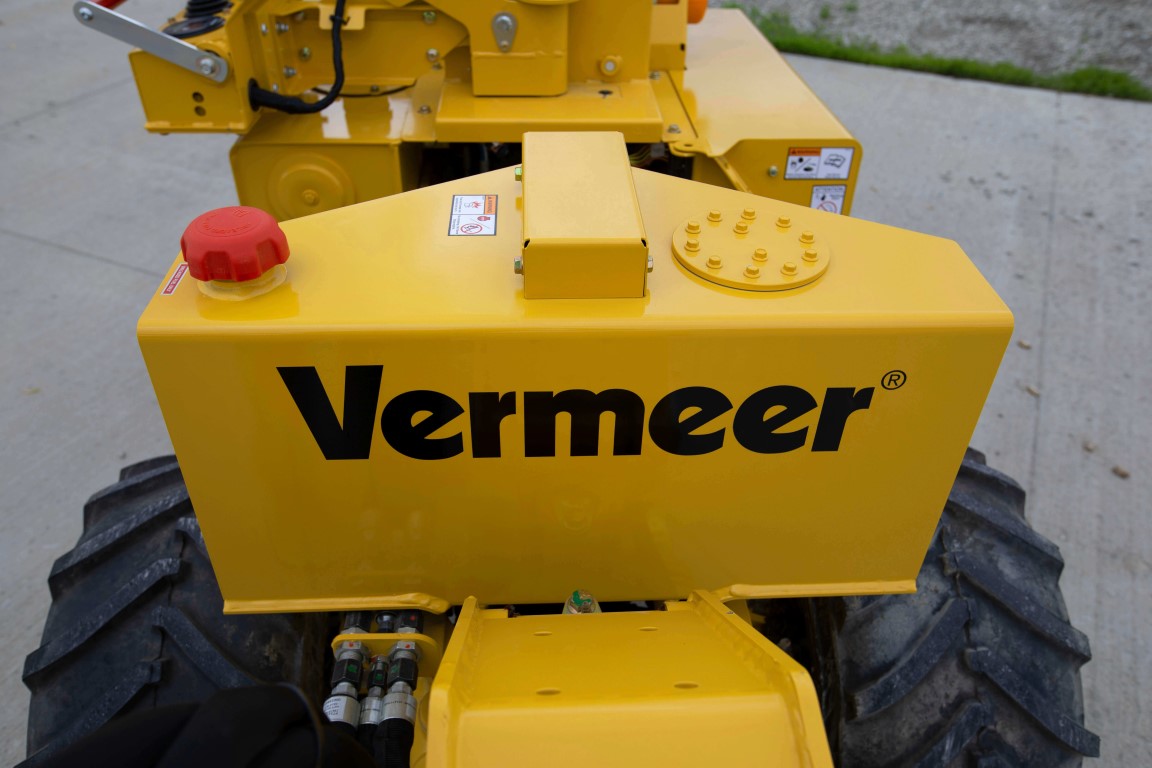

| Fuel Tank |
12 gal (45.4 L) |
| Hydraulic Tank |
9 gal (34.1 L) |
| Hydraulic System Total |
11 gal (41.6 L) |
| Coolant |
1.3 gal (4.7 L) |
