| General Dimensions and Weights |
| Weight (Tractor with Tires) |
880 lbs (399.2 kg) |
| Width (Over Tires / Rubber Tracks) |
35 in (88.9 cm) |
| Length (Tractor with Tires) |
83 in (210.8 cm) |
| Length (Minimum Transport) |
89 in (226.1 cm) |
| Height |
46 in (116.8 cm) |
| Wheel Base (Centerline of Axles) |
33.2 in (84.3 cm) |
| Tread Width with Tires (Centerline to Centerline) |
8.5 in (21.6 cm) |

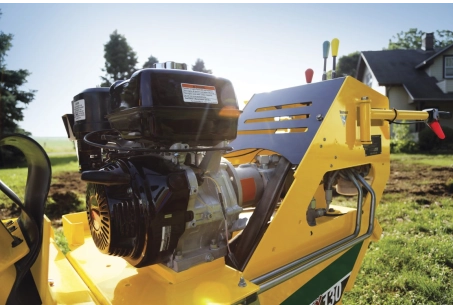

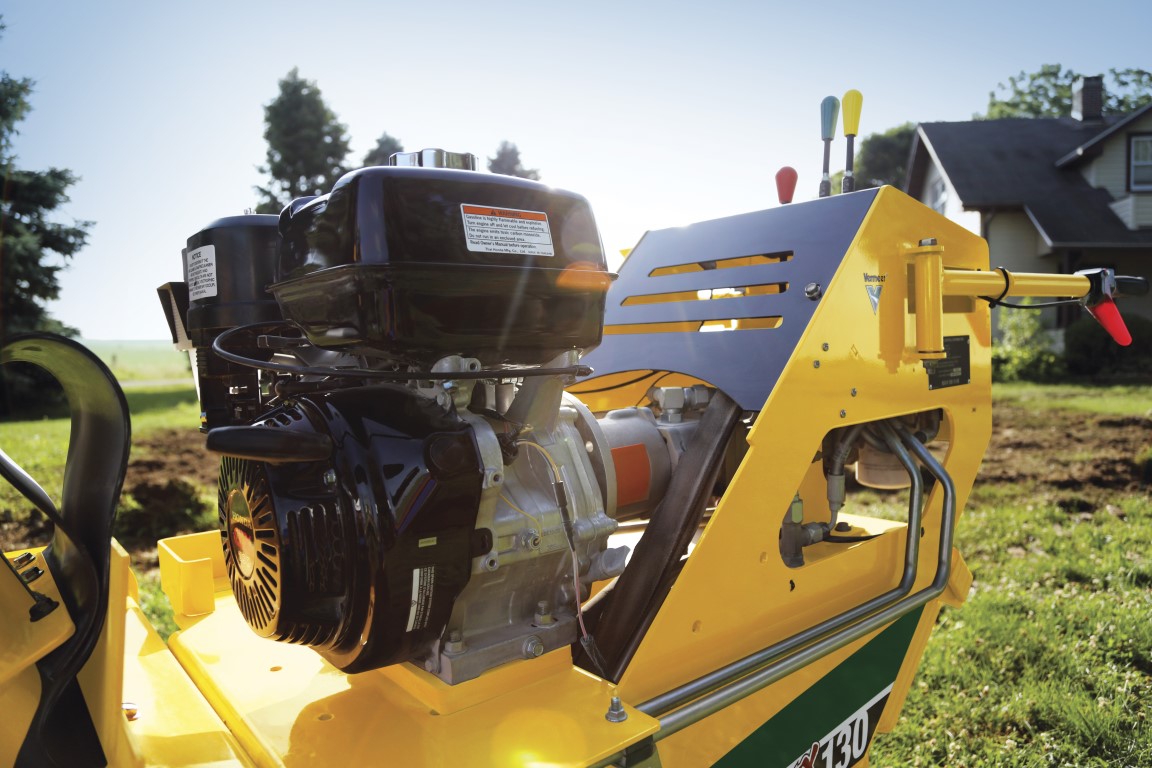

| Engine - Option One |
| Make and Model |
Honda GX390 |
| Fuel Type |
Gasoline |
| Number of Cylinders |
1 |
| Cooling Medium |
Forced Air |
| Horsepower at Maximum RPM (Gross) |
13 hp (9.7 kw) |
| Displacement |
23.7 cu-in (.4 L) |
| Max Operating Angle (Fore/Aft & Left/Right) |
20° / 20° |
| Ground Drive |
| Maximum Forward Transport Speed |
3.1 mph (5 km/h) |
| Maximum Reverse Transport Speed |
1 mph (1.6 km/h) |
| Hydraulic System |
| Attachment Pump Flow (at Max RPM) |
8 gpm (30.3 L/min) |
| Ground Drive Pump Flow (at Max RPM) |
5.4 gpm (20.4 L/min) |
| Ground Drive Pump Relief Pressure (Fwd/Rev) |
2400 psi (165.5 bar) |
| Attachment Pump Relief Pressure (Trencher/Fwd) |
2500 psi (172.4 bar) |
| Capacities |
| Engine Oil |
.3 gal (1.1 L) |
| Fuel Tank |
1.6 gal (6.1 L) |
| Hydraulic tank |
10.8 gal (40.7 L) |
| Hydraulic System Total |
11.3 gal (42.6 L) |

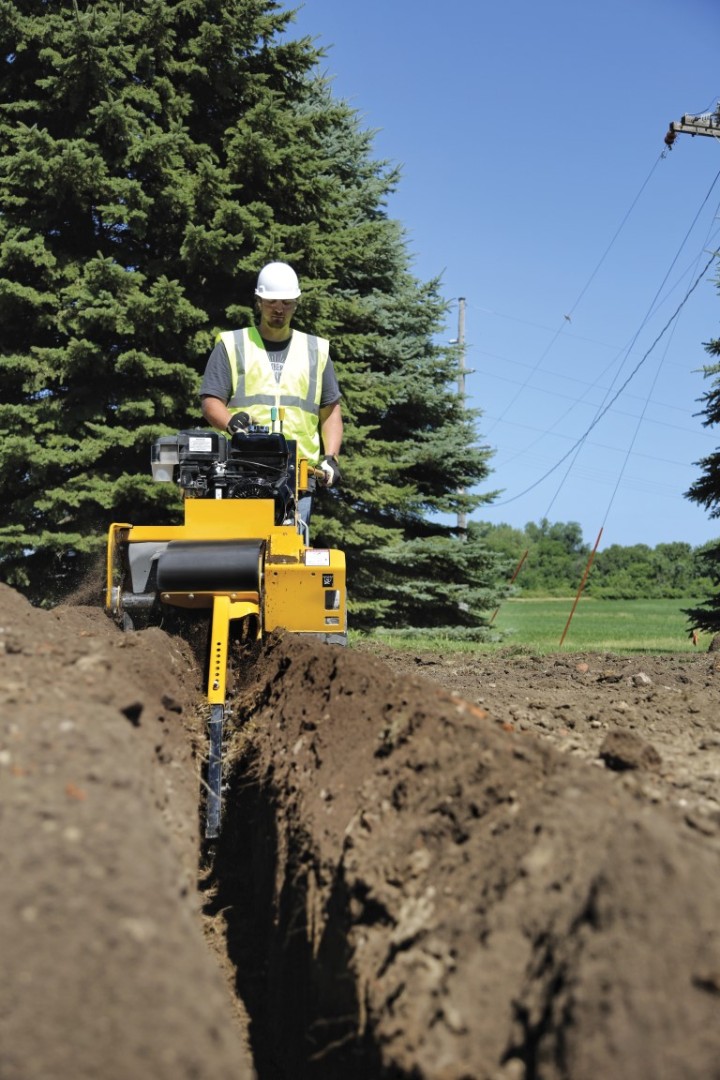

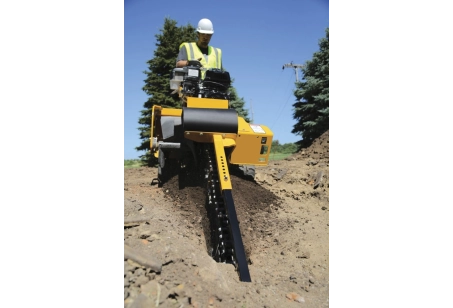

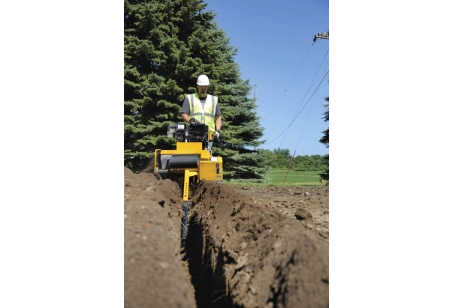

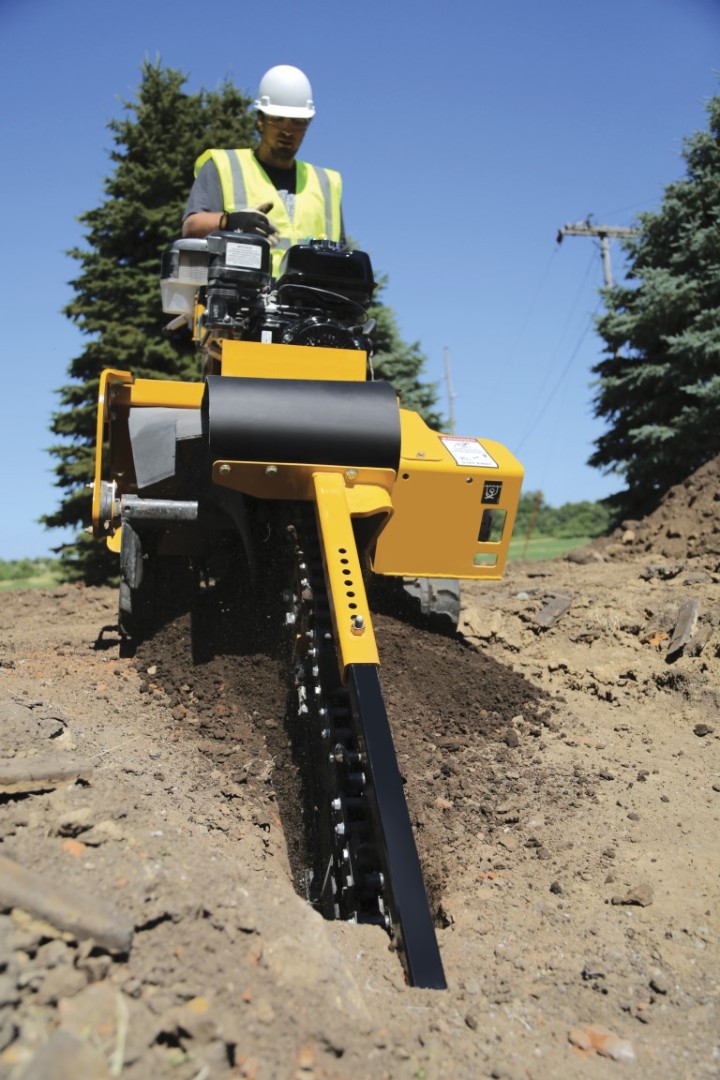

| Attachment (Trencher) |
| Model Name |
TR100 |
| Drive Type |
Hydraulic motor |
| Maximum Trench Depth |
36 in (91.4 cm) |
| Maximum Trench Width |
6 in (15.2 cm) |
| Minimum Trench Width |
4 in (10.2 cm) |
| Features and Benefits |

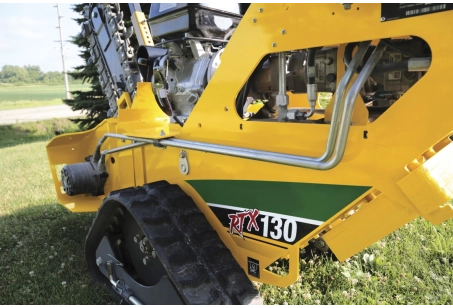

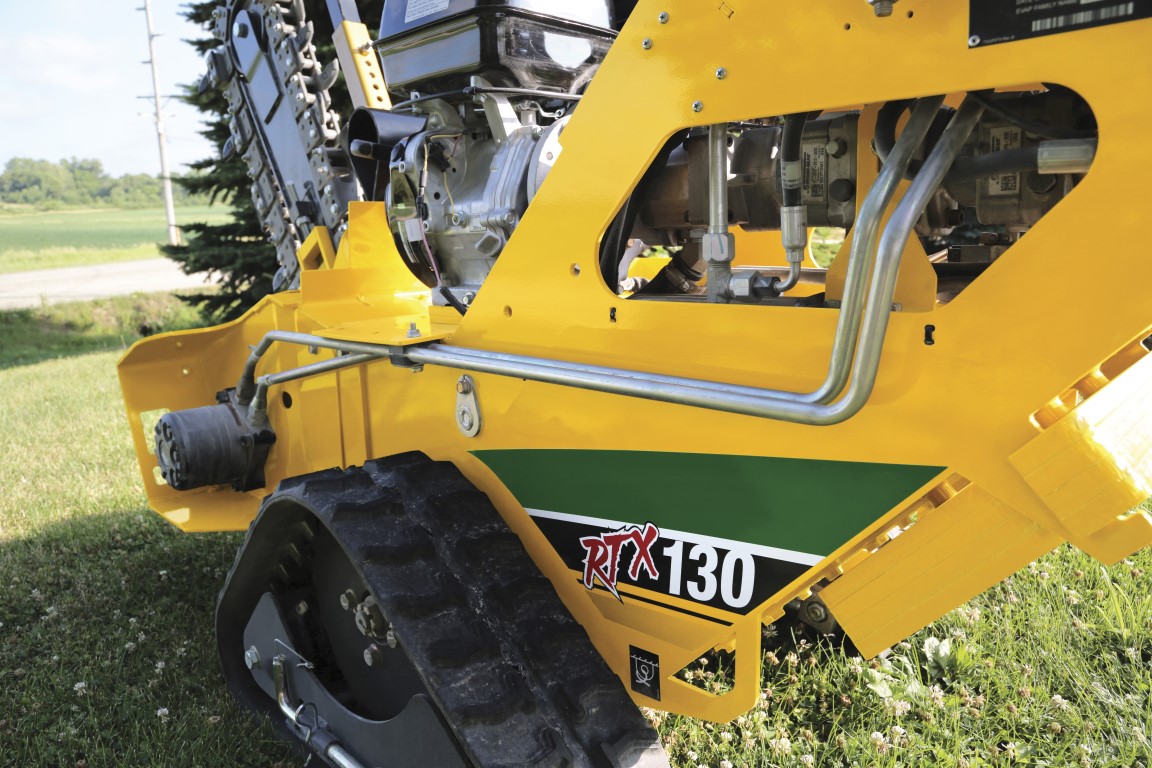

| Convenient access for maintenance |
Clean hydraulic hoses and hardline routing; optional track design with a strong frame and sealed rollers. Most hoses can be removed without removing adjacent lines. |

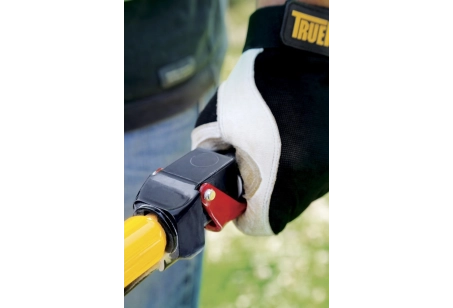

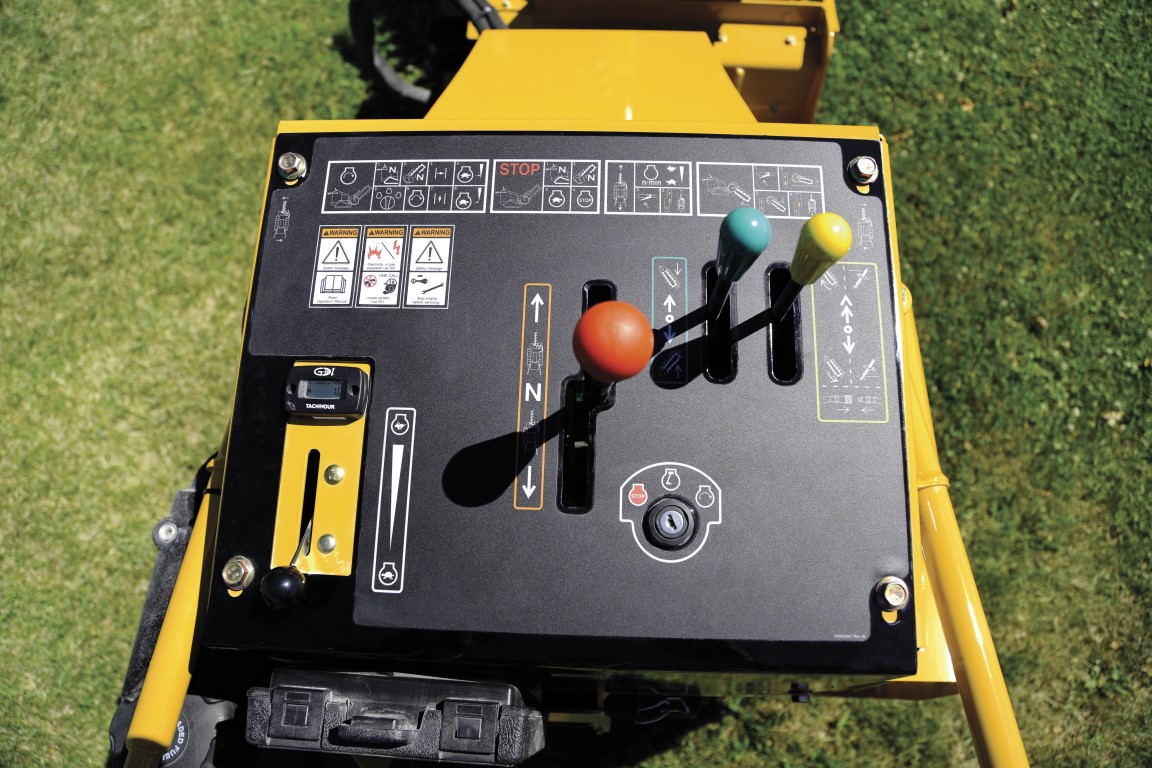

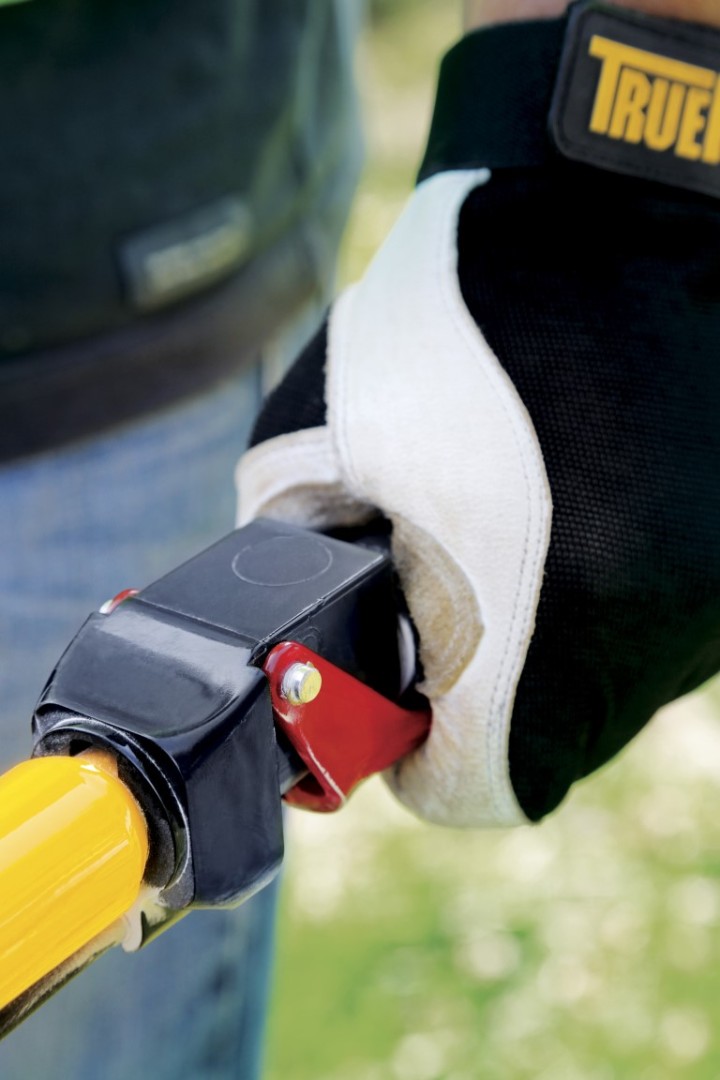

| Exclusive VZ Steering system |
Controlled intuitively by handlebar movement. Eliminates extra levers or steering wheels, lowering operator effort and adding leverage on uneven terrain. |
| Narrow Width (35" / 88.9 cm) |
Allows the unit to access tight spots and easily pass through standard backyard gates. |

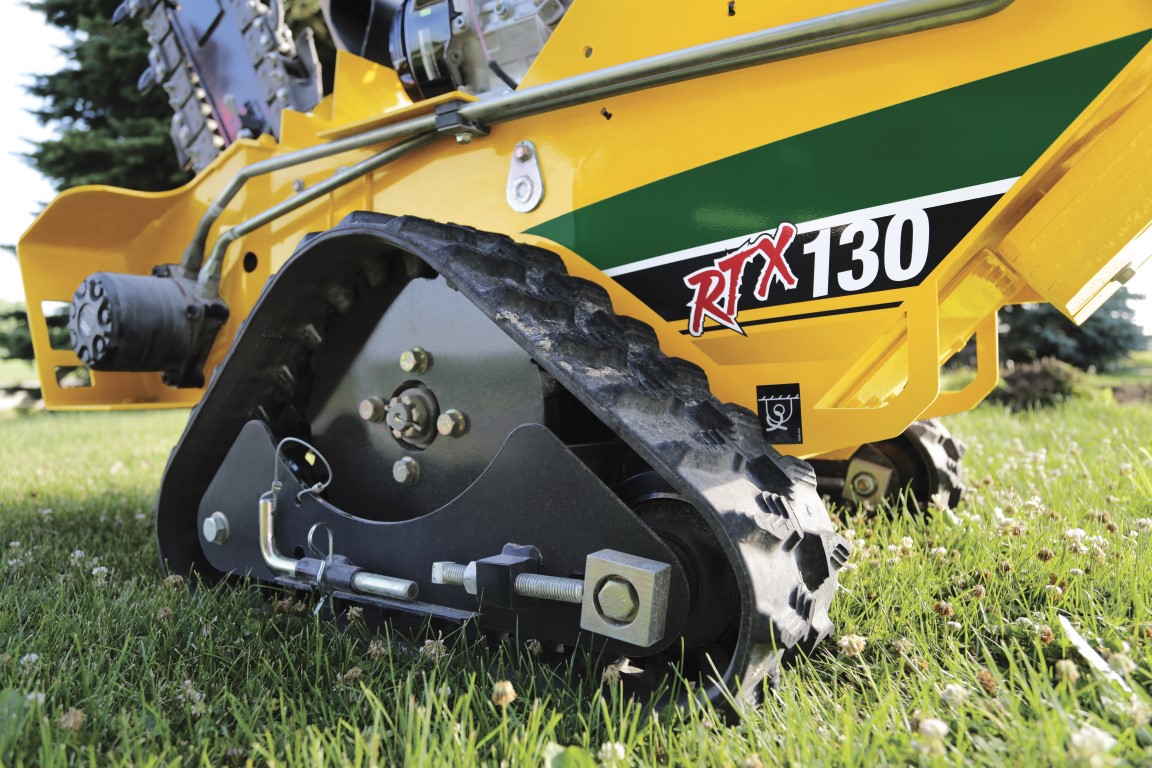

| Optimized Track Option |
Available with 7” wide rubber tracks. Eliminates the tailwheel to improve balance on rough terrain and enhance maneuverability. |
