| General Dimensions and Weights |
| Weight (Tractor with Tires) |
940 lbs (426.4 kg) |
| Length (Tractor with Tires) |
83 in (210.8 cm) |
| Length (Minimum Transport) |
89 in (226.1 cm) |
| Width (Over Rubber Tires) |
35 in (88.9 cm) |

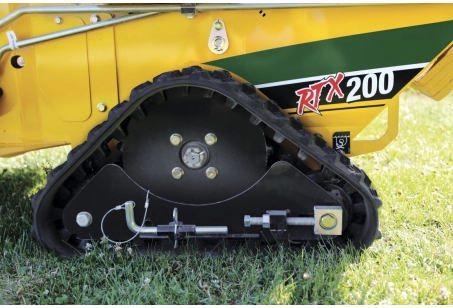

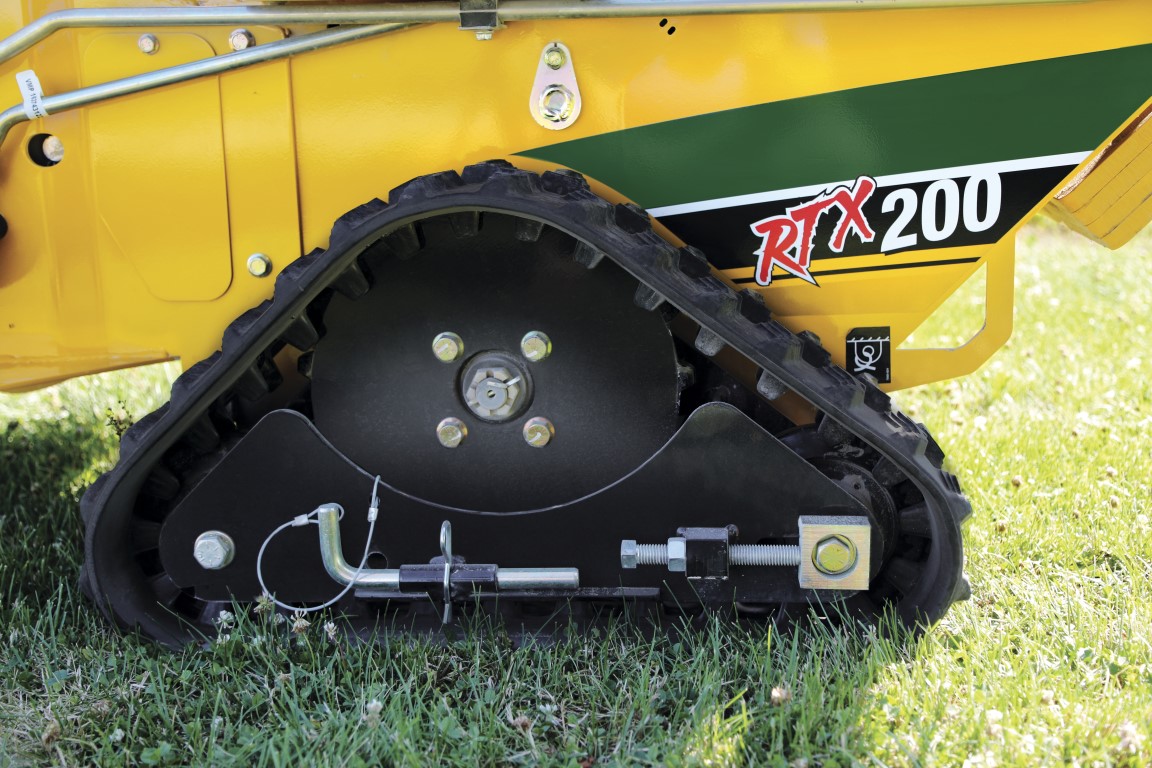

| Width (Over Rubber Tracks) |
35 in (88.9 cm) |
| Height |
46 in (116.8 cm) |
| Wheel Base From Centerline of Axles |
33.2 in (84.3 cm) |
| Tread Width with Rubber Tires (Centerline to Centerline) |
8.5 in (21.6 cm) |
| Engine - Option One |
| Make and Model |
Kohler CH640 |
| Fuel Type |
Gasoline |
| Cooling Medium |
Forced air |
| Aspiration |
Natural |
| Horsepower at Maximum RPM (Gross) |
20.5 hp (15.3 kw) |
| Displacement |
41.1 cu-in (.7 L) |
| Maximum Operating Angle (Fore/Aft & Left/Right) |
25° / 25° |
| Ground Drive |
| Maximum Forward Transport Speed at Full Throttle |
3.1 mph (5 km/h) |
| Maximum Reverse Transport Speed at Full Throttle |
1 mph (1.6 km/h) |
| Hydraulic System |
| Attachment Pump gpm at Maximum Engine RPM |
10.3 gpm (39 L/min) |
| Ground Drive Pump gpm at Maximum Engine RPM |
5.4 gpm (20.4 L/min) |
| Attachment Pump Relief Pressure (Trencher/Forward) |
2500 psi (172.4 bar) |
| Ground Drive Pump Relief Pressure Forward/Reverse |
2400 psi (165.5 bar) |
| Capacities |

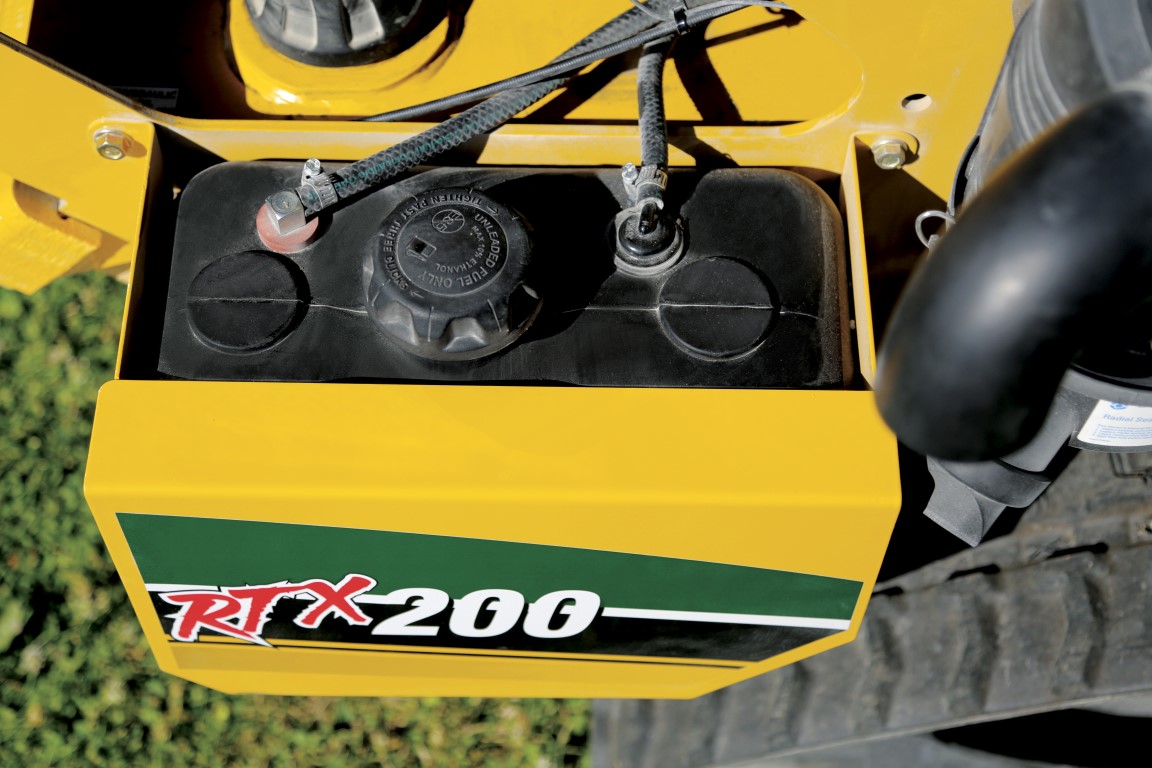

| Fuel Tank |
2.5 gal (9.5 L) |
| Hydraulic Tank |
10.8 gal (40.7 L) |
| Hydraulic System Total |
11.3 gal (42.6 L) |
| Engine Oil |
.5 gal (1.9 L) |

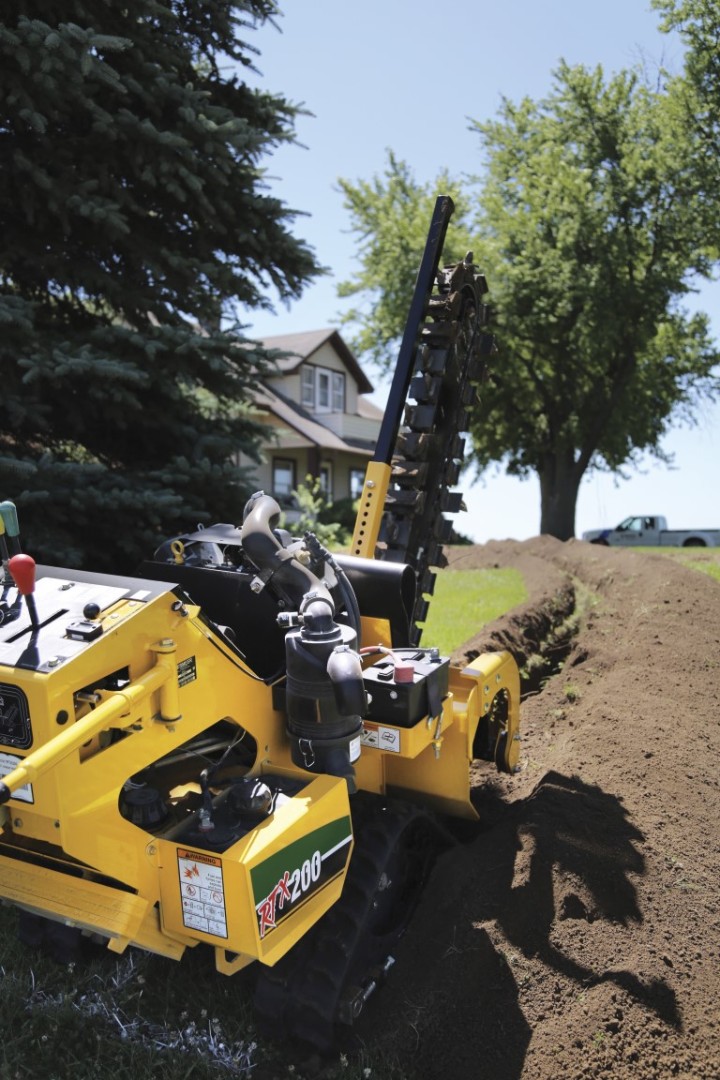

| Attachment |
| Model Name |
TR200 |
| Drive Type |
Hydraulic motor |
| Maximum Trench Depth |
36 in (91.4 cm) |
| Maximum Trench Width |
6 in (15.2 cm) |
| Minimum Trench Width |
4 in (10.2 cm) |
