| Equipment Specifications | |
|---|---|
| General Dimensions and Weights | |
| Weight | 1550 lbs (703.1 kg) |
| Length | 79 in (200.7 cm) |
| Width | 34.5 in (87.6 cm) |
| Height | 48 in (121.9 cm) |
| Engine - Option One | |
| Make and Model | Kohler Command PRO ECH740 |
| Fuel Type | Gas |
| Number of Cylinders | 2 |
| Cooling Medium | Forced air |
| Aspiration | Natural |
| Horsepower at Maximum RPM (Gross) | 25 hp (18.6 kw) |
| Displacement | 45 cu-in (.7 L) |
| Maximum Operating Angle (Fore/Aft & Left/Right) | 25° / 25° |
| Ground Drive | |
| Maximum Forward Transport Speed at Full Throttle | 3.5 mph (5.6 km/h) |
| Maximum Reverse Transport Speed at Full Throttle | 2.5 mph (4 km/h) |
| Hydraulic System | |
| Attachment Pump gpm at Maximum Engine RPM | 16.1 gpm (60.9 L/min) |
| Ground Drive Pump gpm at Maximum Engine RPM | 11.4 gpm (43.2 L/min) |
| Attachment Pump Relief Pressure (Trencher/Forward) | 2975 psi (205.1 bar) |
| Ground Drive Pump Relief Pressure Forward/Reverse | 2900 psi (199.9 bar) |
| Capacities | |
| Fuel Tank | 6.8 gal (25.7 L) |
| Hydraulic Tank | 8 gal (30.3 L) |
| Hydraulic System Total | 8.5 gal (32.2 L) |
| Engine Oil | .5 gal (1.9 L) |
| Attachment | |

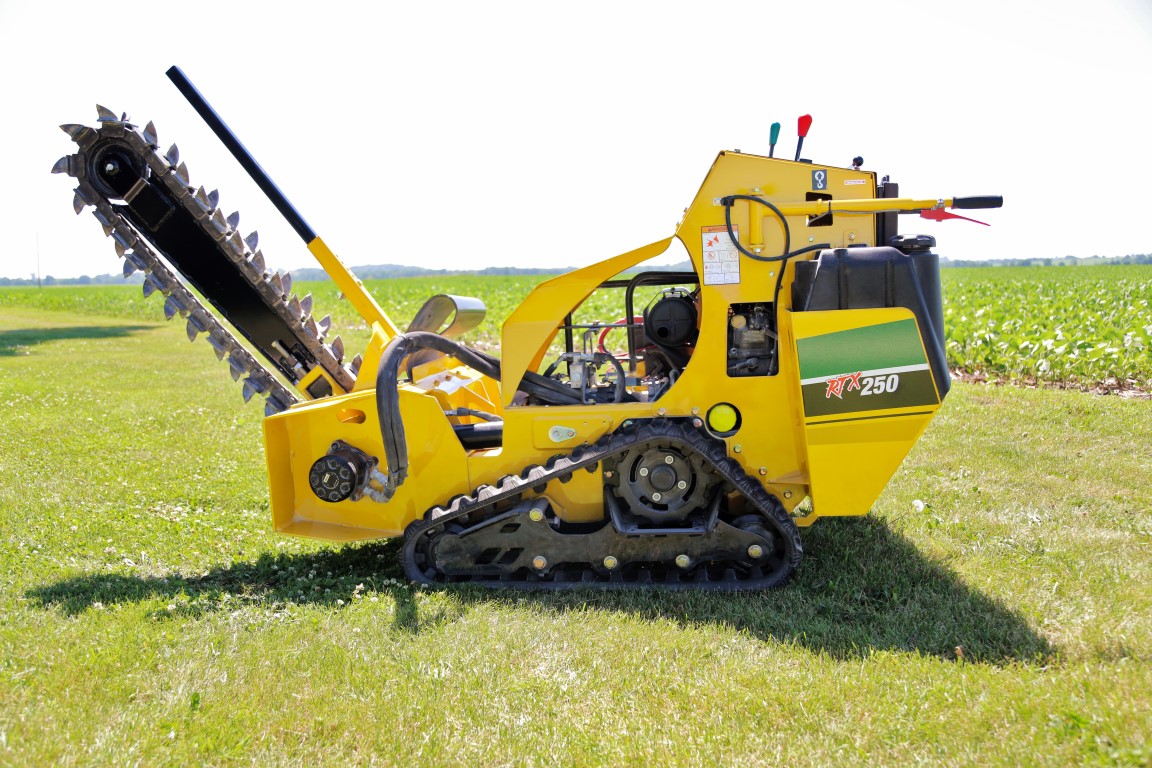

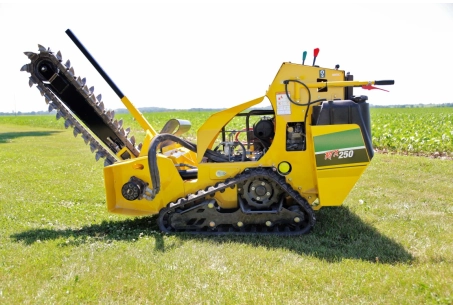

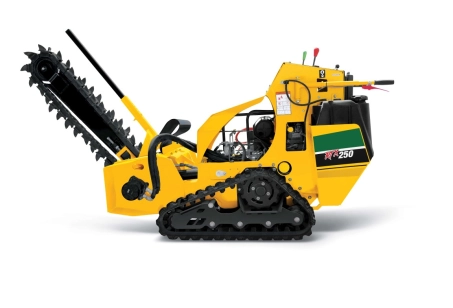

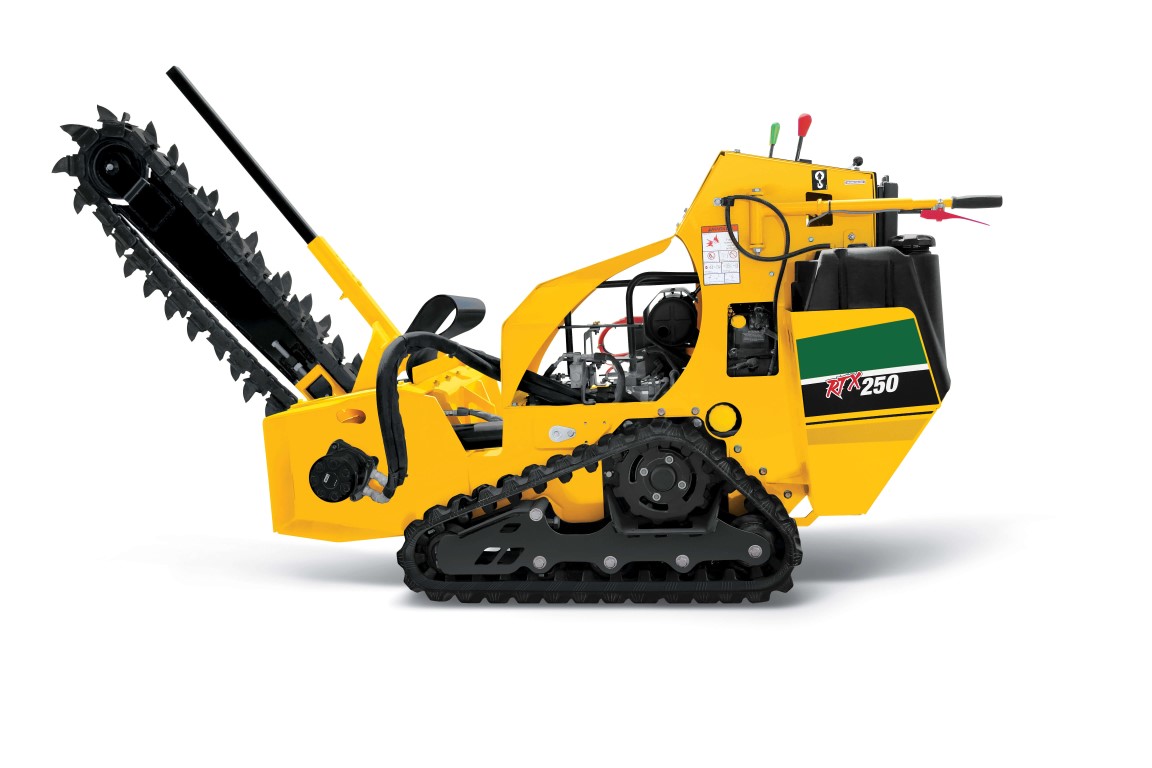

| Model Name | RTX250 |
| Maximum Trench Depth | 48 in (121.9 cm) |
