| General Dimensions and Weights (Base Rubber Tires) |
| Weight (Basic Tractor) |
5600 lbs (2540.1 kg) |
| Length (Basic Tractor) |
123.6 in (313.9 cm) |
| Width (Basic Tractor) |
72.4 in (183.9 cm) |
| Height (Basic Tractor) |
96.8 in (245.9 cm) |
| Ground Clearance |
8.8 in (22.4 cm) |
| Wheel Base (Centerline of Axles) |
61 in (154.9 cm) |
| Tread Width (Centerline to Centerline) |
57.4 in (145.8 cm) |
| Rubber Tires Option Two Configuration |
| Weight (Basic Tractor) |
5870 lbs (2662.6 kg) |
| Length (Basic Tractor) |
124.8 in (317 cm) |
| Width (Basic Tractor) |
77.6 in (197.1 cm) |
| Height (Basic Tractor) |
98.2 in (249.4 cm) |
| Ground Clearance |
10.2 in (25.9 cm) |
| Tread Width (Centerline to Centerline) |
59.5 in (151.1 cm) |
| Rubber Tires Option Three Configuration |
| Tread Width (Centerline to Centerline) |
55.5 in (141 cm) |

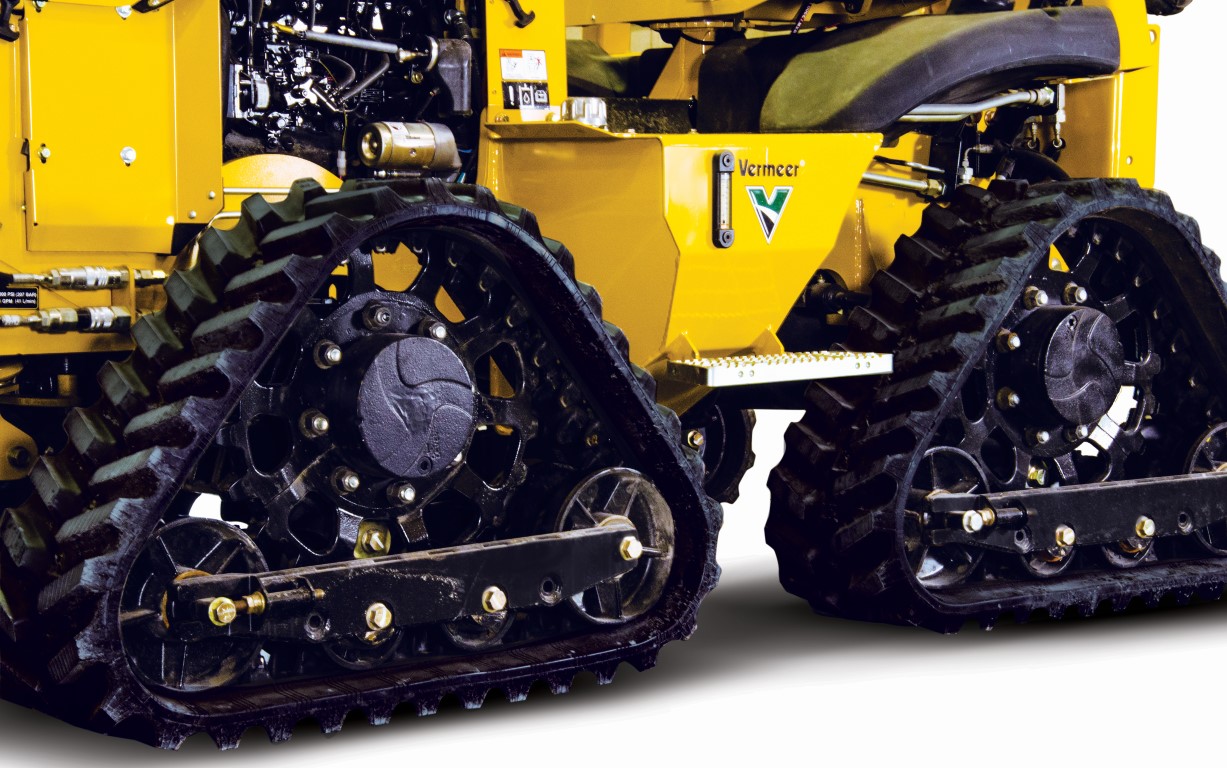

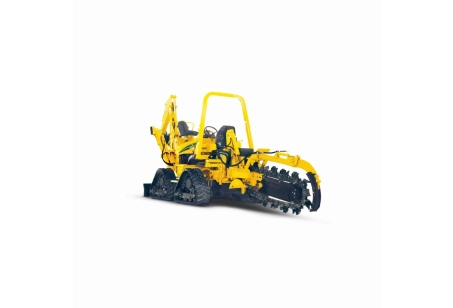

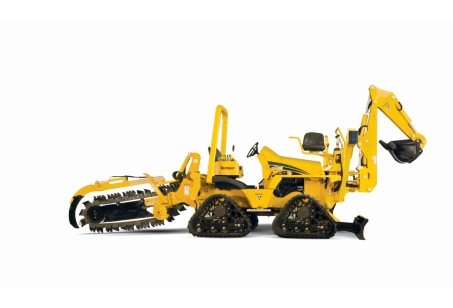

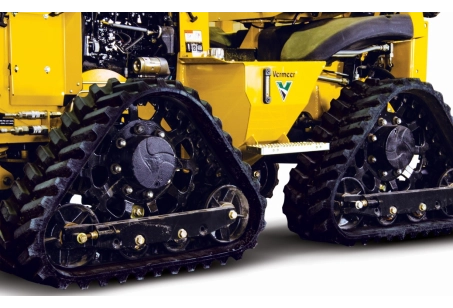

| Track Configuration |
| Weight (Basic Tractor) |
7800 lbs (3538 kg) |
| Length (Basic Tractor) |
130.8 in (332.2 cm) |
| Width (Basic Tractor) |
75.8 in (192.5 cm) |
| Height (Basic Tractor) |
100.2 in (254.5 cm) |
| Ground Clearance |
12.2 in (31 cm) |
| Engine Options |
| Engine Option One: Maximum Gross Horsepower |
67 hp (50 kw) |
| Engine Option One: Maximum Torque |
173 ft-lb (234.6 Nm) |
| Engine Option Two: Maximum Torque |
158 ft-lb (214.2 Nm) |
| Engine Option Three: Maximum Gross Horsepower |
67 hp (50 kw) |
| Engine Option Three: Maximum Torque |
173 ft-lb (234.6 Nm) |
| Axle Options & Steering (Turning Diameters) |
| Axle Load Rating (Static, Per Axle) |
11250 lbs (5102.9 kg) |
| Base Tires: Front Steer Only |
29.8 ft (9.1 m) |
| Base Tires: Front and Rear Steer |
18.8 ft (5.7 m) |
| Option Two Tires: Front Steer Only |
30.3 ft (9.2 m) |
| Option Two Tires: Front and Rear Steer |
19.8 ft (6 m) |
| Hydraulic System |
| Ground Drive Pump Capacity |
31 gpm (117.3 L/min) |
| Ground Drive Pump Relief Pressure |
4350 psi (299.9 bar) |
| Attachment Pump Capacity |
31 gpm (117.3 L/min) |
| Attachment Pump Relief Pressure |
5080 psi (350.3 bar) |
| Auxiliary Pump Capacity |
11.6 gpm (43.9 L/min) |
| Auxiliary Pump Relief Pressure |
2500 psi (172.4 bar) |
| Ground Drive Performance (Transport Speed, High) |
| Base Tires: Max Fwd/Rev Speed |
5.6 mph (9 km/h) |
| Option Two Tires: Max Fwd/Rev Speed |
6.1 mph (9.8 km/h) |
| Tracks: Max Fwd/Rev Speed |
4.1 mph (6.6 km/h) |
| Capacities |
| Fuel Tank |
26 gal (98.4 L) |
| Hydraulic Tank |
18 gal (68.1 L) |
| Hydraulic System Total |
20 gal (75.7 L) |
| Coolant |
3 gal (11.4 L) |
