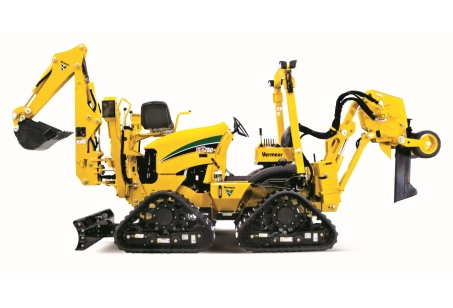

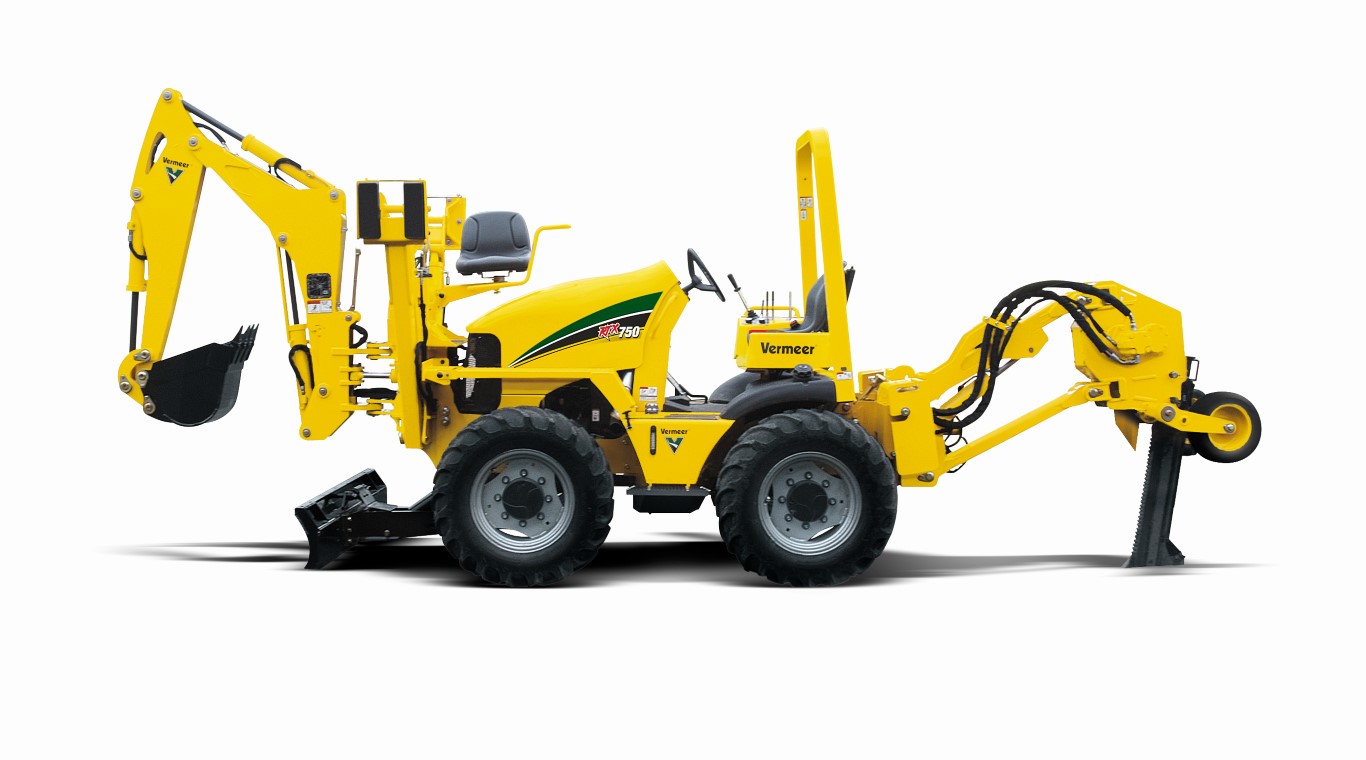

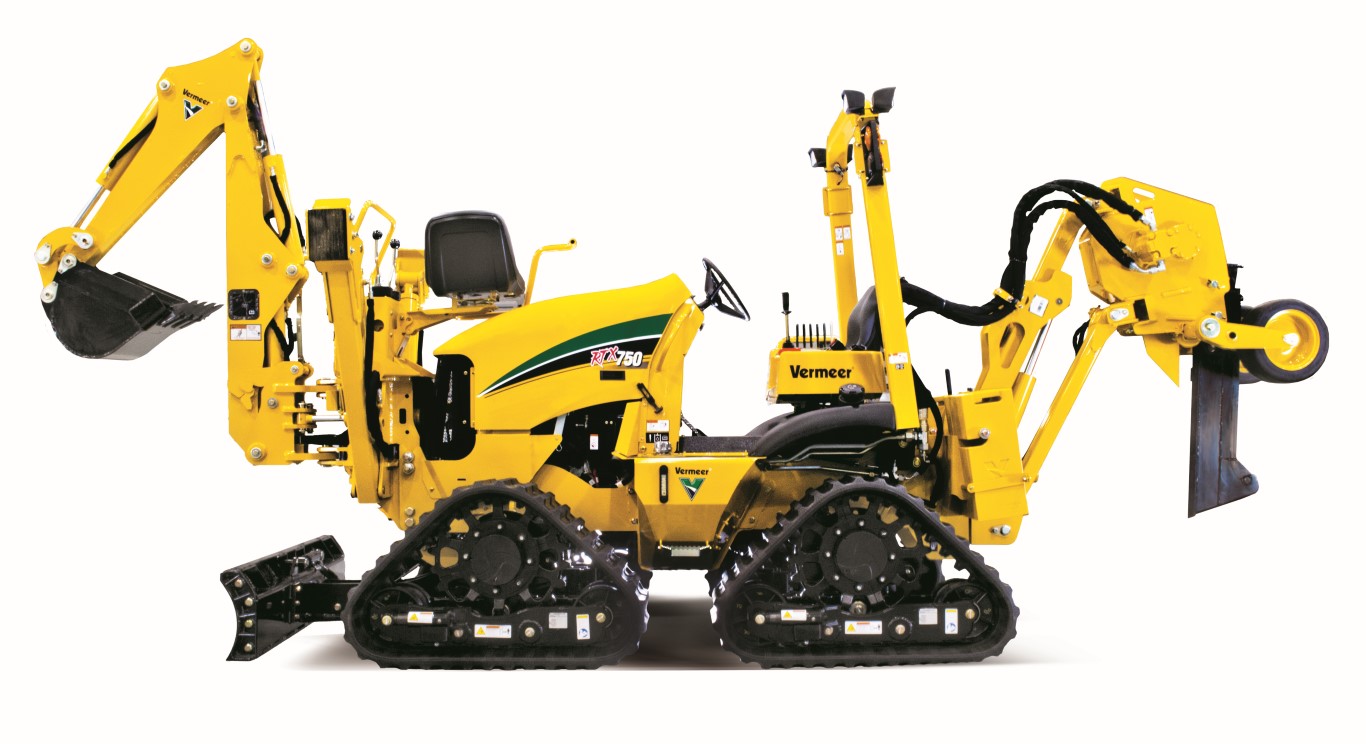

| Vermeer RTX750 Ride-On Tractor Technical Specifications | |
|---|---|
| General Tractor Dimensions and Weights | |
| Weight (Basic Tractor, Rubber Tires) | 5900 lbs (2676.2 kg) |
| Weight (Basic Tractor, Quad Tracks) | 9330 lbs (4232 kg) |
| Length (Basic Tractor, Rubber Tires) | 126 in (320 cm) |
| Length (Basic Tractor, Quad Tracks) | 133.2 in (338.3 cm) |
| Width (Basic Tractor, Rubber Tires) | 72 in (182.9 cm) |
| Width (Basic Tractor, Quad Tracks) | 78.5 in (199.4 cm) |
| Height (Basic Tractor, Rubber Tires) | 100.3 in (254.8 cm) |

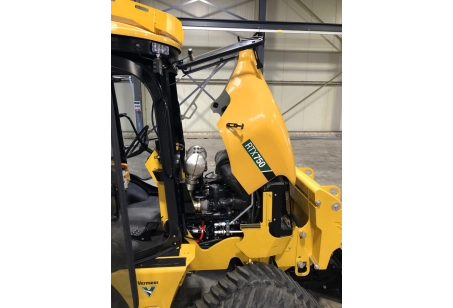

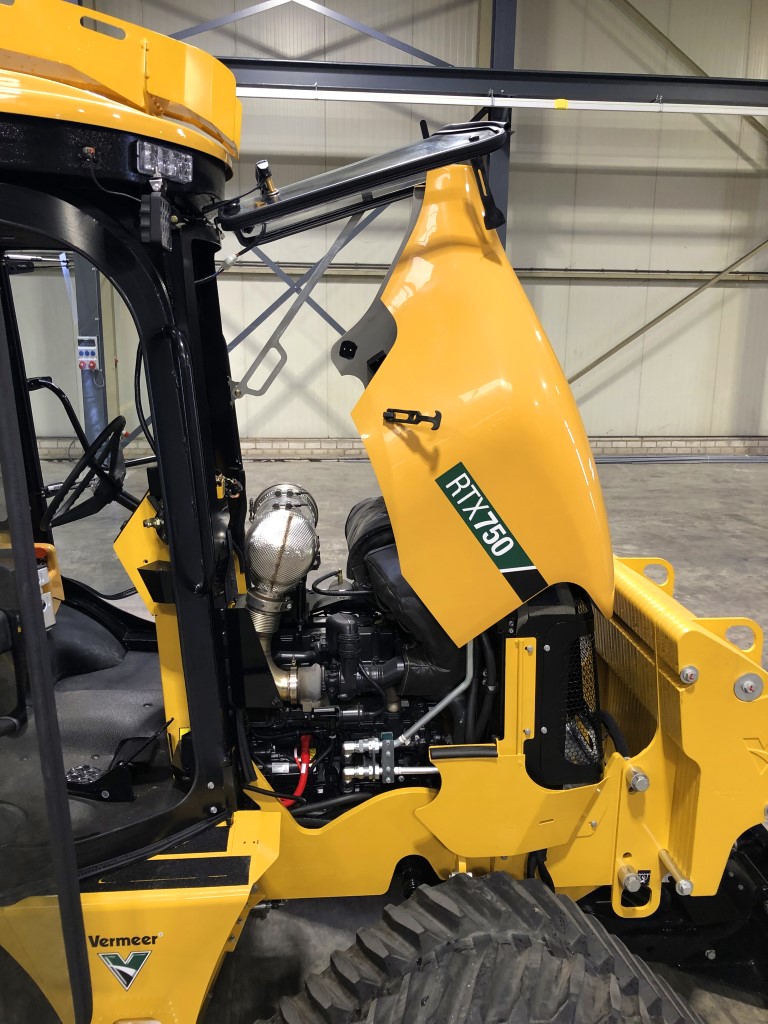

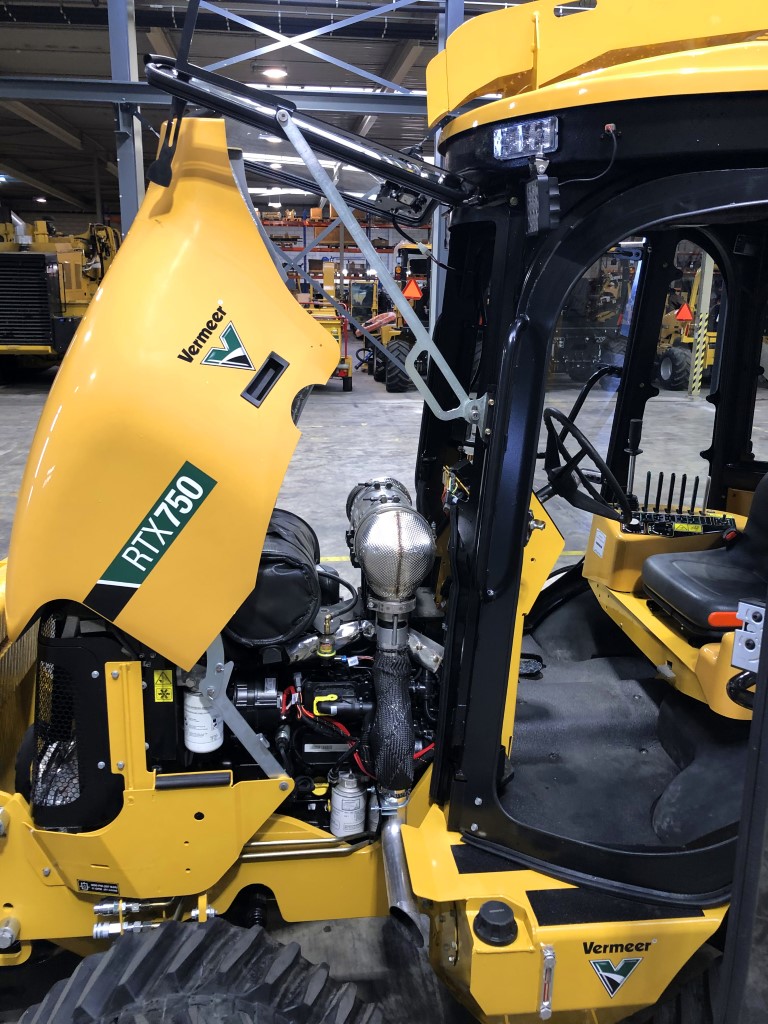

| Engine Option One (Deutz) | |
| Make and Model | Deutz TD2.9L4 |
| Maximum Gross Horsepower | 74 hp (55.2 kw) |
| Maximum Torque | 192 ft-lb (260.3 Nm) |
| Cooling Medium / Fuel Type | Liquid / Diesel |
| Emissions Rating | Tier 4 Final |
| Noise Level at Operator's Ear | 91 d(B)a |
| Engine Option Two (Cummins) | |
| Make and Model | Cummins B3.3T |
| Maximum Torque | 181 ft-lb (245.4 Nm) |
| Cooling Medium / Fuel Type | Water / Diesel |
| Emissions Rating | Tier 4i (EU Stage IIIB) |
| Noise Level at Operator's Ear | 95 d(B)a |
| Ground Drive & Performance Speeds | |
| Rubber Tires: Max Fwd/Rev Transport Speed (High) | 5 mph (8 km/h) |
| Rubber Tires: Tire Size | 38" x 14" (96.5 cm x 35.6 cm) |
| Quad Tracks: Max Fwd/Rev Transport Speed (High) | 4 mph (6.4 km/h) |
| Axle Options, Steering & Brakes | |
| Front / Rear Axle Type | Steerable planetary with hydraulic differential lock |
| Axle Load Rating (Static, Per Axle) | 11250 lbs (5102.9 kg) |
| Outside Turning Diameter (Tires, Front Steer Only) | 33 ft (10.1 m) |
| Outside Turning Diameter (Tracks, Front Steer Only) | 39.5 ft |
| Outside Turning Diameter (Tires, Front and Rear Steer) | 16.8 ft (5.1 m) |
| Outside Turning Diameter (Tracks, Front and Rear Steer) | 23 ft |
| Service Brake / Parking Brake Type | Hydrostatic / Spring-applied, hydraulic release |
| Hydraulic System Specifications | |
| Ground Drive Pump Capacity / Relief | 35 gpm (132.5 L/min) / 4350 psi (299.9 bar) |
| Attachment Pump Capacity / Relief | 35 gpm (132.5 L/min) / 5500 psi (379.2 bar) |
| Auxiliary Pump Capacity / Relief | 19.4 gpm (73.4 L/min) / 2500 psi (172.4 bar) |
| Capacities | |
| Fuel Tank | 26 gal (98.4 L) |
| Hydraulic Tank / Complete System Total | 23 gal (87.1 L) / 25 gal (94.6 L) |
| Coolant | 3 gal (11.4 L) |

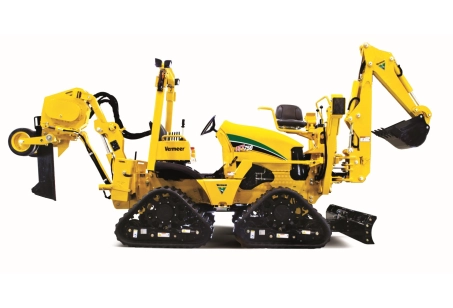

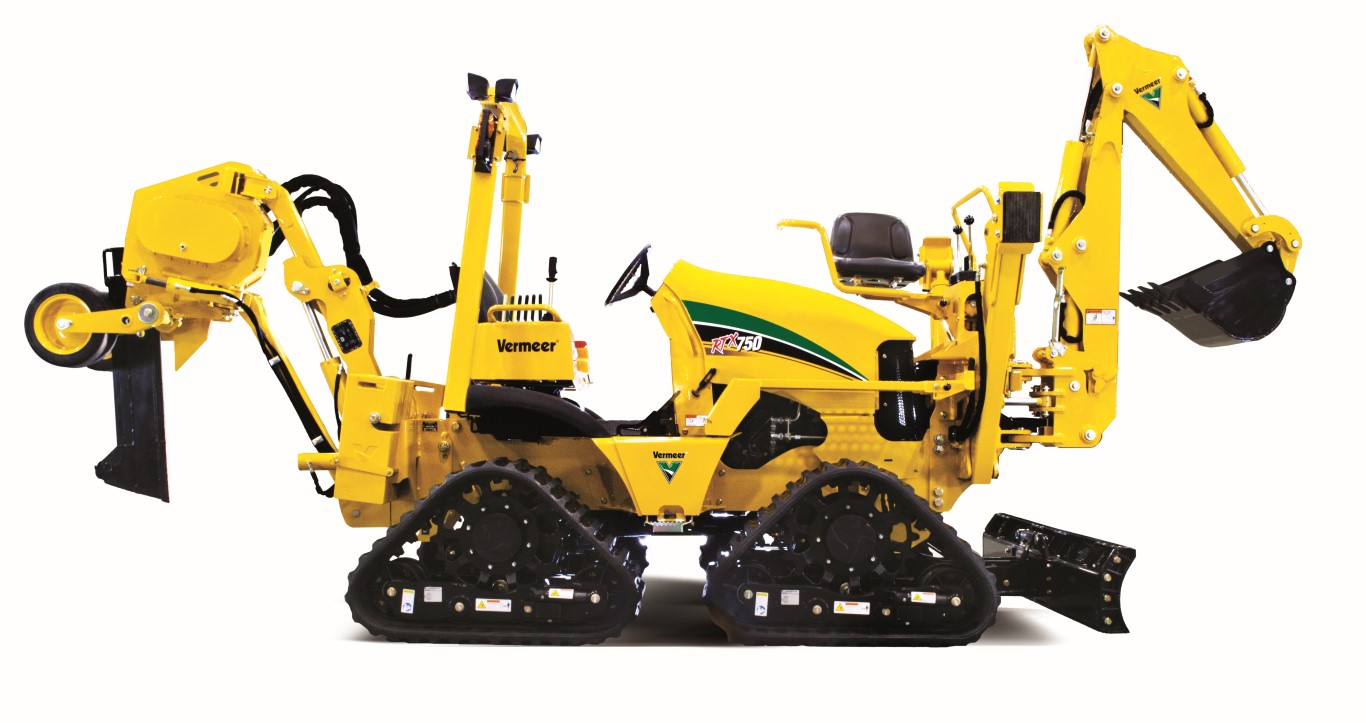

| Attachment Arsenal Technical Data | |

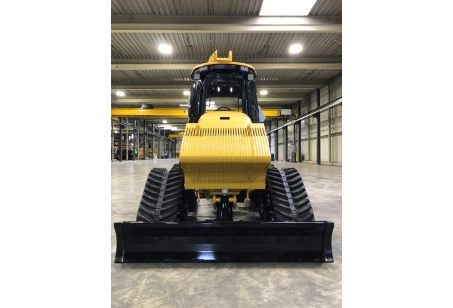

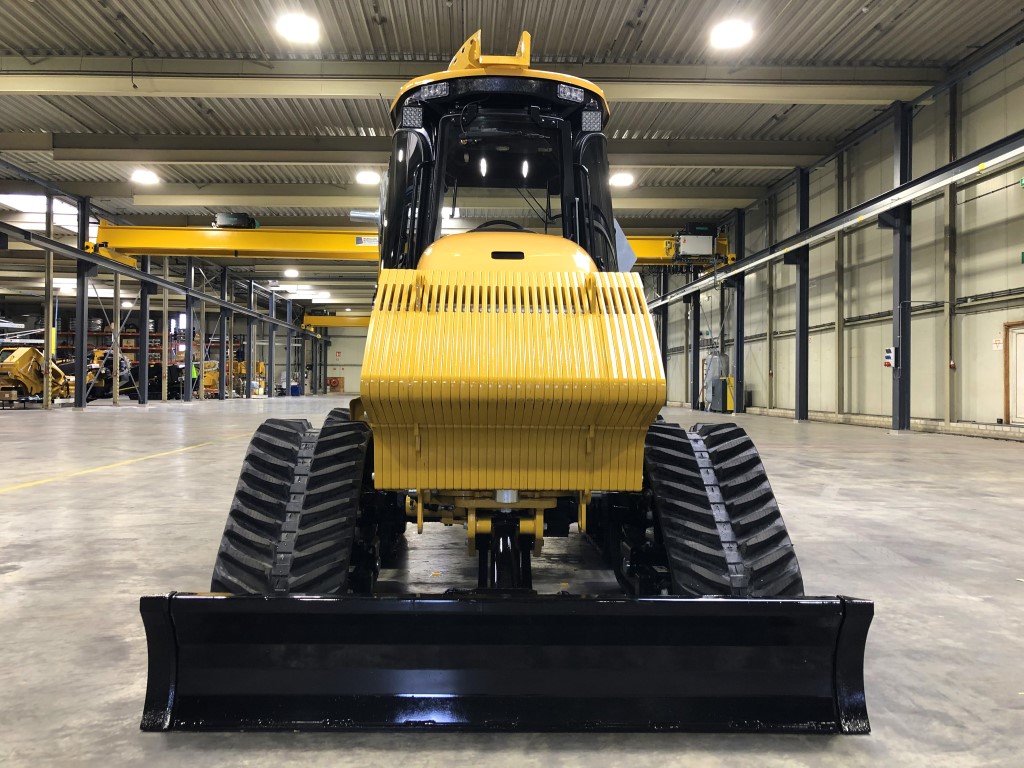

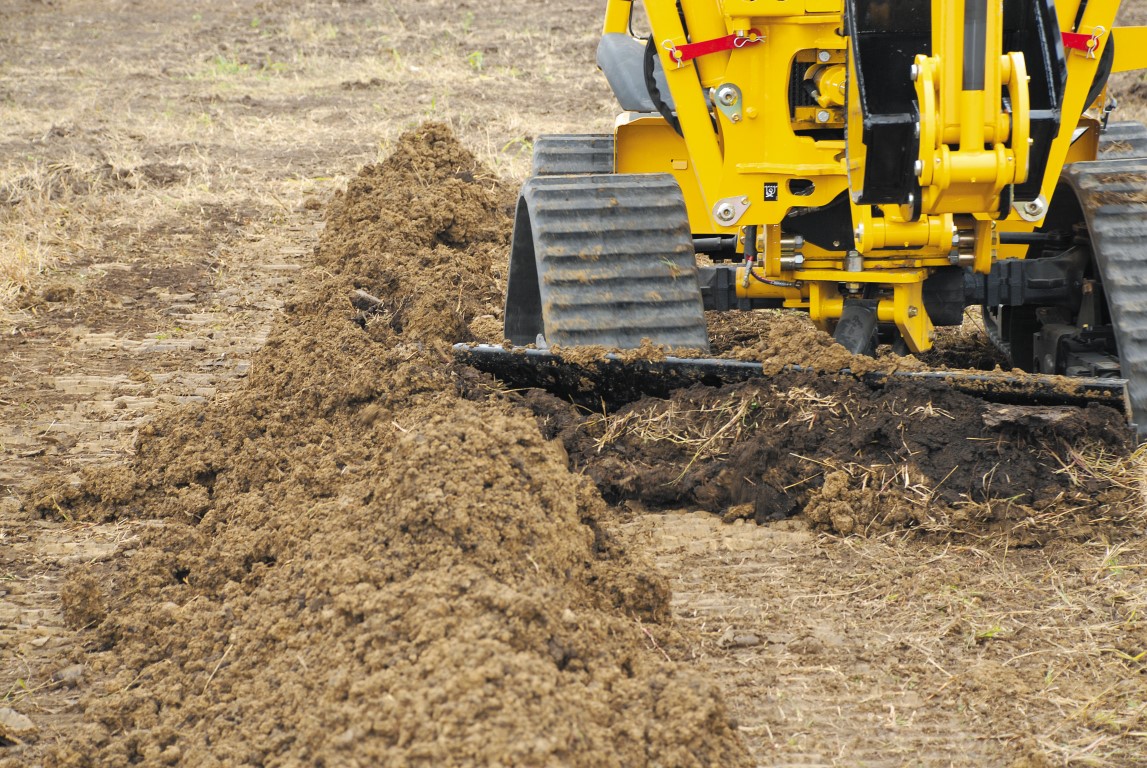

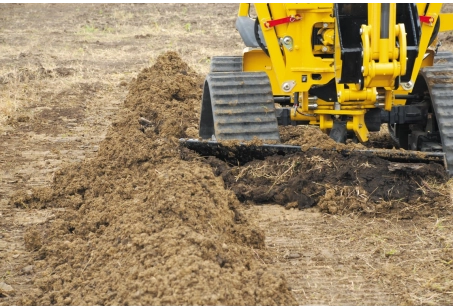

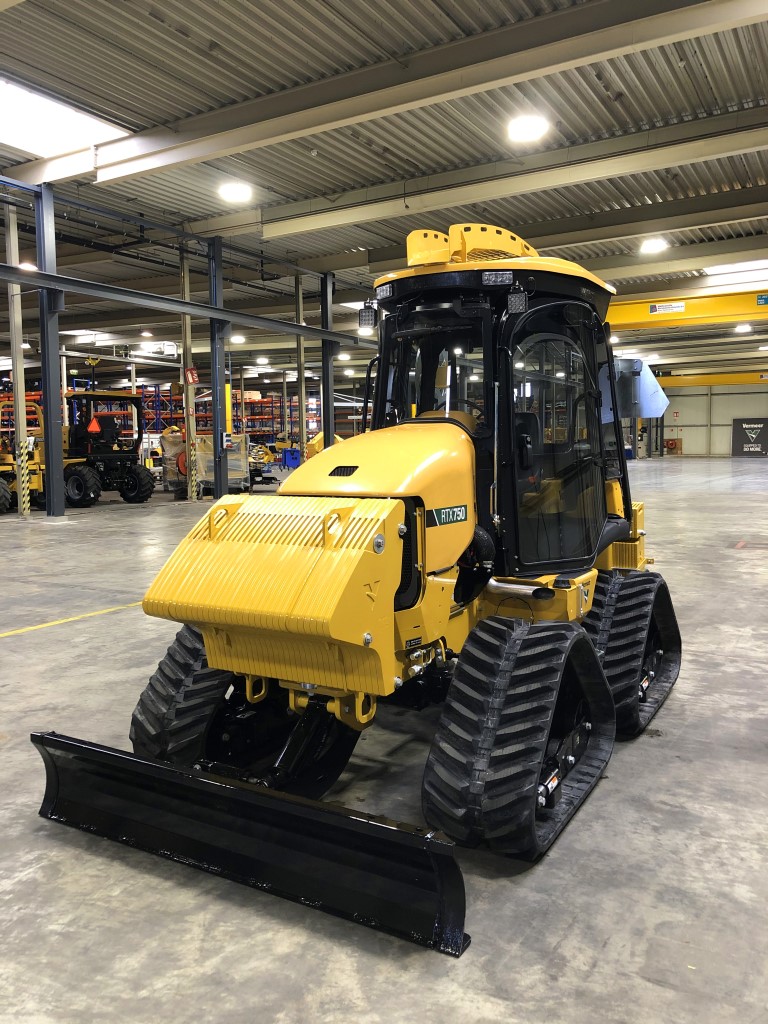

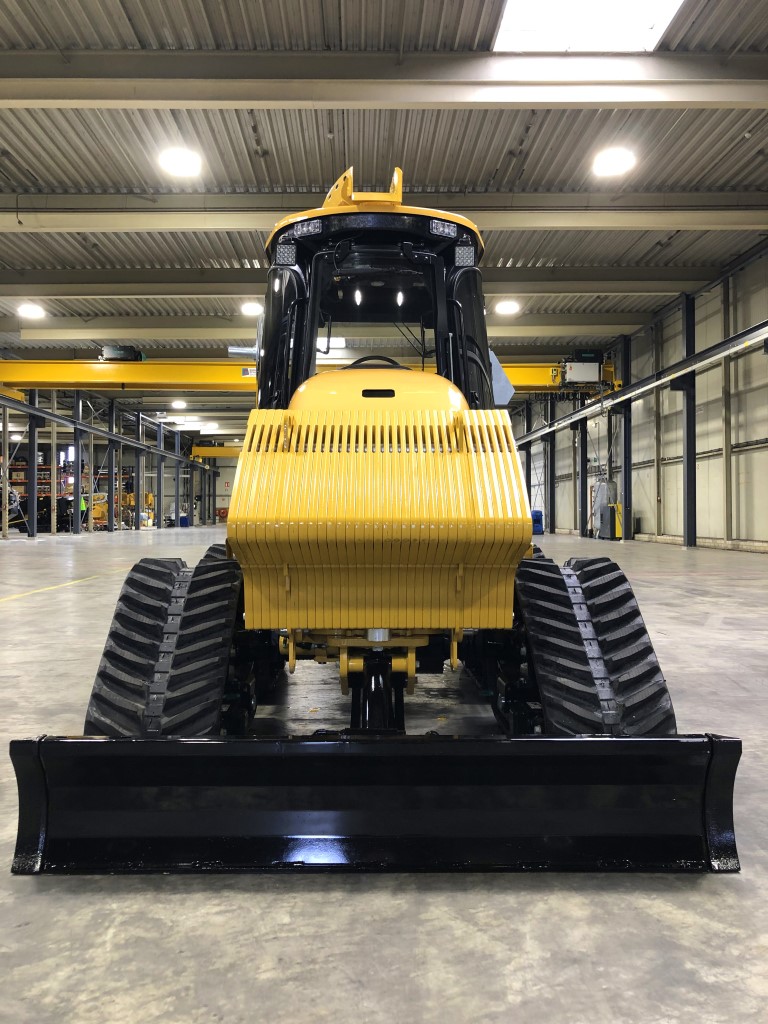

| RTX750 Backfill Blade | Weight: 600 lbs (272.2 kg) | Width: 72 in (182.9 cm) | Height: 14.6 in (37.1 cm) Max Lift Above Ground: 25.6 in (65 cm) | Max Drop Below Ground: 16.3 in (41.4 cm) Max Swing Angle: 30 deg | Max Tilt Angle: 12 deg |

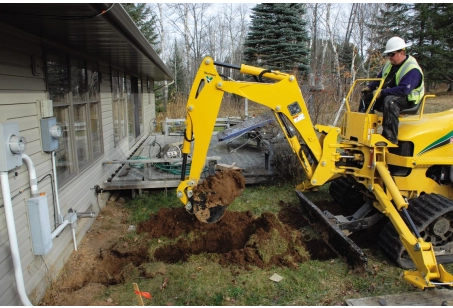

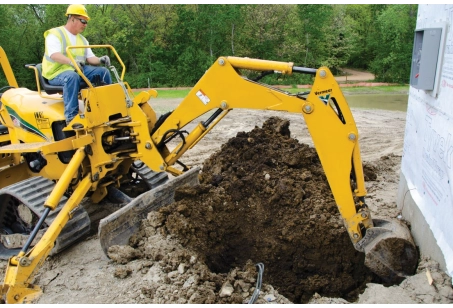

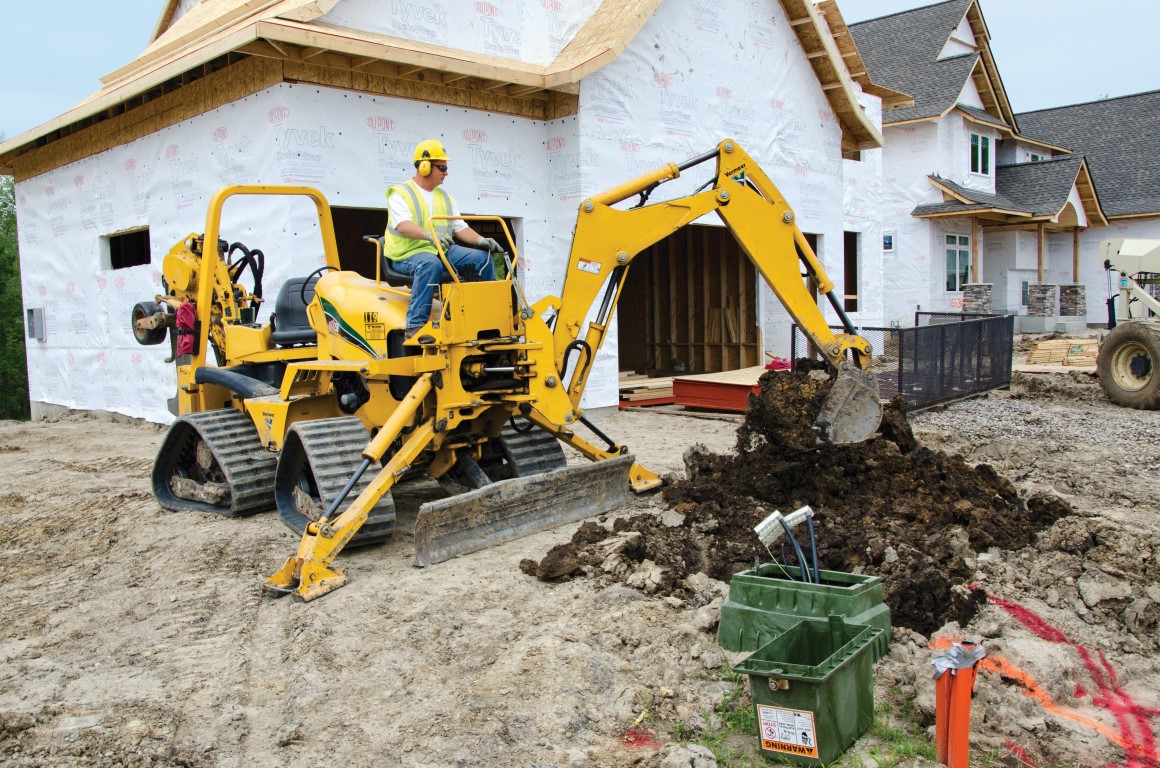

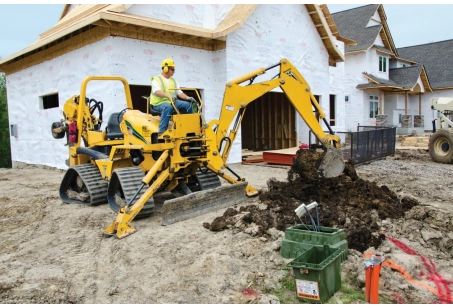

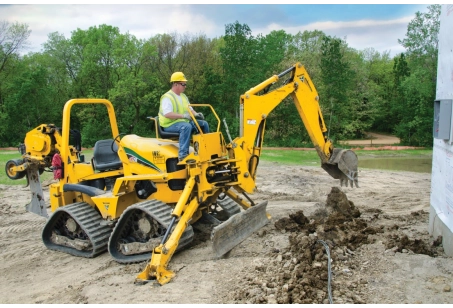

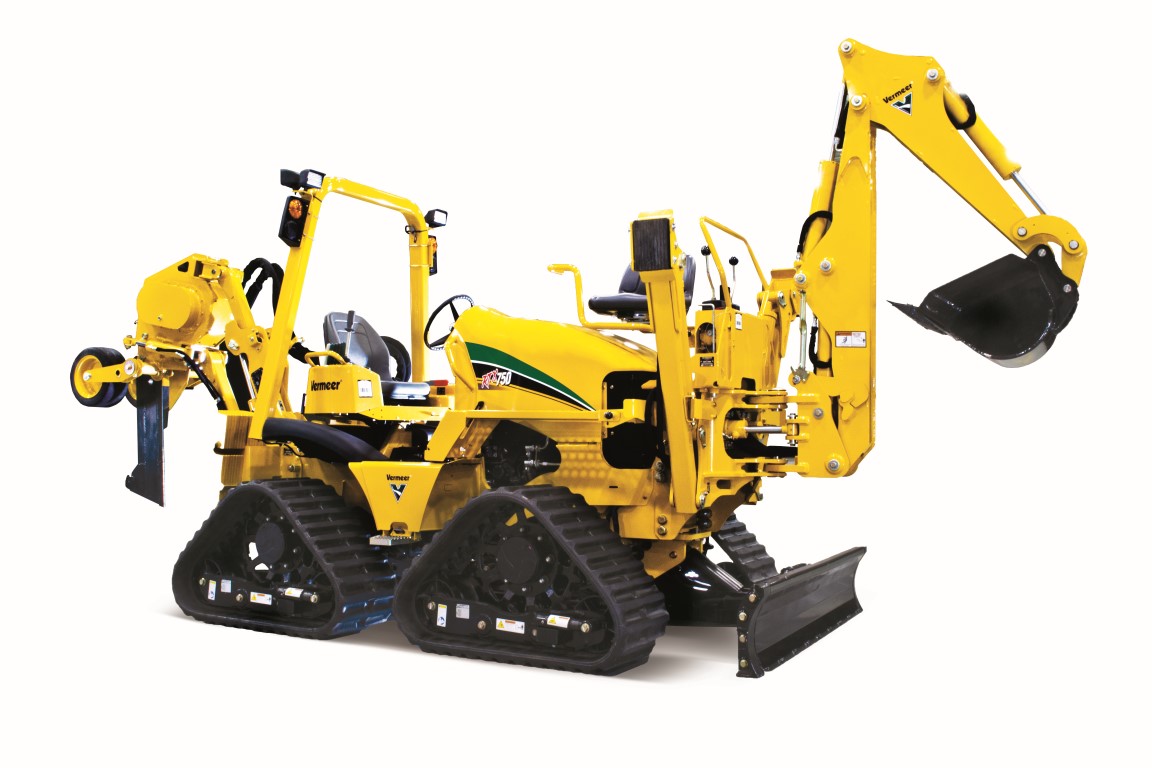

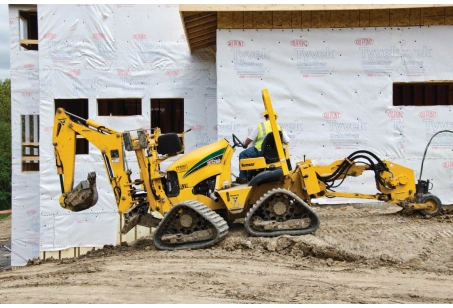

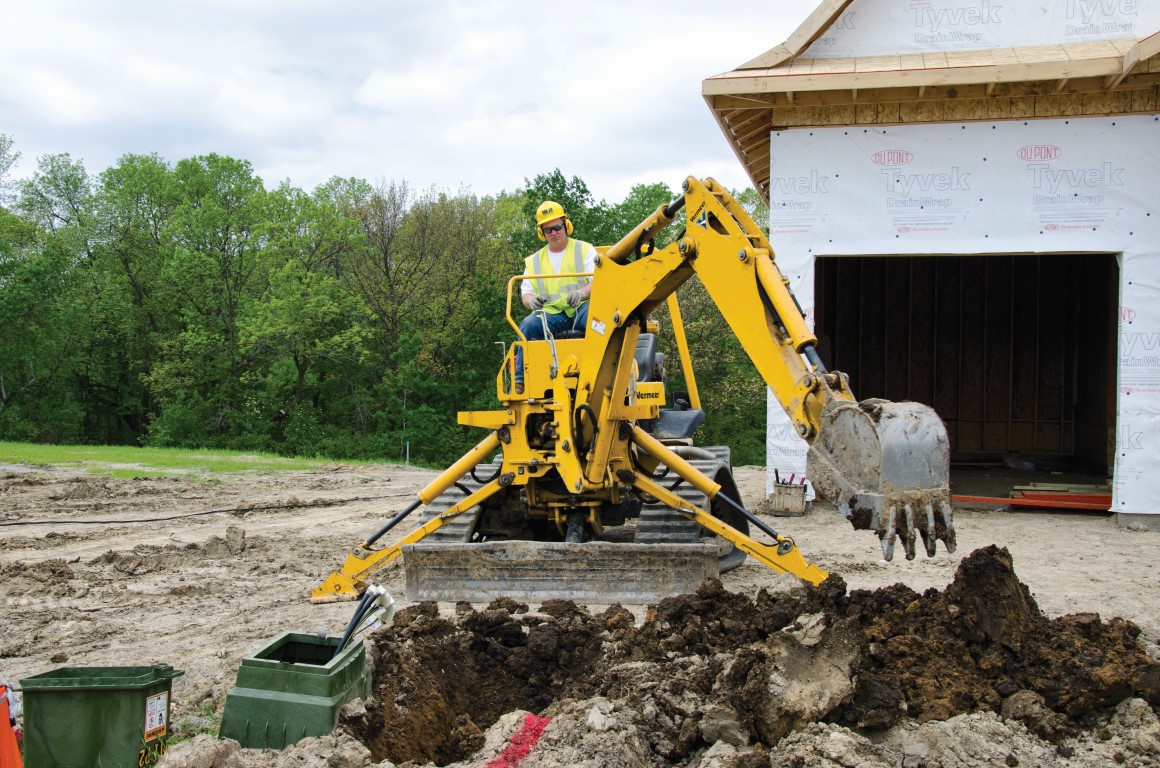

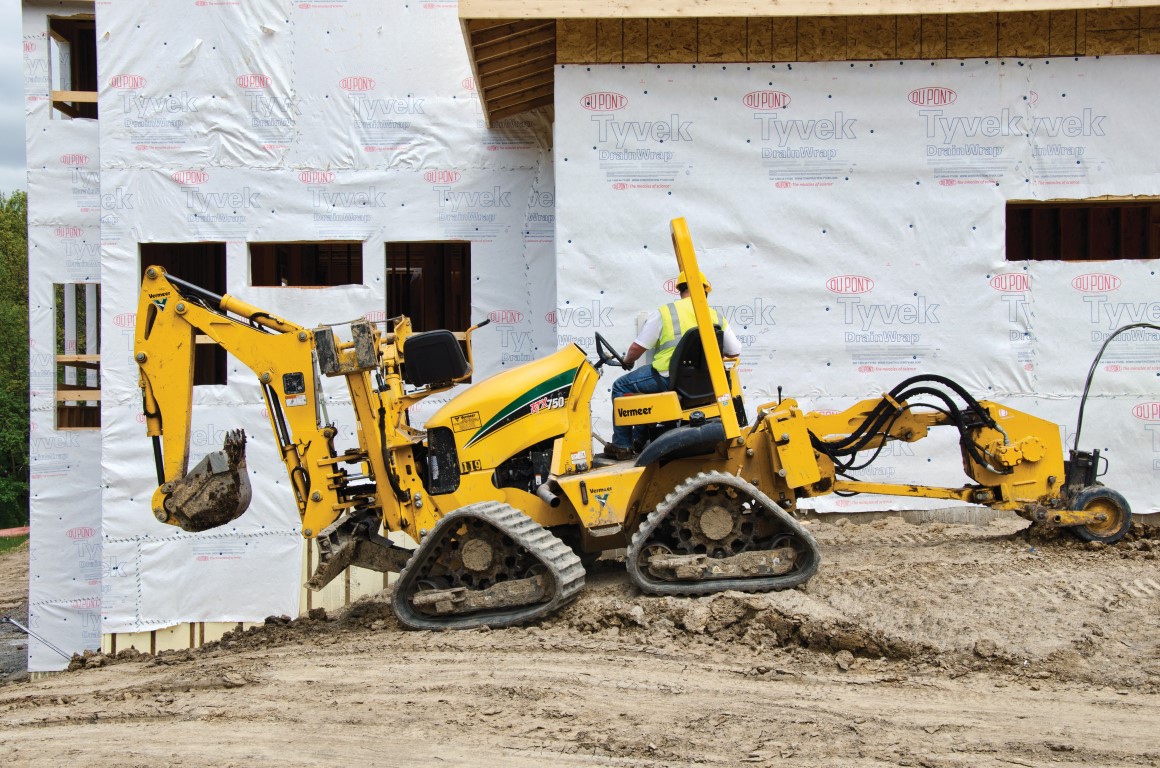

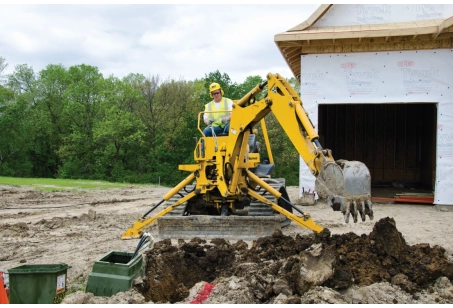

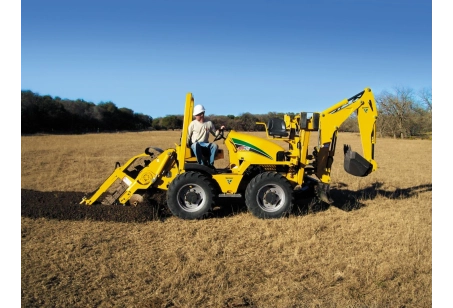

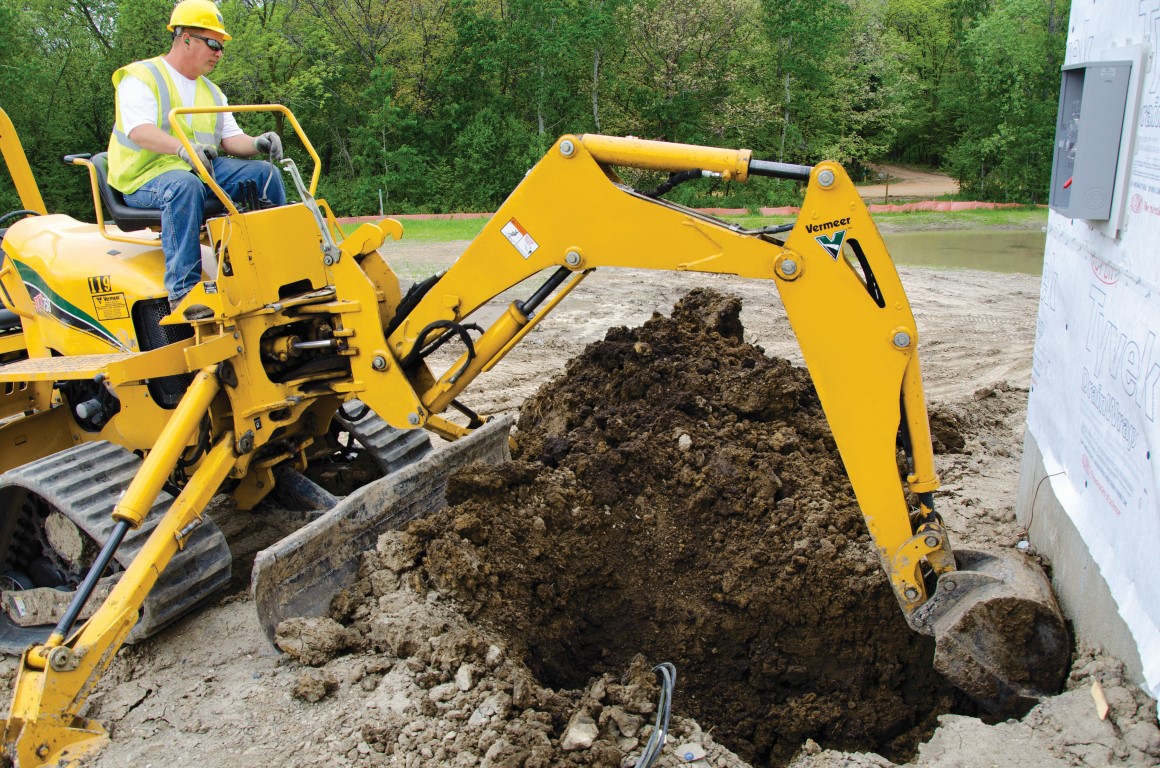

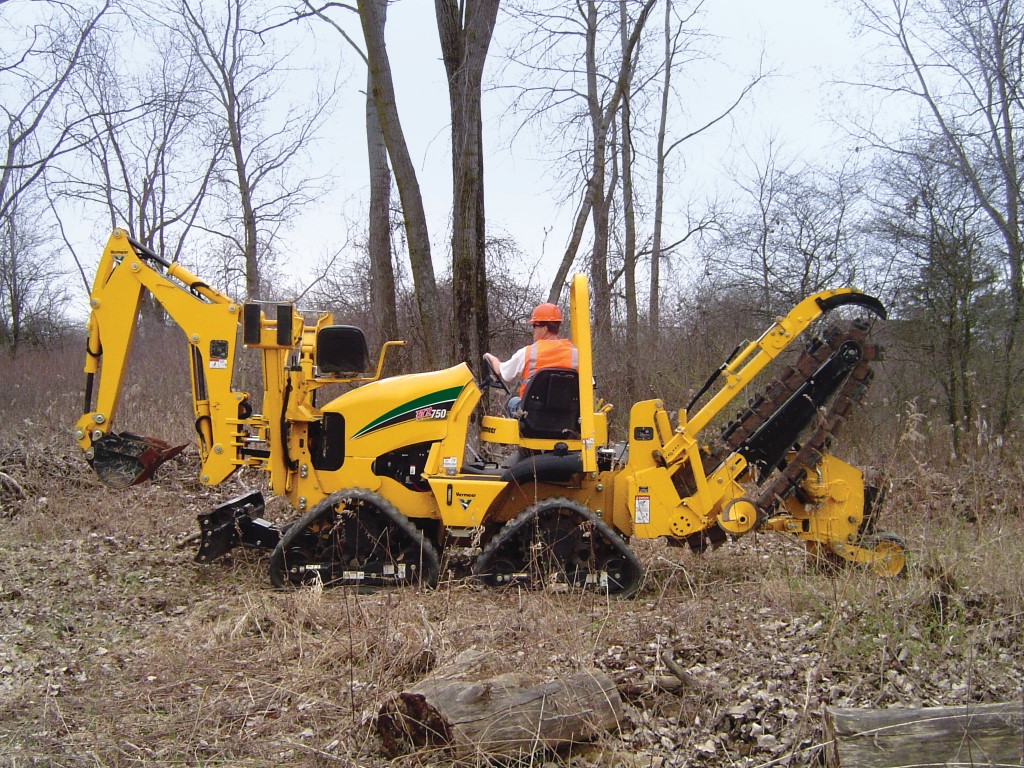

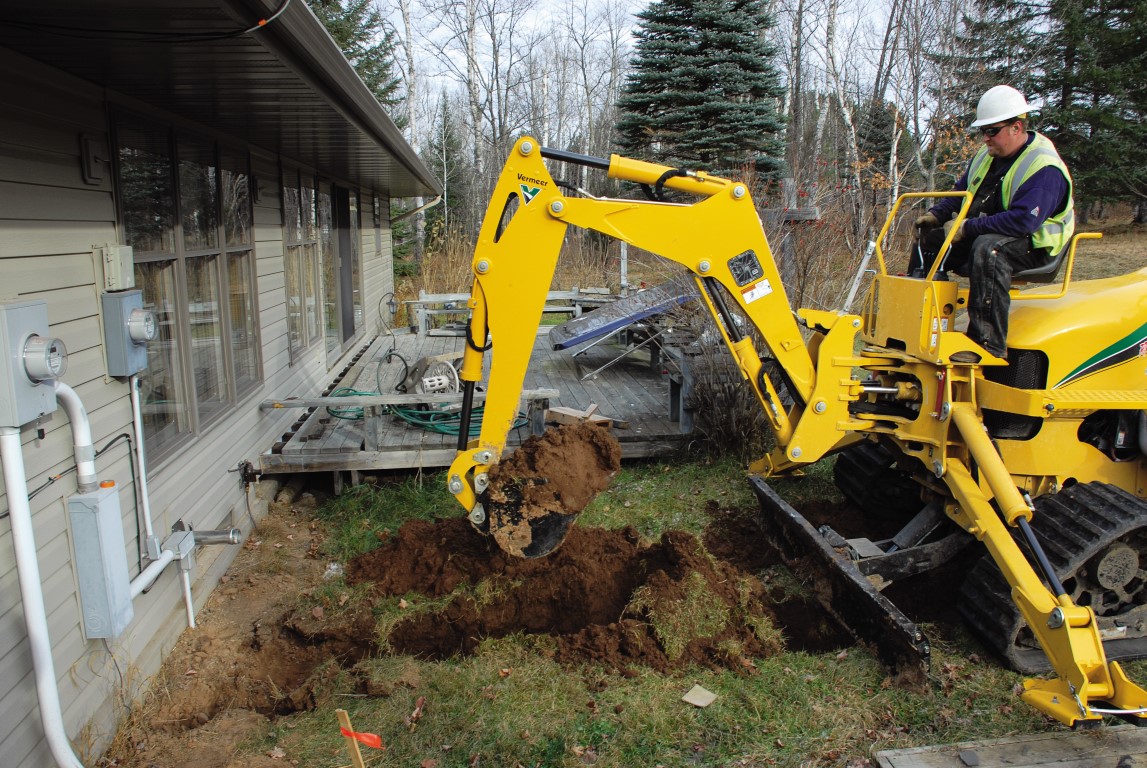

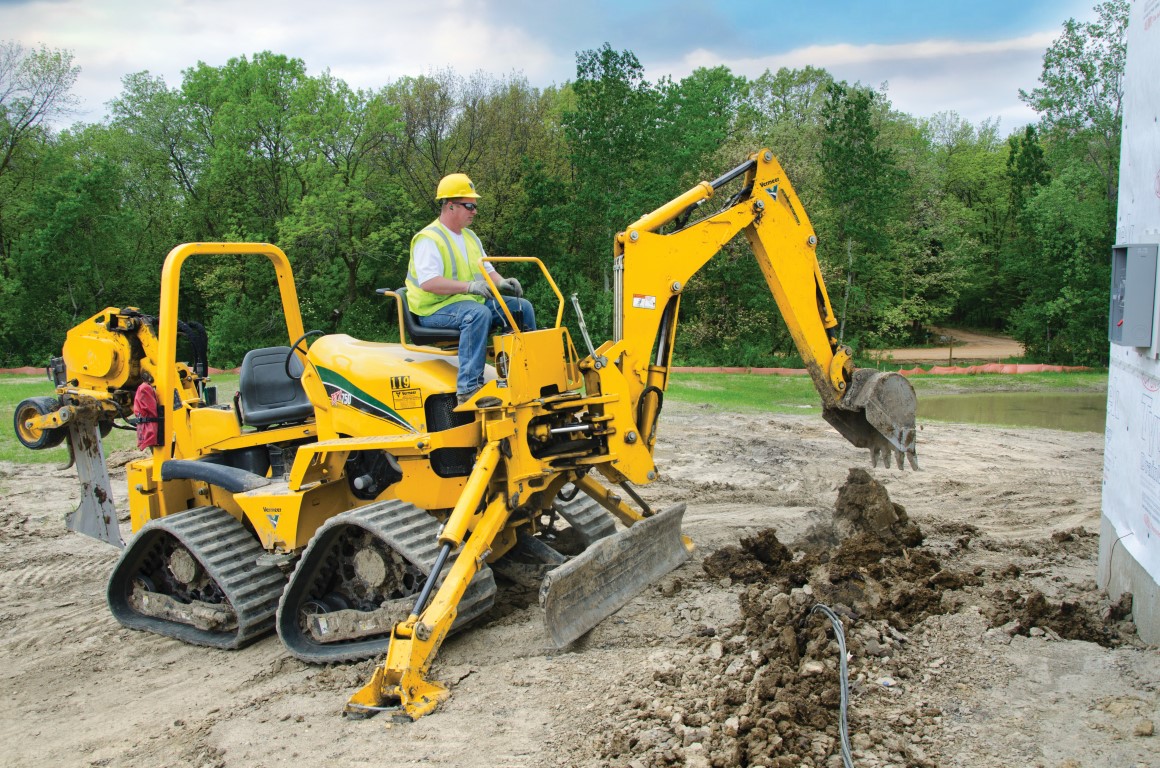

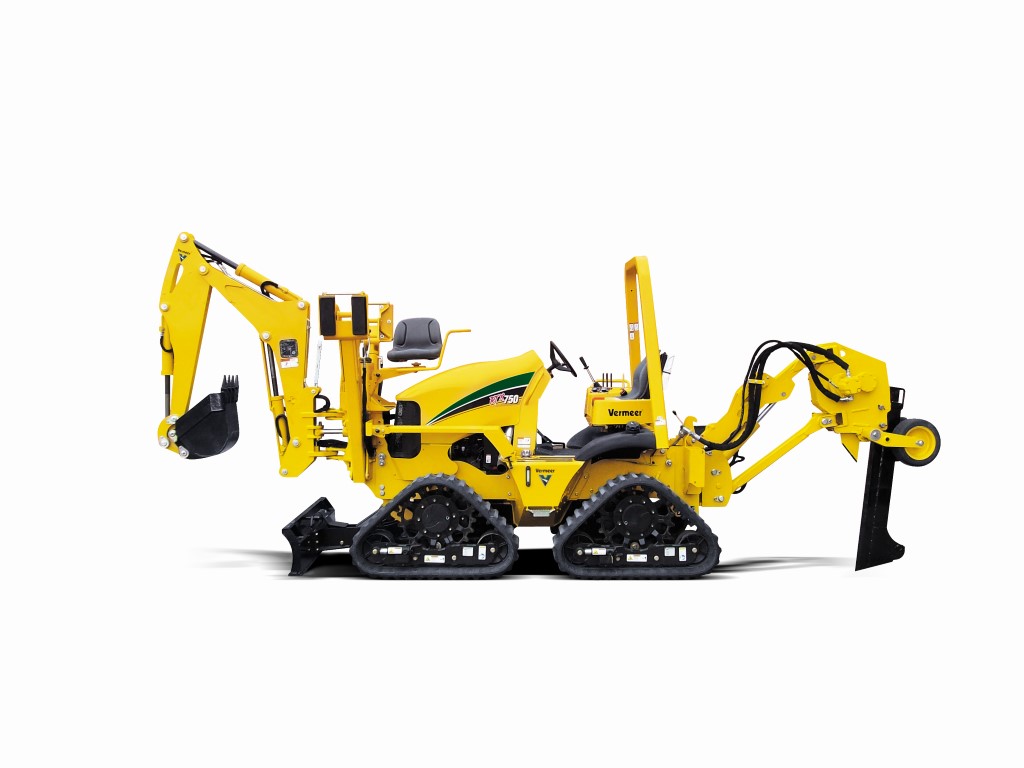

| Backhoe | Weight (Without Bucket): 1860 lbs - 2200 lbs (843.7 kg - 997.9 kg) | Length: 68.1 in (173 cm) Transport Height: 109.5 in - 116.3 in | Swing Arc: 170 deg | Bucket Rotation: 161 - 174 deg Maximum Reach: 141.5 in - 151 in (359.4 cm - 383.5 cm) | Max Digging Depth: 88.8 in - 93.2 in |
| LM42 Porta Bore Attachment | Model: PortaBore | Max Torque: 620 ft-lb (840.6 Nm) | Max RPM at Full Throttle: 240 rpm |

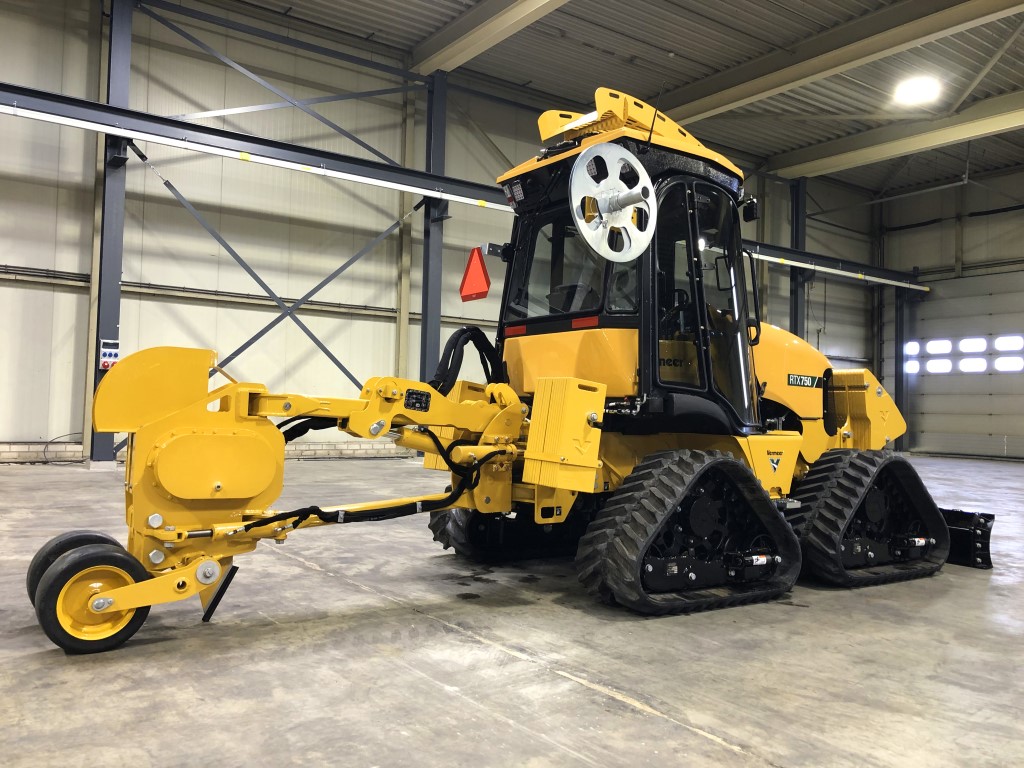

| MTR516 Microtrencher / Saw | Weight: 3120 lbs (1415.2 kg) | Length: 115 in (292.1 cm) | Wheel Diameter: 46.3 in (117.6 cm) Cutting Width: 1 in - 2 in (2.5 cm - 5.1 cm) | Cutting Depth: 0 in - 17 in (0 cm - 43.2 cm) Cutting Teeth Type: Rotary Carbide and PDC |

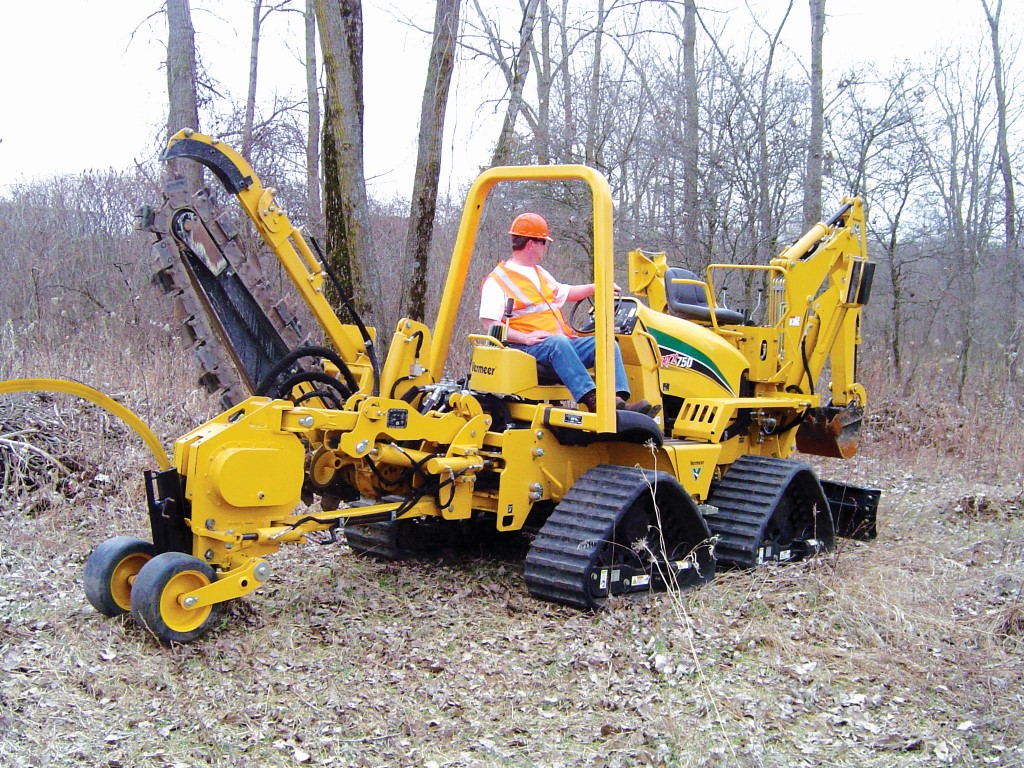

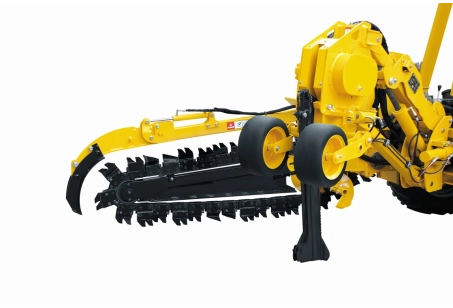

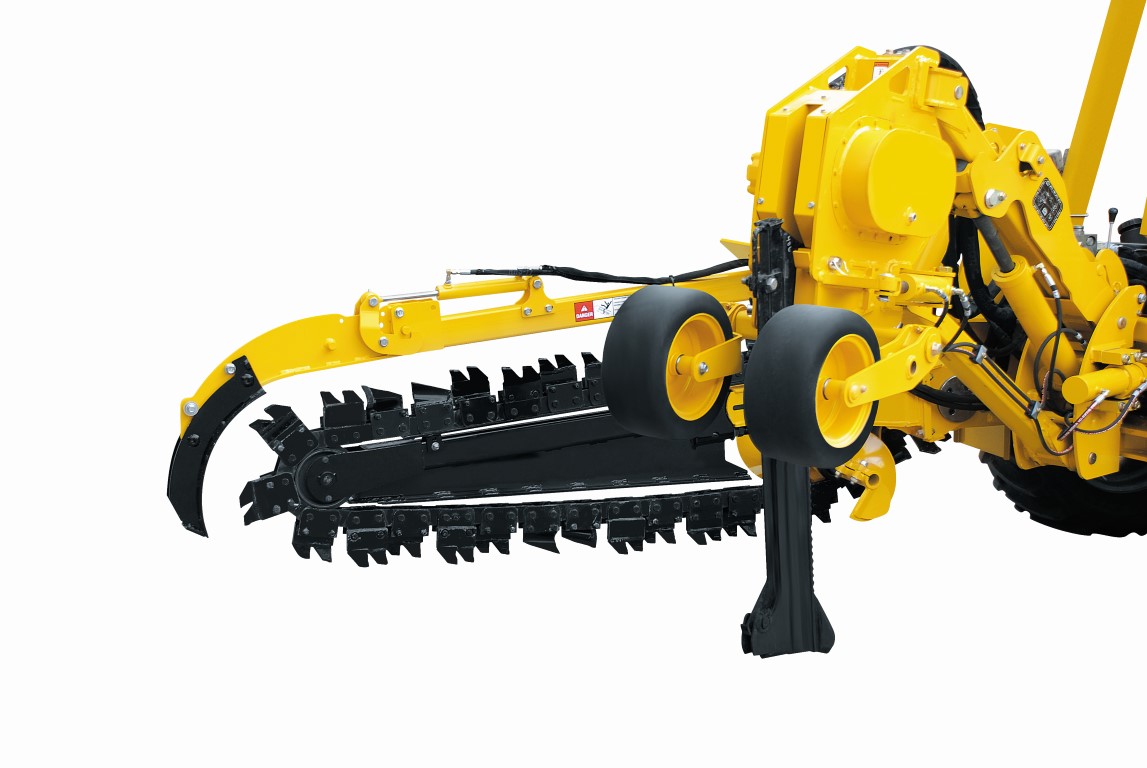

| PT750 Plow / Trencher Combo | Drive Type: Hydrostatic | Weight (No Blade/Boom/Chain): 2750 lbs (1247.4 kg) | Min Length: 86 in Max Shaker Force: 24000 lbs (10886.2 kg) | Maximum Plow Depth: 30 in (76.2 cm) Max Trench Depth: 60 in (152.4 cm) | Trench Width: 5 in - 8 in (12.7 cm - 20.3 cm) |

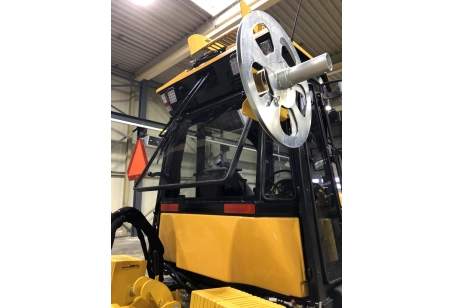

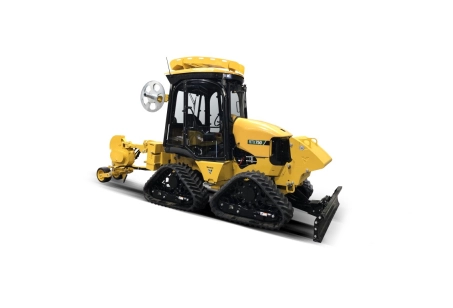

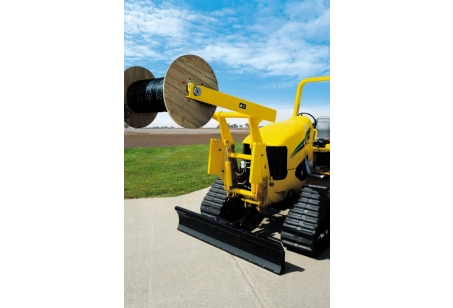

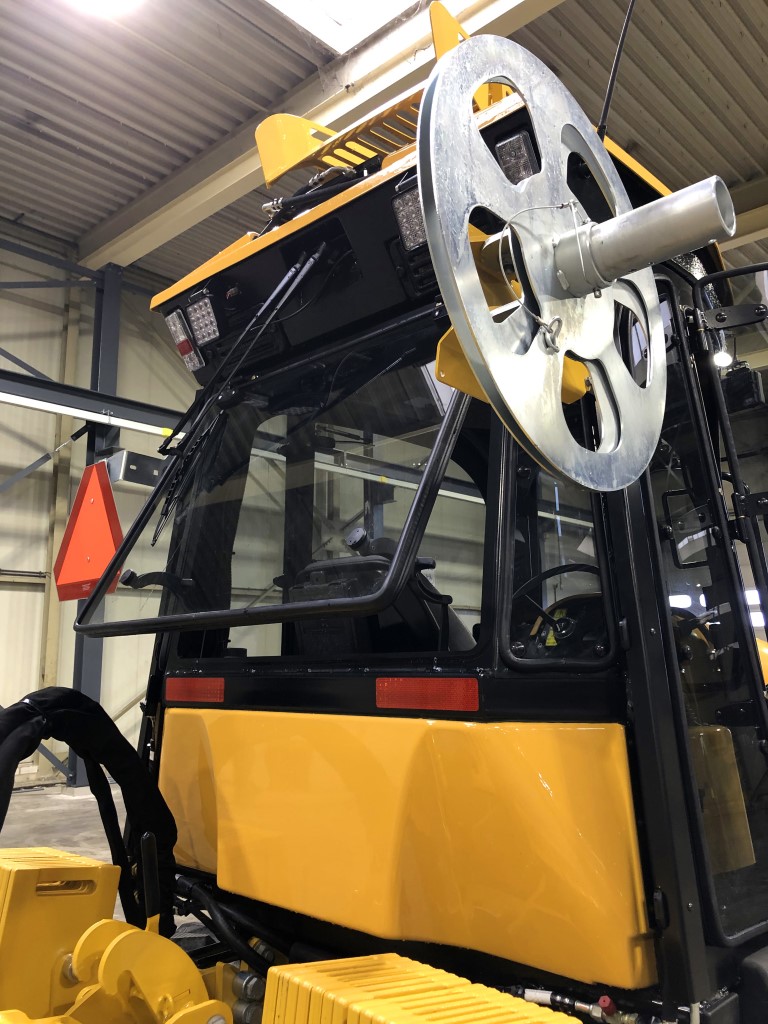

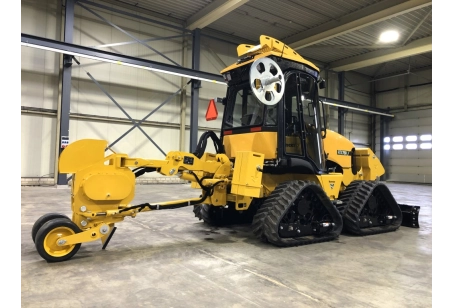

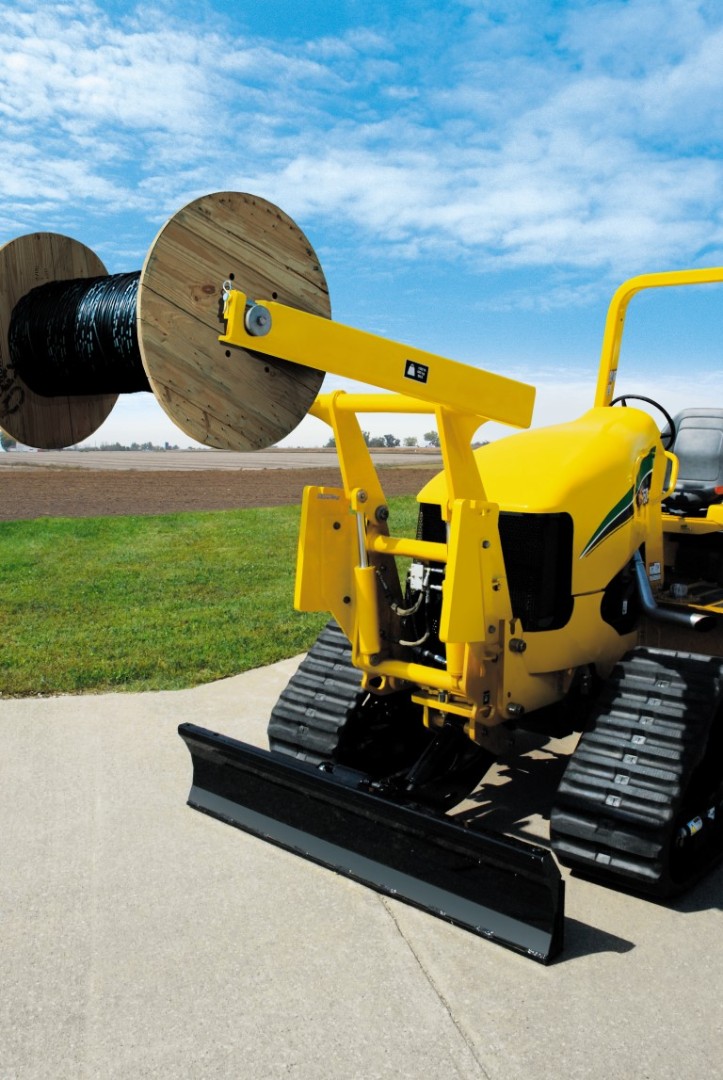

| RC750 Reel Carrier | Weight: 858 lbs (389.2 kg) | Capacity: 2000 lbs (907.2 kg) | Reel Shaft Diameter: 2.5 in (6.4 cm) Maximum Reel Width: 48.5 in (123.2 cm) | Maximum Reel Diameter: 82 in (208.3 cm) |
| RW732 Rockwheel | Drive Type: Hydrostatic | Weight (Without Teeth): 3120 lbs (1415.2 kg) | Min Length: 87.5 in Max Transport Ground Clearance: 18.5 in (47 cm) | Wheel Diameter: 64.8 in (164.5 cm) Maximum Cutting Depth: 32 in (81.3 cm) | Cutting Width: 4 in - 8 in (10.2 cm - 20.3 cm) |

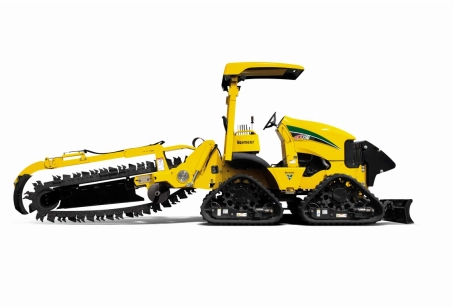

| SO750 Offset Trencher | Weight (48" Boom, No Chain): 2830 lbs (1283.7 kg) | Minimum Transport Length: 94 in Maximum Trench Depth: 60 in (152.4 cm) | Trench Width: 6 in - 12 in (15.2 cm - 30.5 cm) Maximum Offset Capability: 24 in (61 cm) |

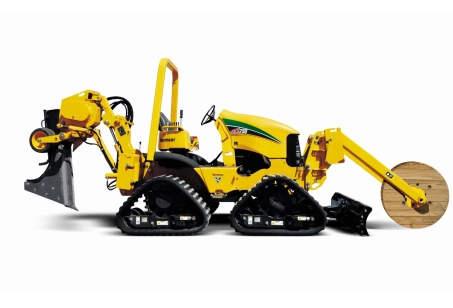

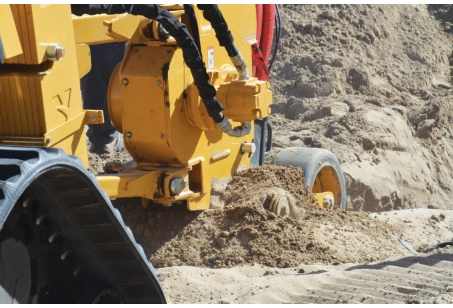

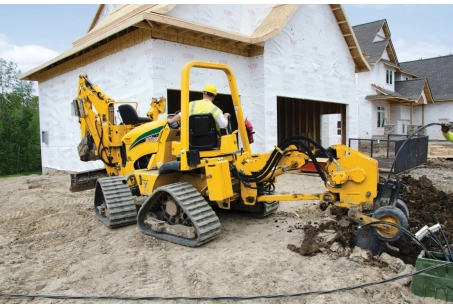

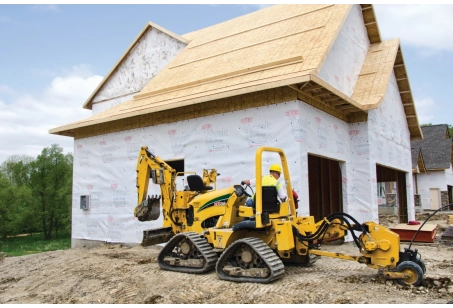

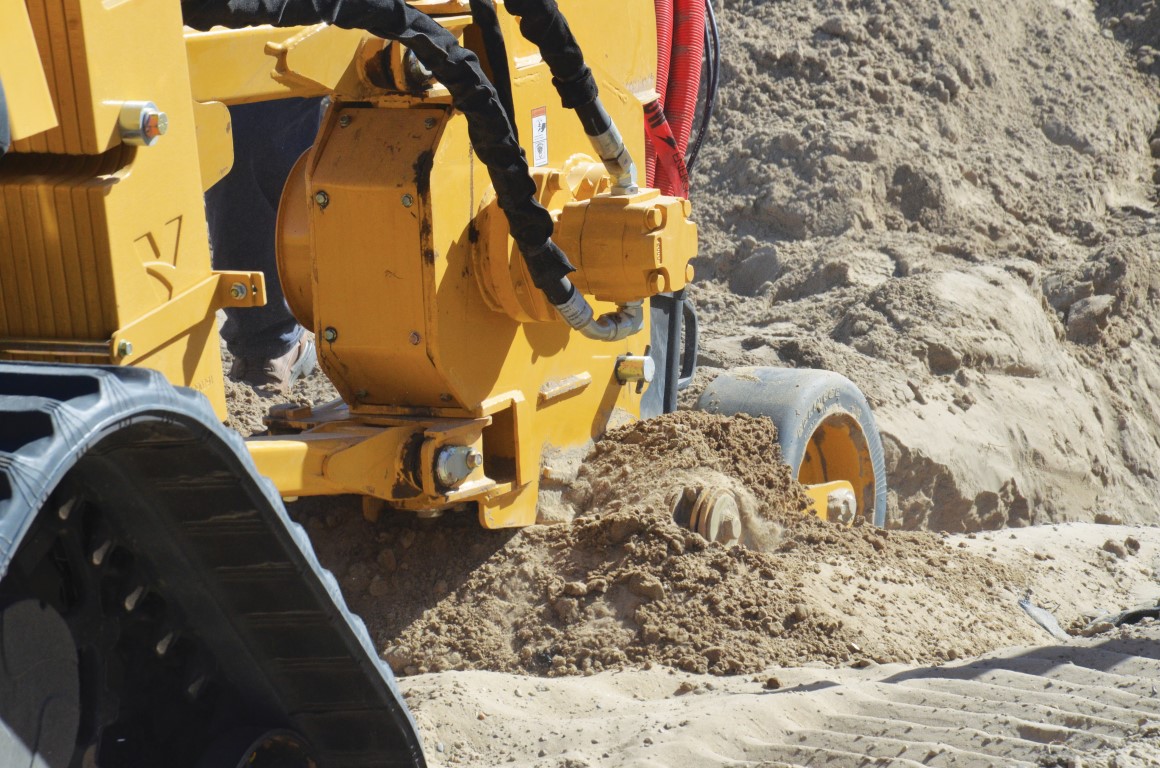

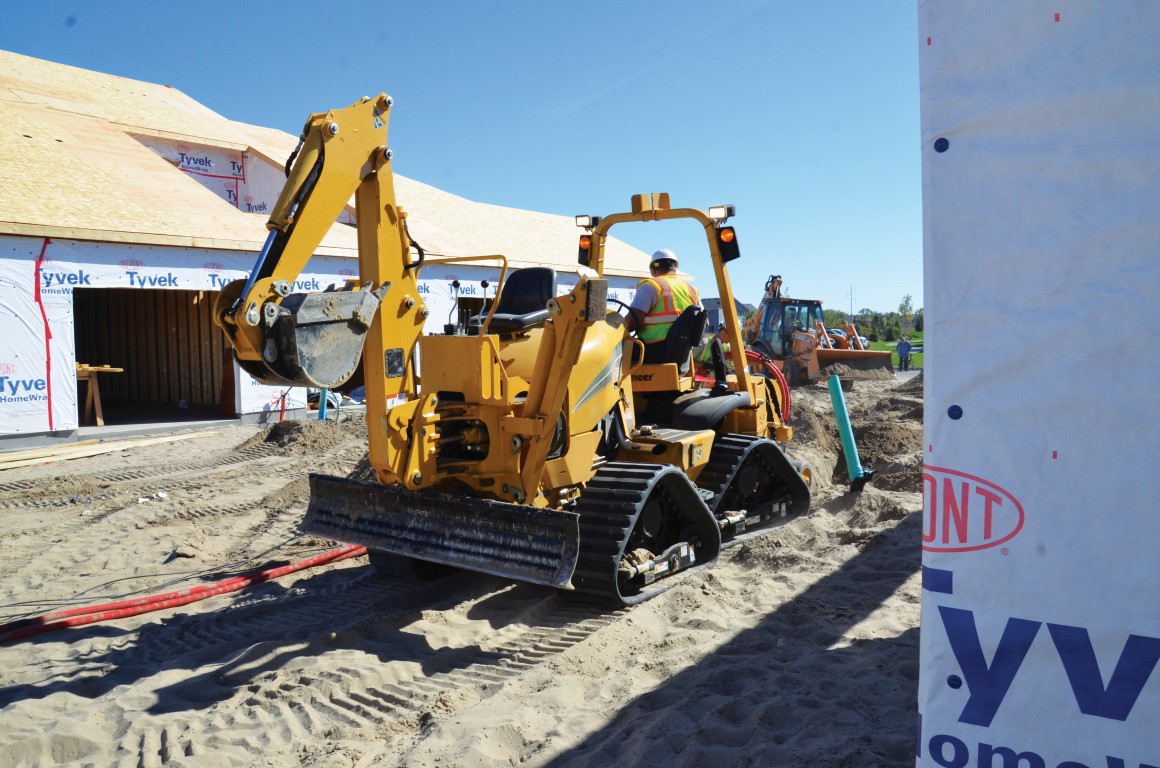

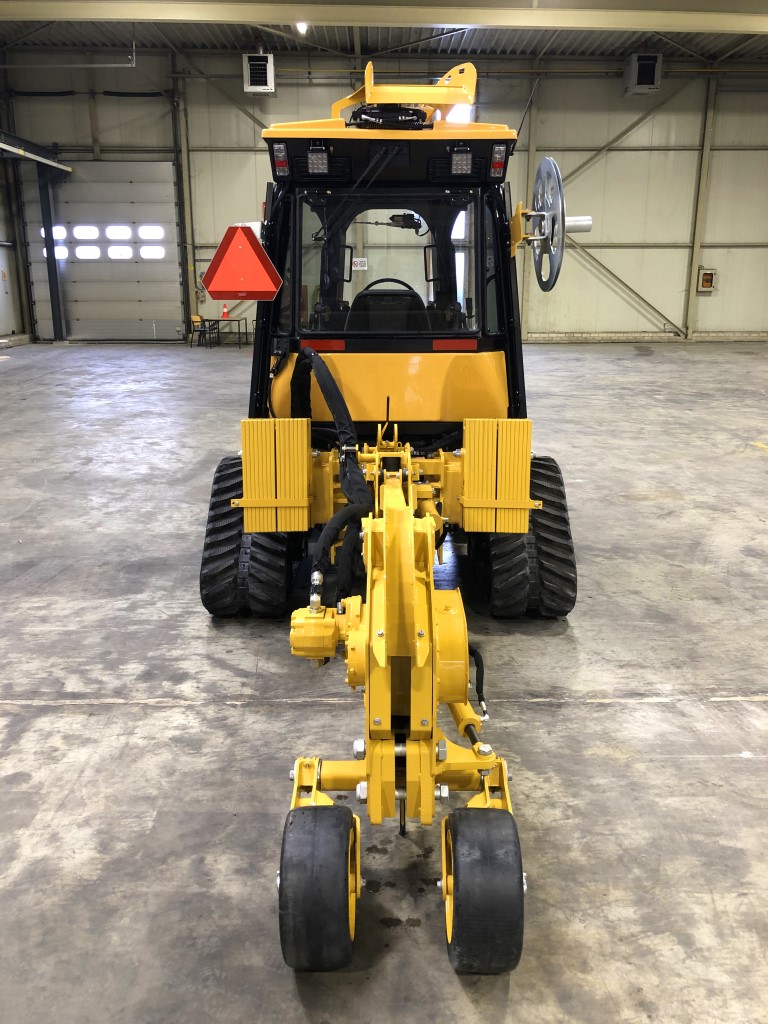

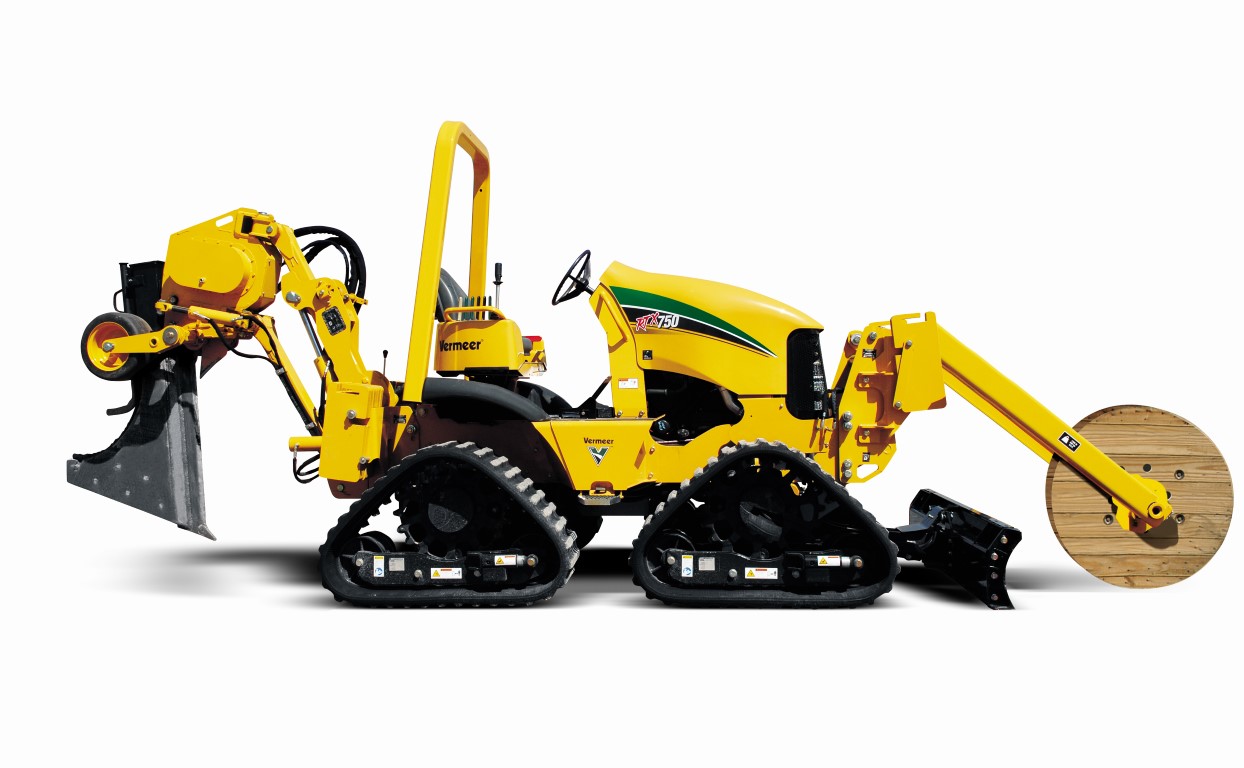

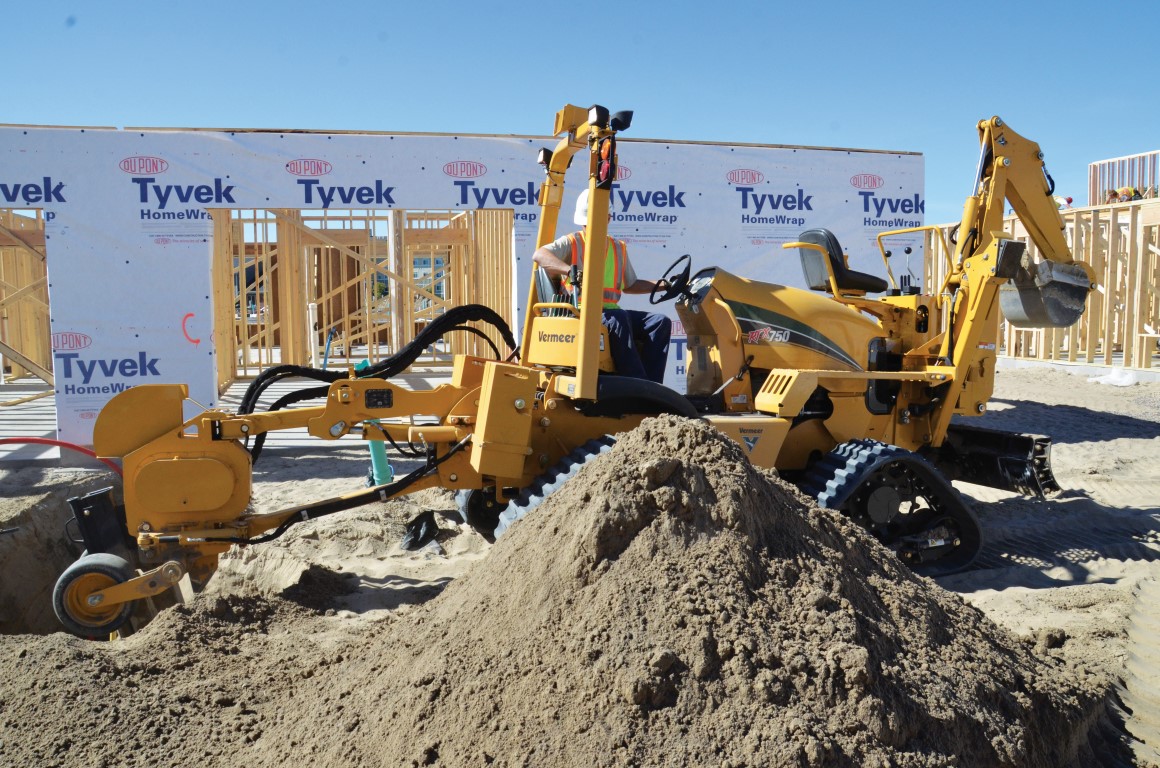

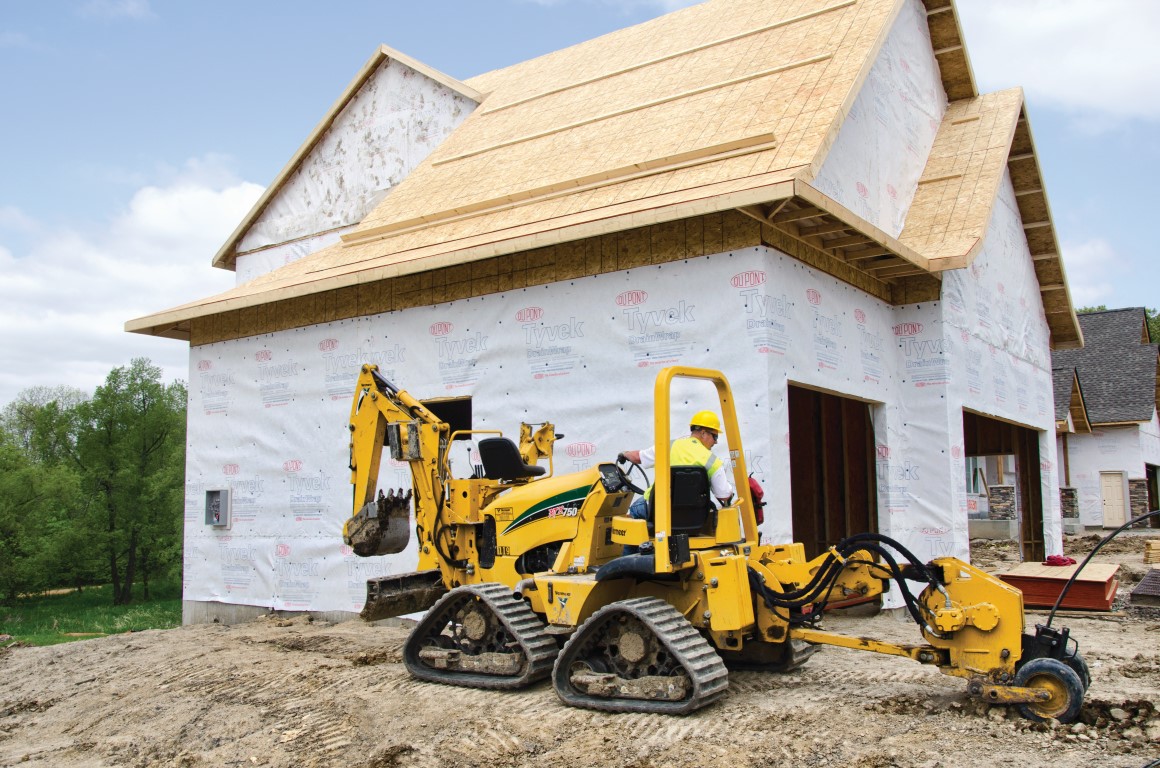

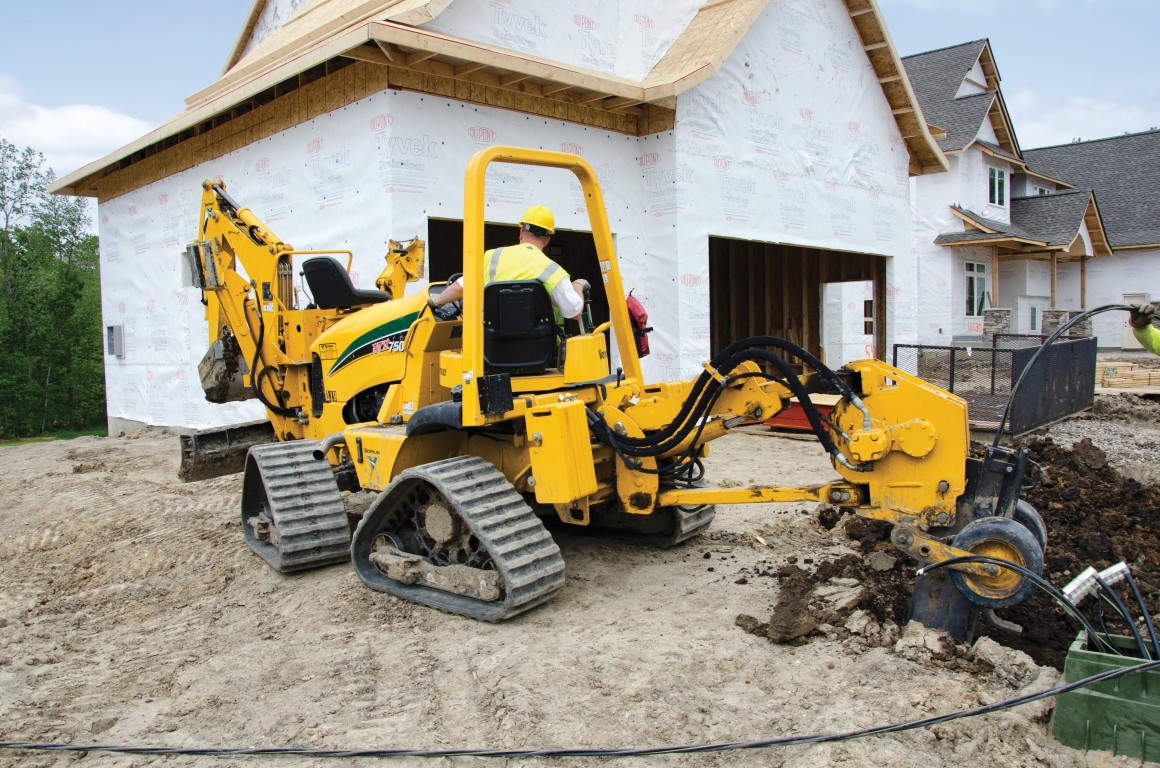

| VP750 Vibratory Plow | Drive Type: Hydrostatic | Weight Without Blade: 1500 lbs (680.4 kg) | Min Length: 74.3 in Max Shaker Force: 24000 lbs (10886.2 kg) | Max Plow Steer / Swing Angle: 30 deg Max Plow Depth: 30 in (76.2 cm) on Rubber Tires / 36 in (91.4 cm) on Quad Tracks |
| Key Features & Operational Benefits | |
| TrenchSense™ System | Actively monitors engine RPM during work. If hard conditions cause a sudden drop or chain lock, the tractor instantly pauses, reverses traction, and reverses the chain slightly to eliminate stalls and premature wear. |

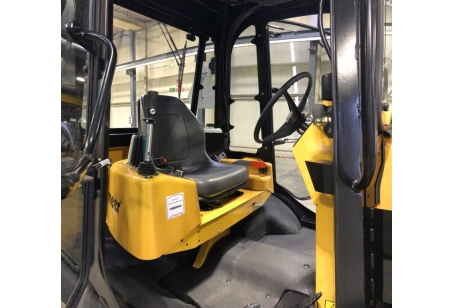

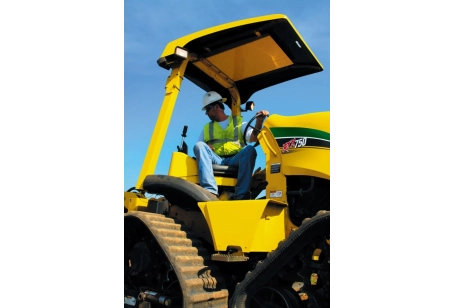

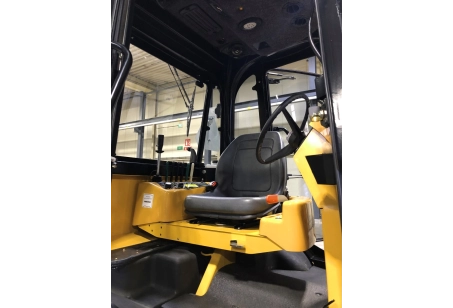

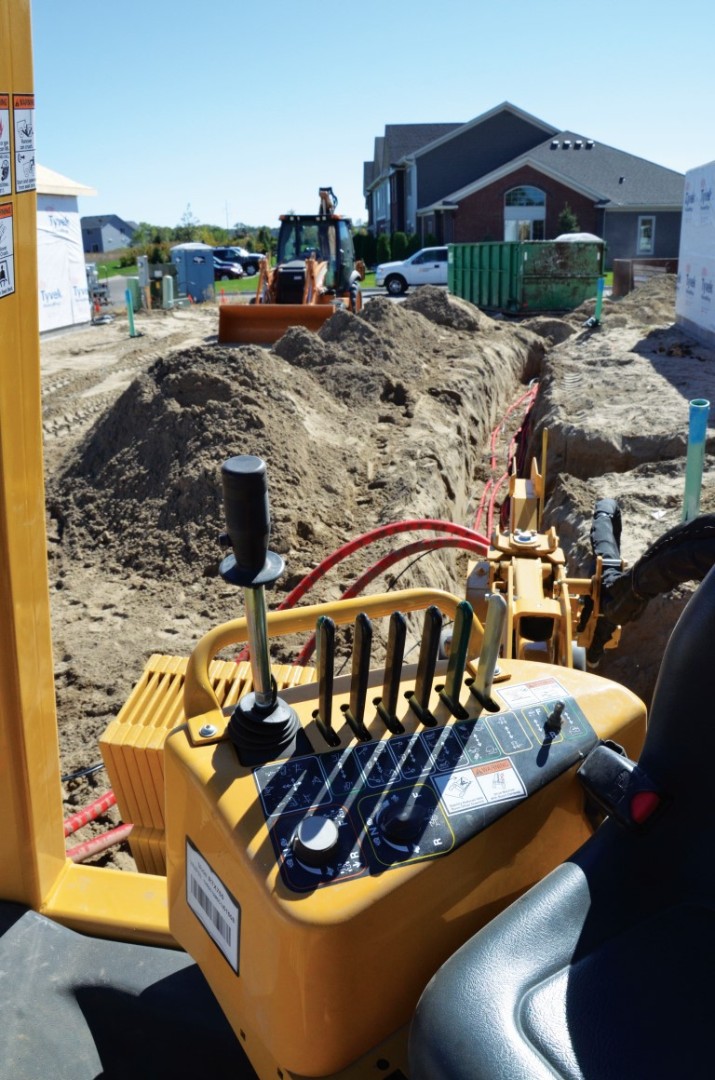

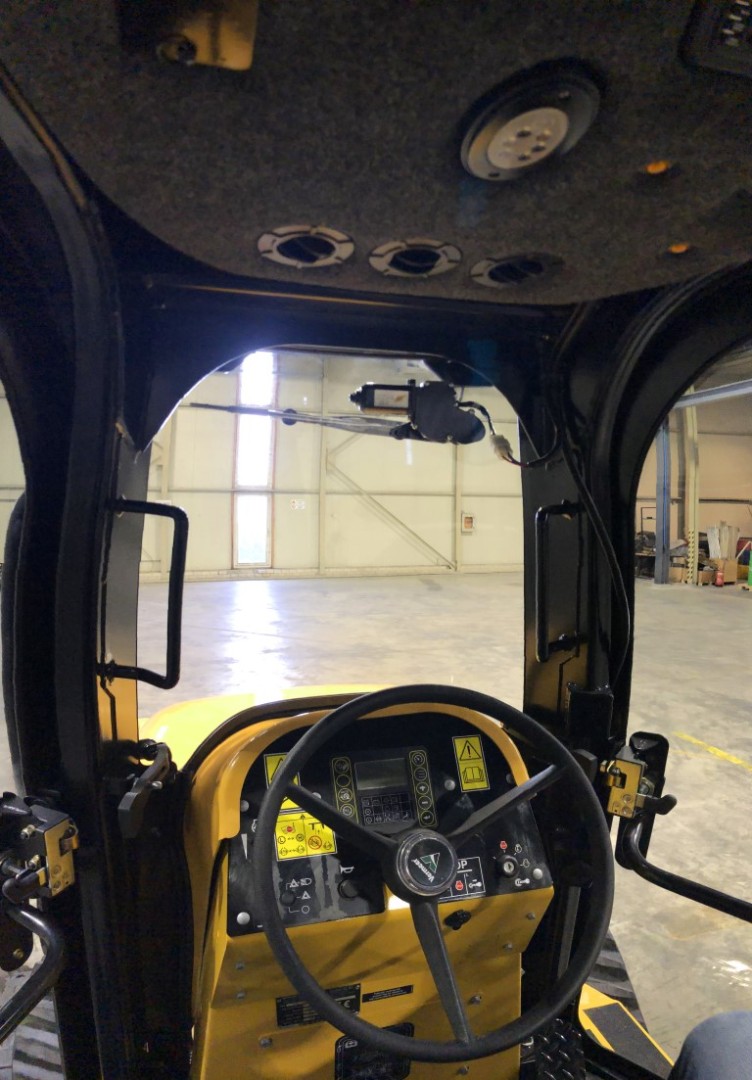

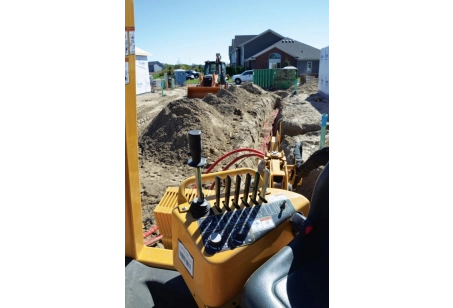

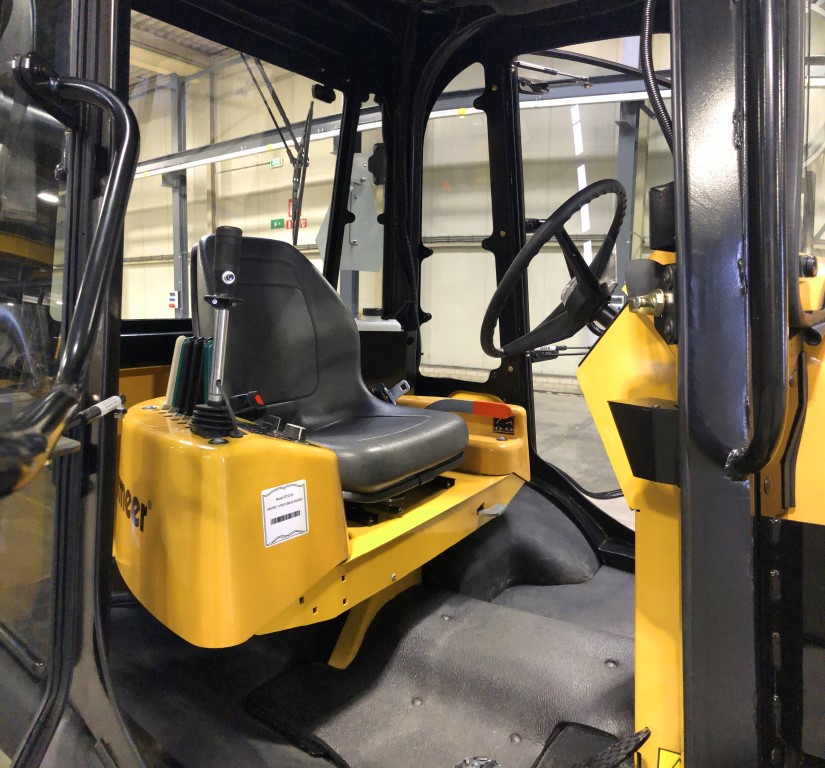

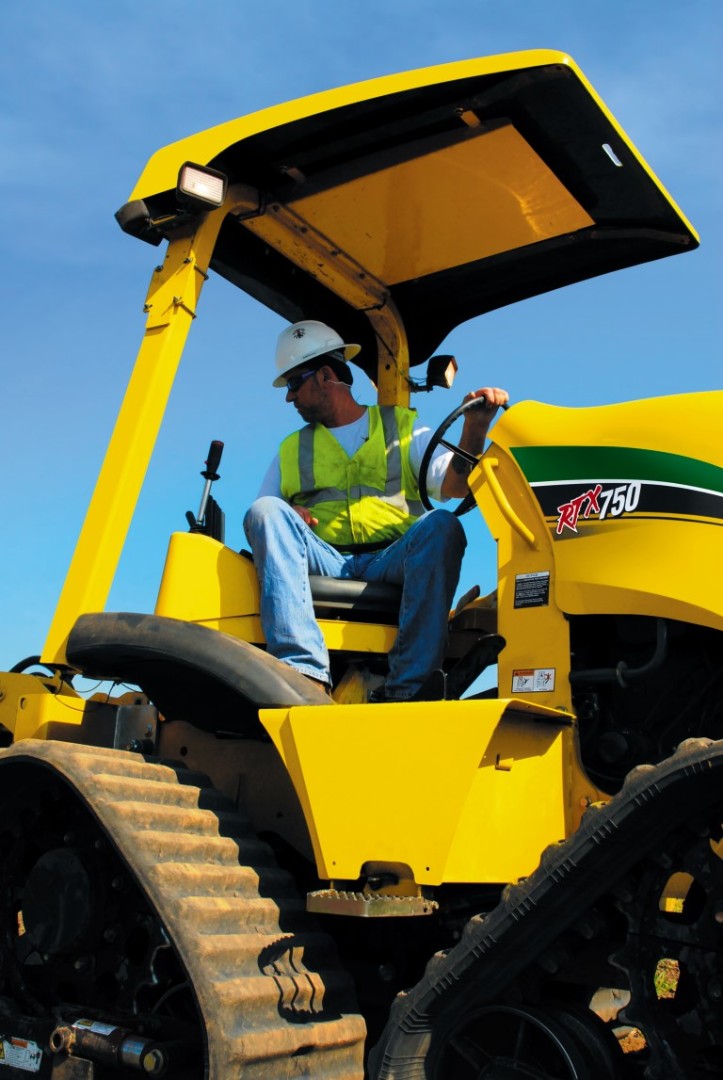

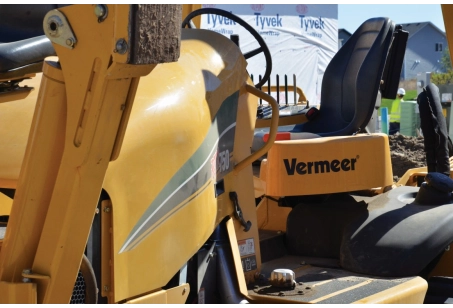

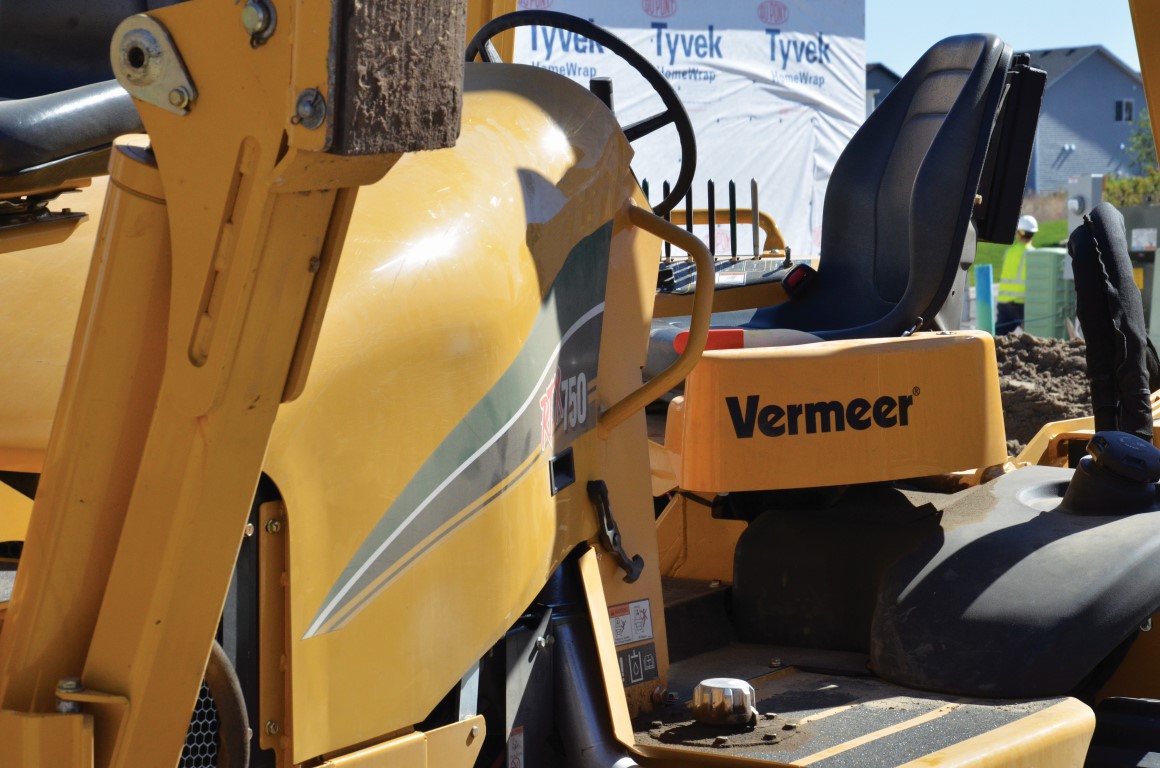

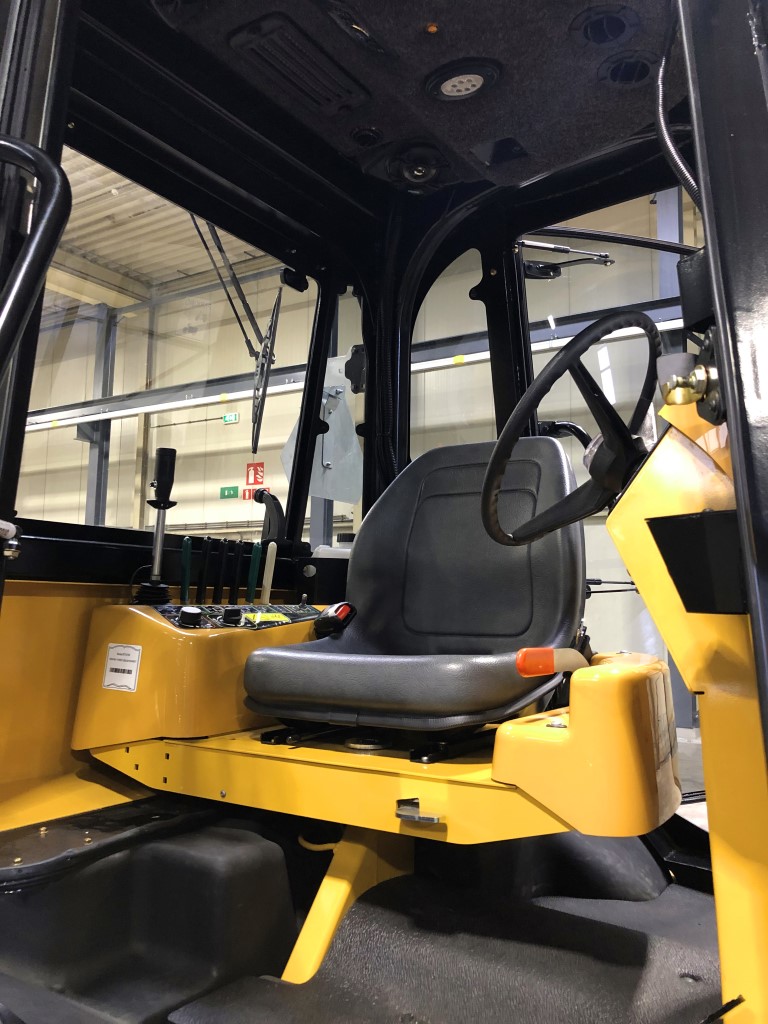

| Swiveling Operator Station | The complete operator seat module along with all mechanical attachment controls manually rotates 90 degrees to dramatically improve rear tool visibility and reduce fatigue. |
| H1 Tandem Hydrostatic Pump | Electronically-controlled dual hydrostatic loop architecture allows operation at sustained high pressures, enabling features like accurate AutoCreep mode. |

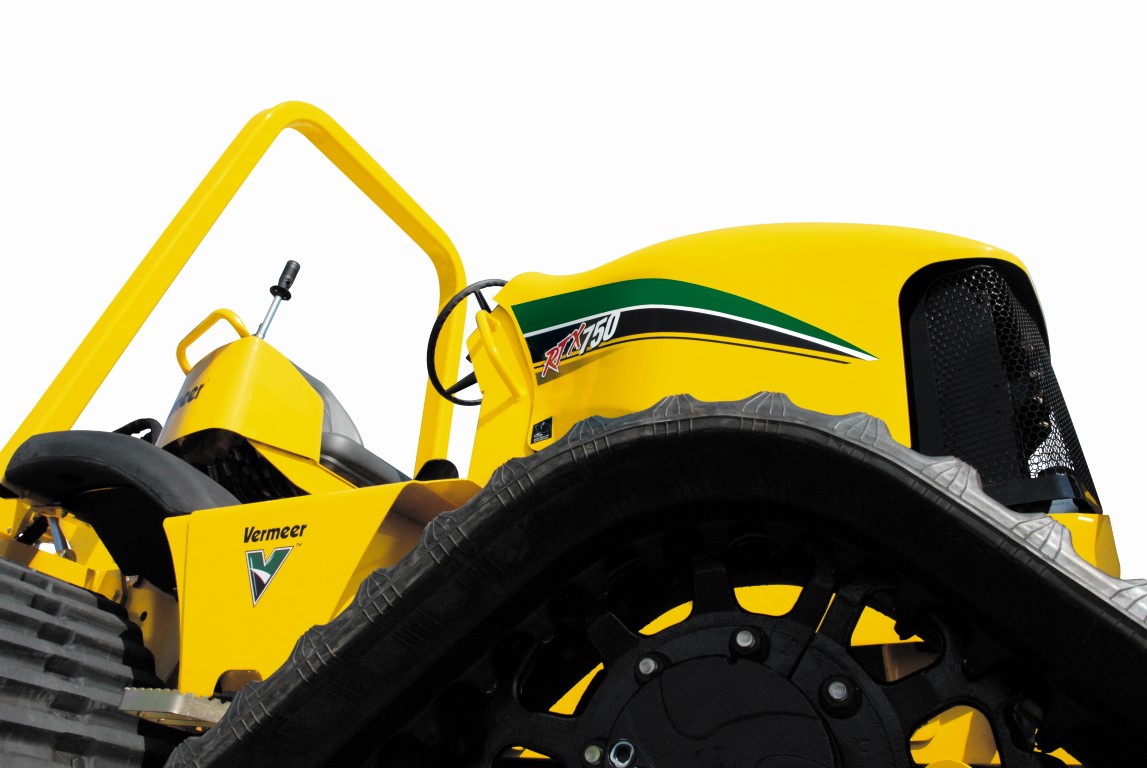

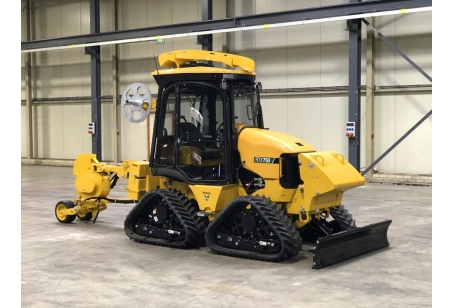

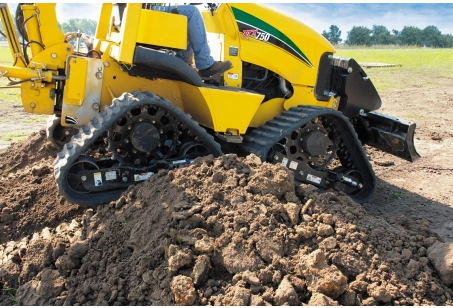

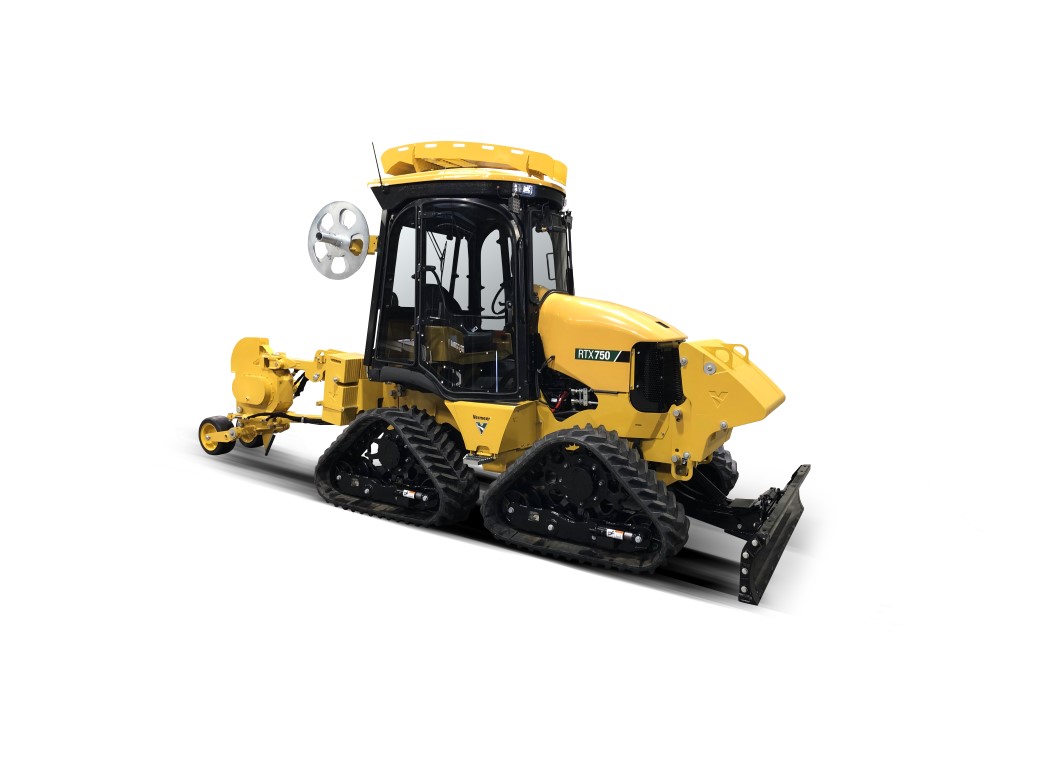

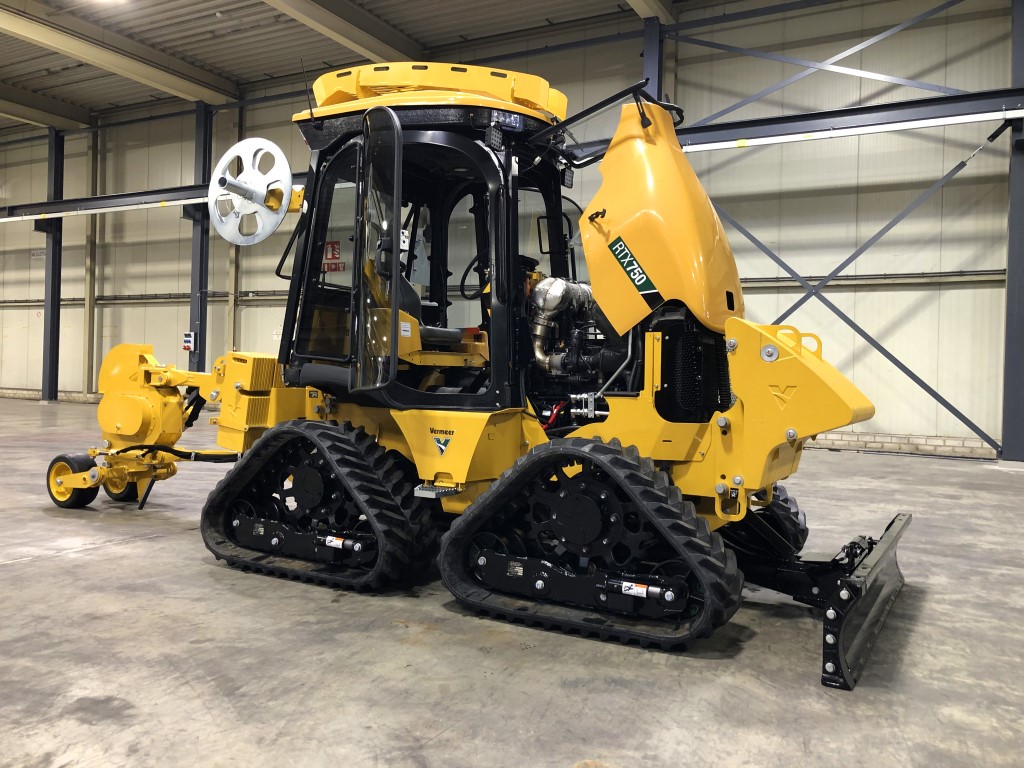

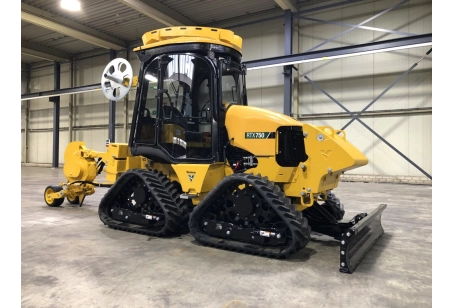

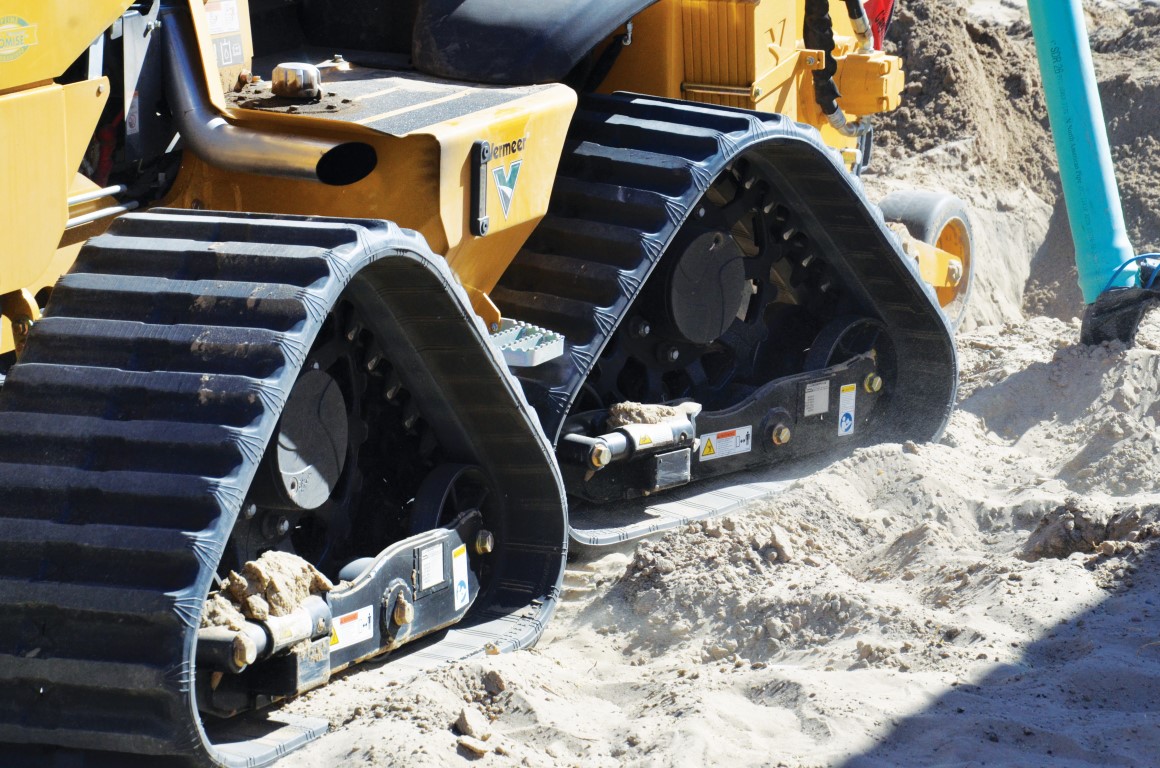

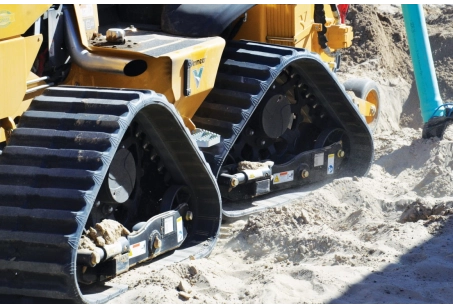

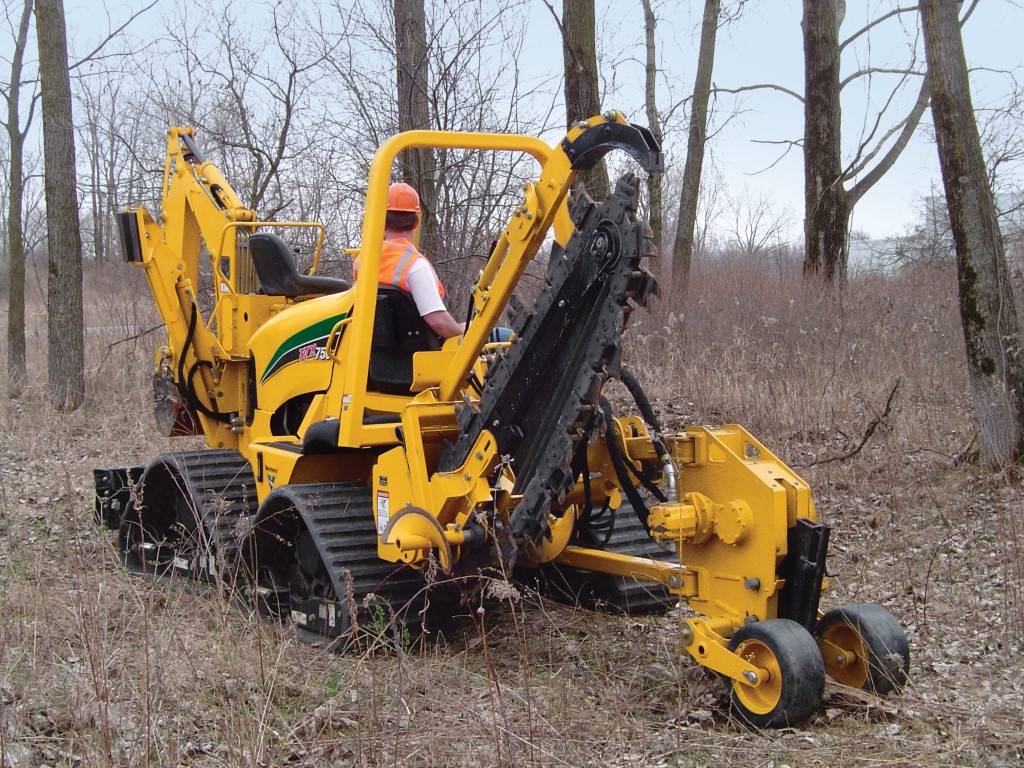

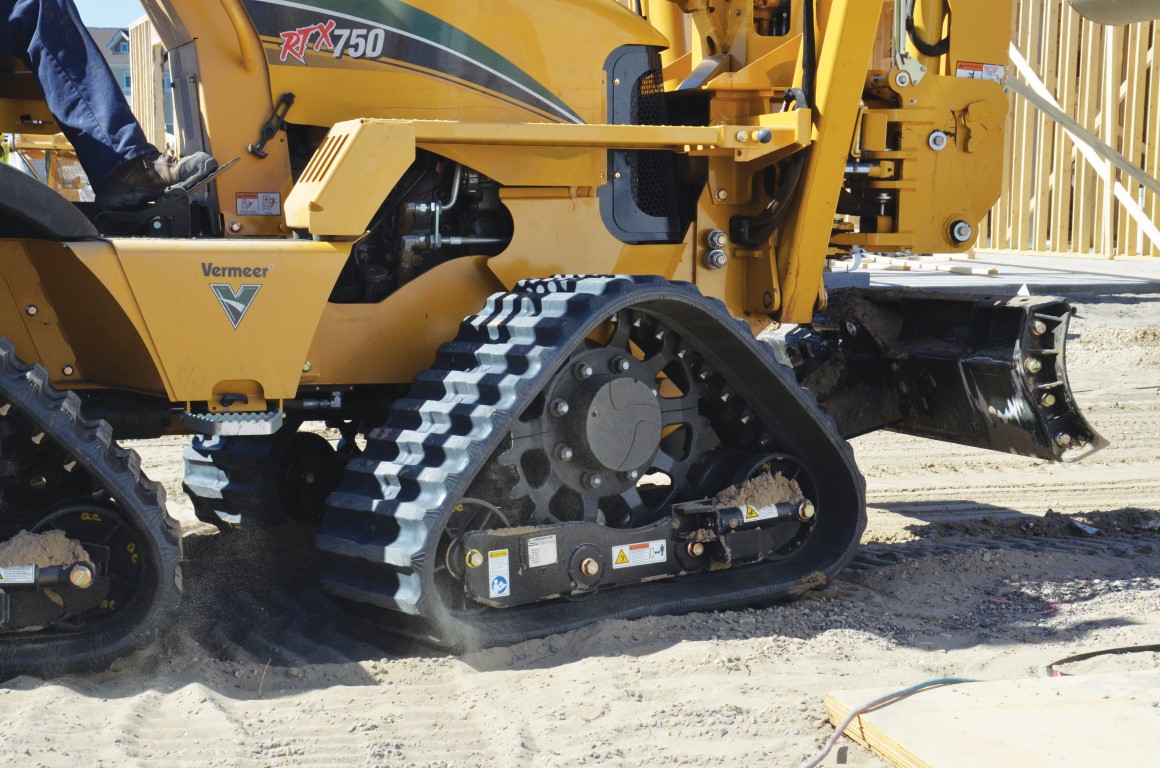

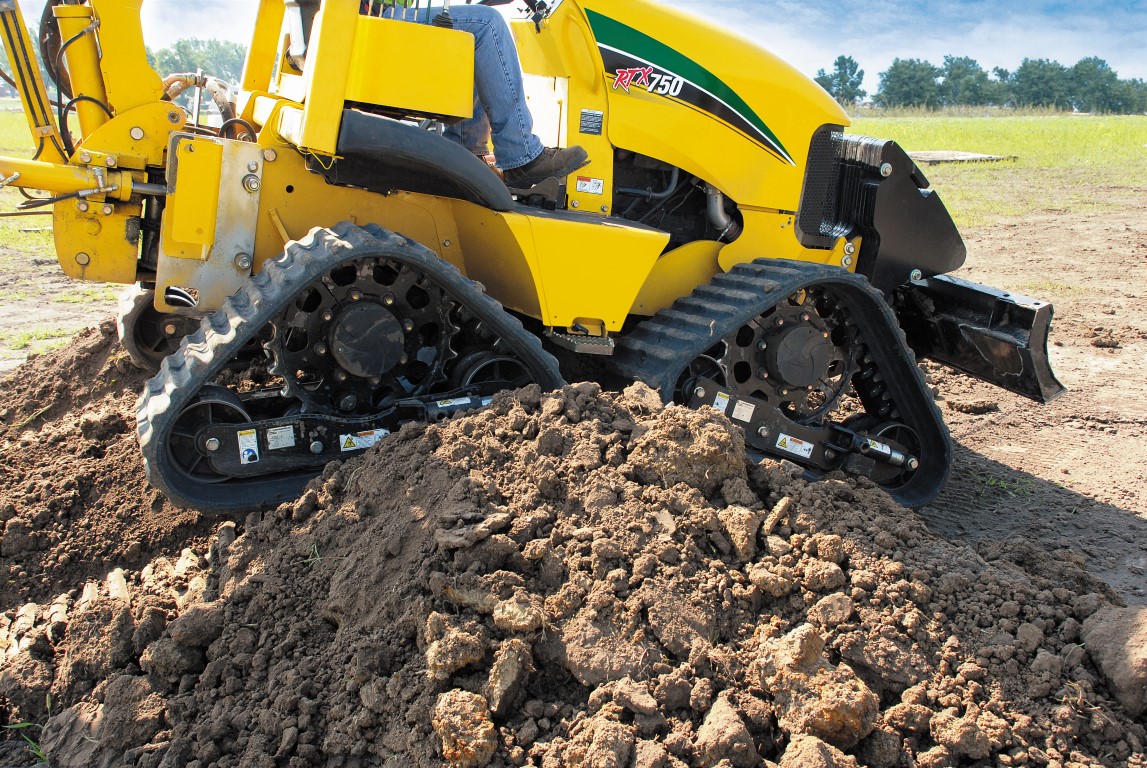

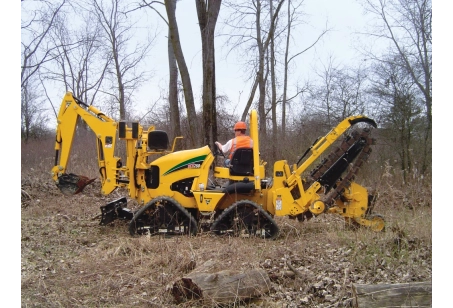

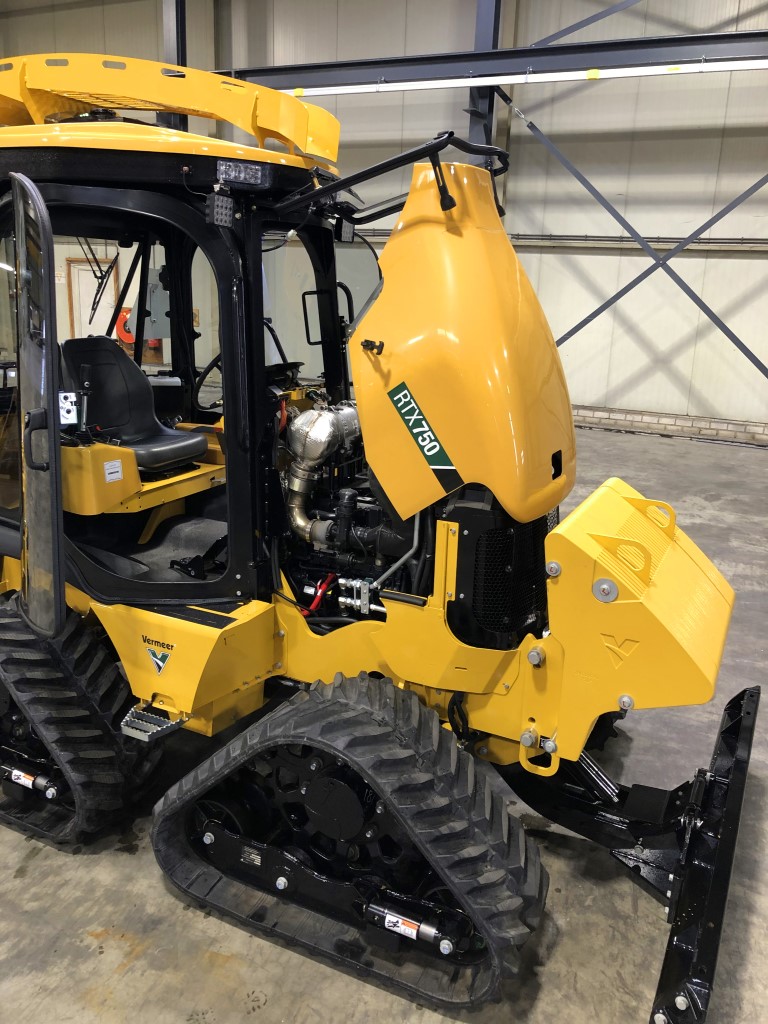

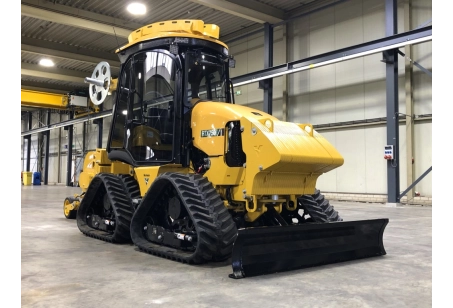

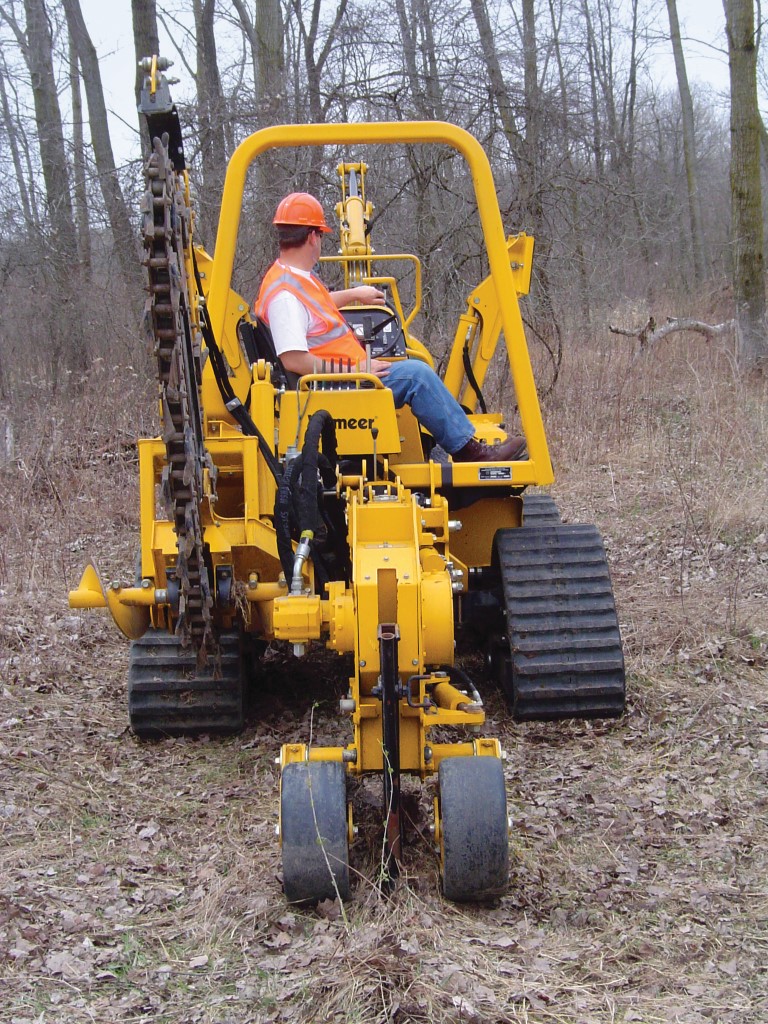

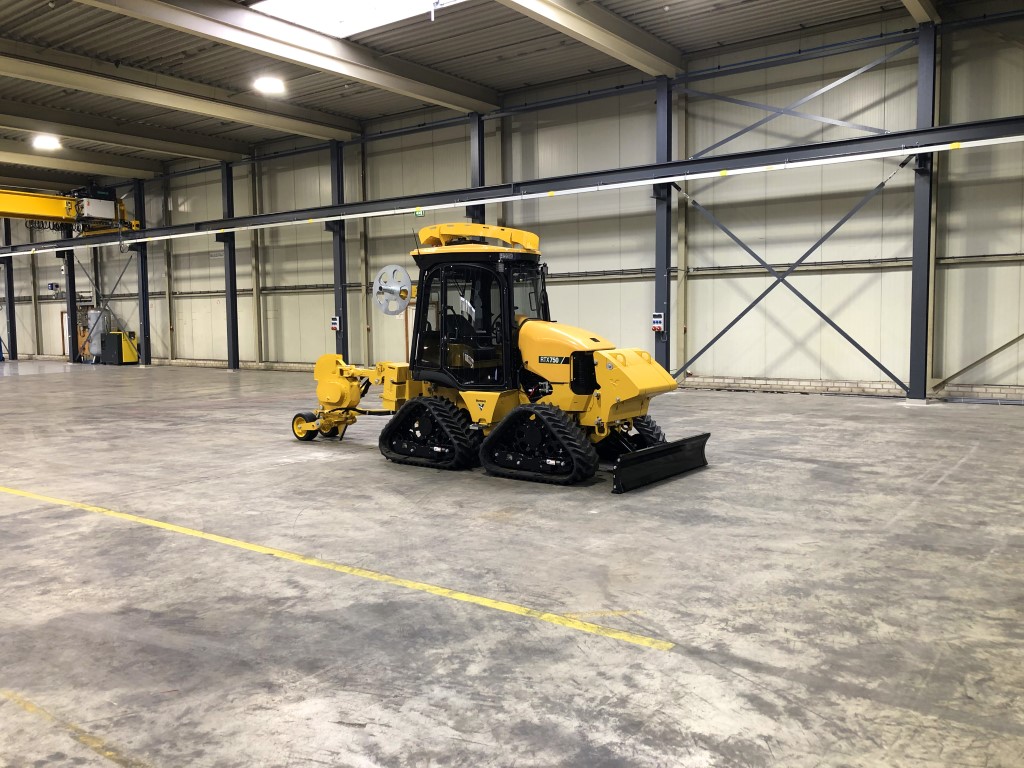

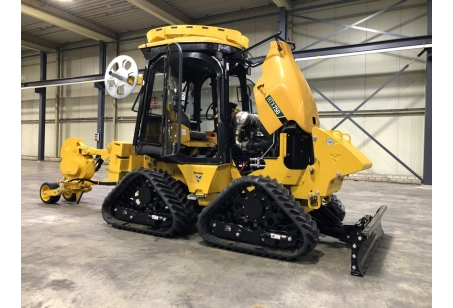

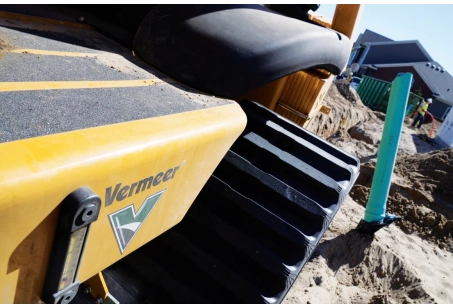

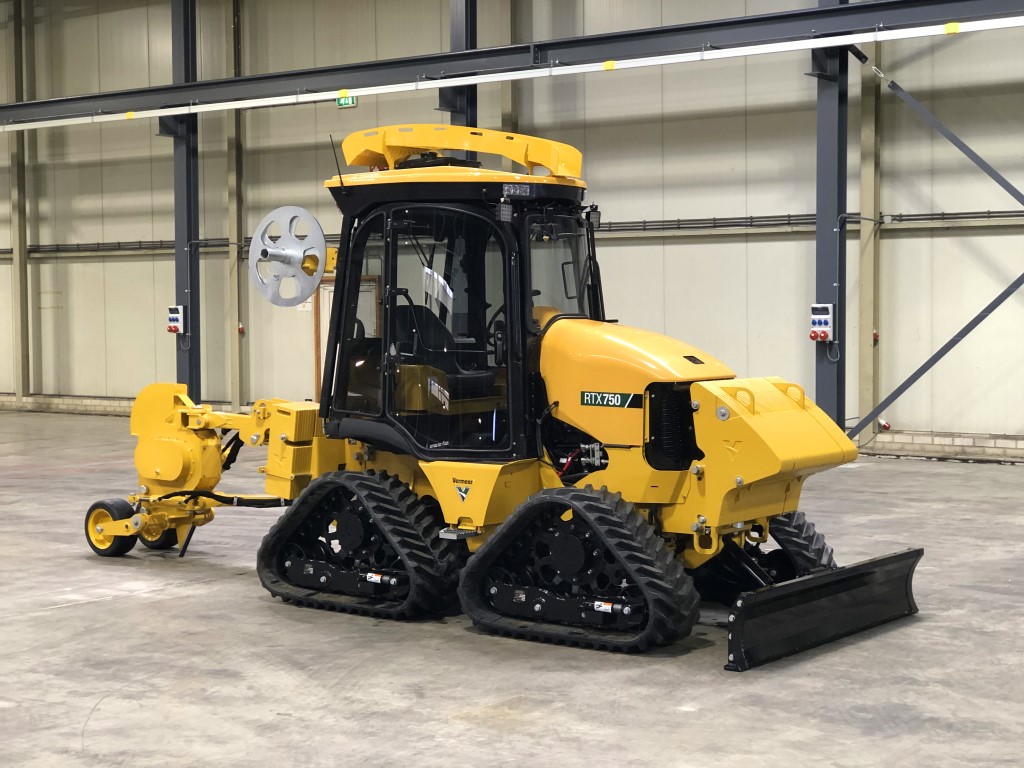

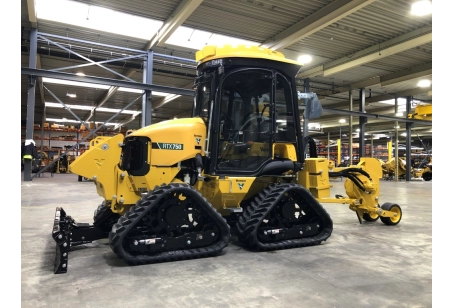

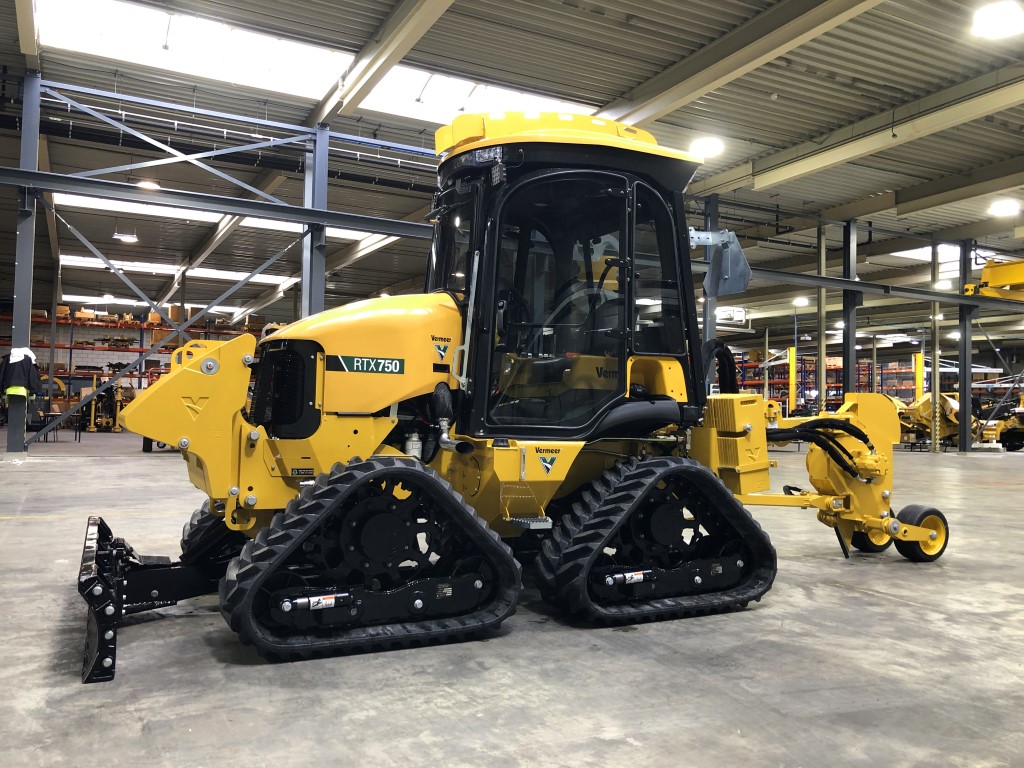

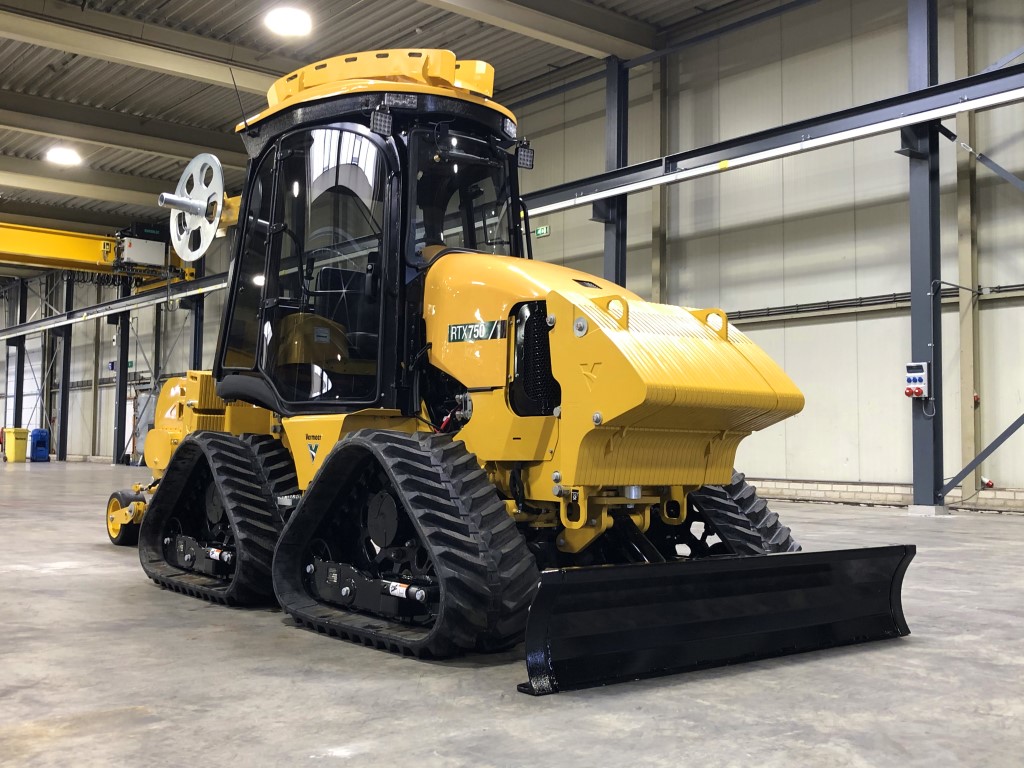

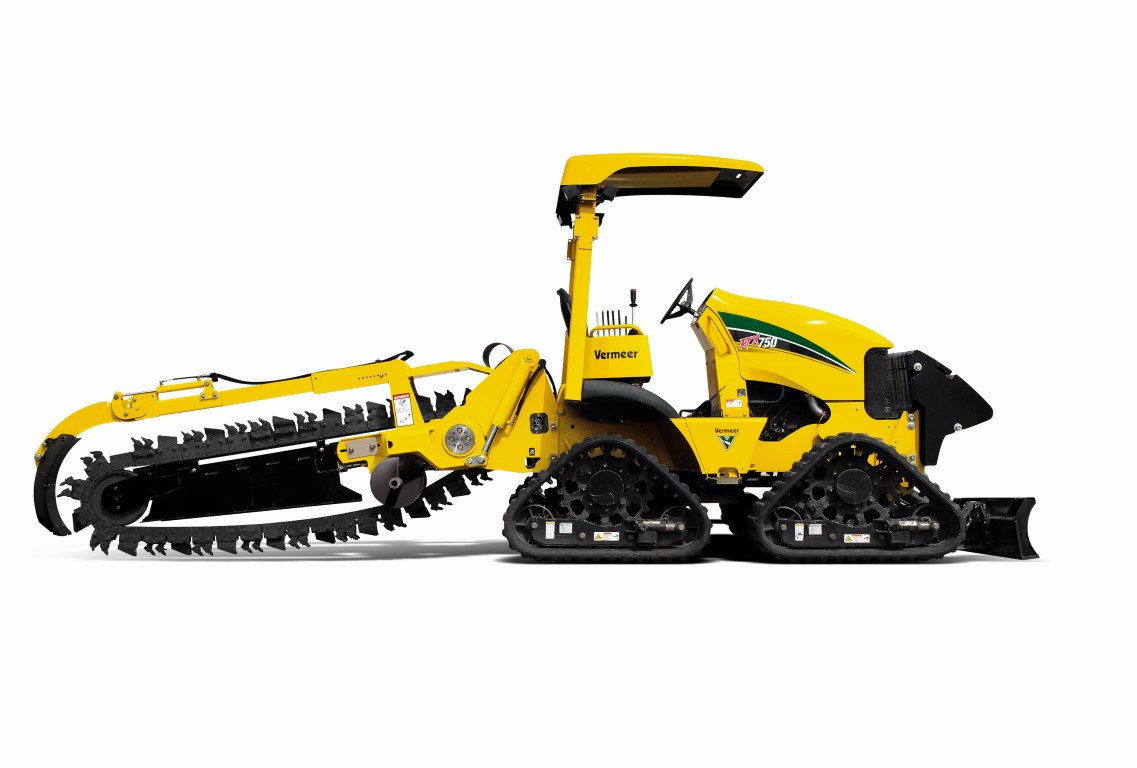

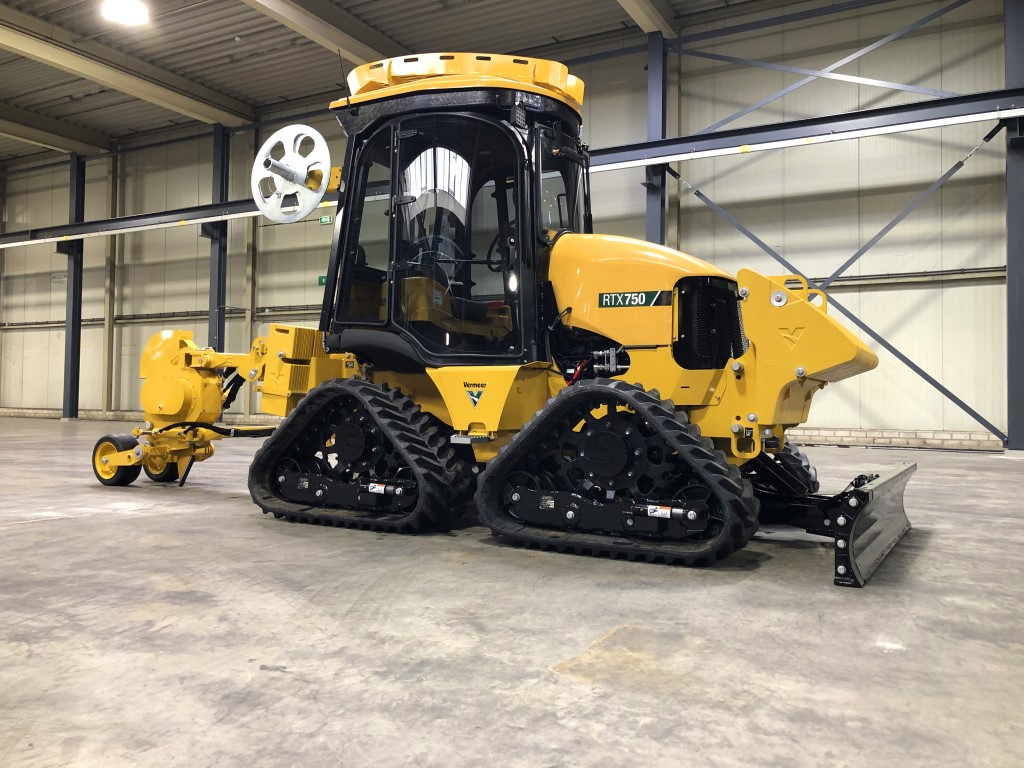

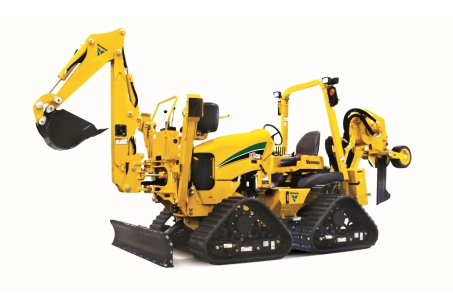

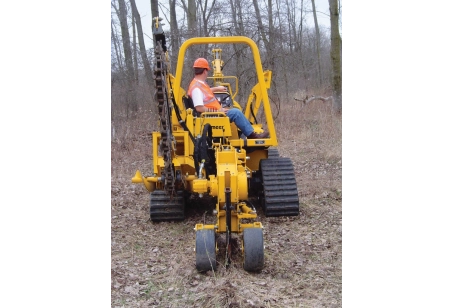

| Quad Track System Options | Interchangeable undercarriage that accepts four separate rubber track modules to upgrade flotation and tractive power while keeping four-wheel, crab steering, and high maneuverability. |
