| Equipment Specifications | |
|---|---|
| General Dimensions and Weights (Basic Tractor, Tracks) | |
| Weight | 1600 lbs (725.7 kg) |
| Length | 81 in (205.7 cm) |
| Width | 34.5 in (87.6 cm) |
| Height | 40.5 in (102.9 cm) |
| Tread Width with Rubber Tracks (Centerline to Centerline) | 7 in (17.8 cm) |
| Engine - Option One | |
| Maximum Gross Horsepower | 25 hp (18.6 kw) |

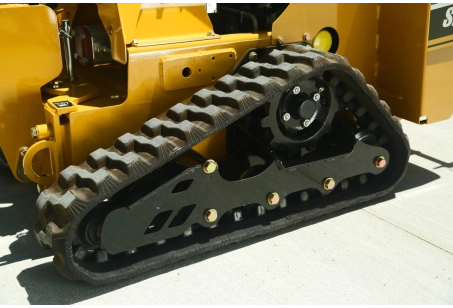

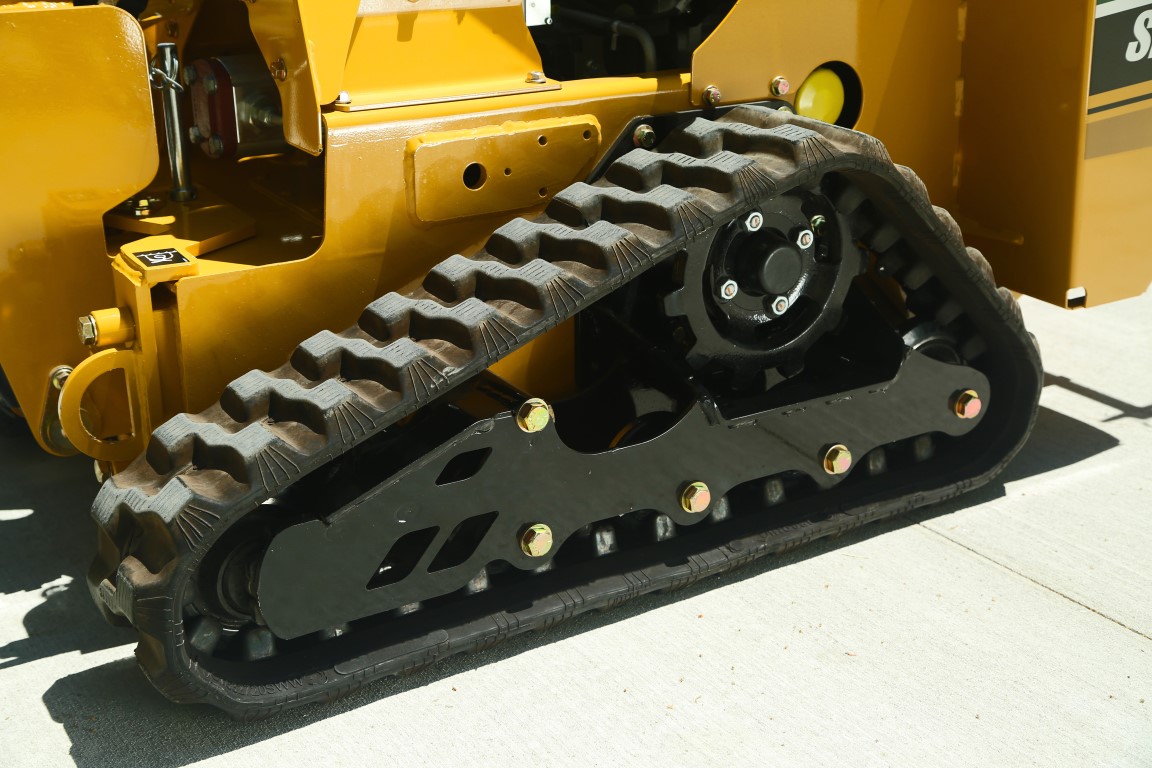

| Ground Drive - Tracks | |
| Maximum Forward Transport Speed (High) | 3.7 mph (6 km/h) |
| Maximum Reverse Transport Speed (High) | 3.7 mph (6 km/h) |
| Ground Pressure (Basic Tractor Only) | 3.7 psi (.3 bar) |
| Hydraulic System | |
| Attachment Pump Capacity | 15.7 gpm (59.4 L/min) |
| Ground Drive Pump Capacity | 13.3 gpm (50.3 L/min) |
| Auxiliary Pump Capacity | 3.8 gpm (14.4 L/min) |
| Attachment Pump Relief | 2500 psi (172.4 bar) |
| Ground Drive Pump Relief | 2900 psi (199.9 bar) |
| Capacities | |
| Fuel Tank | 6.8 gal (25.7 L) |
| Hydraulic Tank | 8 gal (30.3 L) |
| Hydraulic System Total | 8.5 gal (32.2 L) |
