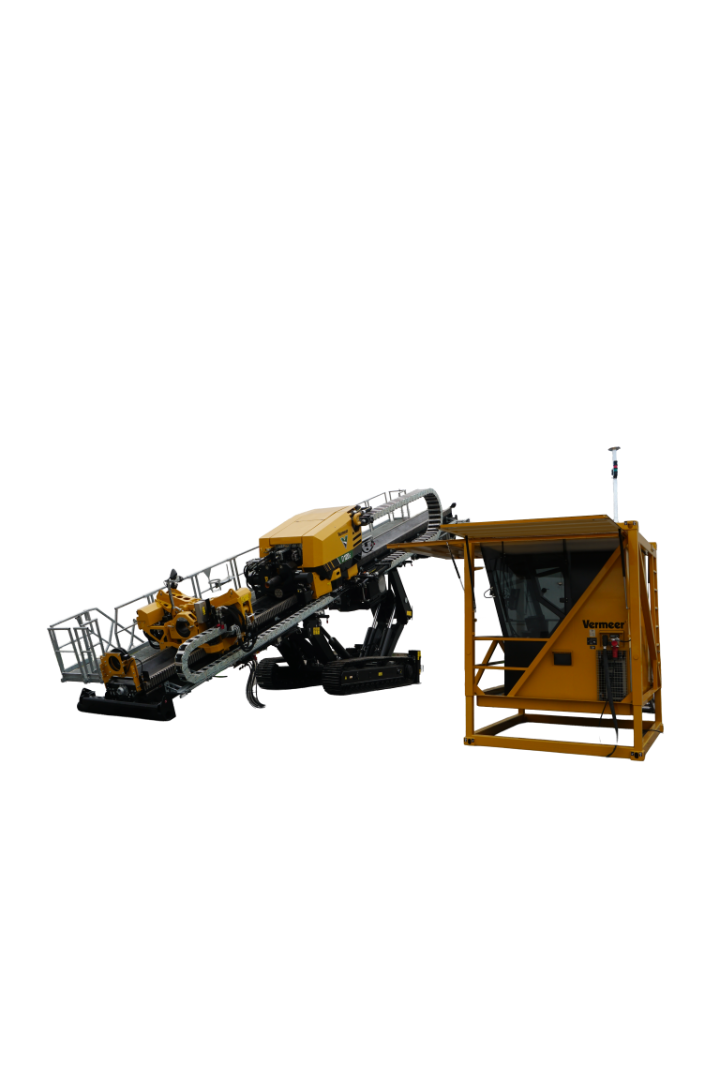

| Machine Overview |

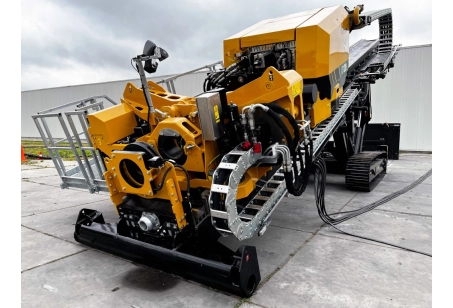

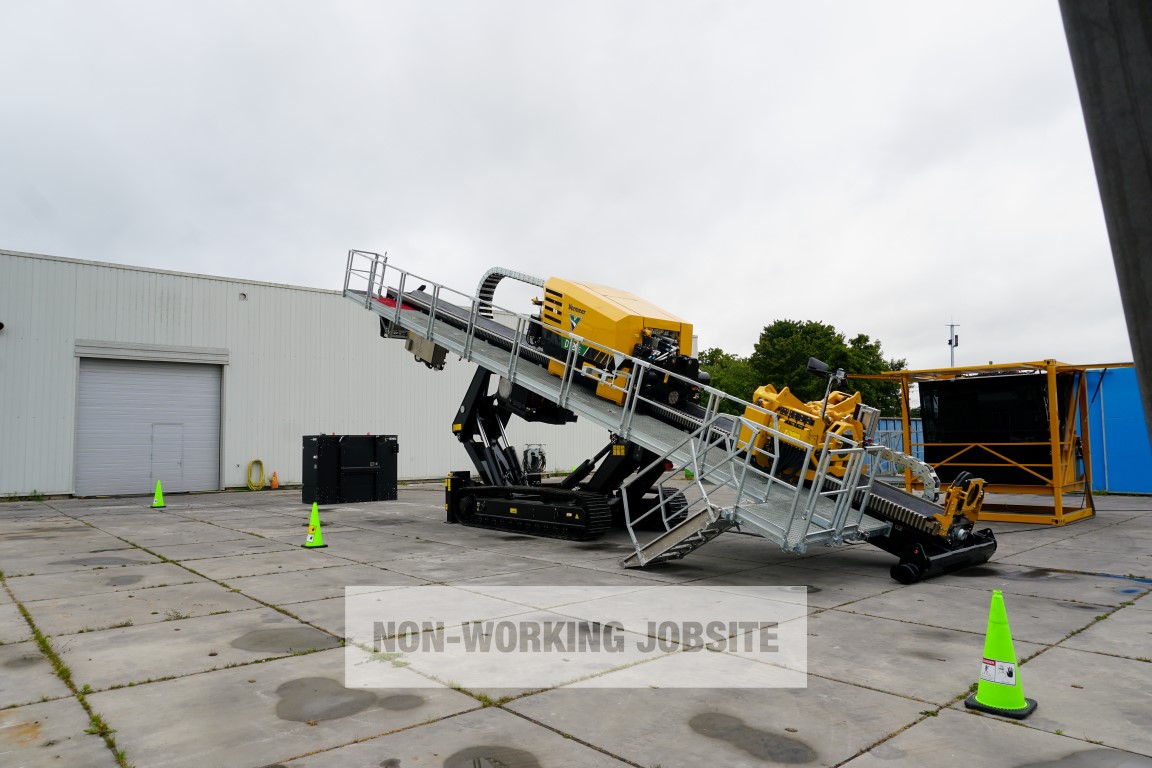

| A fully electric, 1,200 kN (269,761 lbs) pullback horizontal directional drill capable of executing challenging pipeline projects and large cable installations. Driven by a direct electric drive system, it delivers maximum hole-making capability, precise digital control, and power scalability with exceptionally low sound emissions (guaranteed sound power level of 102 dB(A)). |
| Drill Rack Specifications (Range 2 Design) |
| Minimum Transport Dimensions (L x W x H) |
50.5 ft x 8.4 ft x 10.2 ft (15.4 m x 2.6 m x 3.1 m) |
| Weight |
82,673 lbs (37,499.8 kg) |
| Drill Rack Angle Range |
6 - 20° (10.5% - 36.4%) |
| Number of Rear Legs |
Two |

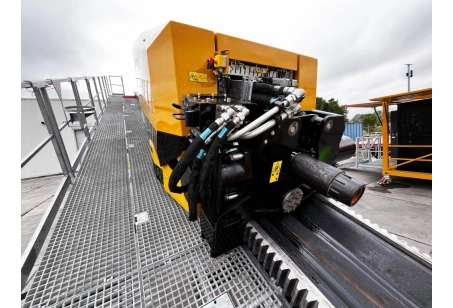

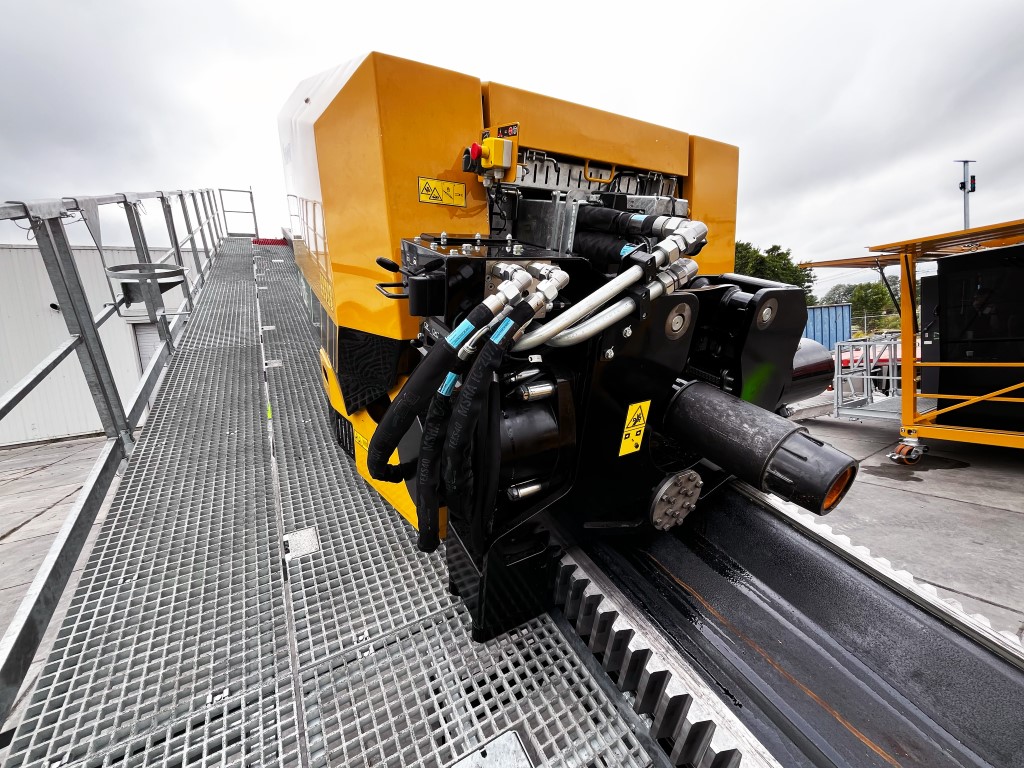

| Design Highlights |
Features an extra-wide, full-length catwalk along the rack. The rack can be quickly detached from the undercarriage to maximize transport flexibility. |

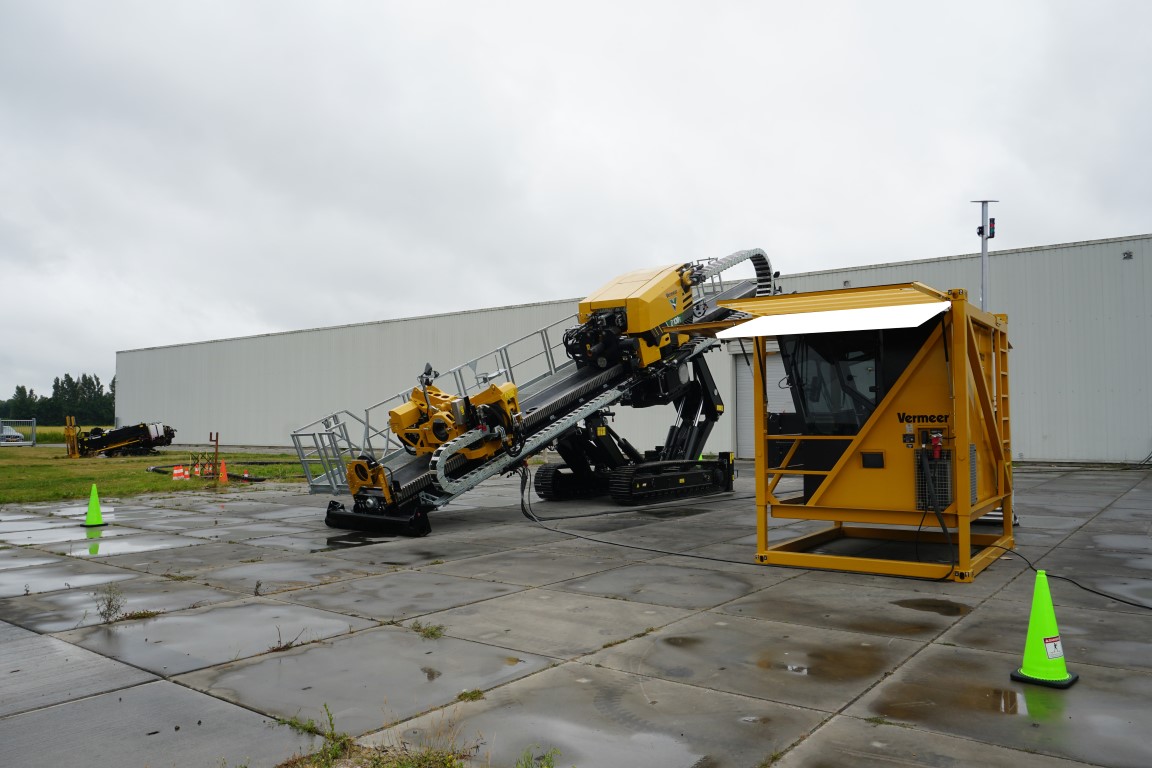

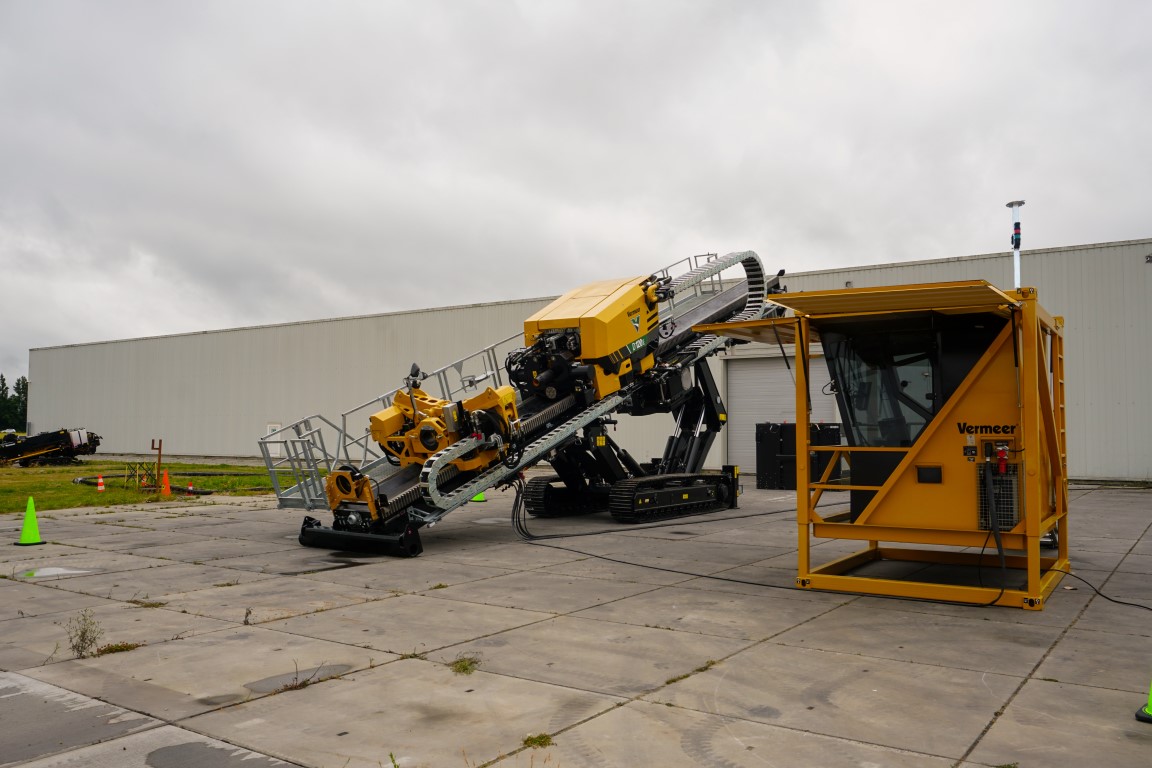

| Off-Board Driller Cabin |
| Cabin Dimensions (L x W x H) |
9.8 ft x 8 ft x 8.5 ft (3 m x 2.4 m x 2.6 m) |
| Weight |
8,818 lbs (3,999.8 kg) |
| Climate Control (Heat & AC) |
Yes |
| Controls & Interface |

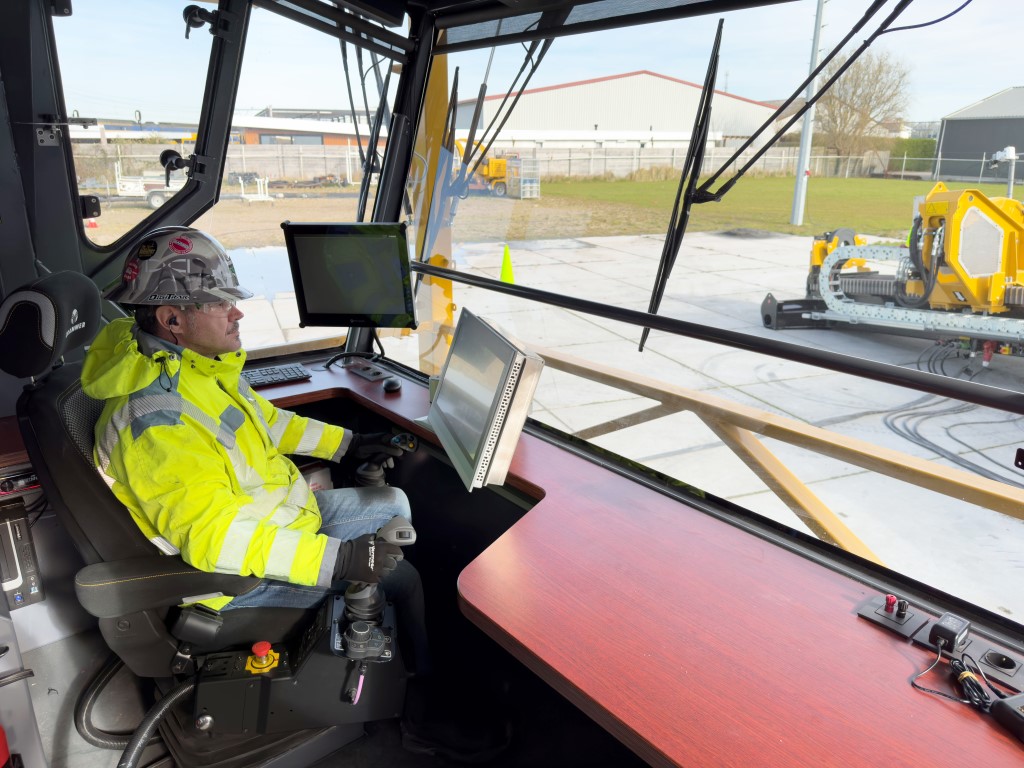

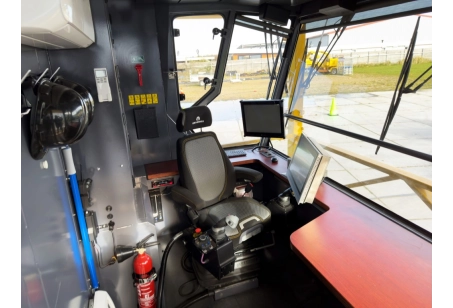

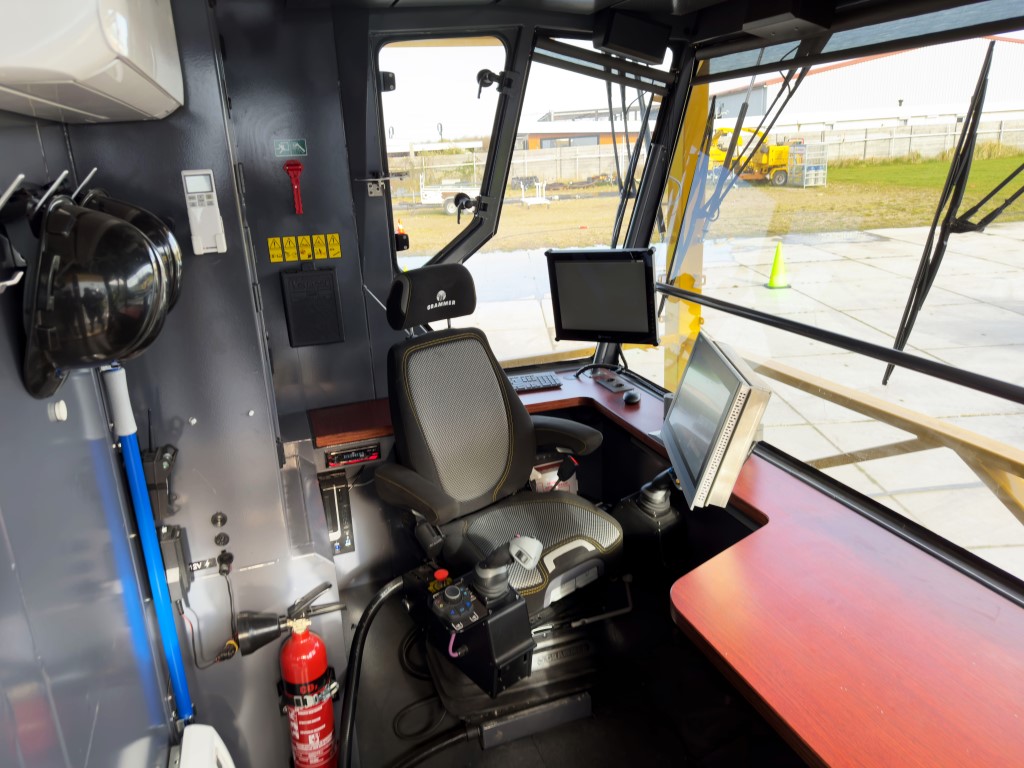

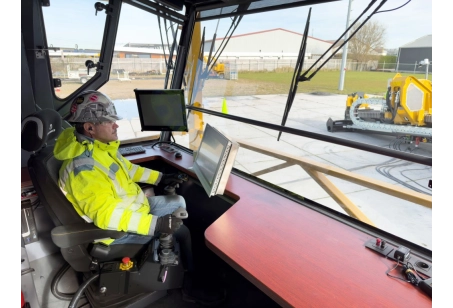

Equipped with extractable legs for optimal visibility, wide windows, comfortable seating, large digital screens, color diagnostic cameras, and last-generation capacitive joysticks for a fully digitized HMI experience. |
| Operational Power & Performance |
| Thrust Force |
224,801 lbs (1,000 kN) |
| Pullback Force |
269,761 lbs (1,200 kN) |
| Maximum Spindle Torque |
81,132 ft-lb (110,000.4 Nm / 110 kNm) |
| Maximum Rotational Spindle Speed |
80 rpm |
| Maximum Carriage Speed |
98.4 ft/min (30 m/min) |
| Power System Architecture |
Two Rotation Motors and Two Drive Motors. Direct electric drive delivers precise data logging and unmatched responsiveness over force, speed, and position. |
| Mud Swivel Passthrough |
4 in (10.2 cm) |

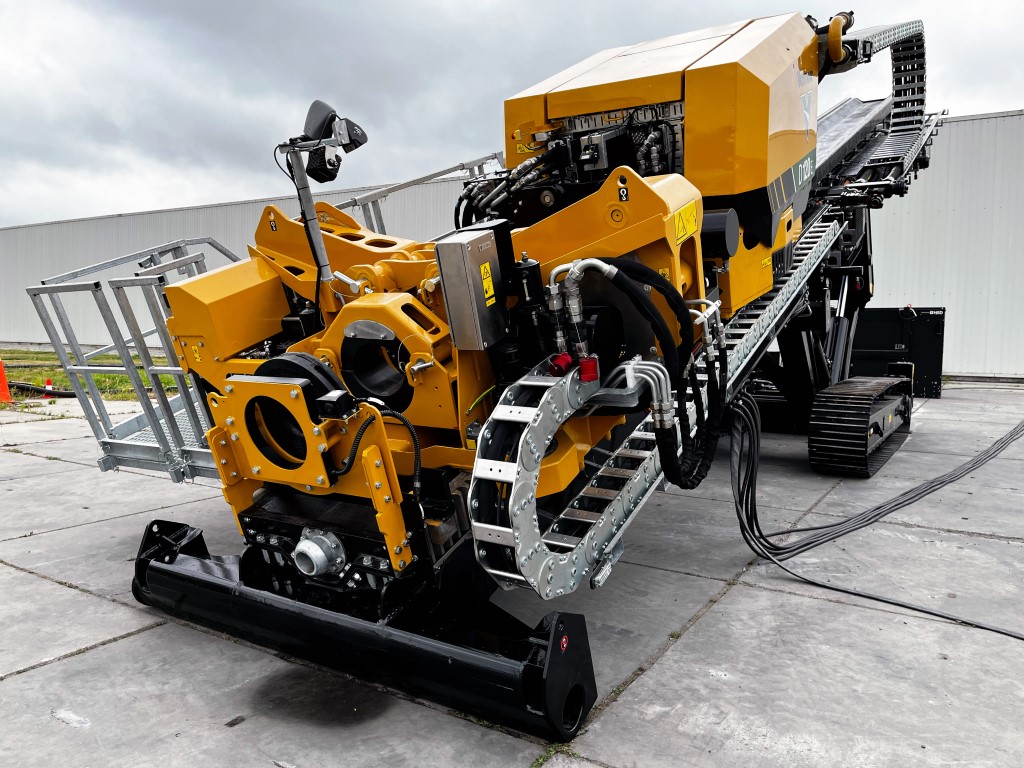

| Lower Breakout Vise System |
| Configuration |
Full travelling vise, semi-open top design |
| Breakout Force |
162,263 ft-lb (219,999.4 Nm / 220 kNm) |
| Makeup Torque |
110 kNm |
| Clamp Force |
188,833 lb (840 kN) |
| Inside Diameter / Open-top Opening |
16 in (40.6 cm) / 10 in (25.4 cm) |
| Vise Weight |
7,937 lbs (3,600.2 kg) |
| Pipe Range Capability |
The traveling vise configuration allows the rig to handle large tooling, drill pipes up to 7.625-in outer diameter, and steel casing up to 406 mm (16-in) thanks to the large passthrough opening. |
| Optional Carriage Vise |
| Vise Configuration |
Carriage integrated vise with 25.6 in (65 cm) travel length |
| Clamp Force / Inside Diameter |
188,833 lb (840 kN) / 16 in (40.6 cm) |
| Operational Benefit |
Provides extreme ease of operation when breaking out the upper joint of the drilling string. |
| Power Input & Requirements |
| Main Generator Set (Genset) |
325 kVA - 350 kVA, 400V, 50Hz |
| Auxiliary Hook-On Genset |
65 kVA (utilized for machine maneuvering, setup, and teardown) |
| Power-On-Demand Flexibility |
The direct electric system can be plugged into standard gensets or a grid battery pack. Power is metered dynamically based on geology—drawing only the precise energy required for the task. |

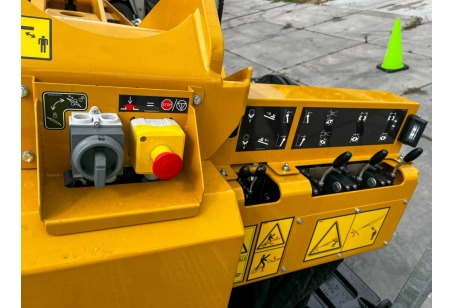

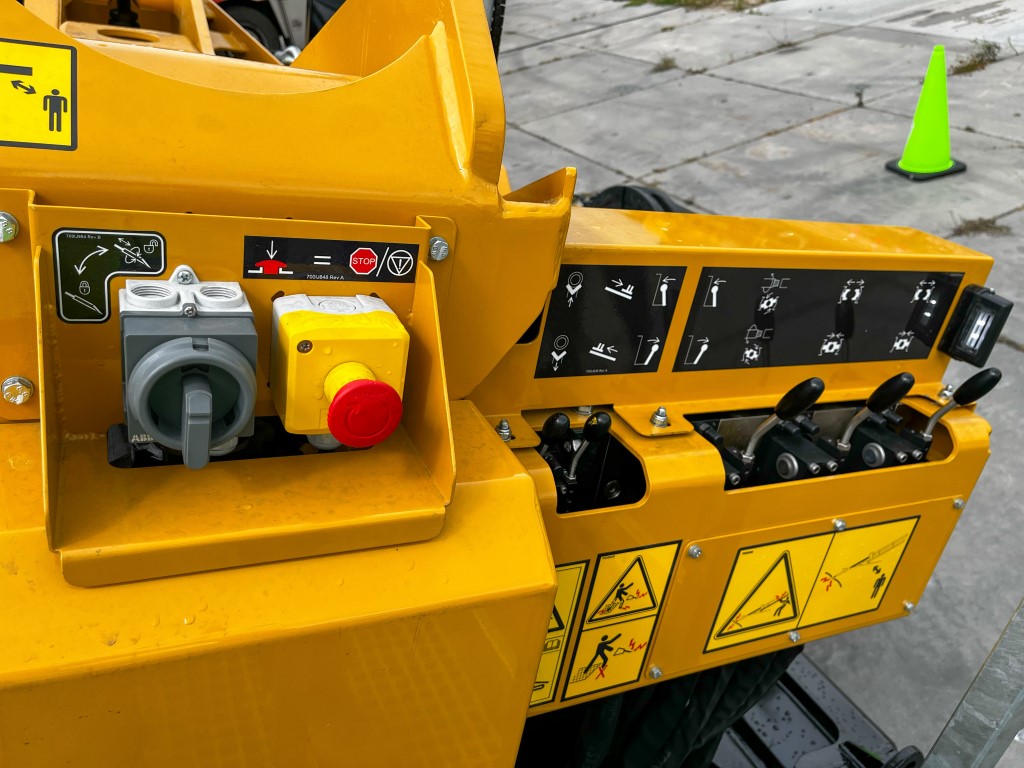

| Safety Systems & Additional Features |
| Remote Lockout / Local Lockout |
Yes / Yes |
| Strike Alert System |
Yes |
| Drilling Night Lights |
Yes |
| Floating Shaft |
Yes |
| Wireline Drum |
Yes (Rear load tensioning wireline drum) |
