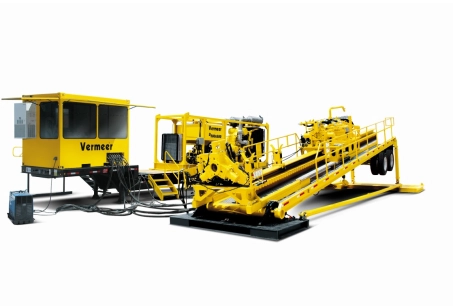

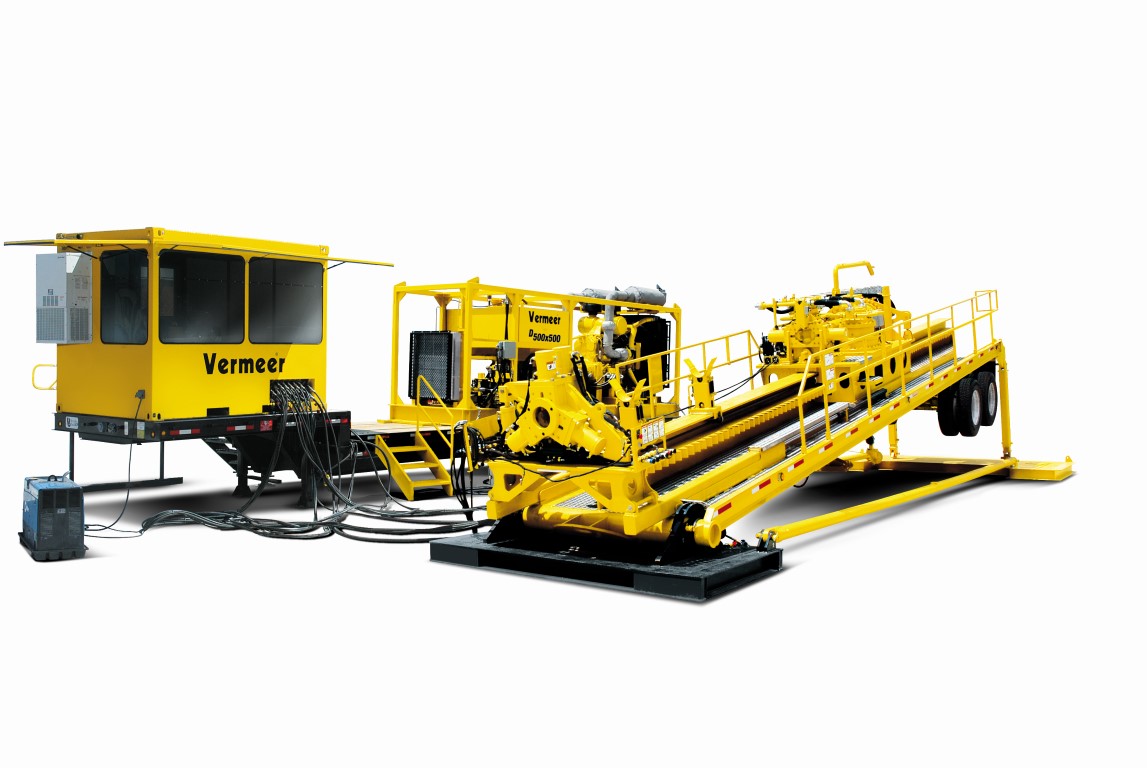

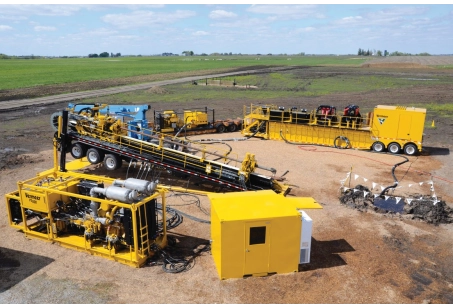

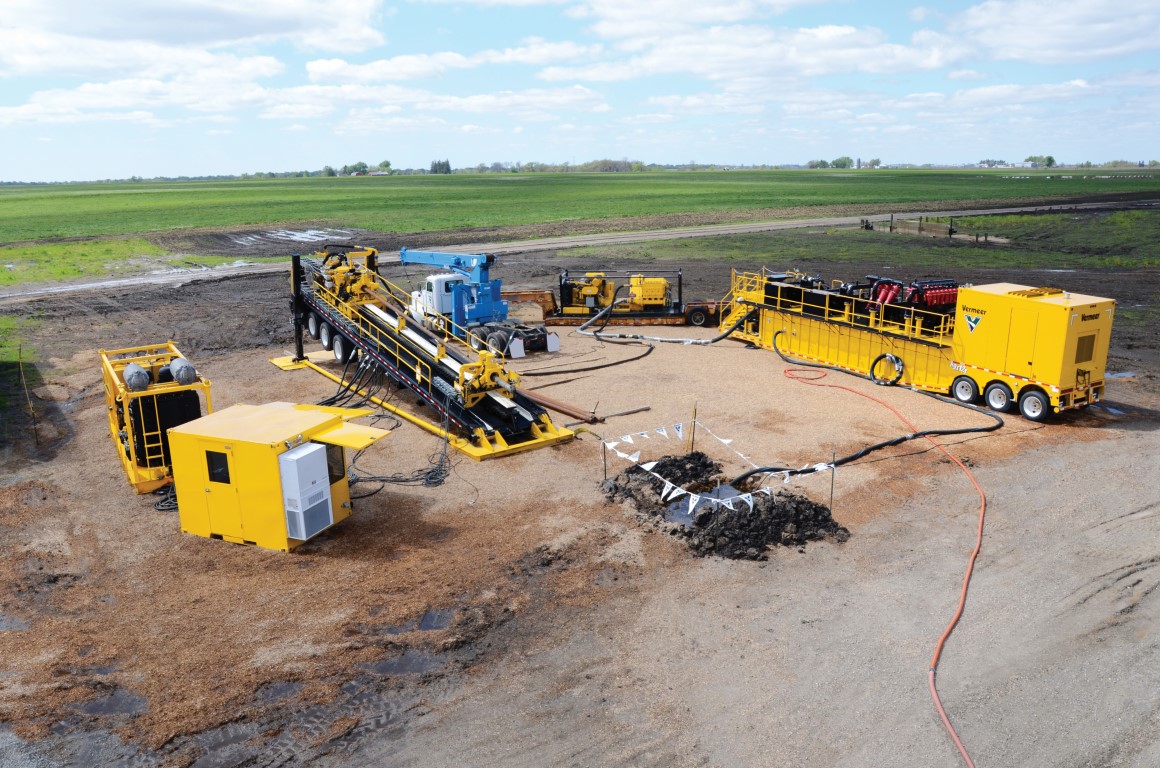

| Machine Overview & Infrastructure Focus |

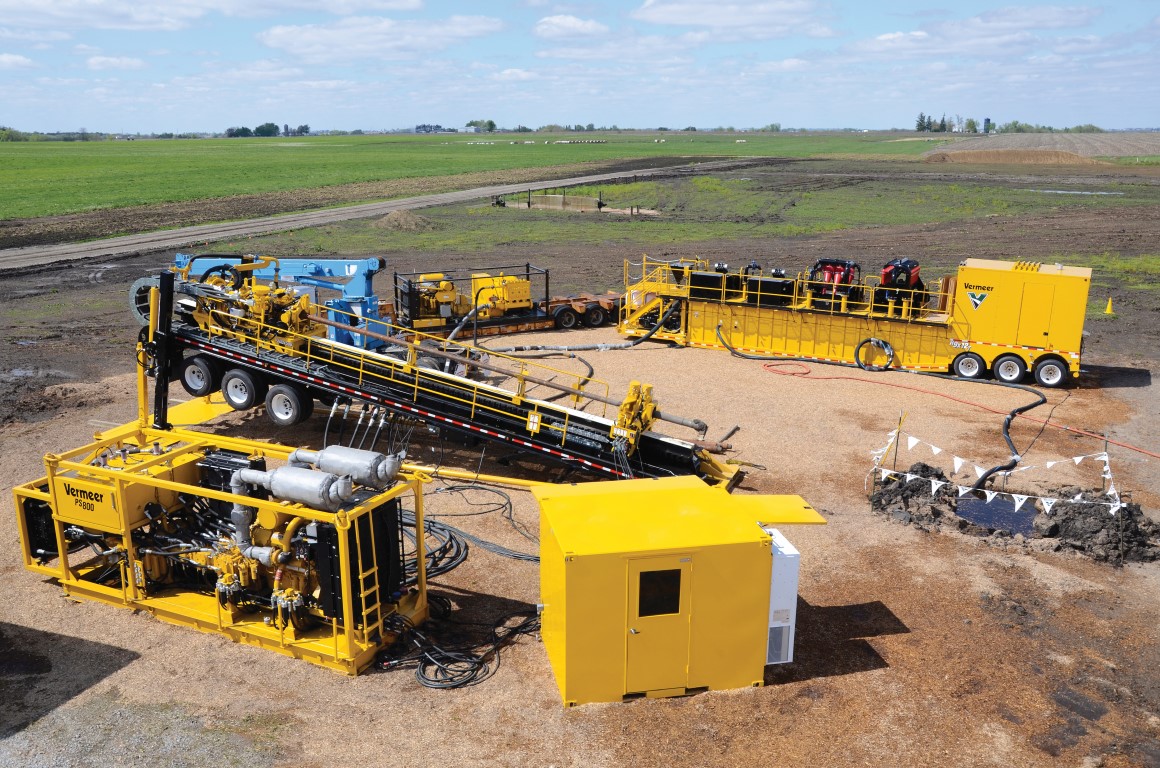

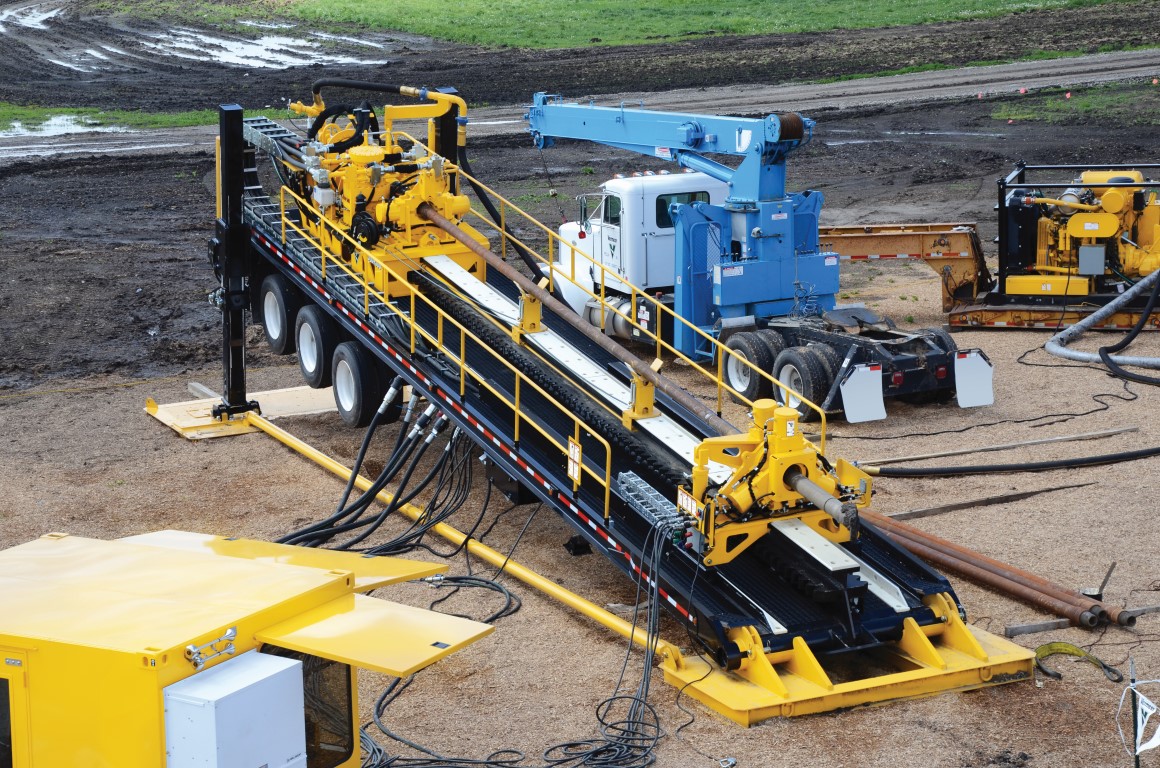

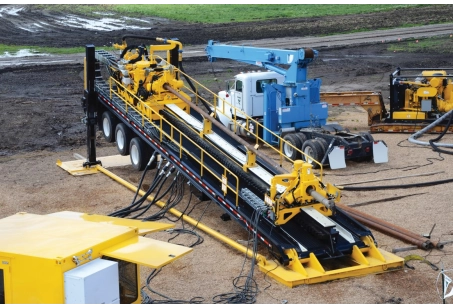

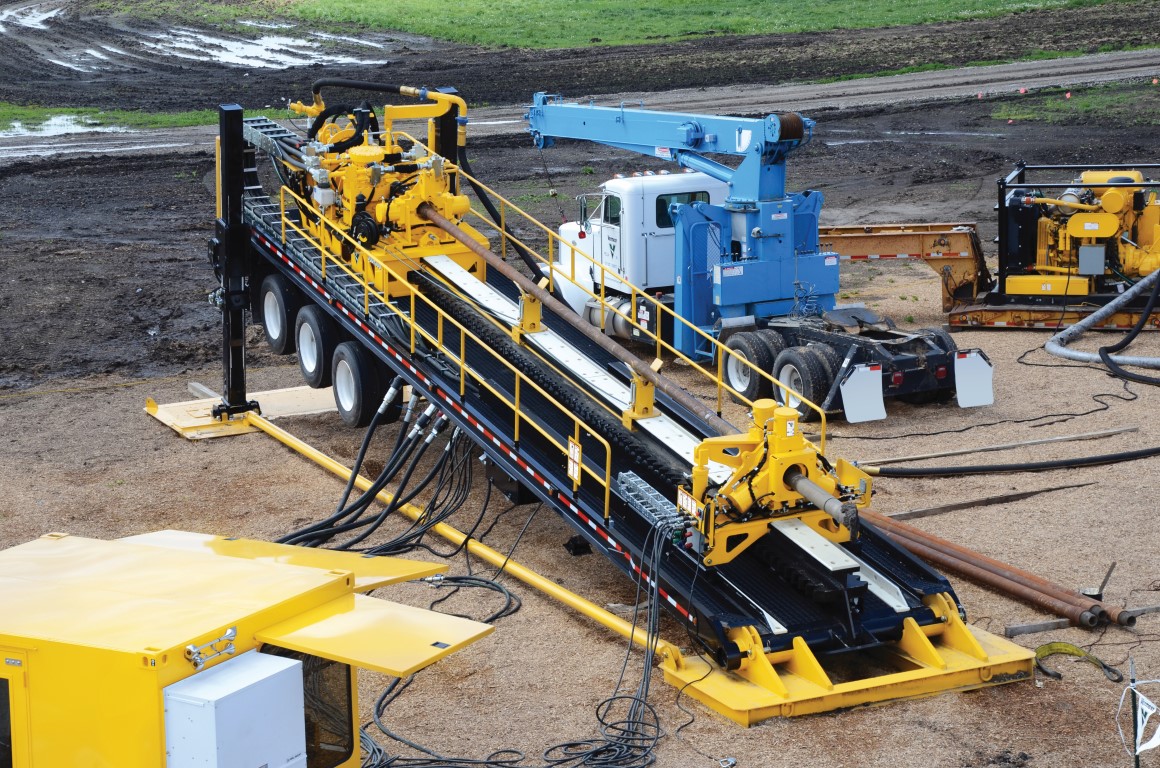

| A legendary maxi-class horizontal directional drill boasting 500,000 lbs (225 metric tons) of thrust/pullback force and 50,000 ft-lbs of spindle torque. Purpose-built for massive, large-diameter pipeline installations and demanding river crossings. Engineered with a modular footprint, independent hydraulic circuits to prevent cross-contamination, and direct high-torque hydraulic motors to enhance reliability and onsite serviceability. |
| Drill Rack & Anchoring Systems |
| Drill Rack Weight |
82,000 lbs (37,194.6 kg) |
| Transport Dimensions (L x W x H) |
45 ft x 8.5 ft x 11.5 ft (13.7 m x 2.6 m x 3.5 m) |
| Suspension Type |
Dual axle integrated with premium air ride suspension |
| Drill Rack Angle Adjustability |
8 degrees to 12 degrees |
| Front Base Anchor Footprint (L x W x H) |
20 ft x 6 ft x 24 in (6.1 m x 1.8 m x 61 cm) |
| Front Flat Anchor Footprint (L x W x H) |
9.5 ft x 5 ft x 8 in (2.9 m x 1.5 m x 20.3 cm) |
| Rear Base Anchor Footprint (L x W x H) |
16 ft x 7.8 ft x 8 in (4.9 m x 2.4 m x 20.3 cm) |
| Number of Rear Stabilizer Legs |
2 |
| Automated Drill Rod Supports |
Two mechanical-linkage rod supports travel autonomously along the rack frame. Actuated vertically by dedicated hydraulic cylinders, they lock proper stem alignment and eliminate manual rod guiding during tool make-up. |

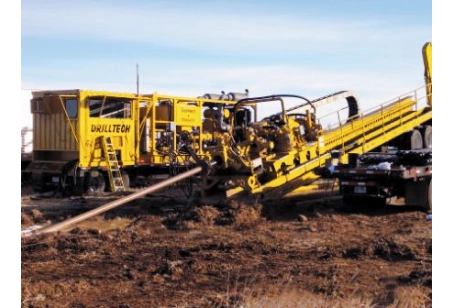

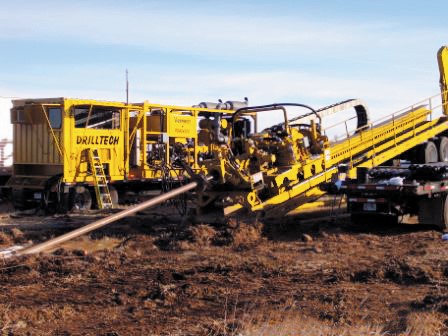

| Remote Power Pack Module |
| Engine Model |
Caterpillar (CAT) C-27 Diesel |
| Gross Power Output |
800 hp (596.6 kw) |
| Maximum Rated Engine Speed |
2,000 rpm |
| Emissions Certification |
Tier 2 (EU Stage II) |
| Power Pack Dimensions (L x W x H) |
22.4 ft x 8 ft x 10.3 ft (6.8 m x 2.4 m x 3.1 m) |
| Power Pack Weight |
38,000 lbs (17,236.5 kg) |
| Fuel Tank Capacity |
500 gal (1,892.7 L) |
| Hydraulic Tank Capacity |
720 gal (2,725.5 L) |
| Mounting & Design Options |
Narrow profile structure optimizes highway transportability and creates onboard hydraulic hose storage room. Can be ordered as skid-mounted, trailer-mounted, or integrated inside an ocean shipping container. |
| Operational Power & Hydrostatic Performance |
| Thrust Force |
500,000 lbs (2,224.1 kN) |
| Pullback Force |
500,000 lbs (2,224.1 kN) |
| Maximum Spindle Torque |
50,000 ft-lb (67,791 Nm) — achieved at low speed and maximum engine RPM |
| Maximum Spindle Speed |
66 rpm (at max engine RPM paired with the PS800 fluid swivel) |
| Maximum Carriage Travel Speed |
64 ft/min (19.5 m/min) |
| Drive Train Array |
1 Rotation Motor / 2 Carriage Drive Motors |
| Mud Swivel Size |
3 in (7.6 cm) |
| High Torque Direct Drive |
Employs single, high-torque / low-speed through-shaft hydraulic motors (Hagglunds) directly on rotary and carriage lines. Completely eliminates complex bull gears, pinions, and high-speed planetary reduction gearboxes. |
| Independent Hydraulic Architecture |
Engineered with independent isolated circuits for rotation, thrust/pullback, and auxiliary functions. Each system connects solely to its own pumps and tank chambers, ensuring that hydraulic fluid contamination is confined to a single loop, minimizing maintenance downtime. |
| Thrust Bearing Box |
Houses an oversized bearing pack assembly engineered specifically to absorb harsh axial thrust and pullback shock loads, protecting the rotational drivetrain from premature wear. |
| Breakout Vise Assemblies |
| Lower Vise Configuration |
Fully enclosed, triple-jaw (3-jaw) clamp, 8 in (20.3 cm) block style |
| Lower Vise Breakout Force |
253,000 ft-lb (343,022.5 Nm) |
| Lower Vise Travel & Net Weight |
Travel Distance: 6 ft (1.8 m) | Weight: 3,800 lbs (1,723.7 kg) |
| Lower Vise Inside Diameter |
9.8 in (24.9 cm) |
| Lower Vise Versatility |
Features easily replaceable dies and variably sized jaw blocks. Detachable via two heavy-duty pins and six hydraulic quick-disconnects for quick reconfigurations or casing alignment procedures. |
| Upper Vise Configuration |
Floating carriage-mounted upper vise, 2-jaw clamp design (Standard Equipment) |
| Upper Vise Clamp Force |
250,000 ft-lb (338,955 Nm) |
| Upper Vise Inside Diameter |
10 in (25.4 cm) |
| Upper Vise Performance Advantage |
Grips the drill rod directly adjacent to the drive shaft, preventing rod wrap/wind-up during joint breakouts. Integrated lateral float stops premature thread striping and drastically cuts carriage travel cycle times down the frame. |
| Driller Operator Station (Cabin) |
| Cabin Dimensions (L x W x H) |
10 ft x 8 ft x 8 ft (3.1 m x 2.4 m x 2.4 m) |
| Net Weight |
6,000 lbs (2,721.6 kg) |
| Climate Control Subsystem |
Heavy-duty, in-wall combination heating and air conditioning unit |
| Safety Systems & Loop Filtration |
| Remote Lockout / Strike Alert |
Yes / Yes (Full system compliance standard) |
| Bi-Directional Filtration Loop |
Closed-loop hydrostatic circuit is paired with ultra-precise high-pressure bi-directional filters to constantly extract micro-contaminants, preventing premature pump or motor failure. |
