| Architectural Layout & Operational Design Strategy |

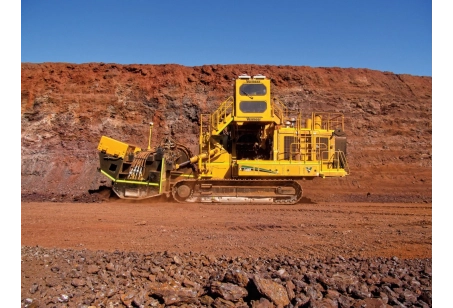

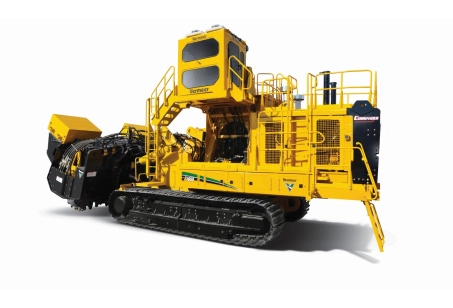

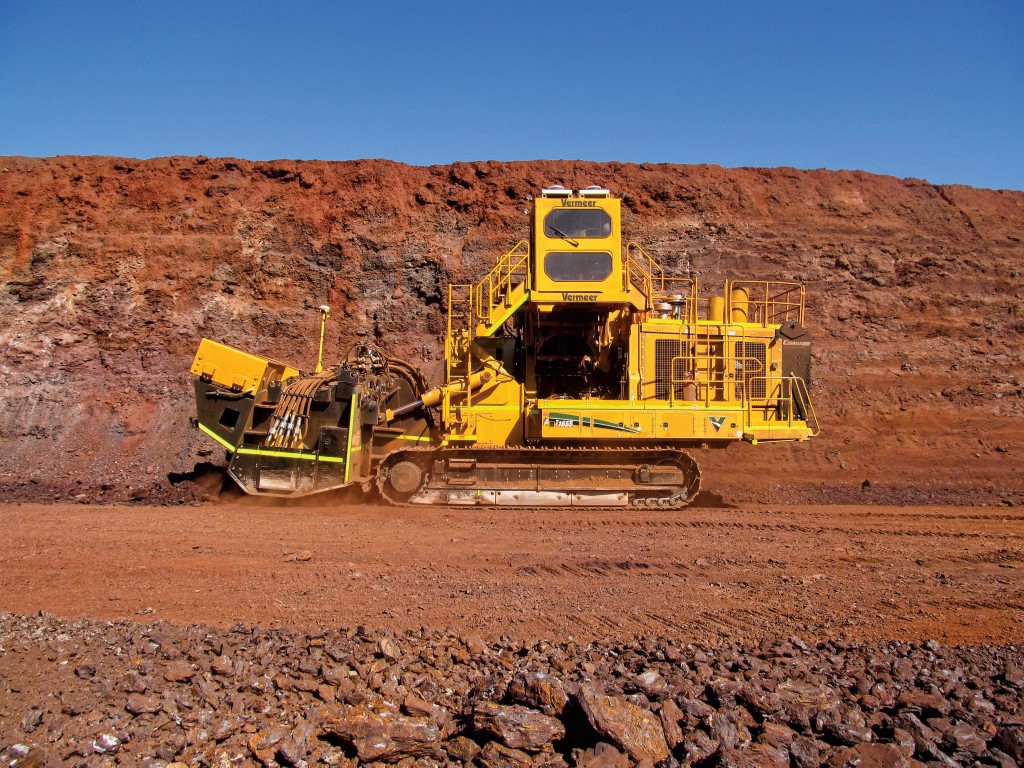

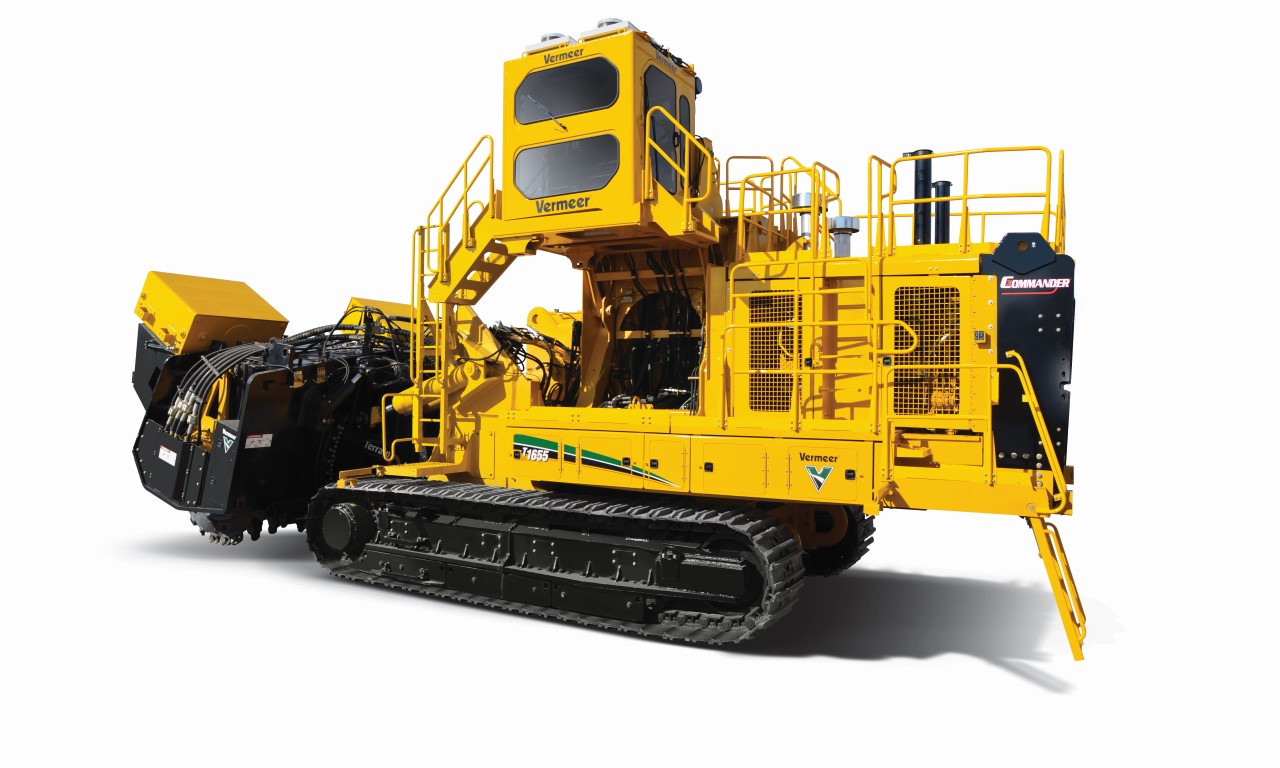

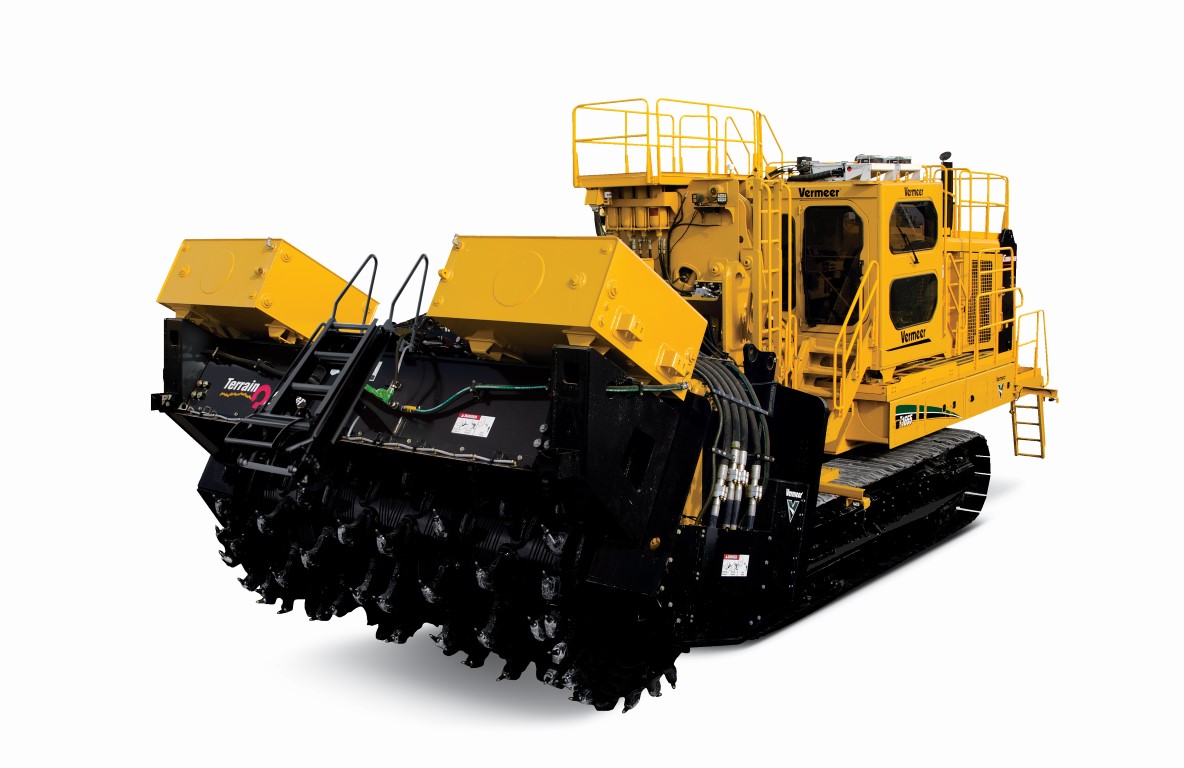

| The flagship T1655 surface miner is engineered around the rugged Vermeer Commander 3 heavy track trencher platform, seamlessly paired with a patented Surface Excavation Machine (SEM) module. Driven by a sophisticated dual-engine layout feeding a common pump drive block, the machine ensures both powerplants evenly supply all hydraulic functions, maximizing total component utilization. If one engine goes offline, the system adapts to single-engine power mode so the operator can safely drive the crawler out of the cut to a service area. With the cutting drum positioned strictly at the rear, the tracks remain firmly on uniform, uncut stable ground. Utilizing top-down cutting physics, the teeth strike the rock surface from above to maximize fracture mechanics, decrease tractive drive power demand, and eliminate material self-crushing under the undercarriage. |
| Power Unit / Dual Engine Infrastructure |
| Engine Configuration & Certification |
Dual Engine Setup: 2 × CAT C18 ACERT (EPA Tier 3 Certified) |
| Combined Gross Power Output |
1200 hp (894.8 kw) / 600 hp (447 kw) per individual engine block |
| Fuel Consumption at Full Load Matrix |
60.5 gph (229 lph) |
| Fuel Reservoir Capacity |
800 gal (3028.3 L) |
| Continuous Operational Range |
13.2 hours of run-time at maximum continuous duty cycles |
| Clutch Engagement Hardware |
Self-adjusting PT Tech wet disc clutches isolated per engine to decrease wear costs |
| Tracks & Undercarriage Drivetrain |
| Track Footprint Base Length |
215.6 in (547.6 cm) |
| Ground Pressure Profile (Constant Min/Max) |
25.8 psi (177.9 kPa) |
| Maximum Travel Speed - Low Range |
45.7 ft/min (13.9 m/min) |
| Maximum Travel Speed - High Range |
103.9 ft/min (31.7 m/min) |
| Center of Gravity Alignment |
Low-slung profile balanced near the lateral and fore/aft midlines |

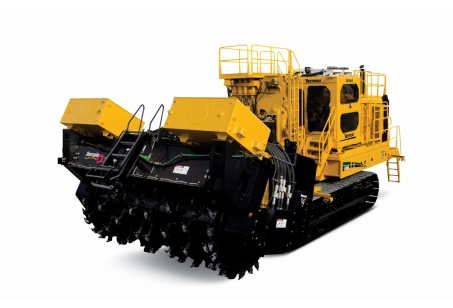

| Terrain Leveler SEM Attachment Matrix |
| Total Surface Cutting Width Profile |
180 in (457.2 cm) |

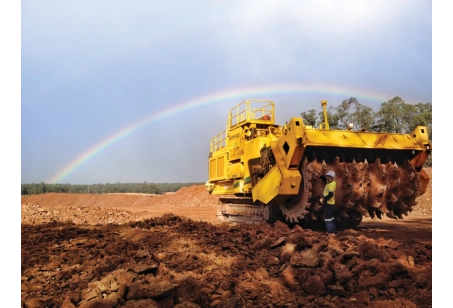

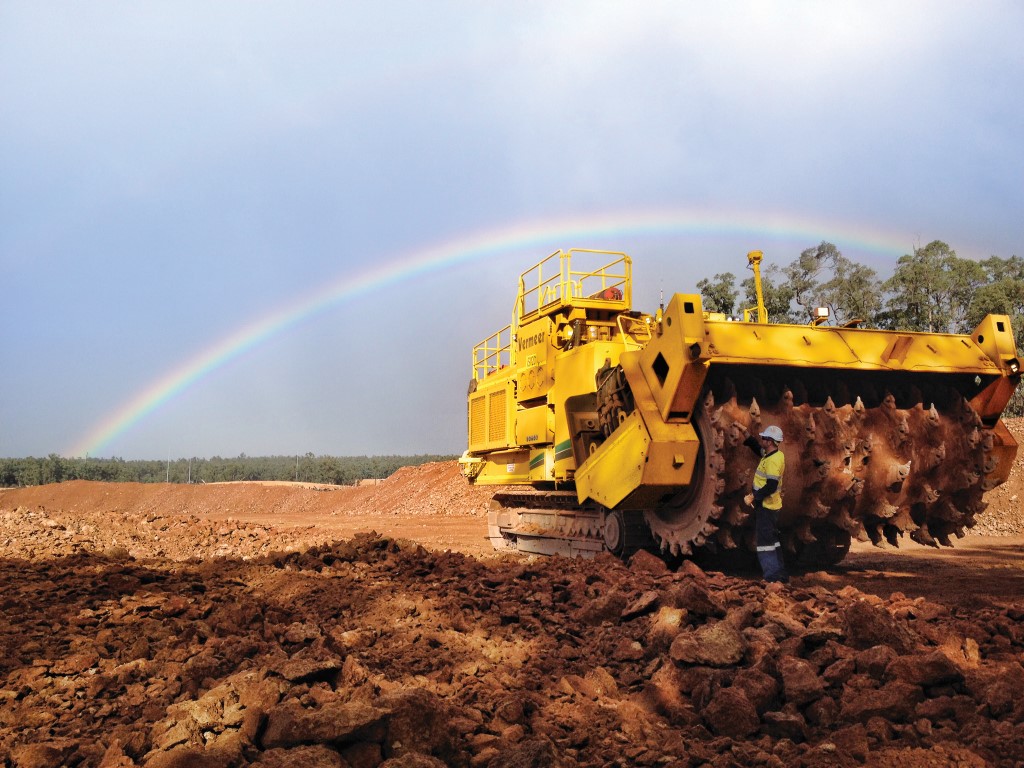

| Drum Drive Architecture |
Direct Drive — high-torque hydrostatic drive motors coupled inside the cutter drum (eliminating chains, sprockets, or belts) |
| Patented Drum Tilt Mechanics |
Dynamic transverse tilting +/- 5 degrees for pristine grade-level floor control |
| Remote Attachment Control (RAC) System |
External hand-held console enabling safe engine stop/start, boom lift, and incremental drum rotation during tooth replacements away from hazards |
| Operator Station / Enclosed Cab Environments |
| Cab Positioning Architecture |
Elevating ROPM Cab for line-of-sight trench oversight; folds flat to streamline long-haul regional logistics |
| Structural Safety Certifications |
Integrated Rollover Protective Module (ROPM) and Level 2 FOPS rating (compliant with ISO 3449) |
| Cab Isolation & Suspension |
Four-point air-ride airbag and shock absorber setup minimizing high-frequency mine shockwaves |
| Climate Control & Ergonomics |
Dual self-contained HVAC networks; pressurized and filtered clean-air induction; sound attenuating foam layers; dual swivel air-ride suspension seats accommodating operator and field trainer |
| Glazing and Vision Profiles |
Scratch-resistant, tinted laminated safety Lexan glass rejecting UV radiation while optimizing visibility |
| Telemetry, Hydraulics & Service Interfaces |
| Master Electronic Management |
Vermeer TEC Plus system utilizing CAN bus networks to link distributed controller modules |
| Grade Control Adaptability |
GPS/Laser Ready interface for automated guidance or 3D mining plans |
| Blind-Spot Camera Integration |
Supports up to four remote external cameras synced to internal multi-view displays |
| Automated Load Control Systems |
Smart load matching adjusting track ground speeds based on engine RPM drops across changing hard rock layers |
| Hydraulic System Flow Specs |
Pump Output: 66.4 gpm (251.4 L/min) @ Max RPM; relief pressure: 2500 psi (172.4 bar) |
| Hydraulic Fluid Capacity |
440 gal (1665.6 L) oil tank |
| Fluid Replenishment Interfaces |
Quick Fill Ready factory ports for centralized fast-coupling of fuel, hydraulic fluid, coolant, motor oil, and grease systems |
| Extended Care Service Programs (Factory Options) |
| Vantage Track (3-year/3000-hour) or Vantage Track II (5-year/5000-hour) comprehensive hydrostatic component structural service protection plans. |
