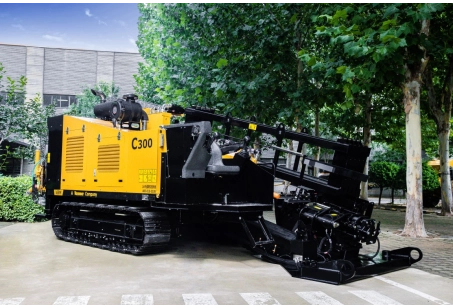

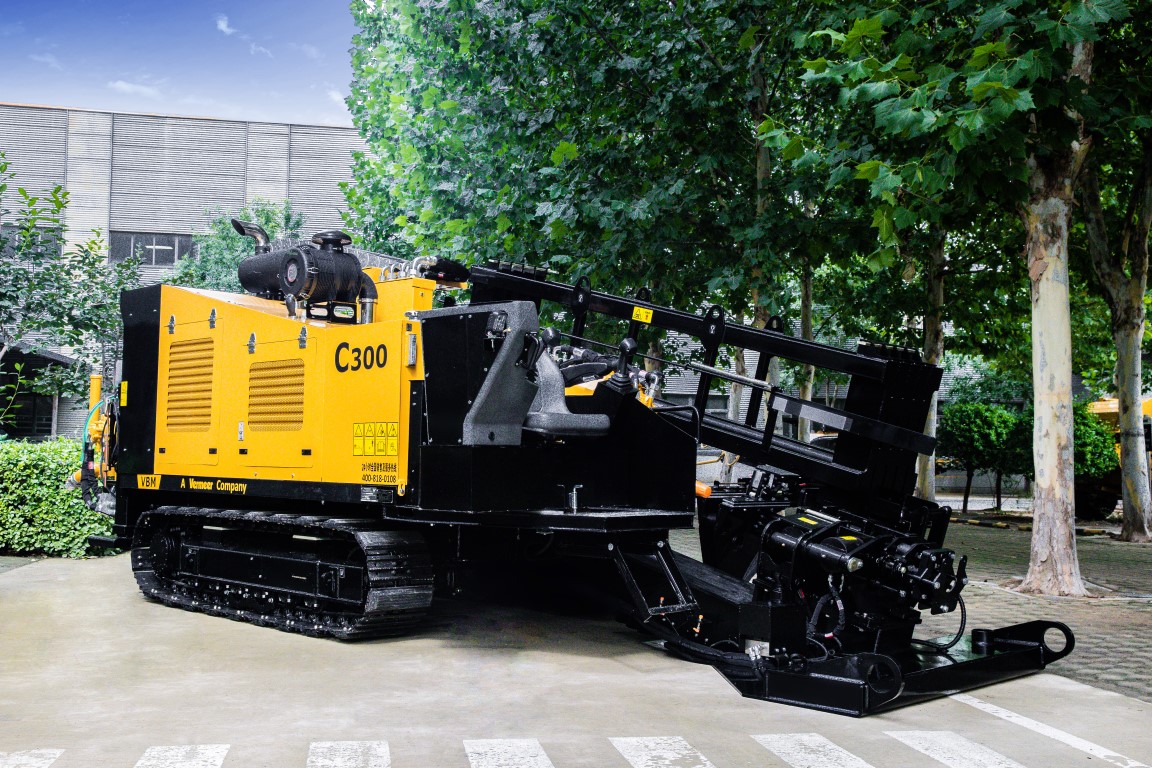

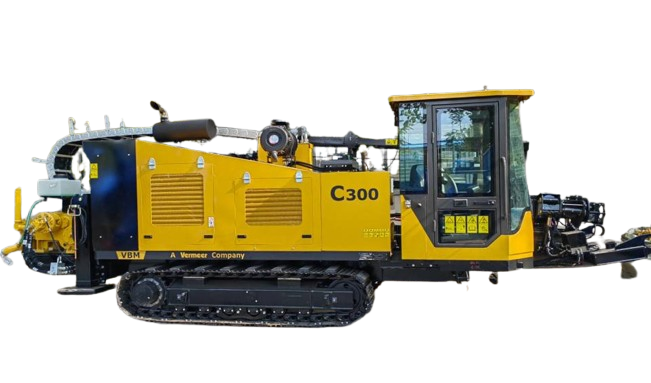

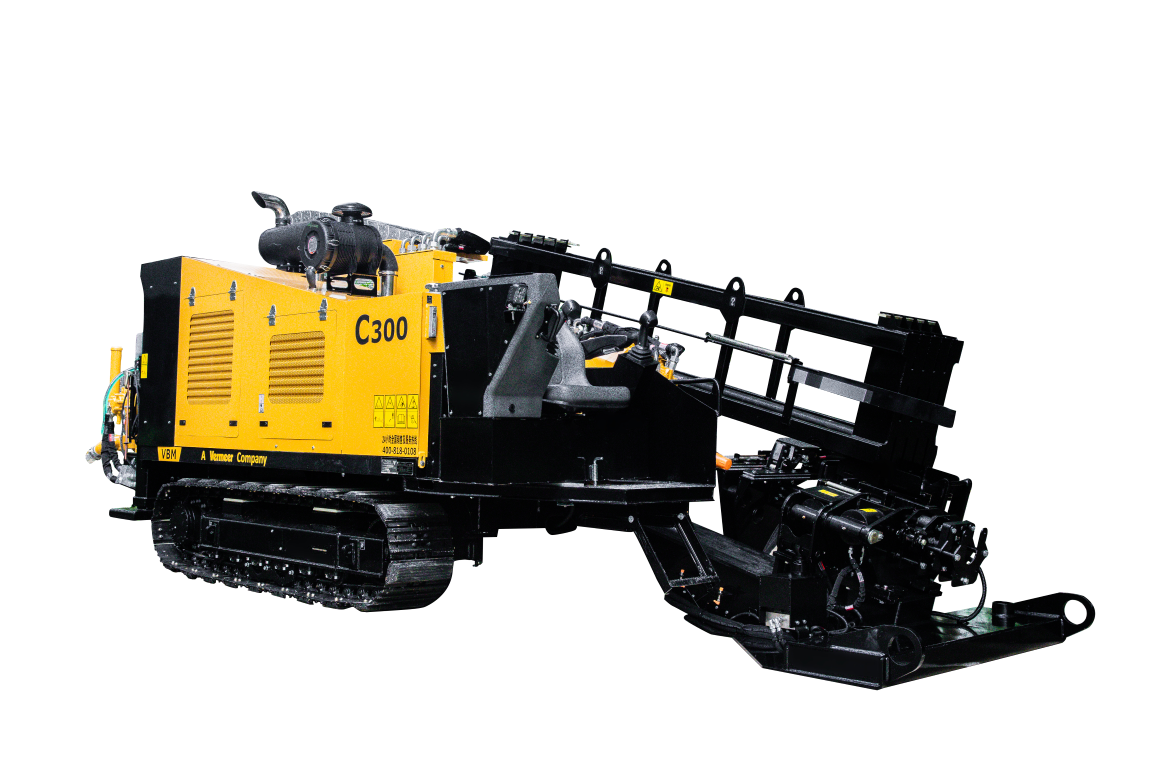

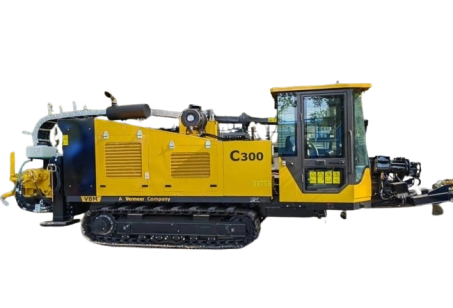

| Drilling Rig Specifications | |
|---|---|
| Dimensions and Weights | |
| Total length | 7.3 m |
| Total width | 2.2 m |
| Total width (Minimum transport with rod loader) | 2.3 m |
| Total height | 2.3 m |
| Total height (Minimum transport with rod loader) | 3 m |
| Total weight (Base machine) | 10.4 t |
| Total weight (Base machine with rod loader) | 11.6 t |
| Total weight (Base machine with rod loader and 40 rods) | 14.2 t |
| Performance | |
| Maximum pullback | 30 t |
| Maximum thrust | 30 t |
| High thrust/pullback speed | 28 m/min |
| Low thrust/pullback speed | 14 m/min |
| Maximum spindle torque | 8,918 Nm |
| Medium spindle torque | 6,692 Nm |
| Low spindle torque | 4,496 Nm |
| High rotation speed | 148 rpm |
| Medium rotation speed | 98 rpm |
| Low rotation speed | 74 rpm |
| Maximum ground drive speed | 2.5 km/h |
| Engine (Tier 3) | |
| Brand | CUMMINS |
| Model | QSB5.9-C150-31 |
| Power | 113 kW |
| Rated RPM | 2,200 rpm |
| Drill Pipe | |
| Type | API NC23 |
| Rod diameter | 73 mm |
| Rod length | 3 m |
| Weight | 54 kg |
| Entry angle | 9° - 18° |
| Features | |
| Breakout system (Vise) | Standard |
| Manual stakedown | N/A |
| Cab w/heat and A/C | N/A |

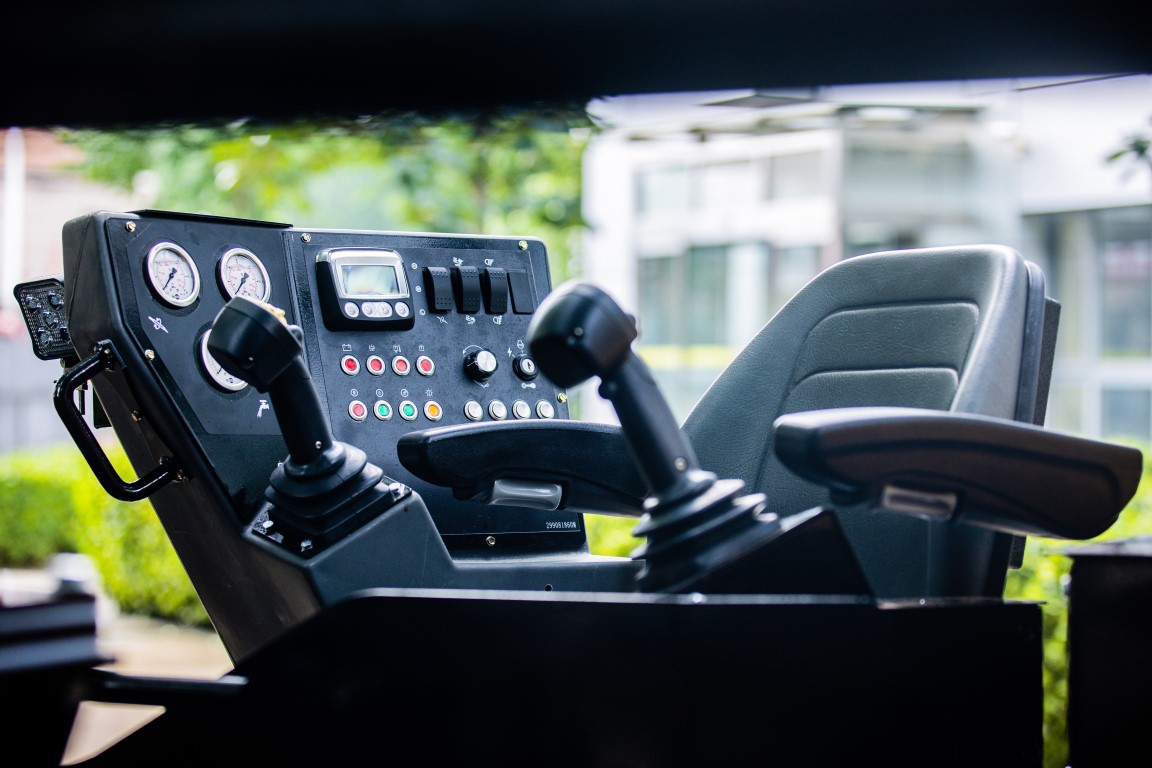

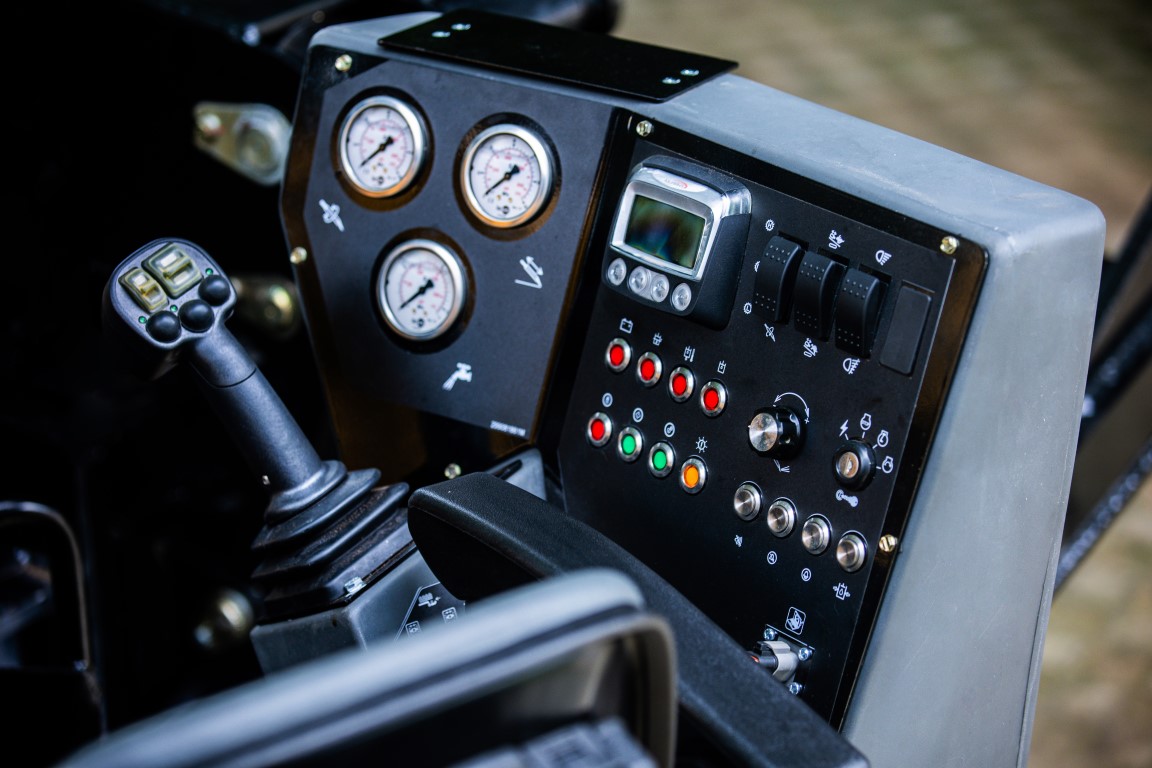

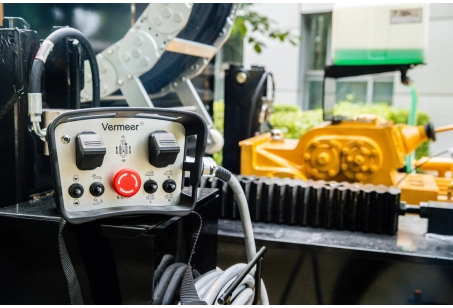

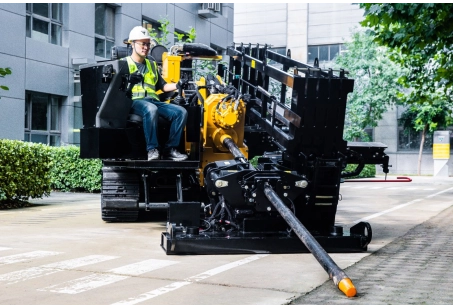

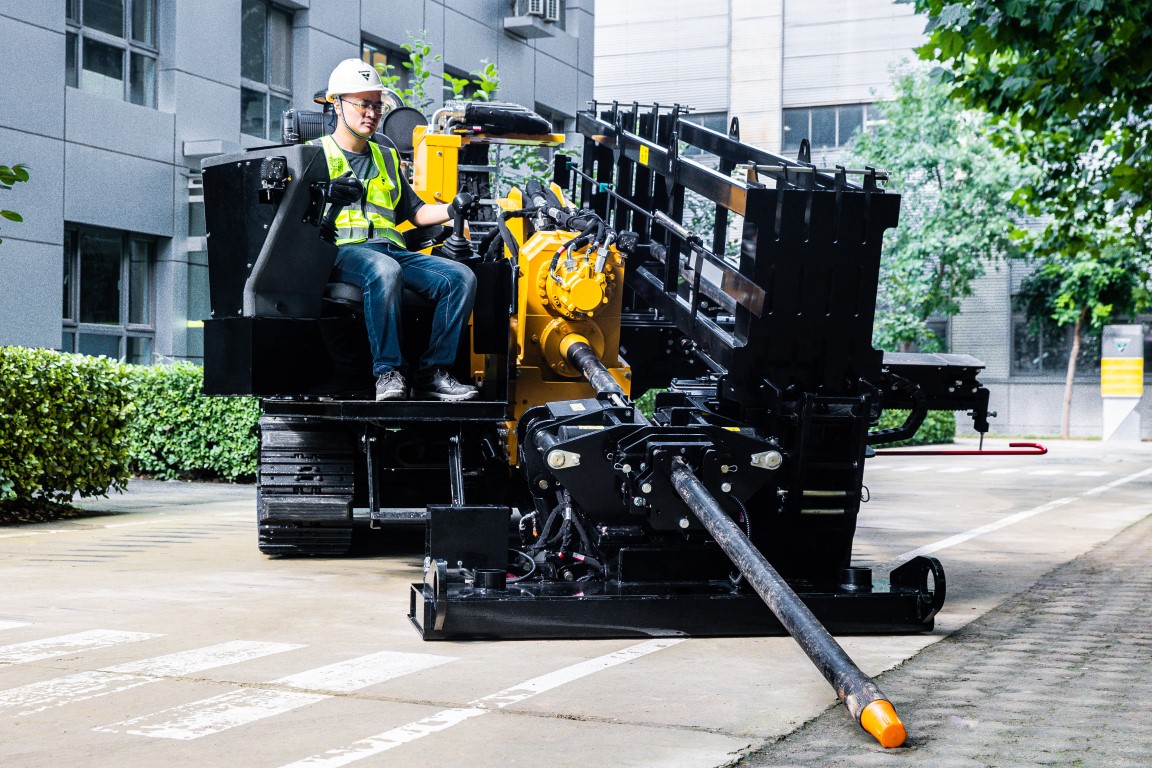

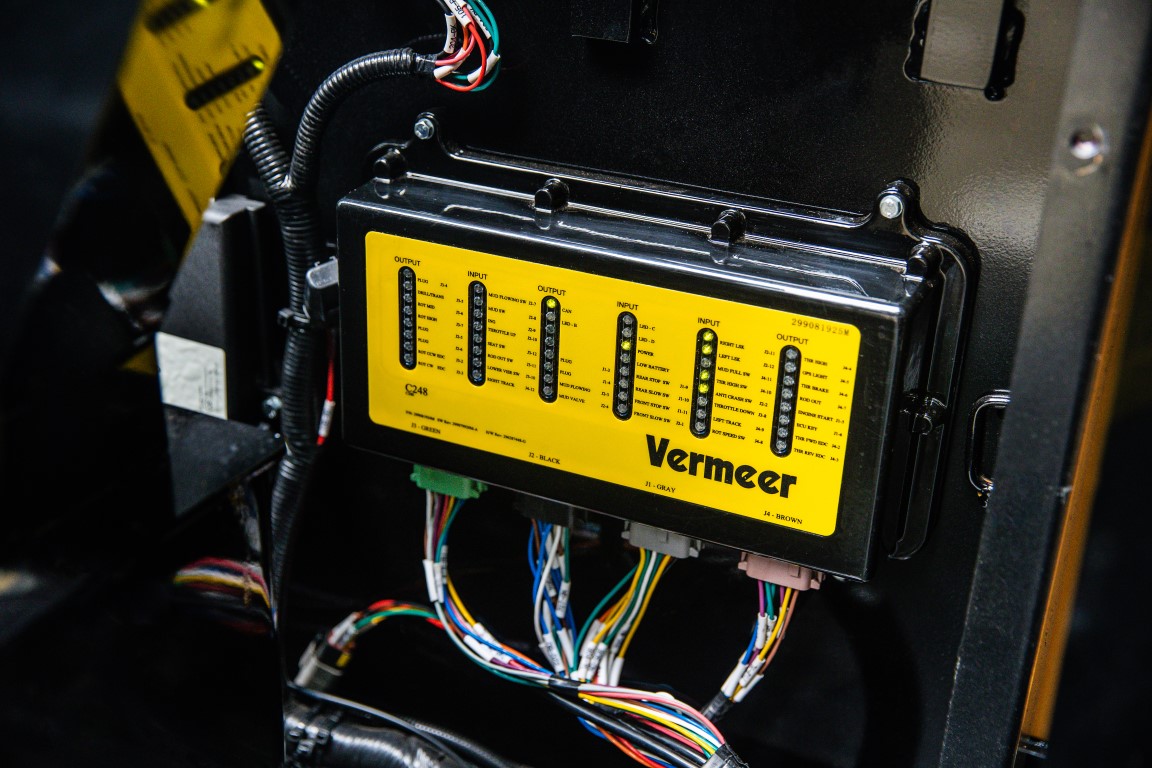

| Operator console | Standard |

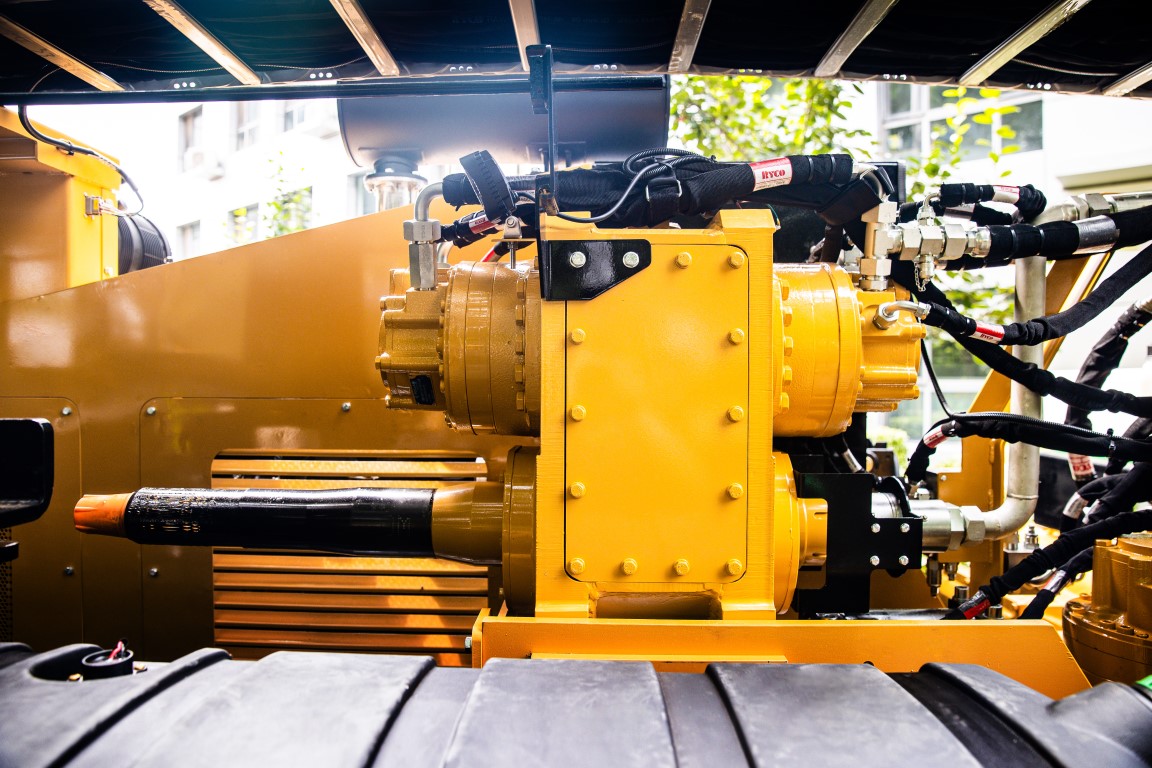

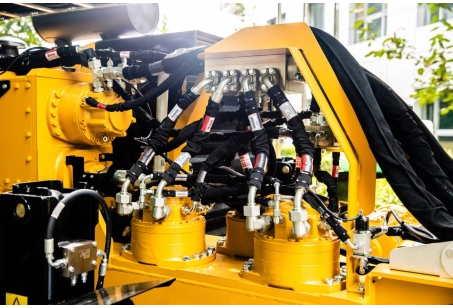

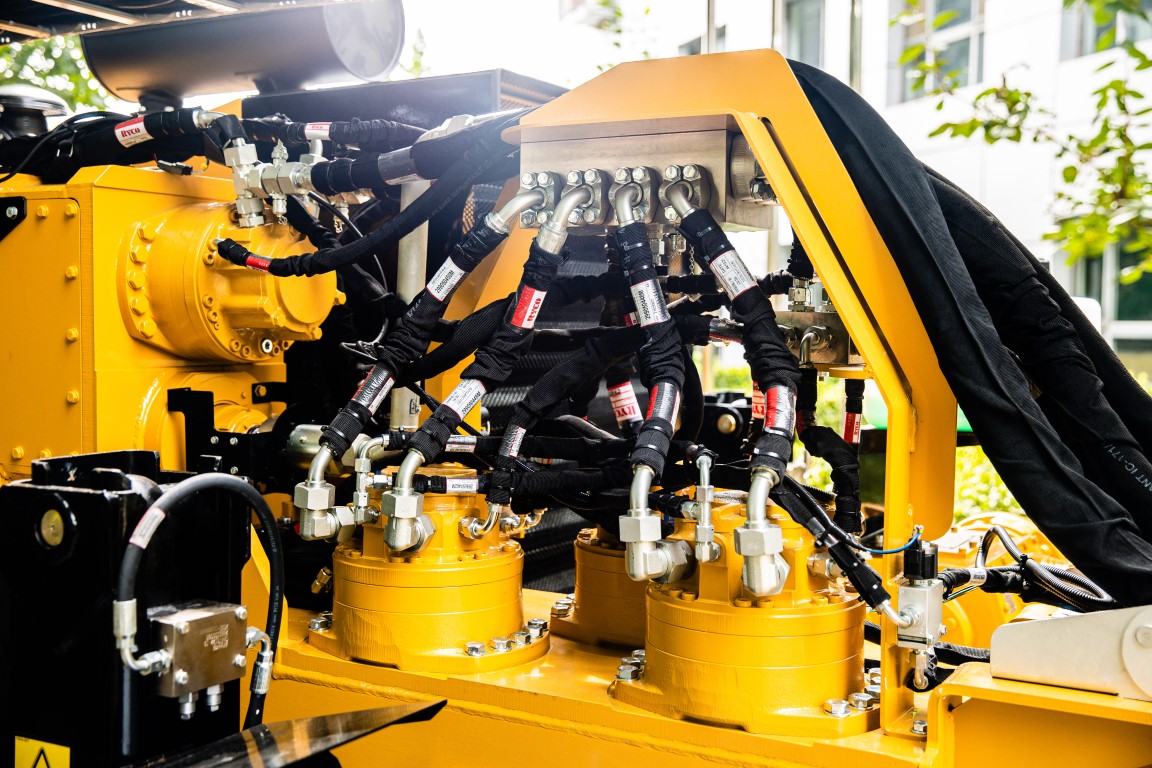

| Gearbox thrust method | Rack and pinion |

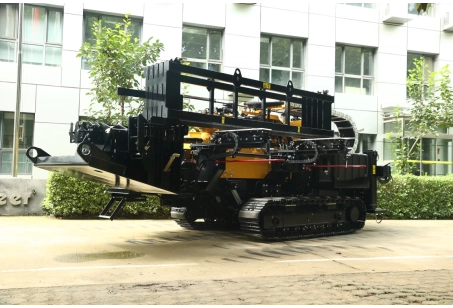

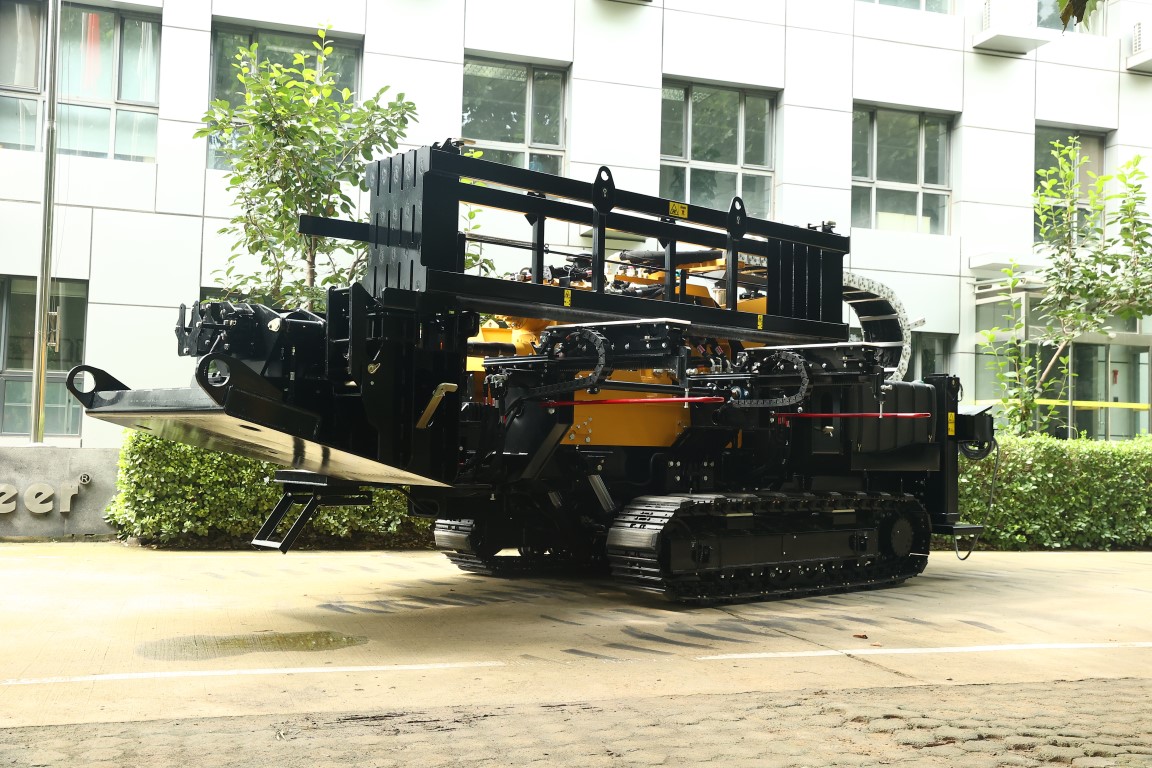

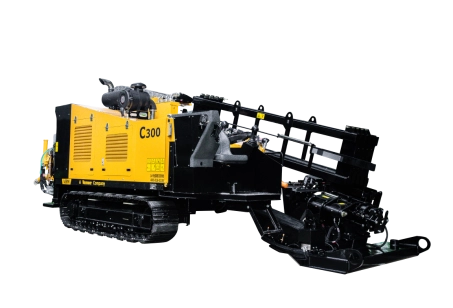

| Rod loader | Standard |
| Rubber pad | Optional |

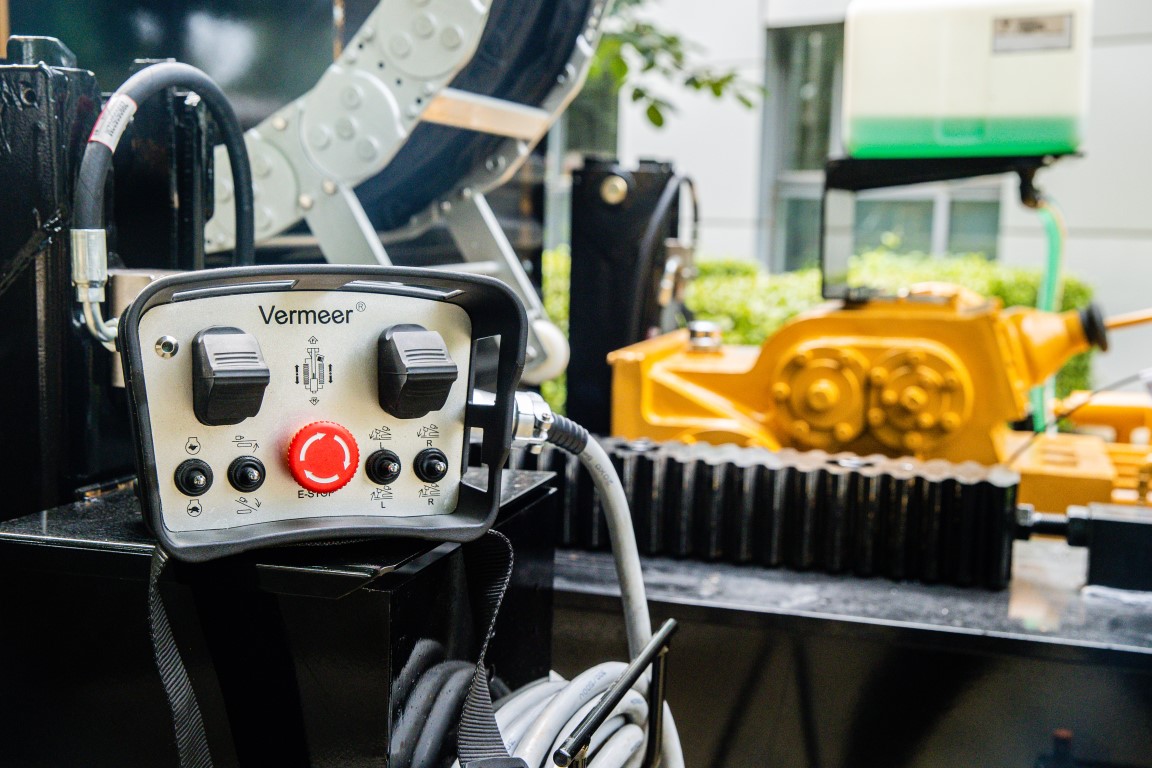

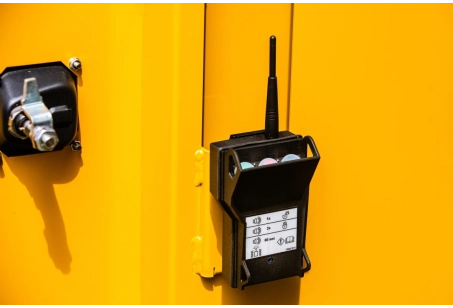

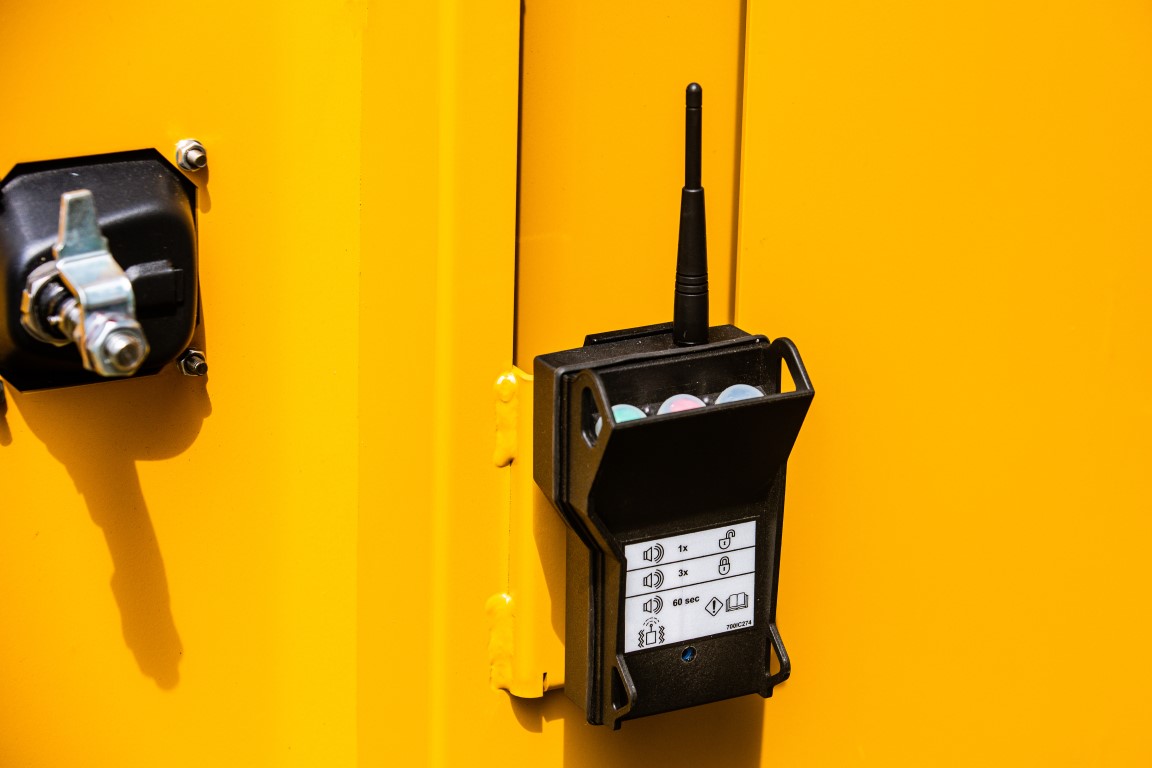

| Remote lockout | Standard |
| Strike alert | Standard |
| Mud flow indicator | N/A |
| Mud Pump (Chinese) | |
| Maximum pressure | 80 bar |
| Maximum flow | 350 L/min |
| Tank Capacity | |
| Hydraulic tank | 420 L |
| Fuel tank | 230 L |
