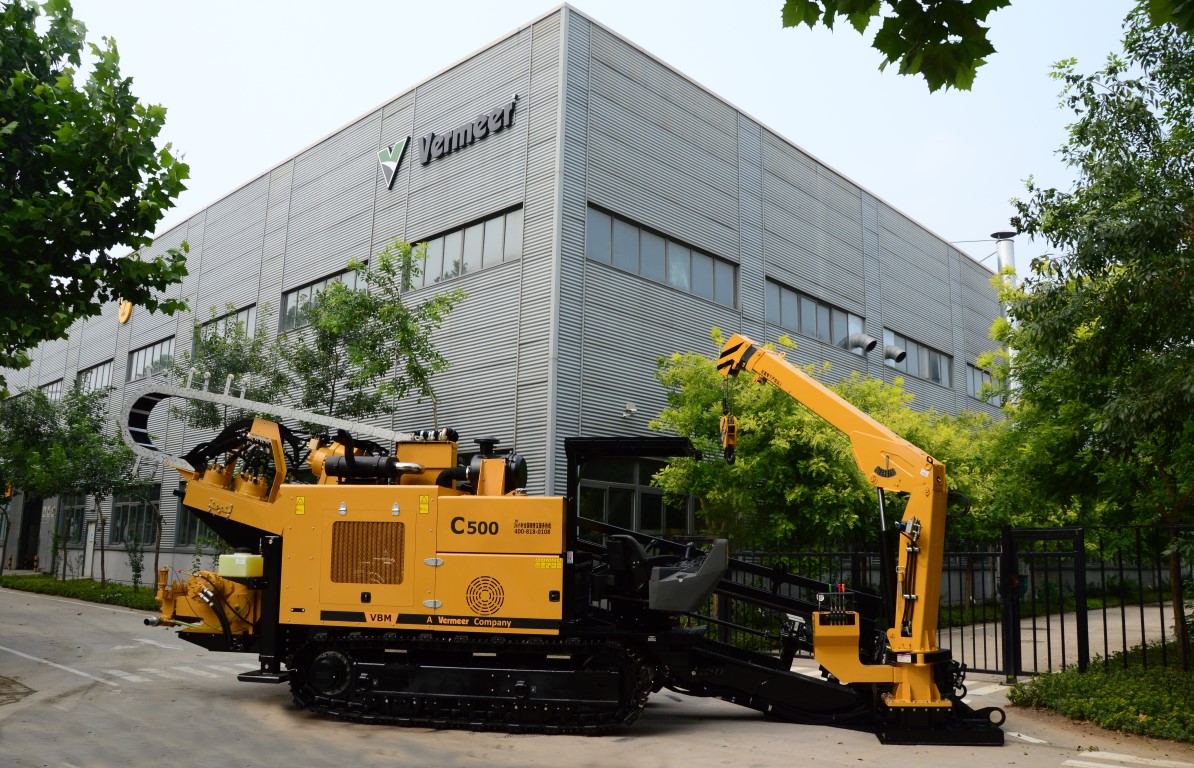

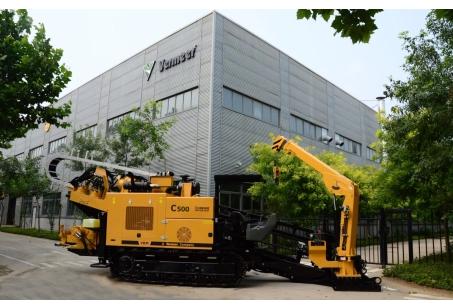

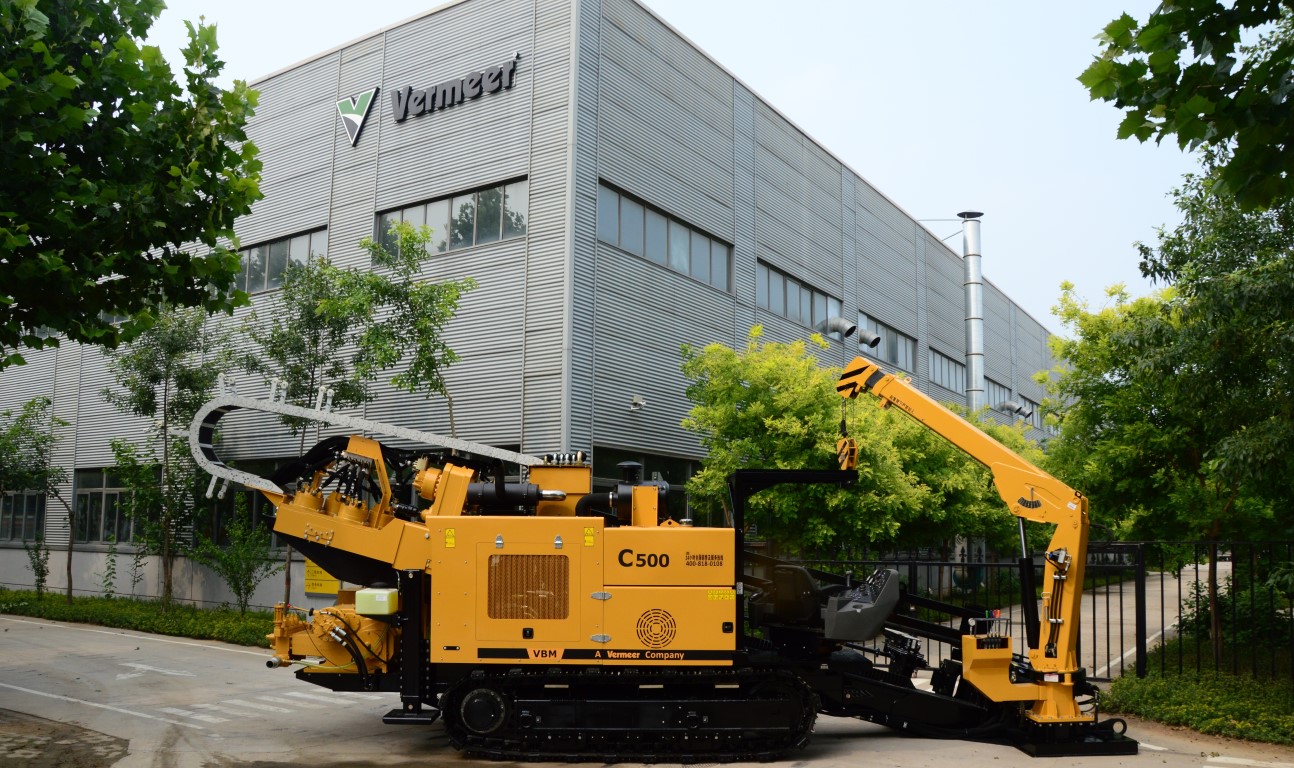

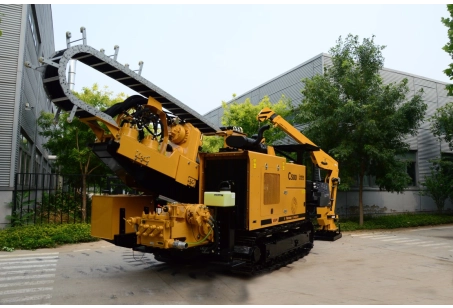

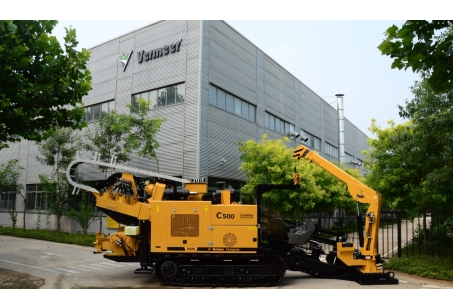

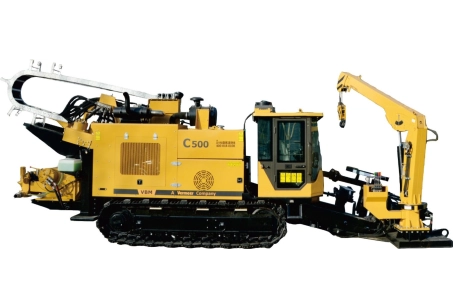

| Dimensions and Weights |
| Total length |
9 m |
| Total width (Minimum transport with rod stager) |
2.3 m |
| Total width (Minimum transport with rod loader) |
2.7 m |
| Total height (Minimum transport with rod stager) |
2.9 m |
| Total height (Minimum transport with rod loader) |
3.1 m |
| Total weight (Base machine with cab and rod stager) |
17 t |
| Total weight (Base machine with cab, rod stager and crane) |
17.8 t |
| Total weight (Base machine with cab and rod loader) |
17.5 t |
| Total weight (Base machine with cab, rod loader and 16 rods) |
19.18 t |
| Total weight (Base machine with cab, rod loader, 16 rods and crane) |
20 t |
| Performance |
| Maximum pullback |
50 t |
| Maximum thrust |
50 t |
| High thrust/pullback speed |
30 m/min |
| Low thrust/pullback speed |
15 m/min |
| Maximum spindle torque |
14,000 Nm |
| Medium spindle torque |
10,650 Nm |
| Low spindle torque |
7,300 Nm |
| High rotation speed |
140 rpm |
| Medium rotation speed |
90 rpm |
| Low rotation speed |
70 rpm |
| Maximum ground drive speed |
2.8 km/h |

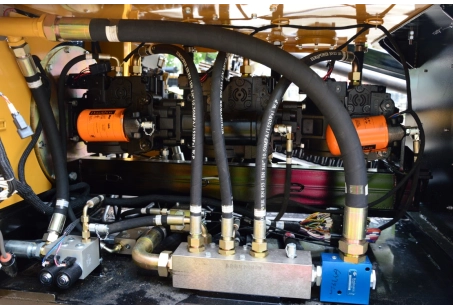

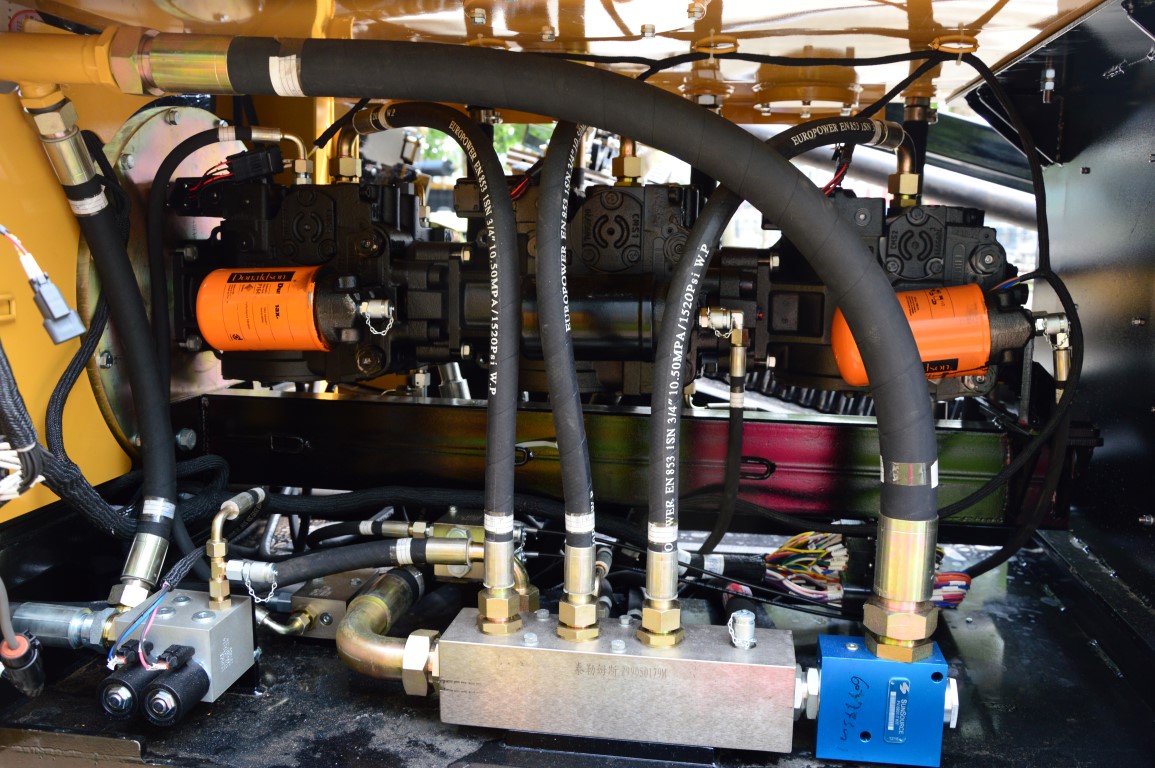

| Engine (Tier 3) |
| Brand |
CUMMINS |
| Model |
QSC8.3-C240-30 |
| Power |
179 kW |
| Rated RPM |
2,200 rpm |
| Drill Pipe |
| Type |
API NC31 |
| Rod diameter |
89 mm |
| Rod length |
4.5 m |
| Weight |
100 kg |
| Entry angle |
9° - 18° |

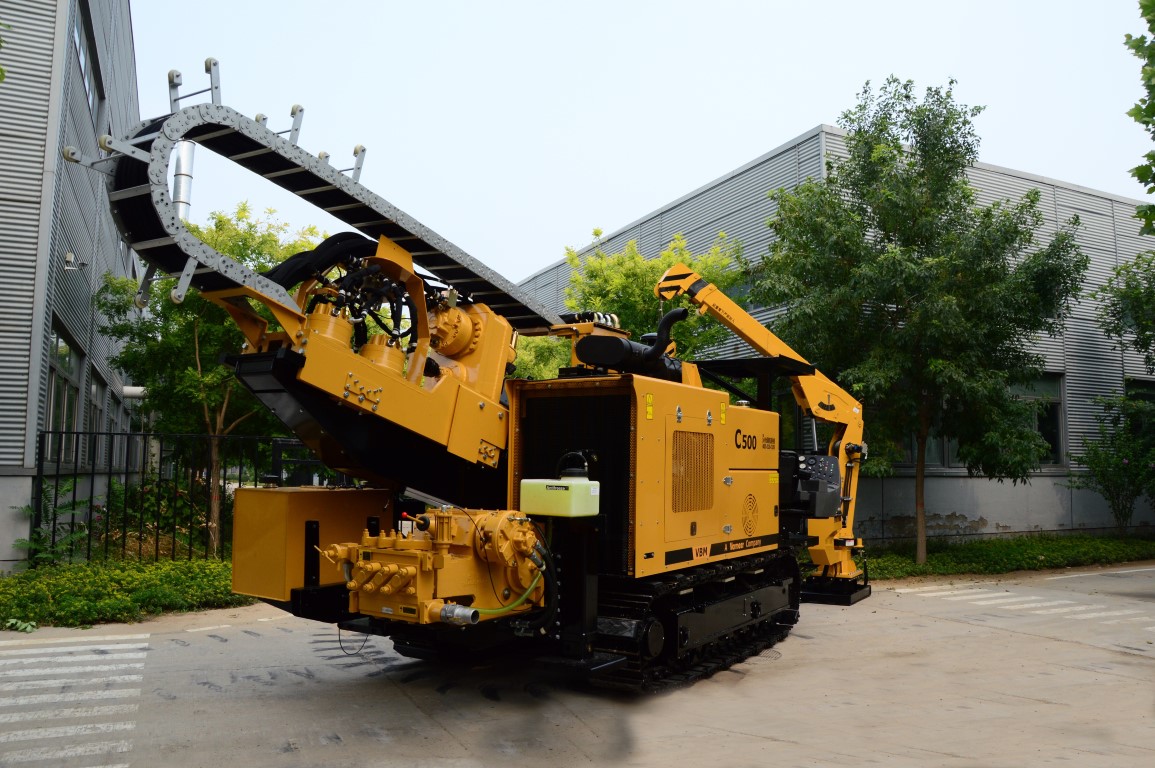

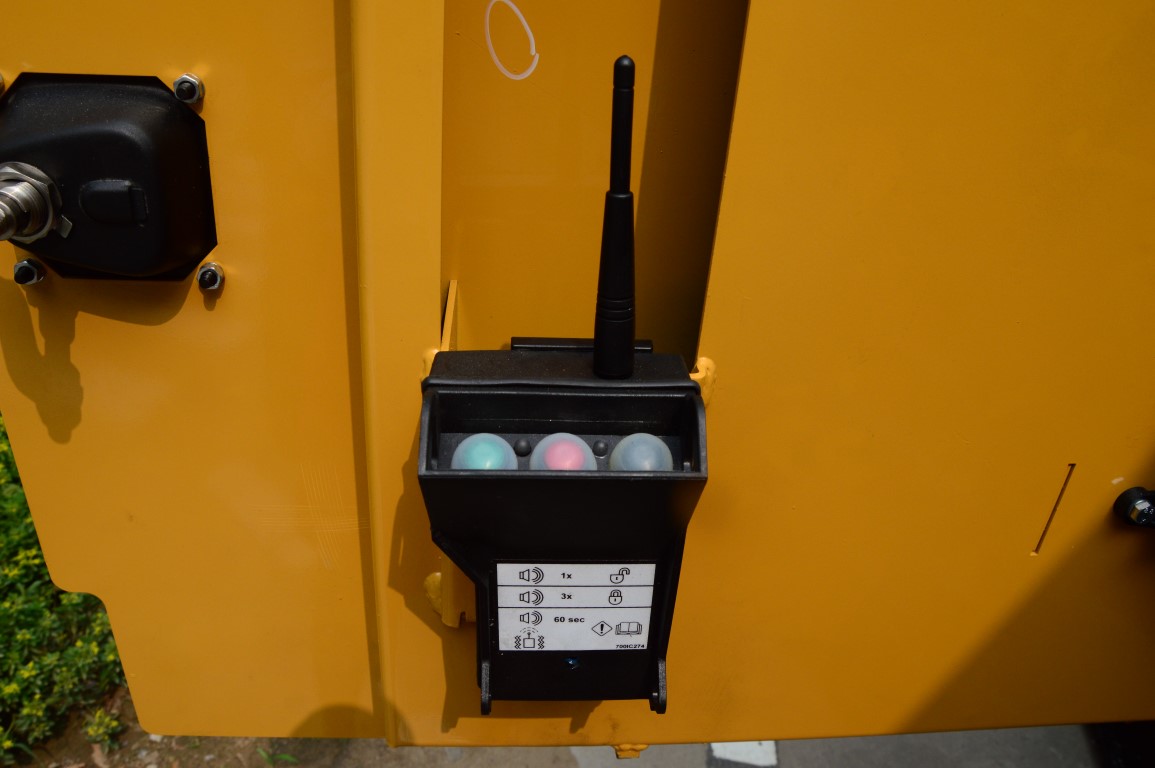

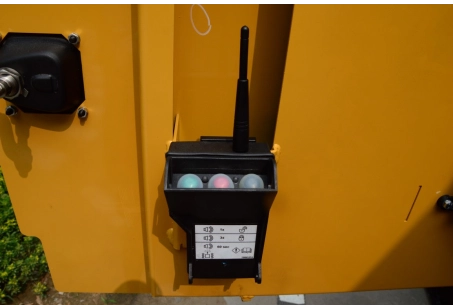

| Features |

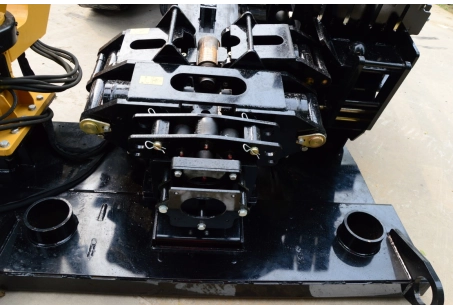

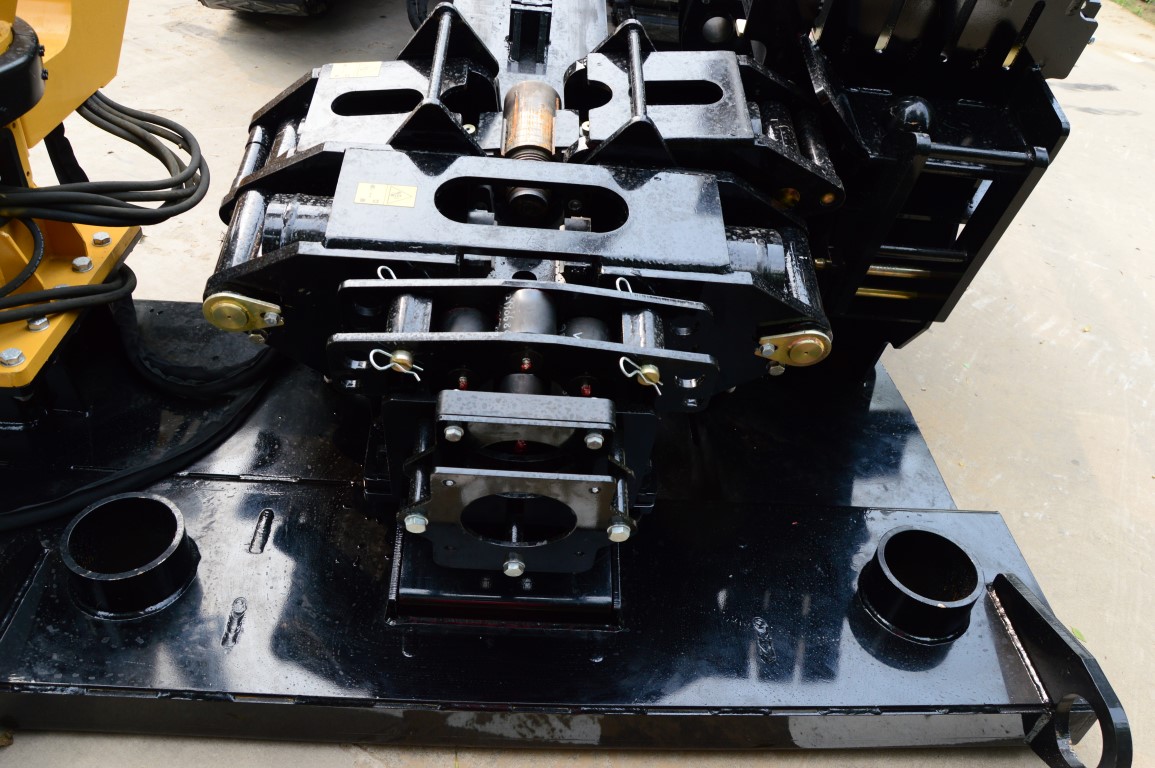

| Breakout system (Vise) |
Standard |
| Manual stakedown |
Optional |
| Drilling lights |
Standard |
| Mud flow indicator |
N/A |

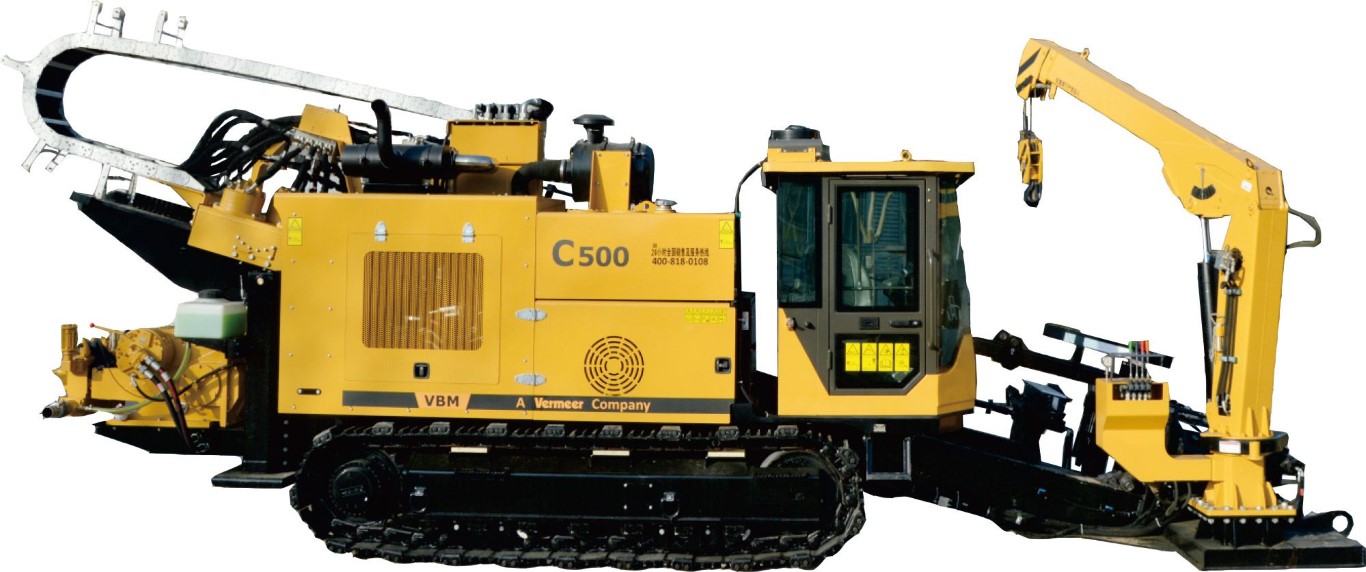

| Cab w/heat and A/C |
Standard |

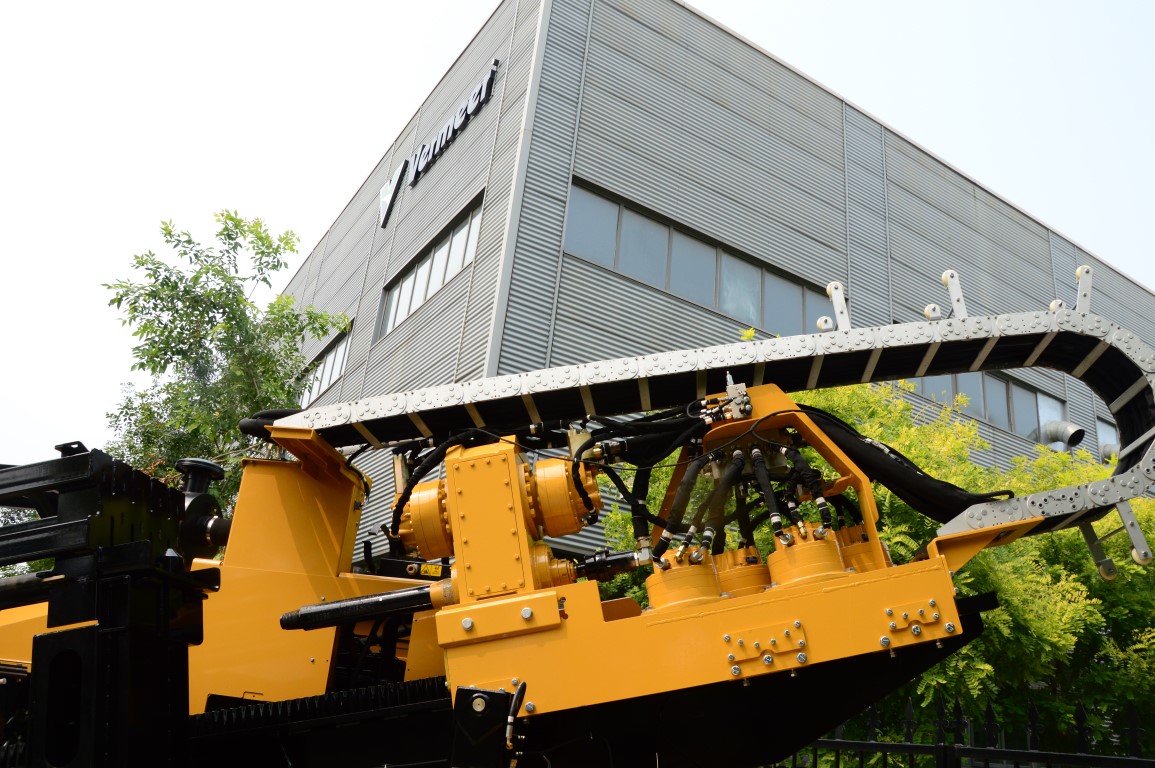

| Gearbox thrust method |
Rack and pinion |

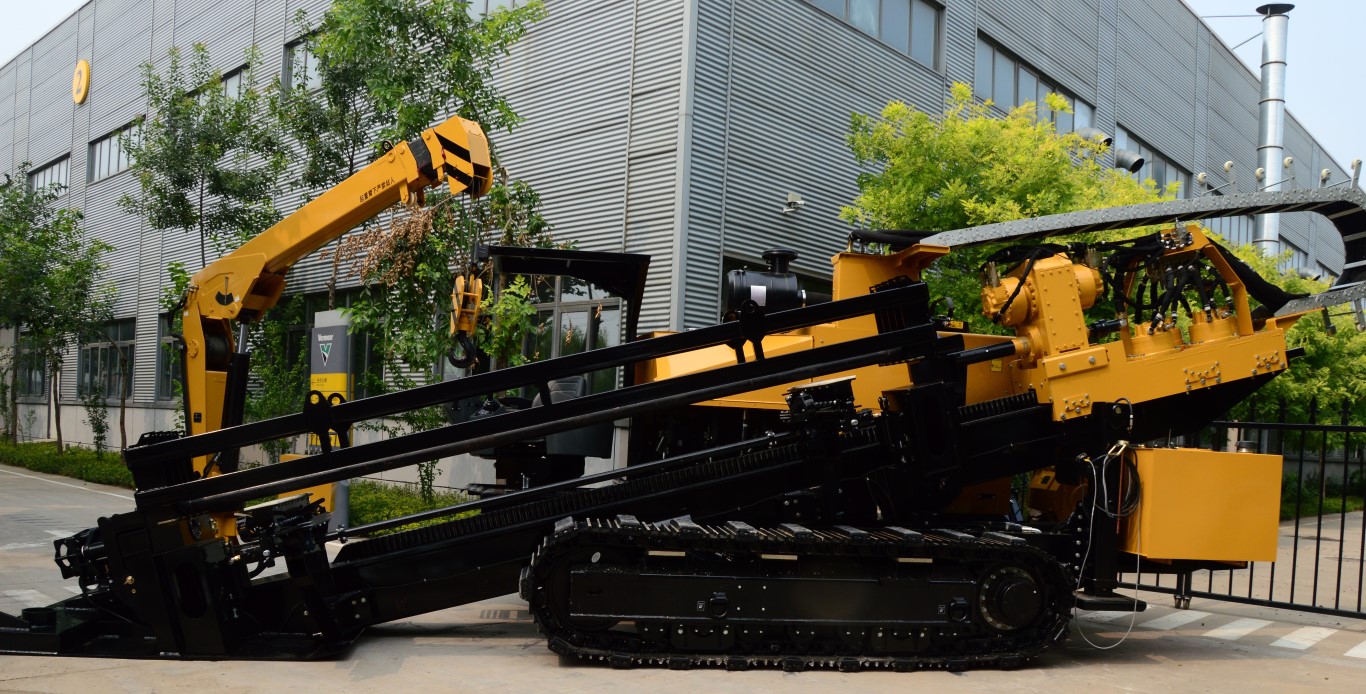

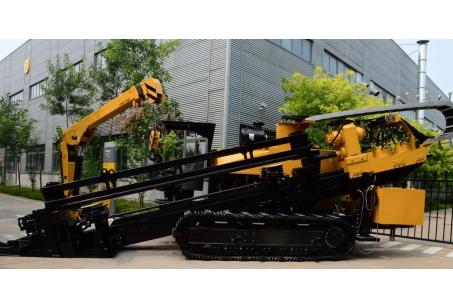

| Rod loader |
Optional |
| Mud Pump (Chinese) |
| Maximum pressure |
100 bar |
| Maximum flow |
650 L/min |
| Tank Capacity |
| Hydraulic tank |
410 L |
| Fuel tank |
320 L |
