- Вес 7,200 lb (3,265.9 kg)
- Min transport length 153 in (389 cm)
- Min transport width 44 in (111.8 cm)
- Min transport height 66 in (167.6 cm)
| ENGINE OPTION ONE | |
| Make/Model | Deutz TD2.9 |
| Fuel type | Low sulfur diesel |
| Max engine rpm | 2,300 rpm |
| Gross horsepower | 60 hp (45 kW) |
| Aspiration | Turbocharged |
| Noise level at operator's ear | 86 dB(A) |
| Emissions rating | Tier 4i (EU Stage IIIA) |
| ENGINE OPTION TWO | |
| Make/Model | Deutz TD2.9 |
| Fuel type | Low sulfur diesel |
| Max engine rpm | 2,300 rpm |
| Gross horsepower | 60 hp (45 kW) |
| Aspiration | Turbocharged |
| Noise level at operator's ear | 86 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage IV) |
| ENGINE OPTION THREE | |
| Make/Model | Deutz TD2.9 |
| Fuel type | Low sulfur diesel |
| Max engine rpm | 2,300 rpm |
| Gross horsepower | 60 hp (45 kW) |
| Aspiration | Turbocharged |
| Noise level at operator's ear | 87 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage V) |
| OPERATIONAL | |
| Thrust/Pullback | 10,000 lb (44.5 kN) |
| Max carriage speed at max engine rpm | 208 fpm (63.4 m/min) |
| Max spindle torque (low at max engine rpm) | 1500 ft-lb (2033.7 Nm) |
| Max spindle speed at max engine rpm | 240 rpm |
| Min bore diameter | 2.5 in (6.4 cm) |
| Max ground drive speed at max engine rpm (fwd) | 3.3 mph (5.3 km/h) |
| Drill rack angle | 14°–17° (24.9%–30.6%) |
| FLUID CAPACITIES | |
| Fuel tank | 18 gal (68.1 L) |
| Hydraulic system | 25 gal (94.6 L) |
| DRILLING FLUID SYSTEM | |
| Breakout system | Standard hydraulic vise |
| Flow indicator | Standard |
| Stakedown system | Standard |
| Strike alert | Standard |
| Remote lockout | Standard |
| DRILL PIPE | |
| Type | 1.66 Firestick® drill rod #200 |
| Length | 6 ft (1.8 m) |
| Rod diameter | 1.66 in (4.2 cm) |
| Weight | 26 lb (11.8 kg) |
| Bend radius | 95.5 ft (29.1 m) |
| Onboard capacity | 300 ft (91.4 m) |
| FEATURE | BENEFIT |

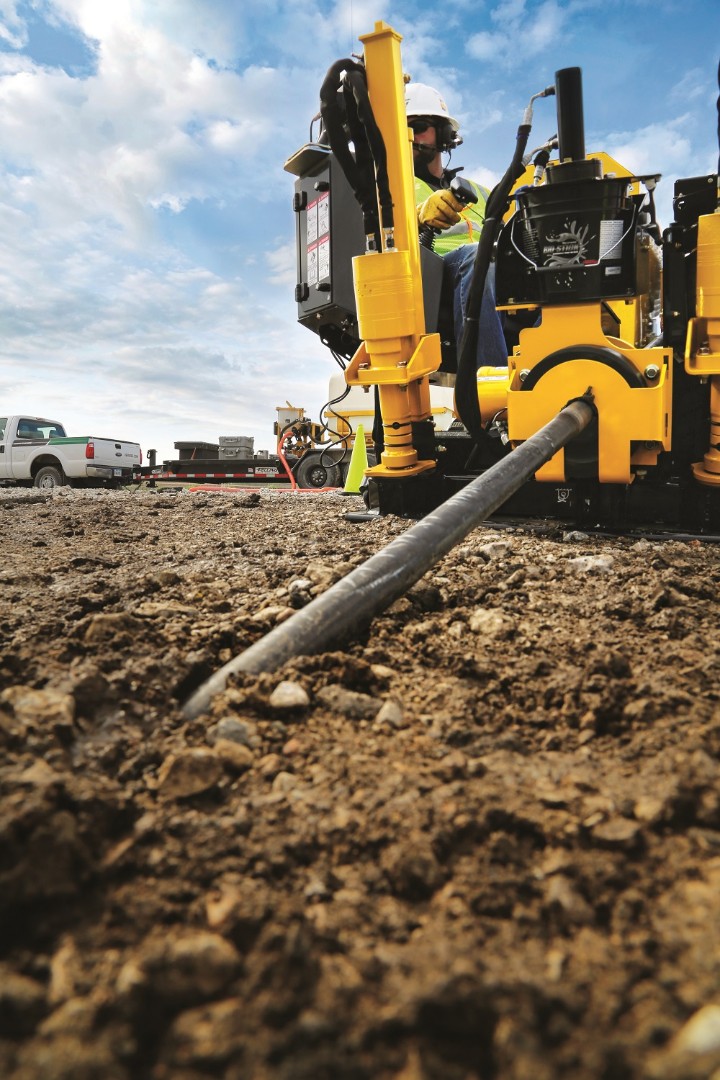

| 300’ (91.4 m) of Firestick® drill rod The drill carries up to 50 pieces of 6’ (1.8 m) rod for a total of 300’ (91.4 m) of dependable Firestick drill rod. |
Constructed of I-135 grade steel alloy, Firestick drill rod is heat-treated and forged for long-lasting performance. Plus, each rod is rigorously inspected to meet exacting tolerances. |
| Common CAN controls The Vermeer Navigator HDD series of drills features common CAN controls throughout the product line. |
Common controls help reduce operator training time, and the simple, intuitive dual joysticks offer precise control to maximize operator productivity. |
| Competitive ground drive speed The D10x15 S3 features a maximum ground drive speed of up to 3.3 mph (5.3 km/h) forward with optional wireless remote. |
Increased speed helps make job setup times, jobsite entry and jobsite departure quicker. |

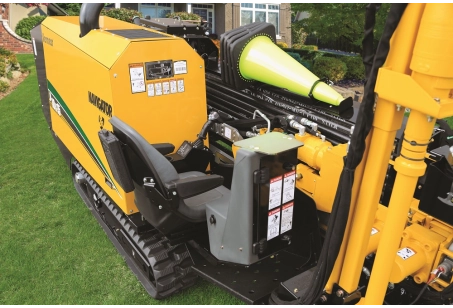

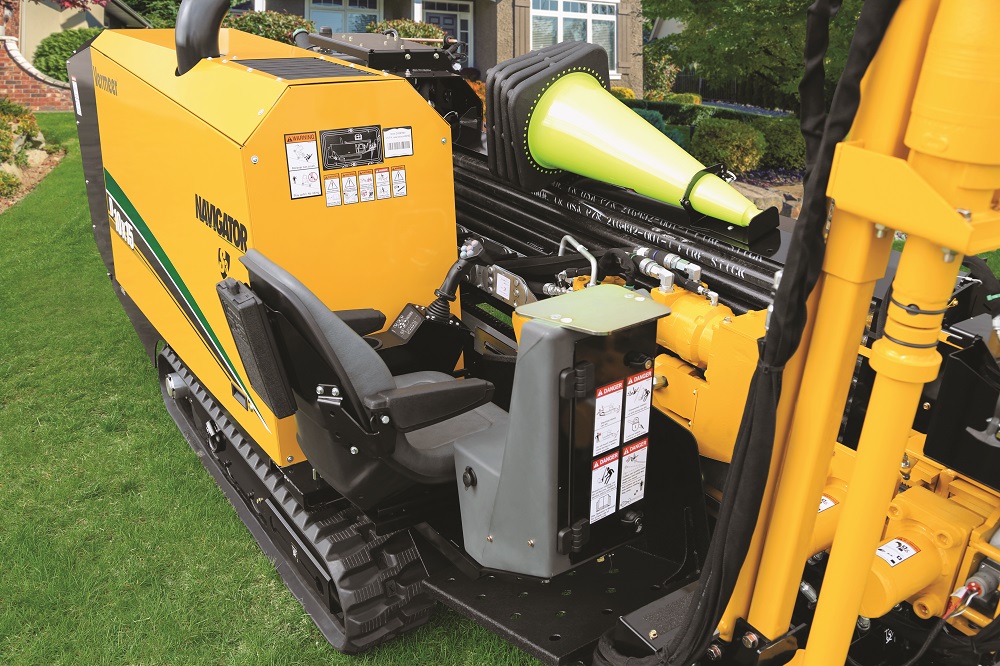

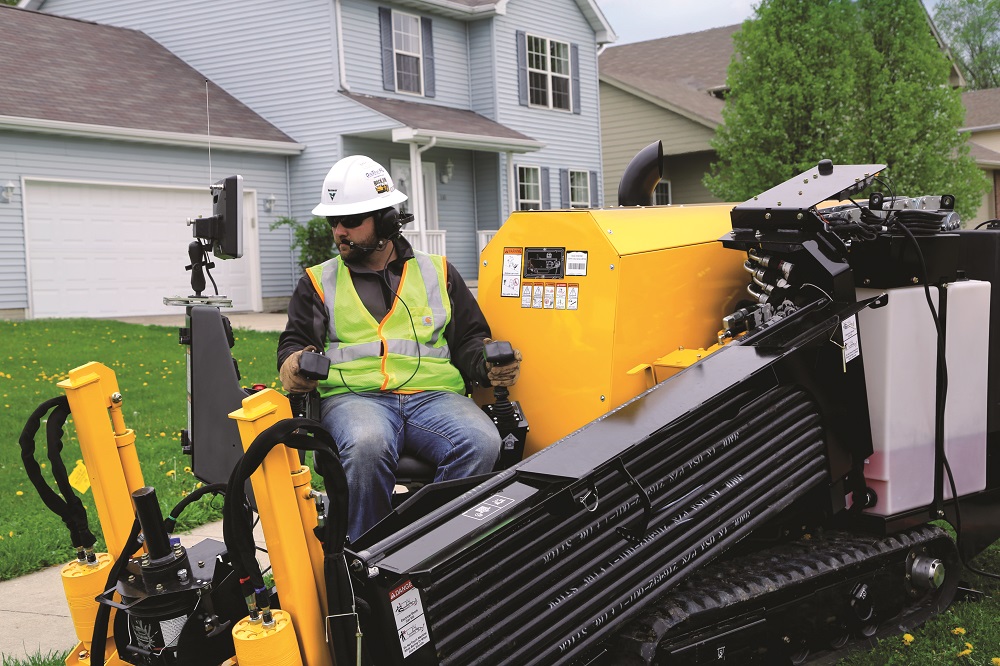

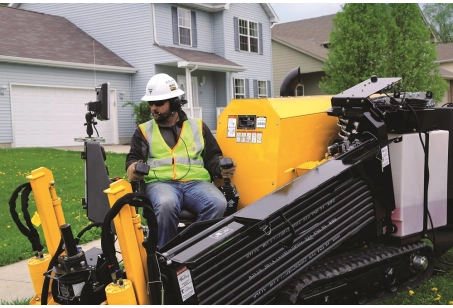

| Efficient operator’s station The D10x15 S3 operator’s station features a bore-path-oriented screen and simplified controls. |
Increased operator comfort and seamless operation can make long hours spent on the drill less fatiguing. |
| Enhanced carriage speed The drill features an increase of up to 11% in carriage speed compared to the D9x13 S3 Navigator® HDD. |
Greater carriage speed allows for faster cycle times and improved productivity on the jobsite. |
| Fuel-efficient engine The D10x15 S3 is powered by a Tier 4 Final (Stage IV) 60 hp (44.7 kW) Deutz TD2.9 diesel engine. |
This engine is sized to maximize performance and efficiency while minimizing fuel consumption. It does not require a DPF or regeneration. |
| Improved sound levels The D10x15 S3 offers an improved noise level at operator’s ear of 86.1 dB(A). |
Reduced sound levels make the machine suitable for congested commercial and residential areas. |
| Increased spindle speed The D10x15 S3 offers almost 16% higher spindle speed than the previous model. |
Increased spindle speed in softer or reactive ground conditions allows for better mud slurry and improved mud flow. |

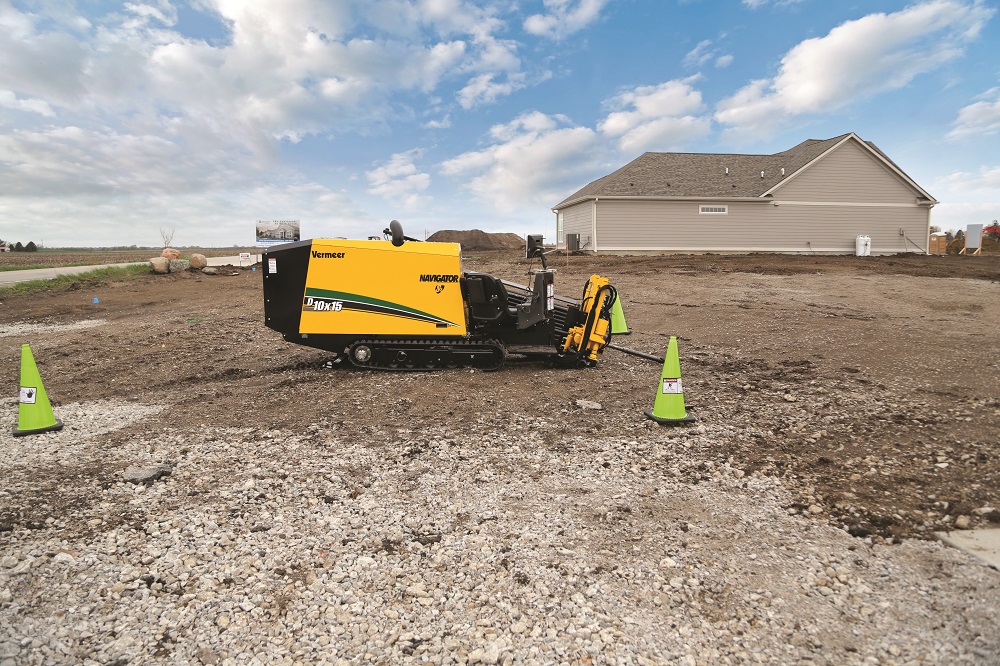

| Narrow and lightweight footprint Compact design with a width of 44” (111.8 cm) and weight of 7200 lb (3265.9 kg). |
Designed for contractors who need a compact machine for urban jobsites with minimal ground disruption. |
| Onboard drilling fluid pump Integrated mud pump producing 15 gpm (56.8 L/min) with maximum pressure of 1000 psi (6.9 MPa). |
Helps meet varying drilling application needs and supports drilling in difficult conditions. |
| Powerful torque and thrust High rotational torque rating of 1500 ft-lb (2033.7 Nm) and 10,000 lb (44.5 kN) thrust/pullback. |
Provides the power required for difficult ground conditions and pulling reamers. |

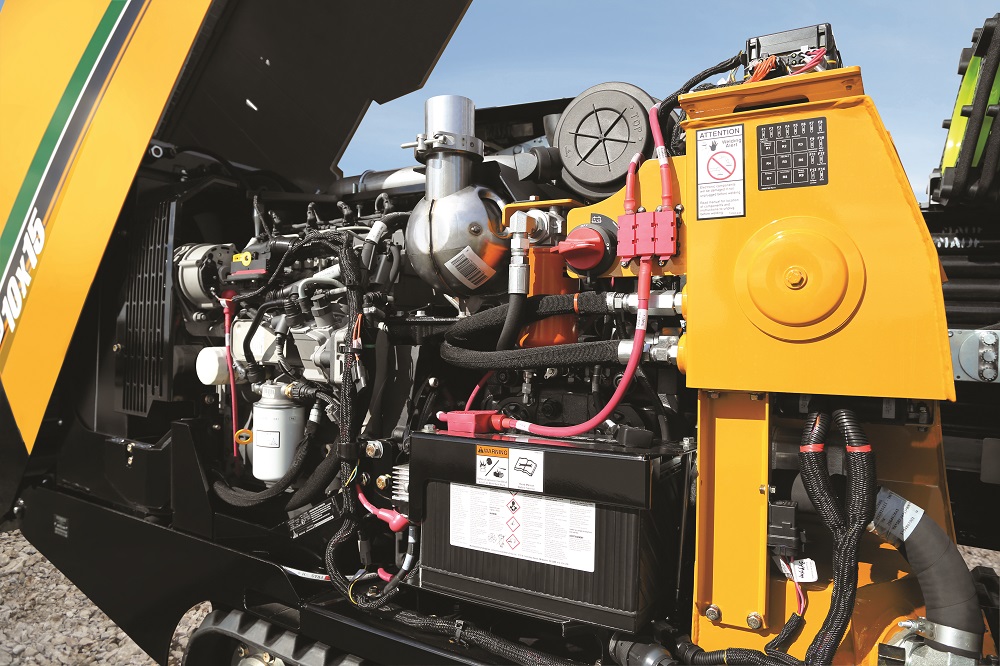

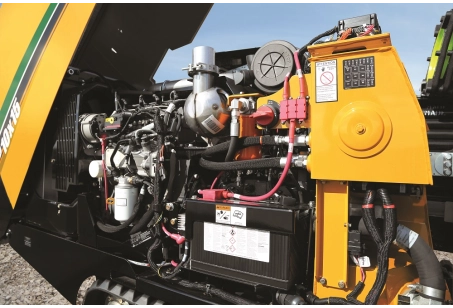

| Serviceability The D10x15 S3 is equipped with a one-piece hinged hood. |
The hood offers durability as well as easy access to daily service points. |

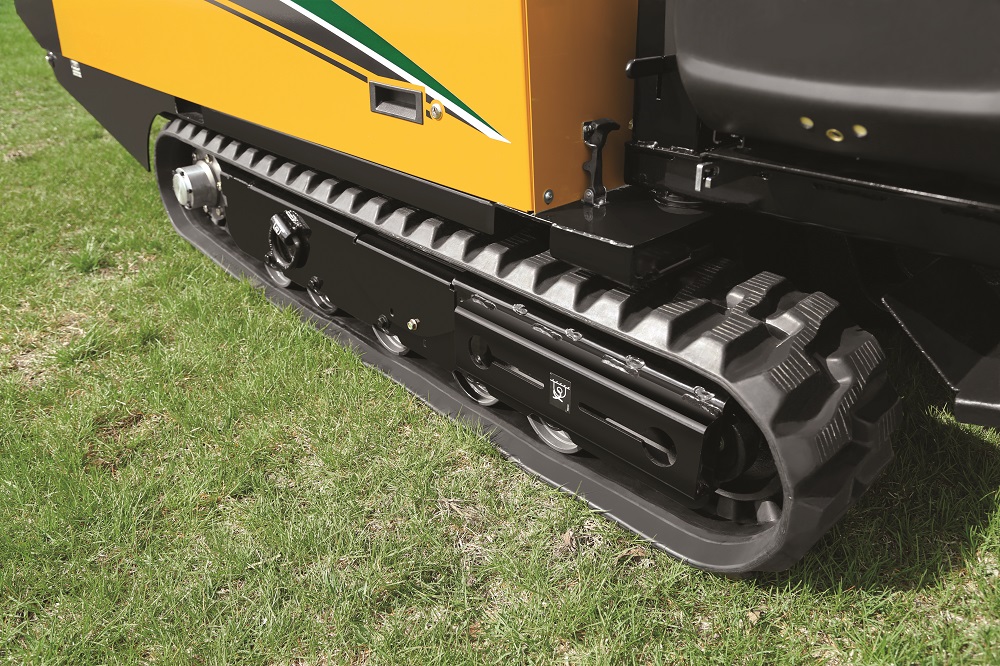

| Tractive effort gains Almost 50% increase in tractive effort-to-weight ratio over its predecessor. |
Higher available torque to the tracks improves maneuverability and trailer positioning. |
