| General Dimensions and Weights | |
|---|---|
| Length (Minimum Transport) | 241.7 in (613.9 cm) |
| Width (Minimum Transport) | 88.9 in (225.8 cm) |
| Width (With Cab) | 88.9 in (225.8 cm) |
| Height (Minimum Transport) | 101.2 in (257 cm) |
| Height (With Cab) | 104.3 in (264.9 cm) |
| Height | 90.6 in (230.1 cm) |
| Weight | 19070 lbs (8650 kg) |
| Weight (Cab Option) | 19070 lbs (8650 kg) |
| Angle of Approach | 14°–21° |
| Engine | |
| Make and Model | Cummins QSF3.8-C130 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2500 rpm |
| Idle Speed | 800 rpm |
| Rated RPM | 2200 rpm |
| Gross Horsepower | 130 hp (96.9 kW) |
| Displacement | 231.9 cu-in (3.8 L) |
| Cooling Method | Water |
| Max Fuel Consumption | 0.1 gph (0.3 lph) |
| Emissions Rating | Tier 3 |
| Operational | |
| Thrust | 24000 lbs (106.8 kN) |
| Pullback | 24000 lbs (106.8 kN) |
| Maximum Carriage Speed | 253 ft/min (77.1 m/min) |
| Maximum Spindle Torque (Low) | 4200 ft-lb (5694.4 Nm) |
| Maximum Spindle Speed | 270 rpm |
| Maximum Ground Drive Speed | 2 mph (3.2 km/h) |
| Minimum Bore Diameter | 0.9 in (2.2 cm) |
| Fluid Capacities | |
| Fuel Tank | 45 gal (170.3 L) |
| Hydraulic Tank | 77 gal (291.5 L) |
| Drilling Fluid System — Option One | |
| Maximum Flow | 50 gpm (189.3 L/min) |
| Maximum Pressure | 1305 psi (90 bar) |
| Features | |
| Breakout System | Standard |
| Drilling Lights | Standard |
| Wireless Remote | Standard |
| Cab | Optional |
| Feature | Benefit |
|---|---|
| Power-to-footprint | Compact dimensions combined with 4200 ft-lb (5695 Nm) torque make the D24S ideal for congested urban jobsites and difficult soil conditions. |

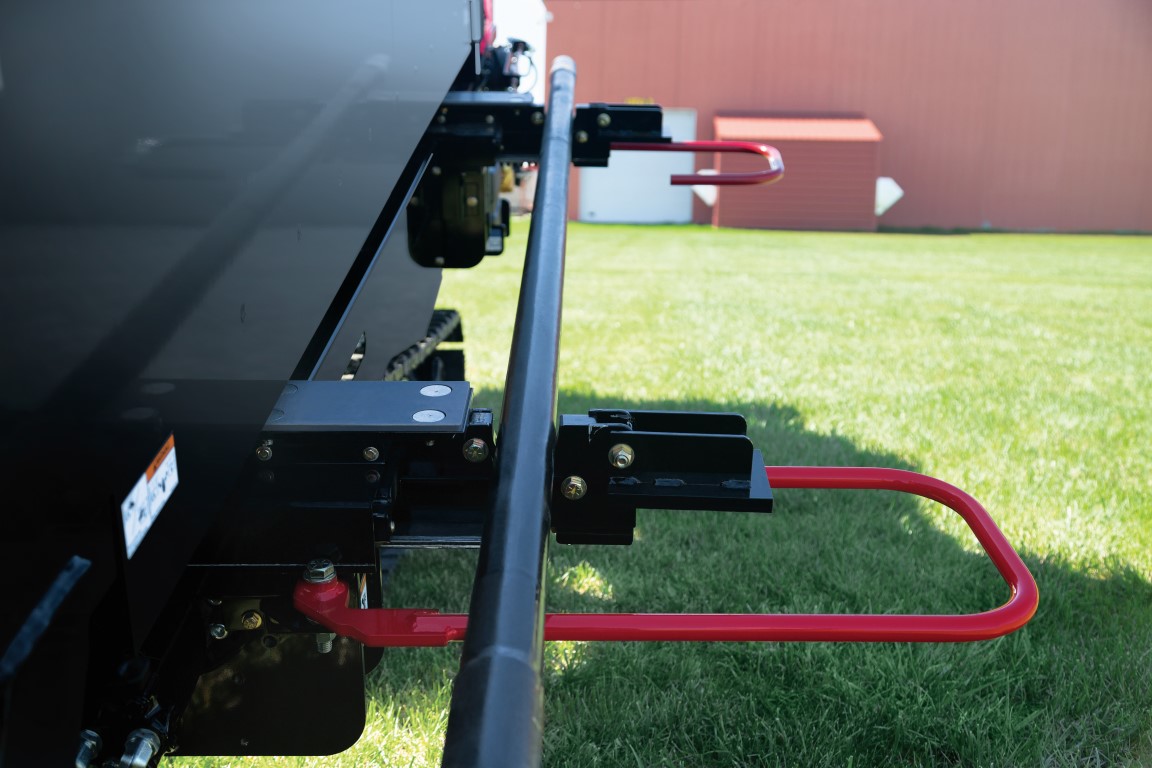

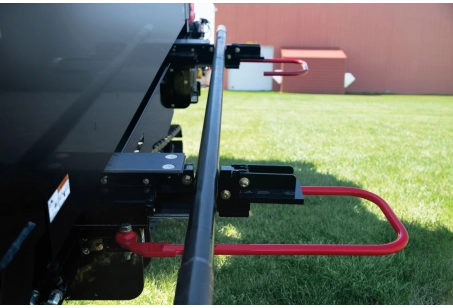

| Firestick® drill rod and V-Rod advantage | One-piece forged drill rods provide superior durability, flexibility and improved drilling fluid flow. |

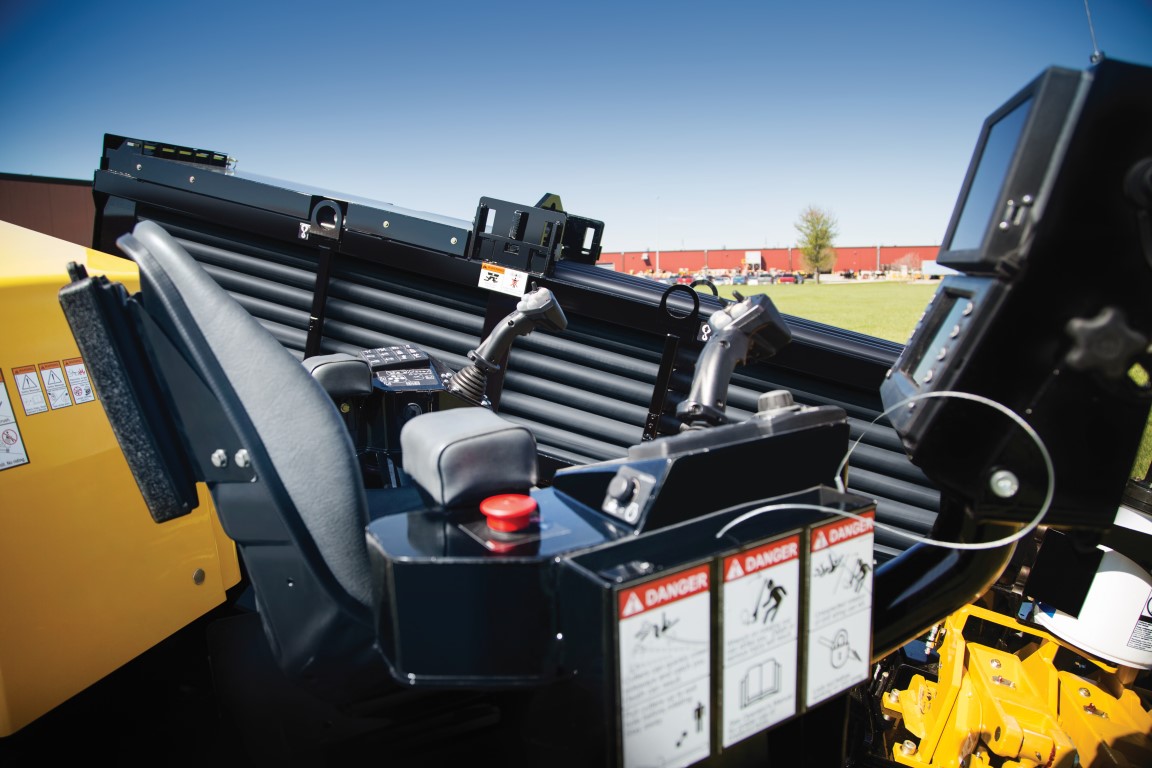

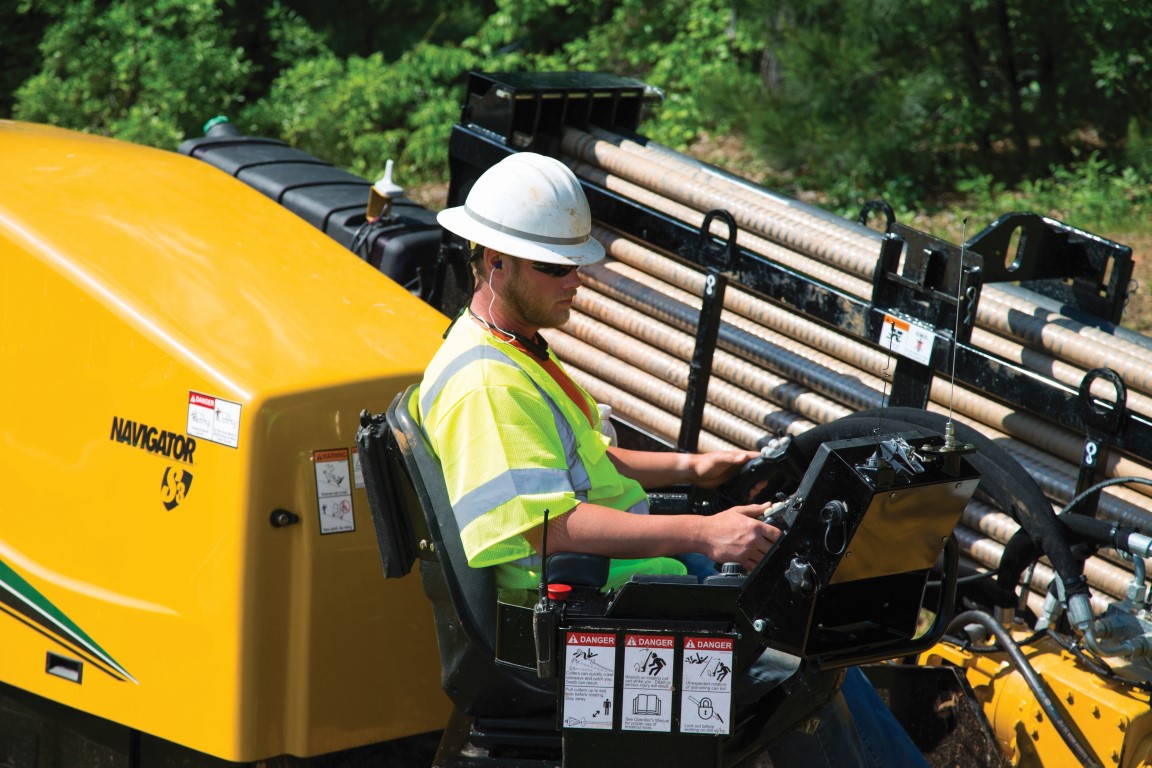

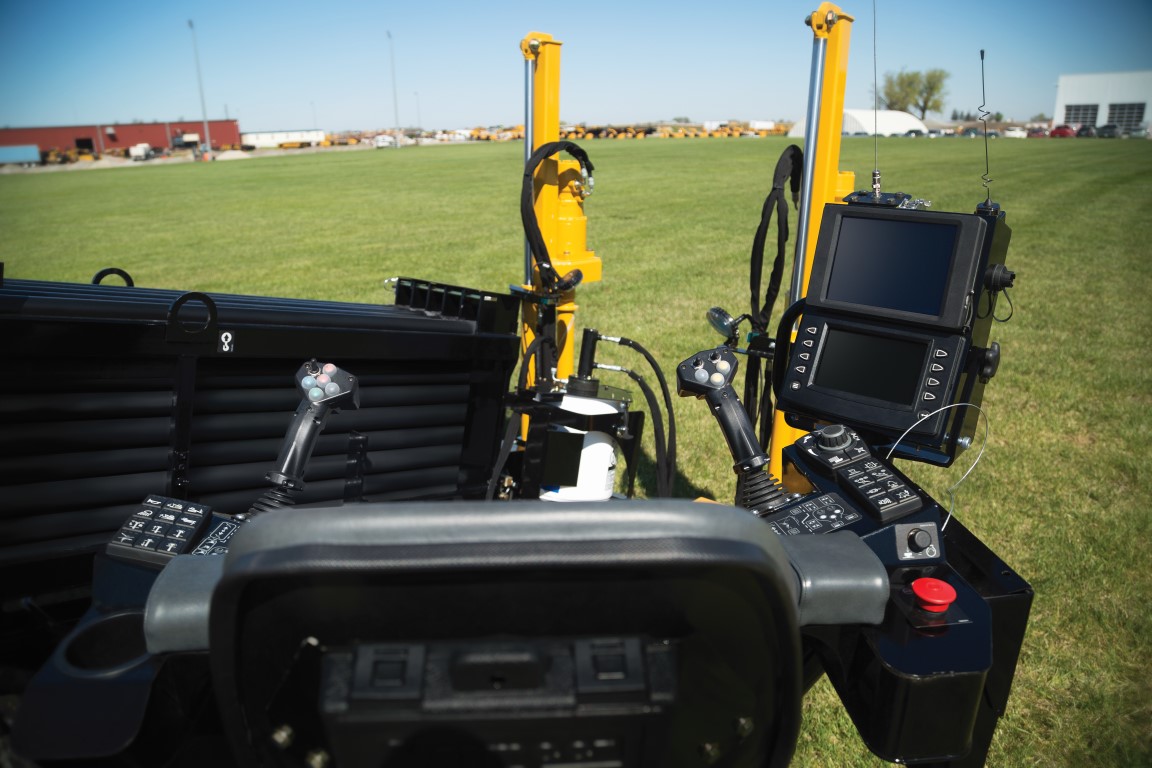

| Common controls | Shared Vermeer controls including AutoDrill and Auto-Carve simplify operation and reduce training time. |

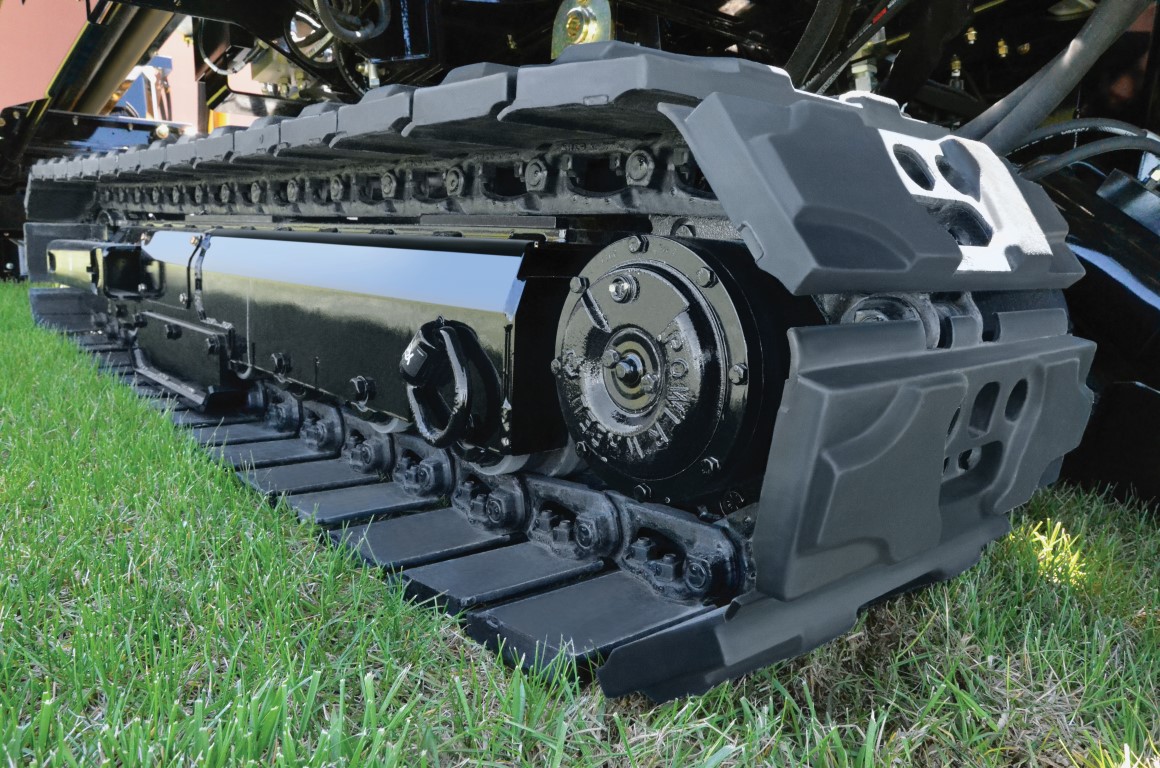

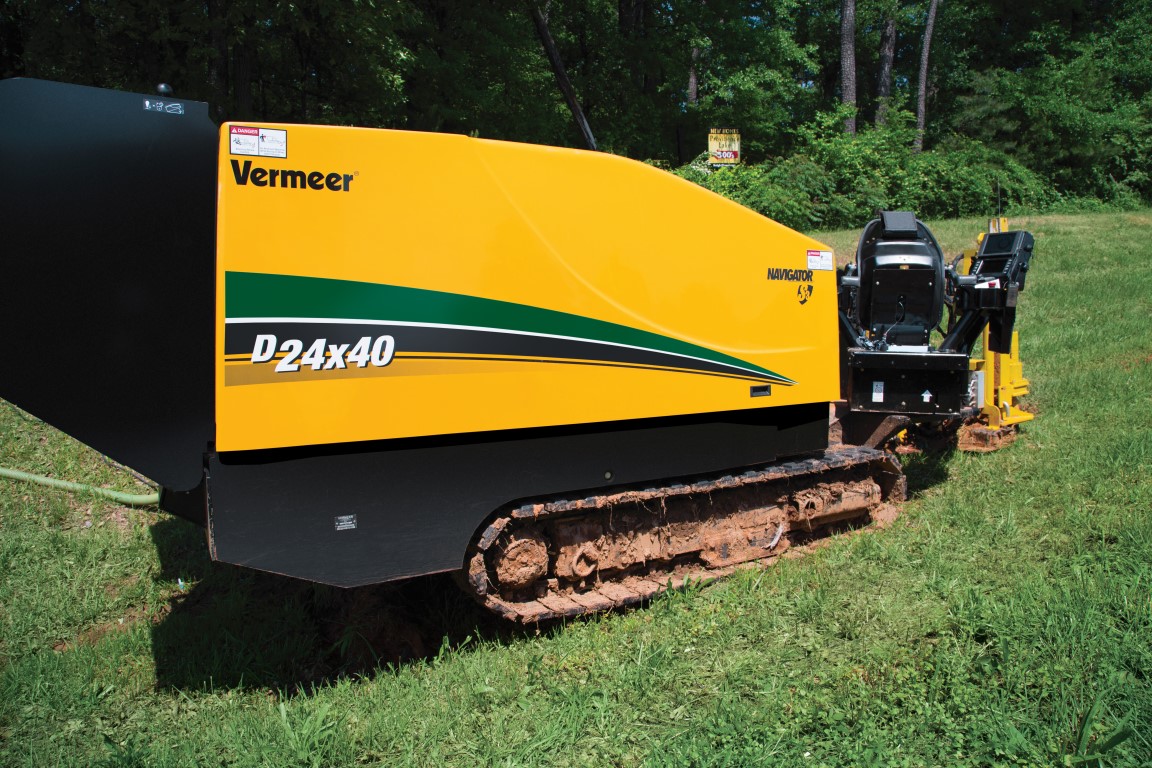

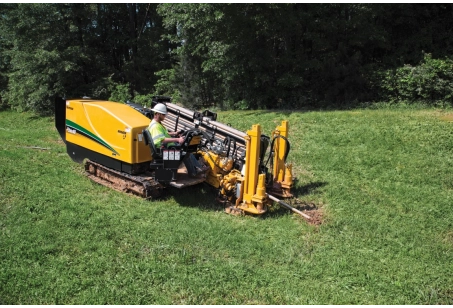

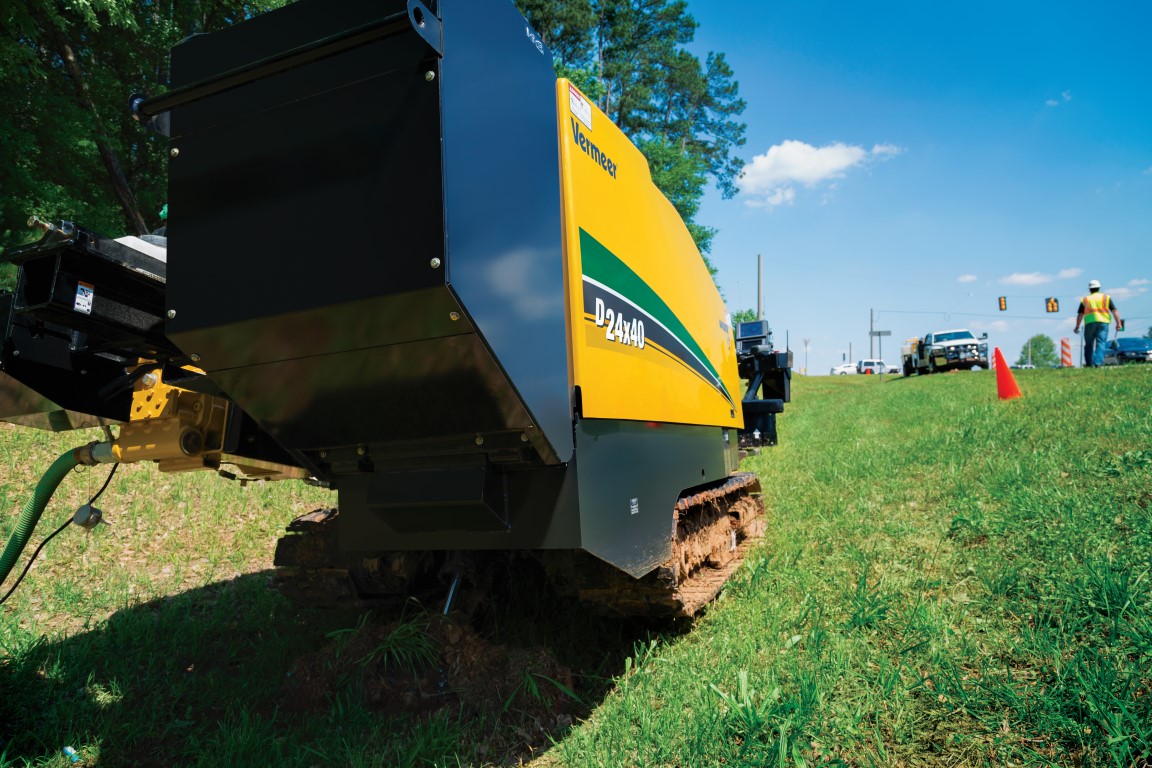

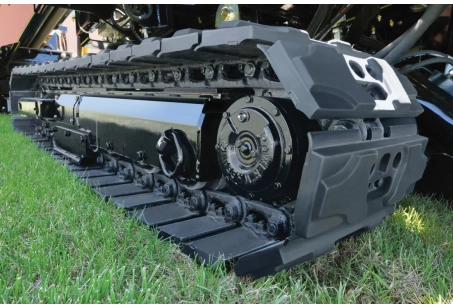

| Rubber pads on steel tracks | Rubber inserts help minimize ground disruption and improve surface protection. |

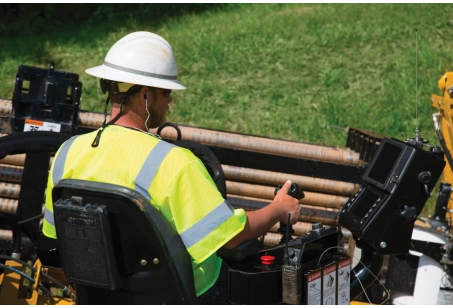

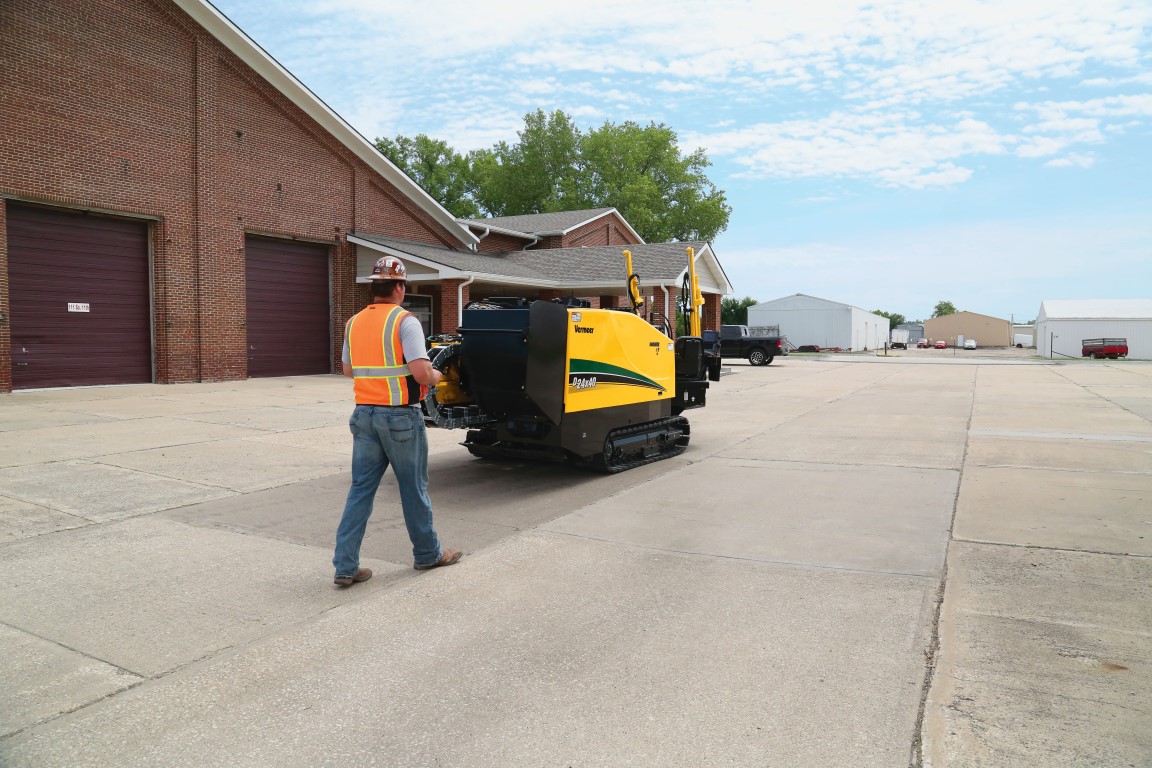

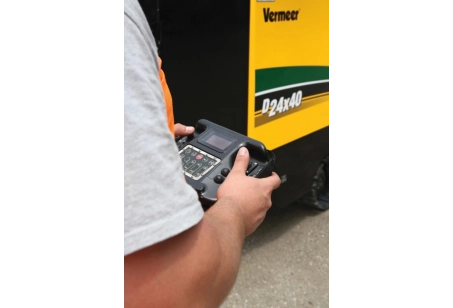

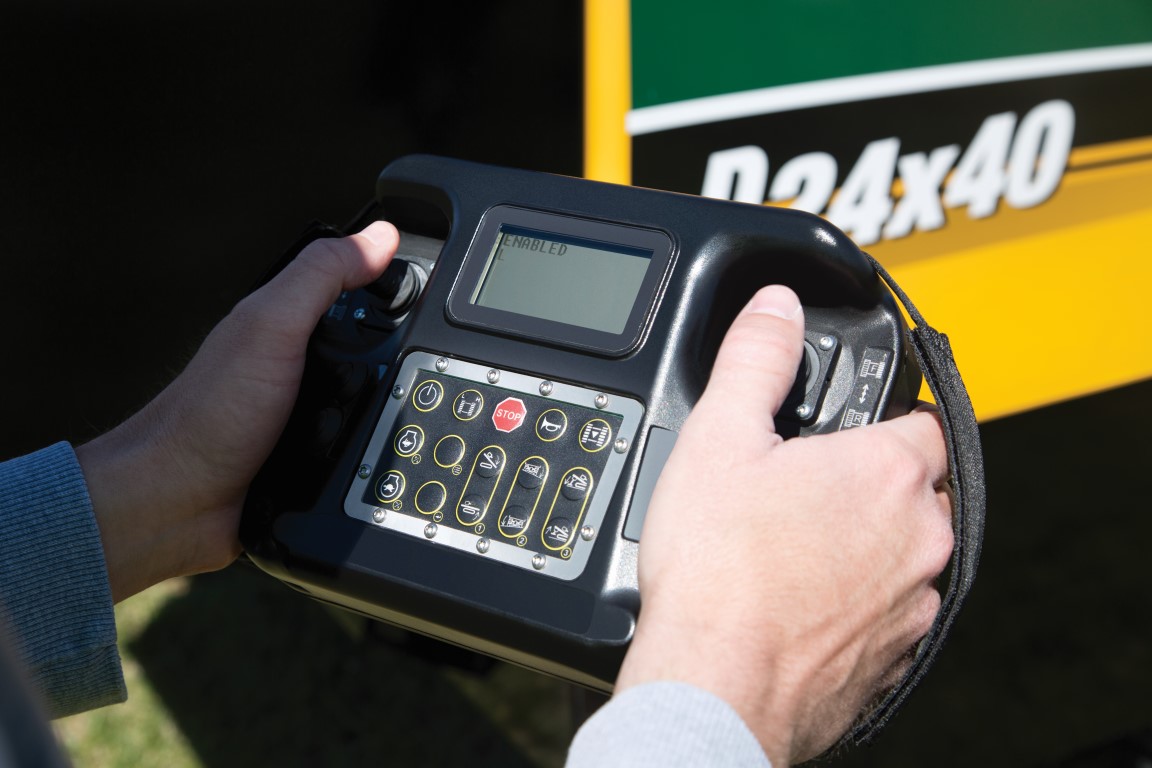

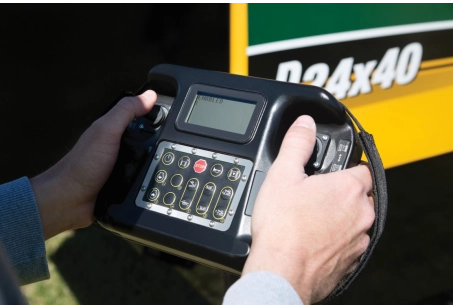

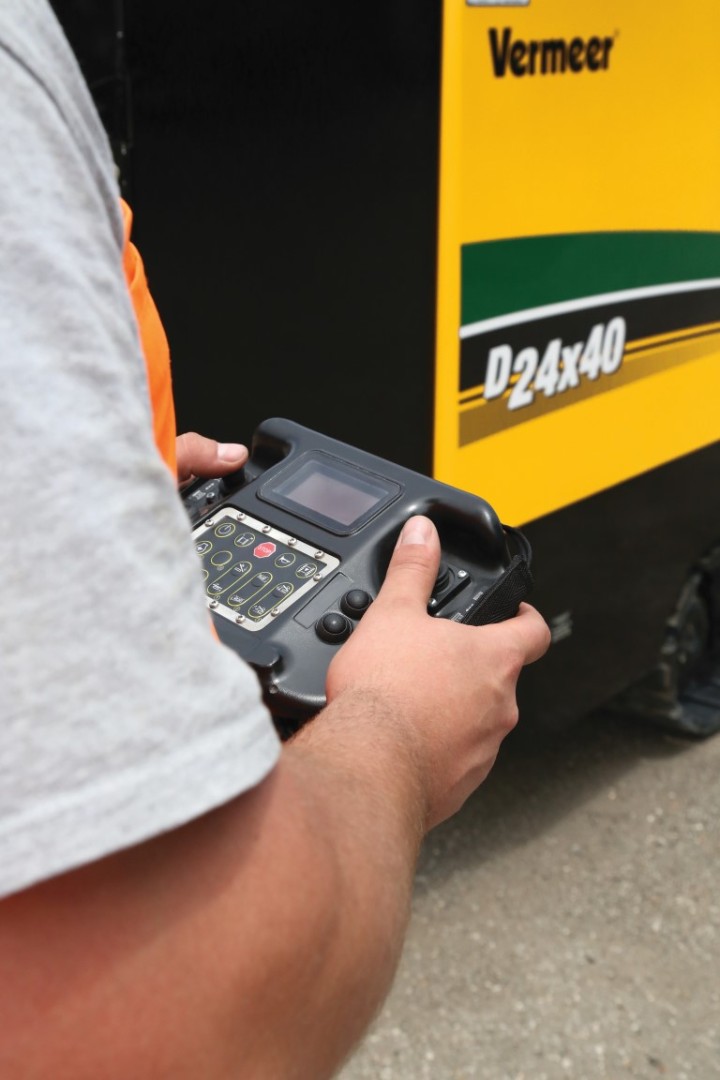

| Wireless remote | Wireless remote control improves 360-degree visibility and machine maneuverability. |

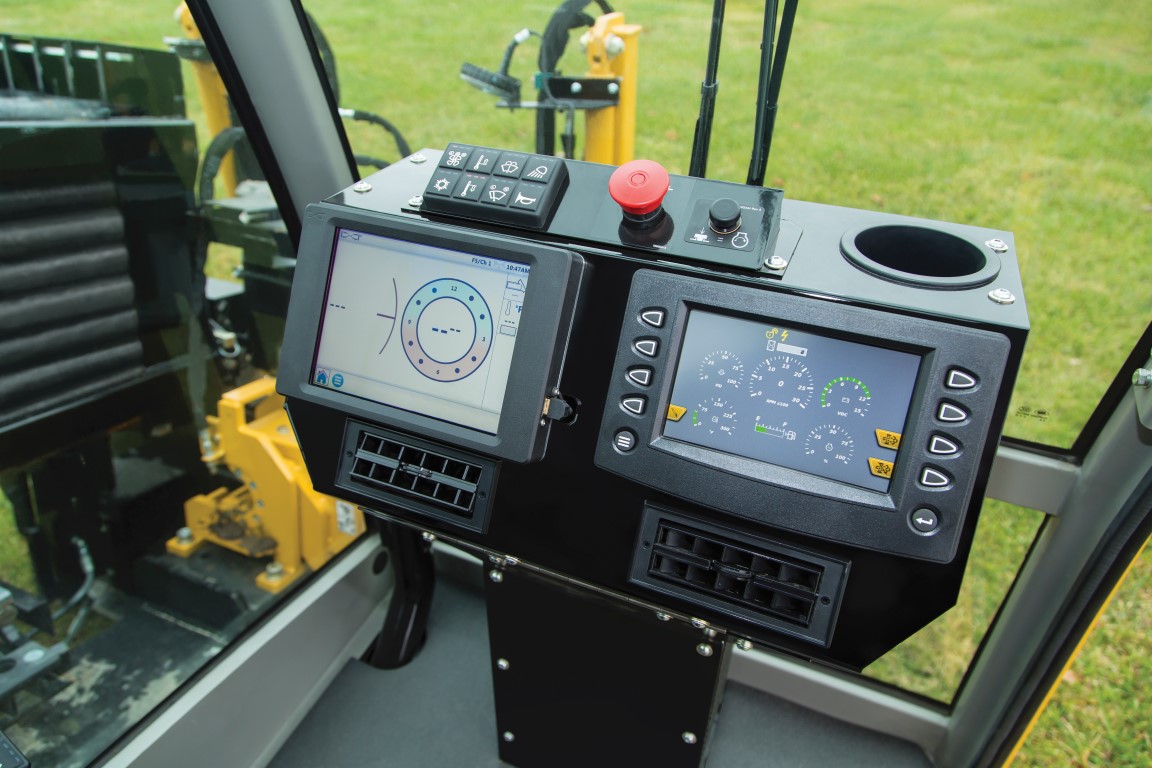

| Controller and Software — Plus+1 Control System | Auto-Carve and AutoDrill help maintain drilling consistency and improve bore path control. |

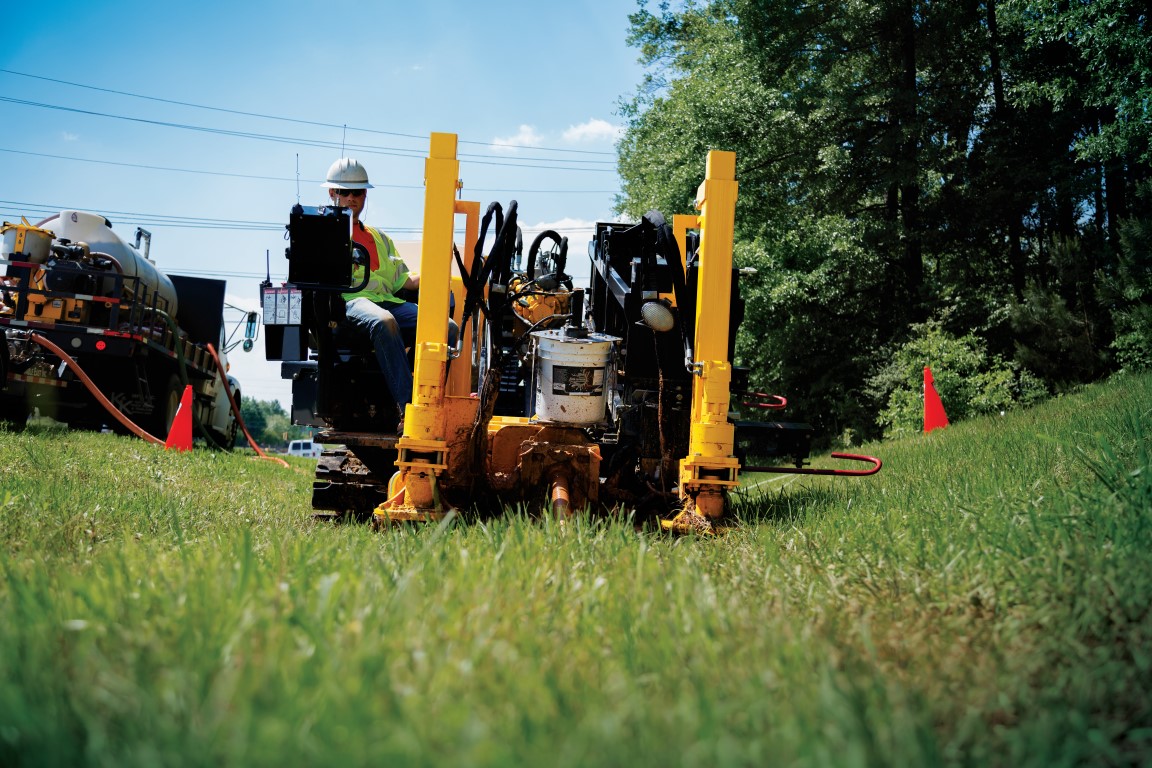

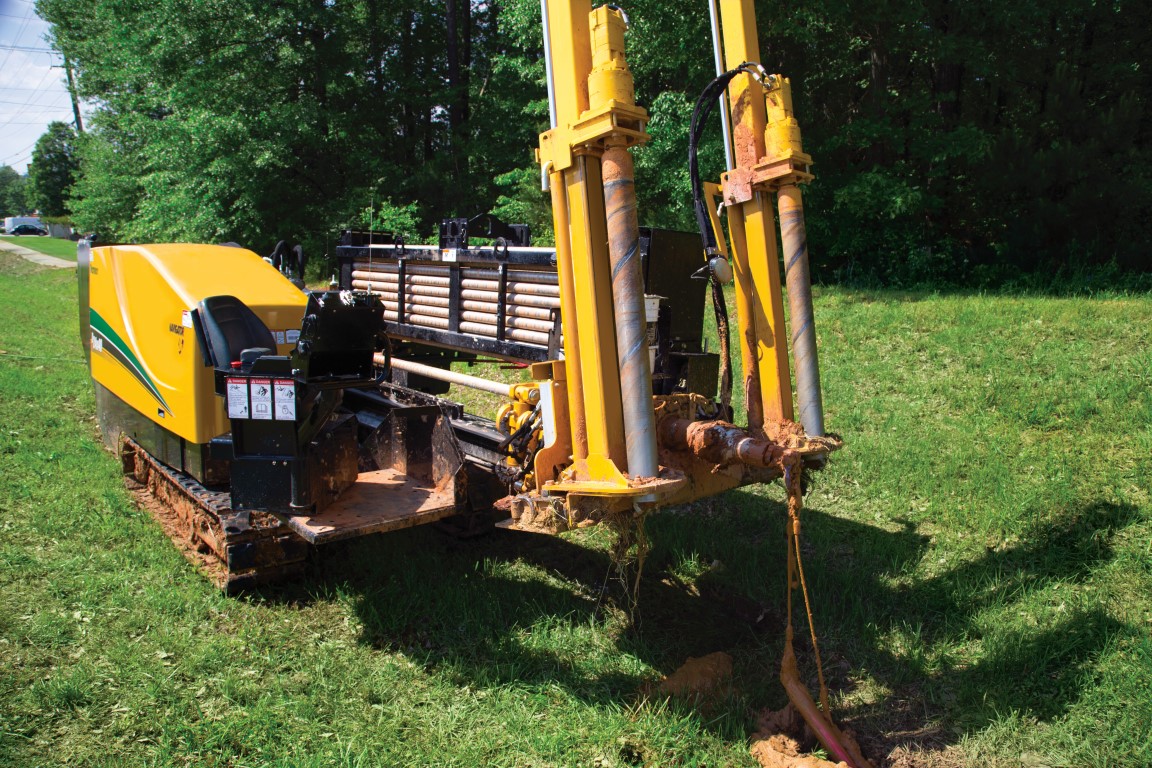

| Open-top vise | Improved visibility of drill rod connections and simplified vise die replacement. |
