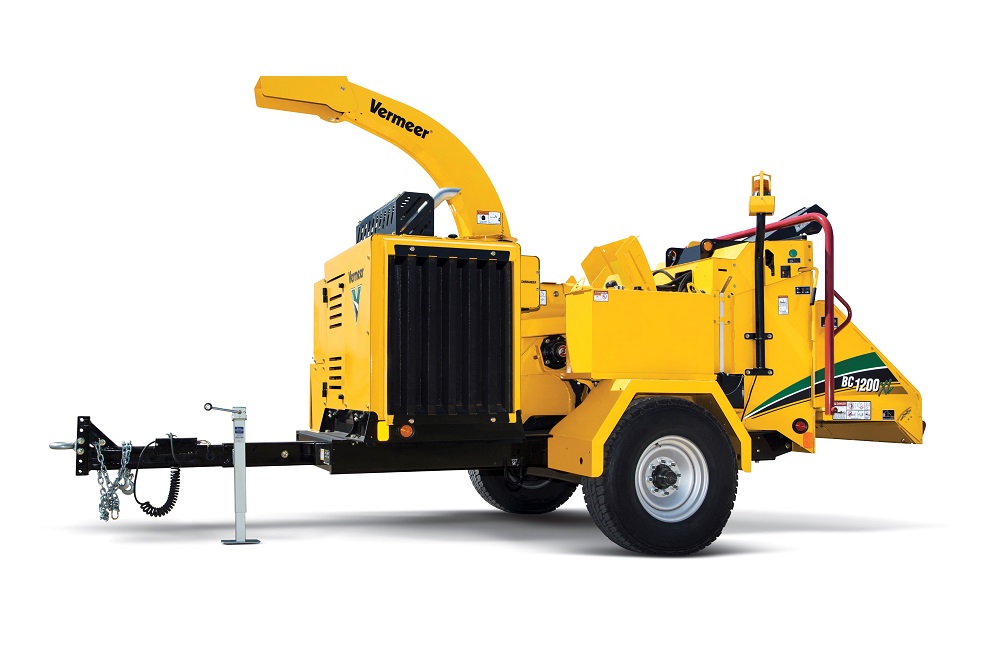

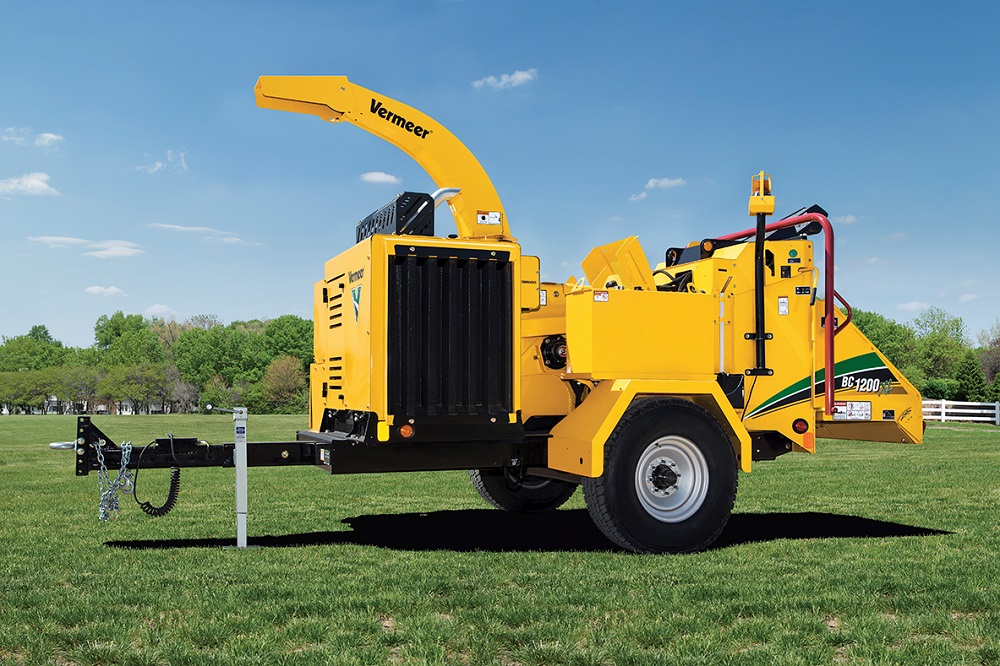

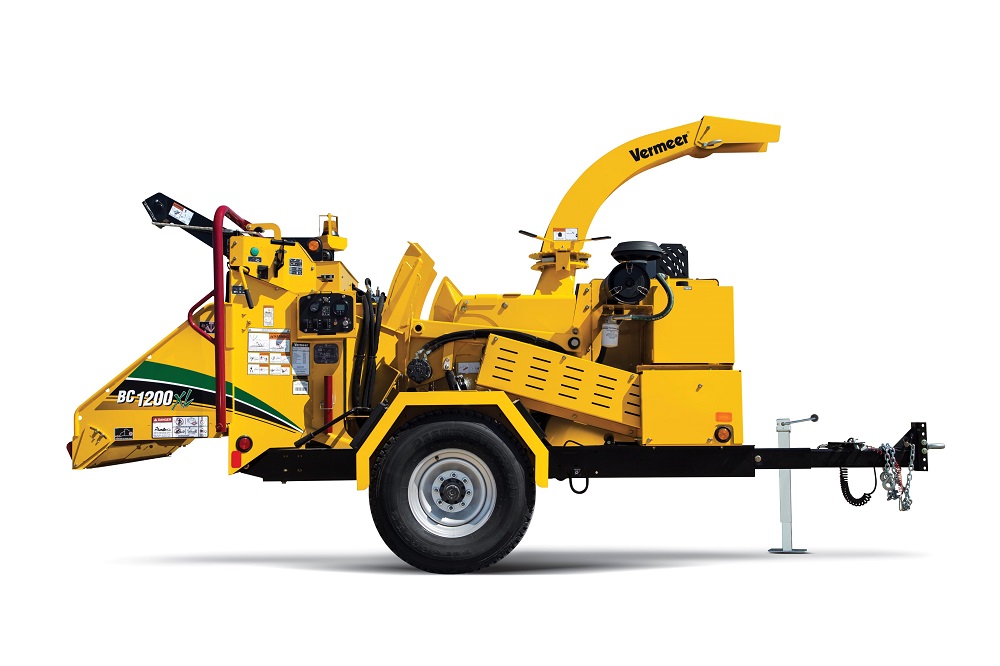

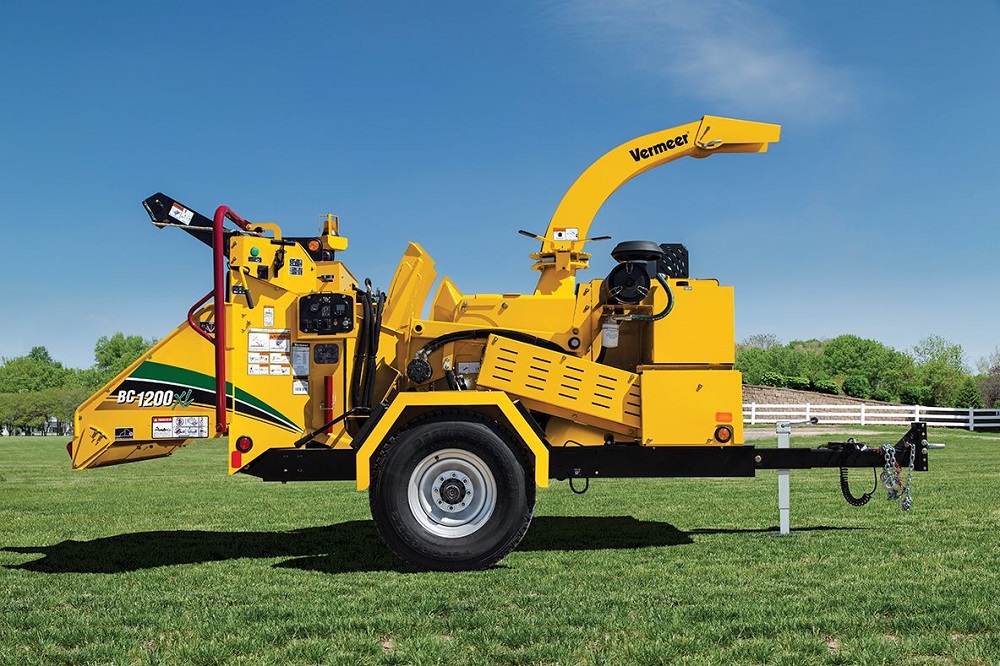

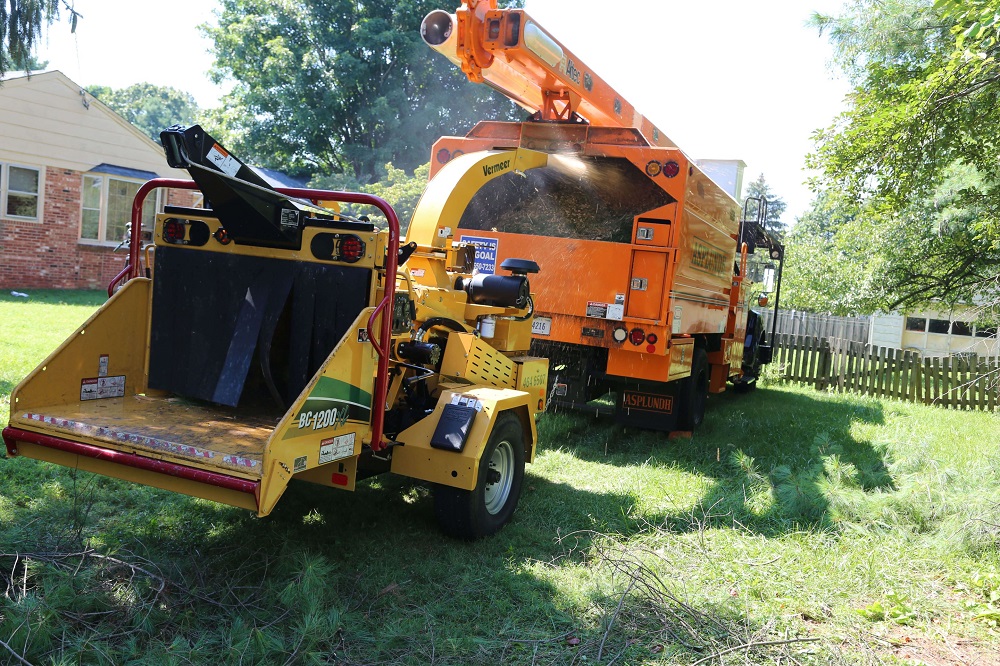

| The Vermeer BC1200XL is an industrial-grade, heavy-duty towable drum-style brush chipper designed for continuous high-volume land clearing, vegetation management, and organic waste processing of materials up to 13.3 inches (33.7 cm) in diameter. Built upon a rugged 7-inch (17.78 cm) structural steel Z-channel main frame with a wall thickness of 0.25 inches (0.64 cm), the machine utilizes a premium Dexter Torflex rubber-torsional independent suspension axle rated at 7000 lbs, yielding an exceptionally low weight-to-axle capacity ratio for maximum highway towing reliability. Power delivery is managed via a Clutchless PTO direct-drive architecture combined with an automatic mechanical belt tensioner; this subsystem restricts drive belt engagement exclusively to engine low-idle RPM, automatically throttling up to full operating speed only after full engagement to completely eliminate impact shock and premature belt wear on the high-inertia 480 lb cutting drum. Hydraulic infrastructure features a dedicated open-center Dual-Pump system: one high-pressure pump continuously isolates flow to the upper and lower feed roller rotation circuits, while the secondary pump manages the auxiliary winch and high-force mechanical down-pressure cylinders, eliminating hydraulic pressure drops during simultaneous operations. The processing throat utilizes a Dual-Horizontal Offset feed roller layout where the lower roller is nested behind the upper roller line, permitting the upper roller to dynamically climb large logs. Material crush performance is governed by dual integrated manual cylinders delivering up to 2650 lbs of downforce, combined with a patented SmartFeed sensing control loop featuring three adjustable RPM droop settings to match wood hardness. A structural winch interlock safety switch prevents automatic feed roller rotation unless the 2000 lb pulling line is fully stowed on its designated isolation hook. |
| General Dimensions, Weights & Structural Trailer Framework |
| Overall Length - Transport Configuration (Feed Table Up, Tongue In) |
168 in (426.7 cm) |
| Overall Length - Operational Configuration (Table Down, Tongue Extended) |
206 in (523.2 cm) |
| Overall Length Configuration with Integrated Hydraulic Winch |
206 in (523.2 cm) |
| Overall Chassis Operational Width |
79 in (200.7 cm) |
| Overall Structural Machine Height (To Top of Discharge Chute) |
103 in (261.6 cm) |
| Total Machine Weight - Engine Option One (Without Winch / Jack Options) |
5325 lbs (2415.4 kg) |
| Total Machine Weight - Engine Option Two (Without Winch / Jack Options) |
5300 lbs (2404 kg) |
| Total Machine Weight - Configured with Optional Hydraulic Winch Assembly |
5600 lbs (2540.1 kg) |
| Static Vertical Hitch Load Capacity (Tongue Weight) |
660 lbs (299.4 kg) for both engine configurations |
| Chassis Main Longitudinal Frame Structure |
7 in (17.78 cm) structural steel Z-channel profile with a thickness of 0.25 in (0.64 cm) |
| Towing Tongue Box-Section Dimensions and Extension Range |
2.5 in x 4.5 in x 0.38 in (6.35 cm x 11.43 cm x 0.95 cm); manual sliding extension up to 18 in (45.7 cm) |
| Hitch Coupler Interface and Wheel Fenders |
Heavy-duty pintle ring hitch coupler; stamped steel fenders with bolt-on chassis mounting |
| Engine Infrastructure — Option 1 (Cummins QSB3.3L Tier 4i / Stage IIIB) |
| Make, Model and Emission Compliance Matrix |
Cummins QSB3.3L Turbo; EPA Tier 4i / EU Stage IIIB certified emissions |
| Cylinder Array and Aspiration Profile |
4 cylinders; in-line configuration, turbocharged and charge-air cooled |
| Maximum Gross Output Power |
120 hp (89.5 kw) |
| Maximum Peak Engine Torque Output |
306 ft-lb (414.9 Nm) |
| Fuel Reservoir Capacity and Max Consumption Rate |
25 gal (94.6 L) total tank volume; maximum fuel consumption rating at full load: 7.1 gph (26.9 lph) |
| Lubrication Parameters and Volumetric Oil Capacity |
API CH-4/SJ service classification; spin-on full-flow oil filter; engine oil capacity with filter: 9 qt (8.5 L) |
| Air Filtration and Electrical Alternator |
2-stage heavy-duty dry air cleaner with an internal safety core; 95 Amp high-output charging alternator |
| Cooling System Infrastructure and Fan Profile |
Liquid-cooled radiator circuit; coolant capacity: 2.5 gal (9.5 L); 22 in (55.8 cm) heavy-duty cooling fan |
| Engine Infrastructure — Option 2 (Cummins QSB3.3L Standard) |
| Make and Model |
Cummins QSB3.3L Turbo (4-Cylinder, In-line, Heavy-Duty Turbo Diesel) |
| Maximum Gross Output Power |
110 hp (82 kw) |
| Maximum Peak Engine Torque Output |
304 ft-lb (412.2 Nm) |
| Fuel Reservoir Capacity and Max Consumption Rate |
25 gal (94.6 L) total tank volume; maximum fuel consumption rating at full load: 6.1 gph (23.1 lph) |
| Cooling Fan Configuration Matrix |
20 in (50.8 cm) high-velocity suction-type cooling fan; liquid medium radiator circuit; 2.5 gal (9.5 L) capacity |
| Engine Operational Limits and Acoustic Signature (Both Options) |
Maximum continuous operating incline angle: 30 degrees; guaranteed structural sound power level: 120 dB(a) |
| Heavy-Duty Drum Cutting Mechanism Specifications |
| Maximum Structural Material Diameter Processing Capacity |
13.3 in (33.7 cm) maximum capacity thickness |
| Cutting Drum Core Geometrical Configuration |
Rotor core diameter: 20 in (50.8 cm); operational width profile: 20 in (50.8 cm) |
| Drum Cylinder Wall Structural Steel Thickness |
0.4 in (1 cm) plate steel |
| Operational Running Speed of Drum Rotor |
2000 rpm |
| Total Cutting Drum Weight (Including Shaft Assembly) |
480 lbs (217.7 kg) |
| Cutting Knife Array Quantity and Thickness |
2 active cutting knives; structural blade thickness: 0.6 in (1.6 cm) |
| Knife Geometrical Size & Composition Matrix |
0.625 in x 4.5 in x 9 in (1.59 cm x 11.43 cm x 22.86 cm); premium heavy-impact A8 composition chipper tool steel |
| Knife Structural Fastening and Usable Lifespan |
Secured by 4 high-tensile bolts per knife; 2 indexable index usable cutting edges; replaceable threaded structural knife block |
| Discharge Air Impeller Paddles and Volumetric Output |
5 integrated heavy-duty kinetic paddles utilizing a structural weld-on attachment method; airflow output: 2000 cfm |
| Bedknife (Anvil) Structural Dimension Metrics |
Base dimensions: 3.5 in x 17.25 in (8.89 cm x 43.82 cm); thickness: 1 in (2.5 cm); 4-edge indexable wear block |
| Bedknife Base Material & Safety Interlock |
1018 composition carbon steel anvil plate; mechanical service safety lock pin supporting 2 pinning positions |
| Mechanical Powertrain & Shaft Bearing Components |
| Main Cuttershaft Supporting Bearings |
2 Linkbelt self-aligning spherical roller bearing assemblies; shaft bore diameter: 2.4 in (6.2 cm) |
| Bearing Mechanical Structural Load Capacities |
Dynamic Load Rating: 31400 lbs (14242.8 kg); Static Load Rating: 53500 lbs (24267.2 kg) |
| Drivetrain Belt Configuration Profile |
5V wedge-profile heavy-duty high-torque drive belt array with adjustable mechanical idler pulley tensioner |

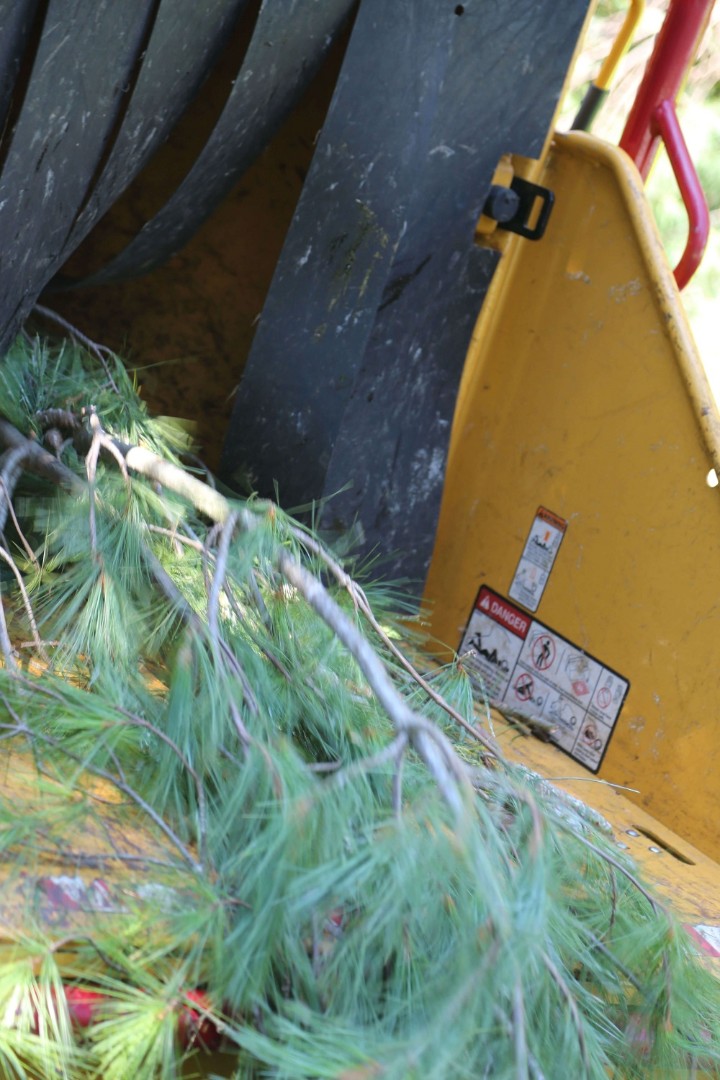

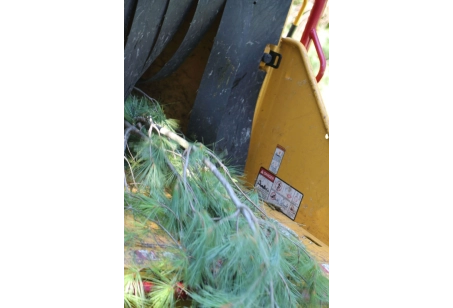

| Hydraulic Proportional Material Feed System |
| Proportional Material Intake Layout Configuration |
Dual-horizontal offset feed rollers; lower intake feed roller is nested behind the upper roller centerline |
| Intake Roller Core Specifications — Option Model One |
8 integrated aggressive gripping teeth/knives; roller diameter: 15 in (38.1 cm); roller core weight: 150 lbs (68 kg) |
| Intake Roller Core Specifications — Option Model Two |
12 integrated aggressive gripping teeth/knives; roller diameter: 11.14 in (28.3 cm); roller core weight: 80 lbs (36.3 kg) |
| Feed Roller Hydraulic Motor Subsystems |
2 independent high-torque proportional hydraulic motors manufactured by White Hydraulics |
| Mechanical Compression Force & Proximity Limits |
Manual down-pressure control valve applying up to 2650 lbs (1202 kg) of clamp downforce via 2 independent hydraulic cylinders; 1 in (2.5 cm) hard proximity stop point |
| Linear Material Feeding Intake Speed |
110 ft/min (33.5 m/min) high-velocity active flow input speed |

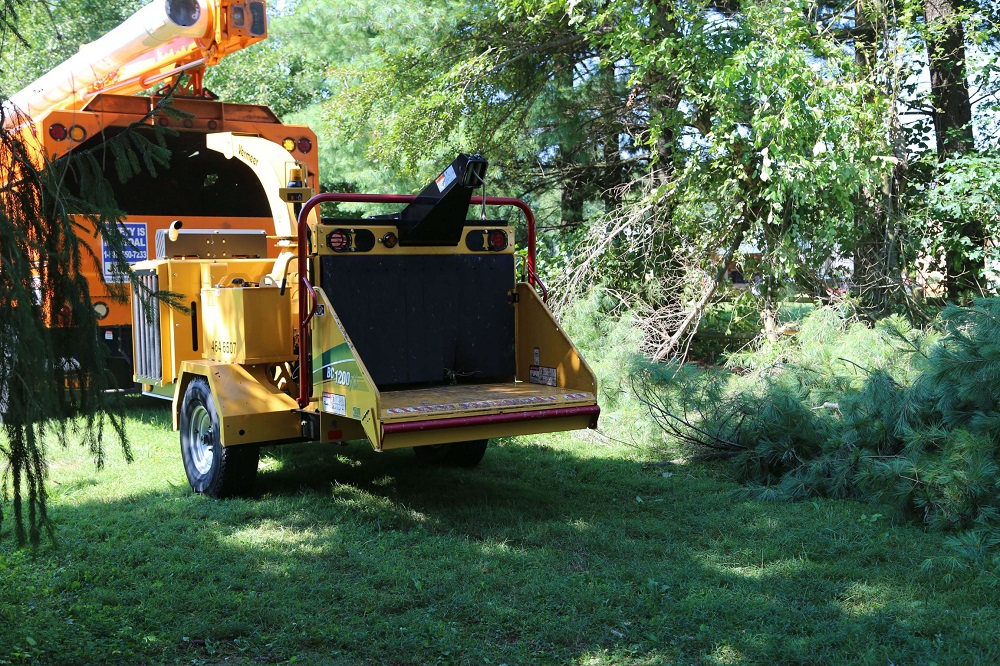

| Infeed Table deck Geometry and Sheet Profiling |
Table Width: 52 in (132.1 cm); Table Length: 30.1 in (76.5 cm); structural deck sheet steel thickness: 0.2 in (0.5 cm) |
| Infeed Throat Capacity & Hopper Parameters |
Intake Throat opening dimensions: 13.25 in x 17 in (33.65 cm x 43.18 cm); structural hopper wall entry height: 32 in (81.3 cm) |
| Infeed Deck Elevation Height and Pinch Point |
Elevation above ground: 27.2 in (69.1 cm); safety distance from outer table rim edge to internal roller pinch line: 67.4 in (171.2 cm) |
| Hydraulic Architecture and Pump Allocation |
Open-center hydraulic path; isolated Dual-Pump loop system; pump flow rating at max engine RPM: 4.1 gpm (15.7 L/min) |
| System Pressure Ratings and Core Filtration |
12 gal (45.4 L) tank capacity; system relief valve threshold: 2500 psi (172.4 bar); auto-reverse loop trips at 2500 psi |
| Hydraulic Fluid Care and Control Valves |
10-micron fluid filter inline on return loop; 100-micron pump suction strainer; includes manual directional control; Vermeer VMF oil |

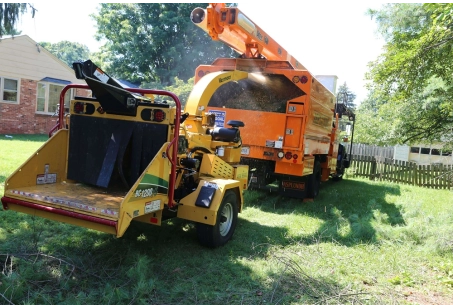

| Discharge Shroud System (Chute Structure) |
| Discharge Point Target Elevation Height |
104 in (264.2 cm) high clearance for high-sided fleet dump vehicle loading |
| Structural Steel Chute Sheet Thickness Metrics |
Bottom structural plate: 0.1 in (0.2 cm); top dome plate, side wall plates, and chip deflector flap: 0.1 in (0.3 cm) thick steel |
| Chute Directional Rotation Array |
270 degrees total horizontal sweeping rotation; manual manual pivot handle mechanism with integrated locking detents |
| Optional Hydraulic Winch Package Specifications (Auxiliary Add-on) |
| Winch Boom Assembly and Rope Parameters |
0.25 in (0.64 cm) Grade 50 heavy-plate structural steel boom; 7/16 in (1.11 cm) diameter rope, length: 150 ft (45.7 m) |
| Kinetic Drag and Speed Performance Metrics |
Maximum line pull force capacity: 2000 lbs (907.2 kg); winch drum input speed: 51 rpm; hydraulic relief valve ceiling: 2200 psi (151.7 bar) |
| Operator Control Modes & Log Rigging Interface |
3-way manual control valve (Forward/Winch-in, Reverse/Winch-out, Free Spool detent); includes a heavy 0.25 in (0.64 cm) removable chain choker |
| Electrical Control Enclosures, Telemetry & Operator Safety Protection Loop |
| SmartFeed Automated System Monitoring Logic |
Patented digital load-sensing network: monitors internal engine parameters and load factors to automatically stop or reverse the intake feed rollers when engine RPM levels decline under heavy log resistance. Features three operator-selectable RPM droop settings. |
| Master Vehicle Controller & Display Panel Interface |
Vermeer ACS master electronic control unit; integrated diagnostic LED display screen module |
| Integrated Telemetry Instrument Interfaces |
Standard package: analog fuel gauge and hour meter. Deluxe package: adds integrated voltmeter, engine water temperature, oil pressure, and analog engine tachometer. |
| Critical Preventative Machine Safety Shutdowns |
Automated safety cutoffs instantly stall the engine during high cooling medium temperatures or low engine oil pressure levels |

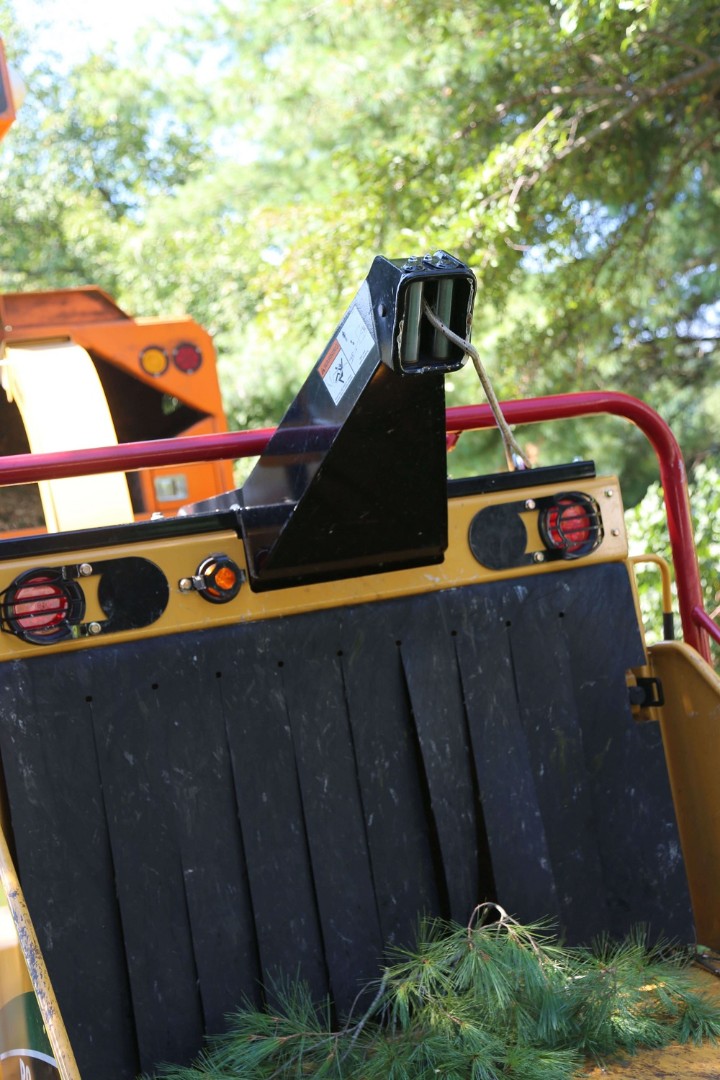

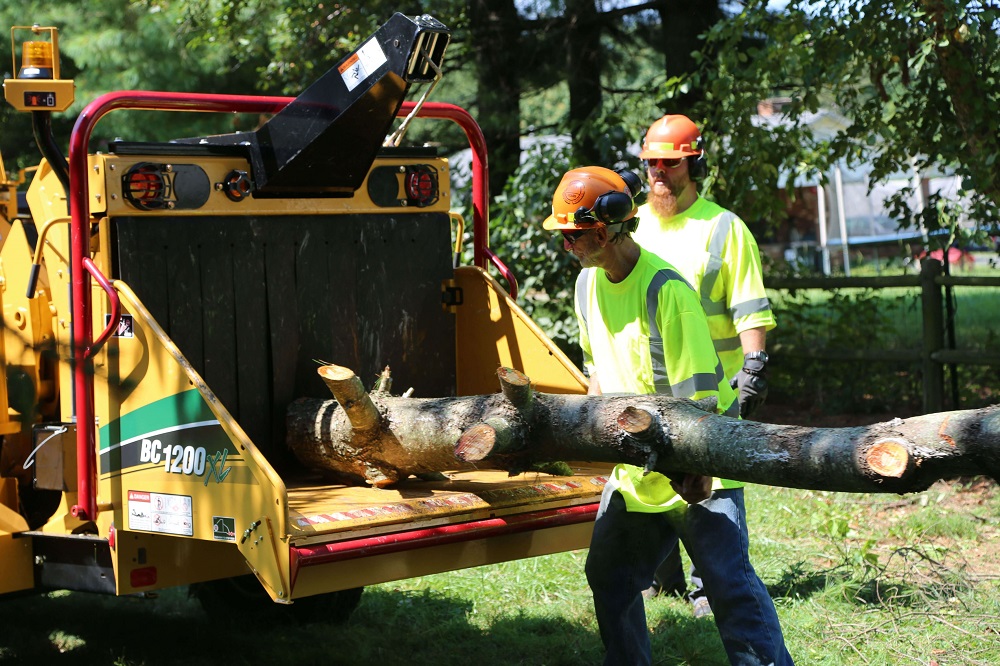

| Bottom Feed Stop Bar (BFSB Safety Assembly) |
Standard 2 in (5.1 cm) diameter emergency stop bar constructed from high-tensile 11 GA sheet steel running the hopper floor perimeter; requires 34 lbs (15.4 kg) force to actuate |
| BFSB Mechanical Sensitivity Arrays |
Toggle switch adjustment panel: Normal Sensitivity mode operates at a 22-degree deflection arc, Reduced Sensitivity mode at a 12-degree deflection arc (prevents tracking trips on rugged off-road terrain) |

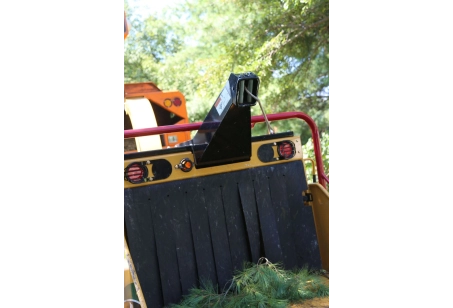

| 4-Position Top Feed Control Bar |
Standard high-reach multi-mode control bar wrapping the hopper top frame (2 in diameter, 0.1 in wall thickness). Manual selector positions: Emergency Stop, Forward, Neutral, Reverse; requires 34 lbs (15.4 kg) activation force |
| Circuit Reset Safety Activation Method |
Dual green hold-to-run override buttons located on both sides of the infeed table housing; requires manual engagement to clear active trips and reset forward roller feed |
| Chassis System Voltage and Instruments |
12-volt primary DC network loop; Group 31 starter battery rated at 660 Cold Cranking Amps (CCA) |
| Factory Optional Packaging Available |
| Custom fleet industrial paint finishes, Extended Vermeer Protection (EVP) commercial warranty packages, and Tailored factory planned preventative maintenance service contracts. |
