Vermeer HG400 Industrial Horizontal Grinder Technical Specifications
Architectural Engineering & Core Performance Mechanics

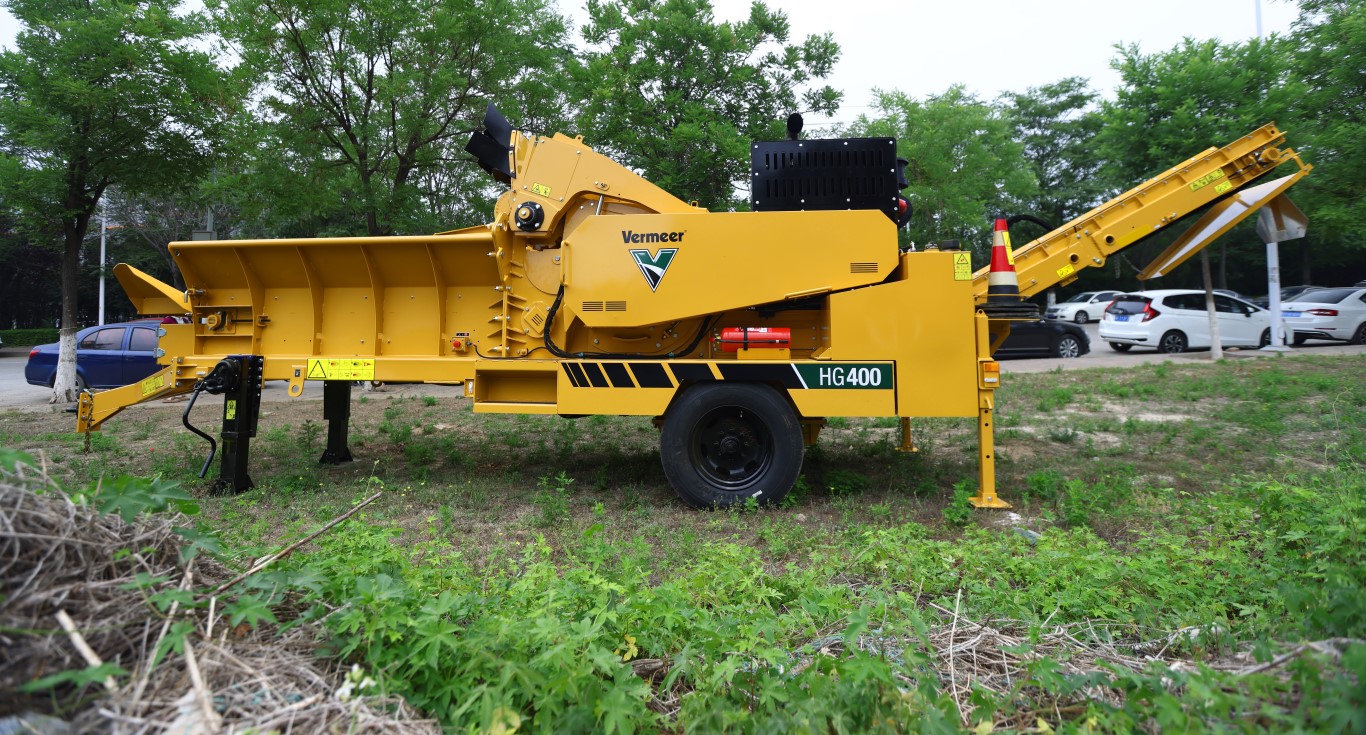

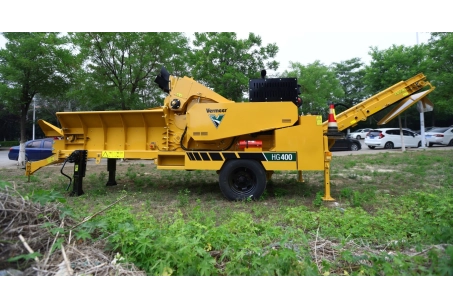

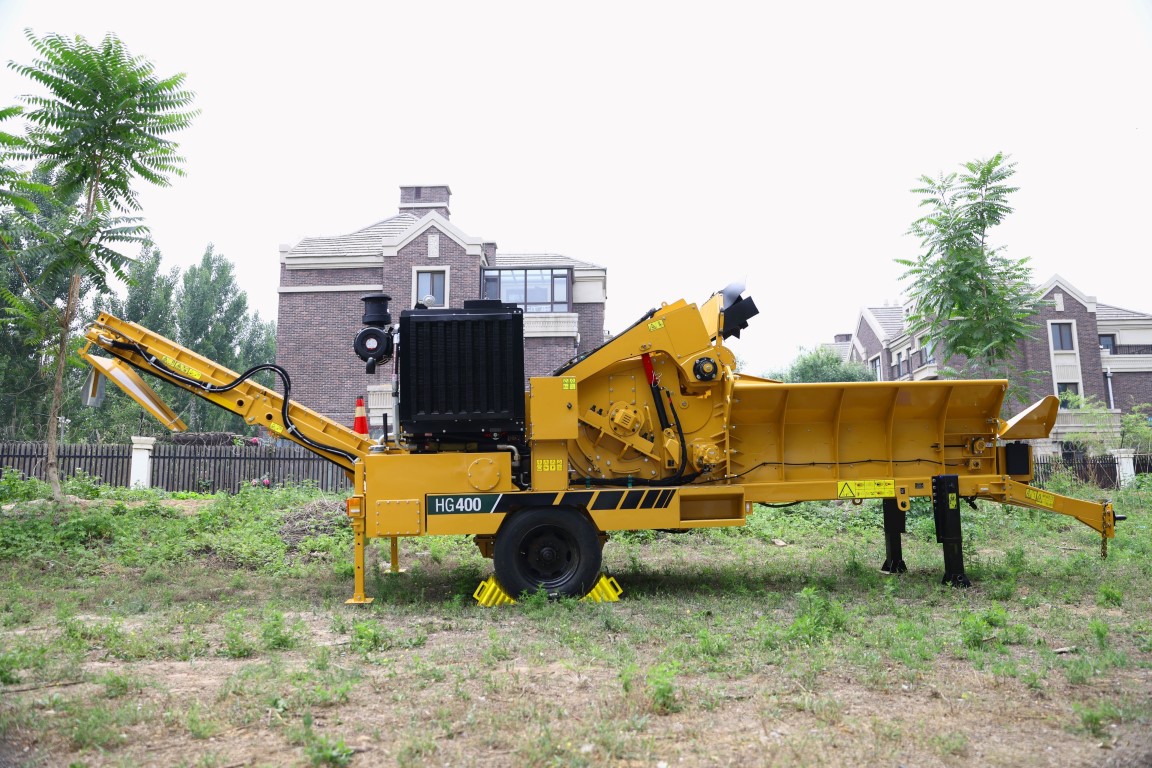

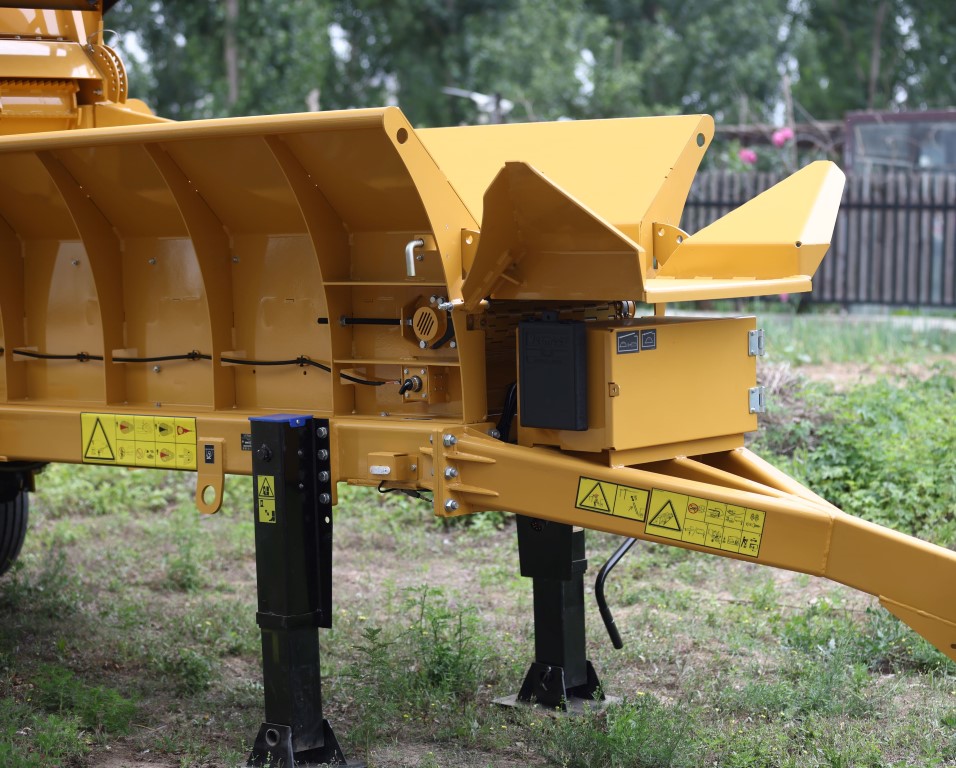

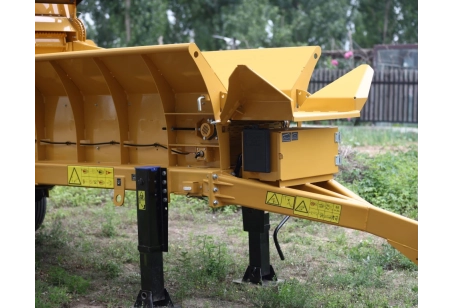

The Vermeer HG400 is a highly versatile, compact industrial horizontal grinder designed for processing organic wood waste, pallets, compost, construction debris, and medium-diameter logs into highly valuable end-products. Engine power is derived from a robust 4-cylinder Cummins QSF3.8-C130 diesel engine delivering 130 hp, operating via a fully automated hydraulic clutch setup that self-engages based on engine RPM, thereby eliminating the need for periodic manual mechanical adjustments. The primary infeed framework includes an expansive steel chain conveyor floor accompanied by large flared walls that facilitate smooth, hassle-free material feeding. An adjustable infeed tailgate can be lowered to increase the table length for processing long timbers. Active material downforce and feeding pull are generated by a heavy steel upper feed roller fitted with 15 aggressive gripping teeth and driven by dual independent hydraulic motors, producing a downward compression force of 10 MPa. Processing fragmentation is handled by a 905 lb (410.5 kg) duplex cutting drum with a large 31.3-inch diameter spinning at 1170 RPM, generating a blistering knife-tip speed of 9,048 ft/min (2757.8 m/min) to guarantee consistent material output sizing. The machine features an innovative sideload dual-screen configuration, allowing a single operator to swap square-mesh sizing screens from the side of the machine in minimal time. Electronic control architecture is built around a premium Danfoss Plus+1 micro-controller system offering 4 distinct feed speeds, complemented by a long-range wireless radio remote control operating up to 98.4 feet (30 meters). For exceptional transport flexibility, the unit incorporates a 7-foot folding discharge conveyor, allowing the entire grinder to fit securely inside standard shipping containers.
General Weight Parameters & Physical Dimensions
Maximum Transport Length - Towable Axle Configuration	29.4 ft (9.0 m)
Maximum Transport Length - Stationary Skid Configuration	26.6 ft (8.1 m)
Maximum Transport Width - Axle & Stationary Configurations	6.7 ft (2.0 m)
Maximum Transport Height - Axle & Stationary Configurations	8.1 ft (2.5 m)
Total Net Weight - Towable Axle Variant	12800 lbs (5806.0 kg)
Total Net Weight - Stationary Skid Variant	12566 lbs (5699.8 kg)
Extended Framework Metrics (Long-Infeed Option Frame)	Max Width: 82.7 in (210.1 cm); Max Length with Folding Conveyor: 19.4 ft (5.9 m); Max Height: 7.9 ft (2.4 m); Total Weight: 12567 lbs (5700.3 kg)
Acoustic Signature Level (Sound Power)	104 dB(A)
Diesel Powertrain & Mechanical Drive Components (Cummins QSF3.8)

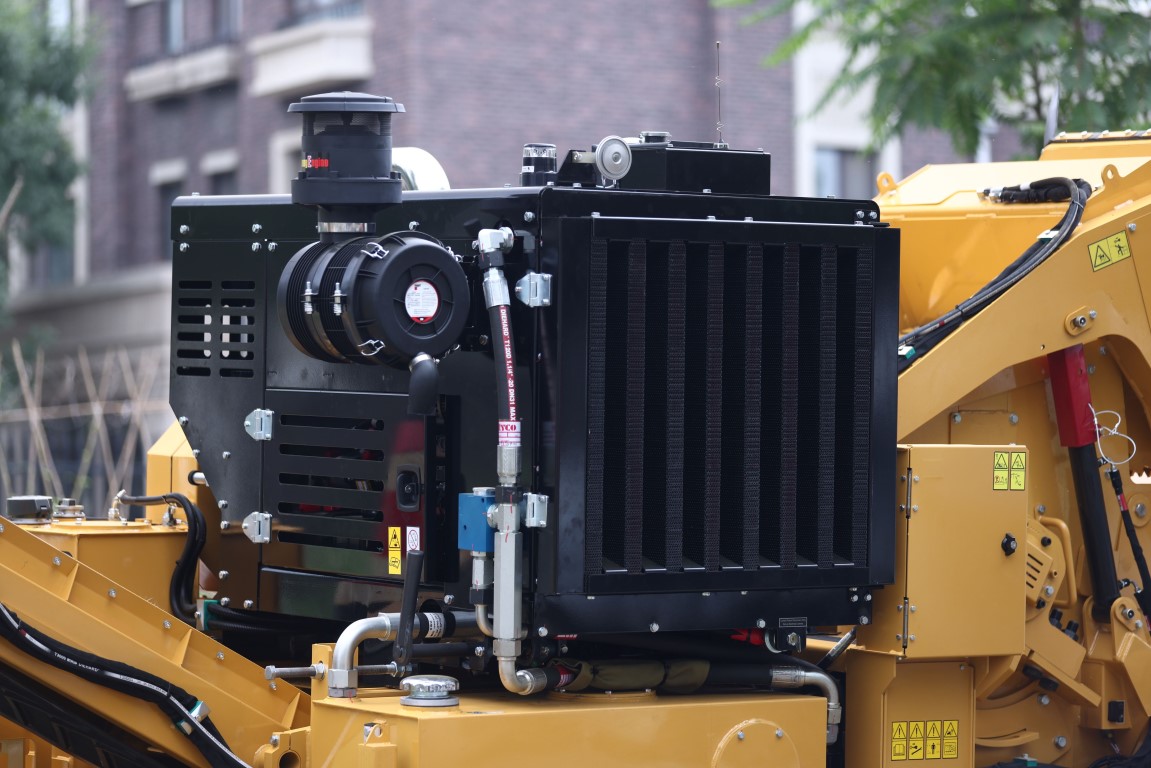

Engine Manufacturer and Model Identifier	Cummins QSF3.8-C130 (Foton-Cummins inline 4-cylinder diesel engine)
Cylinder Displacement Array and Emission Rating	4 cylinders; Tier 3 / Stage IIIA compliant configuration
Maximum Gross Engine Power Output	130 hp (96.9 kW)
Maximum Peak Engine Torque Output	398 ft-lb (539.6 Nm)
Fuel Fuel Tank Volumetric Capacity	51 gal (193.1 L)
Maximum Fuel Consumption Rate at Peak Load	5.8 gph (22.0 L/h)
Air & Oil Filtration Subsystem Quantities	1 heavy-duty dry air cleaner core; 2 spin-on engine oil filters
Engine Lubrication Capacity & Oil Specification	Total oil volume with filters: 12.7 qt (12.0 L); Recommended oil: 15W-40 (CJ-4 service classification)
Cooling Systems Volumetric Capacities	Engine block & radiator antifreeze capacity: 1.7 gal (6.4 L); Auxiliary/Clutch oil system capacity: 0.2 gal (0.7 L)
Cooling Fan Subsystem Configuration	Equipped with 1 primary engine cooling radiator fan and 1 dedicated Charge Air Cooler (CAC) fan
Charging Alternator Specifications	12 V DC system voltage; 135 Amp heavy-duty output rating
Clutch Subsystem Type and Engagement Method	Automated clutch assembly; fully hydraulic automated engagement governed by electronic throttle mapping
Main Rotor Drive Belt Specification	Premium high-torque wedge-profile V-belt, type SPB3900La
Material Infeed System & Processing Table Specifications
Infeed Processing Table Geometry Dimensions	Table Width: 48.6 in (123.4 cm); Table Hopper Depth: 17.6 in (44.7 cm); Table Length (Option 1): 7.6 ft (2.3 m)
Total Infeed Table Hopper Volumetric Capacity	1.7 cu yd (1.3 cu m)
Material Feed Loading Height (Deck to Ground)	3.9 ft (1.2 m)
Infeed Conveyor Floor Assembly Type	Heavy-duty structural steel chain design; dragging flighted bed manufactured from solid steel plate
Conveyor Roller Profiles and Drive Type	Drive roller and front tension idler roller constructed of solid steel; driven via heavy-duty hydraulic motor
Upper Compression Feed Roller Geometry	Roller width (length): 24.3 in (61.7 cm); roller outer diameter: 15 in (38.1 cm)
Feed Roller Bare Weight & Gripping Elements	Fabricated from thick-wall steel; features 15 aggressive tracking teeth; bare roller weight: 295 lbs (133.8 kg)
Total Feed Roller Weight Including Pivot Arm Assembly	868 lbs (393.7 kg) — delivers powerful gravitational crushing capability
Infeed Throat Gateway Opening Dimensions	40.5 cm x 63.5 cm (15.9" x 25") structural opening width and height
Maximum Structural Infeed Material Clearance Height	15.9 in (40.5 cm) absolute vertical opening limit
Feed Roller Drive Power & Hydraulic Downforce	Driven by 2 independent high-torque hydraulic motors; maximum downward hydraulic clamping pressure: 10 MPa
Intake Zone Operator Safety Hardware	1 foreign object deflector shield and a comprehensive heavy structural steel infeed safety guard housing (40.5 cm x 63.5 cm)
High-Velocity Duplex Cutting Drum Assembly
Cutting Mechanism Housing Interface Area	40.5 cm x 63.5 cm structural grinding zone
Total Weight of Grinding Drum Assembly	905 lbs (410.5 kg) complete with central rotor shaft
Cutting Drum Structural Core Geometry	Outer cutting diameter: 31.3 in (79.5 cm); cutting path width: 25.9 in (65.8 cm)
Drum Cylindrical Outer Skin Thickness	0.9 in (2.3 cm) thick plate steel wrapper for extreme structural momentum and rigidity
Rotor Rotational Speed Matrix	1170 RPM operational drum speed under load
Rotor Cutter Knife Tip Linear Velocity	9048 ft/min (2757.8 m/min) for optimal shattering impact
Main Shaft Supporting Bearing Architecture	Heavy-duty dual-row cylindrical roller bearing assembly; inner ring bore diameter: 0.3 in (0.8 cm)
Rotor Cutting Tip Array Components	15 indexable replacement cutter tips (knives); 2 distinct optional styles of tips available for selection
Sizing Screens Subsystem (Material Calibration)
Screen Loading Architecture & Maintenance Interface	Sideload dual-screen design; screens are stacked one on top of another for quick removal; fixed-type locking pin insertion system
Total Screen Elements & Wear Faces	2 separate semi-circular screens; 2 available structural working indexing sides

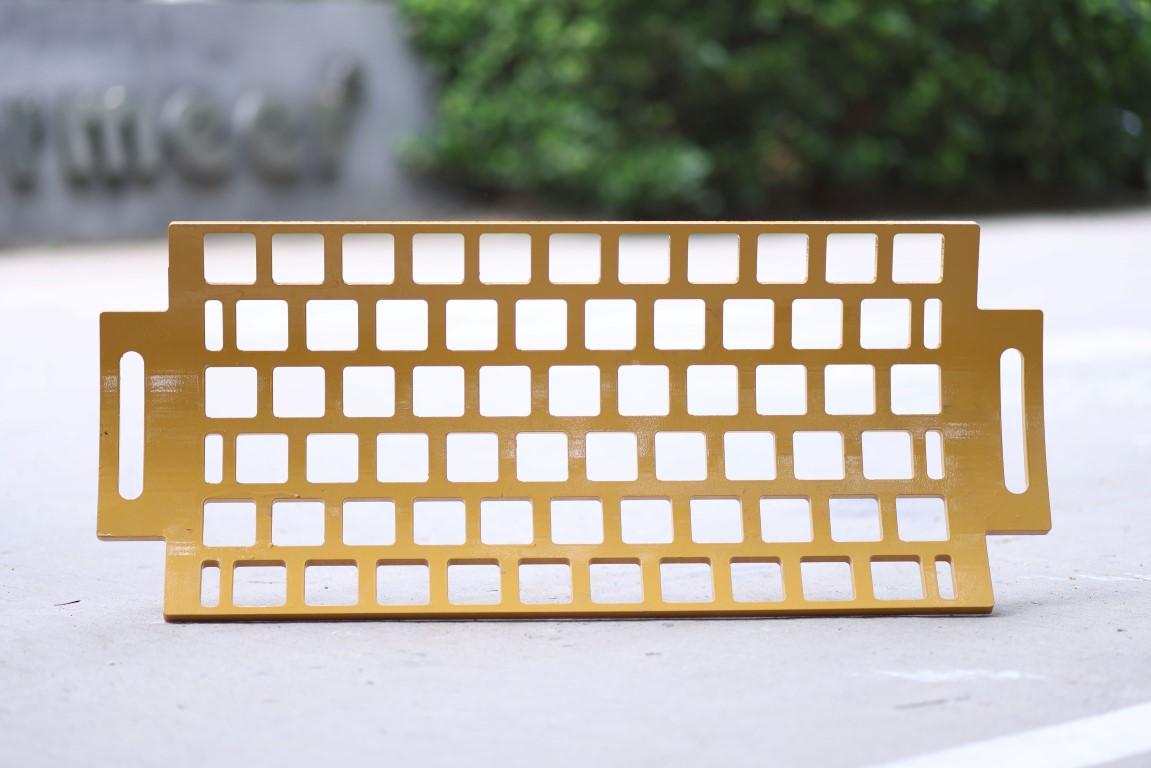

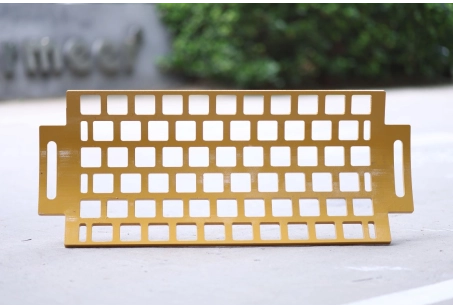

Single Screen Weight & Mesh Geometry	Weight per screen element: <55 lbs (25.0 kg); standard mesh type: Square; 4 distinct optional screen types available
Product Discharge System — Single-Belt Conveyor
Discharge Conveyor Overall Geometrical Layout	Total structural length: 34.4 ft (10.5 m); transport belt width: 18 in (45.7 cm)
Conveyor Belt Splicing & Velocity Performance	Mechanical/vulcanized splice connection enabled; belt linear travel velocity: 725 ft/min (221.0 m/min)
Belt Idler Assembly Architecture Metrics	Includes 1 return idler roller; tension roller diameter: 0.2 in (0.6 cm); dual (2) heavy idler roller bearings
Drive Roller Dimension Profiles & Separators	Standard drive roller diameter: 0.8 in (2.0 cm); magnetic separator head drive roller diameter: 0.8 in (2.0 cm)
Discharge Hydraulic Drive System Performance	1 independent high-torque hydraulic drive motor; 2 drive motor shaft supporting bearings
Product Discharge Stacking Height (Loading Height)	6.9 ft (2.1 m) operational stacking height (total physical folding arm mechanism height: 2.13 m / 7 ft)
Centralized Hydraulic & Automatic Clutch Fluid Systems
Main Hydraulic Fluid Reservoir Capacity	40 gal (151.4 L) total tank volume; recommended premium mineral oil: HM68
Main Hydraulic Oil Conditioning Hardware	Full-flow replaceable cartridge filter element; integrated with 1 heavy-duty forced-air oil cooler radiator
Automatic Clutch Hydraulic Circuit Capacity	40 gal (151.4 L) fluid tank volume; recommended fluid: HM68; filtered via independent replacement element; 1 dedicated cooler
Main System Hydraulic Pump Type & Pressure Ceiling	High-pressure Gear Pump configuration; maximum primary system safety relief valve setting: 3000 psi (206.8 bar)
Electrical Architecture, Telemetry Panels & Remote Controls
System Operating Voltage & Circuit Defense	12 Volt DC electrical network; includes 1 heavy-duty maintenance-free battery; built-in automated system protection master loop
Primary On-Machine Operator Telemetry Interface	All-weather station housing a high-definition digital Liquid Crystal Display (LCD) screen
Wireless Wireless Radio Remote Control Loop	Industrial wireless radio frequency communication link; absolute effective operational working range: 98.4 ft (30.0 m)
Handheld Transmitter Functional Capabilities	Equipped with 1 maintenance-free rechargeable battery pack; supports manual multi-channel frequency tuning; displays full real-time engine telemetry, machine operational parameters, active diagnostic fault codes, and manual feature toggle switches
Chassis Trailer Infrastructure, Axles & Suspension Elements
Main Structural Frame and Base Configuration	Heavy steel skid-mount structure; trailer-mounted versions equipped with a certified road-going running gear chassis
Towing Hitch Coupler Specification Metrics	3-inch (76.2 mm) heavy-duty forged pintle ring coupling eye
Trailer Braking & Safety Compliance Illumination	Full Electric hub braking system; rear running, indicator, and stop assemblies utilize sealed water-resistant LED light blocks
Axle Layout Subtype and Weight Capacity	Single-axis axle assembly utilizing a heavy leaf-spring suspension layout; 1 axle for fifth-wheel/skid configurations; 1 axle for spindle tow setups
Total Suspension Rated Axle Load Capacity	12000 lbs (5443.1 kg) maximum weight load rating
Tire and Rim Wheel Specification Metrics	Heavy commercial tires size 235/75 R17.5; steel wheel rims size 17.5x6.75 HC
Chassis Minimum Ground Clearance Metric	7.1 in (18.0 cm) lowest clear height underneath the axle beam
