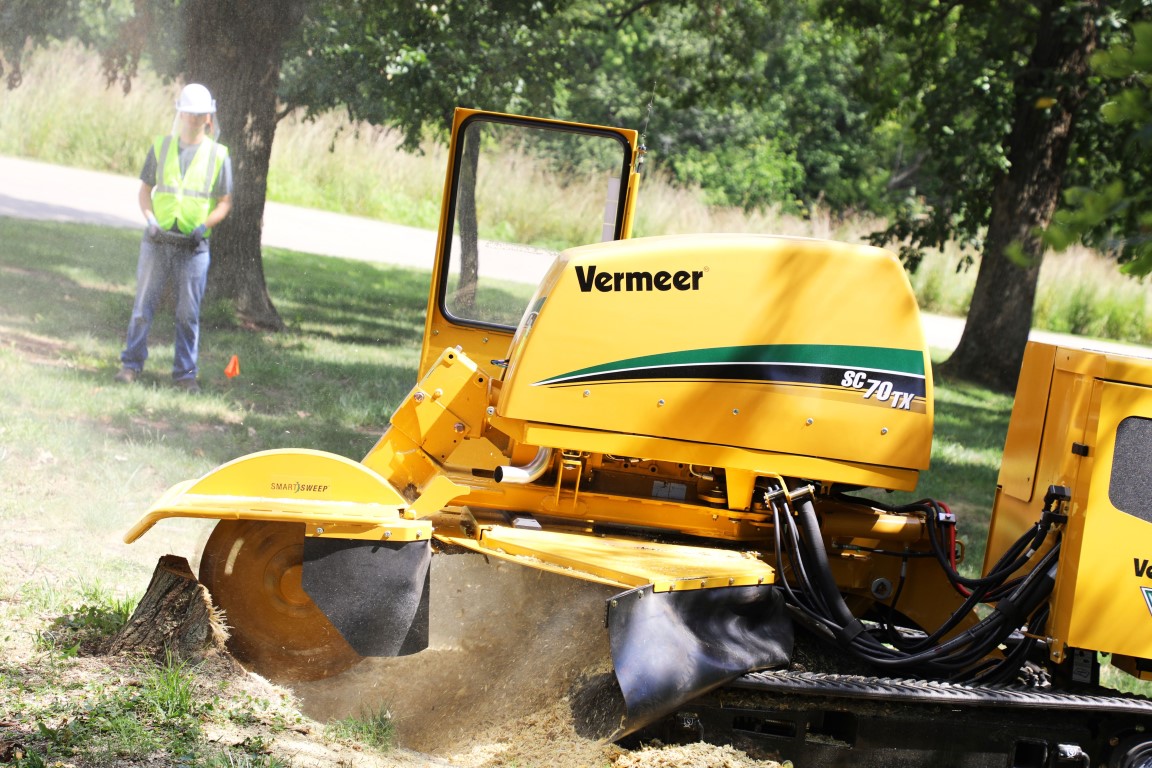

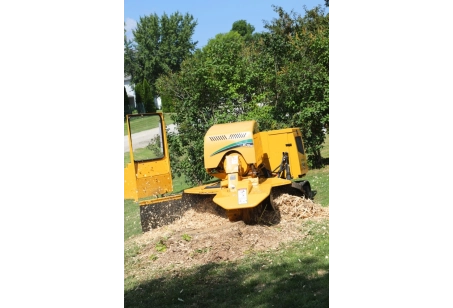

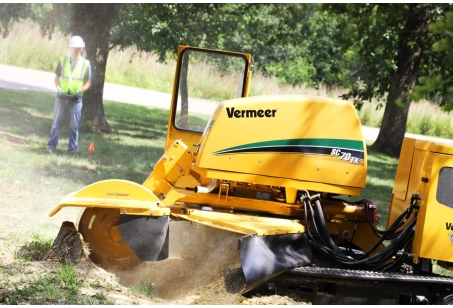

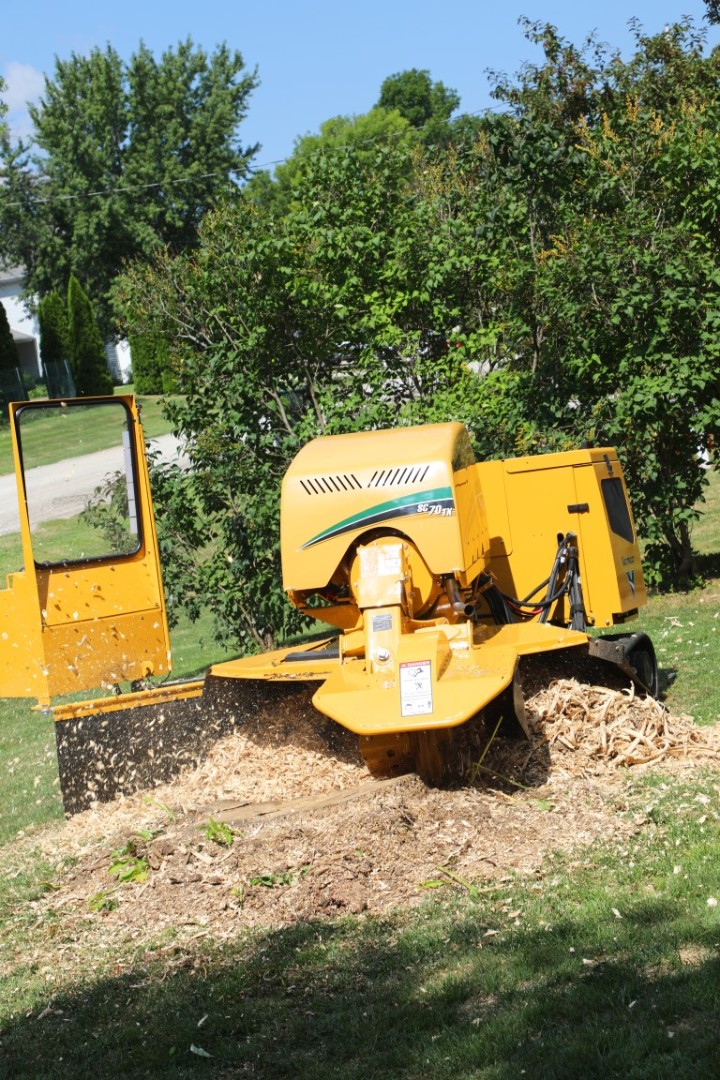

| Architectural Layout & Operational Design Strategy |
| The heavy-duty commercial Vermeer SC70TX stump cutter delivers premium mechanical efficiency to its rugged cutter wheel assembly via an all-gearbox direct drivetrain configuration. Bypassing standard high-wear belt systems completely, engine crankshaft horsepower flows sequentially through a robust upper bevel gearbox, down a vibration-dampened center driveshaft, and straight into a lower bevel gearbox coupled to the rotor, removing all parasitic side-loads from the power plant. Ground mobility is driven by a full planetary track drive setup featuring integrated hydraulic motors and oil-immersed parking brakes, facilitating independent track counter-rotation for true zero turning radius maneuverability on confined commercial jobsites. For smooth high-torque flotation, the undercarriage utilizes premium 9-inch wide iron-core rubber tracks that hydraulically widen from a narrow 35-inch (88.9 cm) residential profile out to a stable 51-inch (129.5 cm) wide-stance footprint during active engagement. A dedicated microprocessor regulates the automated electronic throttle, preventing high-RPM clutch engagement to extend friction lining service life, while a lockable reinforced steel-skeleton plastic hood enclosure isolates key operational blocks from vandalism and environmental debris. |
| General Dimensions and Weights |
| Overall Transport Length |
141.6 in (359.7 cm) |
| Undercarriage Overall Width |
51 in (129.5 cm) [fully extended track configuration] |
| Overall Machine Height |
72 in (182.9 cm) |
| Operating Weight (Engine Option One) |
3900 lbs (1769 kg) |
| Soft Ground Bearing Footprint Pressure |
4.3 psi (29.6 kPa) — optimizing turf flotation under heavy loads |
| Engine Infrastructure (CAT Turbo Diesel) |
| Make, Model & Emissions Subsystem |
Caterpillar C2.2 (4-Cylinder, Turbocharged Diesel, EPA Tier 4 Final / Stage V Compliant) |
| Maximum Gross Output Power |
67 hp (50 kw) |
| Maximum Peak Torque Output |
153 ft-lb (207.4 Nm) |
| Fuel Specification Profile |
Ultra-low sulfur diesel (ULSD) ONLY |
| Fuel Reservoir Capacity |
12 gal (45.4 L) |
| Maximum Fuel Consumption Rate |
3.8 gph (14.4 lph) at maximum continuous load matrix |
| Air Intake Filtration Subsystem |
Dry-type element configuration containing an air evacuator valve, built-in flow restriction indicator, and internal secondary safety element |
| Lubrication Subsystem (Oil Capacity & Rating) |
Spin-on oil filter casing; capacity with filter: 8.5 qt (8 L); recommended viscosity: 10W-30 |
| Engine Cooling Loop Subsystem |
Water/antifreeze mixture; total capacity (engine block + core radiator): 2.9 gal (11 L); cooling fan diameter: 16.5 in (40.7 cm) |
| Alternator Charging Capacity |
12V, 85 Amp charging capacity |
| Continuous Angle of Inclination Limit |
35 degrees maximum continuous operation range |
| Clutch Disengagement Hardware |
Electric heavy-duty clutch paired with a high-torque automated mechanical brake |

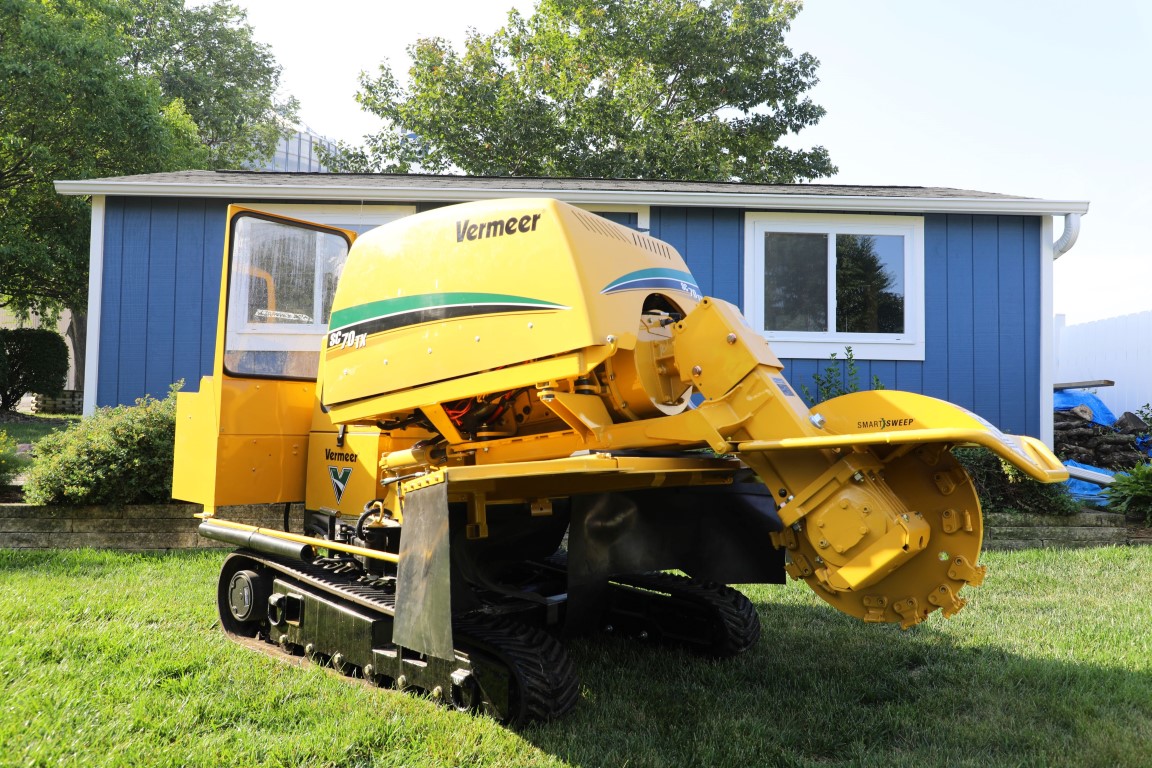

| Cutterwheel & Tooth Subsystems (Yellow Jacket) |
| Cutterwheel Plate Rotor Diameter |
23 in (58.4 cm) |
| Cutterwheel Plate Disc Thickness |
1.1 in (2.8 cm) |
| Cutterwheel Operational Running Speed |
948 rpm |
| Straight Line Cutting Sweep Dimension |
65 in (165.1 cm) straight-line sweep profile |
| Max Cut Clearance Level Above Grade |
27 in (68.6 cm) |
| Max Cut Clearance Level Below Grade |
16 in (40.6 cm) |
| Cutting Tooth & Pocket System |
Exclusive Yellow Jacket™ Cutter System; 30 total cutting teeth / 30 pockets; 2 indexing wear positions; fully reversible tooth and pocket architecture |
| Debris Containment Shielding Volume |
Standard steel cutterwheel guard shroud; total chip pile containment capacity: 23 cu ft (0.7 cu m) |
| Mechanical Gearbox Drivetrain Assemblies |
| Upper Angular Gearbox Module |
Straight bevel gearing configuration; 1.7 qt (1.6 L) capacity; utilizes SAE 75W90 synthetic gear oil |
| Lower Working Gearbox Module |
Straight bevel gearing configuration; 2.2 qt (2.1 L) capacity; utilizes SAE 75W90 synthetic gear oil |
| Main Interconnecting Driveshaft |
Dual universal joints (U-joints) fitted with standard protective double-lip grease seals |
| Hydraulic Circuit Infrastructure |
| System Pump Type and Configuration |
Tandem gear pump configuration, internally pressure balanced; open-loop type layout |
| Main Hydraulic Output Flow Rate @ Max RPM |
9 gpm (34.1 L/min) |
| Main Circuit Maximum Relief Pressure |
3000 psi (206.8 bar) |
| Hydraulic Fluid Tank Volume & Filtration |
9.6 gal (36.3 L) tank capacity; full-flow 4-micron filtration on return line; mesh suction strainer |
| Cooling Radiator & Recommended Fluid Type |
Dedicated fan-cooled hydraulic oil cooler radiator; utilizes Vermeer Hypower 68 fluid |
| Directional Controls & Testing Ports |
Electric-over-hydraulic proportional valve blocks integrated with dedicated quick-coupling pressure test diagnostic ports |

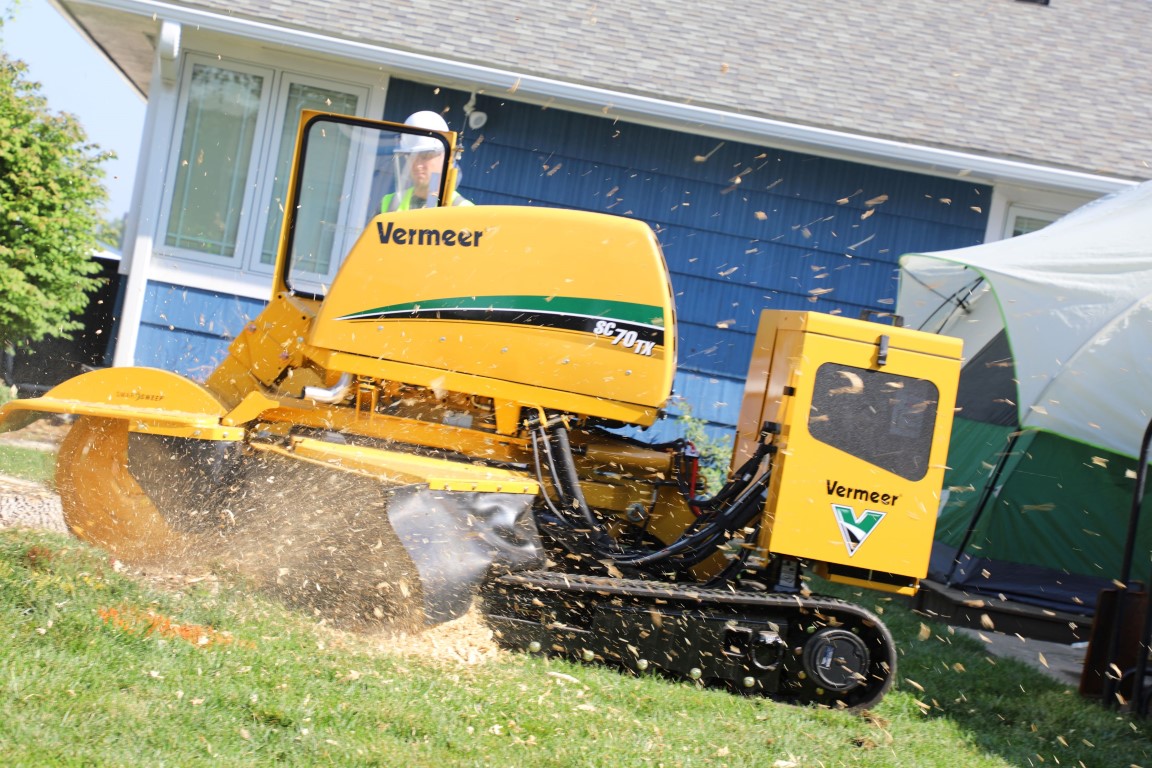

| Track Undercarriage & Ground Drivetrain Parameters |
| Track Type & Core Structural Engineering |
Molded rubber tracks with internal iron-core reinforcement bands; 9 in (22.9 cm) pad width |
| Track Contact Base Length on Ground |
51.2 in (130 cm) |
| Undercarriage Roller Configuration |
10 heavy-duty cast steel idler rollers per track assembly track frame |
| Track Drive Hydrostatic Pump |
Tandem gear pump layout, pressure balanced; delivers 9 gpm flow @ 2900 psi (200 bar) safety relief setting |
| Track Drive Motors & Parking Brakes |
Combined structural block: integral hydraulic motor coupled with planetary reduction unit; internal multi-disc safety brake |
| Ground Travel Speeds (Low / High Range) |
Low Speed Travel Range: 0.7 mph (1.1 km/h); High Speed Travel Range: 1.6 mph (2.6 km/h) |
| Electrical Control Systems, Telemetry & Advanced Operator Safety |
| SmartSweep™ Processing Optimization |
Vermeer C248 master controller with integrated SmartSweep technology; constantly evaluates CAT engine load values to dynamically adjust cutter wheel swing feed sweep rates, protecting the mechanical gearboxes from shock wear |

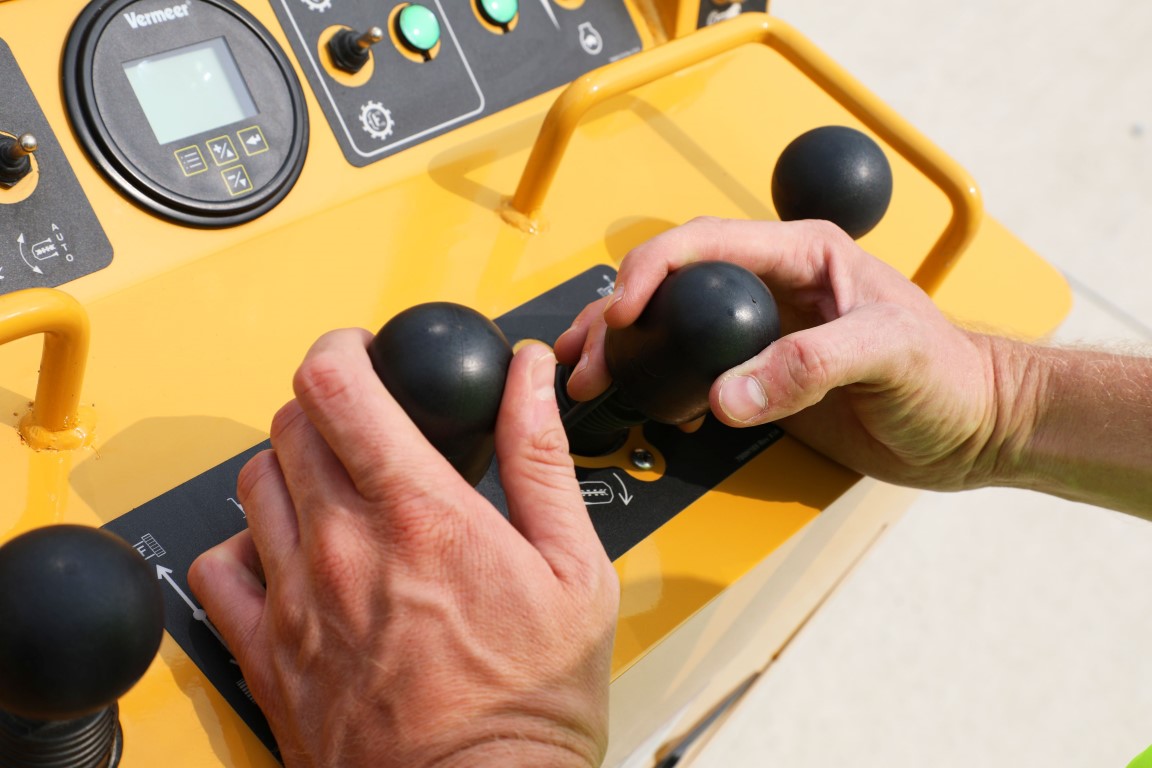

| Capacitive Dual-Station Operator Presence |
Two separate hydraulic control levers embedded with patented capacitive-sensing layers. Automatically commands cutter wheel clutch disengagement and mechanical brake activation within seconds if hands break surface contact. Includes an integrated dashboard visual interface. |
| Master Cluster Instrument Panel |
Multi-function display (MFD) reporting cumulative machine hours, real-time fuel gauge levels, engine RPM, active engine fault log, and system operational statuses |
| Automation Safety Shutdown Triggers |
12V vehicle system; heavy-duty cold-cranking battery rated at 950 CCA; integrated automated critical shutdown triggers for high engine cooling temperatures or dangerously low oil pressure profiles |
| Operator Station Layout & Shielding |
Swing-out positioning control station fitted with an impact-resistant polycarbonate operator vision shield treated with an abrasion-resistant hard coat |

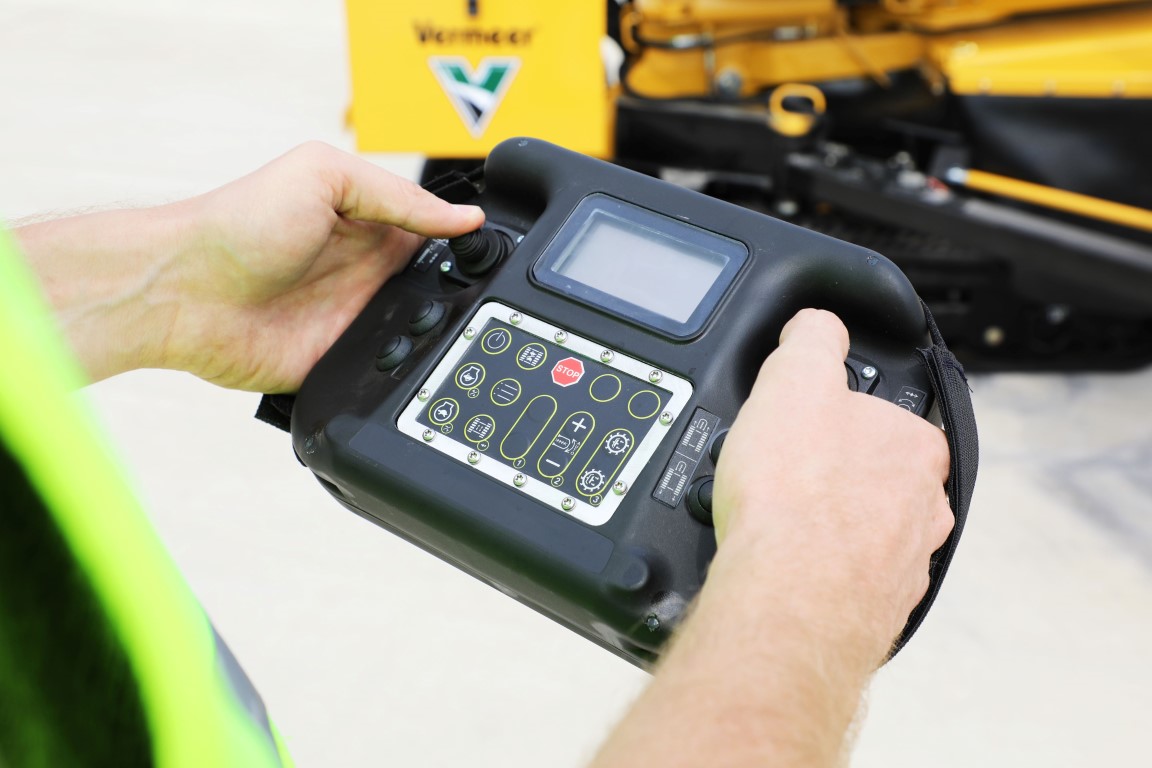

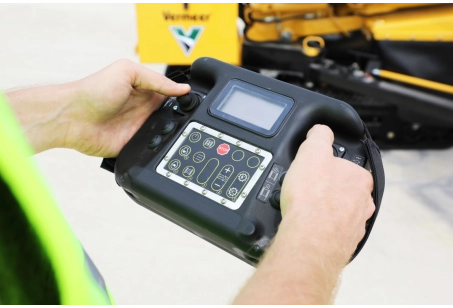

| Wireless Full-Function Radio Remote Control Option |
| Radio Remote Control System Parameters |
Wireless hand-held transmitter package with built-in telemetry LCD status feedback screen. Duplicates remote controls for: Emergency Stop (E-stop), electronic linear throttle, cutter wheel clutch toggle, boom swing/height control, track creep propel, track widening mode, travel speed range selections, and SmartSweep settings. |
| Asset Protection & Factory Optional Packages |
| Commercial fleet special color paint schemes matching requested profiles, Extended machine warranty programs, and Scheduled Preventive Maintenance service agreements. |
